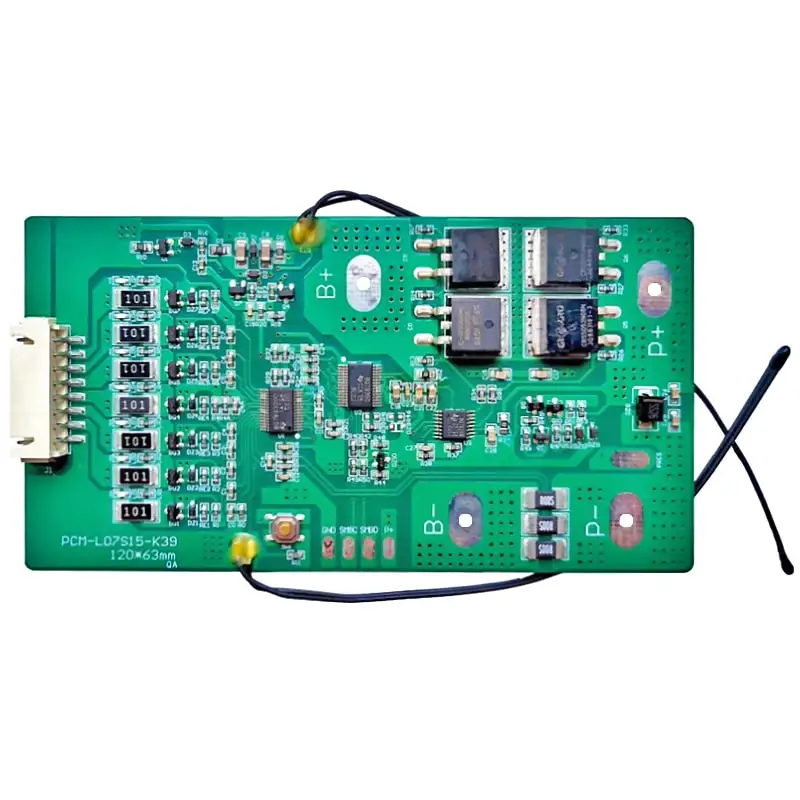

Product name:Protection Circuit Module
Model No:PCM-L07S15-K39
For 5S-7S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 5-7 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Connect the special upper computer software to display the total voltage, battery voltage, capacity, current, temperature, cycle times and other parameters;
3. Support SMBus communication protocol;
4. The metering IC adopts BQ78350+BQ76930 series, which can read voltage, capacity, current, temperature, cycle times and other parameters;
5. Over charge, over discharge, short circuit, over current, temperature protection, etc.;
6. The maximum continuous working current is 15a, and the charge and discharge are at the same port;











































































































































































































ItemsSpecifications
Lithium-ion/Lithium PolymerLiFePO4
Communication InterfaceSMBus
CapacityDesigning battery capacity15Ah
Max capacity(Battery pack)290Ah
Min capacity(Battery pack)100mAh
External capacity IndicationLCD,LED,SOC
Gas gauge algorithm CEDV Algorithm
VoltageCharging voltage(10S)42(4.2V/Cell)36V(3.6V/Cell)
Cell-balance window50mV±10%
Cell-balance release voltage20mV±10%
Cell-balance detection delay time0.5~2s
CurrentBalance current for single cell34±3mA29±3mA
Normal operating-mode current
(Gas Gauge IC)		800uA
SLEEP operating-mode current
(Gas Gauge IC)		200uA
FULL SLEEP operating-mode current
(Gas Gauge IC)		1uA
Maximal continuous charging current15a(Max)
Maximal continuous discharging current15a(Max)
Over charge ProtectionOver charge detection voltage4.25±0.025V3.80±0.05V
Over charge detection delay time1~2S1~2S
Over charge release voltage4.05±0.05V3.55±0.05V
Over discharge protectionOver discharge detection voltage2.5±0.07V2.00±0.05V
Over discharge detection delay time1~2S1~2S
Over discharge release voltage3.0±0.1V2.7±0.05V
Over current protectionOver current detection voltage0.2±0.015V
Over current detection current40±5a(can adjust)
Detection delay time5~60ms
Release conditionCut load
Short protectionDetection conditionExterior short circuit
Detection delay time200-800us
Release conditionCut load
ResistanceProtection  circuitry (MOSFET) B- to P-≤20mΩ
Temperature protectionCharge temperature  protection60℃±5℃
Charge release temperature50℃±5℃
Discharge temperature protection65℃±5℃
Discharge release temperature55℃±5℃
Operating Temperature Range-40~+85℃
Storage Temperature Range-40~+125℃
DimensionL120*W63*T8mm

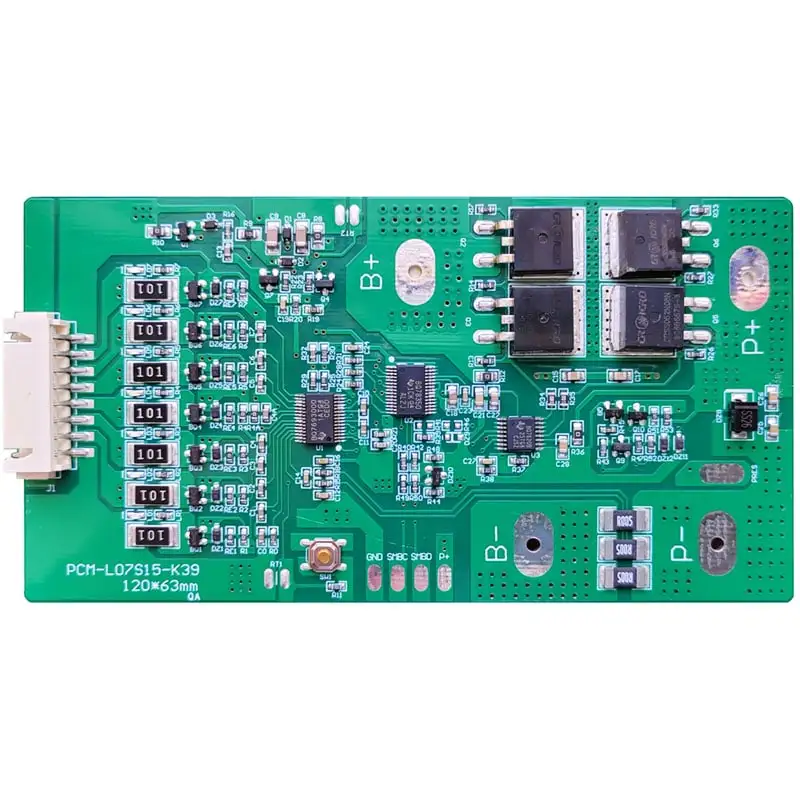

B+:Battery+PCM-L07S15-K39
B-:Battery-
SMBD:Smbus Data Line
SMBC:Smbus Clock Line
RT1,RT2:NTC
P+:Charge+/discharge+
P-:Charge-/discharge-
