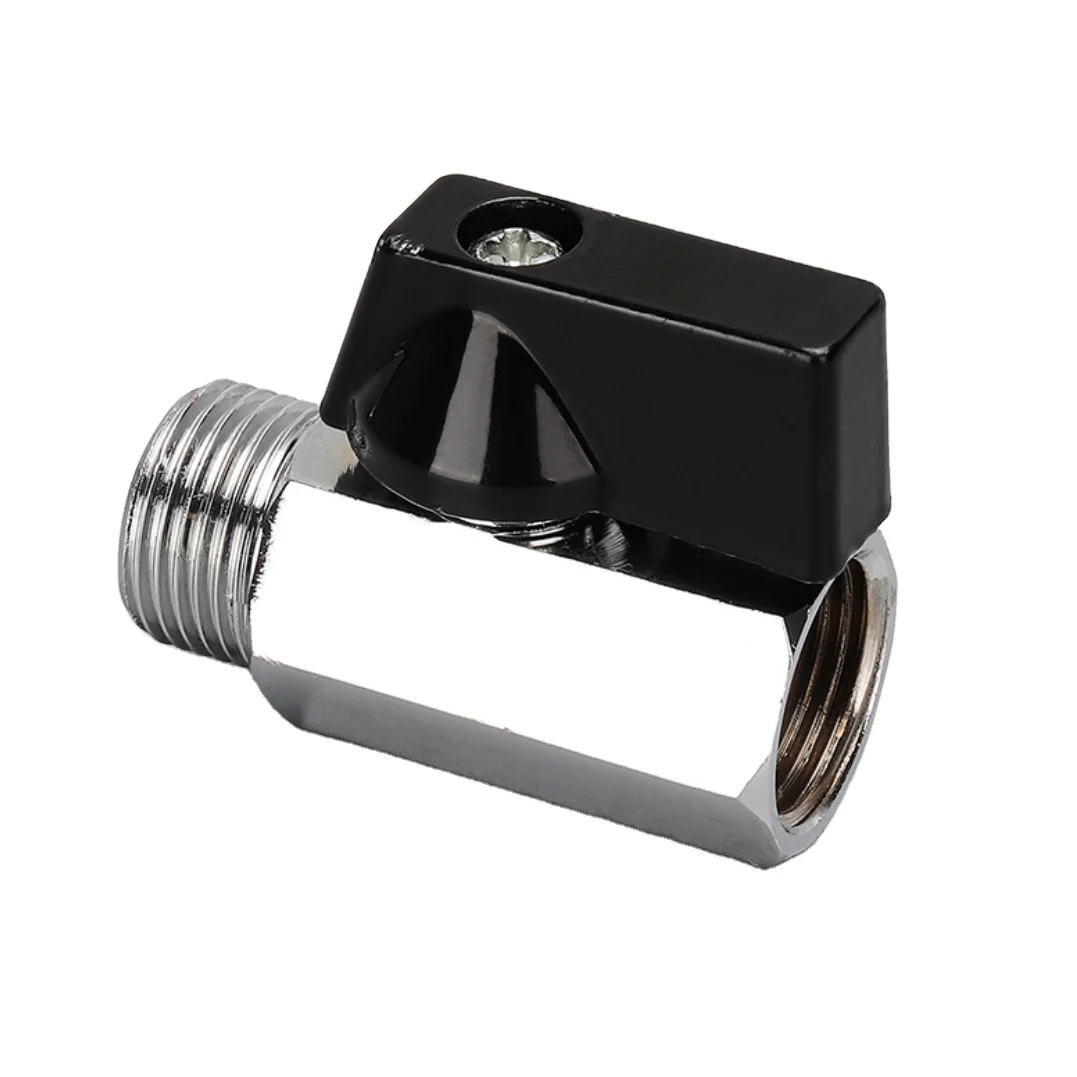

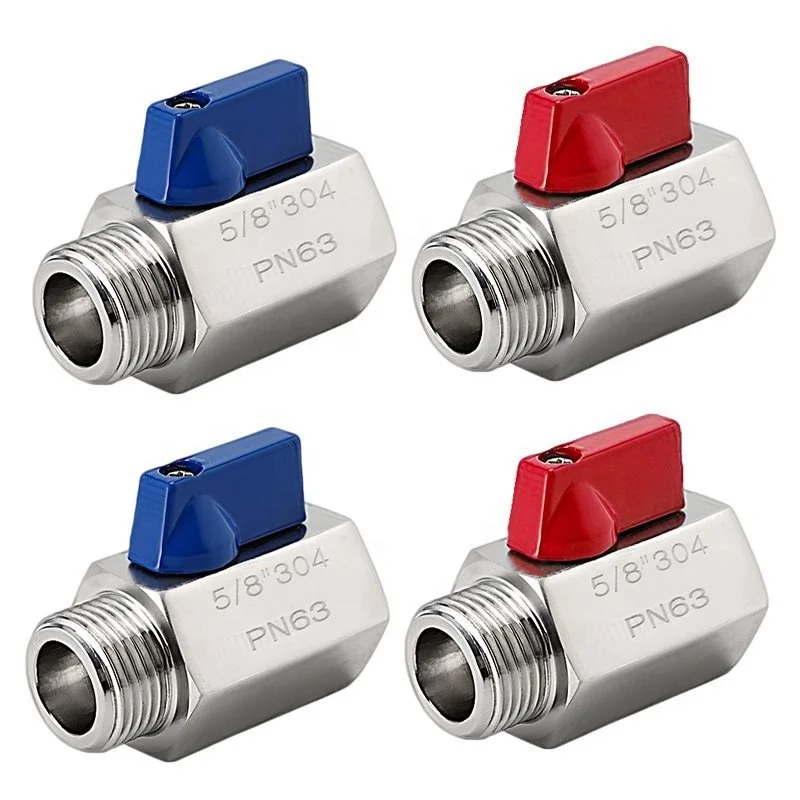

Stainless Steel Male Female Key Coupler 5/8' Beer Line Mini Ball Valve
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.Linch Ltd.
Share on (1601248008104):
Product Overview
Description
Sanitary Mini Ball Valves
* Reduce flow port
* Precision casting
* Blow-out proof valve stem
* PED97/23/EC(CE0036) Approved
* Thread according to ASME B1.20.1, BS21.0, DIN2999/259, ISO228-1, JIS B 0203, ISO7/1
* Inspection testing according to: API598, EN12266
* Made of SUS304 or SUS316L
Material | SS304 or SS316L |
Working Pressure | 1000PSI / PN63 |
Thread Spec | NPT, BSP, G thread |
Size | 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1” |

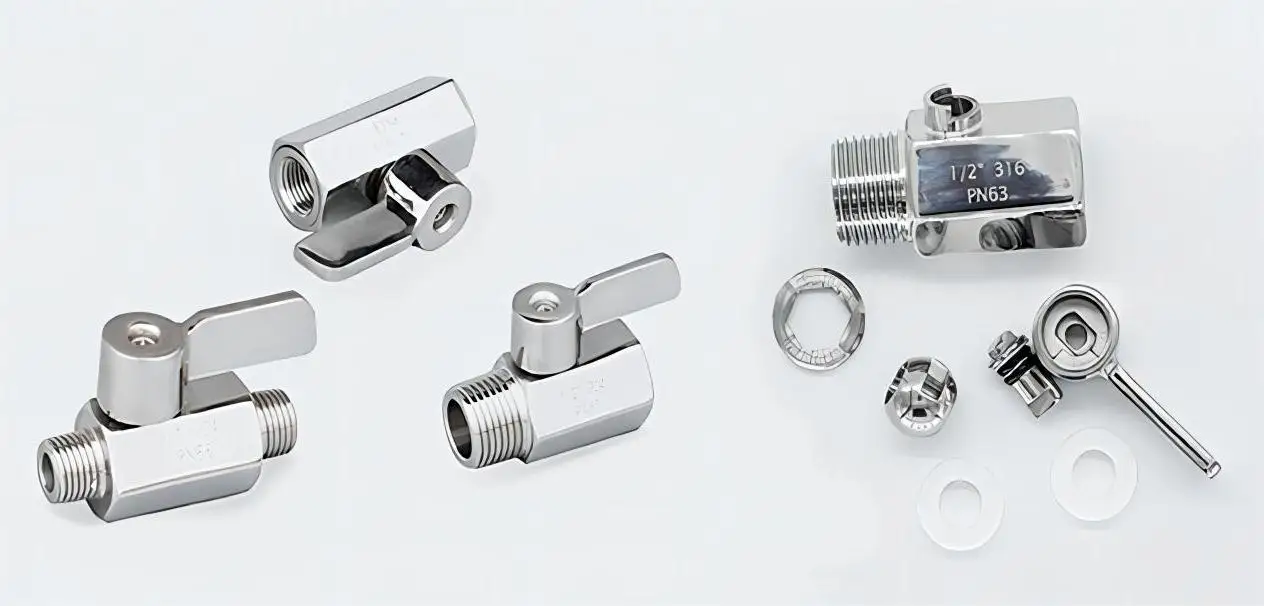

Product Details
Designation | Material |
O-ring | NBR |
Stem | SUS304/SUS316L |
Bolt | SUS304/SUS316L |
Level/Handle | Aluminium/CF8 |
Valve Body | CF8/CF8M |
Valve Cap | CF8/CF8M |
Ball Seat A | RPTFE |
Ball Core | CF8/CF8M |
Ball Seat B | RPTFE |
Linch offers many types of sanitary mini ball valves for your free choice.
We can manufacture ball valves as per requested standards, SMS standard, DIN standards, ISO/IDF standards and 3A standards
We can manufacture ball valves as per requested standards, SMS standard, DIN standards, ISO/IDF standards and 3A standards
We can also produce non-standard mini ball valves according to your drawings and special requirements.
Further more, our ball core is fully encapsulated by RPTFE sealing gasket.
Further more, our ball core is fully encapsulated by RPTFE sealing gasket.
Function of Mini Ball Valve
Mini ball valves are suitable for pipelines with pressure ratings of PN1.0 to 4.0 MPa and operating temperatures ranging from -29 to 180℃ (with reinforced PTFE seals) or -29 to 300℃ (with PEEK seals).
They are used to cut off or connect the medium in the pipeline.
Depending on the material chosen, they can be used with various media such as water, steam, oil, nitric acid, acetic acid, and so on.
Main Connection End

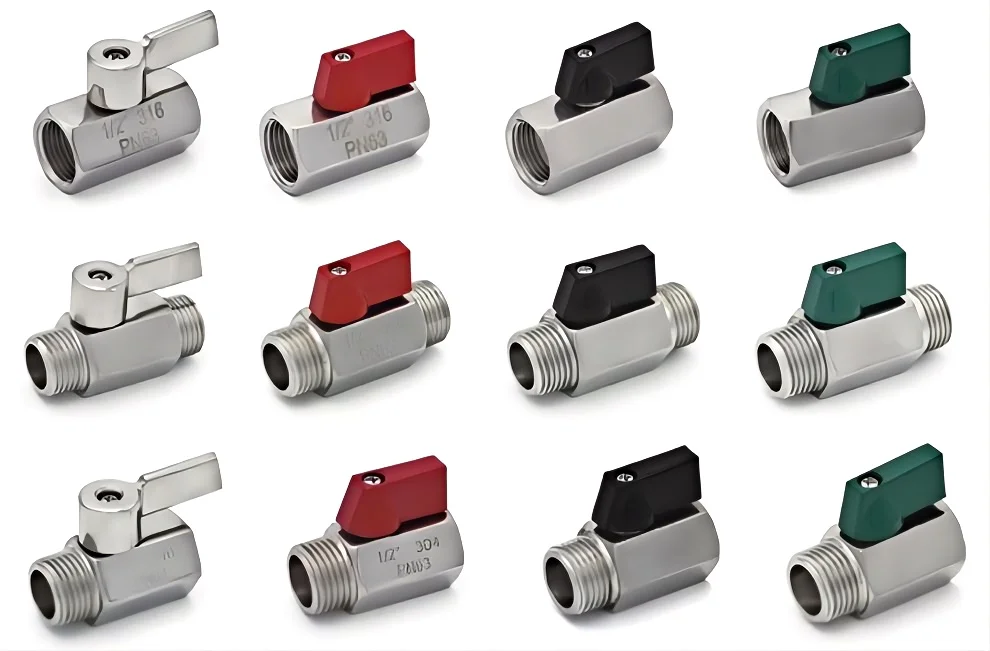

Main Connection Ends of Mini Ball Valve
Mini Ball Valve一一Female/Female Mini Ball Valve一一Male/Female
Mini Ball Valve一一Male/Male Mini Ball Valve一一Female / Hose
Color of handle can be blue, red and black or customized.
Thread can be BSP, NPT or others.
Production Process
Why Choose Us
We are one of the best suppliers of sanitary stainless steel products in China, specializing in the production of various high-precision sanitary stainless steel products.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
In order to ensure that product quality meets all relevant standards, we have developed 8 special processing technologies and have more than 10 technical patents.
Currently, all our products comply with ISO, SMS, IDF, 3A and DIN standards, as well as GMP and food industry requirements.
Among all Chinese suppliers, we have the most extensive range of models and the safest certification
We provide customized services to customers all over the world
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
Certifications
FAQ
Q:What is MQO?
A:No MOQ required for products in stock.Others can be discussed.
A:No MOQ required for products in stock.Others can be discussed.
Q:What is your lead time?
A:7-10 days for standard products.For custom made products lead time to be negotiated.
A:7-10 days for standard products.For custom made products lead time to be negotiated.
Q:How do you ensure to meet our requirement?
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:We can fabricate non-standard stainless steel valves and fittings as per your drawings. We can also provide technical support in design according to your special requirement.
