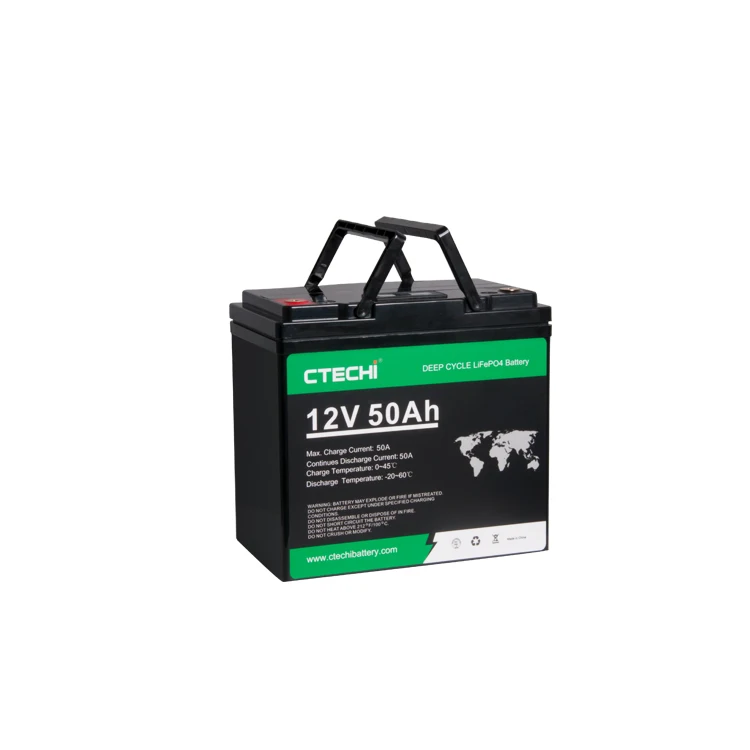

Custom Lithium Ion Batteries 12v 7Ah 9Ah 12Ah 16Ah 17Ah 20Ah 28Ah 30Ah 32Ah 50Ah 100Ah 200ah 300Ah 400Ah Solar LiFePO4 Battery
- Category: >>>
- Supplier: Shenzhen Ctechi Technology Co. Ltd.
Share on (1601248019774):
Product Overview
Description
Products Description
Main Features
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 6000 cycle times.
3. Max. discharging current 100A, balancing current 70±10mA.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.
2. Use a grade prismatic cells. More than 6000 cycle times.
3. Max. discharging current 100A, balancing current 70±10mA.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.

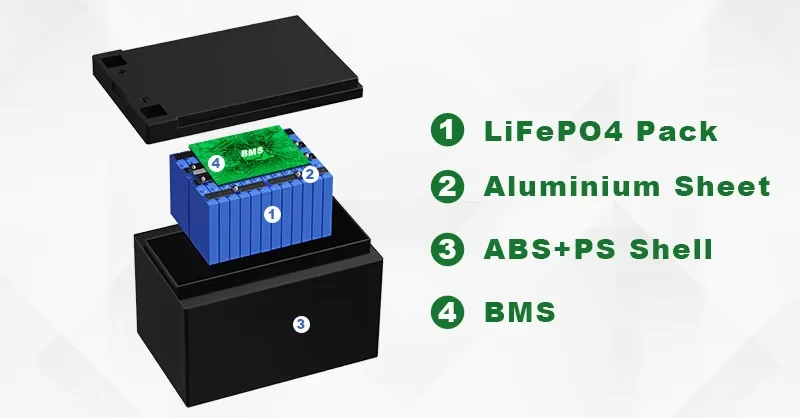

Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
CTECHi provides one-stop services and fully-integrated battery solution to meet your specific needs.
In addition to the LiFePo4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity,charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.
Specification
LiFePO4 Battery Pack Parameters | ||||||||||||
Model | Voltage | Capacity | Max.Discharging Current | Max.Charging Current | Size (L*W*H) | Weight | ||||||

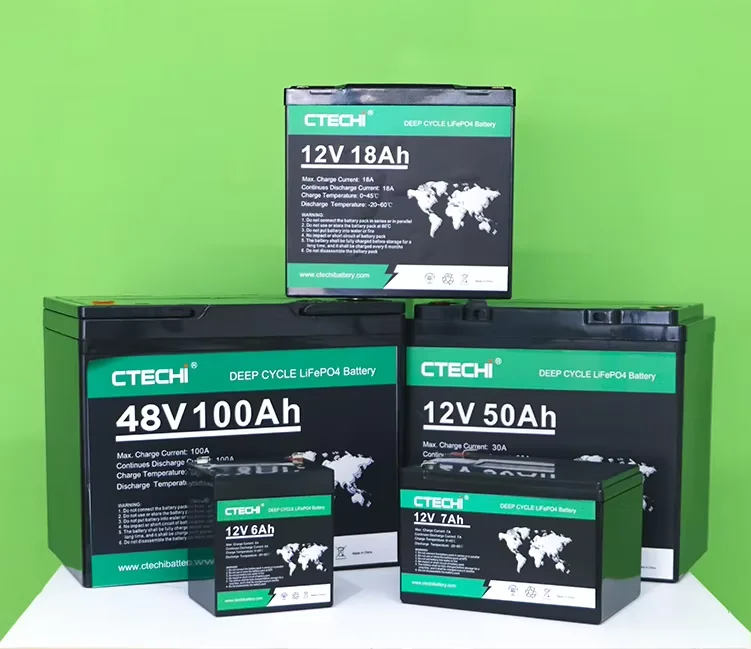

CT-6V/6AH | 6V | 6Ah | 6A | 6A | 70*47*100mm | 0.38Kg | ||||||

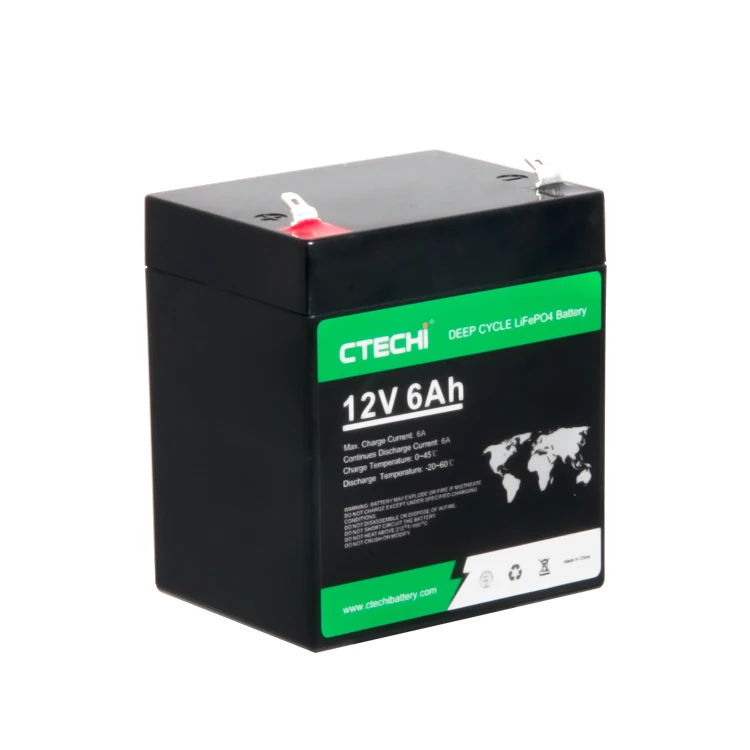

CT-12V/6AH | 12V | 6Ah | 6A | 6A | 90*70*101mm | 0.7Kg | ||||||
CT-12V/7AH | 7Ah | 7A | 7A | 151*65*94mm | 0.88Kg | |||||||

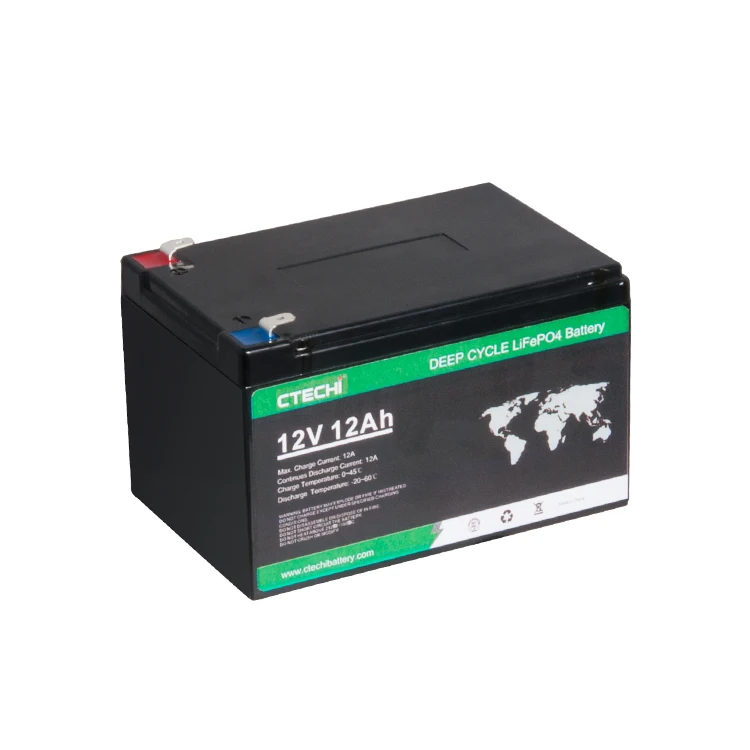

CT-12V/12AH | 12Ah | 12A | 12A | 181*77*175mm | 1.42Kg | |||||||

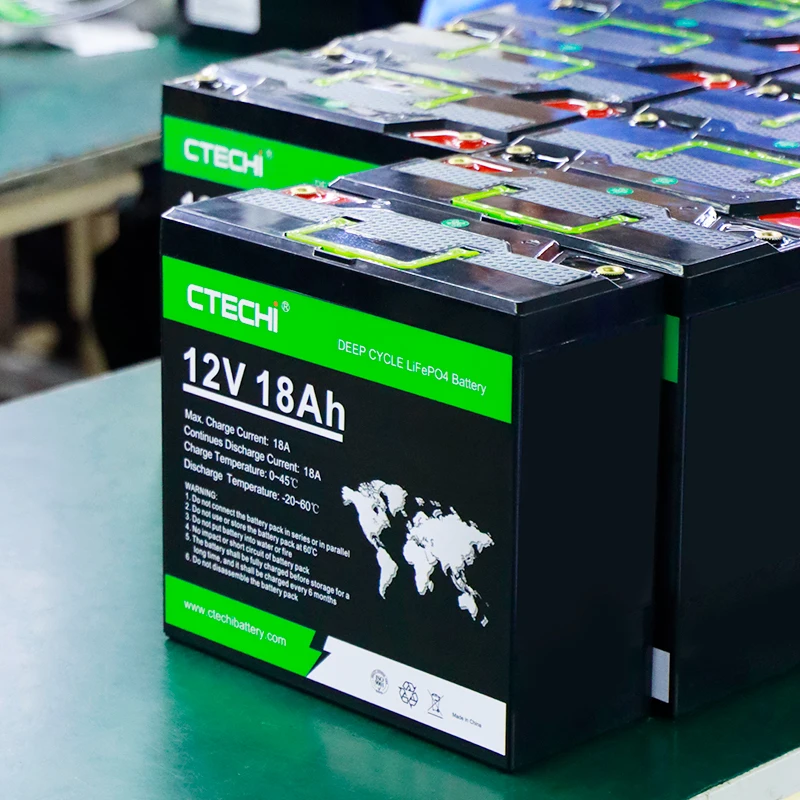

CT-12V/18AH | 18Ah | 12A | 12A | 181*77*175mm | 1.42Kg | |||||||

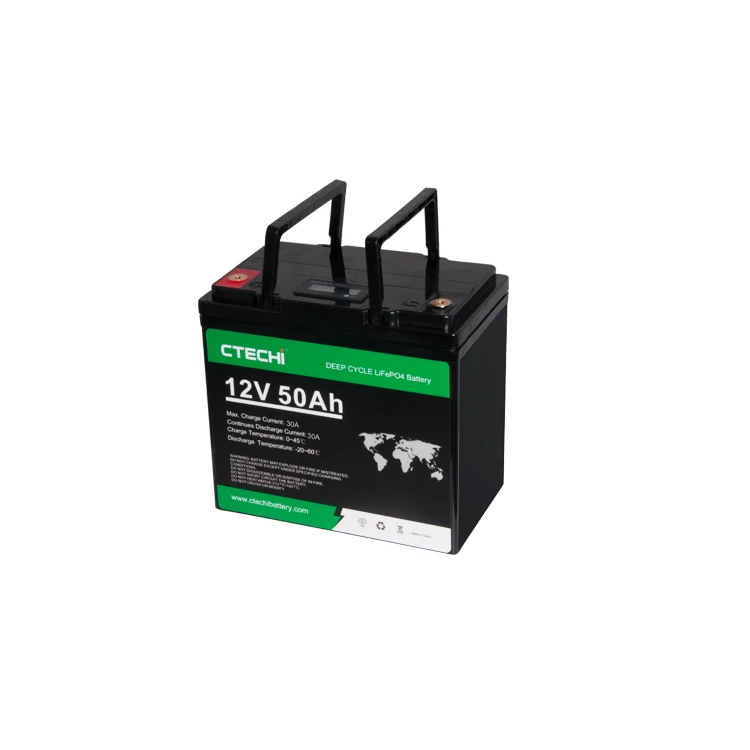

CT-12V/50AH | 50Ah | 50A | 50A | 229*138*208mm | 5.96Kg | |||||||
CT-12V/80AH | 80Ah | 80A | 80A | 330*173*216mm | 7.72Kg | |||||||
CT-24V/100AH | 100Ah | 100A | 50A | 490*171*240mm | 19.48Kg | |||||||
CT-12V/100AH | 100Ah | 100A | 100A | 256*165*210mm | 10.5Kg | |||||||
CT-12V/200AH | 200Ah | 200A | 100A | 490*171*240mm | 20.88Kg | |||||||
CT-12V/300AH | 300Ah | 200A | 150A | 520*267*220mm | 31.32Kg | |||||||
Application
LiFePo4 Battery Applications

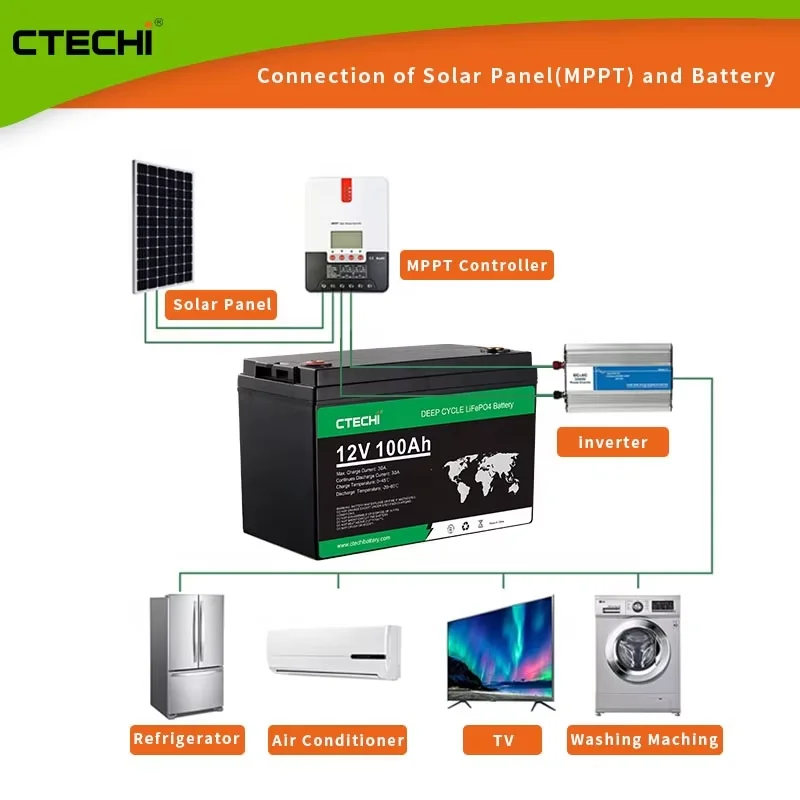

Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.
Working Principle
Bluetooth display interface & PC display interface
APP display interface
APP display interface

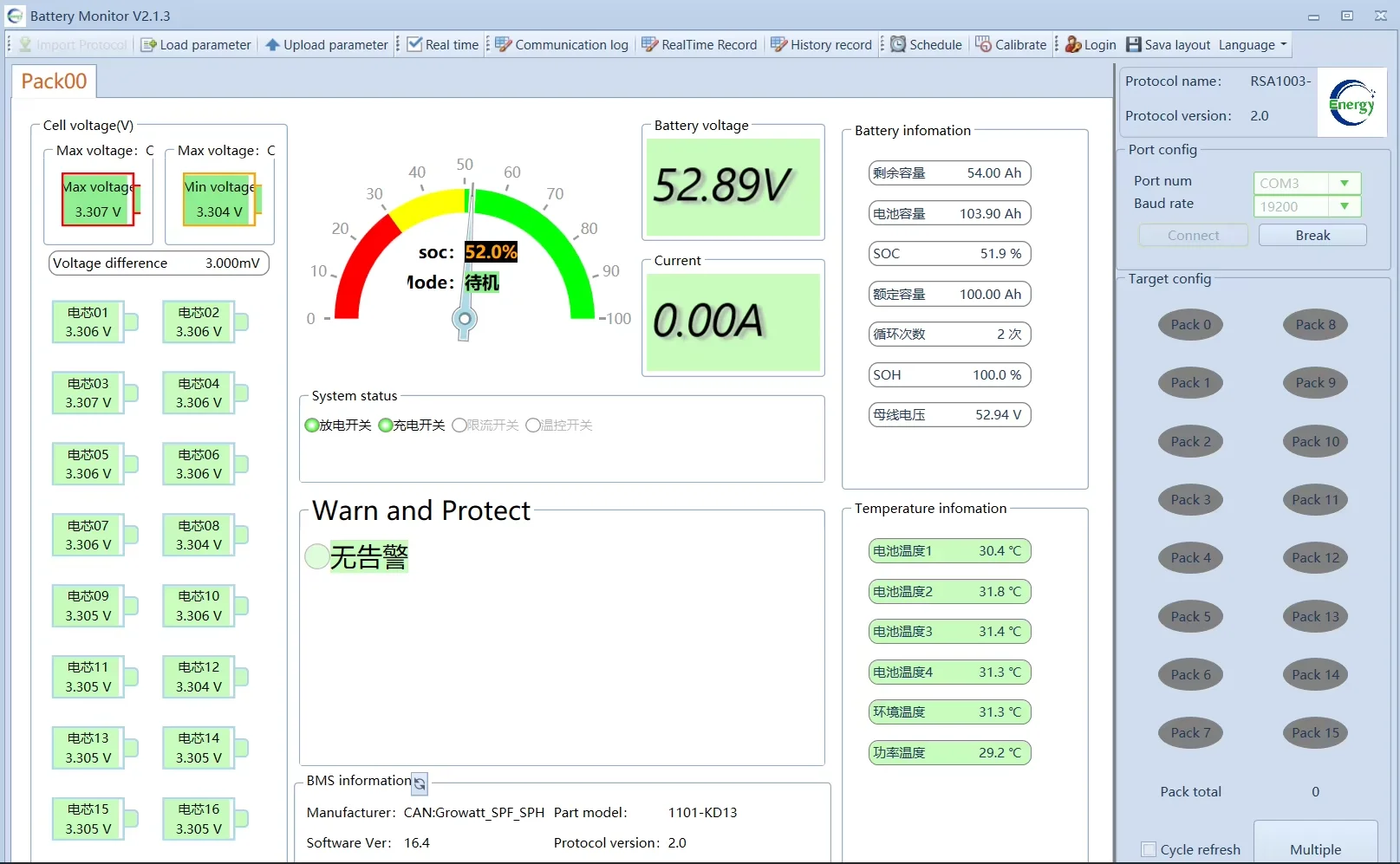

PC display interface
