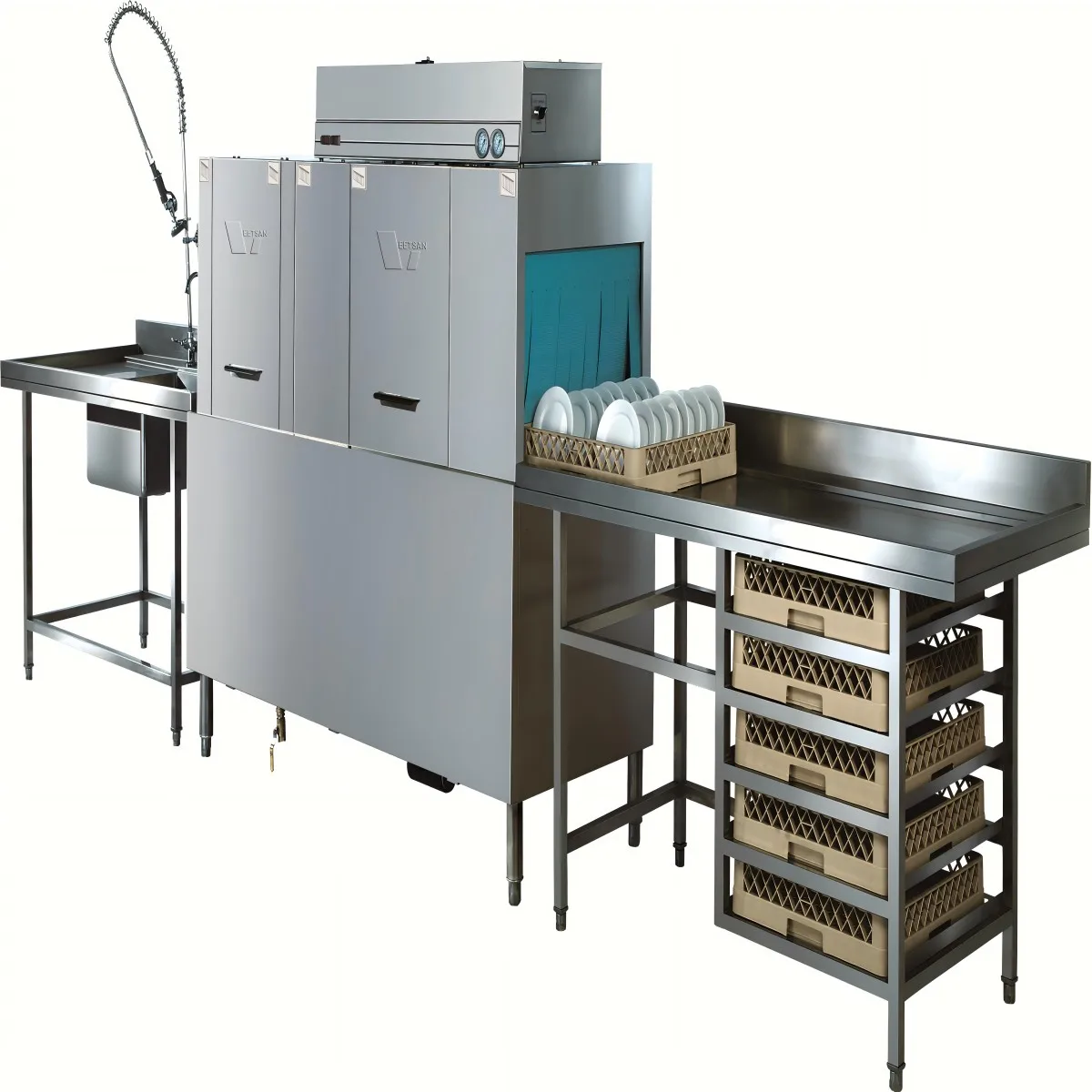

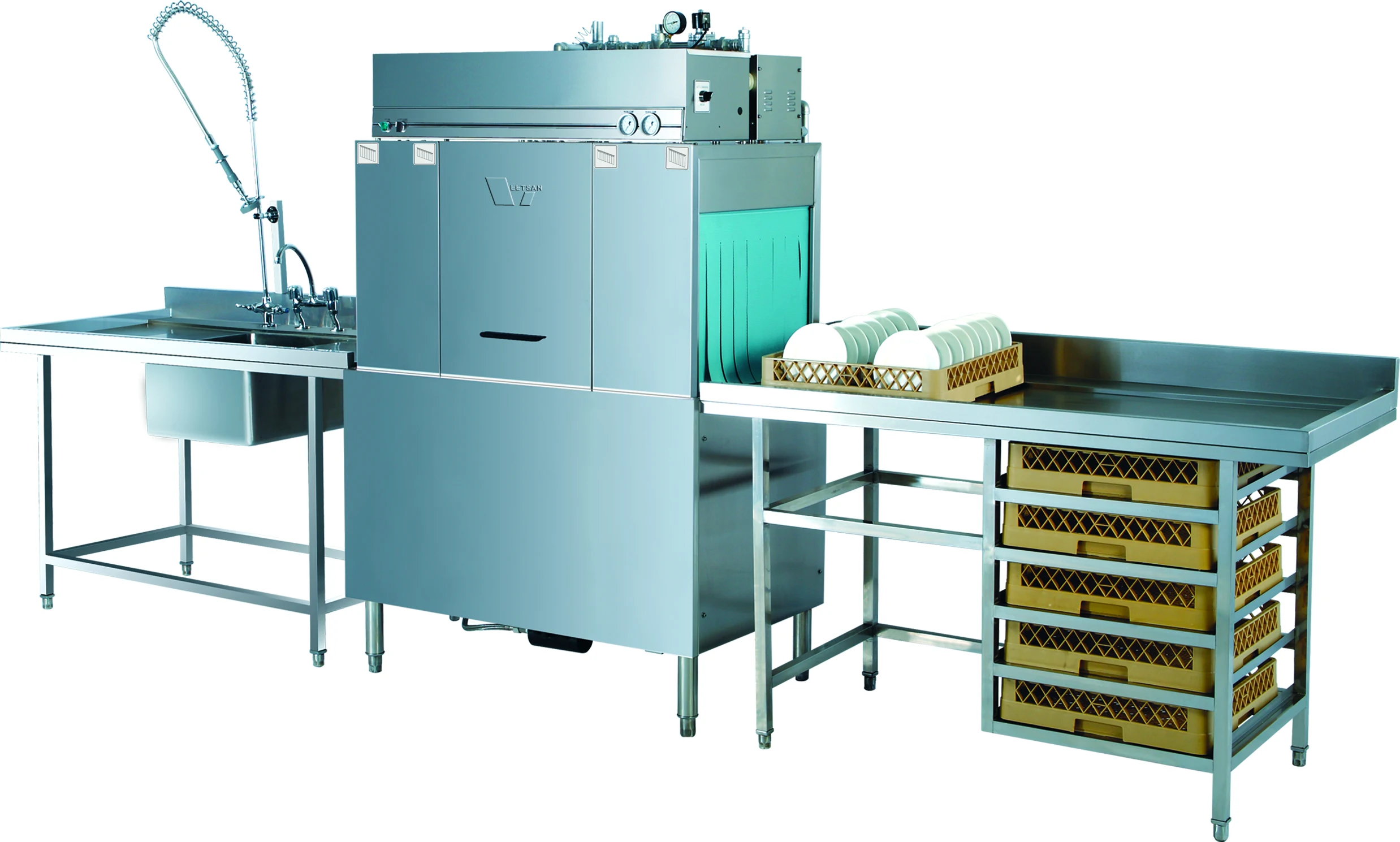

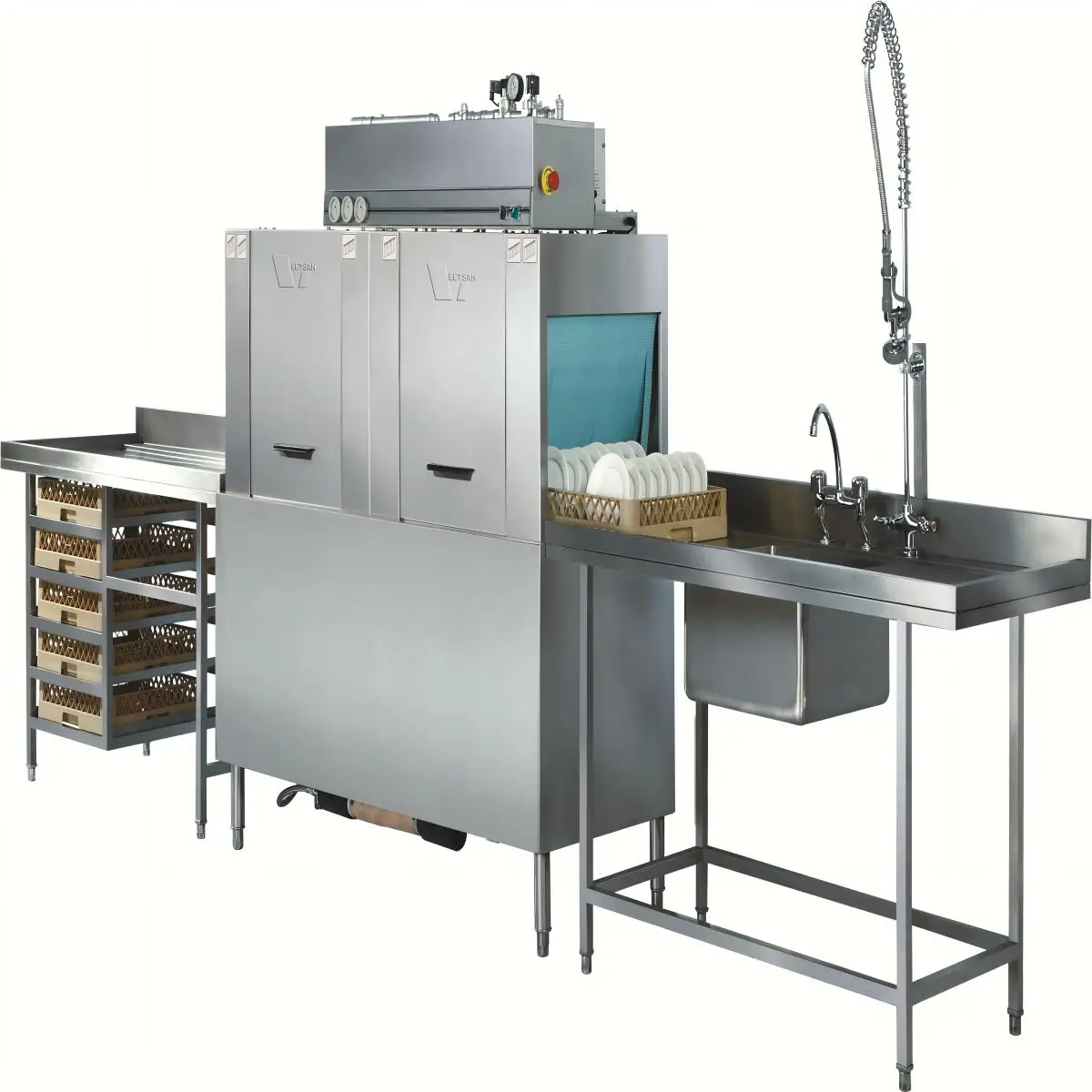

Professional Full Automatic Tunnel Dishwasher Tabletop Appliance with Conveyor 304 Stainless Steel Dish Washing Machine
- Category: >>>
- Supplier: Guangzhou INEO Kitchen Equipment Co. Ltd.
Share on (1601248091068):
Product Overview
Description
Product Description
1)Main applications:
Allkinds of restaurant chain, starred hotel, dinner room of enterprise and factory etc.
2)Convenient and practical:

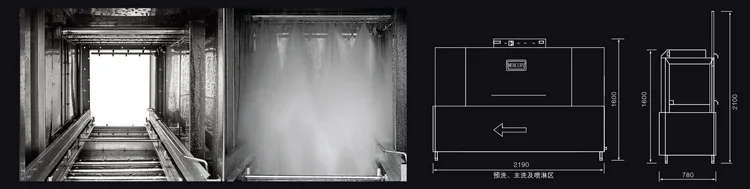

2.1) Tunnel type/basket transter type design. It adopts the washing method which is "Two enters, one exits", in order to guarantee all-dimensional spray.
2.2) Optical ways of heating, for instance, electric heating. It can also be transformed into other ways of heating, such as steam, natural gas, liquefied petroleum gas and so on, which is more considerate and convenient.
3)Safe and reliable:
3.1) When the dishwasher is under operation, the pump and the driving motor willautomatically close once the detecting gate opens by accident, to prevent hot water from spilling. It's safe and comfortable.
3.2) High quality temperature control function, guarantee the rinse water temperature is above 86 degrees, achieve the best effect of disinfection,
3.3) The end of the optional exit working desk has a automatic turning-off protective device, to prevent tablewares from damaging due to not timely uninstall. It's time saving and cozy.
4)Efficient and energy saving:
4.1) Adopt recycling water to finish the first cleaning step, save washing water volume, environmental-protection and energy saving.
4.2) When tablewares enter the high temperature spraying area, the spraying system will open automatically, achieving the effect of energy saving.
4.3) Washing arm has a design of concave nozzie to prevent blocking. With a fan type water spray form of 60 degrees, it perfectly expands the spray scale. Super cleaning ability ensures you a perfect washing effect.
Optional accessories:
1.Dirty dish desk(entrance working desk of dishwasher),
2.Clean dish desk(exit working desk of dishwasher),
3.High pressure water faucet,
4.Double pump dispenser
5. Dish-washing basket
6.Specifled detergpent for dishwasher,specified drier for distwasher
| Item No. | Product Name | Specification |
| YDW-YT005 | Conveyor Type Dishwasher | Specification:1100*780*1600 Basket/h: 130 baskets/h Piece/h: 2600 plates/h Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Heater tank: 100 W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 1.5KW Total electrical power: 37KW Voltage:380V/50HZ Height when open machine: 2100MM Door entry height : 400MM Weight: 230Kg Equiped with 3 pieces dish baskets: 500*500*100 |
| YDW-YT006 | Double Cylinder &Double Spray Tunnel Type Dishwasher | Specification:1500*780*1600 Basket/h: 153 baskets/h Piece/h: 3700 plates/h Voltage:380V/50HZ Power:38kw/h Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 1.5KW Height when open machine: 2100MM Door entry height : 400MM Weight: 290Kg Equiped with 3 pieces dish baskets: 500*500*100 |
| YDW-YT007 | Pass Through Dishwasher | Specification:2200*780*1630 Basket/h: 185 baskets/h Piece/h: 5000 plates/h Voltage:380V/50HZ Power:42kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight: 360Kg Equiped with 3 pieces dish baskets: 500*500*100 |
| YDW-YT008 | Single Cylinder&Double Spray Tunnel Type Dishwasher, Equipped With Single Dryer | The larget washing capacity:186Pc/H Washing Height:400MM The largest water consumption:360 L/H Cleaning cy1inder capacity:98L High temperature cylinder capacity:30L Cteaning cylinder power:9KW High temperature cylinder power:27KW Dryer Power:10KW Total power:48.5KW Power requirements;380V/AC/50HZ/5N Input Water pressure:0.15-0.3MPA Dimensions:2500*780*1630MM Equiped with 3 pieces dish baskets: 500*500*100 |
| YDW-YT009 | Conveyor Dishwasher with Dryer | Specification:3200*780*1630 Drying machinery:1000*780*1700H Basket/h: 185 baskets/h Piece/h: 6000 plates/h Voltage:380V/50HZ Power:54kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Heater air dry : 9KW Motor fan dry: 1.1KW Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight: 425Kg Equiped with 3 pieces dish baskets: 500*500*100 |
| YDW-YT010 | Conveyor Type Dishwasher with Dryer | Specification:4000*780*1920 Drying machinery:1800*780*1630 Basket/h: 250 baskets/h Piece/h: 8000 plates/h Voltage:380V/50HZ Power:60kw/h Pre wash tank capacity :85L Main wash tank capacity : 91L Rinse capacity: 24L Tank temp: 50~70° C Temp boiler : 75~95° C Water pressure: 1.4Bar Rinse consumption: 17L Heater tank: 200W. Heater boiler: 27 KW. Heater rinse tank: 9 KW. Heater air dry : 9KW.X2 Motor fan dry: 2.2KW.X2 Motor conveyor: 750W. Motor pump : 3KW Height when open machine: 2100MM Door entry height : 400MM Weight:360Kg Equiped with 3 pieces dish baskets: 500*500*100 |
Advantages
A-Z Kitchen Solution
Product Range of INEO
( A-Z Commercial Kitchen Equipment Solution )
A. Gas Range (Gas Range Only / Combination : with Cabinet/Oven/Griddle/Lava Rock Grill ; 2-6 Stove ; Freestanding/Countertop)
B. Electric/Gas Griddle (Griddle Only / Combination : with Cabinet/Oven/Griddle/Gas Range/Salamander/Fryer ; Teppanyaki ; Freestanding/Countertop)
C. Electric/Gas Bain Marie (Bain Marie Only / Combination : with Cabinet ; 2-6 Pan ; Chocolate Stove ; Freestanding/Countertop)
D. Electric/Gas Pasta Cooker (Pasta Cooker Only / Combination : with Cabinet ; 4-16 Colander ; Freestanding/Countertop)
E. Electric/Gas Fryer ( Fryer Only / Combination : with Cabinet ; 1-2 Tank/1-4 Basket ; Pressure Fryer ; Freestanding/Countertop )
F. Electric/Gas Soup Kettle (Freestanding)
G. Electric/Gas Tilting Braising Pan (Freestanding)
H. Electric/Gas Grill (Grill Only / Combination : Lava Rock with Cabinet/Gas Range/Oven ; Contact Grill ; Freestanding/Countertop)
I. Gas French Hot Plate Cooker with Oven (Freestanding)
J. Electric/Induction Cooker (Cooker Only / Combination : with Cabinet/Oven 4-6 round/rectangular shape Plate ; Freestanding/Single/Double Countertop)
K. Electric Food Warming Series (Food/Pie/Pizza Warmer Display ; Food Warming Tray ; Food/Plate Warmer Cart ; Infrared Lamps)
L. Electric/Gas Snack Machine (Popcorn Machine/Cart ; Candy Floss Machine ; Crepe Maker ; Waffle/Cone/Crisp Baker ; Doughnut Maker/Fryer ; Fishball Grill ; Hot Dog Grill )
M. Gas/Electric Oven Series ( 1-3 Deck Baking Oven/with Proofer ; 1-2 Deck Pizza Oven/Conveyor Pizza Oven ; Convection Oven ; Hot Air Rotary Furnace ; Combi-steamer Oven ; Toaster ; Salamander ; Barbecue Oven ; Freestanding/Countertop )
N. Electric/Gas Rotisserie Series ( 3-5 Burner Shawarma ; Kebab Machine ; Chicken Rotisserie ; Rotary Corn Roaster ; Countertop)
O. Fast Food Equipment (Chips Display Warmer ; Meat Salting ; Breading Table ; Shortening Filter Cart ; Hamburger Patty Press ; Hamburger Machine ; Cup Dispenser ; Wrapping Machine ; Tube Box ; etc. )
P. Electric Tower Warmer (Warmer item ; Hot & Cool Cabinet ; Ultraviolet Ray Warmer)
Q. Electric Mixer ( Food Mixer ; Cake Mixer ; Stick Blender ; Spiral Mixer ; Commercial Blender ; etc.)
R. Electric Food Cutting Machine ( Meat/Cheese Mincer/Slicer/Grider ; Sausage Filler ; Bone Saw ; Dough Sheeter/Rounder/Divider ; Food/Vegetable Cut Up Machine ; High-speed Disintegrator ; Patato Peeler ; etc. )
S. Electric Food Showcase For (Cake ; Sushi ; Beverages & Drink ; Fruit ; Vegetable ; Salad ; etc. )
T. Electric Kitchen Freezer (1-3 Door ; 1-2 Deck ; Drawer Work Table ; Static/Fan Cooling)
U. Electric Ice Cream Series ( Ice Cream Machine ; Soft/Hard Ice Cream Machine ; Fried Ice Cream Machine ; Ice Maker )
V. Electric Beverage Equipment (Coffee Machine ; Sugar Cane Presser ; Commercial Orange Juicer ; Juicer ; Centrifugal Juicer ; Juice Dispenser ; Hot Chocolate Machine ; Slush Machine ; lemon Slicer Machine ; 1-2 Head Milk Shaker ; Ice Crusher ; Milk Tea Warmer Bucket ; Water Boiler ; Chocolate Fountain ; etc. )
W. Electric Chafing Dish
X. Electric/Gas Rice Cooker
Y. Electric Packing Machine (Vacuum/Impulse)
Z. Others Kitchen Equipment (GN Pans ; 1-3 Sink Bench ; Working Table/with Cabinet ; 1-3 Tiers Pole/Trolley ; Chpping Board ; Fume Filter ; etc.)
Project Cases

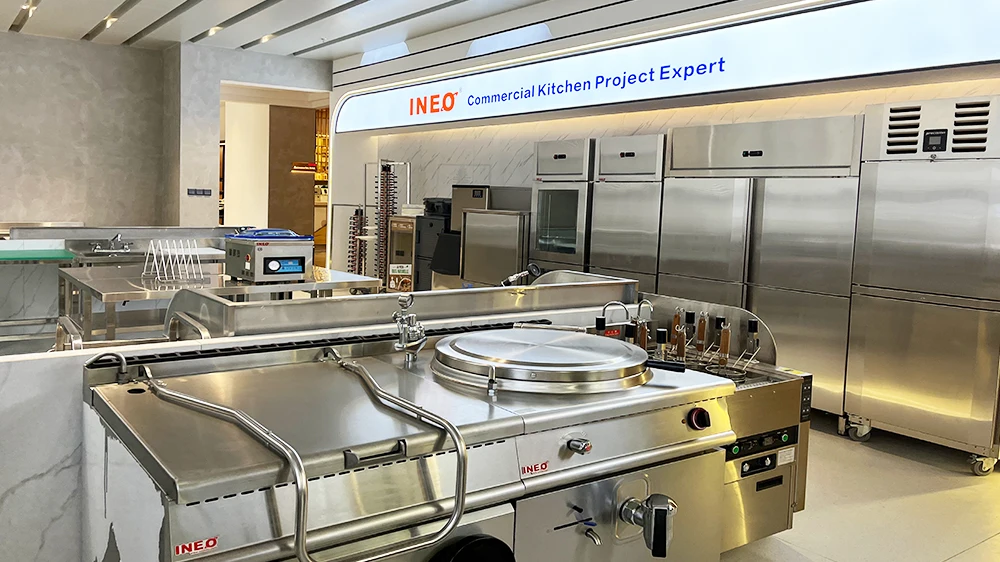

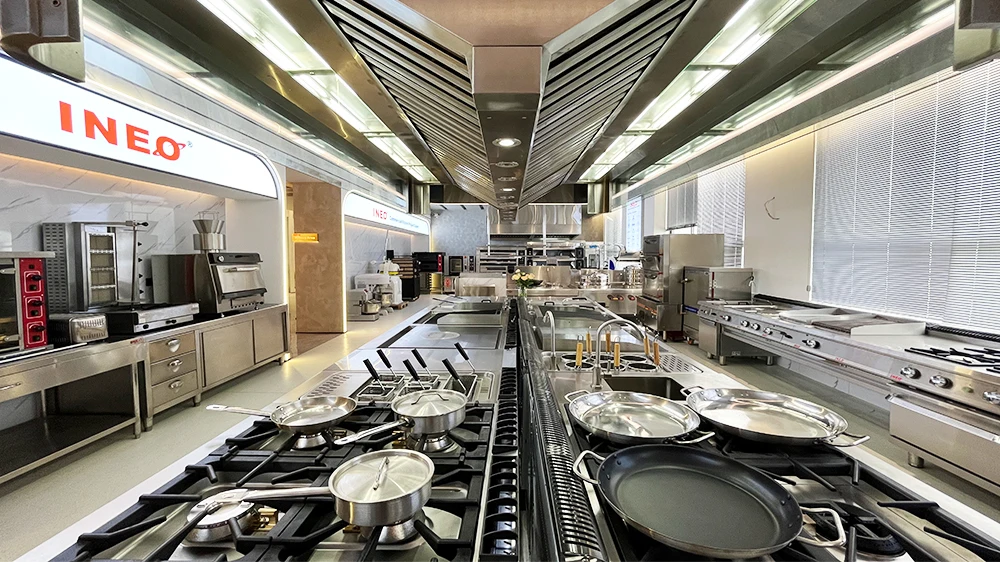

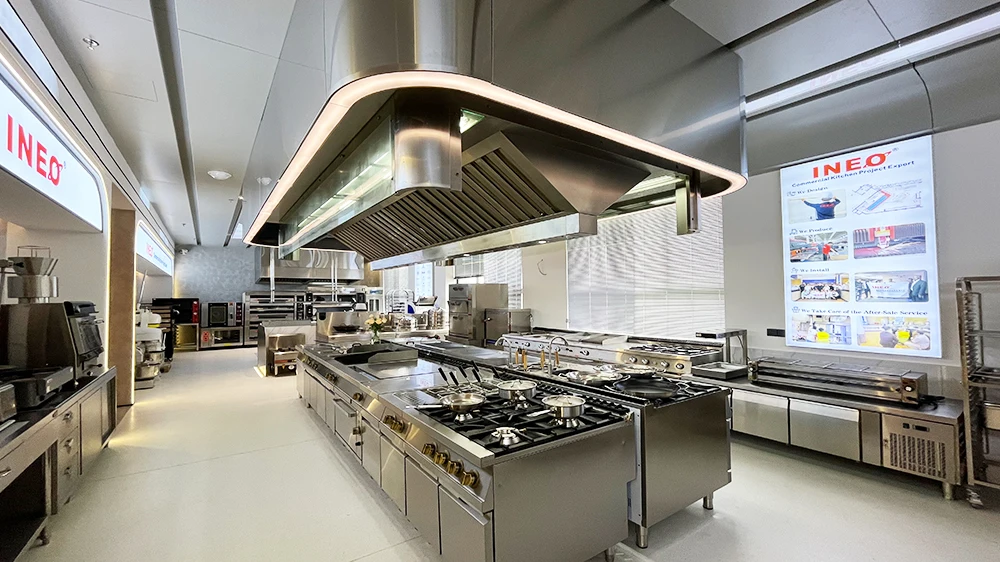

Showroom
Our Factory
FAQ
| Q1: Are you a factory? A: Yes, INEO is a manufacturer with nearly ten thousand square meters factory and one-stop service company integrating production, design and sales. |
| Q2: Can you provide a design solutions? A: Yes, we can provide free design solutions for various catering projects, such as hotel kitchen, restaurant, bakery, bar, etc. Please provide us planning area of your project. |
| Q3: How long is the warranty period? A: One year warranty. If there is any problem with the goods during the warranty period, please provide relevant evidence. We will send you relevant spare parts. |
| Q4: How can I get a quick quote? A: Please tell us the product list, seating number of the restaurant, the area of the kitchen and the menu. |
| Q5: What is the packing of the goods? A: Normally packing is carton/wooden frame or wood case. If there are other requirements, please advise. |
| Q6: How long is the delivery time? A:Generally 7~15 days, actual situation depend on products items and quantity. |
| Q7: Can you provide customized product? A: Some products can be customized, please inform us of your demand. |
| Q8: If the machine doesn't or I don't know how to operate? A: We will provide product's instructions in advance.Besides, our professional technicians who can answer your questions and provide operation video if necessary. |
| Q9: How is the transportation? A: According to the size of the products, quantity, and the customer's requirements, transporting products by express, by air or by sea. |
| Q10: Can we arrange door-to-door service? A: Some countries and regions can arrange door-to-door service. Please provide your detailed address. |
| Q11: Can you help me to drop-shipping? A: Yes, we will collect corresponding charge, specific charge detail please consult with us. |
| Q12: Whether the product is English panel and manual? A: Yes, we will offer English version products normally. |
| Q13: Voltage and plug of the product? A: Our company offer conventional plug and voltage, please advise us your demand when you ordering. |
| Q14: Payment term?? A: 30% deposit before production, 70% deposit before delivery. |
