JXPC 4H Series High Quality Pneumatic Air Hand Pull Valve Manual Pressure Control General Application OEM Customization
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.
Share on (1601248316501):
Product Overview
Description
JXPC pneumatic
Product Description
Technical Data
Medium: Compressed air, Lubricated and filtered M5, G1/8, G1/4, G3/8, G1/2 Working pressure: 0--0.8Mpa
● Maintenance-free
● Maintenance-free
● Different Manual override options available
● Manifold system for easy assembly
● Spare parts like coil,armature, seals, can be offered separately for assembly or maintenance purpose

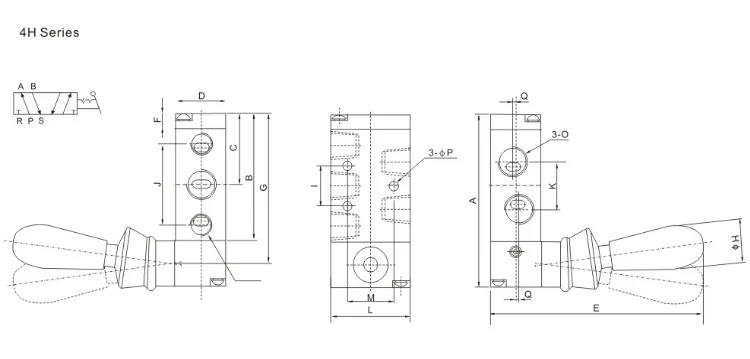

Handle lock type code | Spring return type code | Function | Port | Overall body(mm) |
4H210-06 | -S | 5/2 | G1/8 | 76*35*22 |
4H210-08 | -S | 5/2 | G1/4 | 76*35*22 |
4H310-08 | -S | 5/2 | G1/4 | 96*40*27 |
4H310-10 | -S | 5/2 | G3/8 | 96*40*27 |
4H410-10 | -S | 5/2 | G3/8 | 126*50*34 |
4H410-15 | -S | 5/2 | G1/2 | 126*50*34 |
4H230-06 | -S | 5/3 | G1/8 | 95*35*22 |
4H230-08 | -S | 5/3 | G1/4 | 95*35*22 |
4H330-08 | -S | 5/3 | G1/4 | 115*40*27 |
4H330-10 | -S | 5/3 | G3/8 | 115*40*27 |
4H430-10 | -S | 5/3 | G3/8 | 147*50*34 |
4H430-15 | -S | 5/3 | G1/2 | 147*50*34 |
