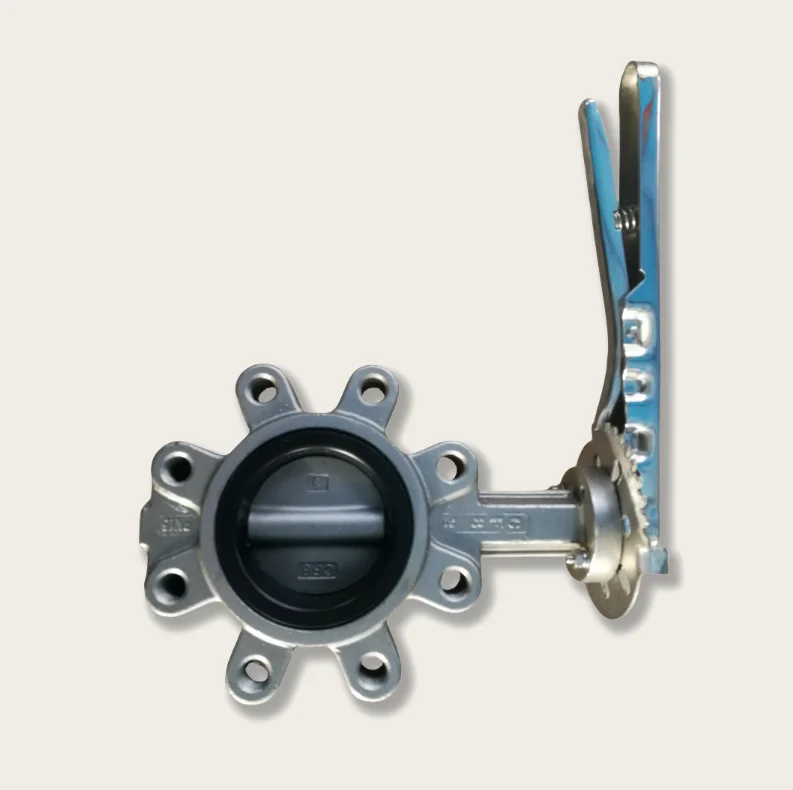

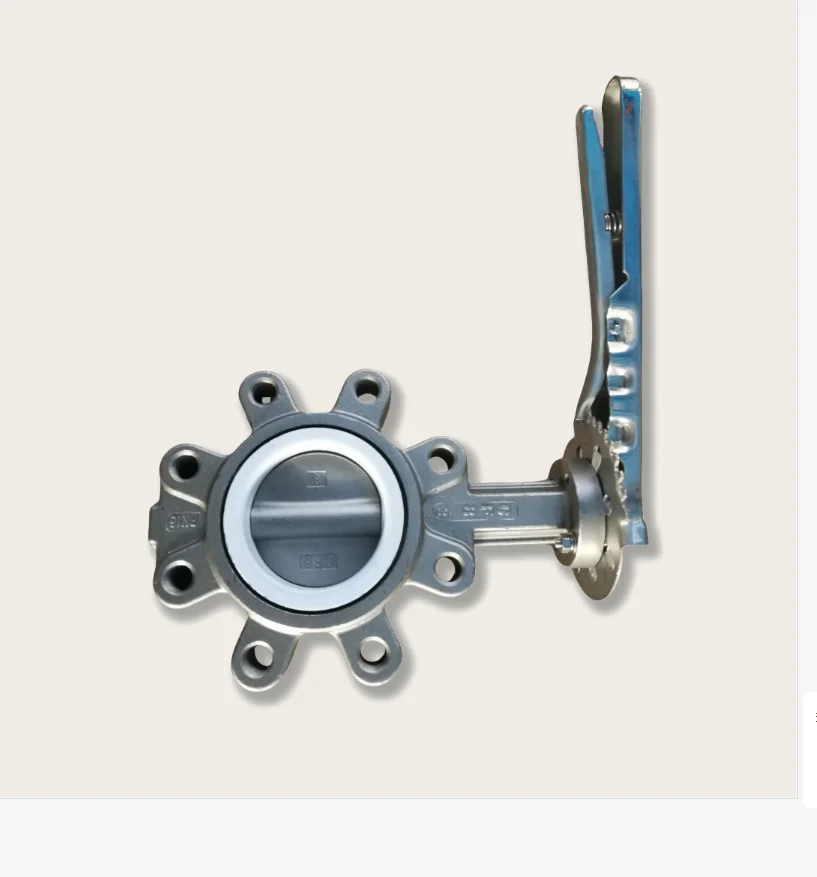

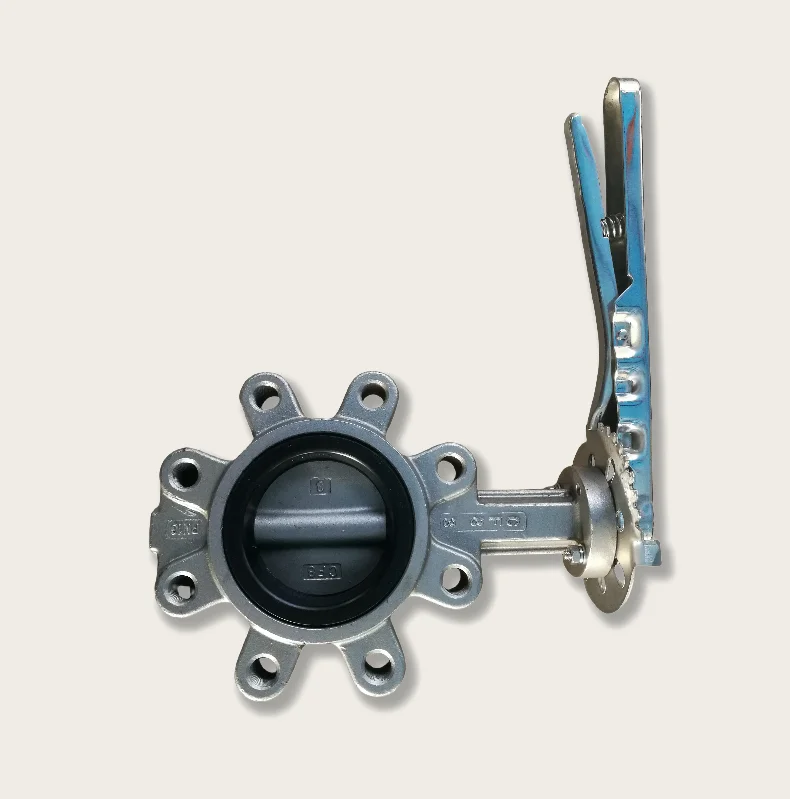

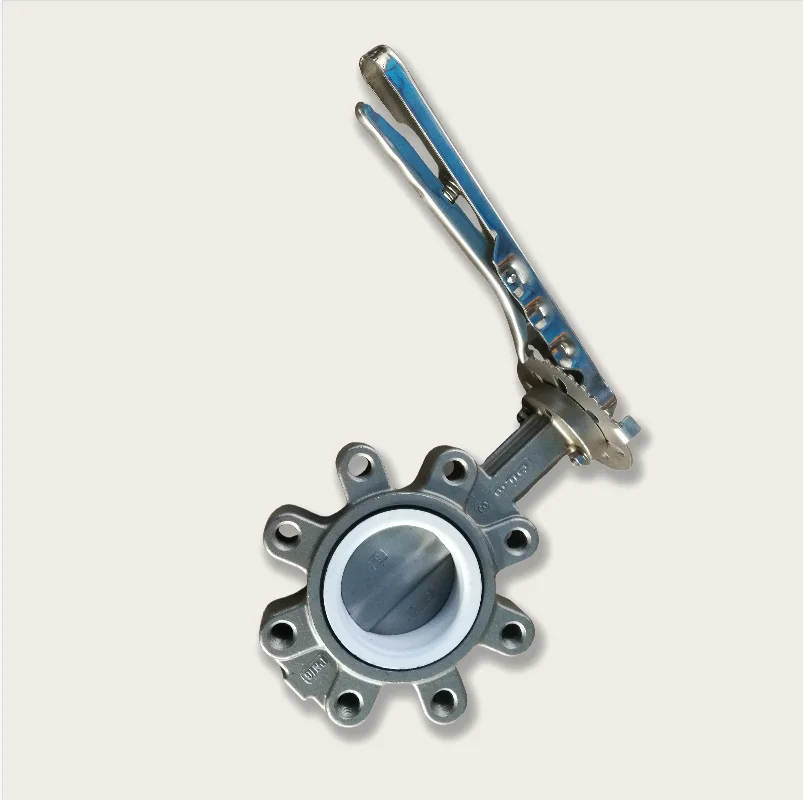

Stainless Steel Centre Line Lug Type Butterfly Valve with Flange to ANSI125/ANSI 150/Pn10/Pn16/JIS 10K
- Category: >>>
- Supplier: Anhui Sunval International Trading Co. Ltd.
Share on (1601248404384):
Product Overview
Description
Product Description
Centre Line Lug Type Butterfly Valve with Flange to ANSI125/ANSI 50/PN10/PN16/JIS 10K
Series F101 butterfly valves designed to comply with MSS SP-67, BS5155 and API 609.Compatible with GB, ANSI, DIN, BS, JIS flanges. Available in size 1½″ to 48″. Available in wafer type, lug type and U-section wafer type body. Available with handles (1½″ to 12″), manual gear operators (1½″ to 48″), and electric or pneumatic actuators (1½″ to 48″). With many body/trim combinations, there is a series F101 butterfly valve to meet your application.
Materials List:
Item | Part Name | Materials |
1 | Body | Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB |
2 | Stem | Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416; |
3 | Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501; |
4 | Seat | NBR, EPDM, Neoprene, PTFE, Viton; |
5 | Disc | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; L-Bronze: ASTM B148 C95400; |
6 | O-Ring | NBR, EPDM, Neoprene, Viton; |
7 | Bushing | PTFE, Nylon, Lubricated Bronze; |
8 | Key | Carbon Steel |
Seat Temperature Ratings:
Material | NBR | Neoprene | EPDM | Hypalon | Viton | PTFE | ||
Temperature Ratings | ºC | -20~100 | -40~100 | -40~120 | -32~135 | -12~230 | -50~200 | |
ºF | -4~212 | -40~212 | -40~248 | -25.6~275 | 10.4~446 | -58~392 | ||

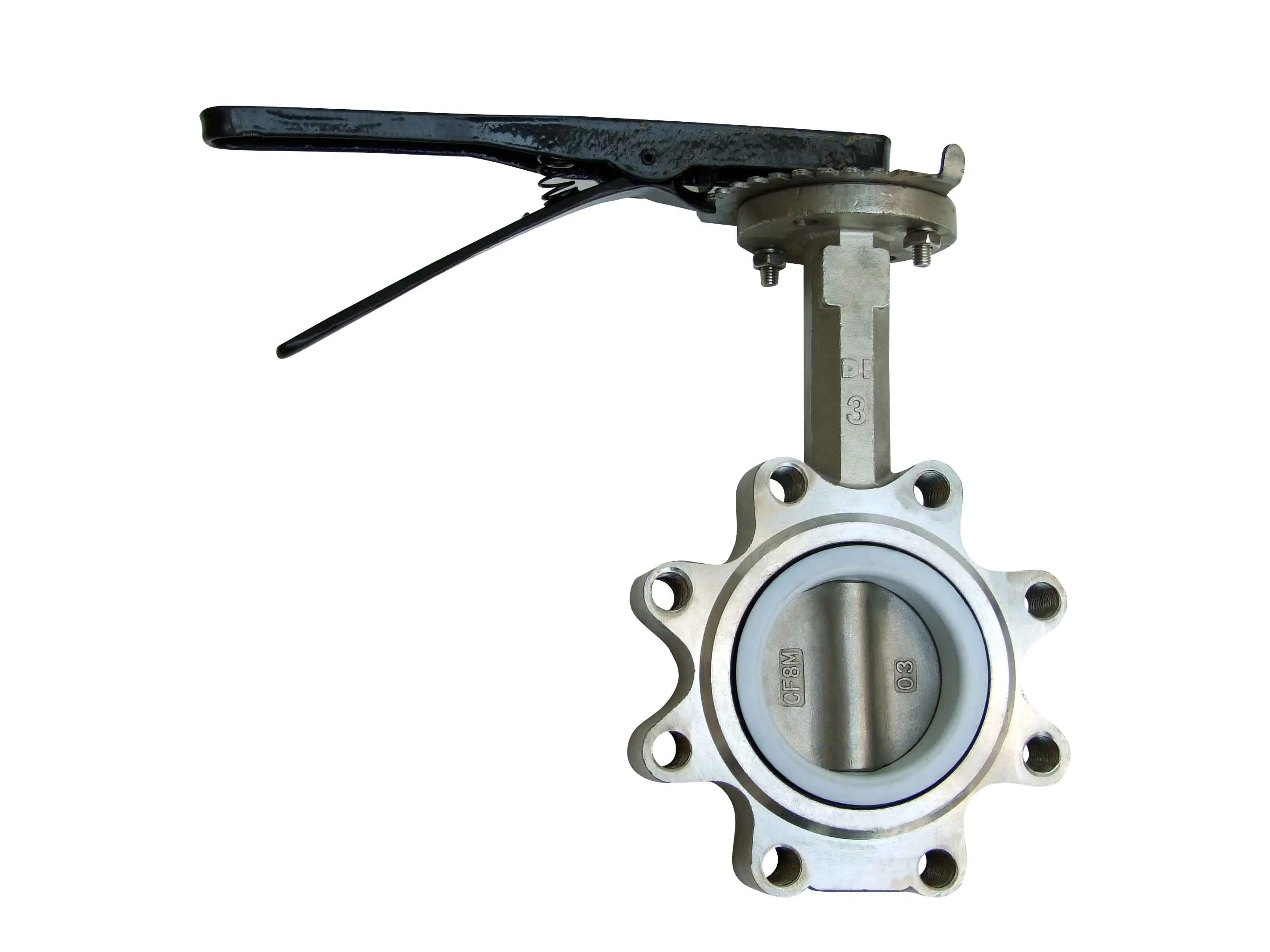

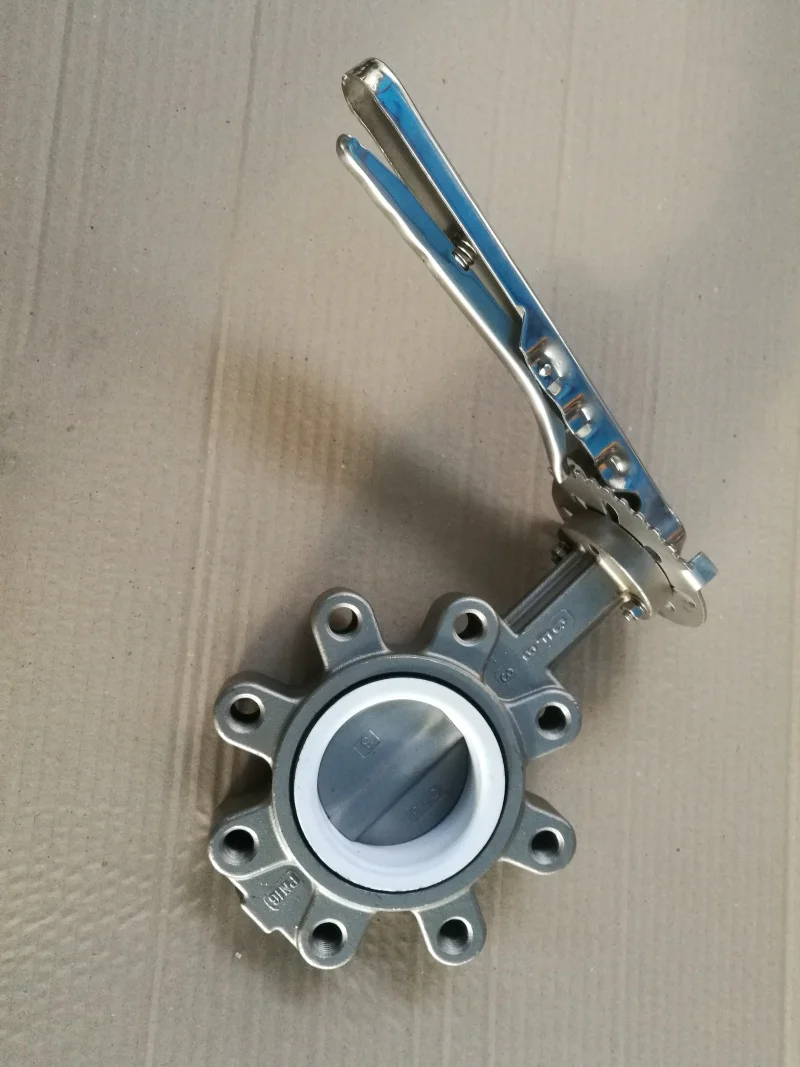

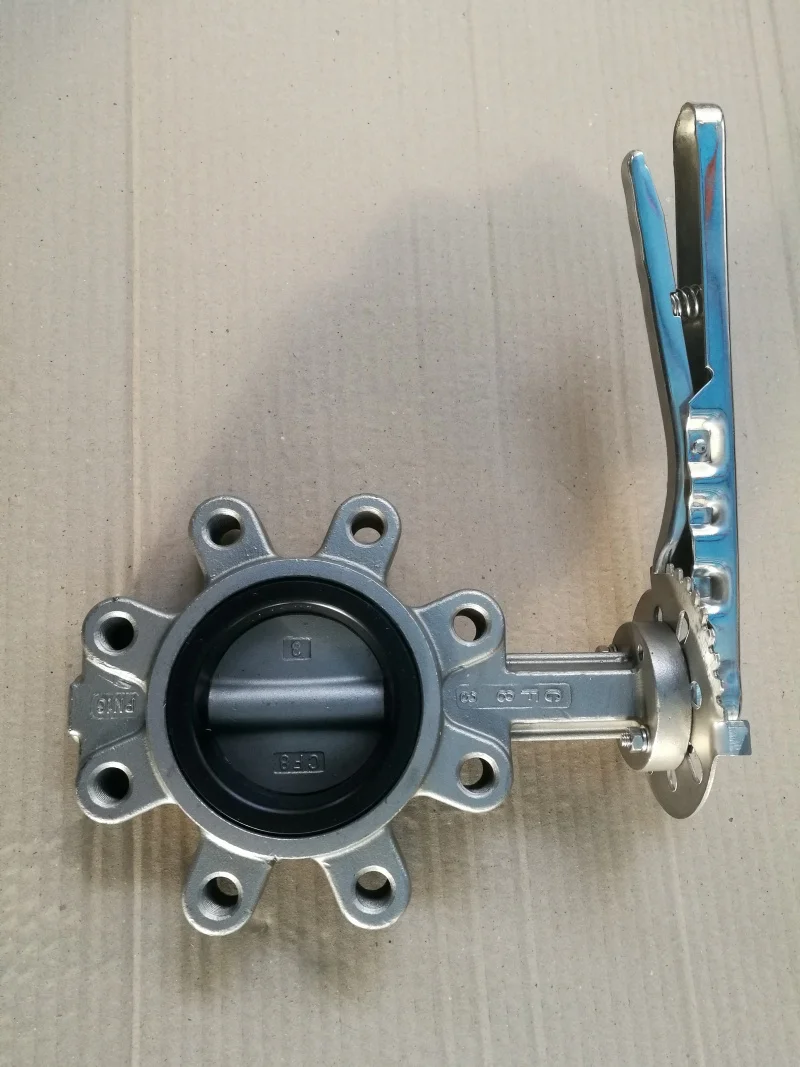

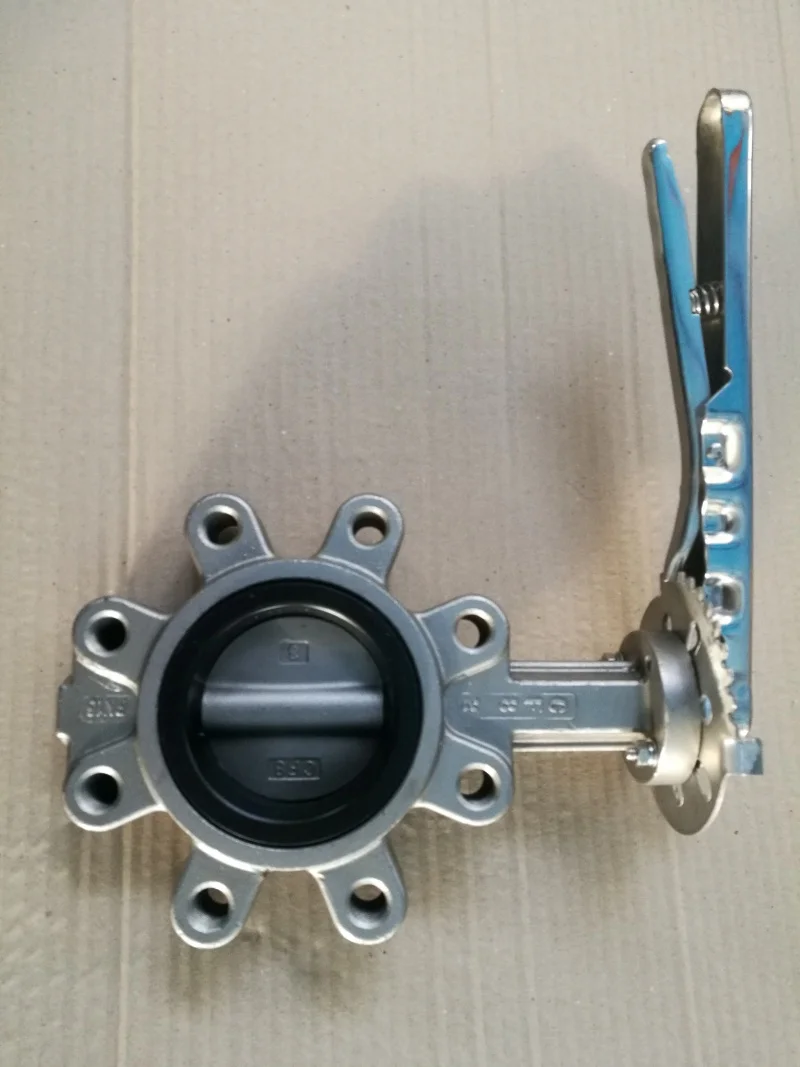

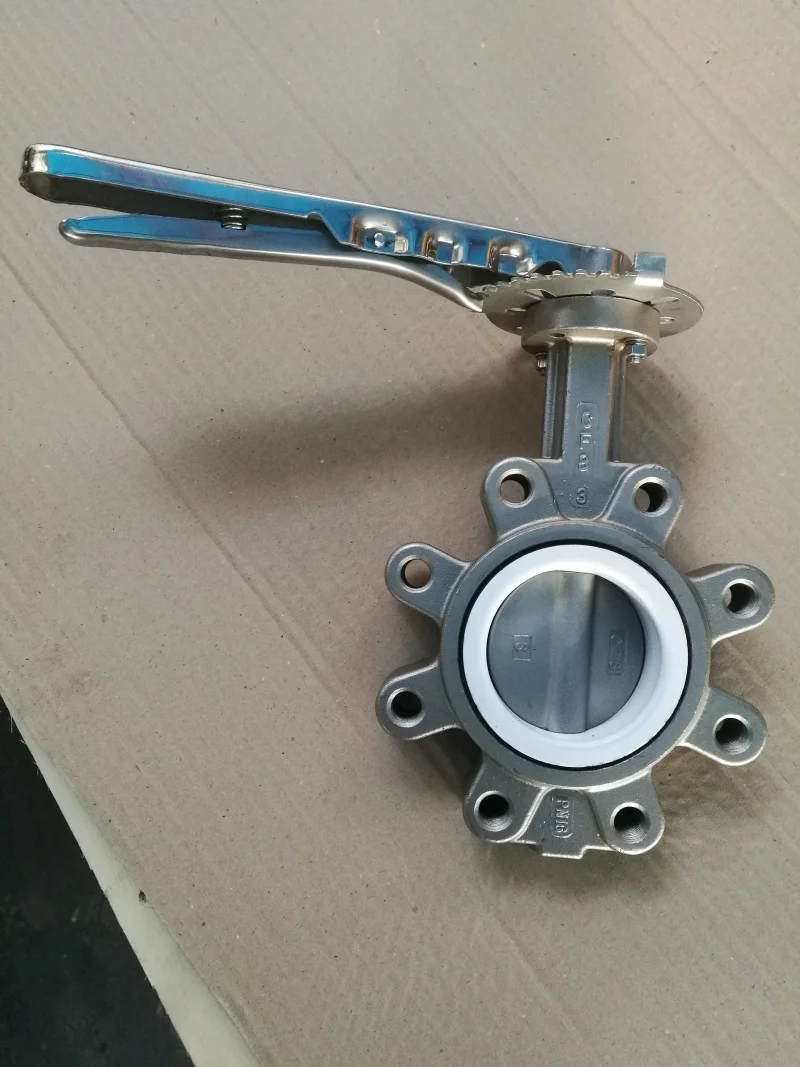

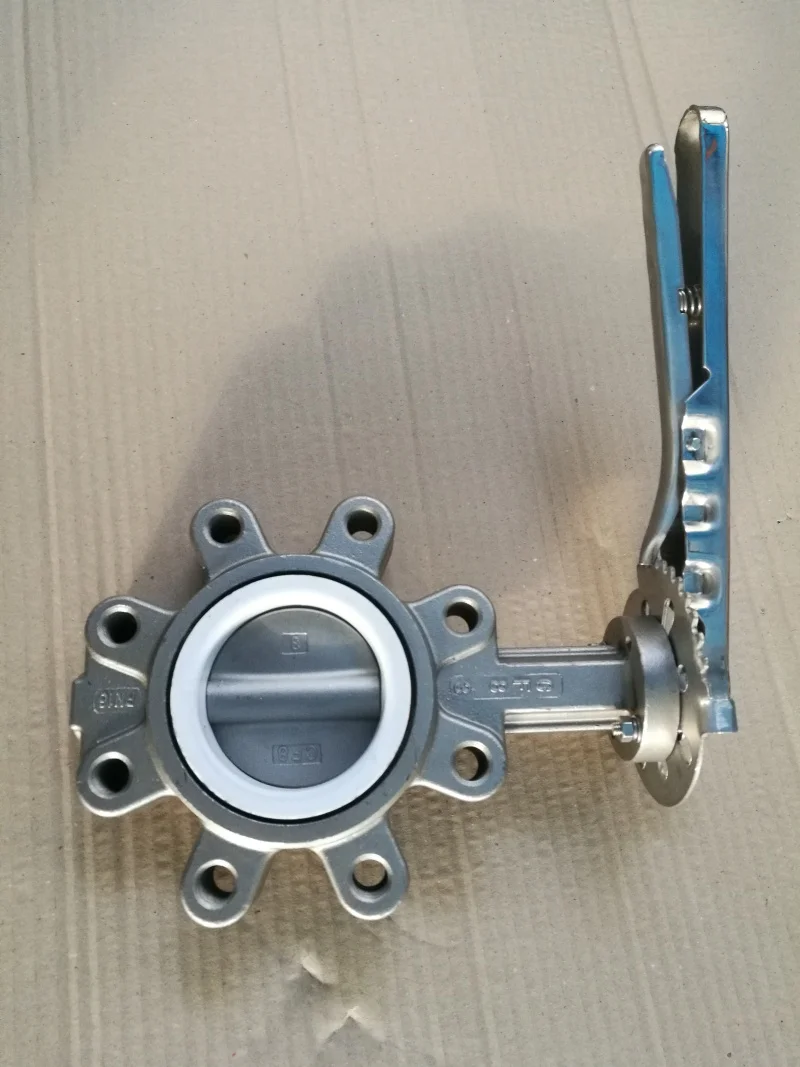

Details Images
Manufacturing Technique
Packing & Delivery
Packing & delivery
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
Company Profile
Anhui Sunval international Co., Ltd. Anhui Sunval International Co., Ltd. is a professional supplier of valves and piping systems. Our company focuses on iron valves, steel valves, copper alloy valves, pipes and related accessories etc. Our main products are gate valve (resilient seated or Metal seated), globe valve, check valve, ball valve, butterfly valve, air vent valve, strainer, control valves and pipe fittings with main material of cast iron, ductile iron, carbon steel, stainless steel and copper alloy. The pressure rating is 0.6Mpa - 150.0Mpa and size range is DN15-DN2400 . The valves are designed and manufactured in accordance with the standards of GB, ANSI, API, DIN, BS, JIS and widely used for water, oil and gas industries. We have obtained certificates of ISO9001, CE, WRAS etc.. Sunval has been selling to 40 countries in Asia, Europe, America and Africa.
