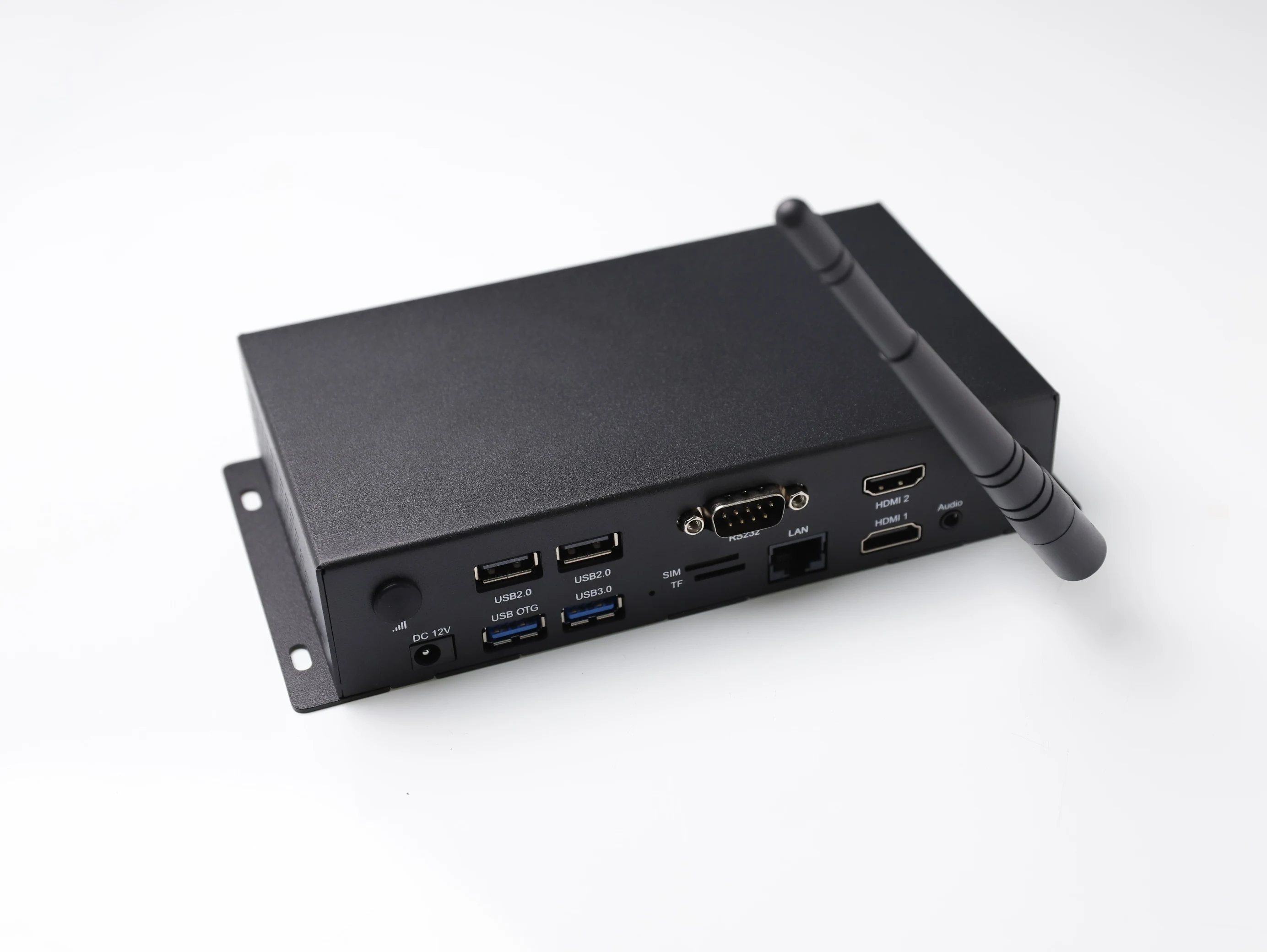

Sunchip 4K Media Player Box rich interfaces Metal case 2K/4K RK3568 NPU Edge Computing Device RS232

Share on (1601248679061):


Price:$83.00-112.00

Quantity:


Product Overview

Description



Related products




Products Description














Product Parameter


System
CPU&GPU
Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
RAM
2GB/4G (optional)
Internal Storage
8GB/16GB/32GB/64GB(optional)
OS
Android 11
Android 11
WiFi
IEEE 802.11b/g/n(optional)
Ethernet
Support 10/100/1000M Ethernet
Mobile Network
Support wireless 4G network(optional)
Bluetooth
Bluetooth5.2

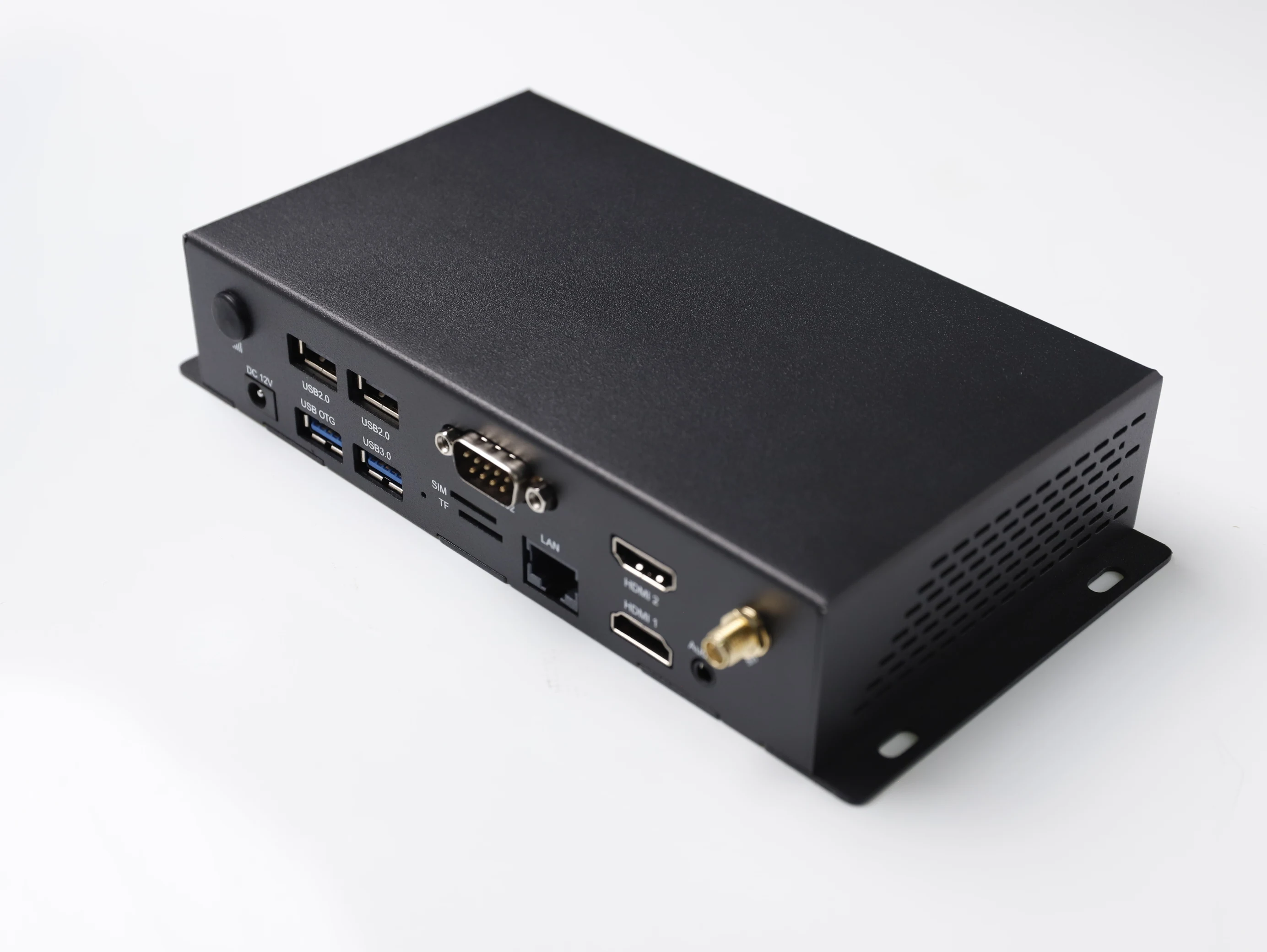

Interface

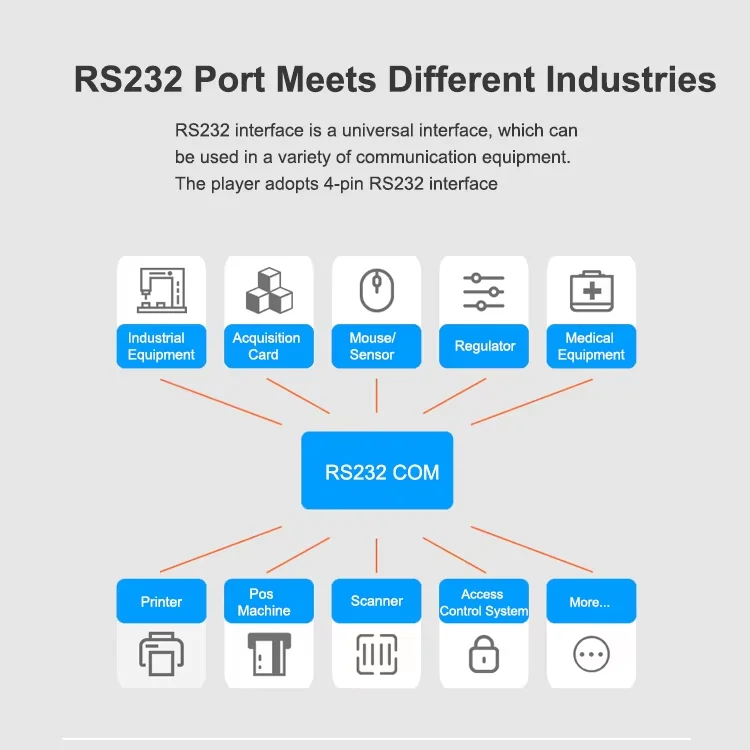

RS232
RS232 com port, male head DB9*1
USB 2.0
USB 2.0_A*2
HDMI_OUT_2
HDMI-A output supporting 1920*1080 60HZ
DC holder*1
DC_12V input 5.5*2.1mm plug
Headphone
3.5mm stereo headphone output
USB_OTG
USB_A*1
USB 3.0
USB 3.0_A*1
DMI_OUT_1
HDMI-A 2.0 output(supporting 3840*2160 60HZ)
SIM card
SIM card slot*1(optional)
Extended memory port
TF card slot*1
Button
Button
Upgrade button*1
Environmental Conditions
Working Environment
Temperature:-20~60℃,5%-85%RH (No condensation)
Storage environment
Temperature:-20~70℃,5%-95%RH (No condensation)

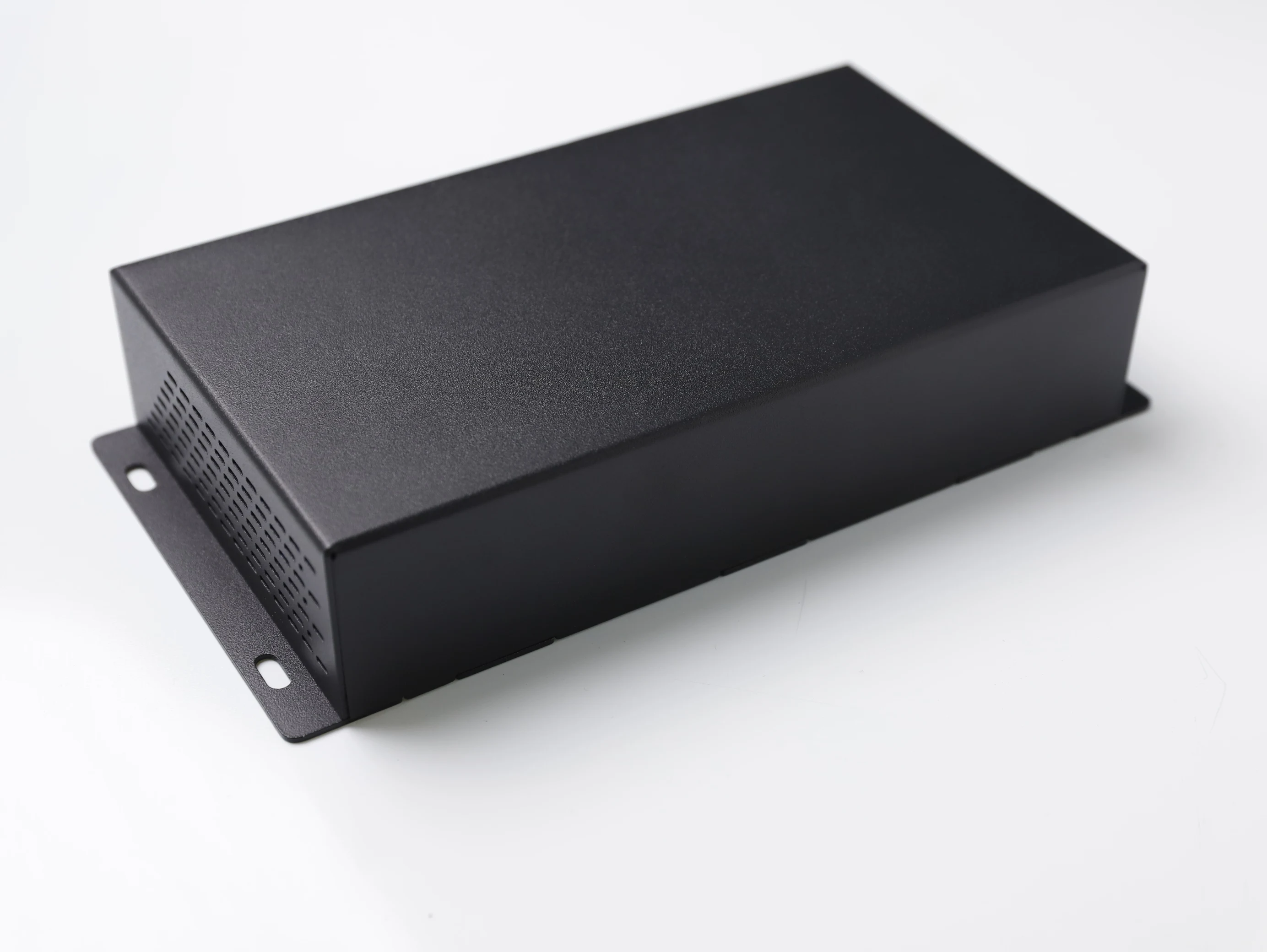

Material
Shell material
Metal
Size
Product Size
Shell size:190.6*98.9*34.7mm


Customization






Company Profile




Payment and Delivery


1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
