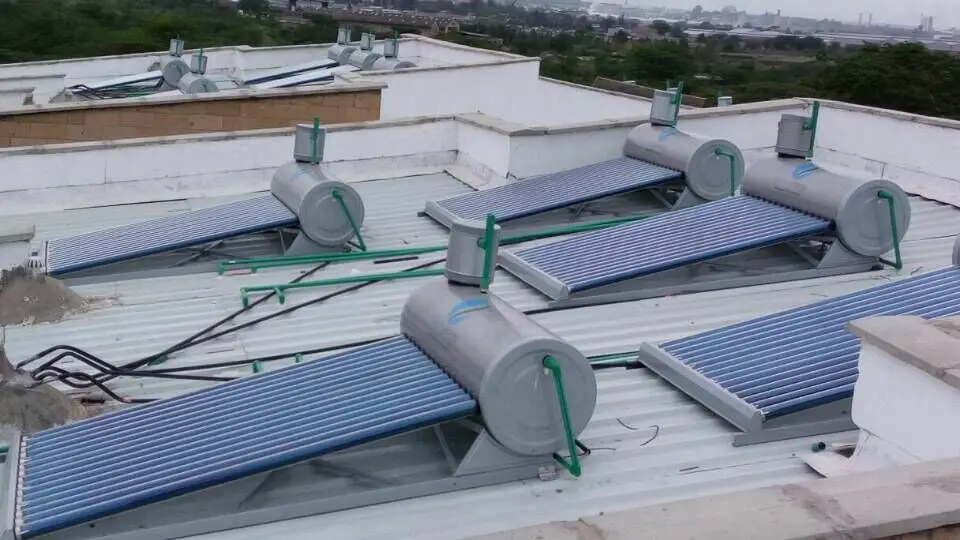

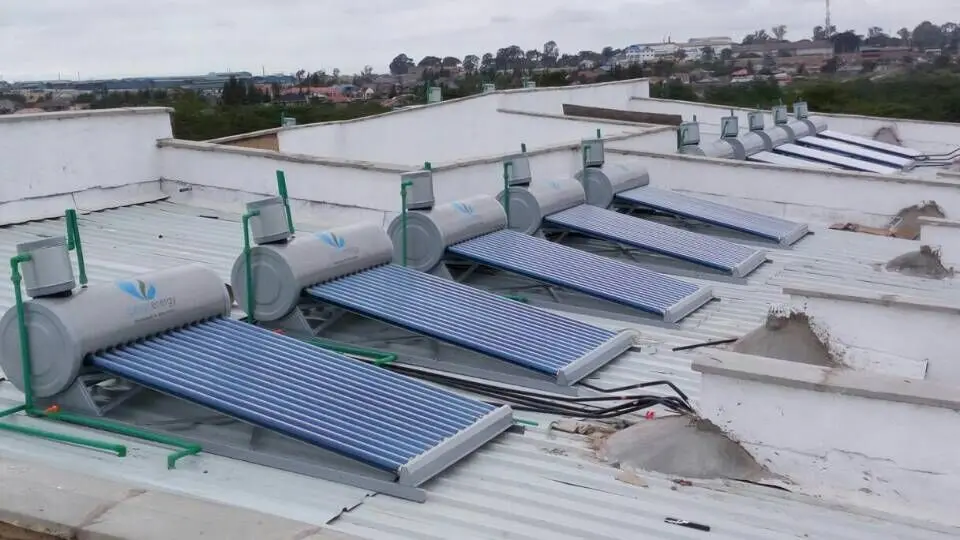

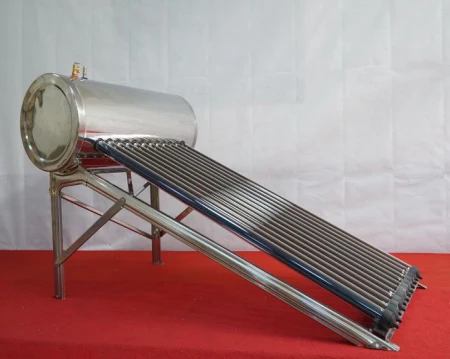

Popular Kenya Low Pressure Solar Water Heater non pressure solar boiler
- Category: >>>
- Supplier: Haining Jinneng Water Heater Co. Ltd.Haining Ltd.
Share on (1601248765658):
Product Overview
Description
Model | Tubes QTY PCS | Heat Pipe MM | Capacity Liters | Loading Quantity Sets(20FT/40HQ) |
JNCP10 | 10 | 14*6 | 100 | 86/210 |
JNCP12 | 12 | 14*6 | 120 | 71/175 |
JNCP15 | 15 | 14*6 | 150 | 57/140 |
JNCP18 | 18 | 14*6 | 180 | 47/116 |
JNCP20 | 20 | 14*6 | 200 | 43/105 |
JNCP24 | 24 | 14*6 | 240 | 35/85 |
JNCP30 | 30 | 14*6 | 300 | 27/67 |
JNCP36 | 36 | 14*6 | 360 | 22/55 |
Inner Tank | Imported stainless steel 304 food grade,0.5mm thick, argon welding. |
Outer Tank | Galvanized steel 0.4mm thick or Stainless steel 201 0.4mm thick. |
Insulation layer | 55mm thick high density polyurthane foam. |
Vacuum Tube | Three layer 58x1800mm, absorb efficency 94% to 97%. |
Heat Pipe | 14*0.6mm thick with heat transfer oil. |
Tank Working Pressure | 5 bar, maximum testing pressure 12 bar. |
Frame | Galvanized steel or Stainless steel 201,1.2-1.5mm thick. |
Frame Angle | Angle from 20 to 45 degrees. |
Tank Diameter | Inner tank 360mm, Outer tank 470mm. |
Warranty | 6 Years |
Delivery TIme | Delivery time within 10 days after receiving deposit |
Payment Term | TT/LC |
Other free services | Free installation manual in english,put logo on tank, cartons, and tubes |

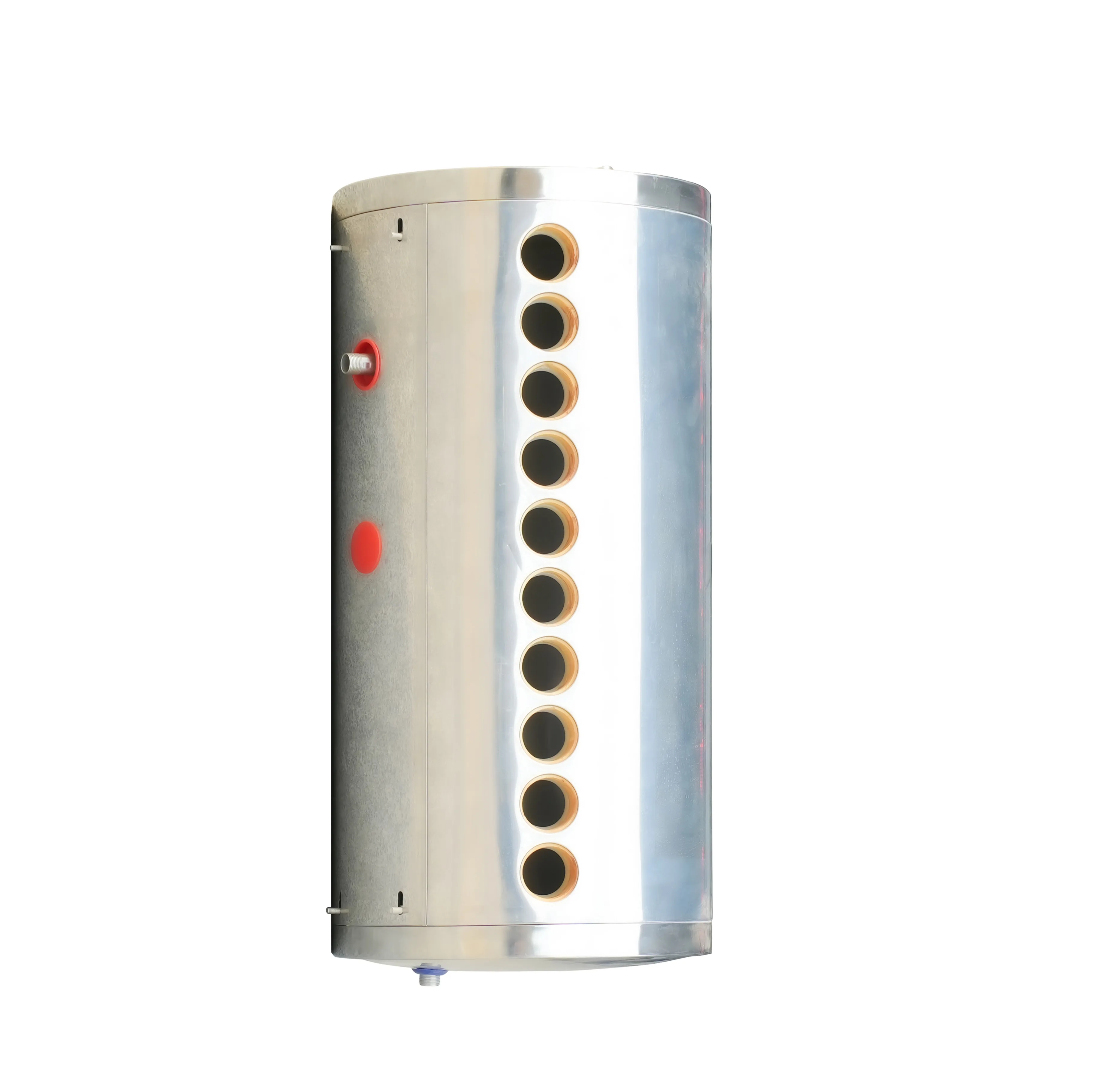

Liner: stainless steel 304 0.5mm
Outer tank: stainless steel 201 0.4mm/
Tank size: 360/456

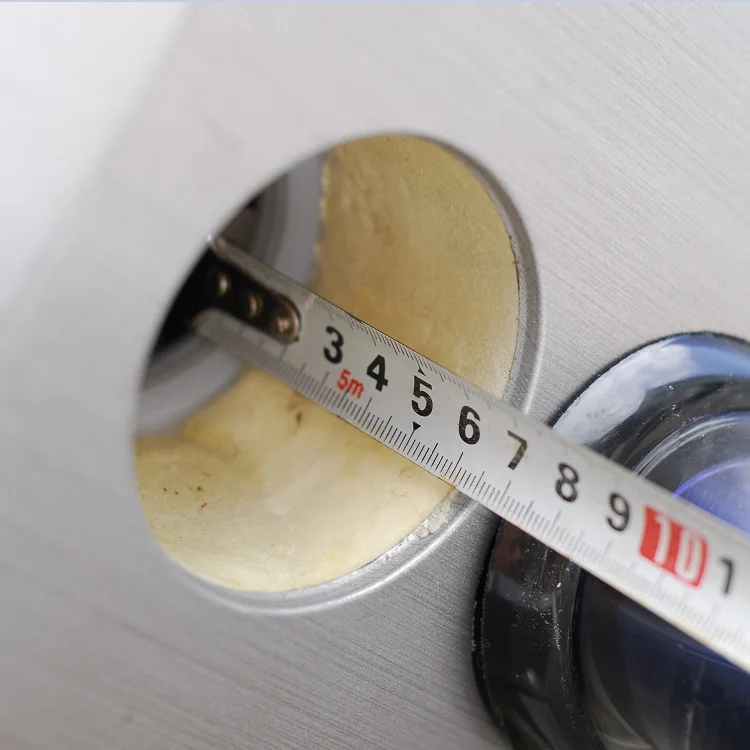

Insulation material: Polyurethane 50 mm, 45 kg /m3
Outer tank: stainless steel 201 0.4mm/
Tank size: 360/456
Insulation material: Polyurethane 50 mm, 45 kg /m3

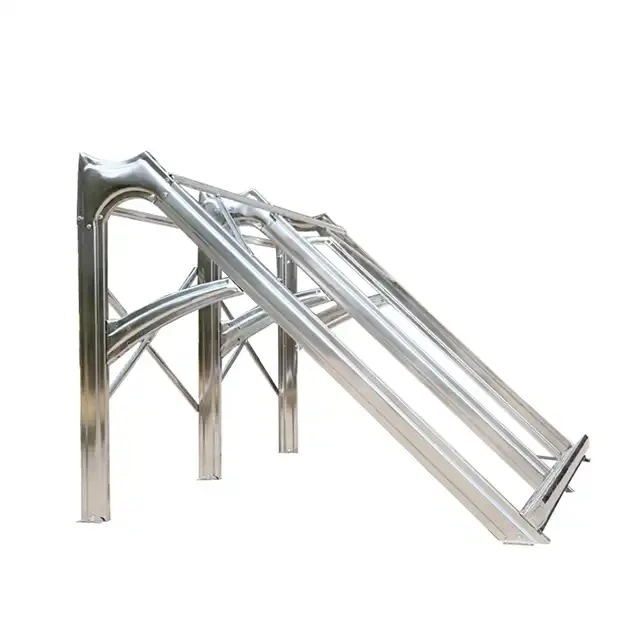

frame
Material: Galvanized steel 1.5 mm Shape: Type 7
Angle: From 0 ° to 45 °
Screw: Stainless steel 201 M6 (M8 optional)
Angle: From 0 ° to 45 °
Screw: Stainless steel 201 M6 (M8 optional)

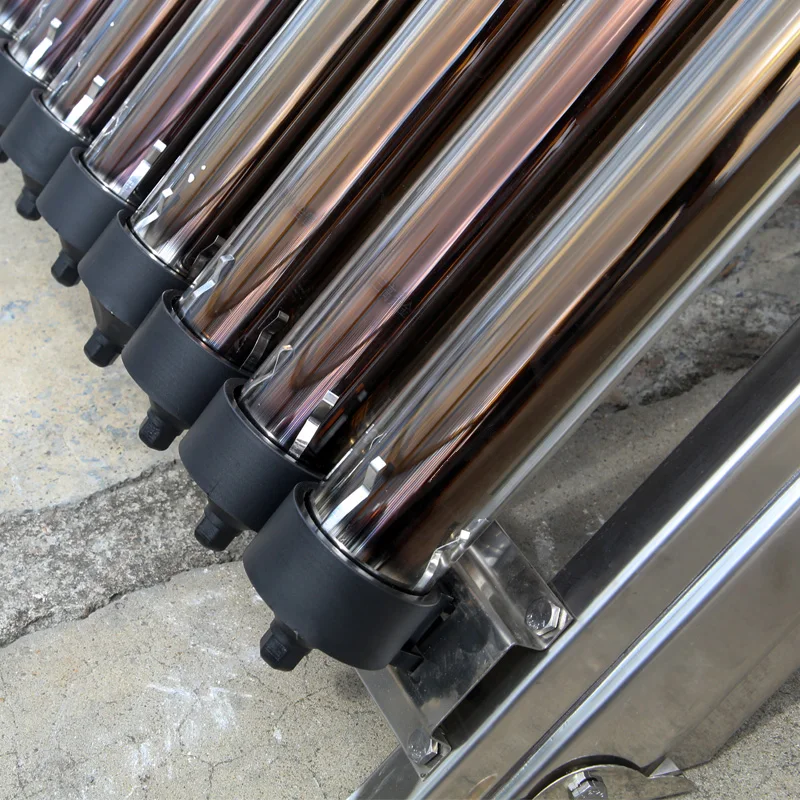

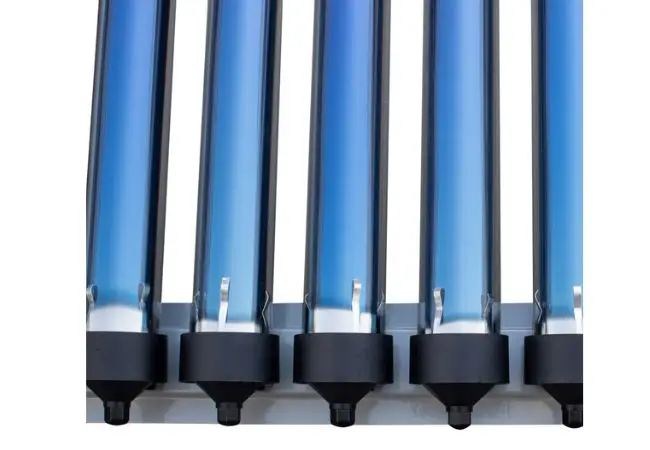

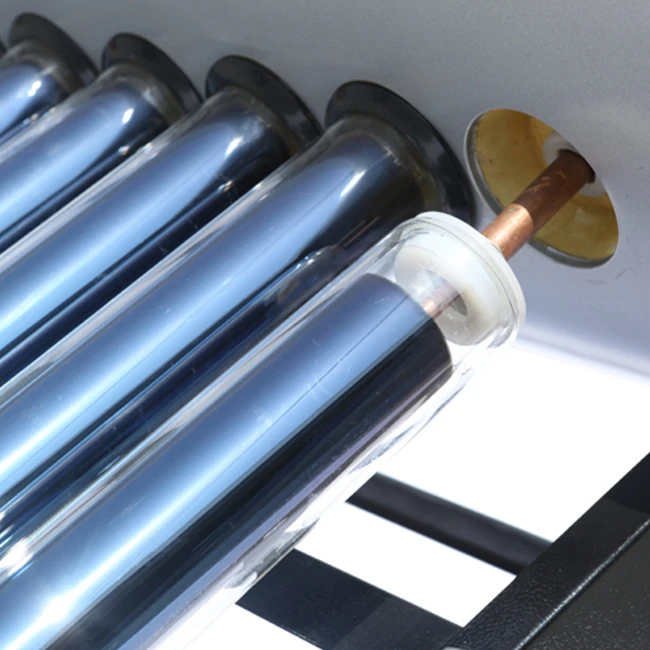

Three target vacuum tube
Material: high borosilicate 3.3
Coating: ALN/AL N-SS/Cu
Color: Blue
Efficiency: >91%
Weight: 1.95 kg
Material: high borosilicate 3.3
Coating: ALN/AL N-SS/Cu
Color: Blue
Efficiency: >91%
Weight: 1.95 kg
Customer Feedback

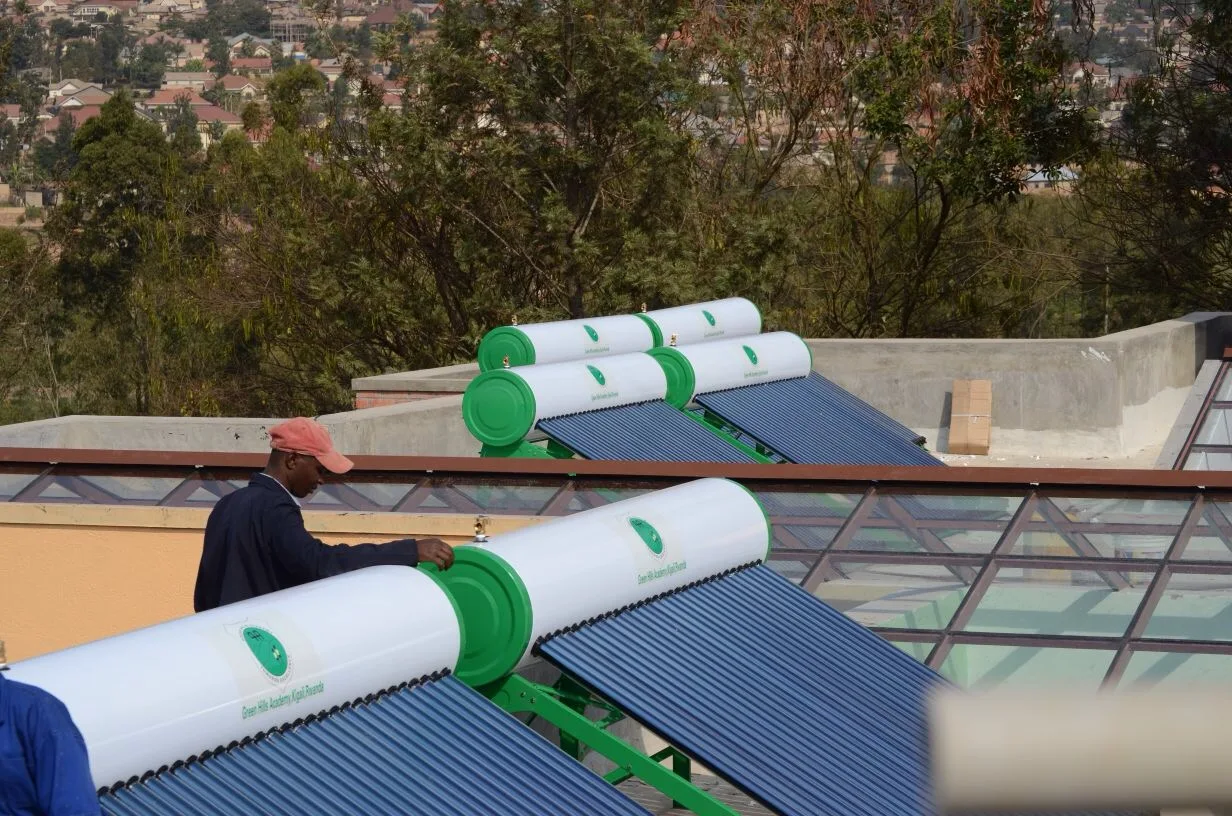

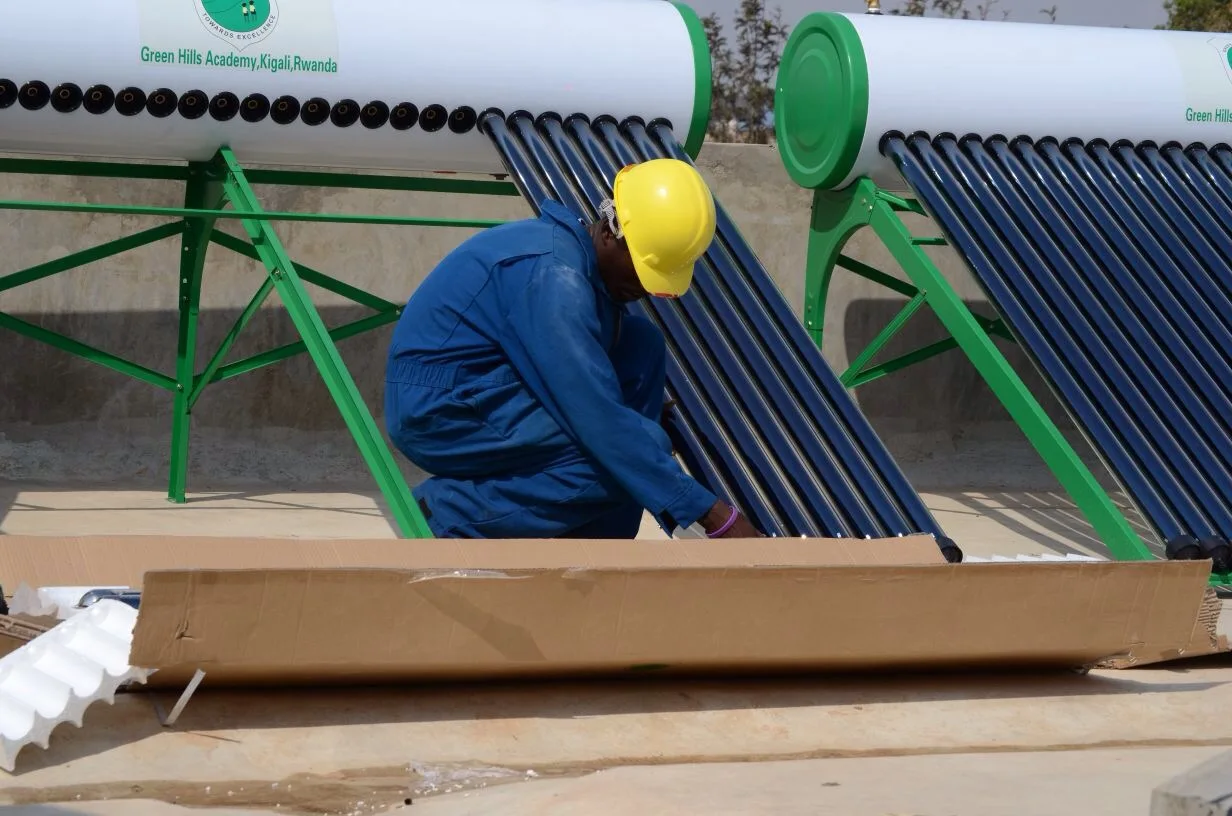

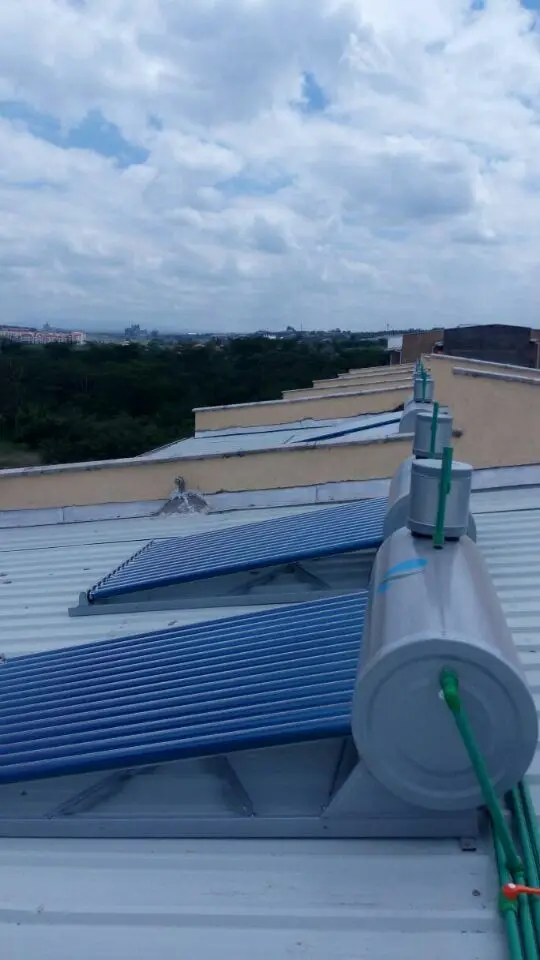

From Africa
Five star reviews from Dutch customers
Five star reviews from customers
1. What can Haining Jinneng do?
Haining Jinneng is a professional manufacturer of on/off heat pump, DC frequency conversion heat pump, air source heat pump,water-water heat pump, swimming pool heat pump, high temperature heat pump and other types of heat pump.
2. What are your advantages over other water heaters?
Avoid leakage, dryness and high power consumption of electric water heater. Avoid the disadvantages of gas water heaters, such as harmful gas generation, installation and start-up. High efficiency, energy saving, safety and environmental protection,all-weather operation, easy to use.
3. What is the monthly output of Haining Jinneng Company?
The heat pump water heater produced by Haining Jinneng in a month is about 3000PCS/ month.
4. What about your delivery time?
Generally, it takes 20 to 30 days after receiving the advance payment. The exact delivery time depends on the project and your order quantity.
5. What can Haining Jinneng do for its agents/distributors/Oems?
Haining Jinneng provides sales training, heat pump and solar air conditioning product training, after-sales service training, maintenance machine training, large air cooler or heating project design case training, internal parts exchange training and testing training.
6. Where is Haining Jinneng heat pump used?
Because air source heat pumps save about 70% energy, (EVI heat pumps and central cooling and heating heat pumps) are widely used in home heating, hotel hot water and heating, restaurants, hospitals, schools, bath centers, residential central heating and hot water plants, etc.
Haining Jinneng is a professional manufacturer of on/off heat pump, DC frequency conversion heat pump, air source heat pump,water-water heat pump, swimming pool heat pump, high temperature heat pump and other types of heat pump.
2. What are your advantages over other water heaters?
Avoid leakage, dryness and high power consumption of electric water heater. Avoid the disadvantages of gas water heaters, such as harmful gas generation, installation and start-up. High efficiency, energy saving, safety and environmental protection,all-weather operation, easy to use.
3. What is the monthly output of Haining Jinneng Company?
The heat pump water heater produced by Haining Jinneng in a month is about 3000PCS/ month.
4. What about your delivery time?
Generally, it takes 20 to 30 days after receiving the advance payment. The exact delivery time depends on the project and your order quantity.
5. What can Haining Jinneng do for its agents/distributors/Oems?
Haining Jinneng provides sales training, heat pump and solar air conditioning product training, after-sales service training, maintenance machine training, large air cooler or heating project design case training, internal parts exchange training and testing training.
6. Where is Haining Jinneng heat pump used?
Because air source heat pumps save about 70% energy, (EVI heat pumps and central cooling and heating heat pumps) are widely used in home heating, hotel hot water and heating, restaurants, hospitals, schools, bath centers, residential central heating and hot water plants, etc.
