Product Overview
Description
Full Automatic Chocolate Making Machine Production Line
Chocolate Bar Making Machines
Products Description

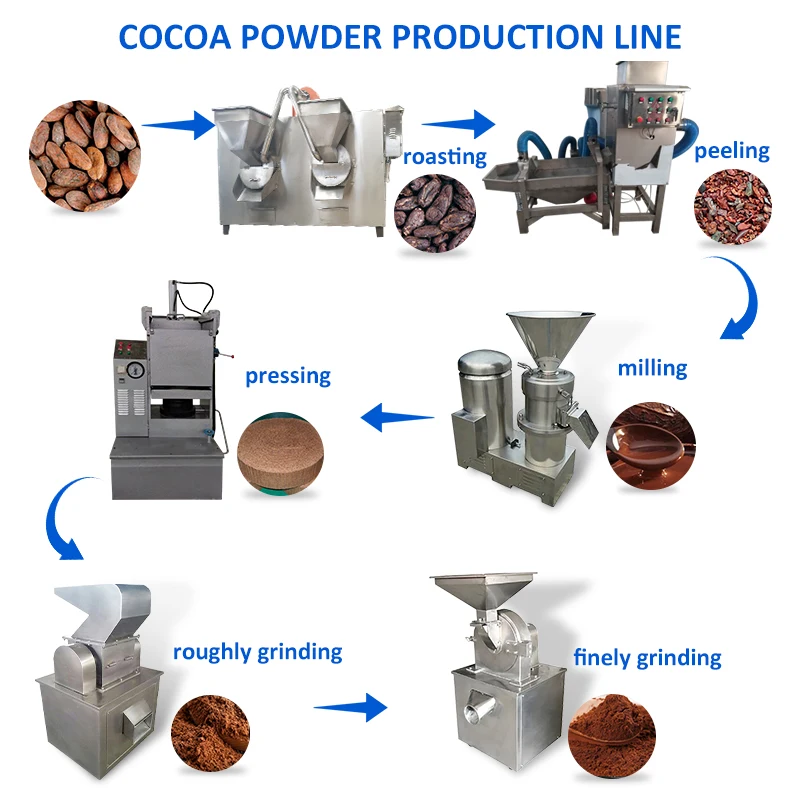

Step 1: Cocoa beans are roasted in Nuts roasting machine.
Step 2: Put the roasted cocoa beans into the Peeling, sorting machine. Cocoa nibs are obtained by peeling, sorting and crushing.
Step 3: Grind the cocoa nibs into cocoa butter through Colloid mill.
Step 4: Cocoa butter is passed through Hydraulic press machine to separate oil.
Step 5: Obtain cocoa powder with a coarseness through Coarse crusher.
Step 6: Obtain cocoa powder of fineness through Fine crusher.
Step 2: Put the roasted cocoa beans into the Peeling, sorting machine. Cocoa nibs are obtained by peeling, sorting and crushing.
Step 3: Grind the cocoa nibs into cocoa butter through Colloid mill.
Step 4: Cocoa butter is passed through Hydraulic press machine to separate oil.
Step 5: Obtain cocoa powder with a coarseness through Coarse crusher.
Step 6: Obtain cocoa powder of fineness through Fine crusher.
Product parameters
NO. | Item | Data |
1 | Voltage | 220V, 60Hz, 1P |
2 | Number of roller | 2 roller |
3 | Heating type | Electric heating |
4 | Processing capacity | 80-120kg/h |
5 | Power | 18kw |
6 | Machine material | The inside is stainless steel, the outside is carbon steel. |
7 | Dimension | 3000*1200*1700mm |
Product details

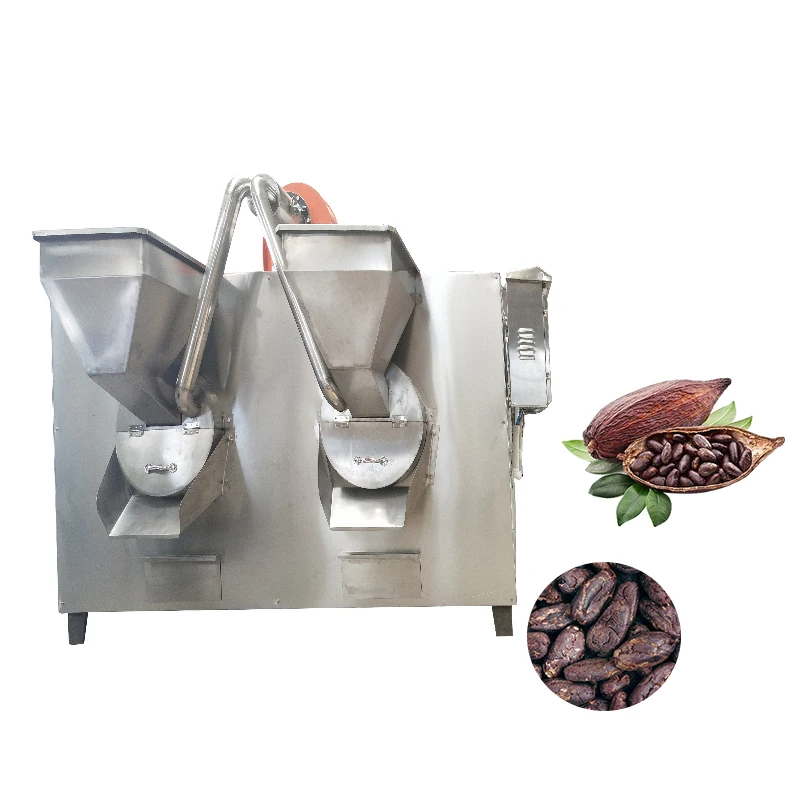

This equipment is mainly used for roasting peanuts, chestnuts, walnuts, almonds, coffee beans, melon seeds and other granular nut foods. This machine uses electricity as the heat source and uses the principle of heat conduction and radiation to bake materials. During baking, the to-be-baked object is not in contact with the fireworks. During the baking process, the to-be-baked material is continuously pushed by the spiral sheet in the drum to form an uninterrupted rolling, so that it is heated evenly, which effectively guarantees the baking quality, color and taste.

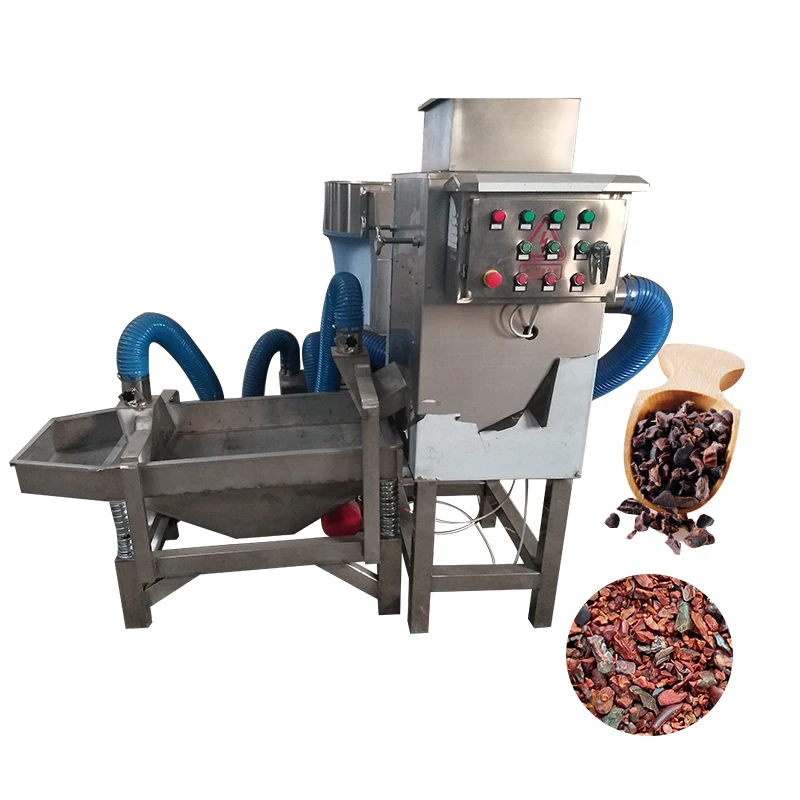

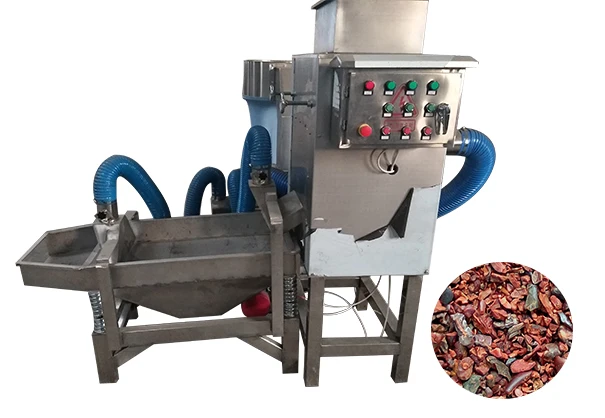

The cocoa beans are put into the feeding hopper, rolled and peeled by the stripping roller, and then dropped to the vibrating screen for screening. The different sizes of peeled cocoa beans are sucked to the outside of the machine by the wind power for storage. The peeled cocoa beans are discharged through the port. All peeled cocoa beans can be separated by adjusting the wind power and the peeling gap.

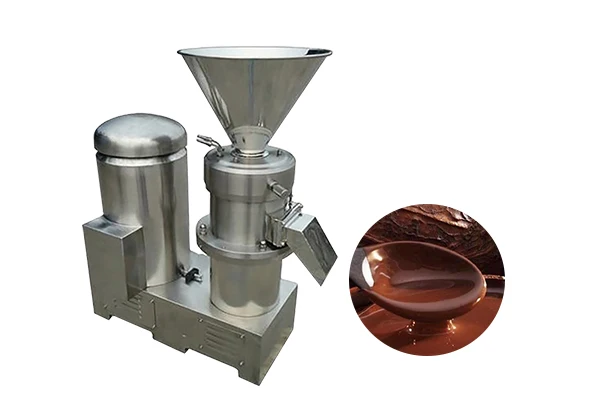

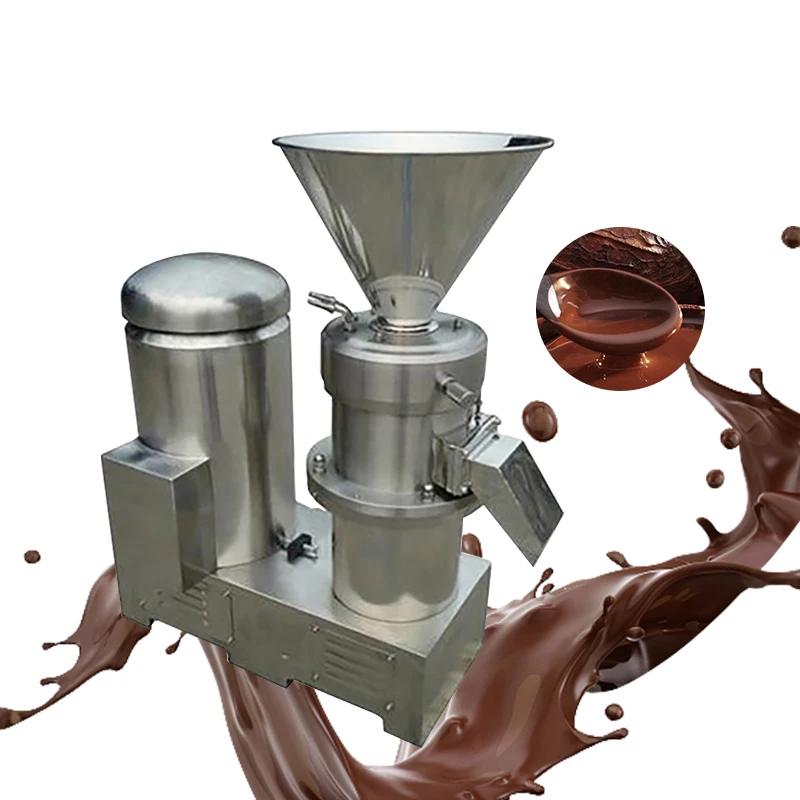

The principle of colloid mill is that the material is effectively crushed, emulsified, homogenized and warmed by the strong shear force, friction force and high-frequency vibration through the high-speed relatively linked fixed teeth and moving teeth, so as to obtain satisfactory fine processing products.
Features:
Features:
1. The double reinforced base provides excellent stability and ensures the stable operation of the machine.
2. The grinding disc is composed of stainless steel gears to achieve the effect of crushing in an instant.
3. High power, high torque, low temperature rise and small vibration, has a long service life.
2. The grinding disc is composed of stainless steel gears to achieve the effect of crushing in an instant.
3. High power, high torque, low temperature rise and small vibration, has a long service life.

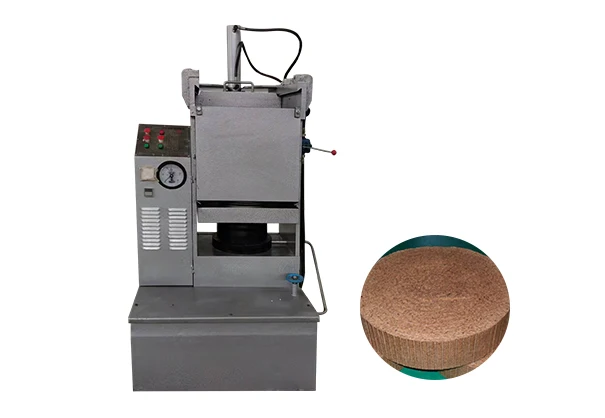

The pressure is generated by the hydraujicto squeeze the raw materials in the raw materialbarrels.
Features:
1. Pure physical pressing, high oil yield.
2. No temperature is generated during the pressing process, the organic components of the oil are not damaged.
3. It has a wide range of applications. It can be hot pressed or cold pressed.
4. Convenient operation and high efficiency.
Features:
1. Pure physical pressing, high oil yield.
2. No temperature is generated during the pressing process, the organic components of the oil are not damaged.
3. It has a wide range of applications. It can be hot pressed or cold pressed.
4. Convenient operation and high efficiency.

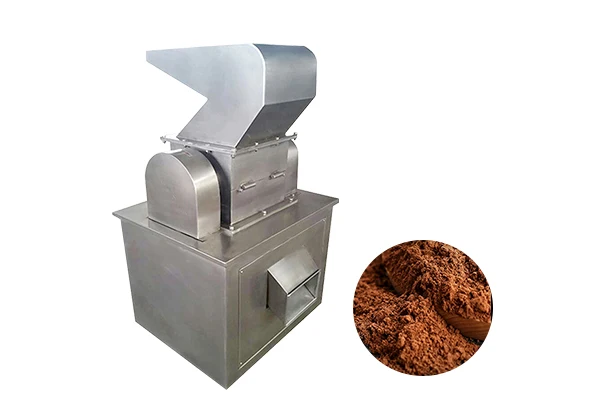

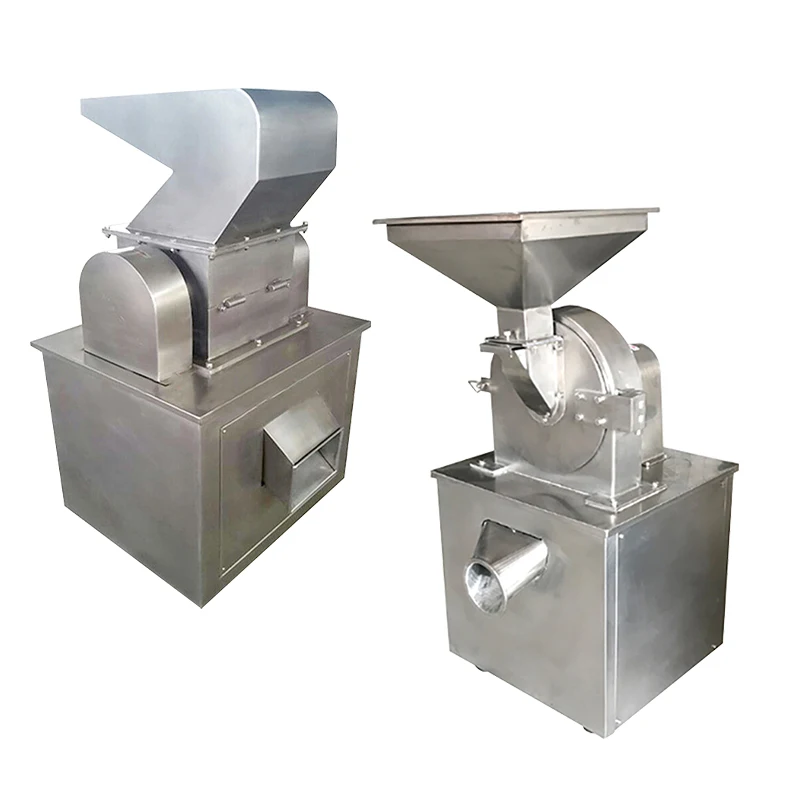

The material enters the crushing chamber from the hopper of the crusher, and the crushing effect is obtained by shearing with a rotating knife and a fixed impact. After the action of the rotating centrifugal force, the material automatically flows to the outlet of the crusher.

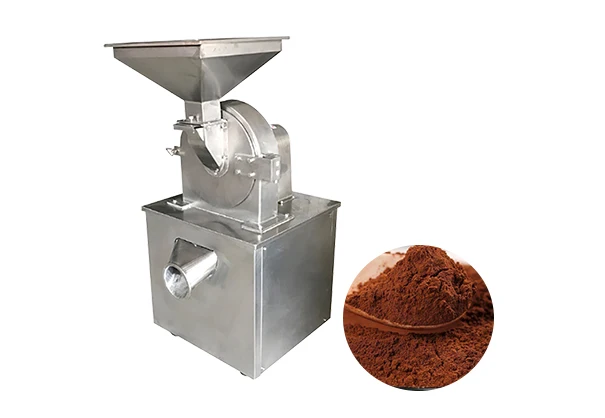

This machine makes use of the relative motion between the active fluted disc and fixed fluted disc to impact, grind and crush the material.
Application
Chocolate Production Line
