Share on (1601249042986):


Price:$7.20 - $10.20

Quantity:


Product Overview

Description











Products Description


Name of product

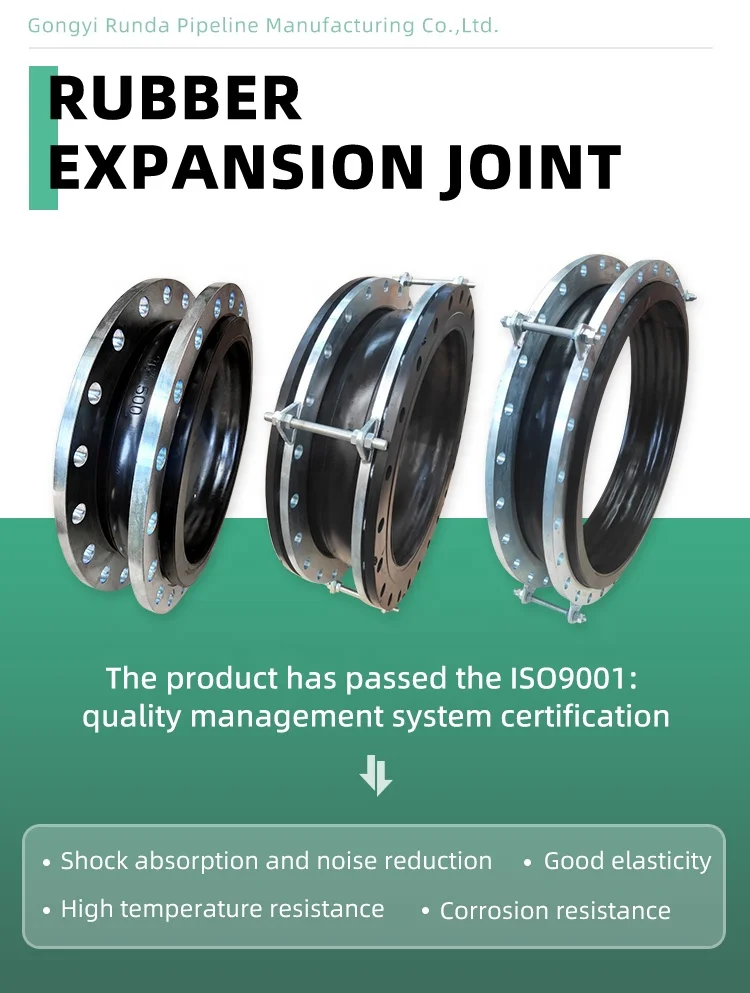

customized large diameter pipeline ss304 flange connector flexible single arch bellow rubber expans joint

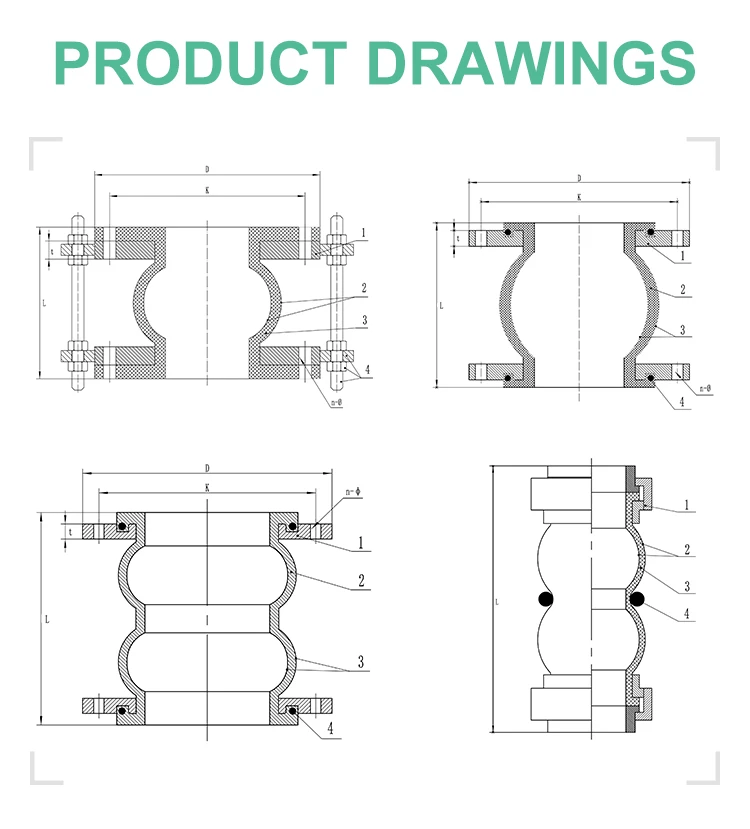

Structure of product
Inner and outer rubber,nylon cord fabric,steel wire and flange
Size
DN25-DN3000
Material of rubber
EPDM, NR, NBR,PTFE, FPM,etc
Material of flange
SS304,SS316,carbon steel, ductile iron,etc
Standard of flange
DIN, BS, ANSI, JIS,etc.

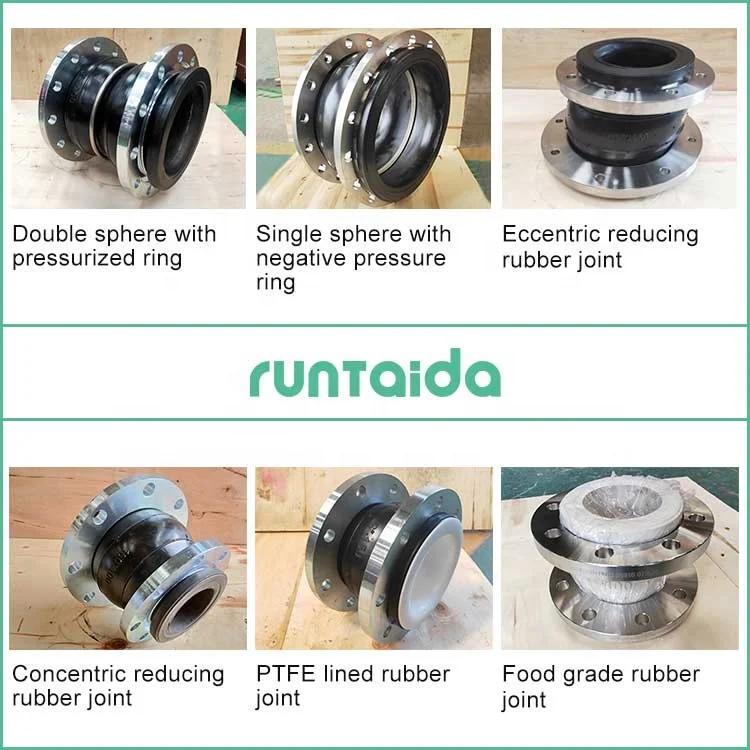

Product classification
Single sphere , Double sphere, Union type,etc




Technical parameter

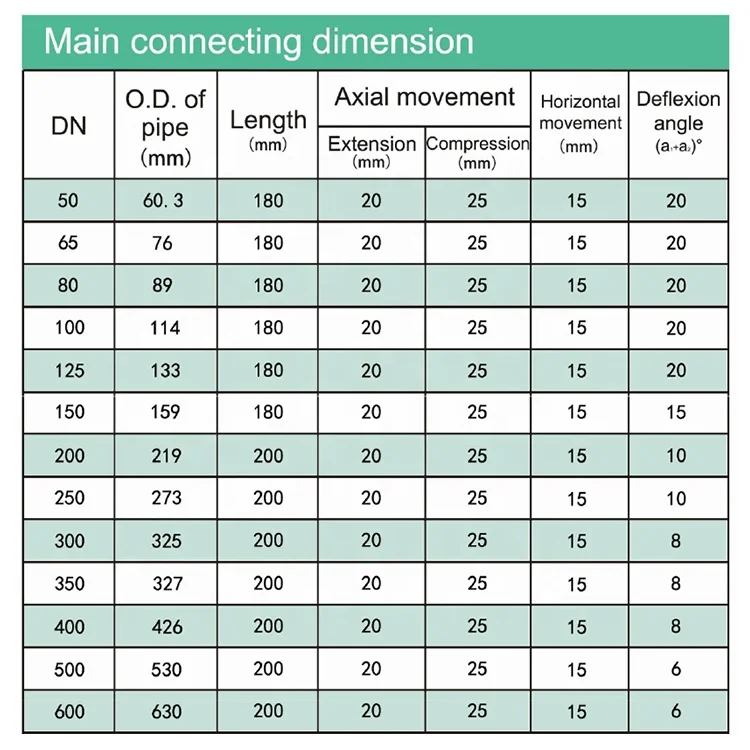

Main connection dimension
Nominal diameter(DN)
Length
Axial displacement
Horizontal displacement
Deflexion angle
Special
length
mm
inch
mm
Extension
(mm)
Compression
(mm)
mm
(a1+a2)°
mm
32
1 1/4
95
6
9
9
15°
130/150/200
40
11/2
95
6
10
9
15°
130/150/200
50
2
105
7
10
10
15°
130/150/200
65
2 1/2
115
7
13
11
15°
130/150/200
80
3
135
8
15
12
15°
130/150/200
100
4
150
10
19
13
15°
130/120
125
5
165
12
19
13
15°
130/150/200
150
6
180
12
20
14
15°
130/150/200
200
8
210
16
25
22
15°
130/150/200
250
10
230
16
25
22
15°
130/150/200
300
12
245
16
25
22
15°
130/150/200
350
14
255
16
25
22
15°
130/150/200
400
16
255
16
25
22
15°
130/150/200
450
18
255
16
25
22
15°
200
500
20
255
16
25
22
15°
200
600
24
260
16
25
22
15°
300
700
28
260
16
25
22
15°
300
800
32
260
16
25
22
15°
300
900
36
260
16
25
22
15°
300
1000
40
260
18
26
24
15°
300
1200
48
260
18
26
24
15°
300

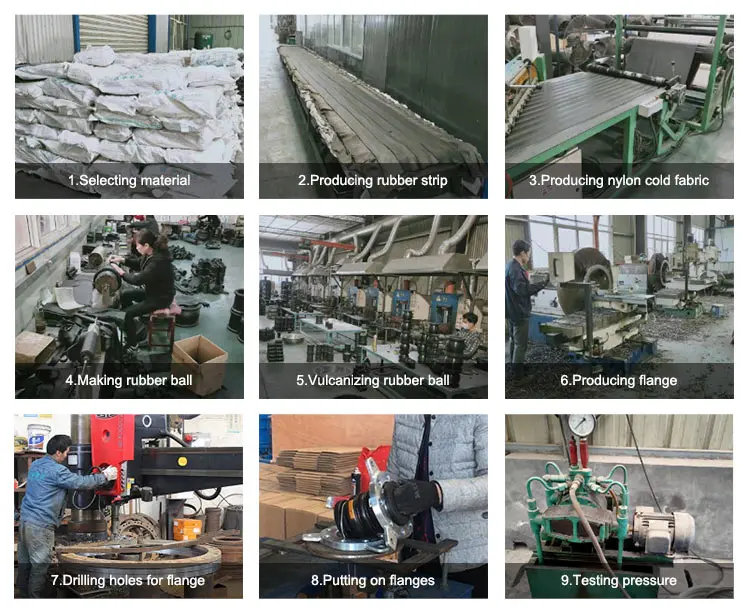

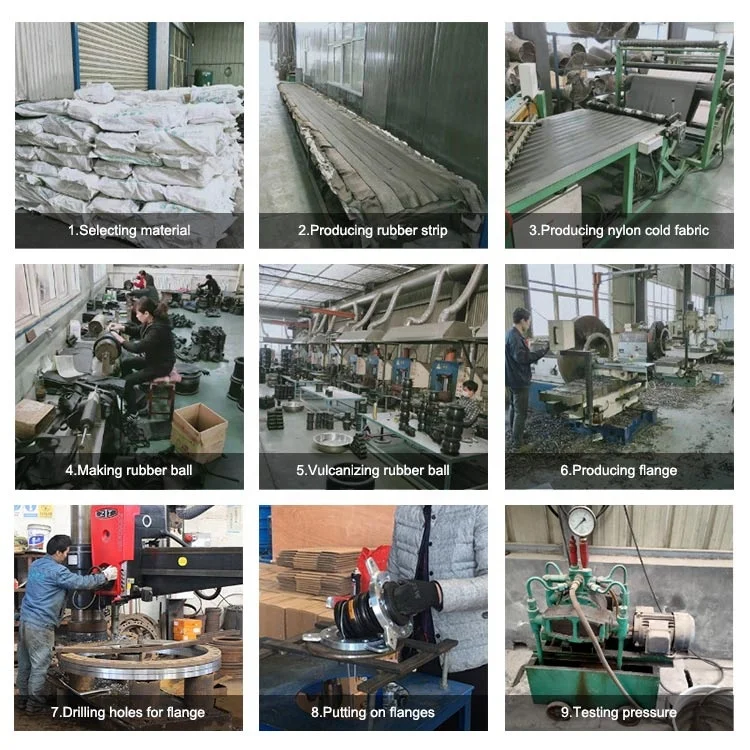

Production process

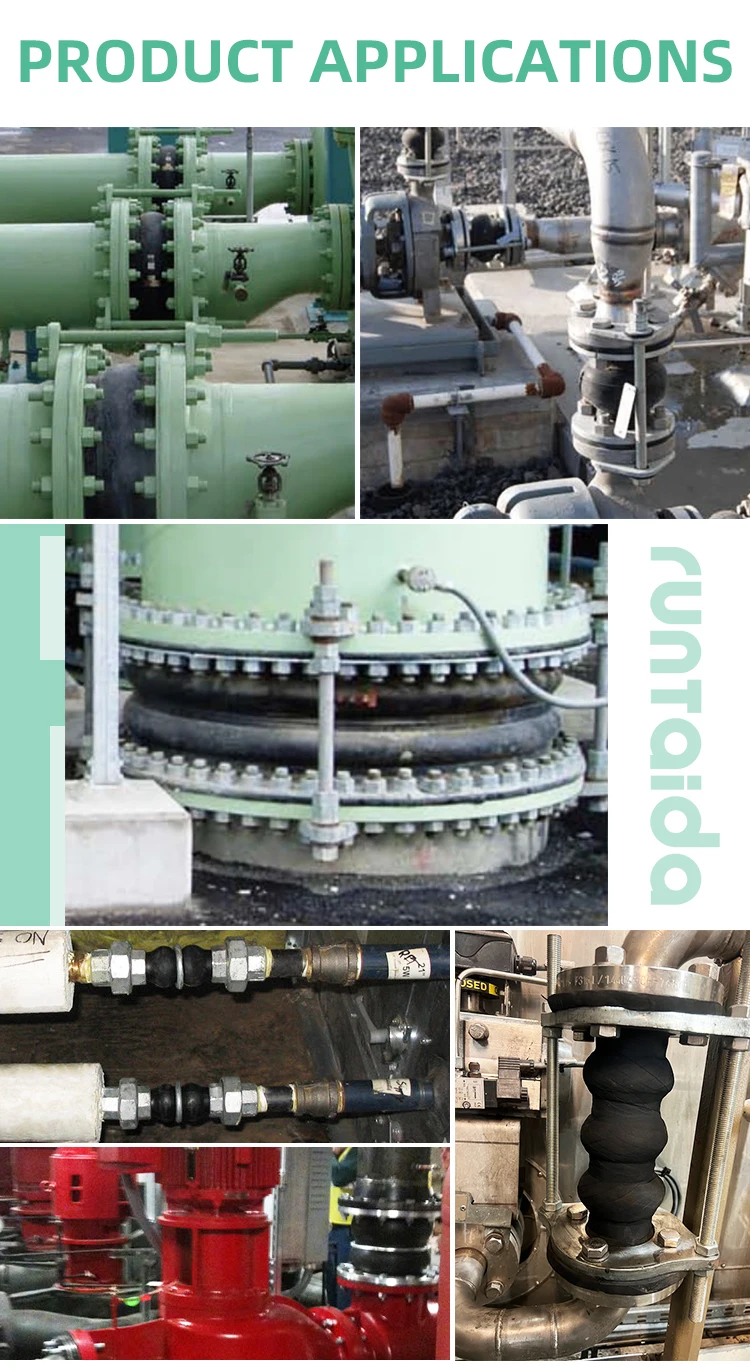

Application field




Packaging&Shipping

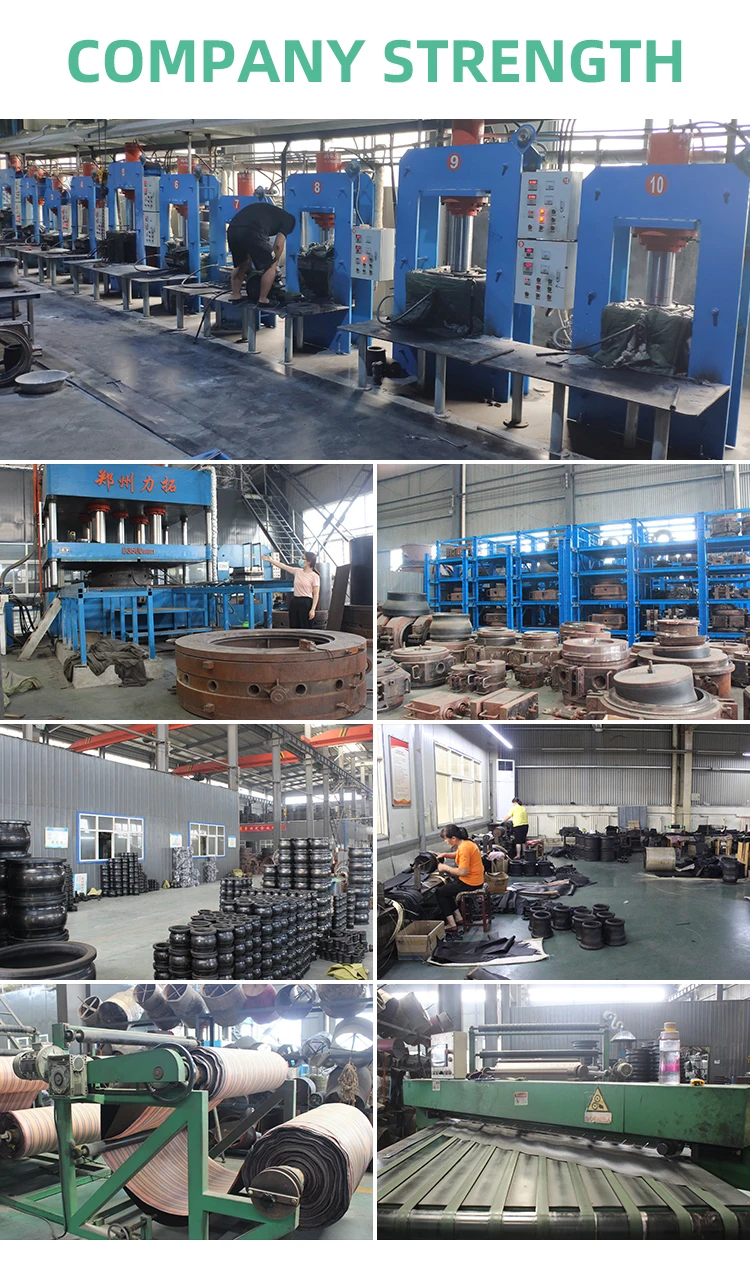

Company Information


Gongyi Runda Pipeline Manufacturing Co., Ltd.
Our mission:Make the pipeline operation safer.

Our values:Quality first, service first, integrity and responsibility,Loyal to the goal, efficient execution, trust and cooperation.

The main products:rubber expansion joint, bellow expansion joint, flexible metal hose, repair clamp,double flange dismantling joint, flange adaptor, dresser coupling, fabric expansion joint, bellow seal globe valve, etc.






Customer &Exhibition








We will take every customer's goods seriously to ensure customer satisfaction.


FAQ


Q:Are you trading company or manufacturer?
A:We are manufacturer of rubber expansion joint, bellow expansion joint,repair clamp,flexible metal hose, dismantling joint, dresser coupling, flange adaptor and flange with more than 16-years experience.

Q:Do you have products catalog?
A:Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q:Can you provide drawings and technical data?
A:Yes, our professional technical department will design and provide drawings and technical data.

Q:Do you provide samples? Is it free or charged?
A:Yes, we can offer sample free but shipping charges covered by customer.

Q:Can the products be manufactuered by customer's requirement?
A:Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Write your needs in below,Contact us for more details!
