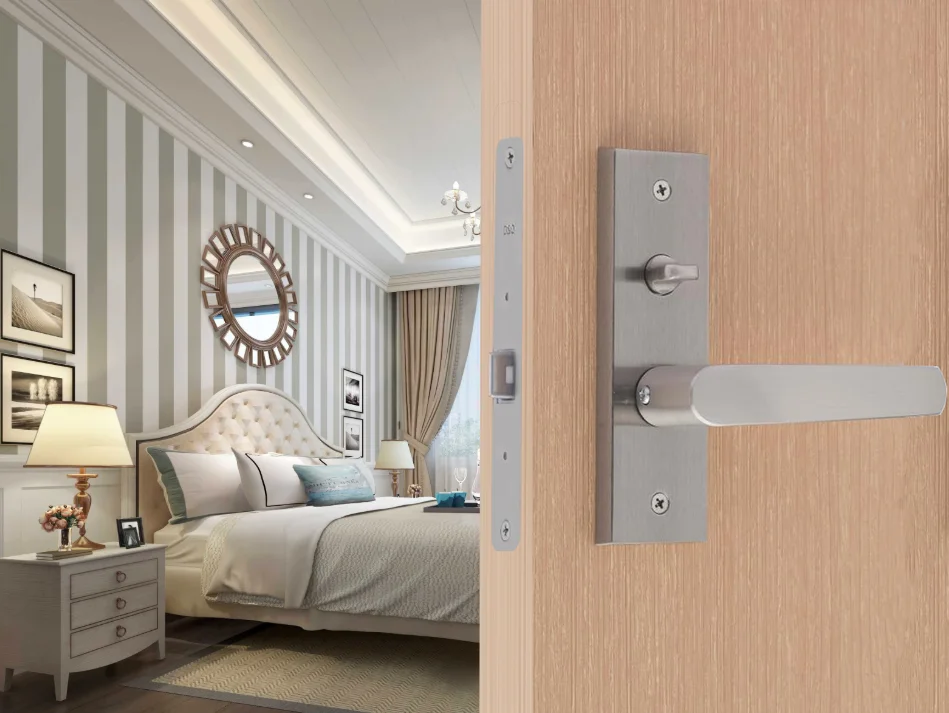

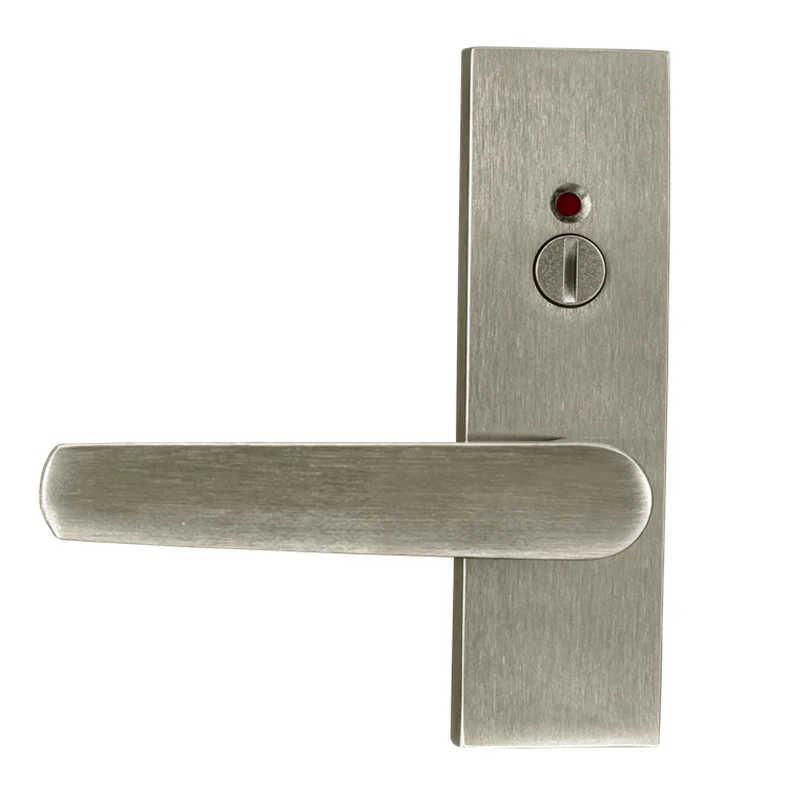

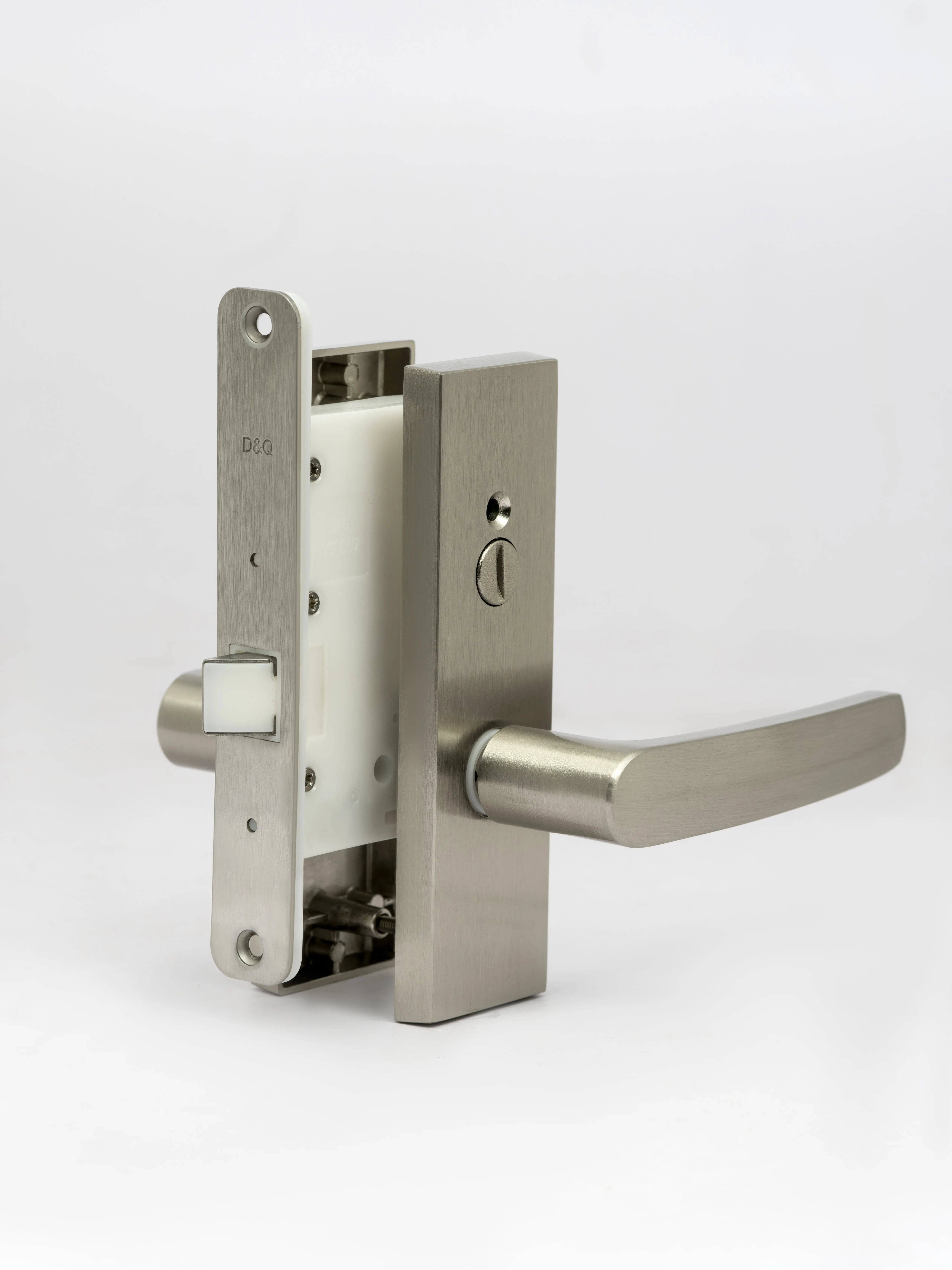

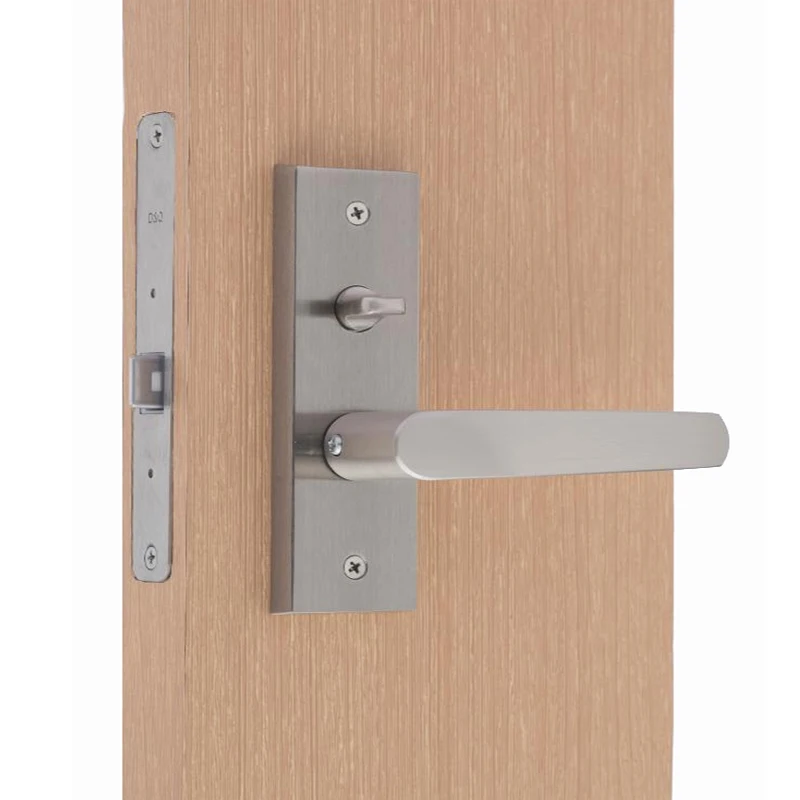

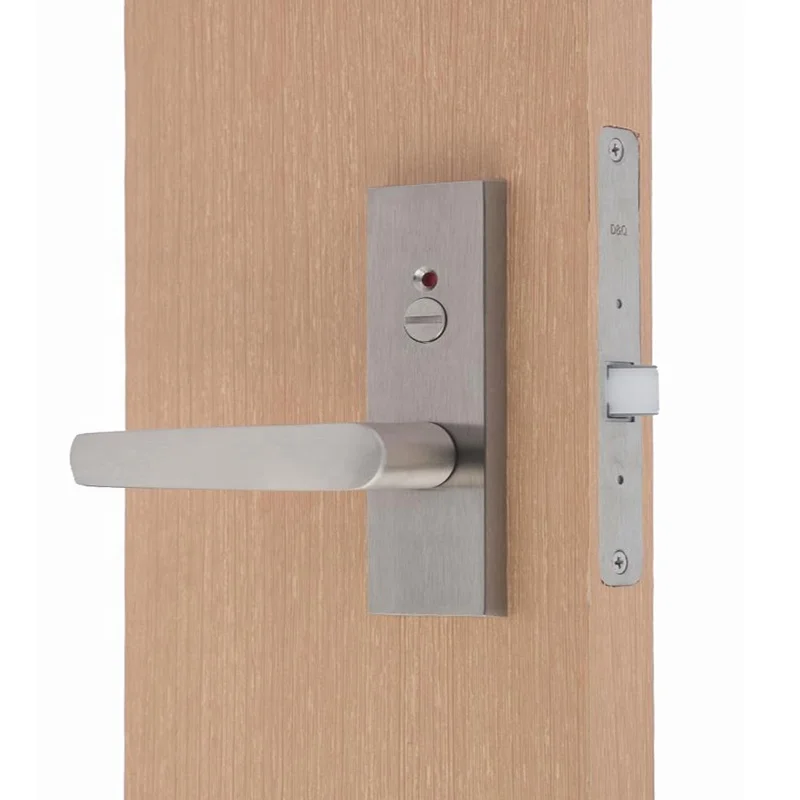

Japanese Style Hardware Manual Bathroom Lever Door Locks with Indicator for Interior Wood Doors Factory
- Category: >>>
- Supplier: Yantai Zhengshi Hardware Co. Ltd.Yantai Ltd.
Share on (1601249112413):
Product Overview
Description
Products Description
Model | MPD1613(BA)-X |
Application | wooden door lock,bedroom door lock,bathroom door lock |
Colour | nickel plating，matte black，champagne gold，customized colour |
Material | 1.The lock body shell is made of POM and the handle is made of aluminum alloy to ensure the firmness of the lock. 2.The bolt ismade of plastic POM and stainless steel which reduces the noise and achieves a better mute effect. 3. Various tests(such as 96 hour salt spray test,acid and alkali resistance test,adhesion and hardness test) are carried out in accordance with Japanese JIS standards to ensure the durability of the lock. |
Characteristics | This type of mortise lever handle lock adopts a keyless locking design.It could be locked with a knob from inside and unlocked with a coin from outside.When there is a state of emergency and the door is locked,it could be quickly unlocked from outside. |
Weight | 0.658kg |
Logo | D&Q （Accept Customized Logo） |
Applicable Place | residence, hotels, office buildings, medical institutions, schools |

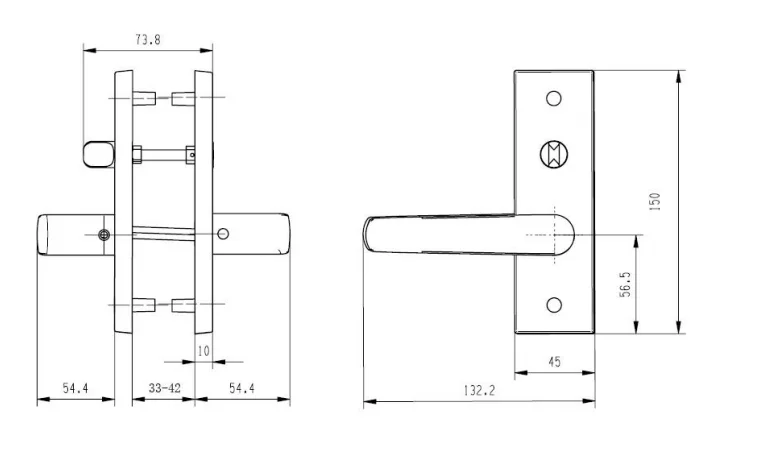

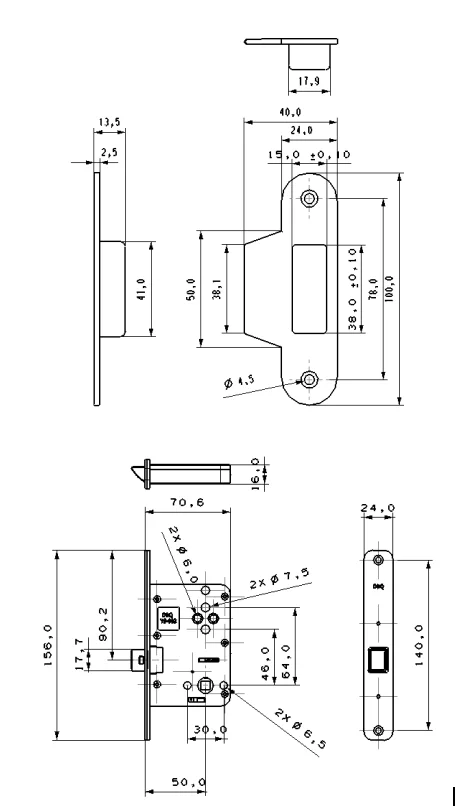

Dimension | Center distance：46mm |
Dimension | Backset：50mm |
Center distance of the mounting hole for handle panel：118mm | |
Door thickness | 33-42mm |

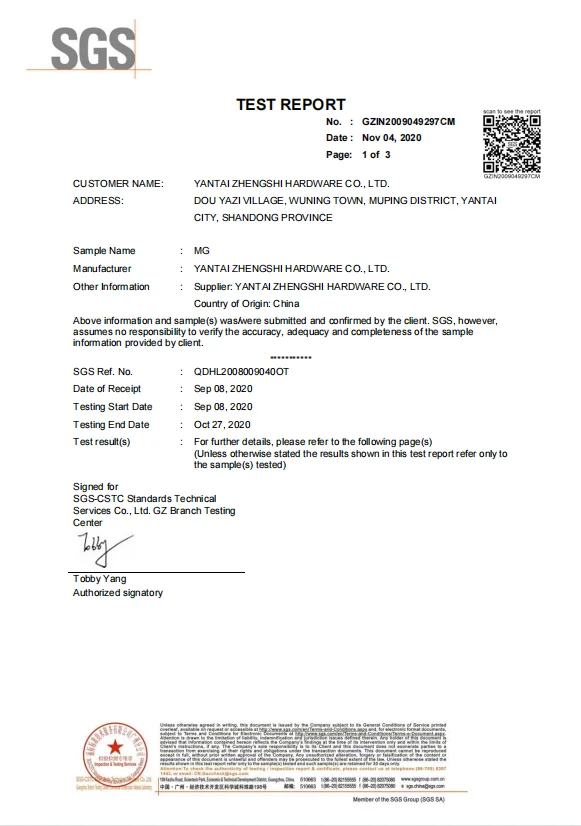

Ceritification | SGS |
OEM | Accept |

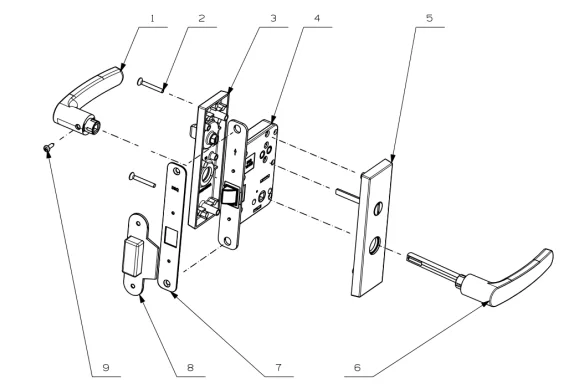

No | Name | No | Name |
1 | Inner Lever Handle | 6 | Outer Lever Handle |
2 | Screw | 7 | Plate for Lock Body |
3 | Inner Panel for Lever Handle | 8 | Striking Box |
4 | Lock Body | 9 | Fastening Screw |
5 | Outer Panel for Lever Handle |
Recommend Products
Product Line
Why Choose Us

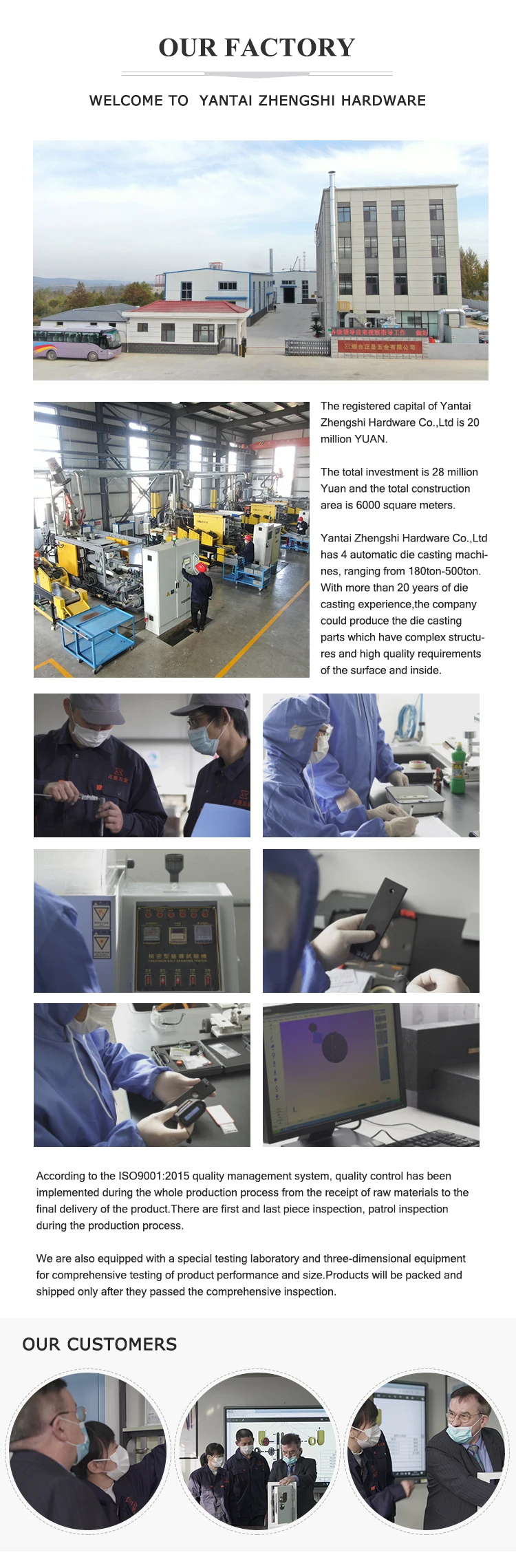

Our Factory

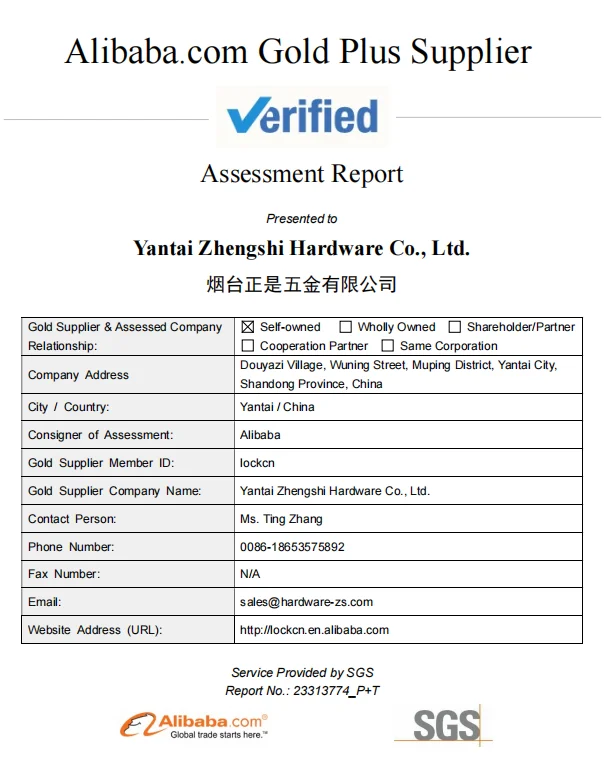

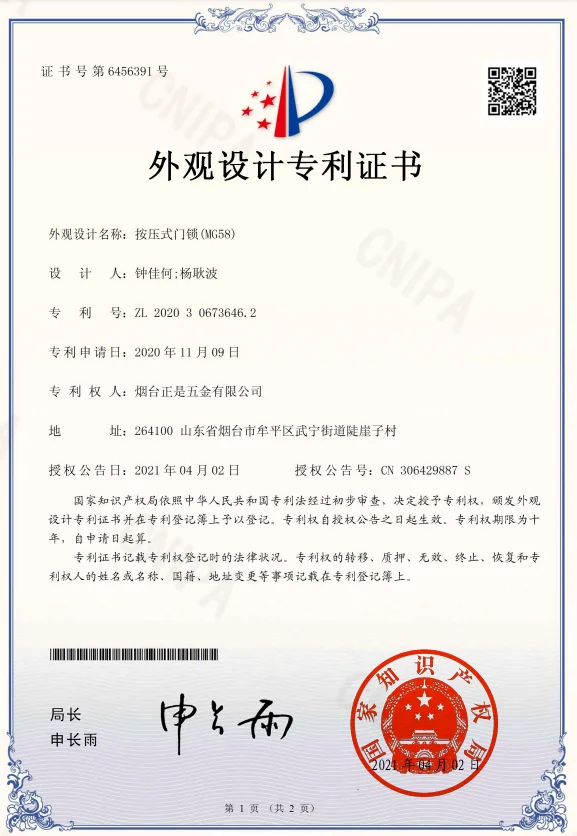

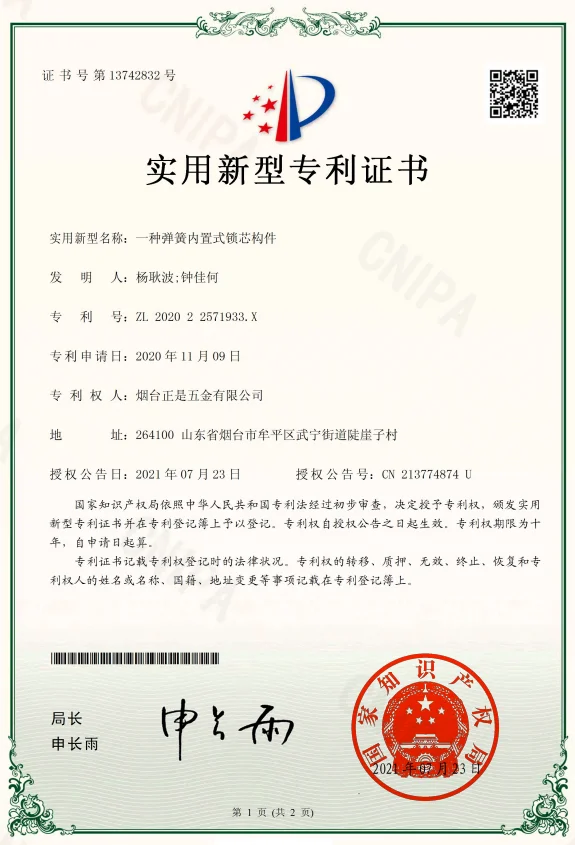

Certifications
Packing & Shipping
FAQ
1. Are you a manufacture factory or a trading company? |
We are a manufacture factory with more than 20 years experiences of hardware production. |
2. Why do we choose your company?What is the advantage of your company? |
With more than 20 years experiences of hardware processing and production,we could make products with complex structure and high precision machining requirements.We have more than 10 years experiences of locks export and we have been cooperating with WEST,a large Japanese door locks manufacturer since 2008. |
3. Regarding the price, could you give us a discount? |
We could offer appropriate discounts to potential customers who actively help us with product promotions and customers who place consecutive and large quantity orders. |
4. How do you guarantee the quality of your products? |

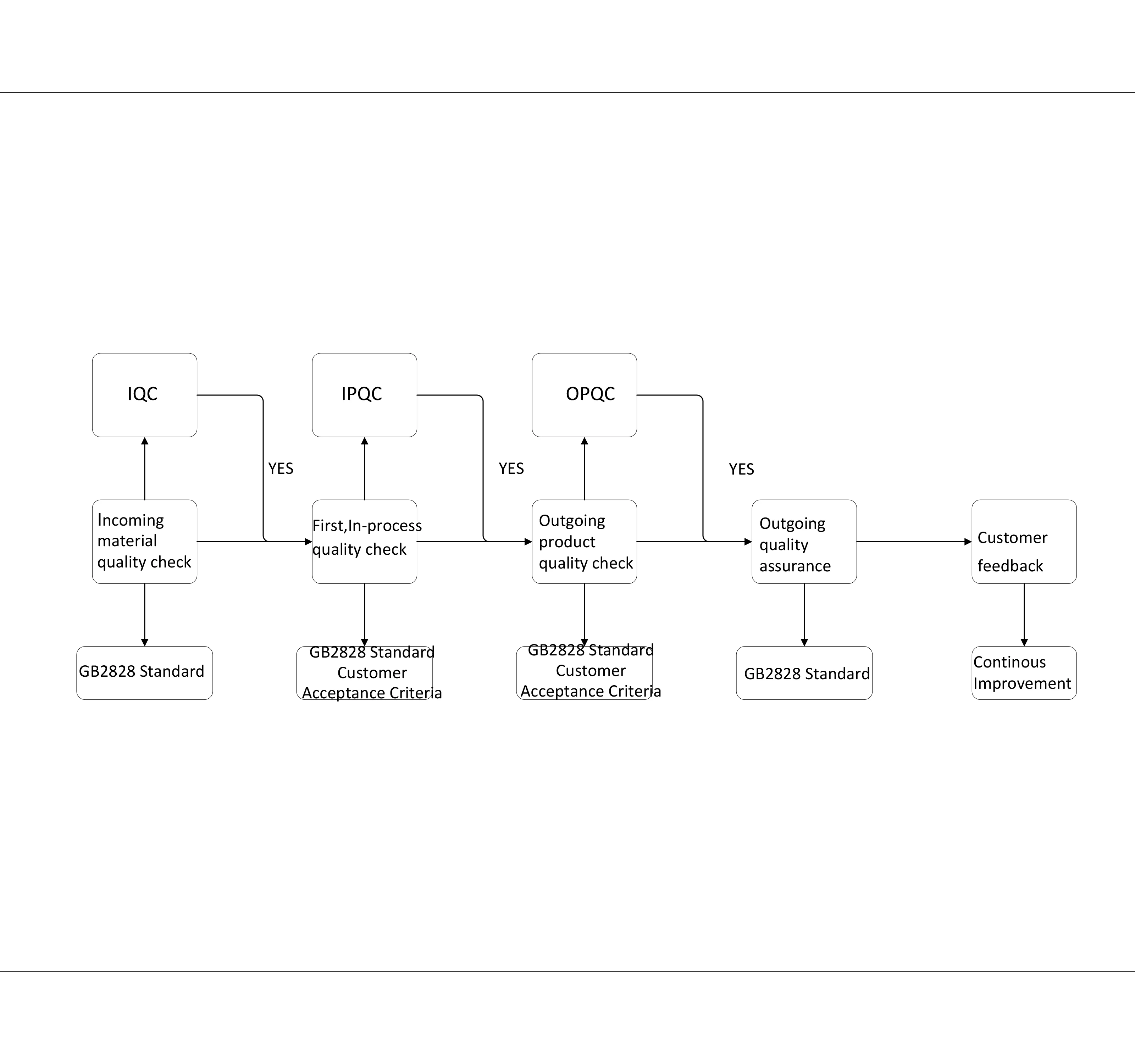

According to the requirements of the ISO9001:2015 quality management system, quality control has been implemented during the whole production process from the receipt of raw materials to the final delivery of the product.There are first and last piece inspection, patrol inspection during the production process.The assembled products have corresponding production date identification to ensure the traceability of the products.We are equipped with a special testing laboratory and three-dimensional equipment for comprehensive testing of product performance and size.Products will be packed and shipped only after they passed the comprehensive inspection. |
5. How long is the warranty period for lock series products? |
Normally three years. |
6. Could we have our own logo on the product? |
Please send the design of your logo to us and we will do engraving or related processing according to your requirements.If we have any question about your logo, we will communicate with you in time. |
7. How long is the lead time for samples? |
If it is the sample of the present lock model, the samples could be delivered within 3-5 days. If it is a product that needs to be customized, the samples are generally delivered within 35-40 days because there is a period of mold production. |
