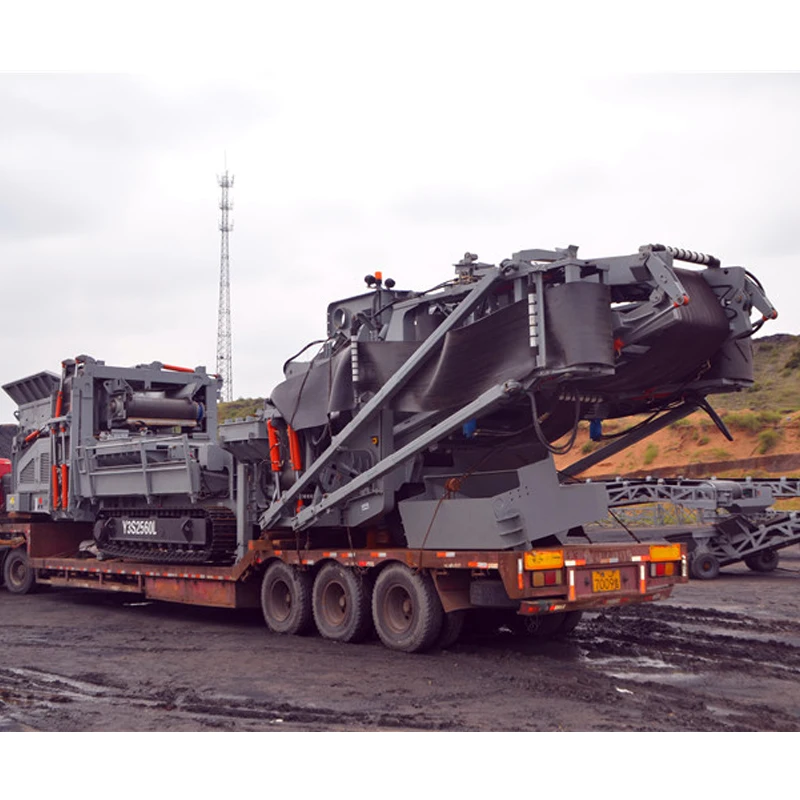

80 100tph Complete Set Stone Crusher Modular Jaw Crushing Plant for Construction Waste Including Stone Crusher Vibrating Screen
- Category: >>>
- Supplier: Shanghai Zenith Mineral Co. Ltd.
Share on (1601249182730):
Product Overview
Description
ZENITH in the World
ZENITH is the leading manufacturer of crushers and grinding mills in China for over 30 years with almost 180 countries’ sales coverage.
Product Description
80-100tph Complete Set Stone Crusher Modular Jaw Crushing Plant for Construction Waste Including Stone Crusher Vibrating Screen

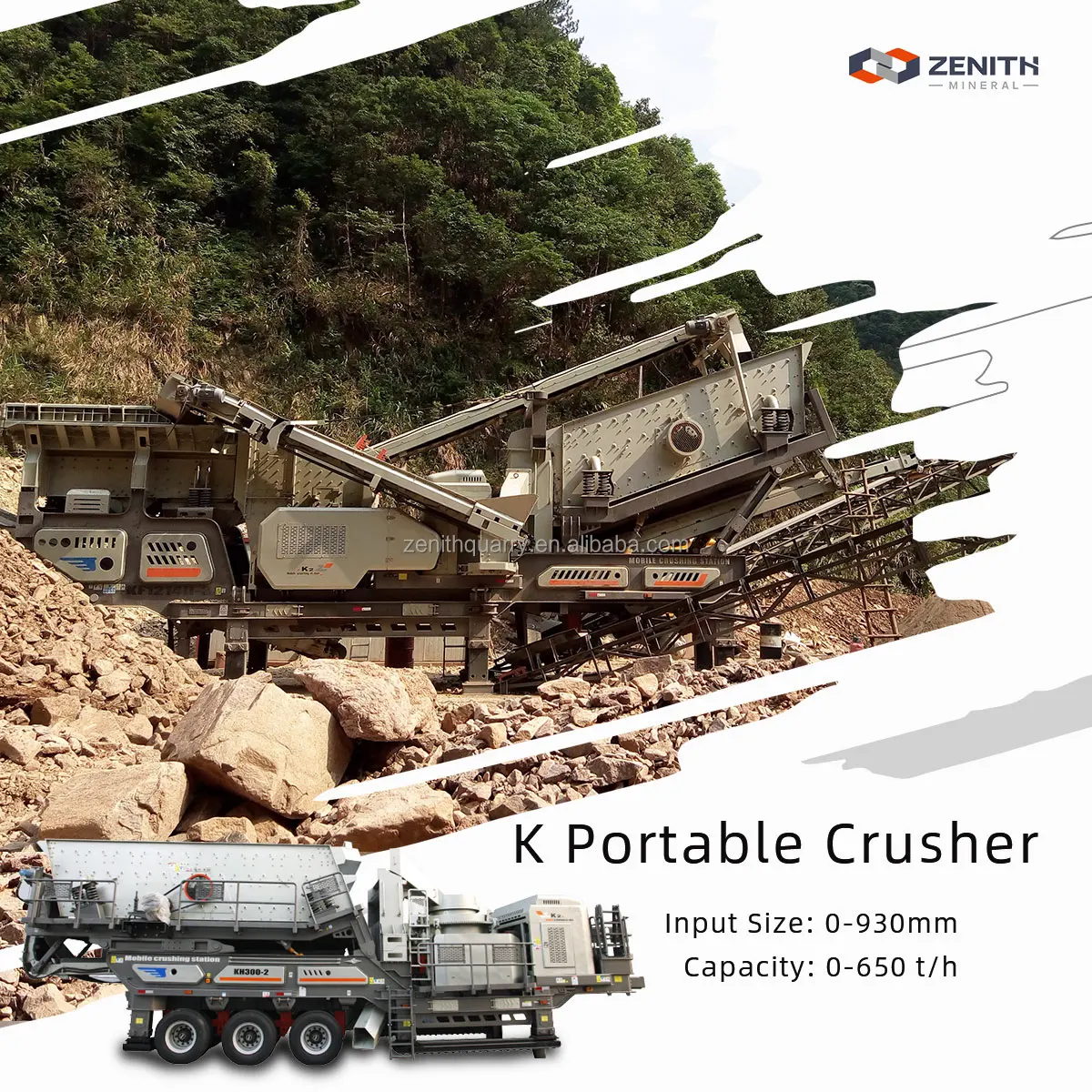

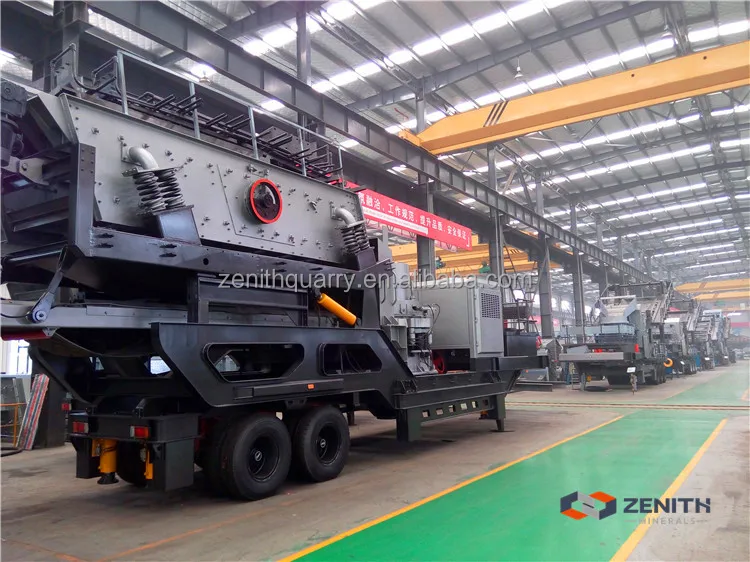

K3 Series Portable Crushing Plant
K Series Portable Crusher Plant, also known as K Series Portable Crusher, is a new type of equipment developed on the basis of years of independent research and development, combined with the latest user needs. It has been optimized and innovated in structural design, equipment configuration and combined application. Its combination is more flexible, which greatly expands the application fields and truly realizes the close processing of materials.
Flexible
Eco-friendly
Faster production
Material: Most kinds of rocks, metallic ores, and other minerals, such as granite, marble, basalt, iron ore, copper ore, etc.
Application: Popular among aggregates, highway construction, railway construction, airport building and some other industries.
K3 Series Portable Crushing Plant Features
80-100tph Complete Set Stone Crusher Modular Jaw Crushing Plant for Construction Waste Including Stone Crusher Vibrating Screen
7 Series & 72 Models
K Portable Crusher Plant has 7 series amounting to 72 models, able to cover various mining production needs such as coarse crushing, medium fine crushing, fine crushing and shaping.
Rapid Operation
Compared to fixed lines, K Portable Crushers have a shorter engineering cycle. Besides, there is no demolition after projects finish, more economical and eco-friendly.
Generalized Structure
The generalized structure layout can directly exchange the main machine without changing the body, and meet the crushing and screening requirements of different stages.
Hydraulic Control
All actions are controlled by an intensive hydraulic system. So many adjustments get easier. With centralized lubrication, operators can perform maintenance easily and quickly.
Technical Parameter
80-100tph Complete Set Stone Crusher Modular Jaw Crushing Plant for Construction Waste Including Stone Crusher Vibrating Screen
| Model | Specs. of screening equipment | Specs. of crushing equipment | Specs. of main belt conveyor | Hopper volume(m3) | Max.feeding size (mm) | Transportation dimension(mm) |
| KE600-1 | TSW0936 | PE600×900 | B800×8.3m | 5.3 | 500 | 12150×2600×3950 |
| KE750-1 | TSW1139 | PE750×1060 | B1000×8.5m | 7 | 630 | 13000×2850×4400 |
| KE760-1 | TSW1139 | PEW760 | B1000×8.5m | 7 | 640 | 13000×2800×4200 |
| KE860-1 | TSW1345 | PEW860 | B1200×9.5m | 8 | 720 | 14600×3000×4500 |
| KE1100-1 | TSW1548 | PEW1100 | B1400×9.5m | 11 | 930 | 14050×2900×4000 |
| KJ98-1 | TSW1139 | HJ98 | B800×8.3m | 5.9 | 560 | 12150×2600×3950 |
| KJ110-1 | TSW1345 | HJ110 | B1000×8.5m | 8.5 | 660 | 13200×3000×4400 |
| KJ125-1 | TSW1345 | HJ125 | B1400×9.5m | 8 | 800 | 14600×3000×4500 |
| KF1214Ⅱ-1 | TSW0936 | PFW1214Ⅱ | B800×8.3m | 5.3 | 500 | 12150×2600×3980 |
| KF1315Ⅱ-1 | TSW1345 | PFW1315Ⅱ | B1200×9.5m | 8 | 600 | 14600×3100×4500 |
| KF1415Ⅱ-1 | TSW1548 | PFW1415Ⅱ | B1200×9.5m | 11 | 700 | 14050×3000×4000 |
For more parameters, please consult customer service, or leave your capacity and materials, we will recommend the appropriate model and price to you immediately, look forward to consulting

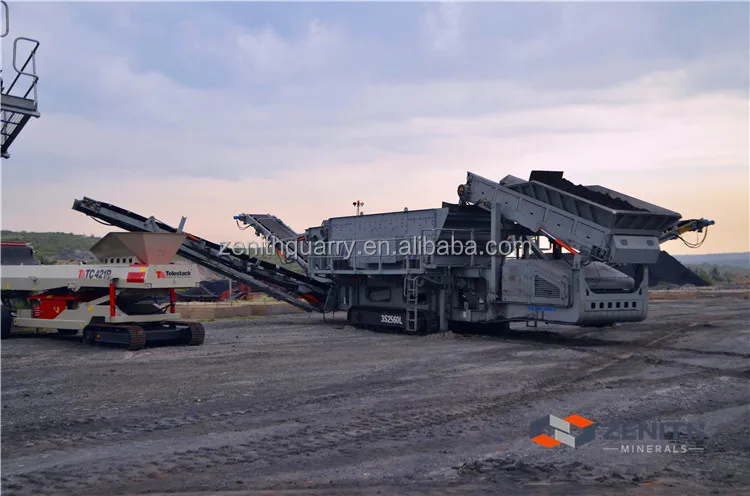

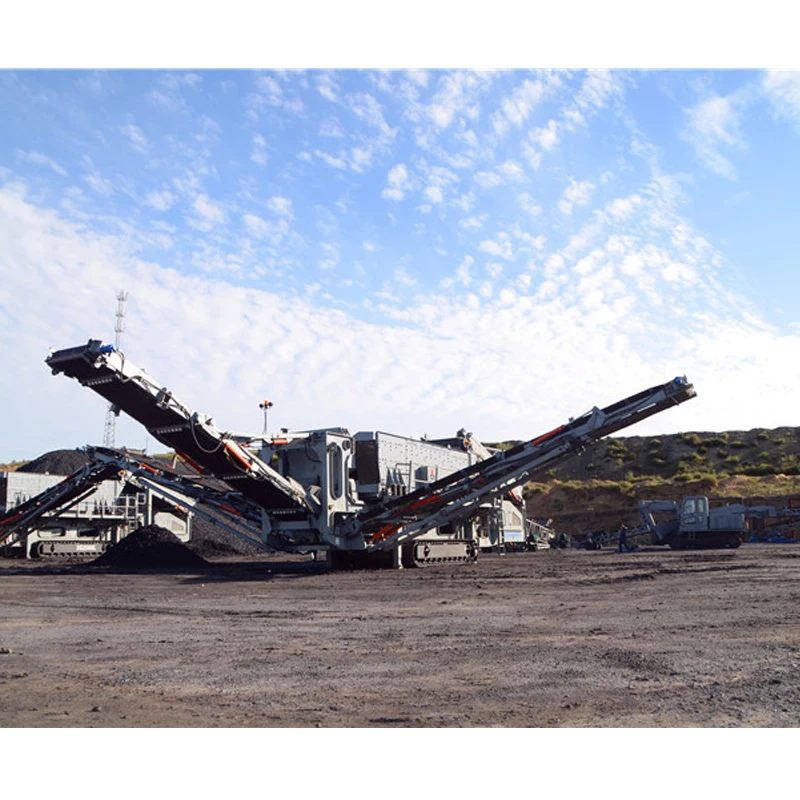

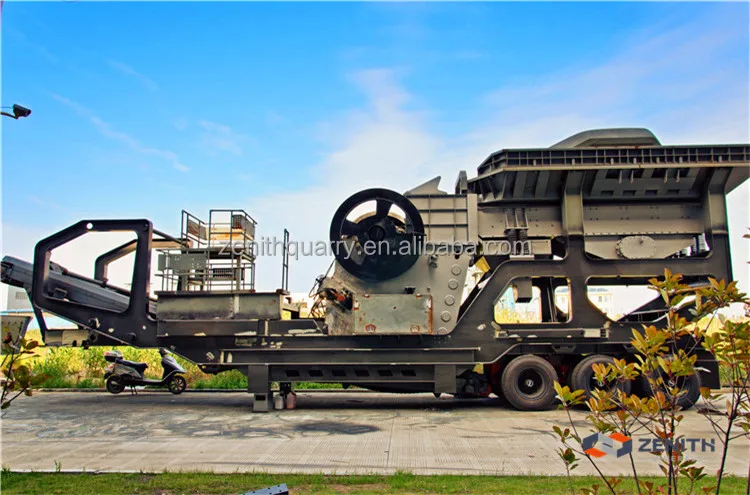

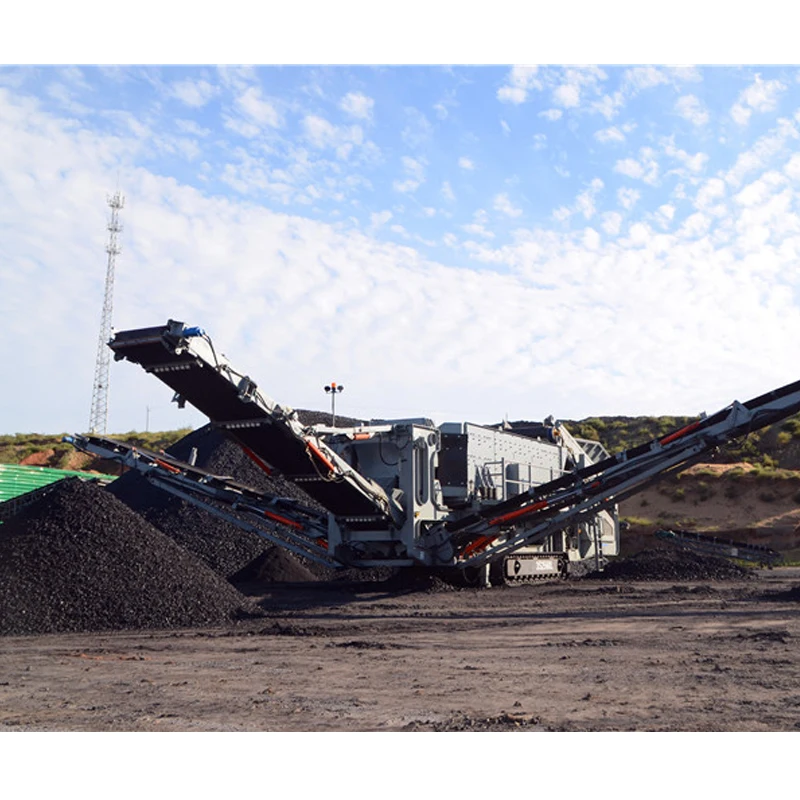

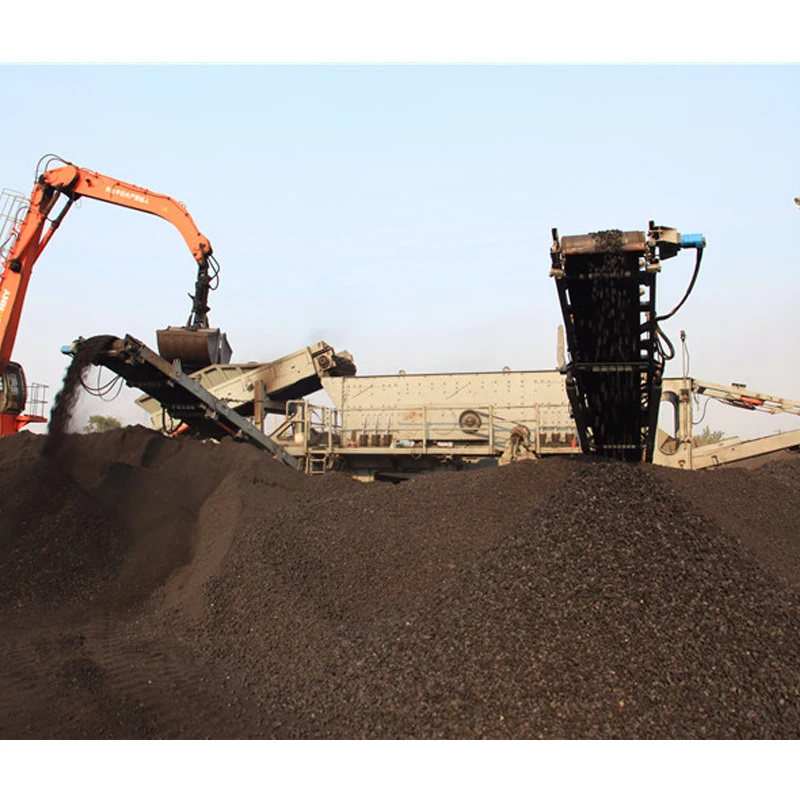

Production site pictures
80-100tph Complete Set Stone Crusher Modular Jaw Crushing Plant for Construction Waste Including Stone Crusher Vibrating Screen
Customer Cases
180-250TPH Limestone Mobile Crushing Plant
Brief Information
- Raw Material: Limestone
- Capacity: 180-250t/h
- End Products: 0-10-20-30mm
Key Equipment
Customer Background
The aggregates industry is highly competitive, and companies are continually seeking ways to improve productivity and efficiency while reducing costs. Under such a circumstance, this customer contacted ZENITH for cooperation.
Customer Feedback
The portable crusher was finally chosen after careful comparisons. Since operation, it has been high-yield and stable, attracting many customers nearby.
