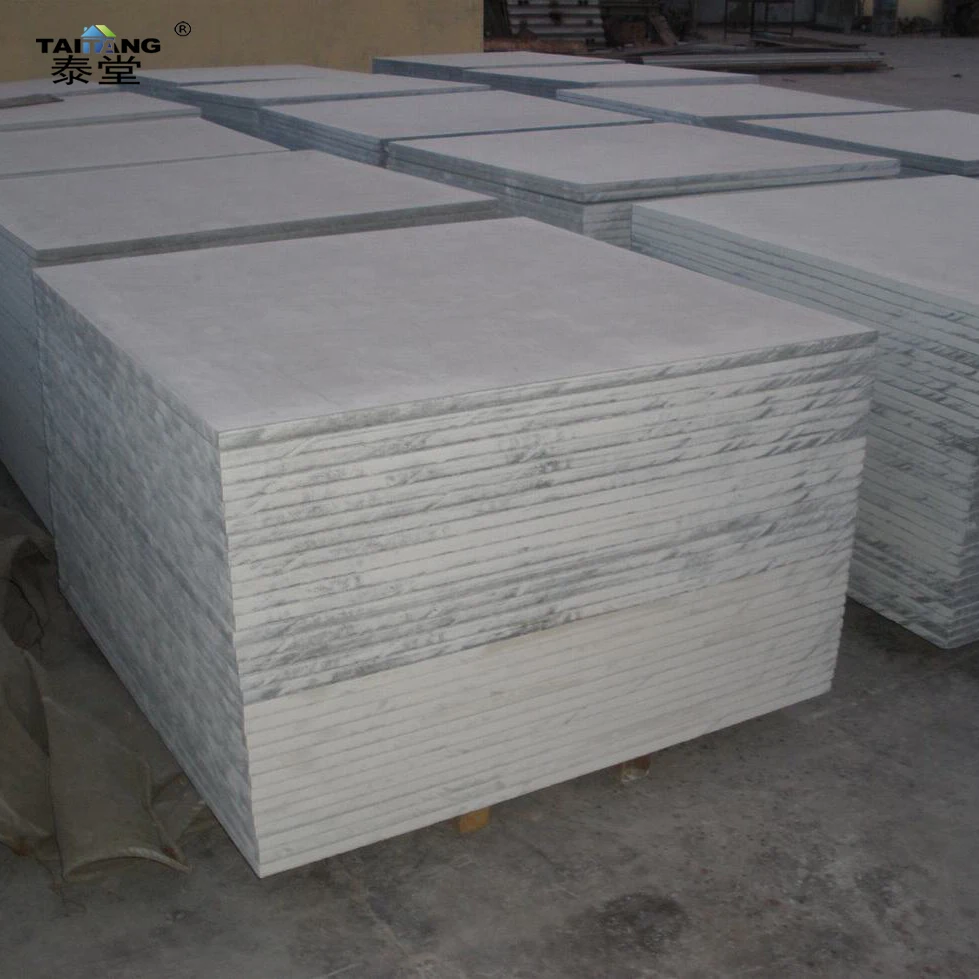

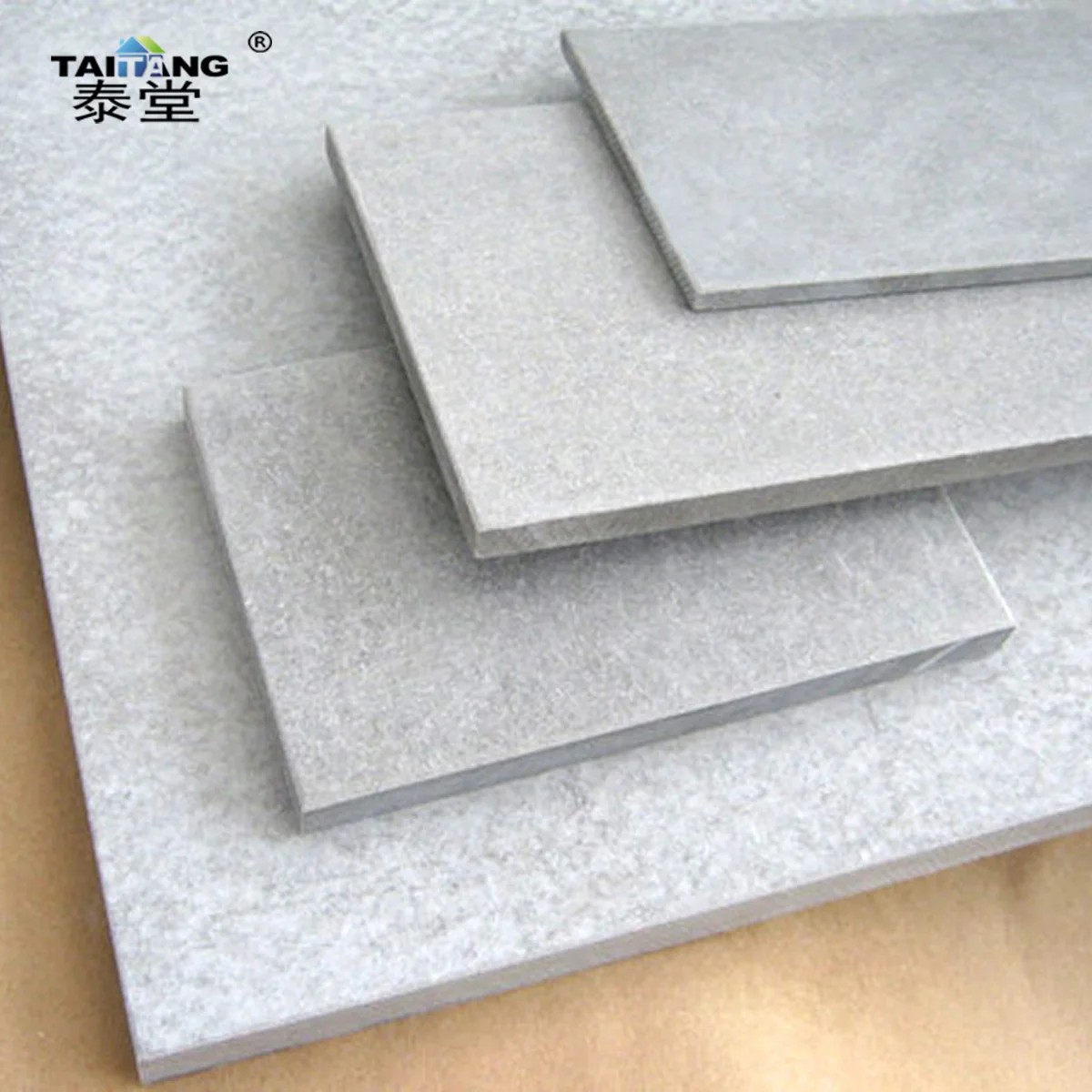

High Density Compressed Fiber Cement Board
$1.65-1.86
Fc Board Fiberboard Ciment Fiber Cement Wall Panel Fibrocement Panels 20Mm Cement Boards For Walls The Yard
- Category: >>>
- Supplier: Guangzhou Titan Commercial Co. Ltd.
Share on (1601249240809):
Product Overview
Description

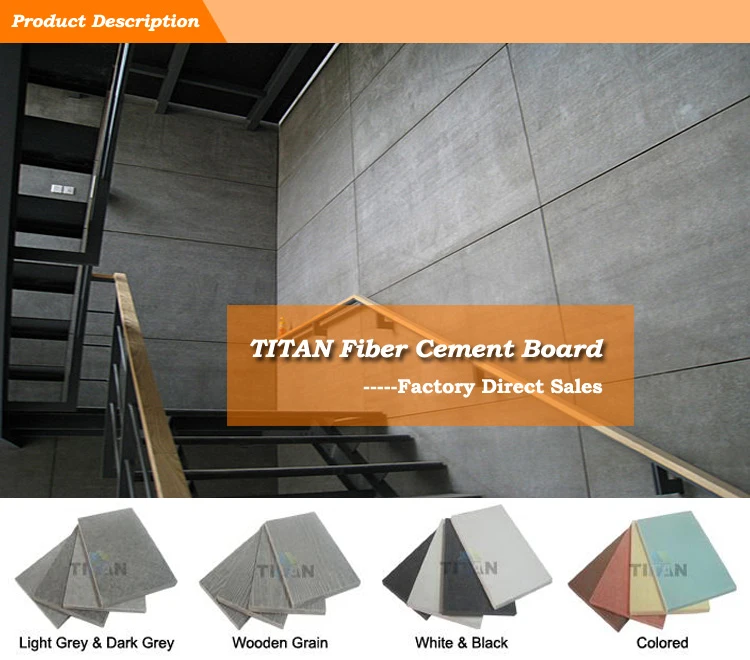

Products Description

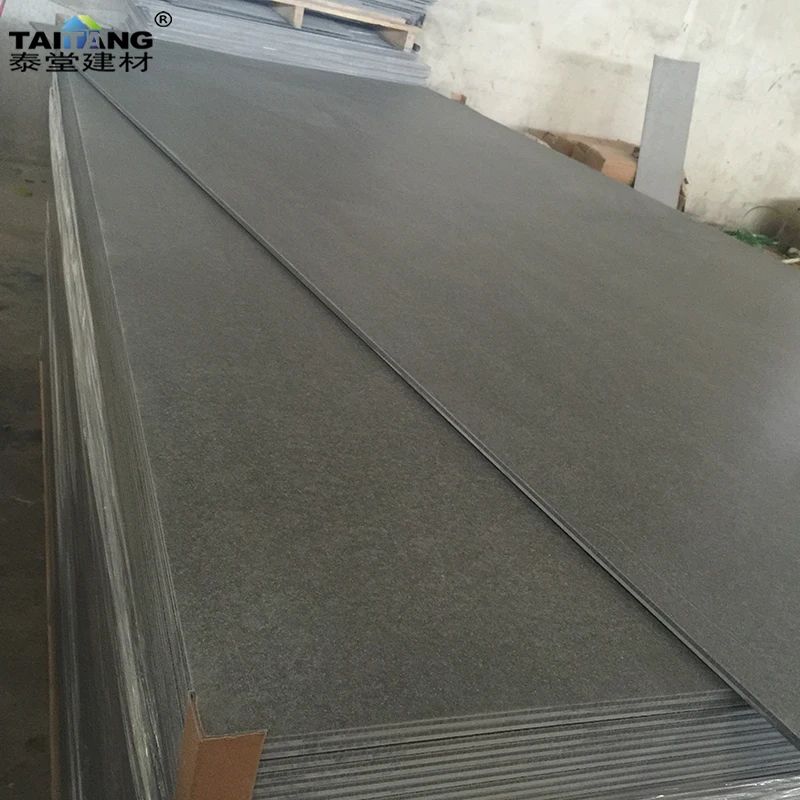

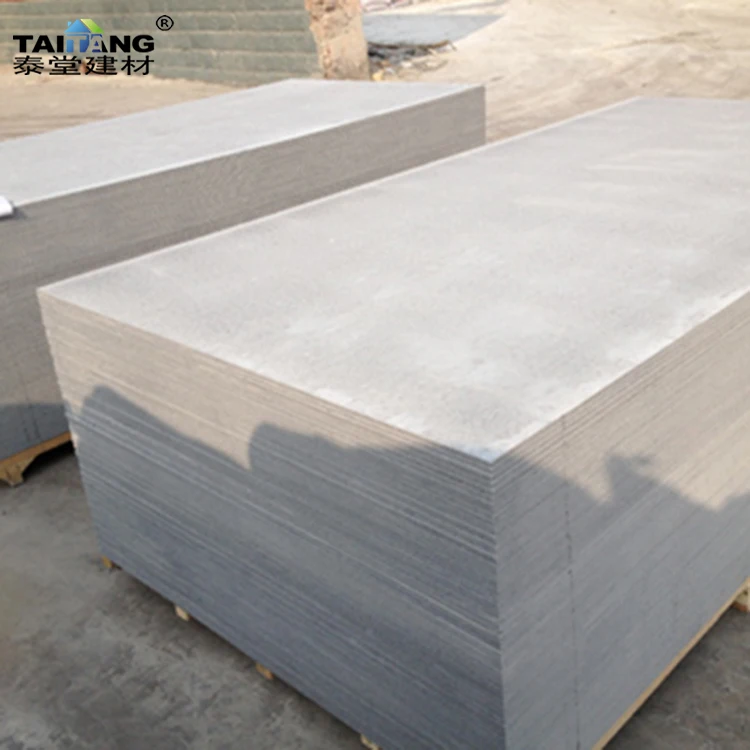

Titan Fiber Cement Board is a versatile building material known for its durability and strength. It is made from a mixture of cement, cellulose fibers, and other materials, which makes it resistant to moisture, fire, and pests. The normal size is 1220×2440mm,thickness from 4.5~20mm,and density is 1.3~1.6g/cm3. There are low-density, middle-density and high-density.

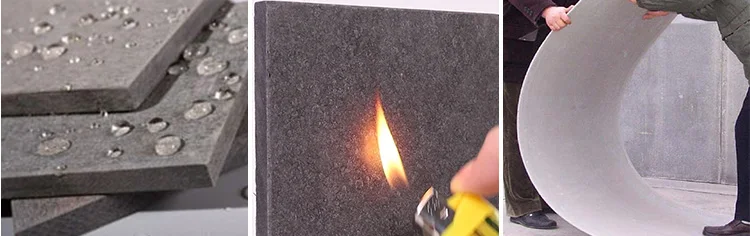

Main Characteristic
1. 100% Asbestos Free
2. Excellent Fire Resistant
3. Excellent Moisture / Water Resistant
4. Good Heat and Sound Insulation
5. High Strength
6. Stable Dimensions
7. Durability and long service life
2. Excellent Fire Resistant
3. Excellent Moisture / Water Resistant
4. Good Heat and Sound Insulation
5. High Strength
6. Stable Dimensions
7. Durability and long service life
Edge | Taper/Beveled/Square | ||
Standard Size | 1200*2400/1220*2440mm | ||
Max. Width | 1220mm | ||
Max. Length | 3660mm | ||
Thickness | 4.5~20mm | ||
Remarks | Different dimension can be made as required. | ||
Technical Data
Item | Unit | Test Value | ||
Raw Materials | / | Cement, Quartz Sand, Fiber | ||
Density | g/cm3 | 1350±10~1550±10 | ||
Color | / | Grey/White/Black/Yellow/Green/Red | ||
Water Content | / | ≤10 | ||
Water Absorption | / | ≤28 | ||
Fire Resistance | / | Incombustibility A1 Class | ||
Thermal Conductivity | W/m·k | Average ≤0.20 | ||
Bending Strength | N/mm3 | Transverse | ≥11.0 | |
Vertical | ≥8.5 | |||
Radioactivity | / | Conforming to GB6266-2001 A Class | ||
Asbestos Content | / | 100% Asbestos-free | ||
Freeze Resistance | / | 25 Times Cycle | ||
Certificate | / | CE | ||
Packing | / | Wooden Pallet | ||
Our Advantages
Titan Fiber Cement Board offers several unique advantages that set it apart from other construction materials:
●Impact Resistance: Titan Fiber Cement Boards are highly durable, providing excellent resistance to impacts, making them suitable for high-traffic areas.
●Moisture Resistance: These boards are highly resistant to moisture, reducing the risk of swelling, warping, or rotting.
●Fire Resistance: Fiber cement boards are non-combustible and offer fire-rated options, ensuring high safety standards.
●Eco-Friendly: Made from sustainable raw materials, Titan Fiber Cement Boards are free from harmful chemicals like asbestos.
●Thermal Efficiency: The boards provide good thermal insulation, reducing energy consumption for heating and cooling in buildings.
●Impact Resistance: Titan Fiber Cement Boards are highly durable, providing excellent resistance to impacts, making them suitable for high-traffic areas.
●Moisture Resistance: These boards are highly resistant to moisture, reducing the risk of swelling, warping, or rotting.
●Fire Resistance: Fiber cement boards are non-combustible and offer fire-rated options, ensuring high safety standards.
●Eco-Friendly: Made from sustainable raw materials, Titan Fiber Cement Boards are free from harmful chemicals like asbestos.
●Thermal Efficiency: The boards provide good thermal insulation, reducing energy consumption for heating and cooling in buildings.
Company Profile
TITAN manufacturer is a leading manufacturer which special dealing with Suspension and Partition System in China.
Over the past several years, we have significantly expanded our business scope, now having a wide selection of products available.Our main series include Ceiling and Wall materials.
TITAN brings in advanced testing & production equipment to precisely guarantee our product quality. These products have many applications, and are extensively used in the construction of supermarkets, hotels, office buildings, and airports. Due to their beautiful designs, colors, styles and excellent decorativeness, we have won the praise of many customers.We have exported our products to Africa, Asia, South America etc.
Adhering to the principle of "Quality first, Customers prior and Price reasonable" we whole heartedly welcome you to cooperate with us on the basis of mutual understanding and success.
Over the past several years, we have significantly expanded our business scope, now having a wide selection of products available.Our main series include Ceiling and Wall materials.
TITAN brings in advanced testing & production equipment to precisely guarantee our product quality. These products have many applications, and are extensively used in the construction of supermarkets, hotels, office buildings, and airports. Due to their beautiful designs, colors, styles and excellent decorativeness, we have won the praise of many customers.We have exported our products to Africa, Asia, South America etc.
Adhering to the principle of "Quality first, Customers prior and Price reasonable" we whole heartedly welcome you to cooperate with us on the basis of mutual understanding and success.
TITAN CUSTOMER

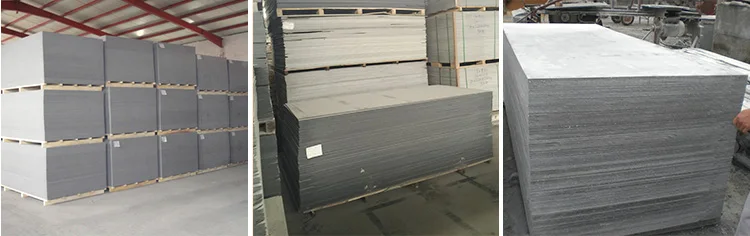

Installation & Package

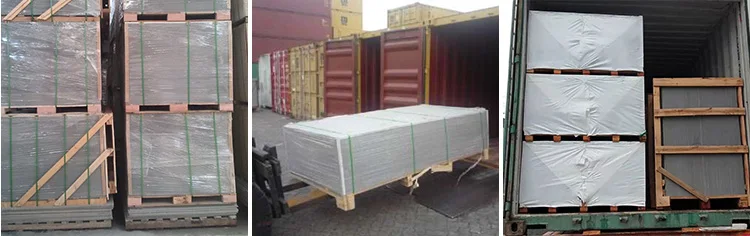

The packaging and shipping of Titan Fiber Cement Board are carefully managed to ensure the product's safety during transit and handling. Here’s an overview of the standard practices:
Packaging:
●Stacking:Boards are stacked on wooden or steel pallets, with manageable quantities to prevent damage.
●Protective Layers:Plastic or cardboard sheets separate boards to avoid surface scratches.
●Wrapping:The stack is wrapped with shrink film or plastic to protect from moisture and dust.
●Edge Protection:Foam or cardboard protectors are used to prevent chipping during handling.
●Labeling:Each package is labeled with product details, dimensions, and handling instructions.
Packaging:
●Stacking:Boards are stacked on wooden or steel pallets, with manageable quantities to prevent damage.
●Protective Layers:Plastic or cardboard sheets separate boards to avoid surface scratches.
●Wrapping:The stack is wrapped with shrink film or plastic to protect from moisture and dust.
●Edge Protection:Foam or cardboard protectors are used to prevent chipping during handling.
●Labeling:Each package is labeled with product details, dimensions, and handling instructions.
Size(MM) | Thickness(MM) | Weight(KGS) | 20GP Capacity(PCS) |
1220x2440 | 6 | 24 | 900 |
1220x2440 | 8 | 32 | 700 |
1220x2440 | 9 | 36 | 600 |
1220x2440 | 10 | 40 | 540 |
1220x2440 | 12 | 48 | 450 |
1220x2440 | 15 | 60 | 360 |
1220x2440 | 18 | 72 | 300 |
Installation Instructions

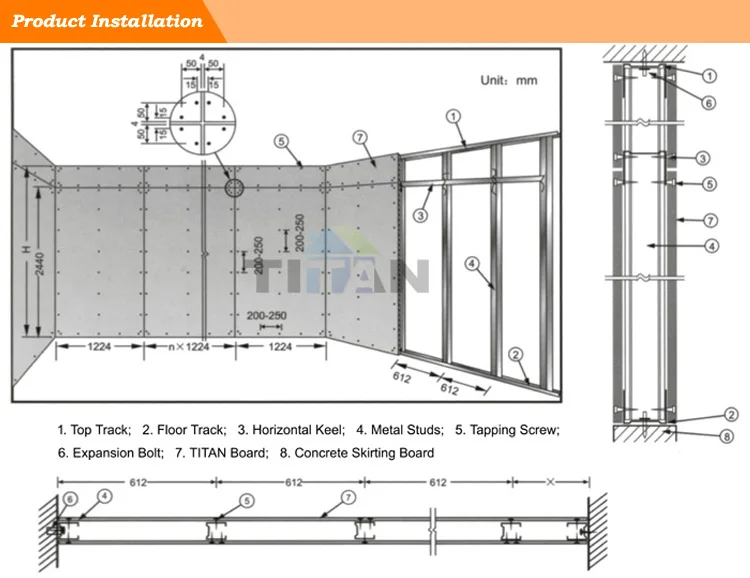

Fiber Cement Board Installation for Drywall:
1. Galvanized Metal Frame:
Fix top and bottom keels with expansion bolts; align vertical keels (612mm apart) and install lateral supports.
2. Board Material Fixing:
Cut boards 10mm shorter than wall height. Fix with tapping screws (200-250mm apart) and sink 0.5mm. Maintain a 4mm expansion gap. Secure from the center outward to prevent buckling. Optionally, fill with insulation (glass/rock wool).
Fix top and bottom keels with expansion bolts; align vertical keels (612mm apart) and install lateral supports.
2. Board Material Fixing:
Cut boards 10mm shorter than wall height. Fix with tapping screws (200-250mm apart) and sink 0.5mm. Maintain a 4mm expansion gap. Secure from the center outward to prevent buckling. Optionally, fill with insulation (glass/rock wool).

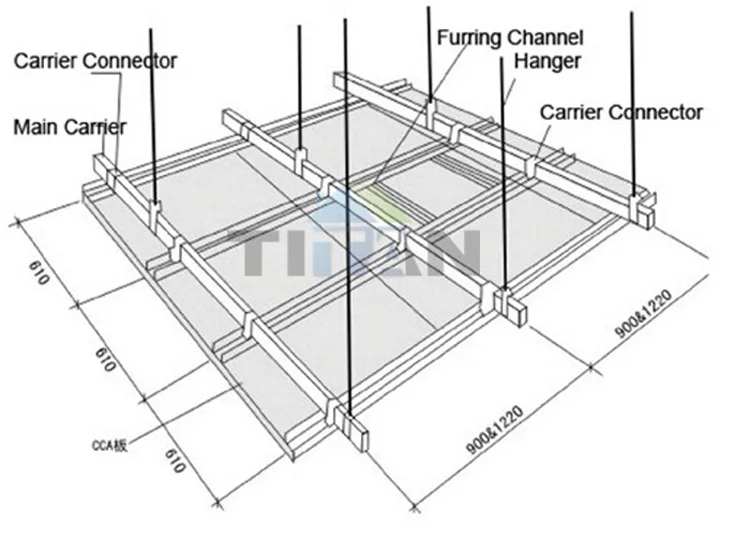

Fiber Cement Board Installation for Ceiling:
1.Preparation:
●Measure the ceiling area and cut the fiber cement boards to size using a carbide-tipped saw blade.
2.Framing:
●Install a metal or wooden frame with studs or joists spaced 16 to 24 inches apart, ensuring a solid foundation.
3.Board Installation:
●Lift the fiber cement board and attach it to the frame using corrosion-resistant screws. Ensure the screws are 12-16 inches apart and fastened tightly to prevent sagging.
4.Joint Sealing:
●Leave a small gap between boards for expansion and contraction, and fill it with flexible joint compound or caulking.
5.Finishing:
●Sand the joints smooth and apply a primer or paint finish to match your design.
1.Preparation:
●Measure the ceiling area and cut the fiber cement boards to size using a carbide-tipped saw blade.
2.Framing:
●Install a metal or wooden frame with studs or joists spaced 16 to 24 inches apart, ensuring a solid foundation.
3.Board Installation:
●Lift the fiber cement board and attach it to the frame using corrosion-resistant screws. Ensure the screws are 12-16 inches apart and fastened tightly to prevent sagging.
4.Joint Sealing:
●Leave a small gap between boards for expansion and contraction, and fill it with flexible joint compound or caulking.
5.Finishing:
●Sand the joints smooth and apply a primer or paint finish to match your design.
Product Application

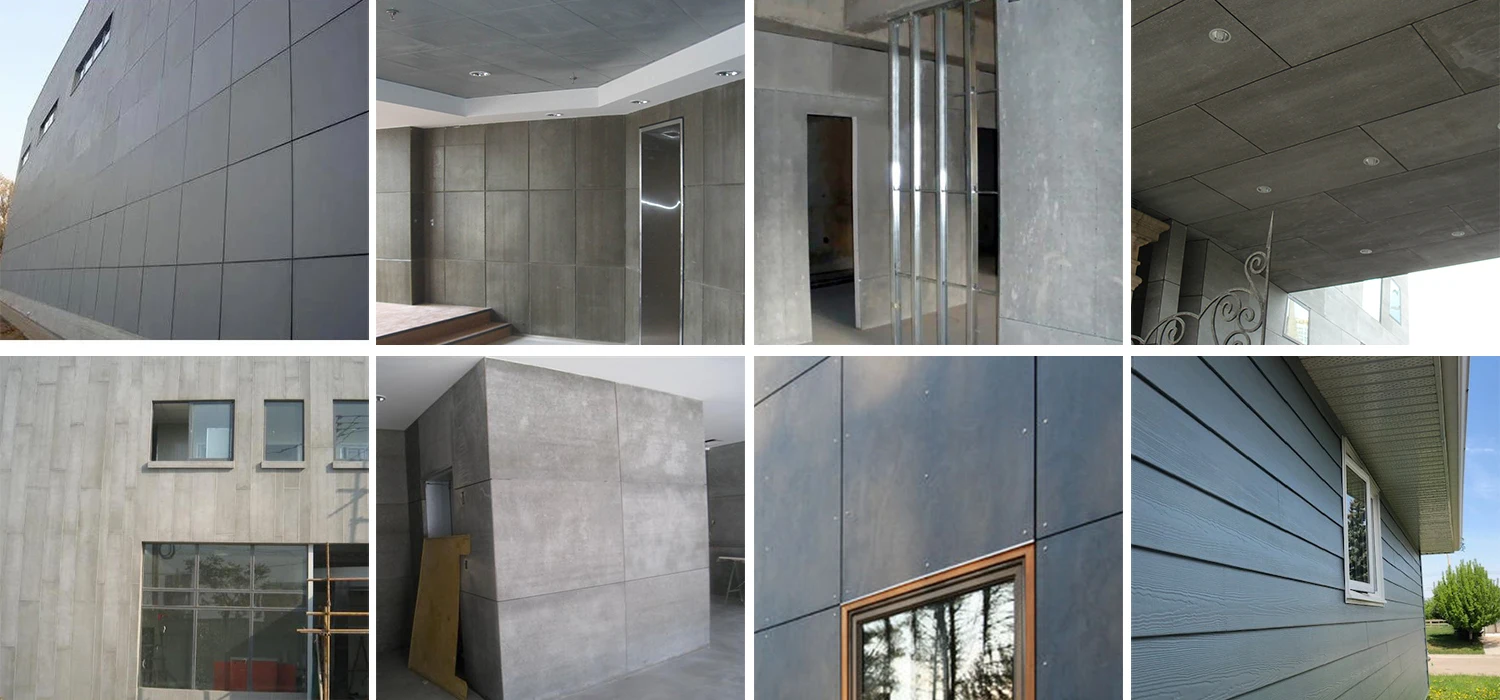

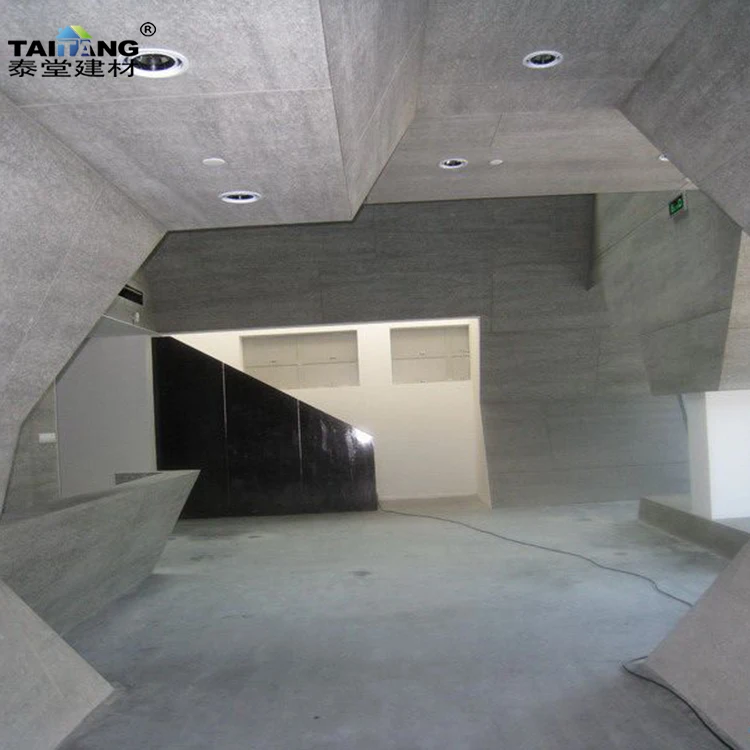

Applications of Fiber Cement Board:
▶Exterior Cladding: Durable façade for buildings.
▶Interior Walls: Moisture-resistant in bathrooms and kitchens.
▶Ceilings: Sturdy option for high-humidity areas.
▶Partition Walls: Fire-resistant and soundproof.
▶Tile Backer Board: Stable substrate for wet areas.
▶Floor Underlayment: Base for various flooring types.
▶Exterior Cladding: Durable façade for buildings.
▶Interior Walls: Moisture-resistant in bathrooms and kitchens.
▶Ceilings: Sturdy option for high-humidity areas.
▶Partition Walls: Fire-resistant and soundproof.
▶Tile Backer Board: Stable substrate for wet areas.
▶Floor Underlayment: Base for various flooring types.
FAQ
1.Is Titan Fiber Cement Board fire-resistant?
Yes, it is non-combustible and provides excellent fire protection.
2.Is Titan Fiber Cement Board moisture-resistant?
Yes, it resists moisture, making it suitable for wet areas like bathrooms and kitchens.
3.Can Titan Fiber Cement Board be painted or finished?
Yes, it can be primed, painted, or finished to match any design or aesthetic needs.
4.What are the sizes and thicknesses available for Titan Fiber Cement Board?
It is available in various sizes, typically 4x8 feet, with thicknesses ranging from 4mm to 20mm.
Yes, it is non-combustible and provides excellent fire protection.
2.Is Titan Fiber Cement Board moisture-resistant?
Yes, it resists moisture, making it suitable for wet areas like bathrooms and kitchens.
3.Can Titan Fiber Cement Board be painted or finished?
Yes, it can be primed, painted, or finished to match any design or aesthetic needs.
4.What are the sizes and thicknesses available for Titan Fiber Cement Board?
It is available in various sizes, typically 4x8 feet, with thicknesses ranging from 4mm to 20mm.
