EPC A10 PD 204L150 Edge Position Controller Web Guiding System

Product Overview

Description

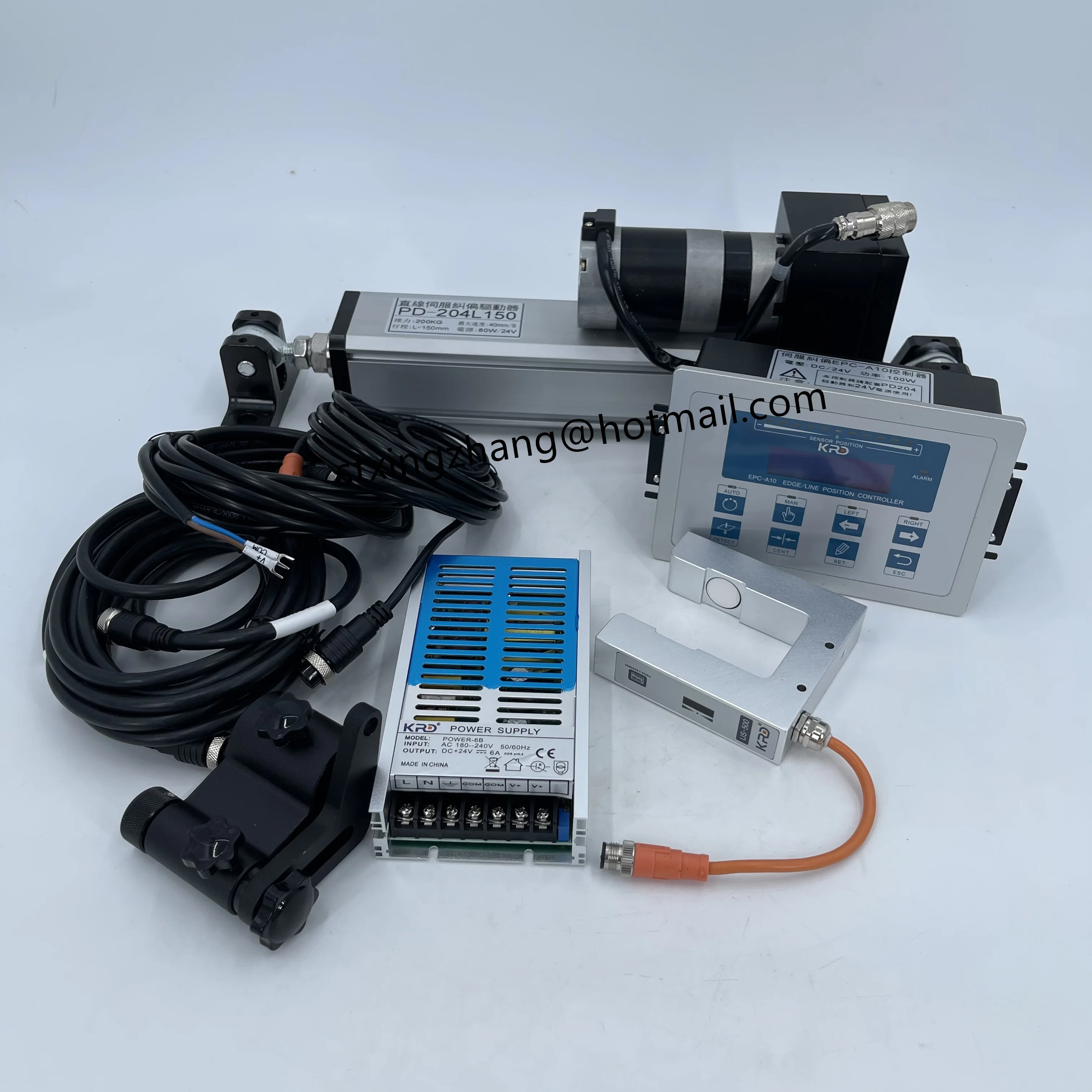

EPC-A10 PD-204L150 Edge Position Controller Web Guiding System







Servo Web guide Controller

Servo web guide  Controller EPC-A10 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and centre-alignment mode



Servo Web guide Controller Feature :

1. support three operation modes: edge-following, line-following and center-alignment.

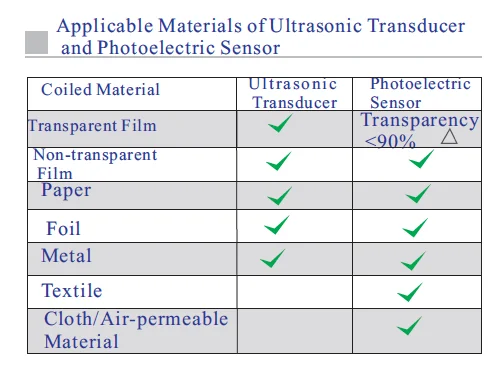

2. support photoelectric sensor, ultrasonic transducer and CCD Sensor

3. detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances

4. automatic travel measurement, no need to limit the switch mechanically.

5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

6. 0.5msec super-speed of responding

7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

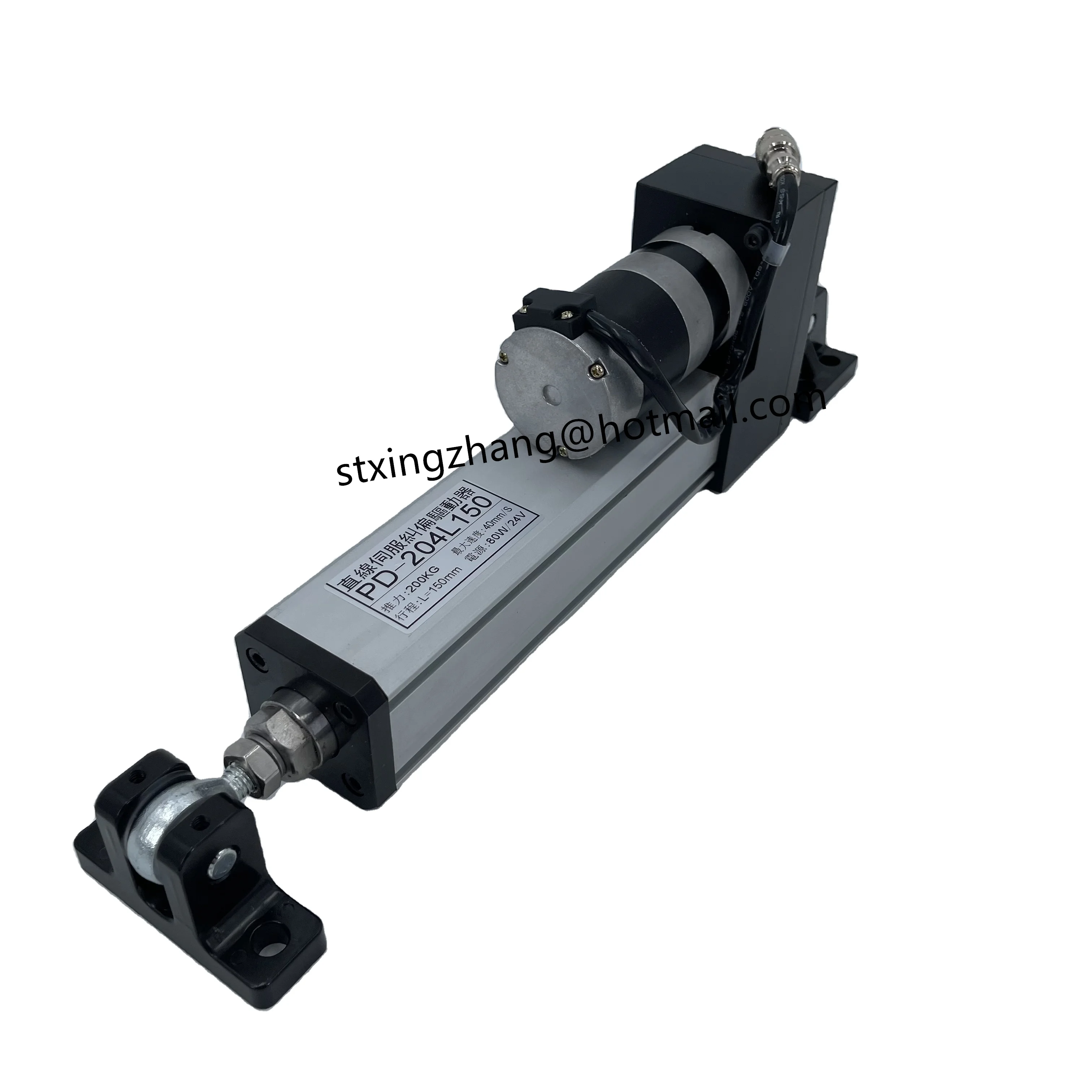

9. DC servo motor to push the ball screw

10. power-down memory of all the parameters at any states in the system

11.store 10 groups of parameters from different material, convenient and efficient switchover of material

12. Simplified Chinese/ Traditional Chinese /English for menu operation

13. humanized operation, fast, simple and convenient

14.support Modbus and PLC/Human-computer networking control

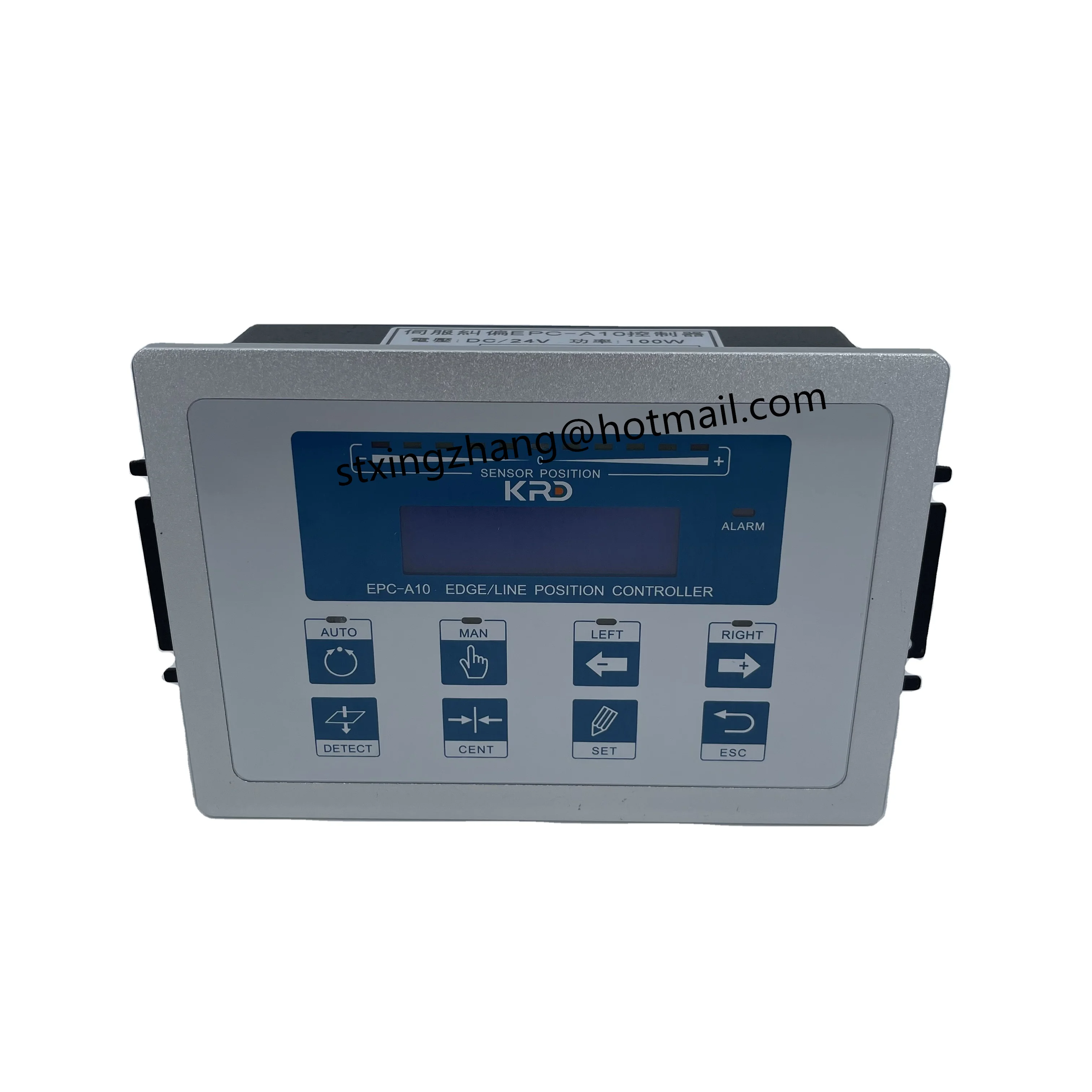

Servo Web guide controller  Technical parameters:

Model No	EPC-A10
Control Method	DC Servo Driver
Power	DC 24V /5A
Control Input	DC 0~5A
Control output	24V, PWM
Response time	0.5 mS
Environment temperature	-10~60C, below RH90%





 Sensor parameters :

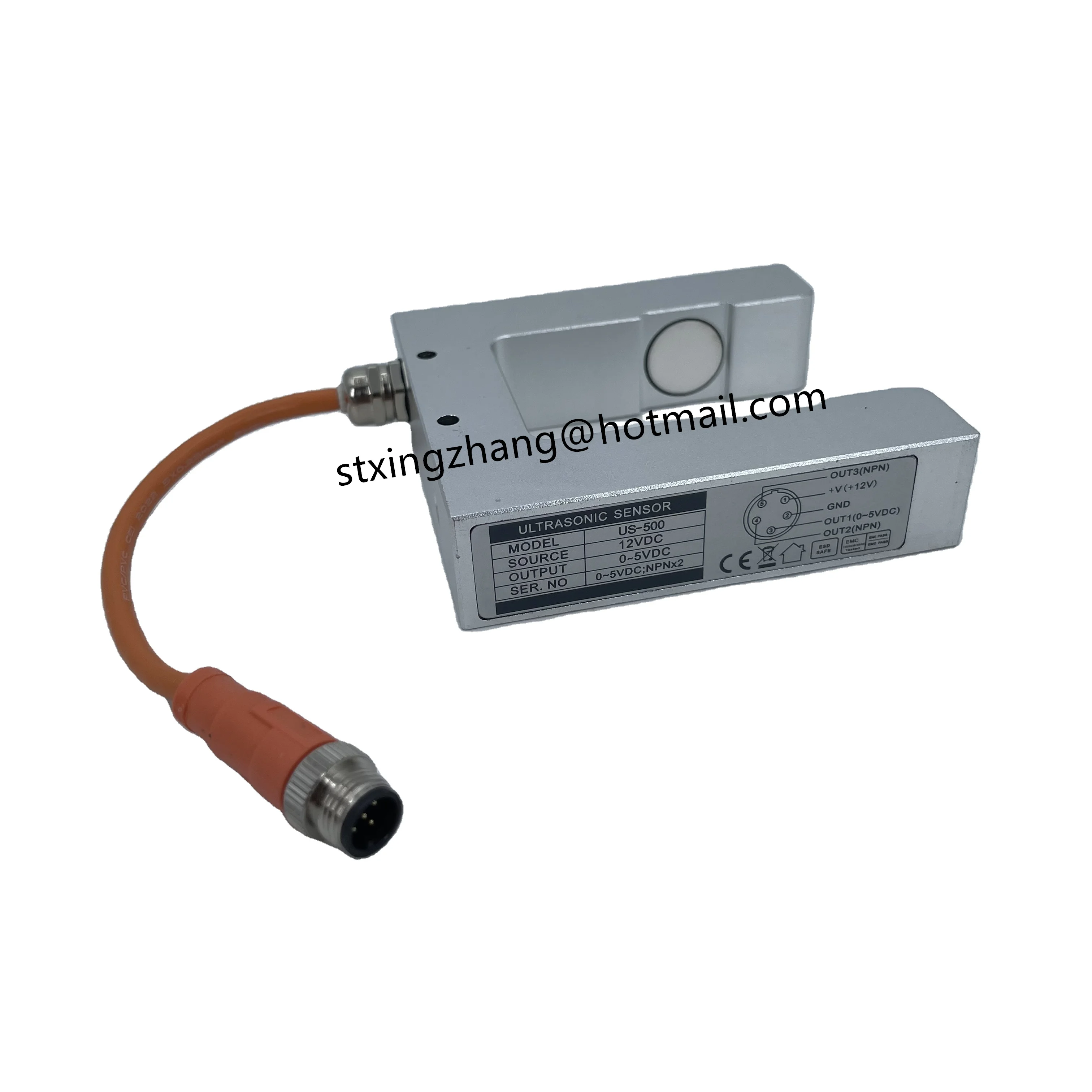

Notes:US-500S is ultrasonic sensor,



model	US-500S
Power supply	DC-12V
Power Output	DC 0-5V
Detective range	8mm(+-4mm)
detective accuracy	0.1mm
Frequencty	100KHZ
Shell material	Aluminumn alloy
