Product Overview

Description

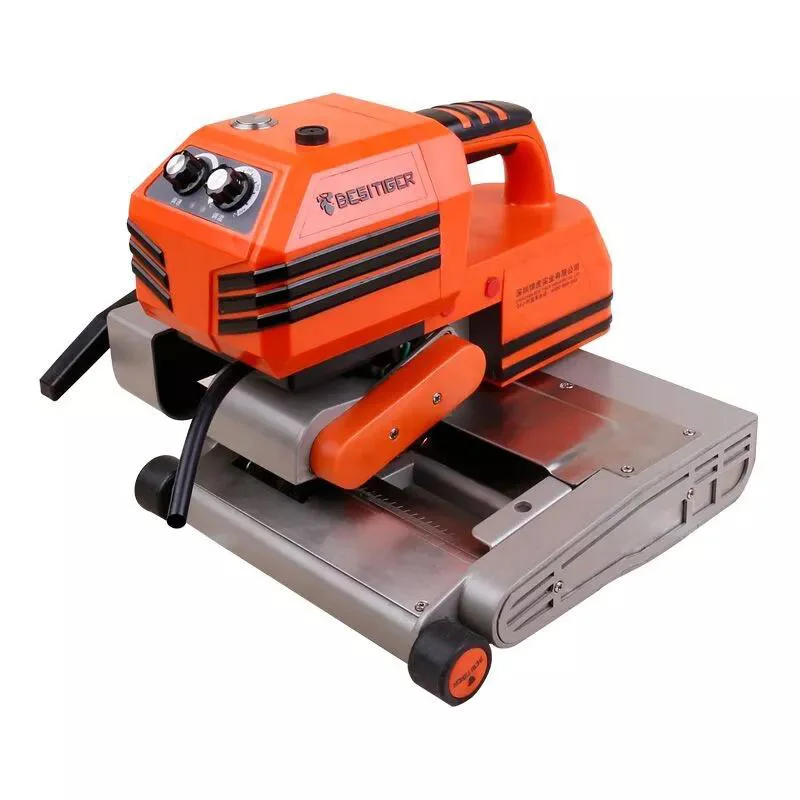

Product Tpo Welding Machine Pvc Hot Air Welder For Sale Plastic Extrusion Welder Product Welding Machine

Product Description



¤  Welding Speed:According to the material of the geomembrane, the thickness and the temperature of the heating, it is adjustable to meet the strength of the welding seam.
¤  Material Lap Width:The lap width can be customized due to the needs of the project.
¤  Welding Seam Width:can be customized
¤  Welding Intensity:Tensile test of sample with same width material according to industry standard.
¤  Material Lap Width: can be customized
Sound
Sound≤65dB(tested by EN50144 )



Applications



It is suitable for welding HDPE, LDPE, EVA, PVC, ECB, PP and other thermo plastic materials, which are widely used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.







Advantages



› 1.Large welding power, fast welding speed, and good welding effect
› 2. This machine has stable performance, convenient operation, high welding efficiency and reliability
› 3. Widely used in tunnel, subway, water conservancy, breeding, landfills, chemical mining, sewage treatment, roof building and other water-proof and anti-seepage projects.

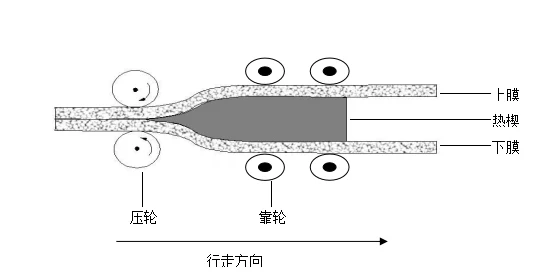

Working Principle



The motor drives the gearbox and the chain to drive the upper and lower pressure wheels. The movable support drives the hot wedge into the middle of the two base materials, and presses the pressing wheels to press the upper and lower two hot-melt base materials.

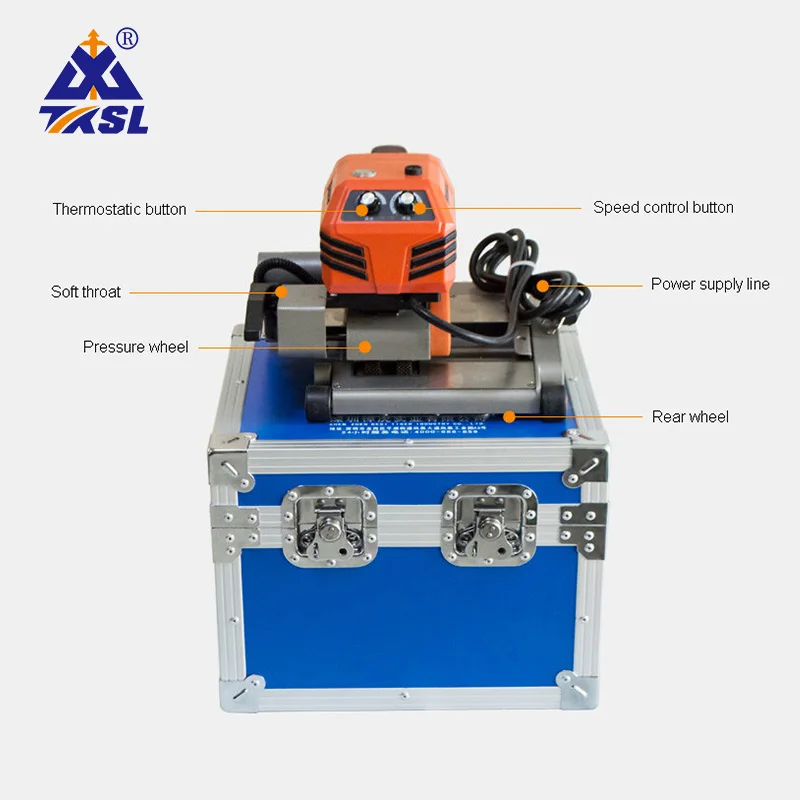

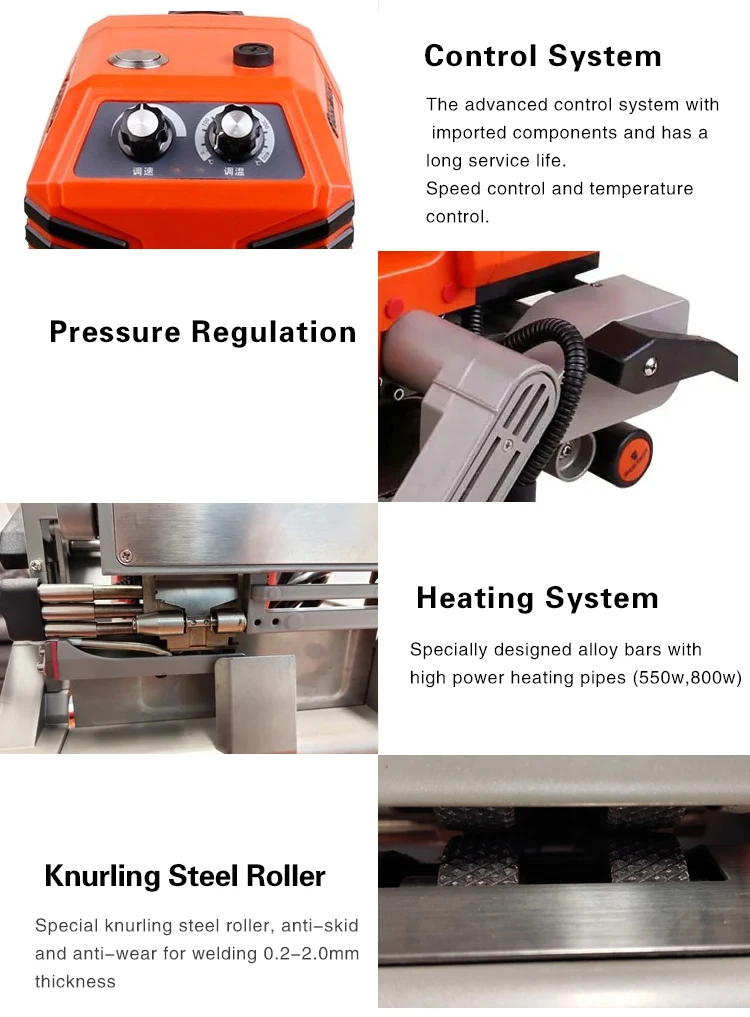

Structures



Machine pictures are for reference only and are subject to change without notice.



Parameters





Model	HH-615	HH-620
Voltage	220V or 110V
Frequency	50/60HZ
Power(w)	800	1000
Drive Speed(m/min)	0-5.5m/min(adjustable)	0-5.5m/min(adjustable)
Heating Temperature (°C)	0-450(adjustable)	0-450(adjustable)
Thickness of Welding Material(mm)	0.2-2.0	0.2-2.0
Overlap Width(mm)	80-160	100-200
Welding Width(mm)	10-15mm*2 , interior cavity 12mm
Seam Strength(%)	≥85% base material (tensile resistant in shear direction)
Weight(kg)	5.0	5.3

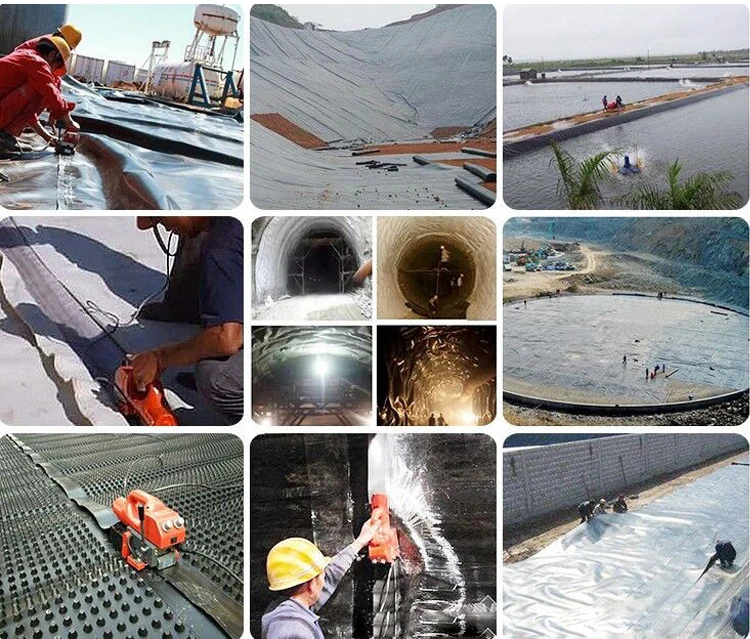

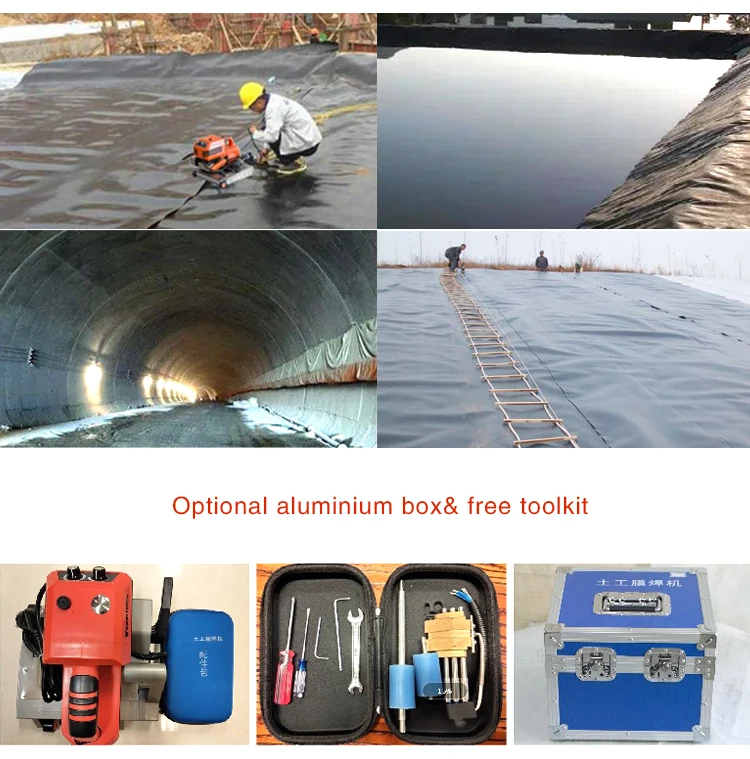

Working Site













Company Information



Henan Weibang Intelligent Technology Co., Ltd is located in Zhengzhou High-tech district, Henan Province, China. Manufacturing base is located in Jiaozuo High-tech district. We have specialied in manufacture and sales of Welding machines for over 20 years.

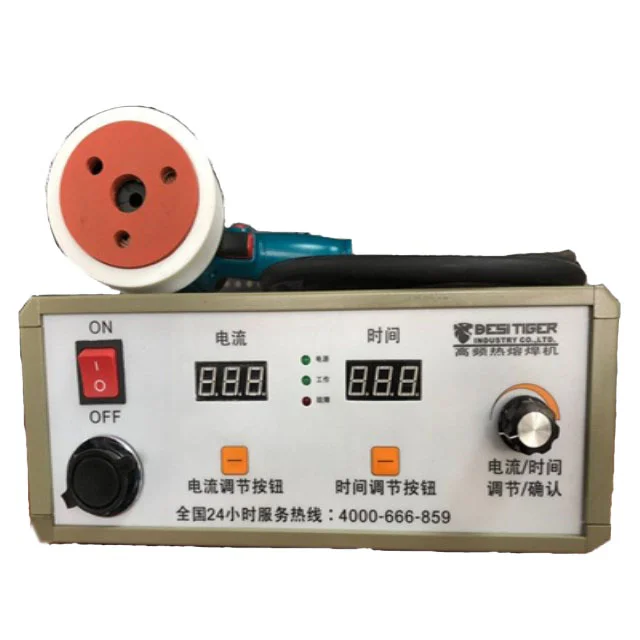

Our main business include: geomembrane welding machine, ultrasonic spot welder, High frequency hot melt welding machine etc, which are widely used in mining, railway, highway, tunneling, subway, slope and hydro-power engineers.



Exhibition





Contact us



 If you want more detail of this machine.Please send your inquiry details in the below for free sample, Click "send" Now! The best price you may get early.



Related Products

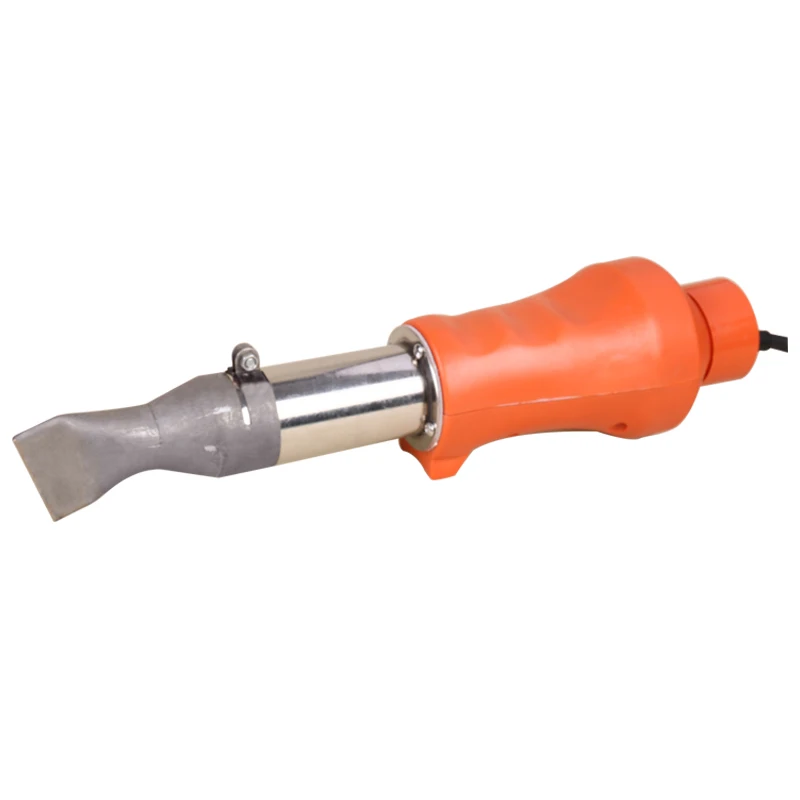

Geomembrane Welding Machine	Hot Air Plastic Welding Gun	Hdpe Welding Machine
