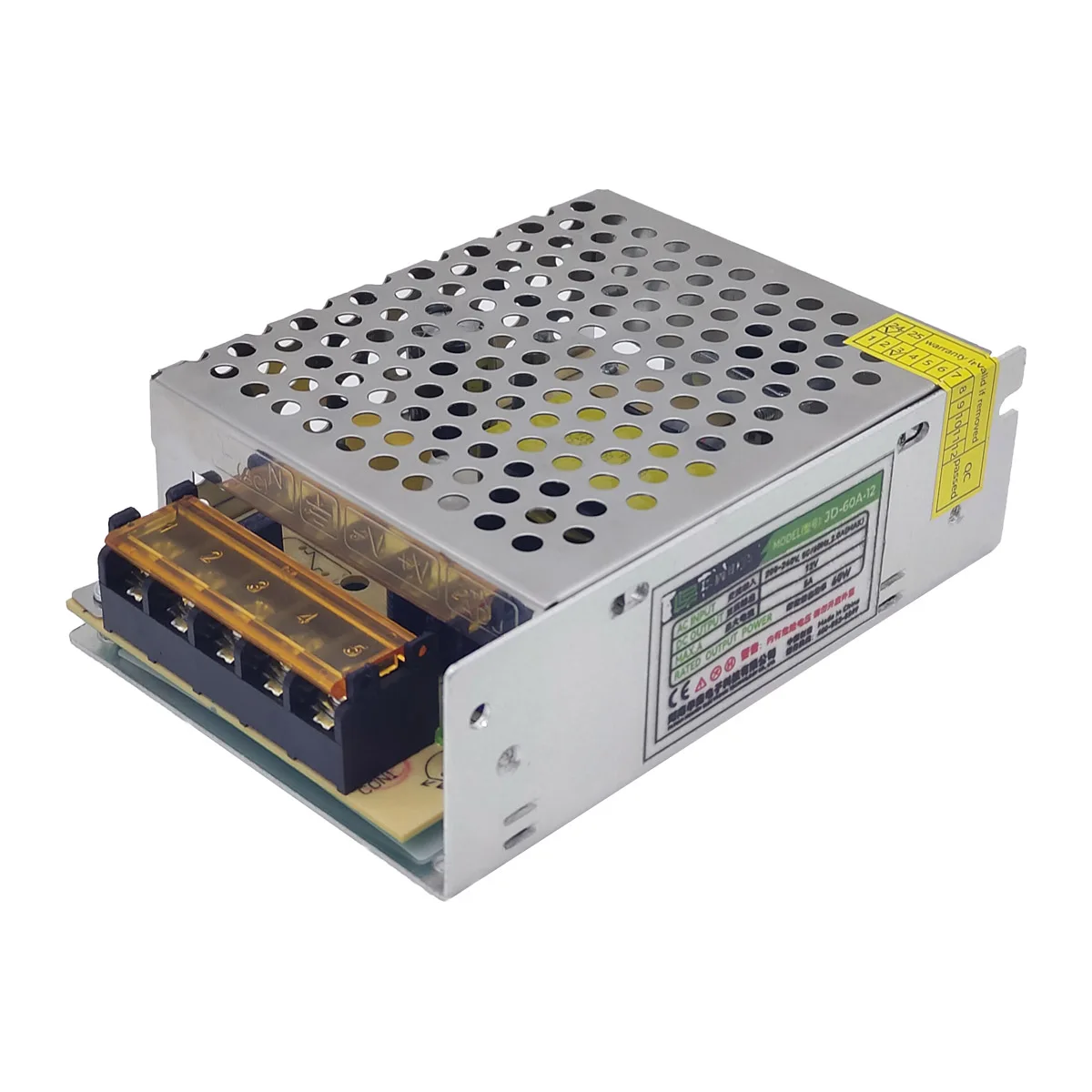

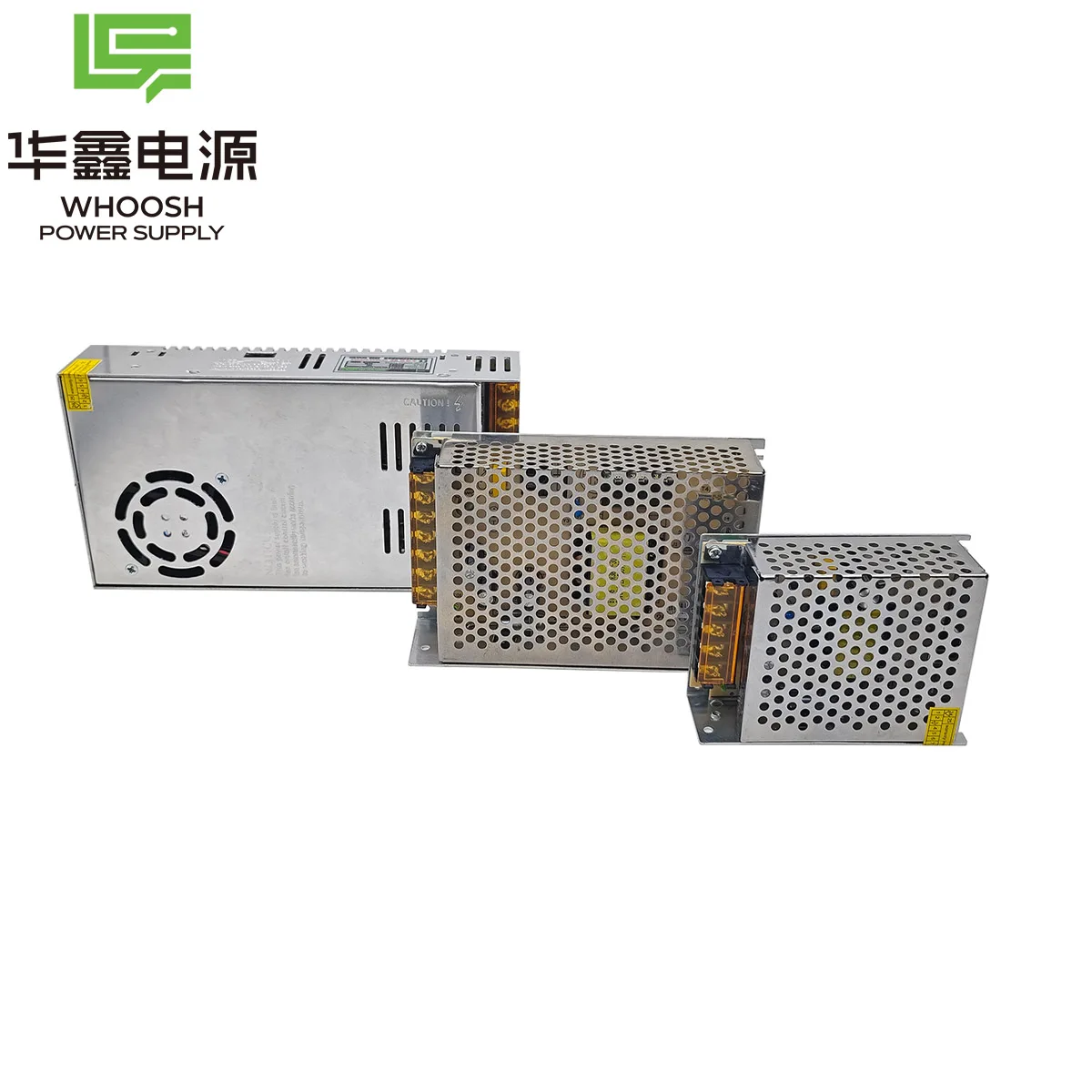

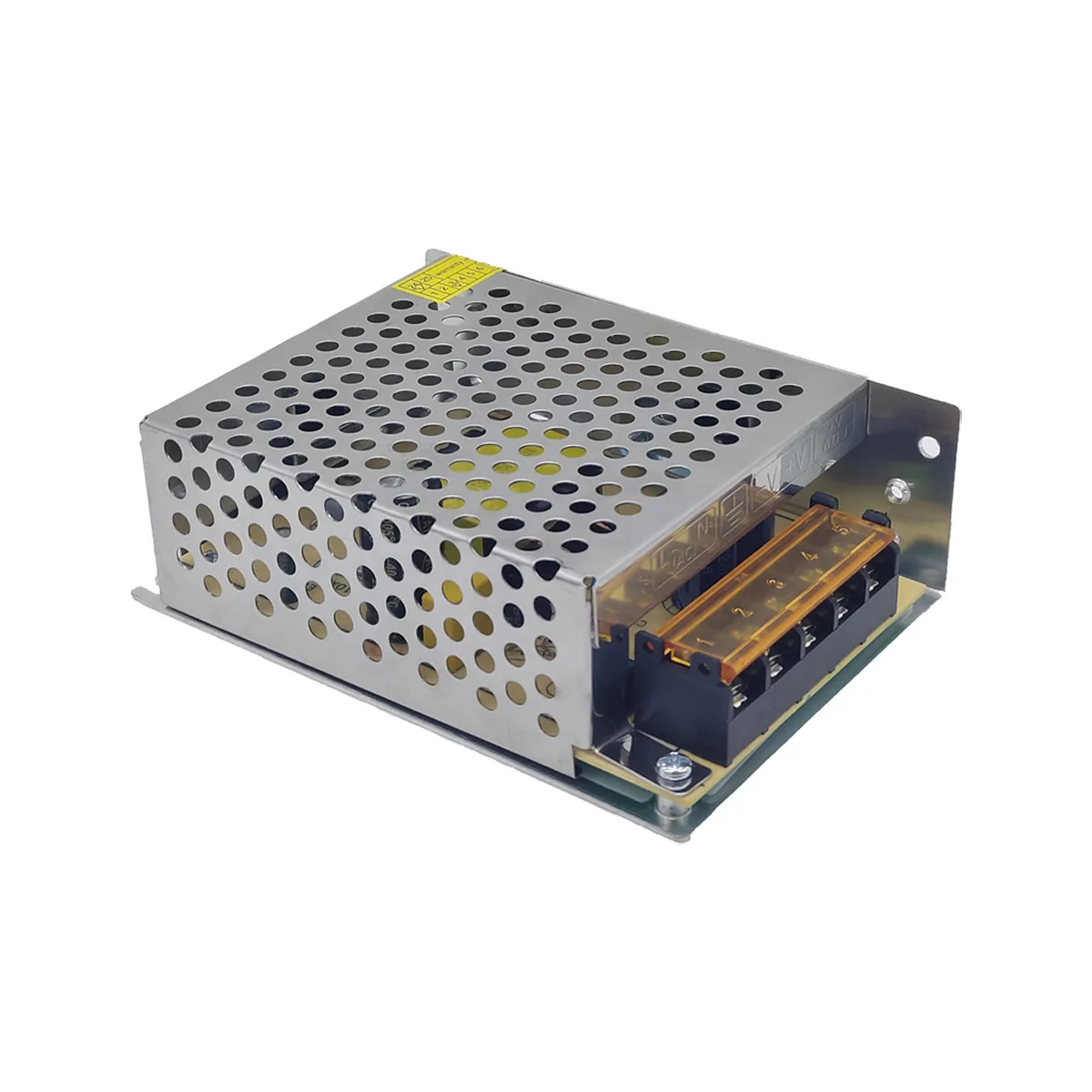

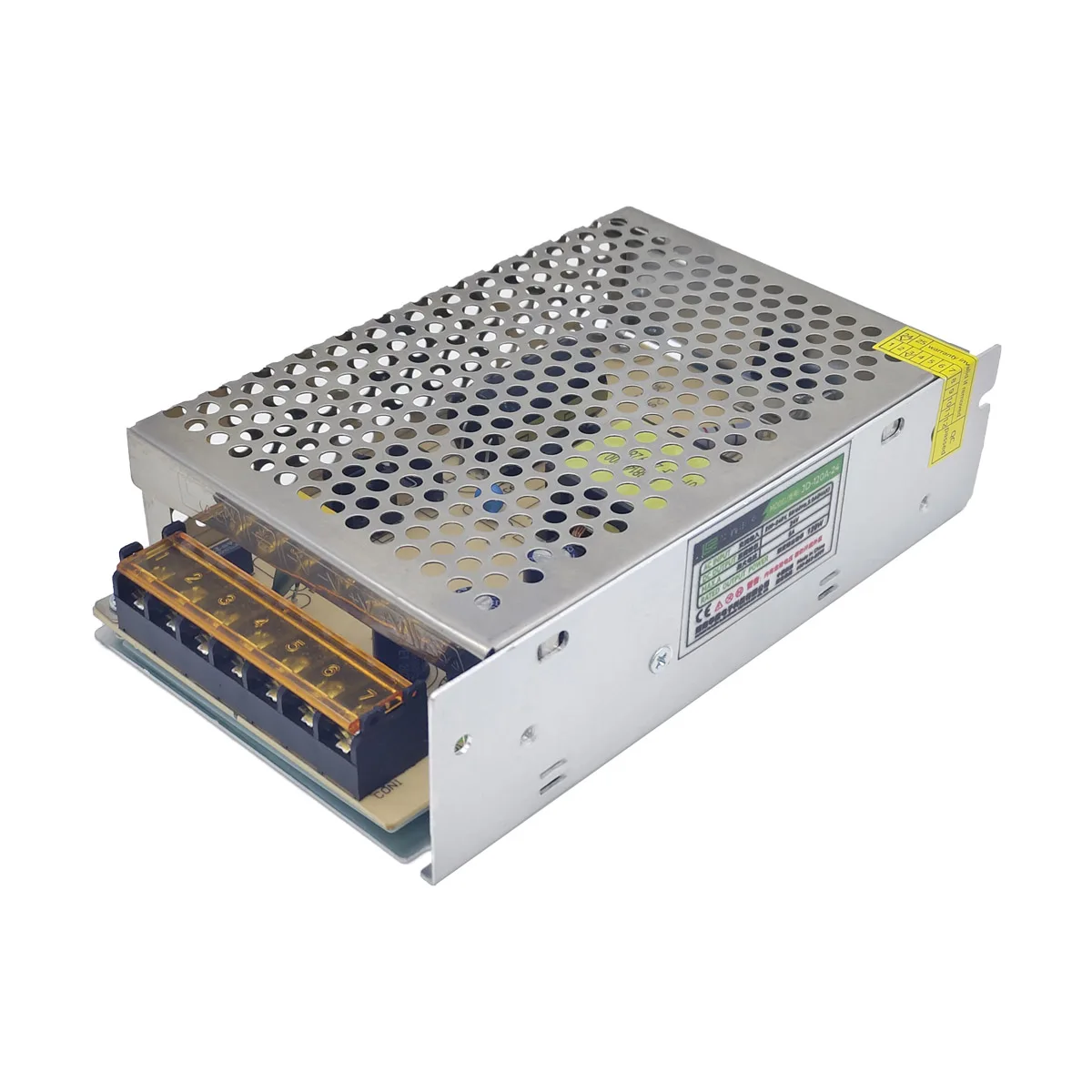

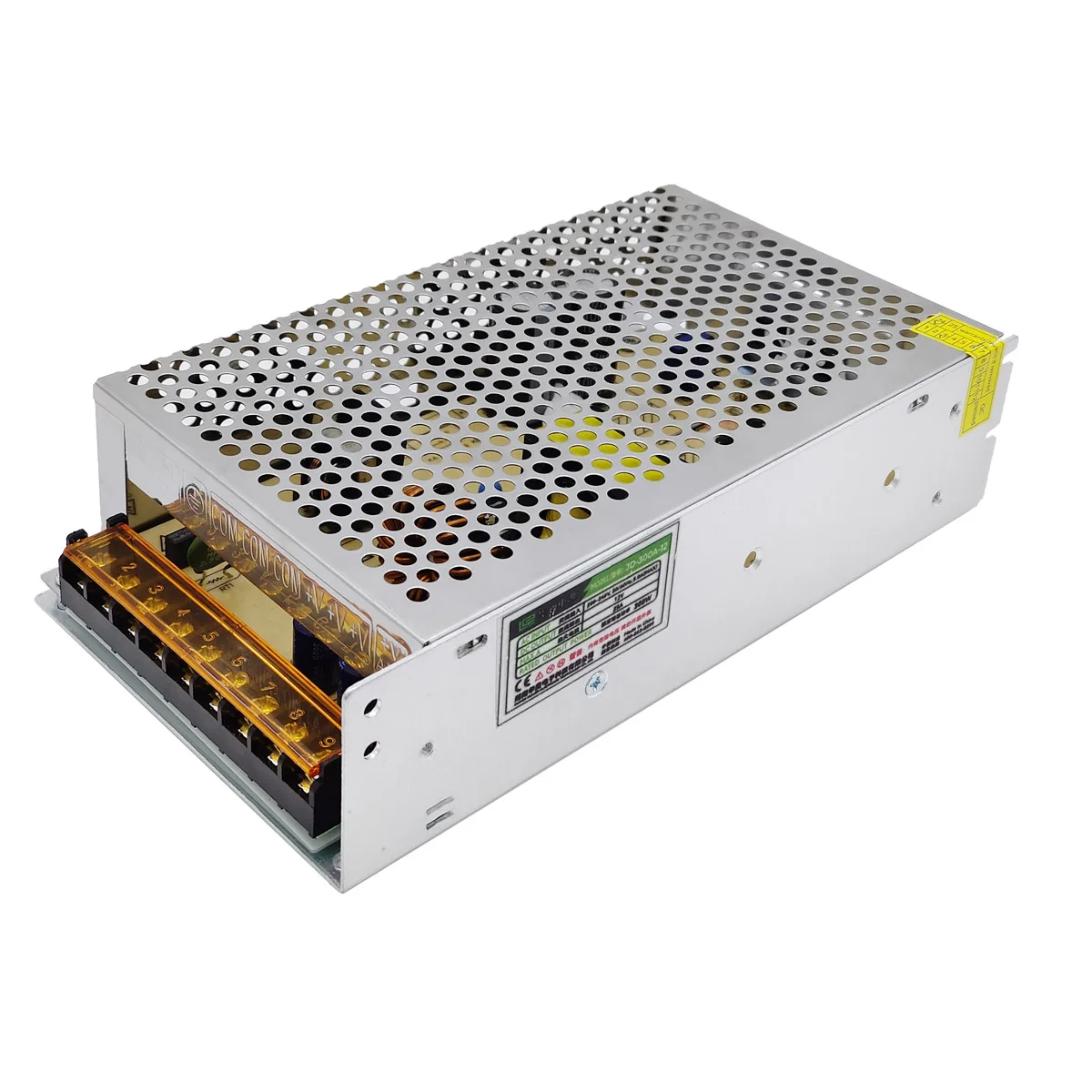

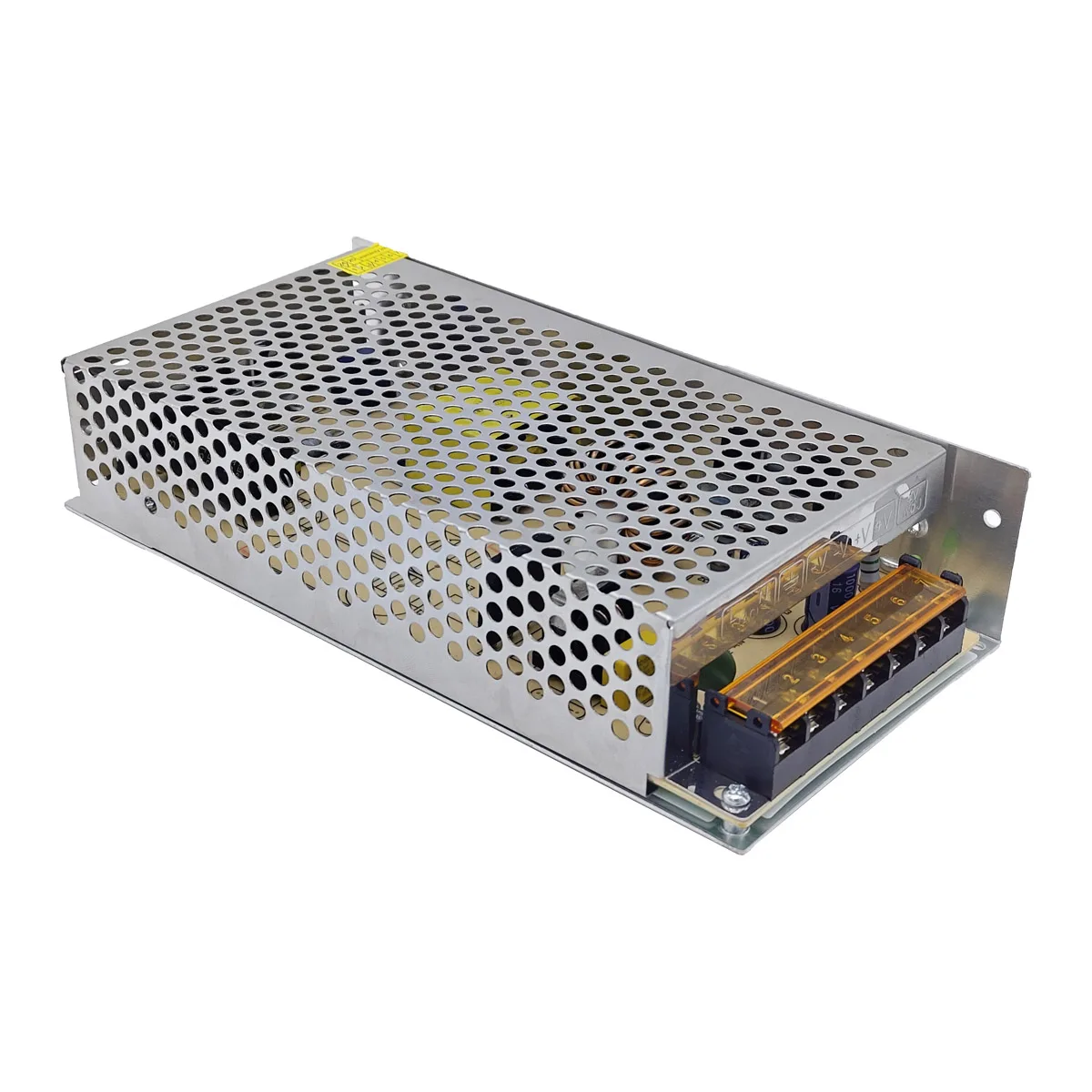

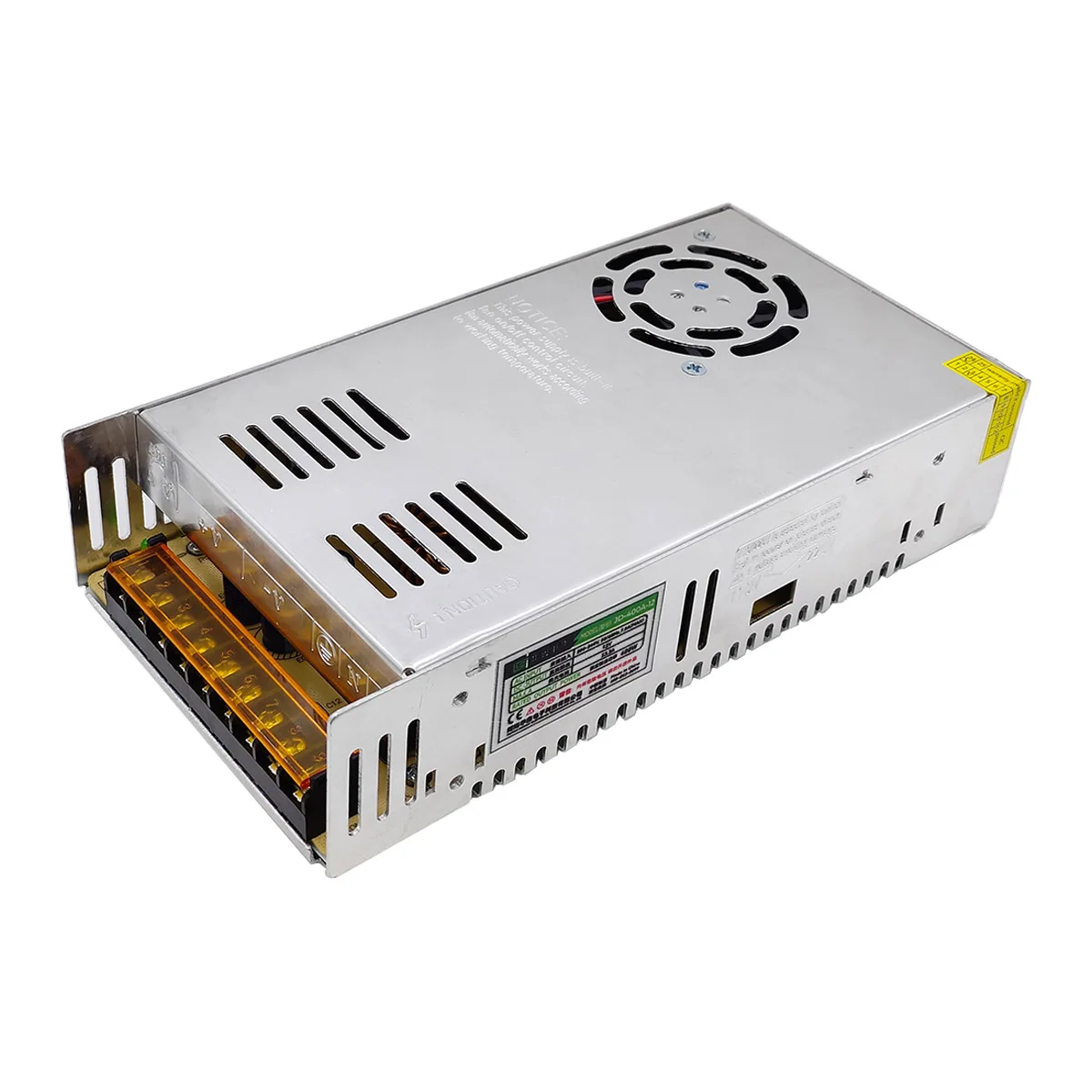

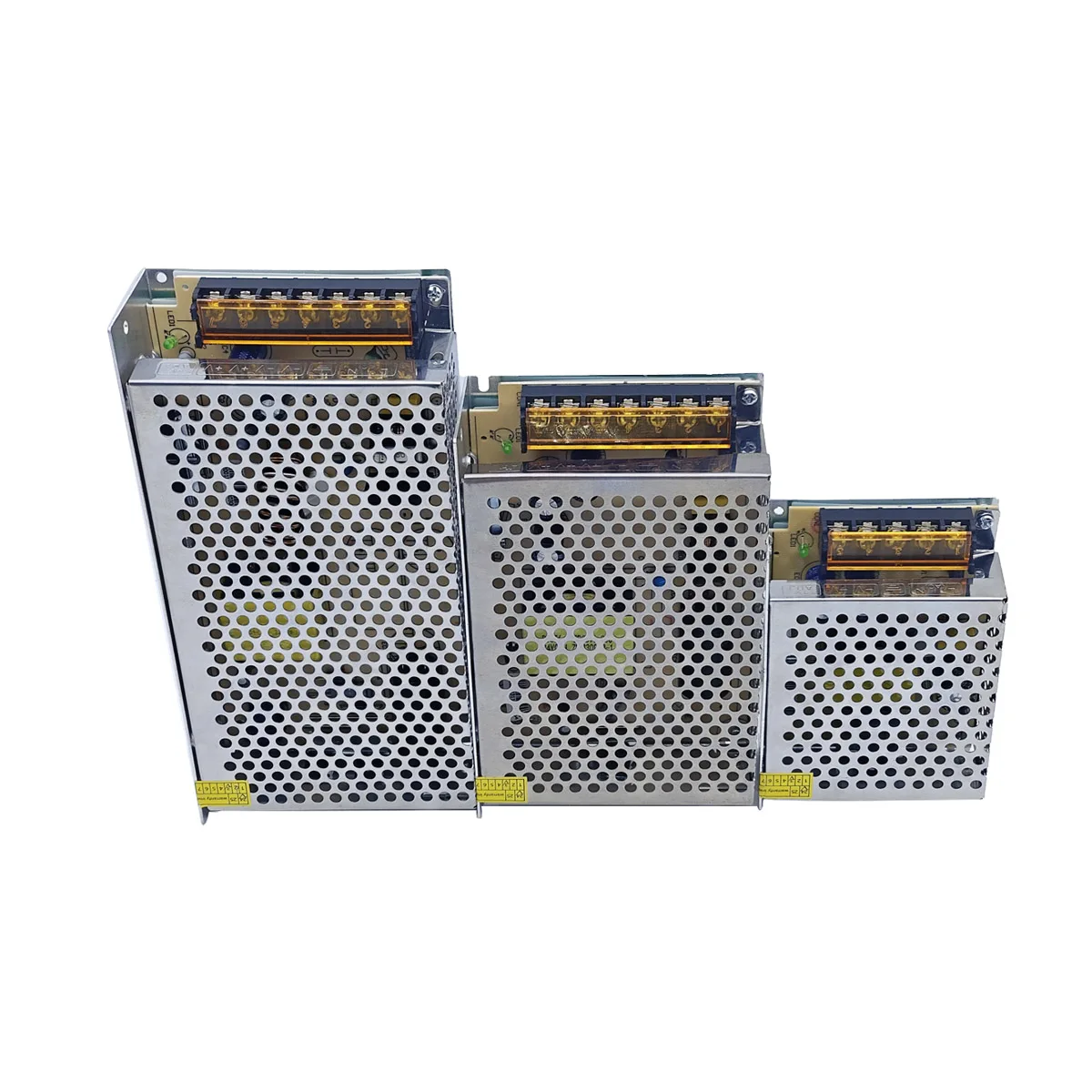

JD A Series Economical Indoor 400W 300W 200W 120W 60W ac to dc LED driver transformer LED switching Power Supply for strip light
- Category: >>>
- Supplier: Hunan Huaxin Electronic Technology Co. Ltd.
Share on (1601249253065):
Product Overview
Description
Product Description
Model:JD-A SERIRES
1. High quality series with 2 years warranty ;
2. Input: 200-240VAC, output: 12V/24V, efficiency>85%, power 60W-400W Max.
3. Protection for: short circuit, overload, over-current,
4. Application to: Security systems, monitoring systems, Advertising board, Equipment, Automation systems LED Products, Advertising Logo, Lightbox etc.
5.Professional team will follow the whole after-sale.
6.2~3 times burn-in tests with 100% full load for more than 24 hours.
* Complete range of specifications: meet different requirements
* High efficiency, life span≥30,000H, high stability
* Low-profile design: suitable for narrow space installation
Specifications
| Model | JD-60A-12/24 | JD-120A-12/24 | JD-200A-12/24 | JD-300A-12/24 | JD-400A-12/24 | |
| Output | DC | 12V/ 24V | 12V/ 24V | 12V/ 24V | 12V/ 24V | 12V/ 24V |
| Rated Current | 5A/2.5A | 10A/ 5A | 16.7A/ 8.33A | 25A/ 12.5A | 33.3A/ 16.7A | |
| Current Range | 0-5A/ 0-2.5A | 0-10A/ 0- 5A | 0-16.7A/ 0-8.33A | 0-25A/ 0-12.5A | 0-33A/ 0-16A | |
| Rated Power | 60W | 120W | 200W | 300W | 400W | |
| Ripple Wave & Noise (Max.) | <300mVp-p | <450mVp-p | <220mVp-p | <300mVp-p | <200mVp-p | |
| Voltage Accuracy | ±5% | |||||
| Linear Adjustment Rate | ±3% | |||||
| Load Regulation | ±5% | |||||
| Start up, Rise Time (240V AC) | 2000ms, 80ms | |||||
| Turn on Delay Time (240V AC) | 10ms | |||||
| Input | Voltage Range | 200-240V AC | ||||
| Frequency Range | 50/60Hz | |||||
| Efficiency | >86% | >86% | >86% | >87% | >85% | |
| AC Current (240V AC) | 2A max. | 3A max. | 4A max. | 5A max. | 7A max. | |
| Inrush Current (240V AC) | <42A | <42A | <42A | <50A | <53A | |
| Protection | Over-load | 110%-130% | ||||
| hiccup mode, the load abnormal condition can be automatically restored after removal | ||||||
| Over-voltage | the power supply will lock when over voltage(<15V/ <29V), must close and restart AC source | |||||
| Short-circuit | hiccup mode protection, the power supply will be auto recovered when short circuit faults remove. | |||||
| Environment | Temperature | -25℃-40℃ | ||||
| Working Humidity | 5%(0℃)~90%(40℃)RH, 72Hrs, Full load, Normal operating. | |||||
| Storage Temperature | -25℃-80℃ | |||||
| Safty&EMC | Safty Standars | GB4943-2022,UL1012 | ||||
| Withstand Voltage | I/P-O/P 2KVAC I/P-FG 2KVAC O/P-FG 500VAC | |||||
| Isolation Resistance | I/P-O/P .I/P-FG .O/P-FG:>100MΩ/500VDC/25℃/70%RH | |||||
| EMC | EN55022B, Class B | |||||
| EMC Immunity | EN55024; EN61000-4-2,3,4,5,6,8,11 | |||||
| Others | MTBF | ≥30000hours at 25℃ | ||||
| Size (mm) | 110*77.5*36 | 159*97.5*42 | 198.5*98*41.5 | 199*110*50 | 215*113*49 | |
| Net Weight (g) | 154 | 288 | 363 | 403 | 485 | |
| Packing (pcs/carton) | pcs | pcs | pcs | pcs | pcs | |
More Pictures

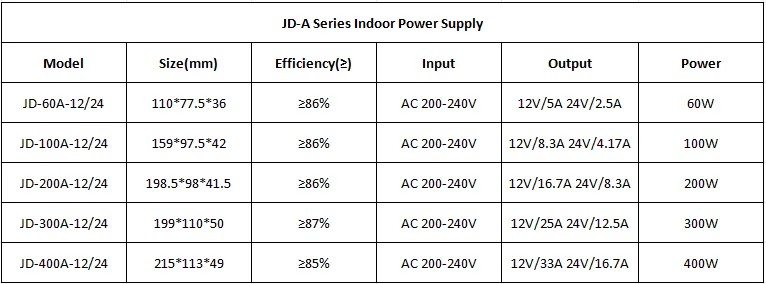

Other Model Description
Company Information
Whoosh Electronics was founded in 2004 and factory area of more than 10000 square meter. It has advanced production equipment and high-quality management team. WHOOSH Electronics has passed the ISO9001:2015 quality management system, and its products have successively passed the 3C, CE, KC and other domestic and foreign certification. The company has more than 400 employees, including more than 50 R&D and engineering technicians, equipped by EMC lab, so as to provide customers with stable and reliable design solutions and products.
Products are widely used in industrial automation, LED lighting, illumination and security devices, medical equipment and other fields.
With a highly rigorous working attitude, Whoosh Electronics is committed to becoming a global famous supplier of power supply with unremitting efforts.
This is our special research and development center, strong and professional, to ensure the quality of products
This is our 7 production lines, capable of producing 2w products per day, striving for stability, accuracy, and efficiency
We have a strong inventory strength, so that you can ship quickly without too much waiting
We have passed the ISO9001:2015 quality management system and the 3C, CE, KC and other domestic and foreign certification.
Trade Shows
We have extensive experience and have participated in numerous domestic and international exhibitions of all sizes
FAQ
F&Q
Q1: Can I get samples?
A: Yes, 1pc is available if needed.
Q2: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.
Q3: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.
Q4: How about delivery time?
A: 1-25days which depends on detail items and quantity.
Exporting port:
Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.
After-sales service:
A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
We will always behind you to support you with less than 1% natural defective rate.
Payment term:
T/T, Western Union, PayPal, or negotiate when order.
