Cold Uv Laser Diamond Engraving Machine Diamond GIA Engraving Machine Diamond Laser Inscription Machine
- Category: >>>
- Supplier: Shenzhen Superwave Laser Technology Co. Ltd.
Share on (1601249274261):
Product Overview
Description
Product Description

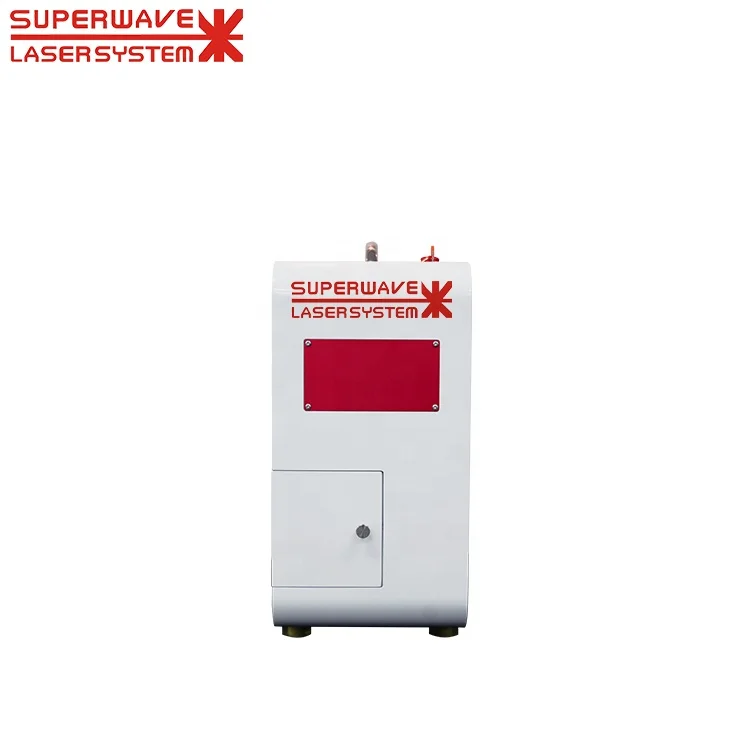

Cold Uv Laser Diamond Engraving Machine Diamond GIA Engraving Machine Diamond Laser Inscription Machine
Product Description
Our Diamond Laser Inscription Specifications
Model | SW-LDM |
Mini character height | 40um |
Mini line width | 5um |
Total power consumption | <200W |
Marking depth | ≤1mm |
Cutting speed | 2mm/s |
Repeat positing accuracy | ±0.01μm |
Host dimension | 510mm (L)*415mm (W)*345mm (H) |
Cooling system | Air cooling |
Loading weight | 30kg |
Lifetime | 20,000 hours |
Warranty | 1year |
Cold or Hot Diamond Laser Inscription?
Cold laser inscription does not change the colour or clarity grade of a diamond and is considered permanent as it can only be removed by a professional diamond cutter. Superwave uses the latest cold laser technology that allows excellent control during inscription without damaging the diamond (unlike a hot laser). Laser inscription will ensure that the loose diamond matches the Diamond Certificate. If the diamond is set in the ring it will also confirm that it is the same diamond as the one described on the Diamond Certificate.
SUPERWAVE uses the most advanced laser inscription technology, offering the safest method of laser inscription and the greatest variety of options.
Laser inscription will never chip or fracture a diamond, because the "cold laser process" (using a short wave length, the very deep-blue part of the spectrum of light-waves) produces no thermal effect on the inscribed gem. Cold laser technology allows excellent control during inscription without damaging the diamond. Cold lasers are used by the GIA, HRD, AGS. i.e. all the major international laboratories.
Laser inscription that is written with a cold laser process does not change the color grade or clarity grade of a diamond.

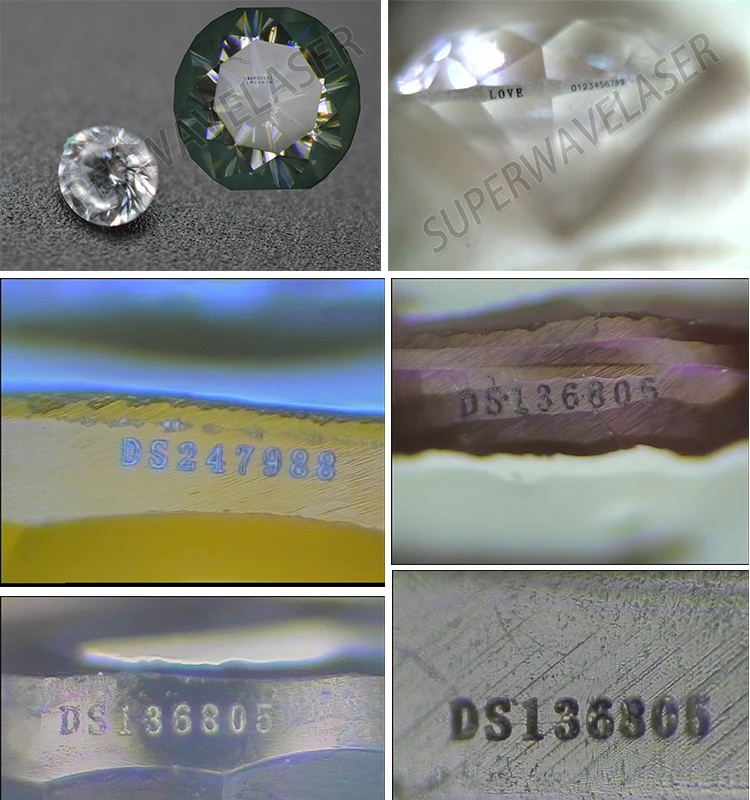

Diamonds that have a laser inscription of the diamond certificate or diamond report number on the girdle of the diamond provide instant verification, added security and peace of mind when making a diamond purchase.

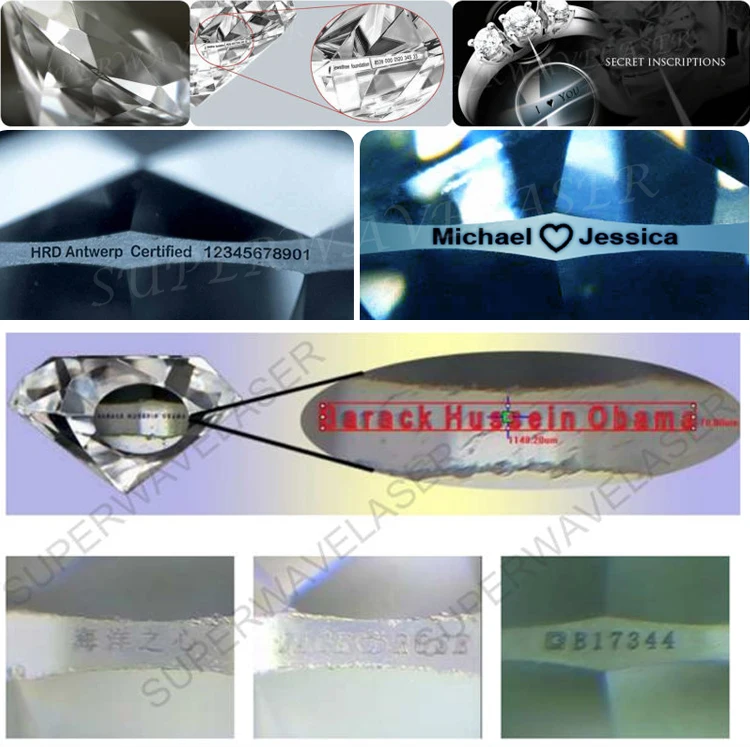

Romantic messages like ‘Forever Yours’ and ‘I love you’ are examples of the most popular inscribed messages. Poetry, symbols, names and special dates can also be laser insribed. Since the diamond laser inscription can be read only when viewed under magnification, you can keep it to yourself or choose to share it with your family and friends.
Our Diamond Laser Inscription Features
1. Using self-developed international standard laser modulator.
2. The laser beam quality is good.The reaction time with substance is less than 3ns,and ultra-low heat effect.
3. Using powerful accelerator expansion with dual-band aberration Focus Lens,the perfect design make the focused spot less than 5μm.
4. Using high precision X-Y-Z CNC electric shift platform,the repeat accuracy reach ±0.01μm.
5. Using confocal laser and CCD optical aiming system.The micron-scale imaging and laser engraved diamond engraved lines clearly displayed on the screen simultaneously,so the operator does not fatigue the eyes.
6. The specially designed software can enter and edit any text graphic. The operating is simple to learn.
7. The equipment life is longer than 20,000 hours, the total power consumption is less than 200W.Without water cooling system and Maintenance-free.
