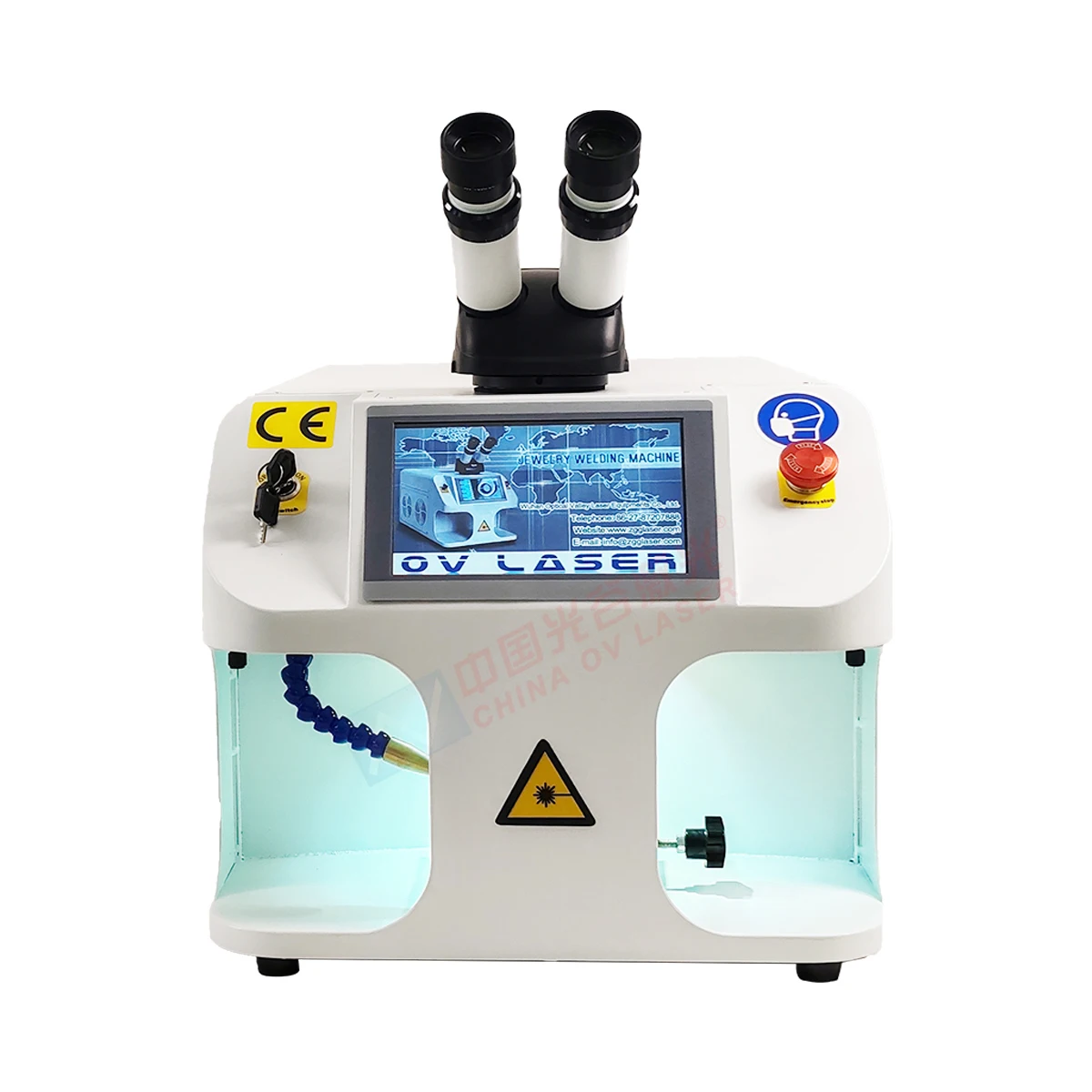

Laser machine welded in silver and gold laser soldering machine for jewelry mini portable welding machine for jewelry store use
- Category: >>>
- Supplier: Wuhan Optical Valley Laser Equipments Co. Ltd.Wuhan Ltd.
Share on (1601249283856):
Product Overview
Description

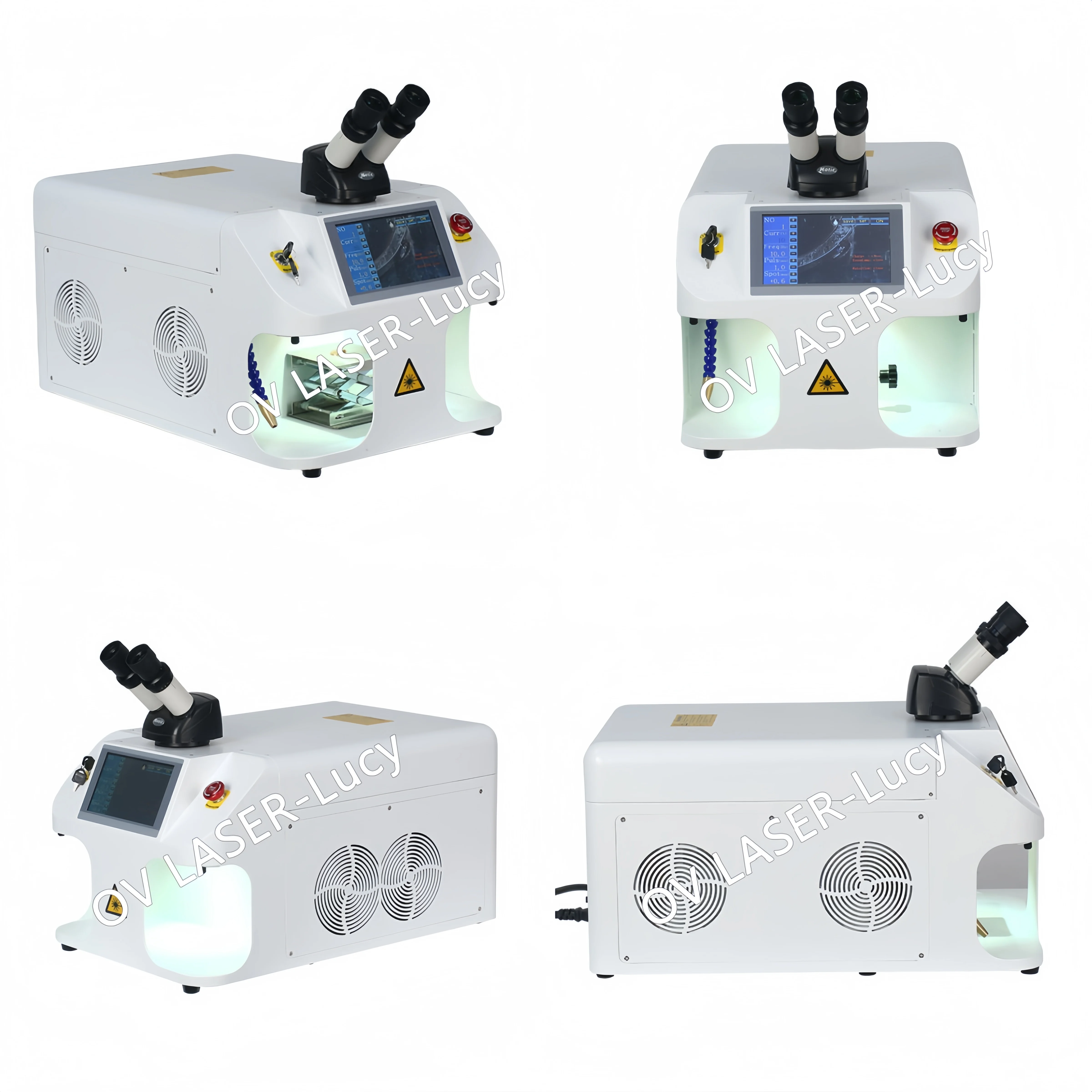

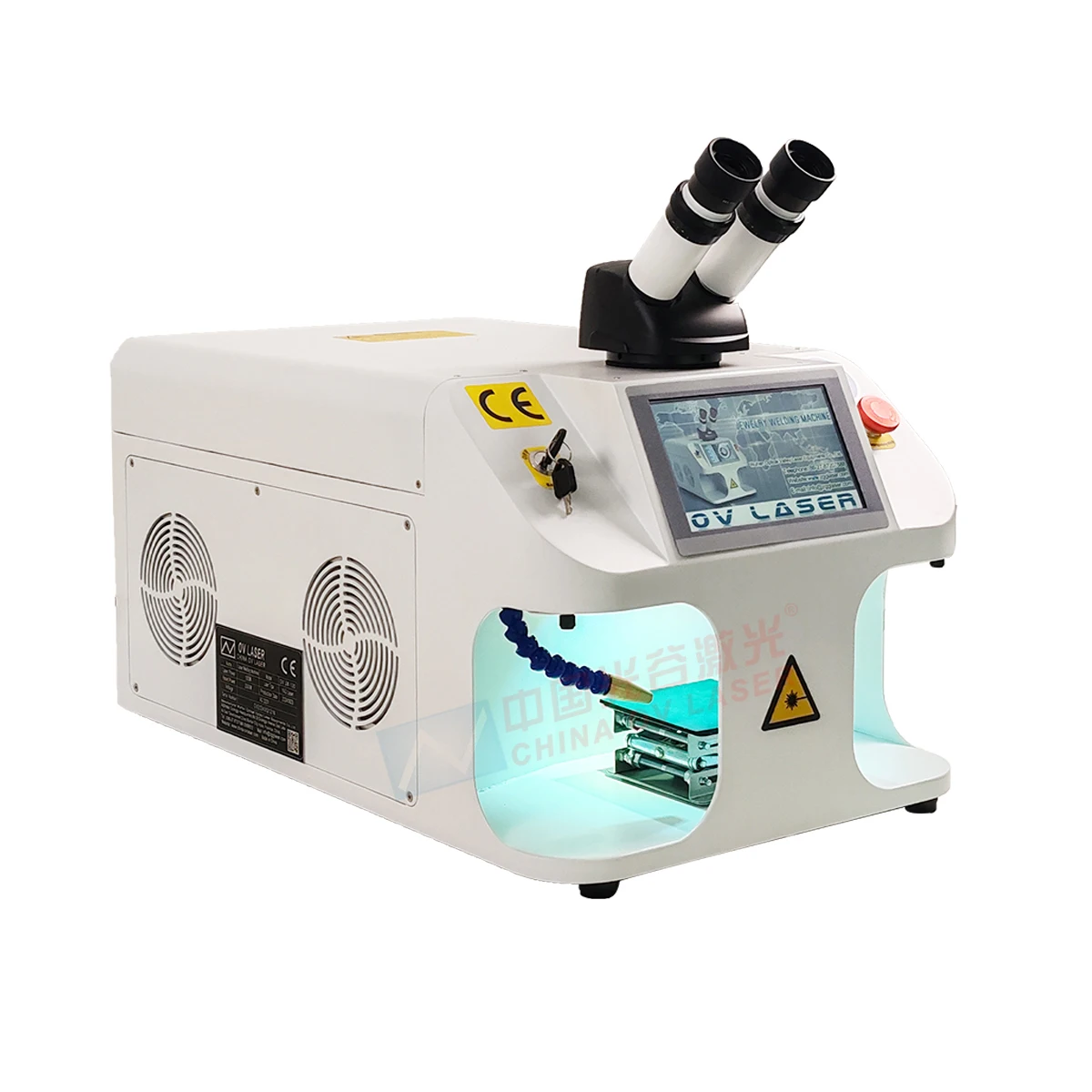

Laser machine welded in silver and gold laser soldering machine for jewelry mini portable welding machine for jewelry store use
Welcome to contact Lucy for product inquiries and technical support.
Mobile/ WhatsApp/Skype / WeChat: +86 13307107827
Product Description
Can your laser weld Jewellery?
- An laser micro welder from OV laser lets you accomplish extraordinary welds in the most difficult of places.
- This welder is specially developed for laser welding of jewelry and mainly used in perforating and spot welding of gold, silver, platinum, K gold, stainless steel, copper jewelry.
- Built-in HD touch-screen display for making parameter quick adjustments.
- It allows for easier distribution of filler material and a better surface weld finish. Developed mainly for those who weld silver and / or highly reflective materials, and for intensive productions, which aim to digitize their business.
- With new shell design made from durable and eco-friendly material was introduced to respect the new principles of environmental protection. It works with large welding chamber and the double cooling system.
Technical Parameters
Wavelength | Nd:Ce: YAG 1064 nm |
Max. output power | 60W/ 60W/100W/125W |
Max. pulse energy | 60J/70J/80J |
Pump source | Single Xenon lamp imported from UK |
Pulse Width | 0.1-10ms |
Pulse frequency | 1-15HzAdjustable level |
Aiming and positioning | Microscope + camera system+ 7" color touch-screen display |
Application | Welding and repairing all kinds of metal jewelry |
Host power consumption | ≤3KW |
electricity demand | 220V±5% ,50HZ or 220V 60Hz |
Cooling system | Water circulation air cooling |

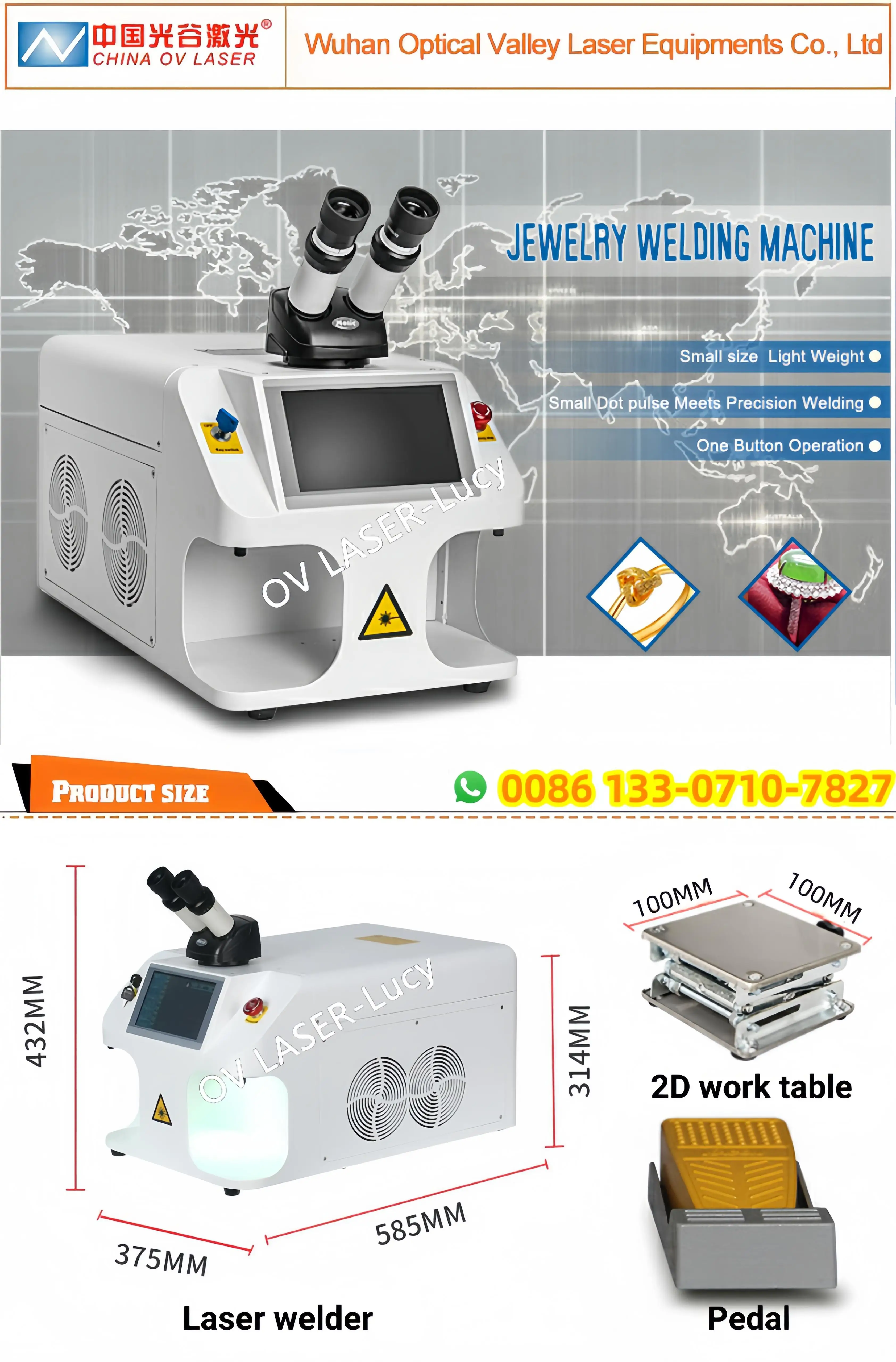

Dimensions | L:510mm,M:295mm,H:420mm |
Machine net weight | 40KGS |

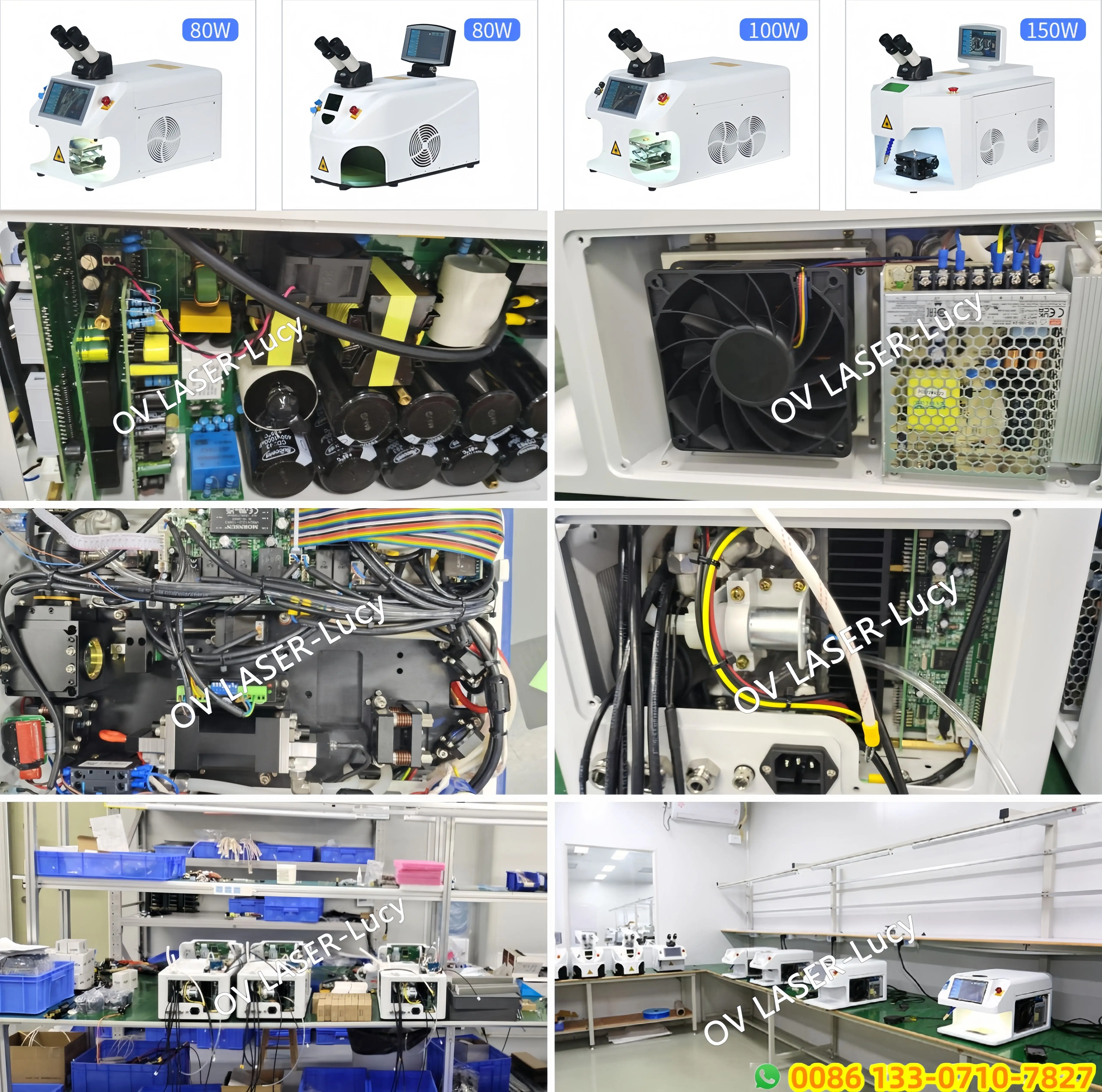

Main configuration:
Crystal: customized version 7*110
Xenon lamp: customized version 8*90*180 (two poles with wire)
Power supply: 60W boost power supply
Microscope: Motic
Cavity: customized ceramic and cavity
Chiller: Custom built-in 2.8L water tank for air cooling

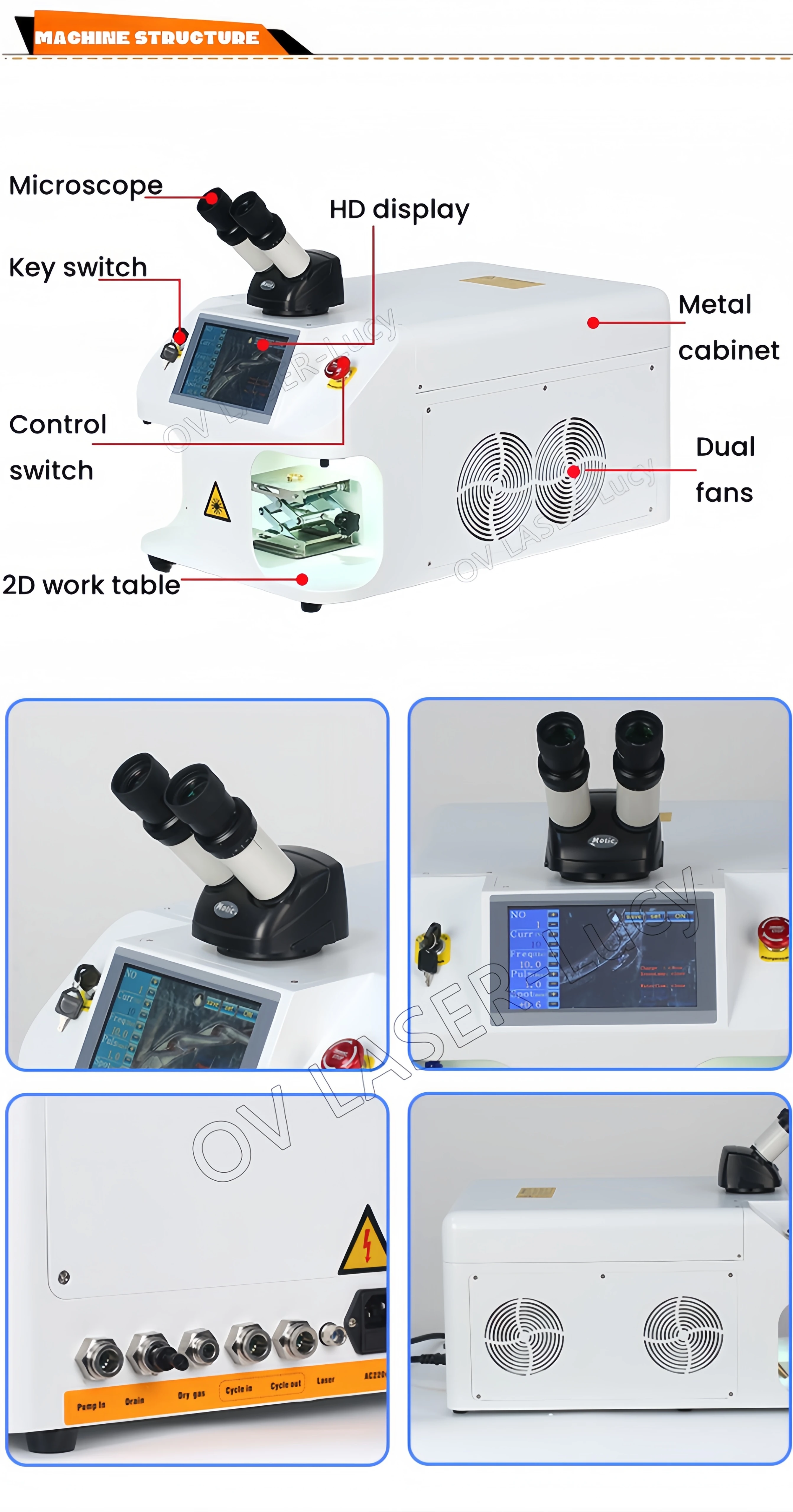

1. Observation system: The observation system of this jewelry spot welding machine is composed of a microscope and a built-in high-definition CCD camera. Users can choose one or two of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.
2. Adjustment of the CCD cross cursor: If the light spot is not in the center of the cross cursor in a very clear position of the CCD camera system, you can change the position of the cross cursor by clicking the middle position of the four sides of the screen, so that the welding spot is at the center of the cursor
3. For welding operation, first make sure that the machine has been turned on normally, put the workpiece into the sight range of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor at the desired welding position, gently step on the foot switch, the machine has a laser output for welding.
4. Parameter adjustment, focus adjustment, after the first welding, the welding effect of the welding point does not meet the requirements, and the parameters need to be adjusted again. The focus (-3.0-+3.0) is adjusted to make the welding effect meet the requirements, and the welding will not be repeated later. Need to be adjusted again.

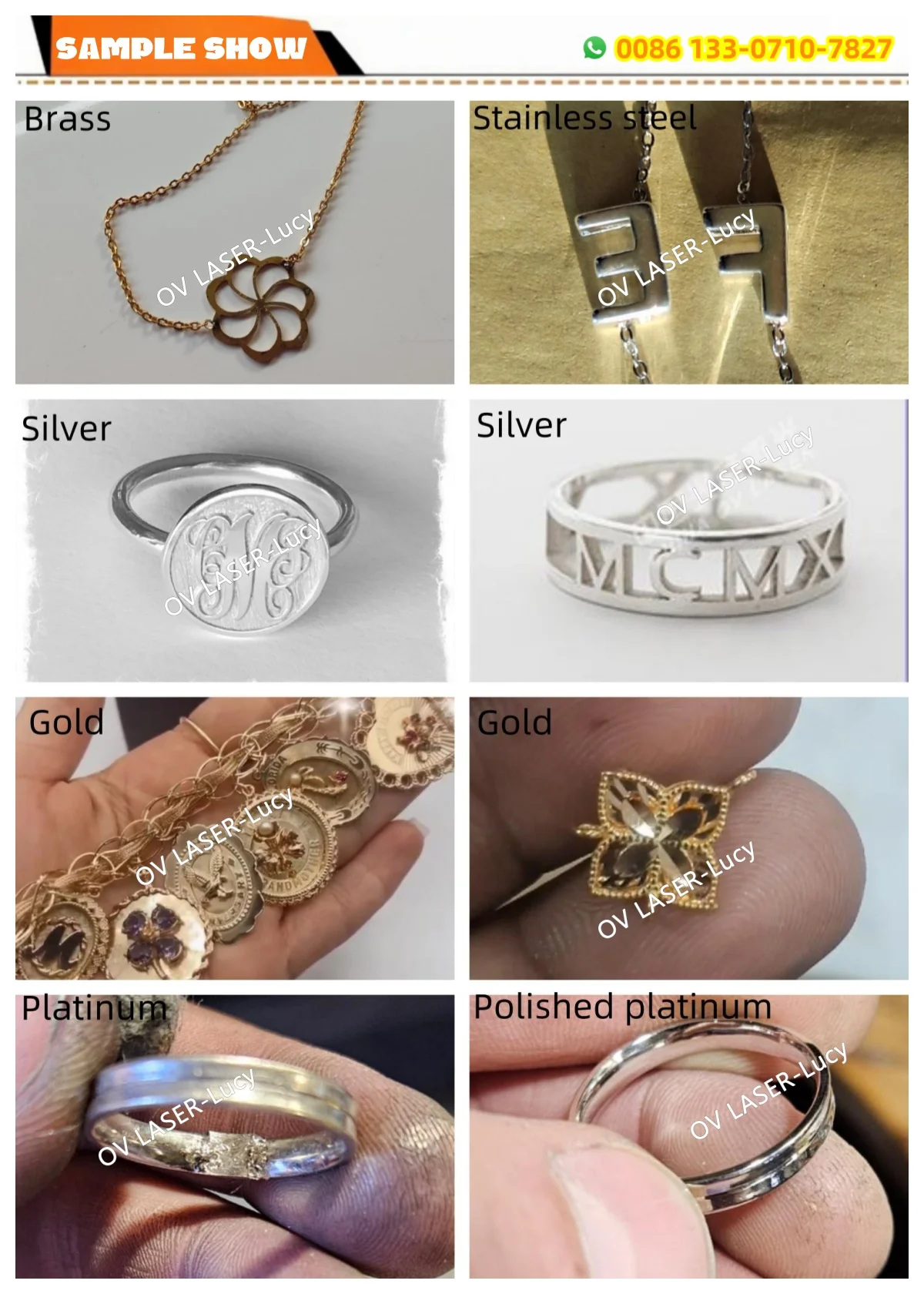

Sample show
Is it worth buying a laser welding machine?

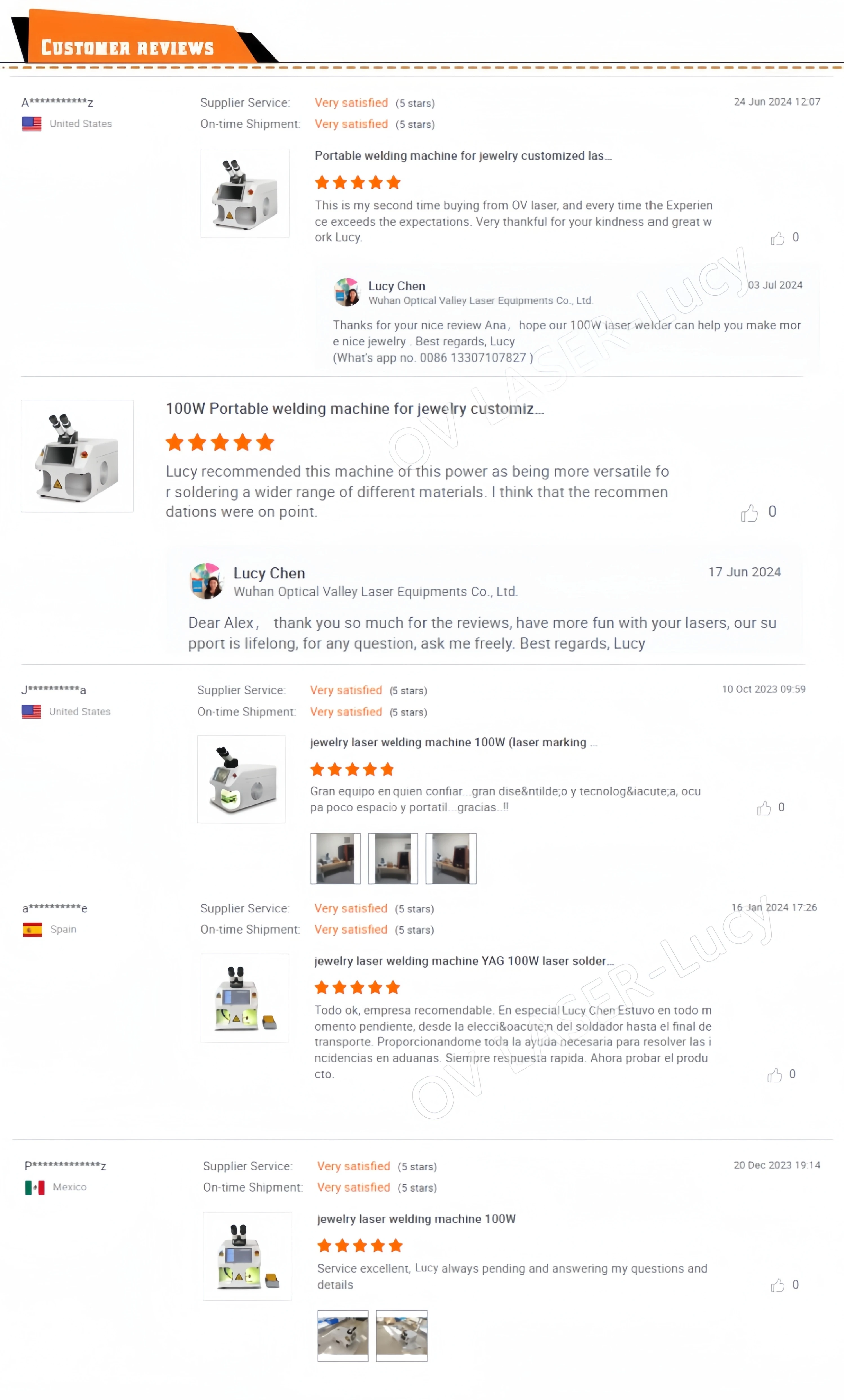

Buyer Feedback

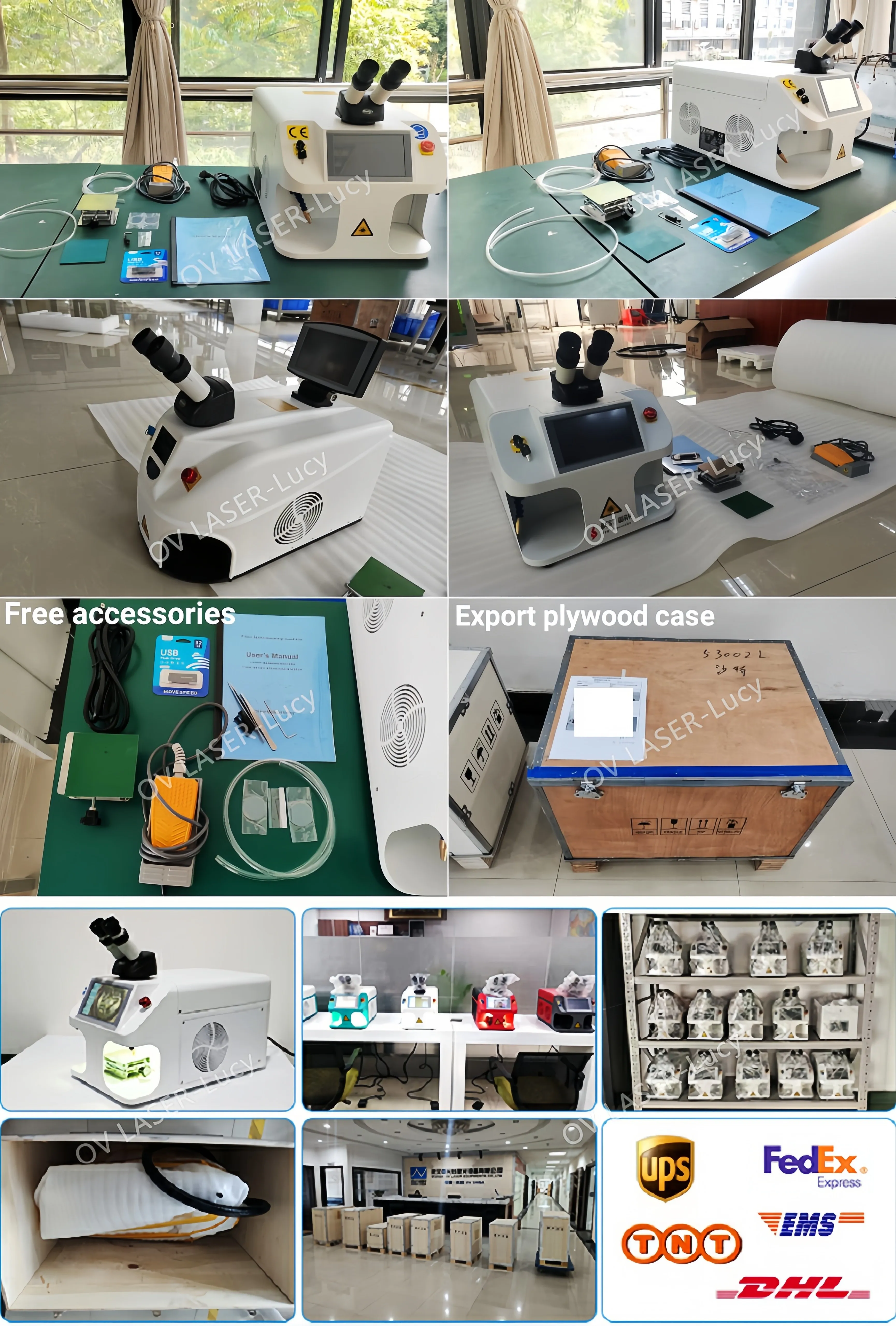

Packaging & Shipping

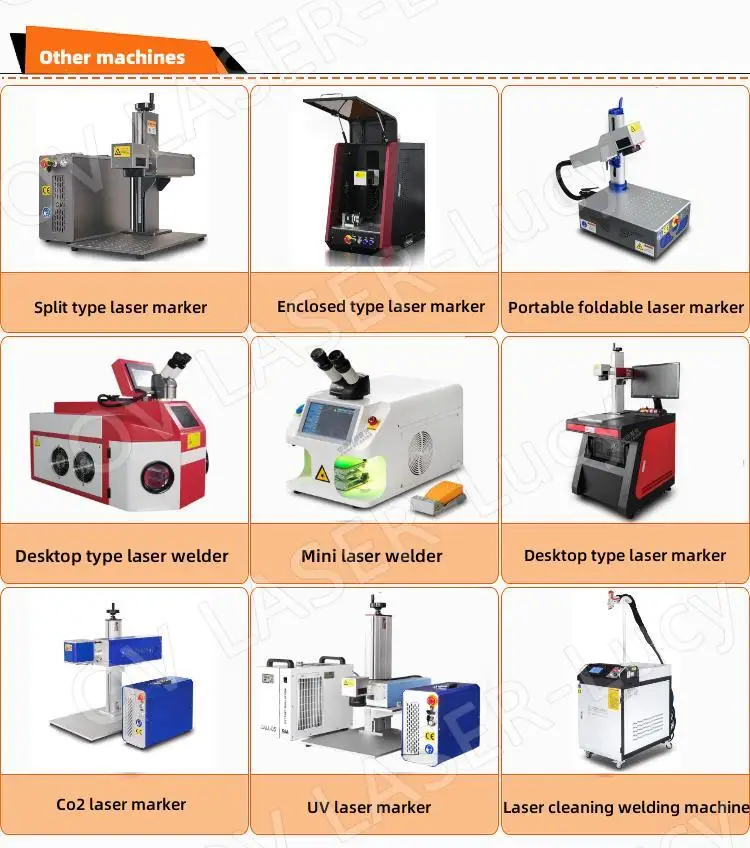

Related Products
