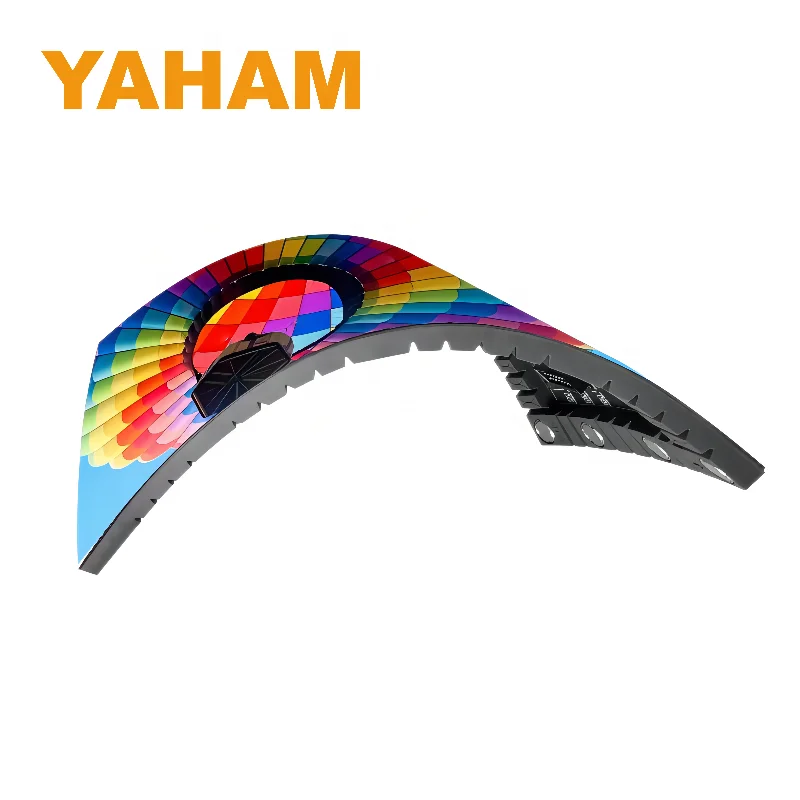

Indoor Pantalla led flexible p1.25 p1.56 p1.86 p2 p2.5mm Curved Soft Flexible Led Video Wall Display Screen For Shop Store bar
- Category: >>>
- Supplier: YAHAM OPTOELECTRONICS CO. LTD
Share on (1601249340048):
Product Overview
Description
YAHAMYaham Optoelectronics Co.，Ltd. XRseries
VR
Prouduct details
Larger Bending Angle
Fantastic Flexibility
NO Warp Angle
Item | YH-XR-P1.25 | YH-XR-P1.56 | YH-XR-P1.86 | YH-XR-P2.0 | YH-XR-P2.5 |
Pixel pitch | 1.25 | 1.56 | 1.86 | 2.0 | 2.5 |
Led Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
Pixel Density | 640000px/m² | 406406px/m² | 288906px/m² | 250000px/m² | 160000px/m² |
Moudle dimension(W*H) | 320×160x8.6mm | 320×160x8.6mm | 320×160x8.6mm | 320×160x8.6mm | 320×160x8.6mm |
Module resolution (W*H) | 256x128px | 204x102px | 172×86 px | 160x80px | 128×64px |
Module weight(Kg/unit) | 0.34kg/pc | 0.34kg/pc | 0.34kg/pc | 0.34kg/pc | 0.34kg/pc |
Brightness(nits/m) | 600~650cd | 600~650cd | 600~650cd | 600~650cd | 600~650cd |
Viewing Angle | H140°/V120° | H150°/V120° | H150°/V120° | H150°/V120° | H150°/V120° |
Contrast Rate | ≥6000：1 | ≥6000：1 | ≥6000：1 | ≥6000：1 | ≥6000：1 |
Gray Scale | 13~14bit | 13~14bit | 13~14bit | 13~14bit | 13~14bit |
Driving Method | 1/64S | 1/51S | 1/43S | 1/40S | 1/32S |
Constant Current IC | PWM | PWM | PWM | PWM | PWM |
Colour Temperature | 10000~12000K | 10000~12000K | 10000~12000K | 10000~12000K | 10000~12000K |
Max.power consumption(W/pc) | 30W/pc | 30W/pc | 30W/pc | 30W/pc | 30W/pc |
Max.power consumption(W/m²) | 600W/㎡ | 440W/㎡ | 430W/㎡ | 450W/㎡ | 410W/㎡ |
Avg. Power Consumption | 170W/㎡ | 125W/㎡ | 123W/㎡ | 128W/㎡ | 118W/㎡ |
Voltage for Module DC | 5V | 5V | 5V | 5V | 5V |
Max current | 5A | 4.5A | 4.4A | 4.6A | 4.2A |
Working Temperature | -20~40° | -20~40° | -20~40° | -20~40° | -20~40° |
Working Humidity | 20~75% | 20~75% | 20~75% | 20~75% | 20~75% |
Product Features
FLEXIBLE LED DISPLLAY FEATURES

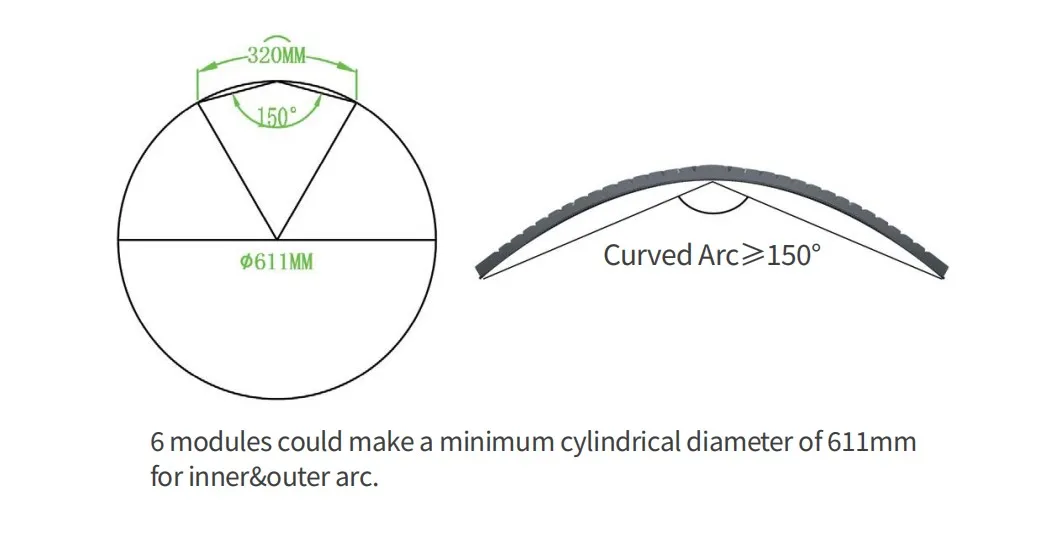

--Flexible led module bending angle up to 150°
--Much more slimmer & lighter design
--Dedicated to creative curved applications
--High strength magnet, easy installation and front access
--From P1.25 to P2.5, 320*160mm, a variety of size are available
--Much more slimmer & lighter design
--Dedicated to creative curved applications
--High strength magnet, easy installation and front access
--From P1.25 to P2.5, 320*160mm, a variety of size are available
Ultra-realistic 3D stereoscopic viewing angle
Flat assembly, picture semiess connection
Flexible to Fulfill your Free Fly Design Demands with Creative Ideas

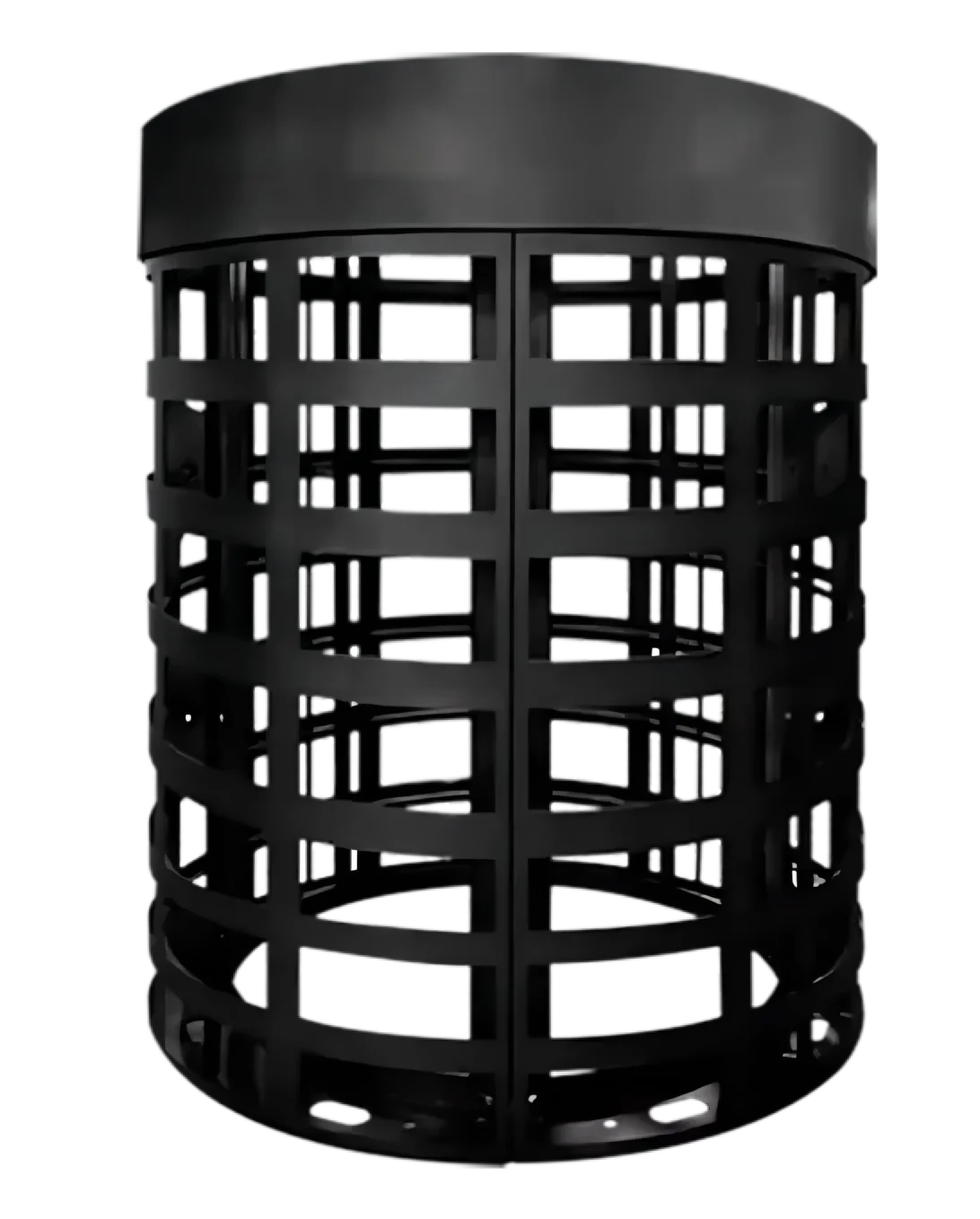

No Tradition LED Display Cabinet, Cost Saving, Free to Almost Any Shape

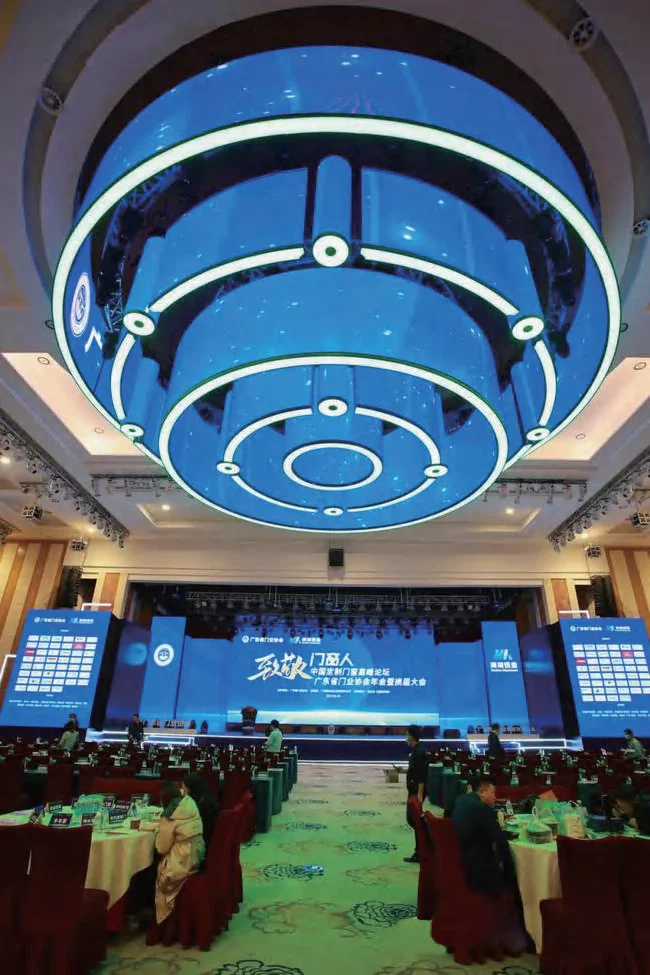

APPLICATION SCENARIOS

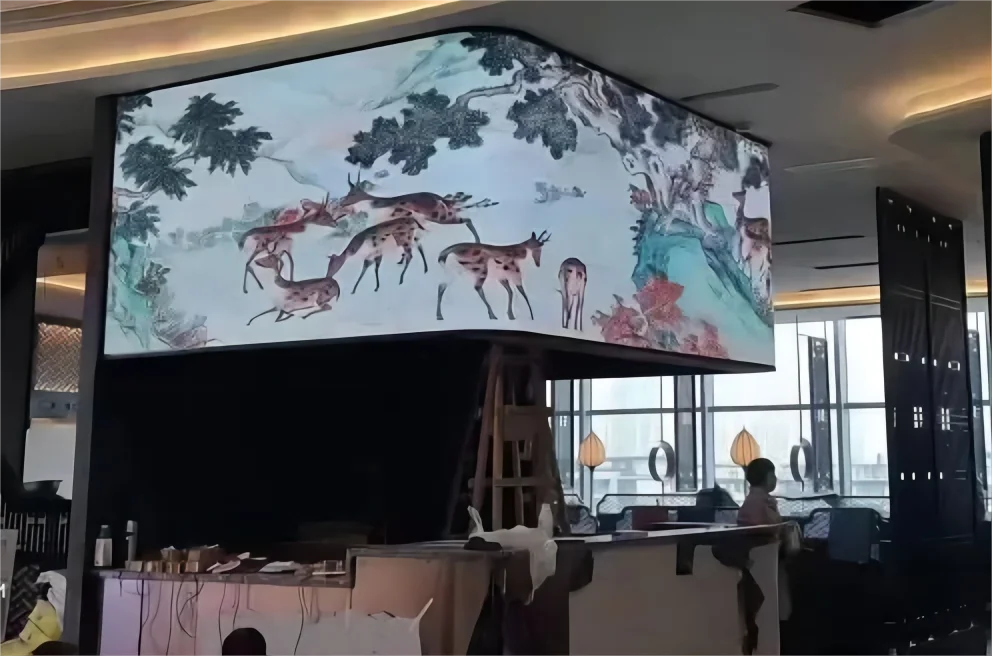

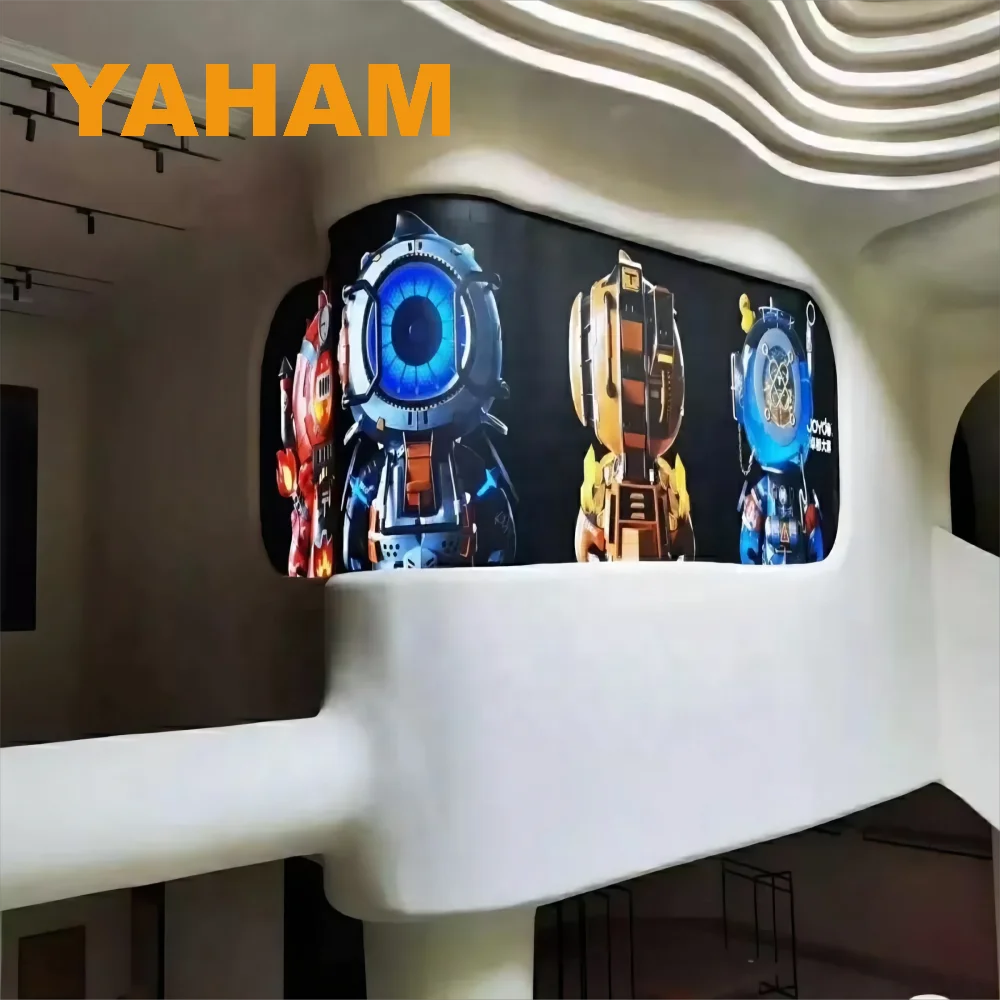

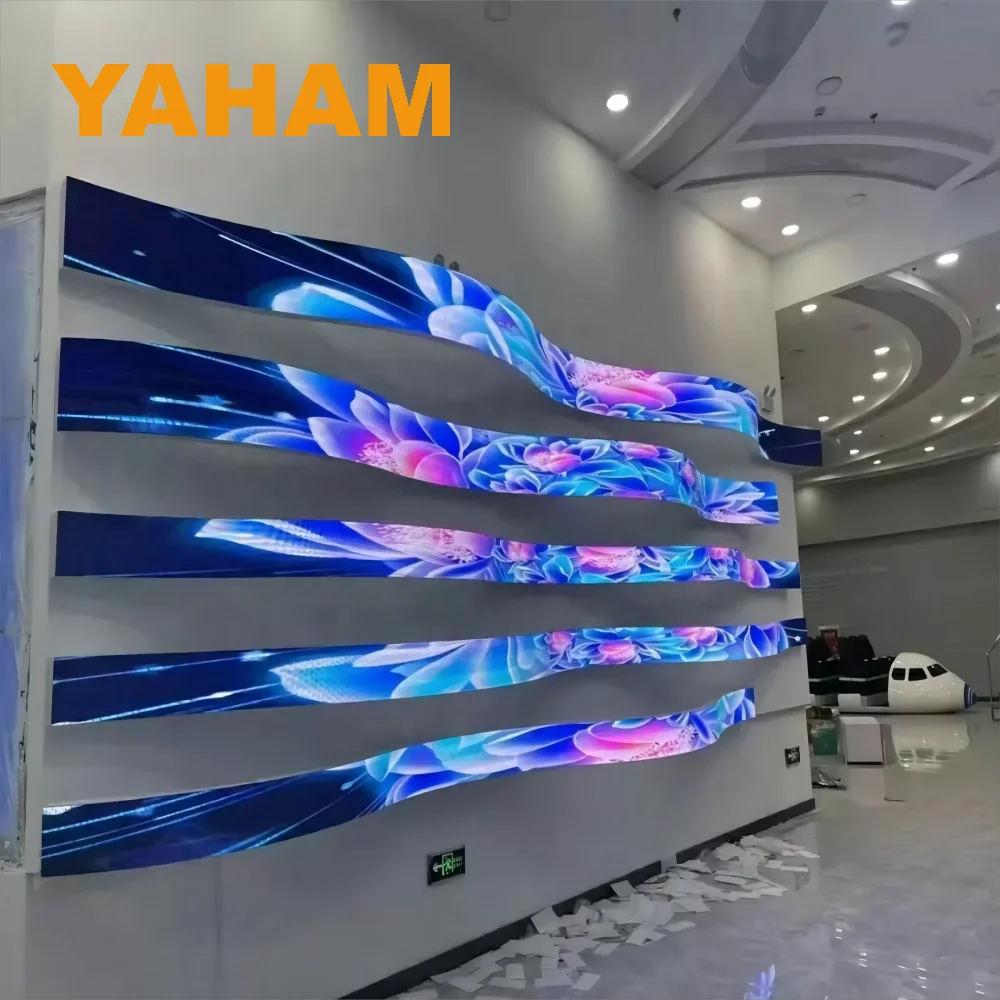

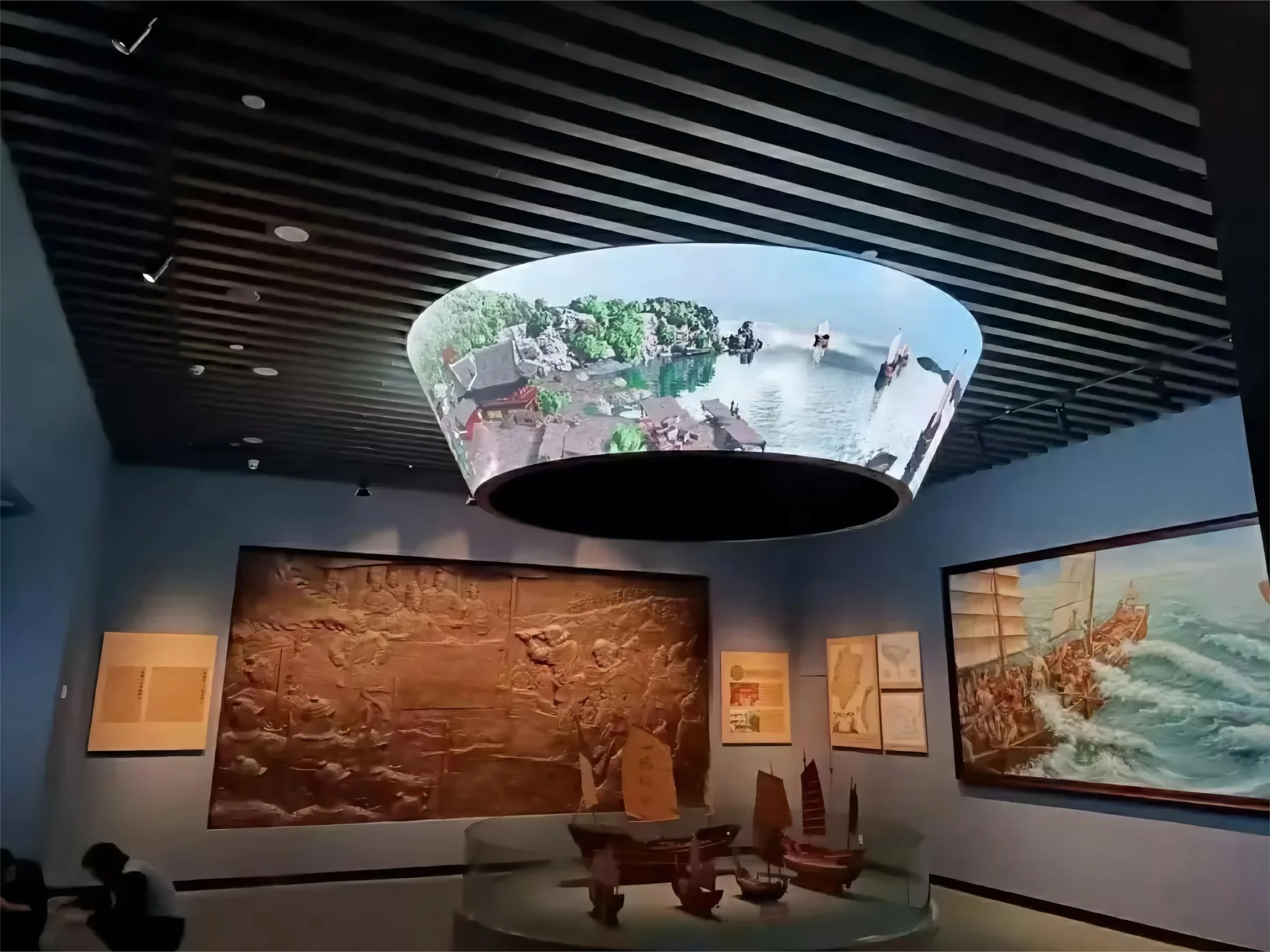

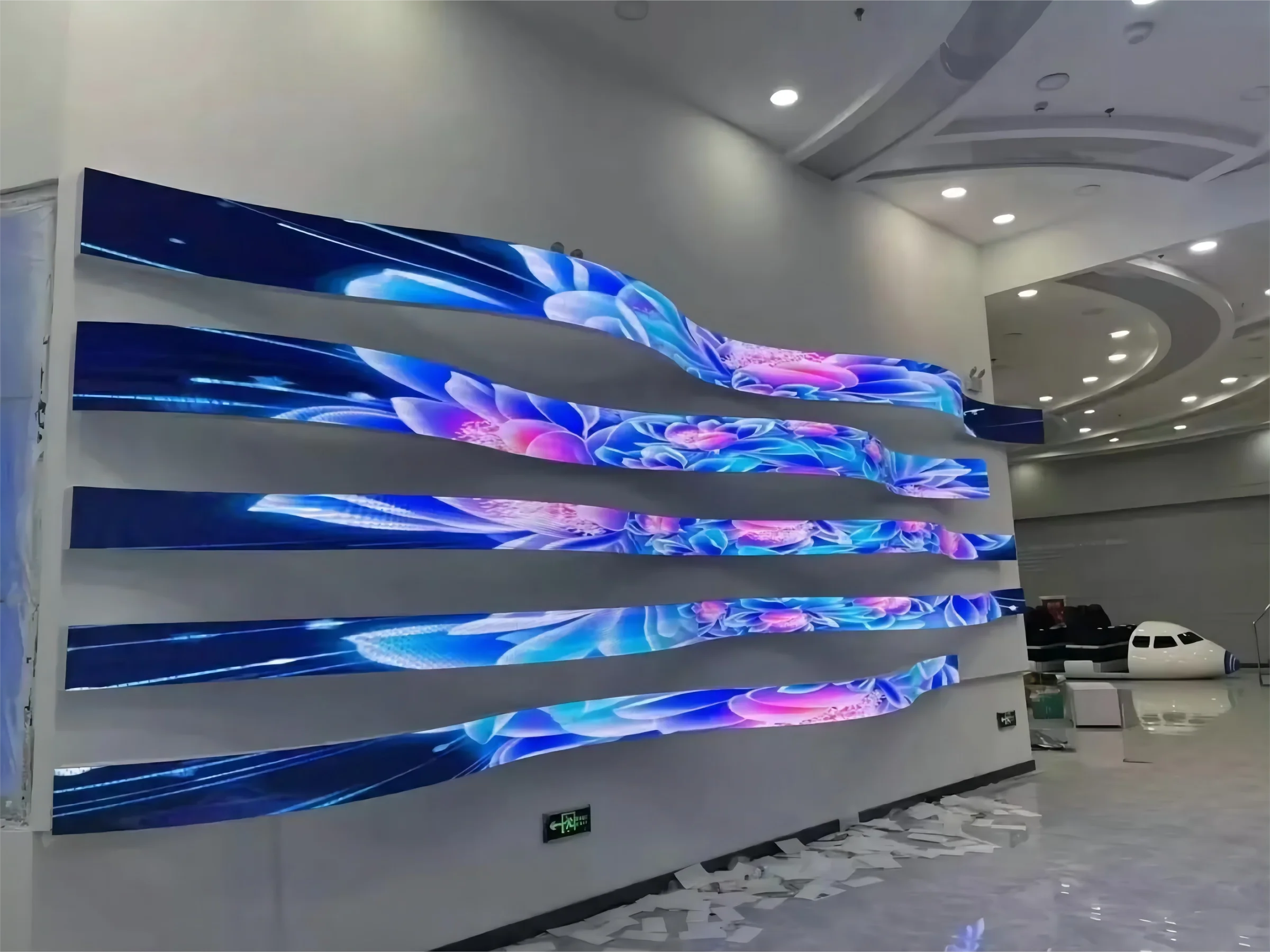

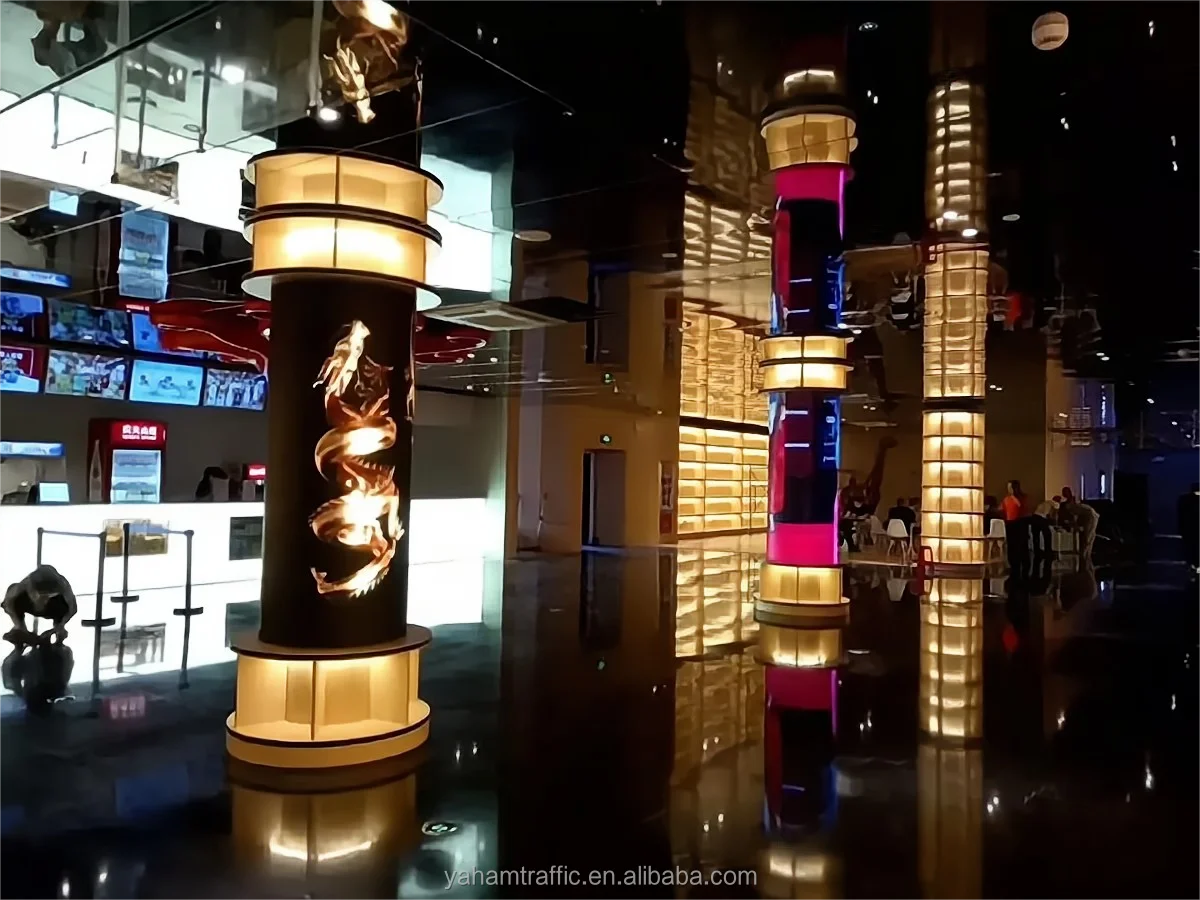

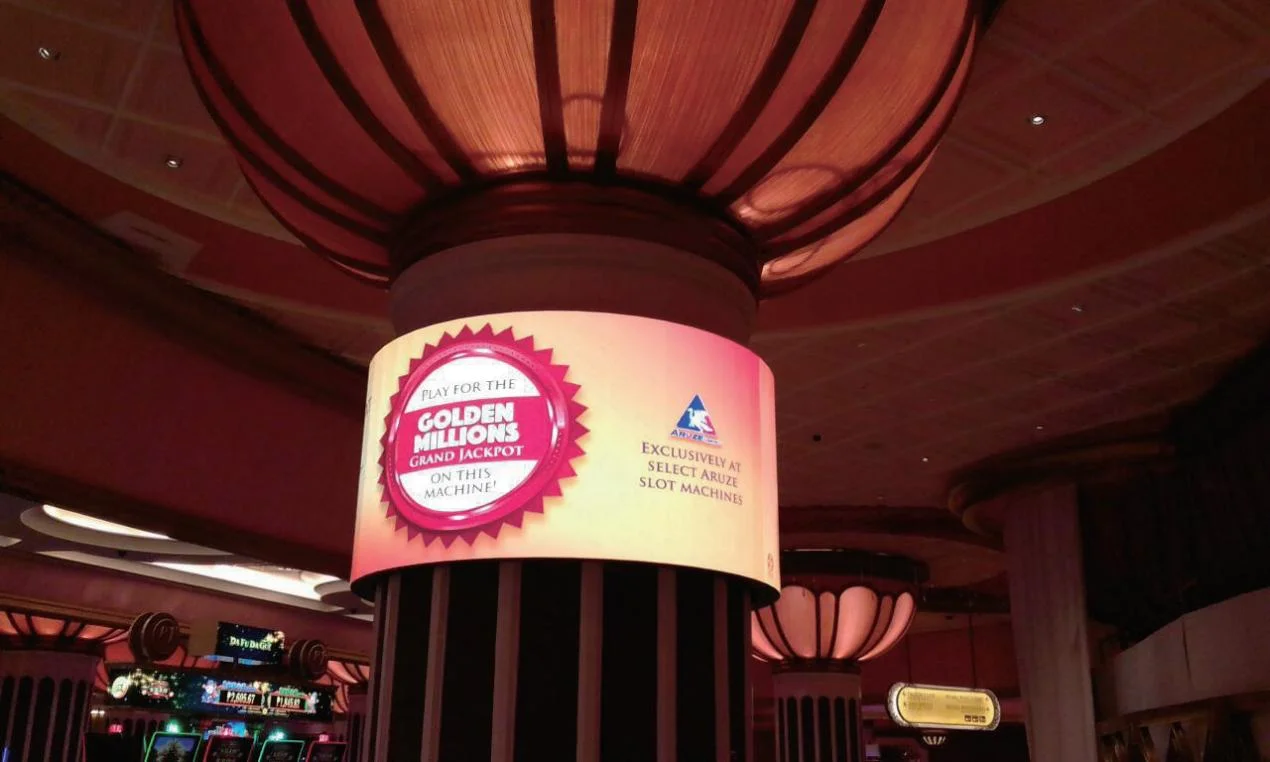

YAHAM XR soft module series is suitable for cylindrical screen, spiral screen, wave screen, streamer screen and other artistic shapes, application scenarios: urban planning museum, science and technology museum, art museum, museum, creative center, etc.
Product advantages
Super Wide Viewing Angle
With a viewing angle of up to 150°, clear images can be seen from both the front and side, making it ideal for
scenarios such as stages, exhibition halls, indoor conference rooms, and more.
scenarios such as stages, exhibition halls, indoor conference rooms, and more.
Slim And Lightweight

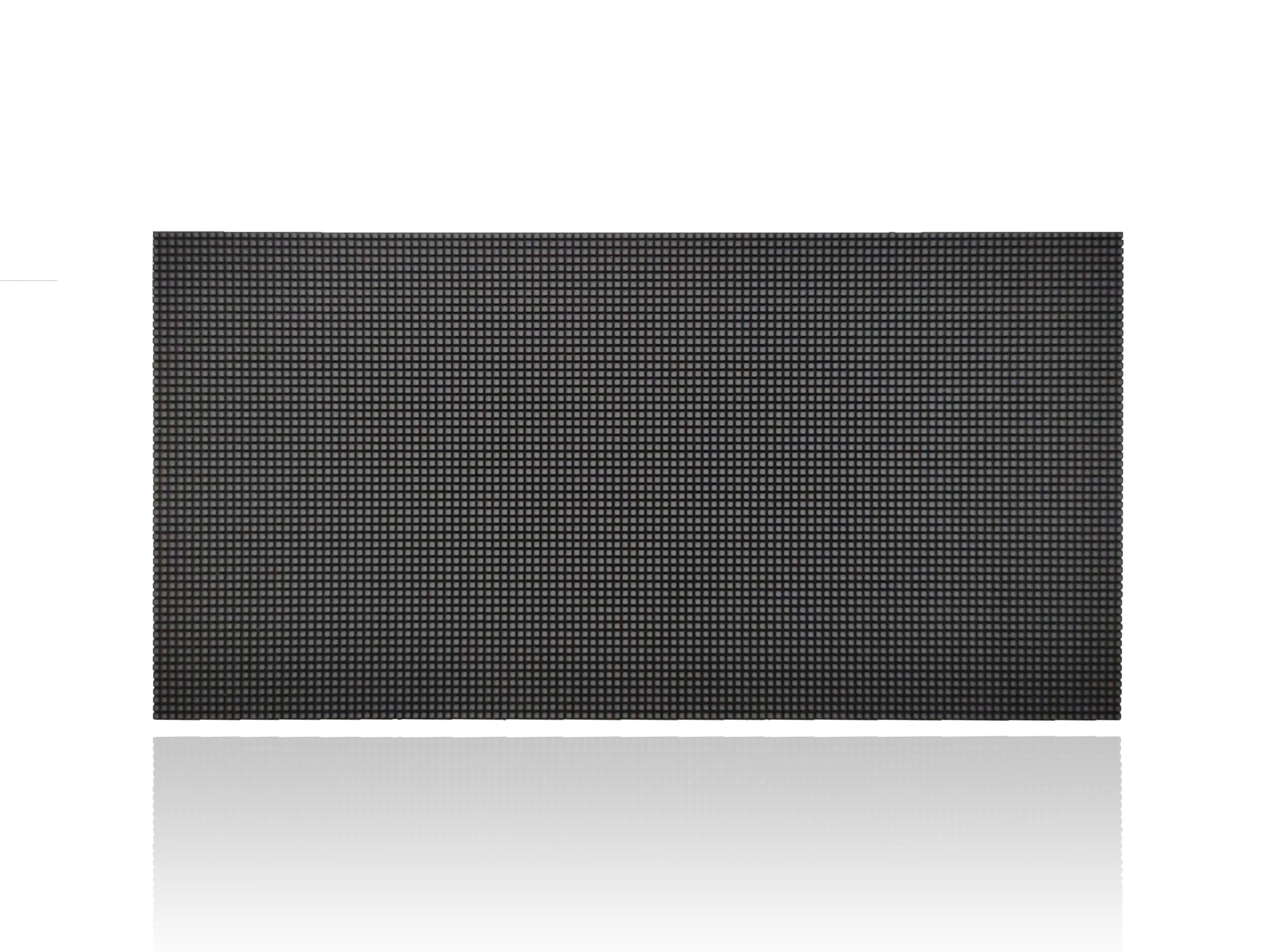

Boasting a standard size of 320x160mm, a thickness of only 8.6mm， and a weight of 0.34kg/pc, the module is slim and lightweight.
High Stability And Reliability

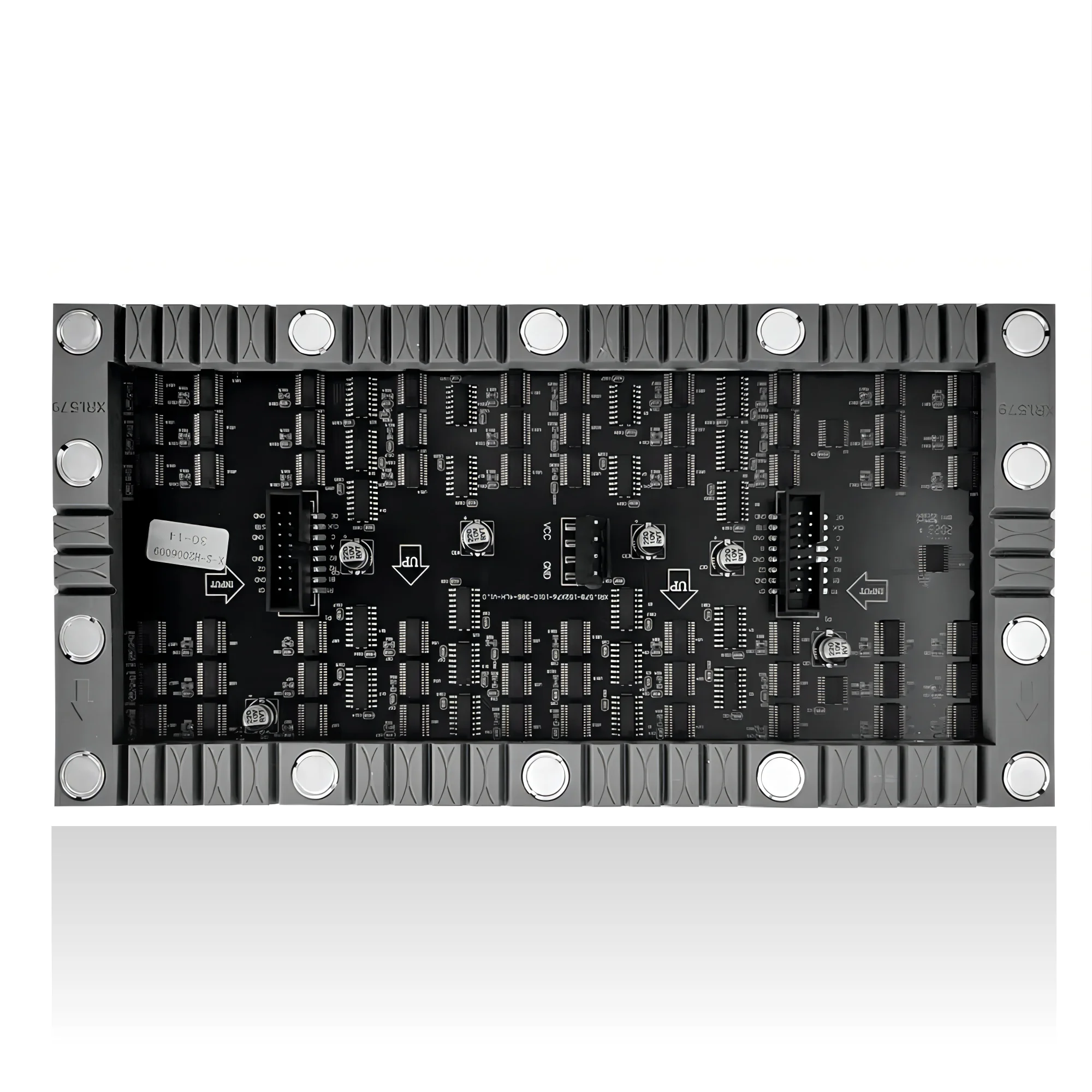

The PCB board uses copper pillar welding and back glue to form a lockable iron base with the bottom shell, making the module more stable. The single board is equipped with 18 magnets, each with a magnetic content of up to 200 GS, which solves the problem of common flexible module debonding and warping, effectively improving the flatness and effectiveness of the whole screen.
The deep V design make the modules so softer and softer
X texture design highlights the visual aesthetic
Magnet fine-tuning ensures module flatness
Flexible And Creative Shapes
With a viewing angle of up to 150°, clear images can be seen from both the front and side, making it ideal for
scenarios such as stages, exhibition halls, indoor conference rooms, and more.
scenarios such as stages, exhibition halls, indoor conference rooms, and more.

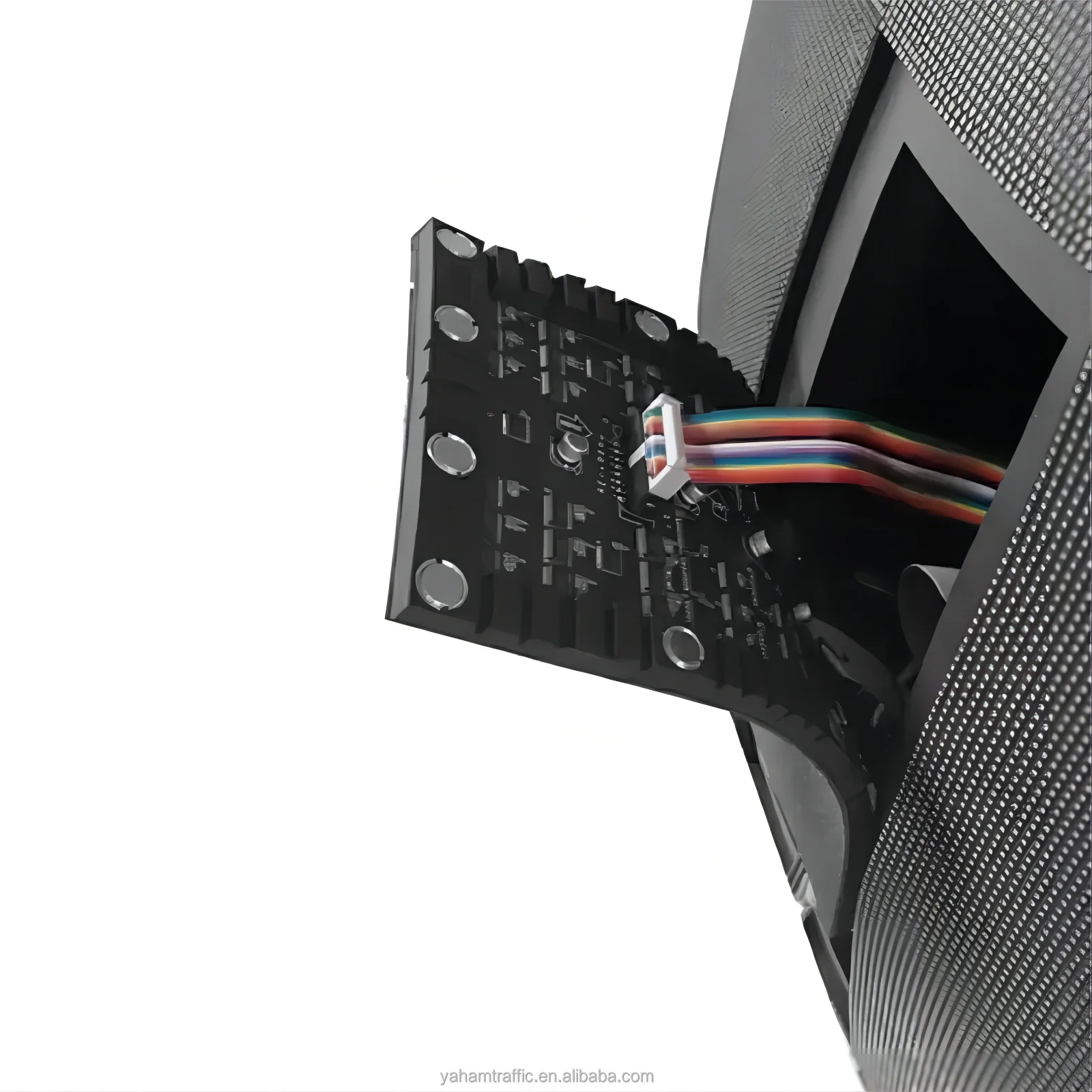

Effortless Installation And Maintenance
The magnet-assisted assembly of modules and front maintenance of power supply box decrease your time and efforts for installation and maintenance.
Easy to Install, Strong Magnet Force, Direct & Quick to Attach
