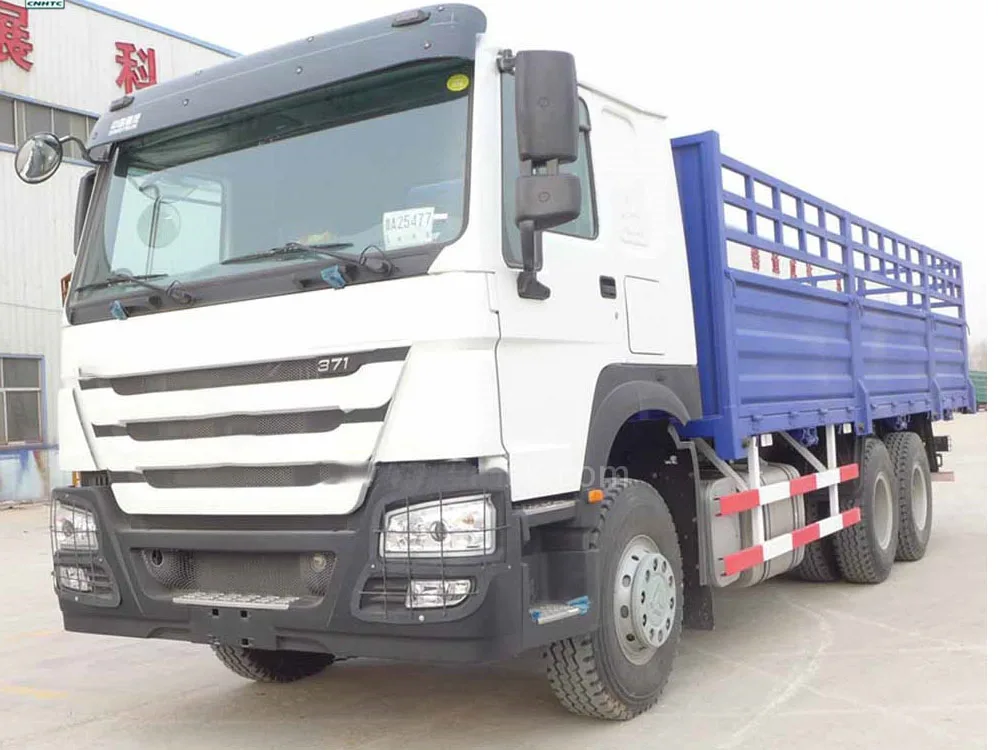

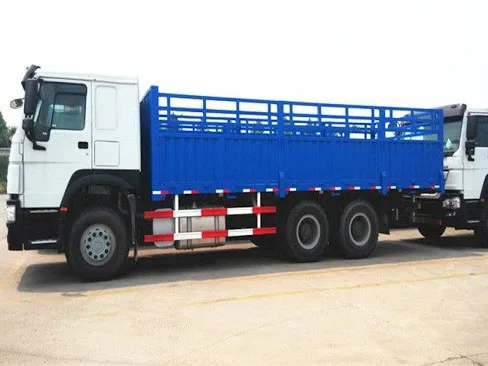

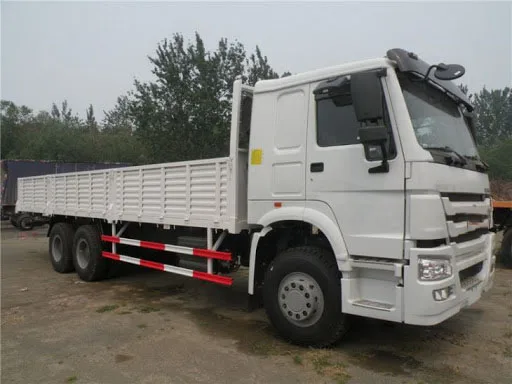

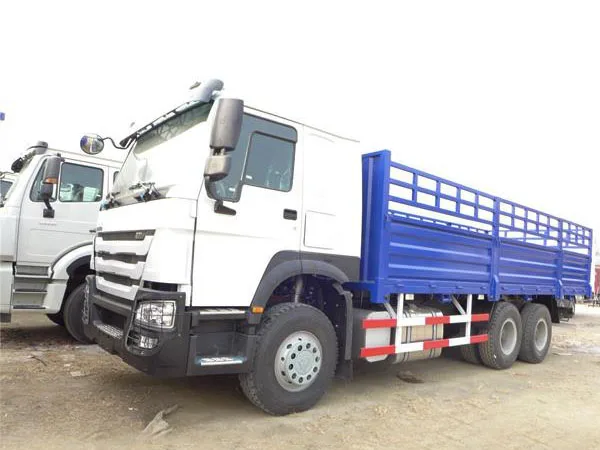

HOWO 6X4 Heavy Cargo Truck Euro II Emission Standard with Cheap Price

Engine

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine

Clutch

SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission

Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

New HF7 series, with drum brake system
Steering with double T-cross section beam

Rear Axle

ST16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 4.3

Chassis

Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe
Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel

Steering

ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1

Braking System

Front and rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake

Wheel & Types

Rims: 8.5-20,10 hole-steel
Types: 12.00R20

Driver’s cab

Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel.

Electrical System

Operating voltage:24V, negative grounded
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1540W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base (mm)
Front wheel track (mm)
Rear wheel track (mm)
Front overhang (mm)
Rear overhang (mm)
Approach angle(°)
Departure angle(°)
Overall Dimension (mm)

4300+1400
2022/2041
1830
1500
1920
16
23
9120×2496×2958

Weight in kg

Permissible loading capacity (kg)
Dead weight (kg)
Gross vehicle weight (kg)
Front axle loading capacity (kg)
Rear axle loading capacity (kg)

15830
9170
25000
7000
2×9000

Performance

Maximum driving speed (km/h)
Maximum gradeability (%)
Minimum ground clearance (mm)
Minimum turning radius (m)
Fuel consumption (L/100km)

102(reference data)
62
314
10.8
36(reference data)
