Price:$35.00-50.00

Quantity:


Product Overview

Description



Product Display






Products Description






Container house structure configuration

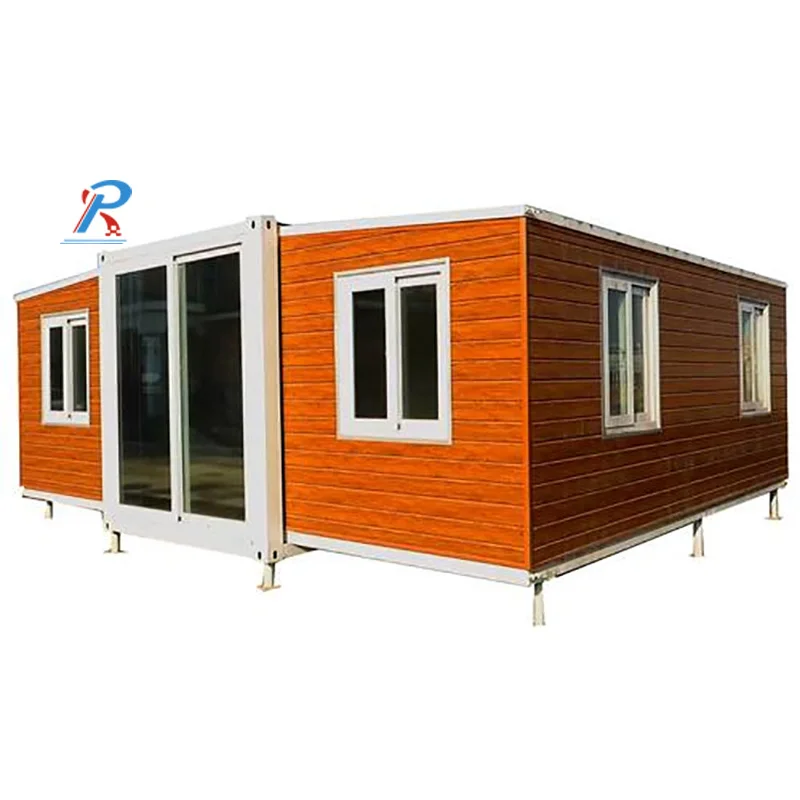

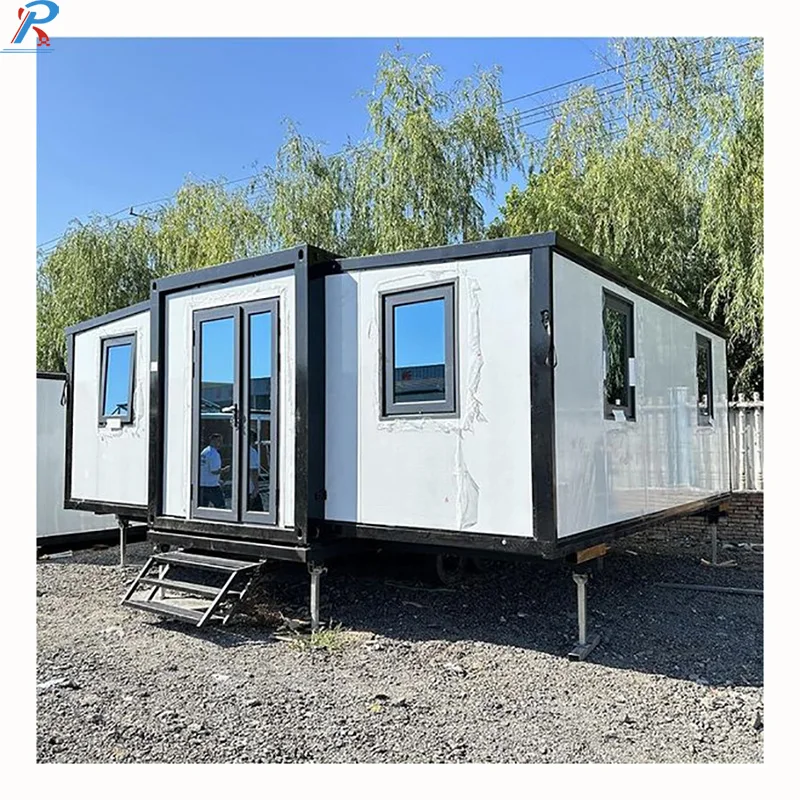

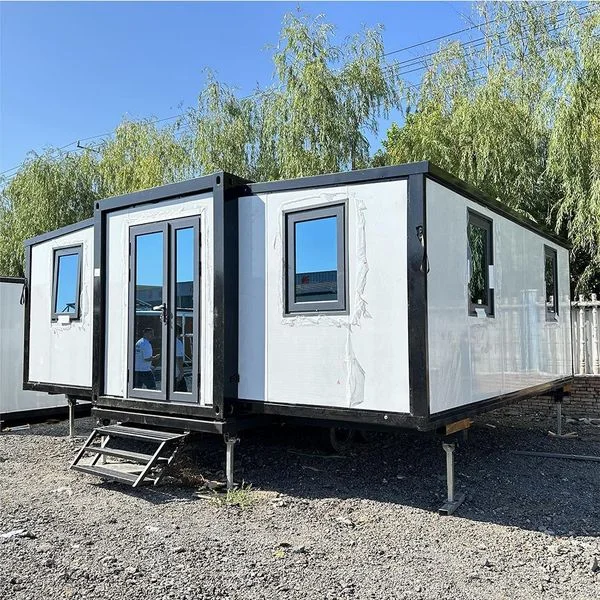

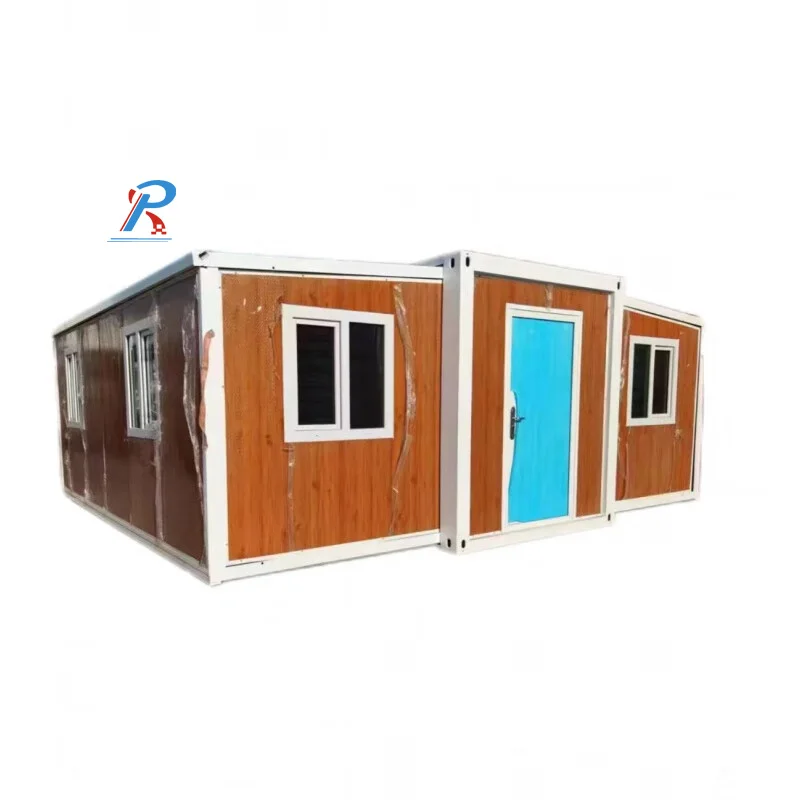

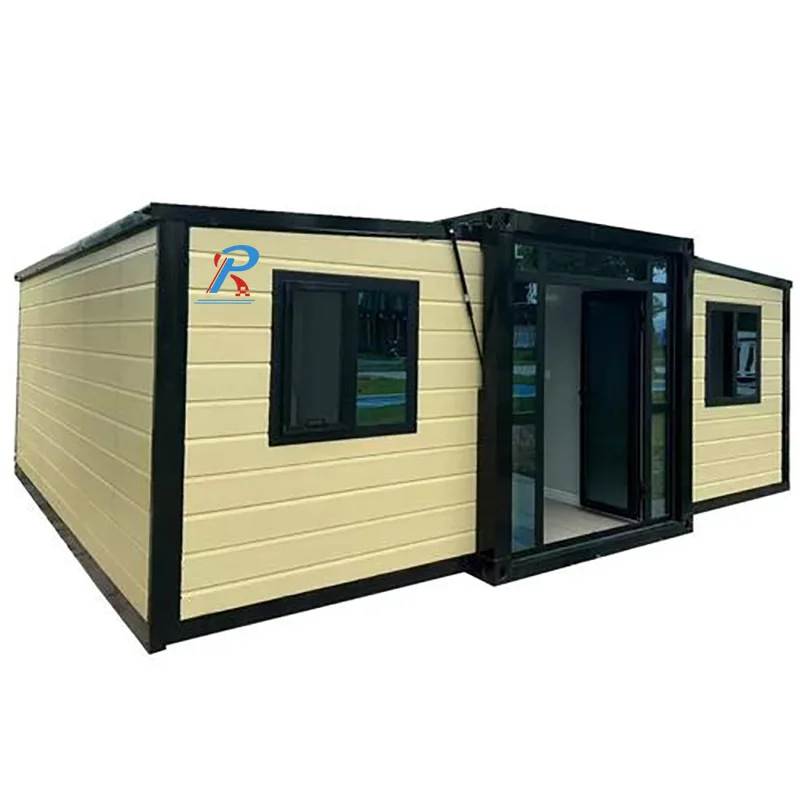

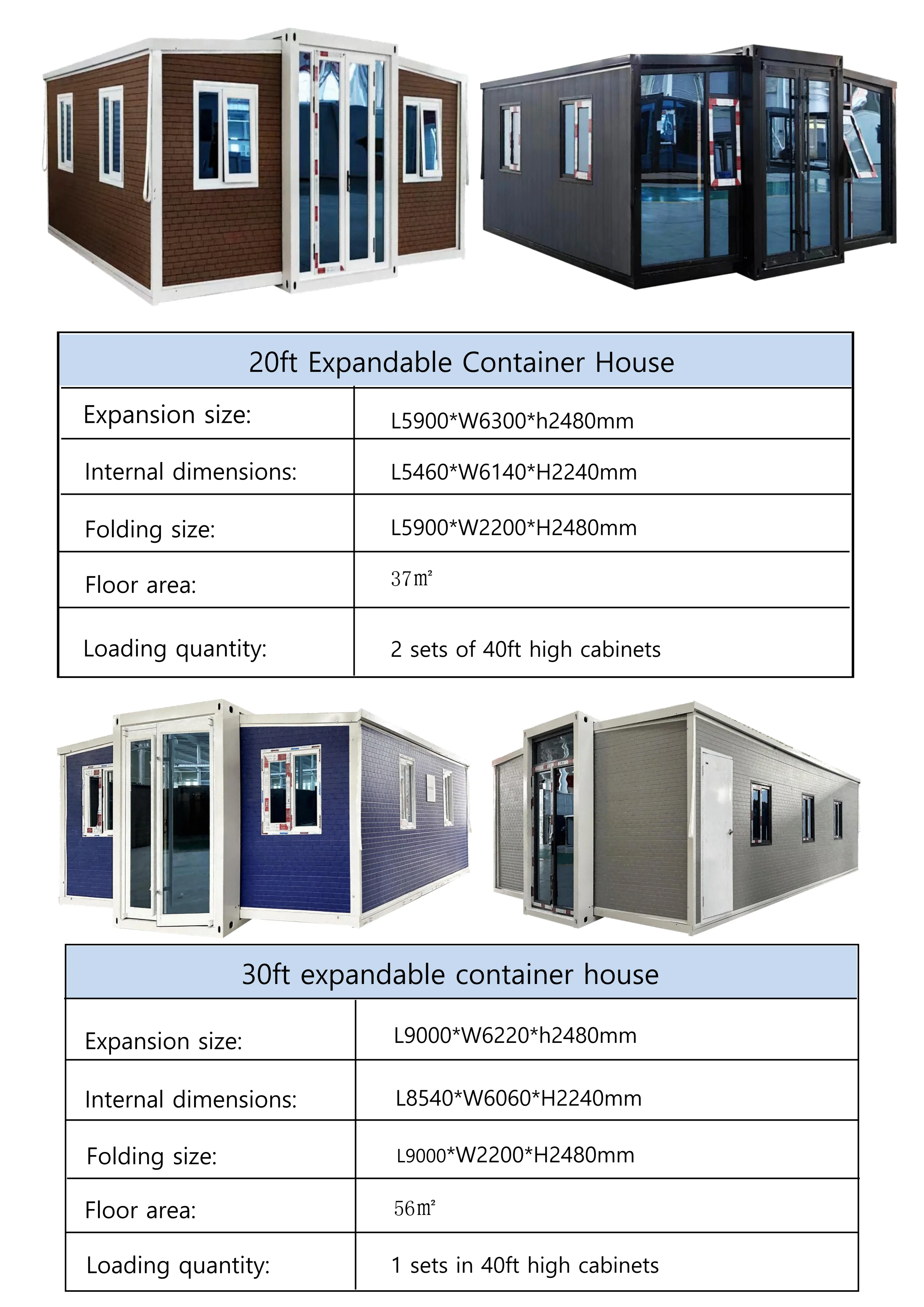

Take the 20ft Expandable Container House as an Example
Extended size
L5900*W6300*H2480mm
House type
Saloon
Internal dimension
L5460*W6140*H2240mm
Number of guests
2~4 people
Folding size
L5900*W2200*H2480mm
Power consumption
12KW
Floor space
37㎡
Gross net weight
3.3Ton

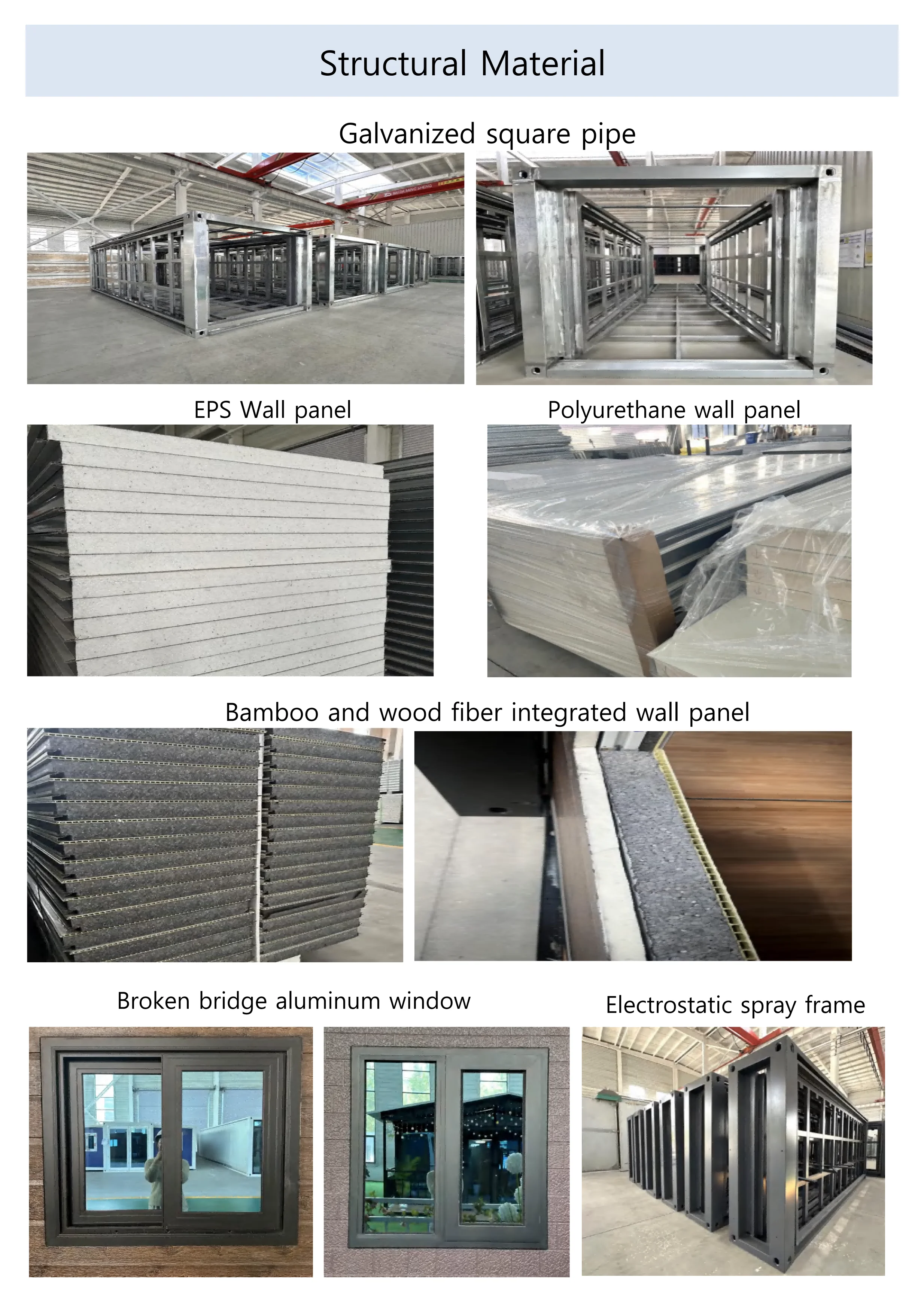

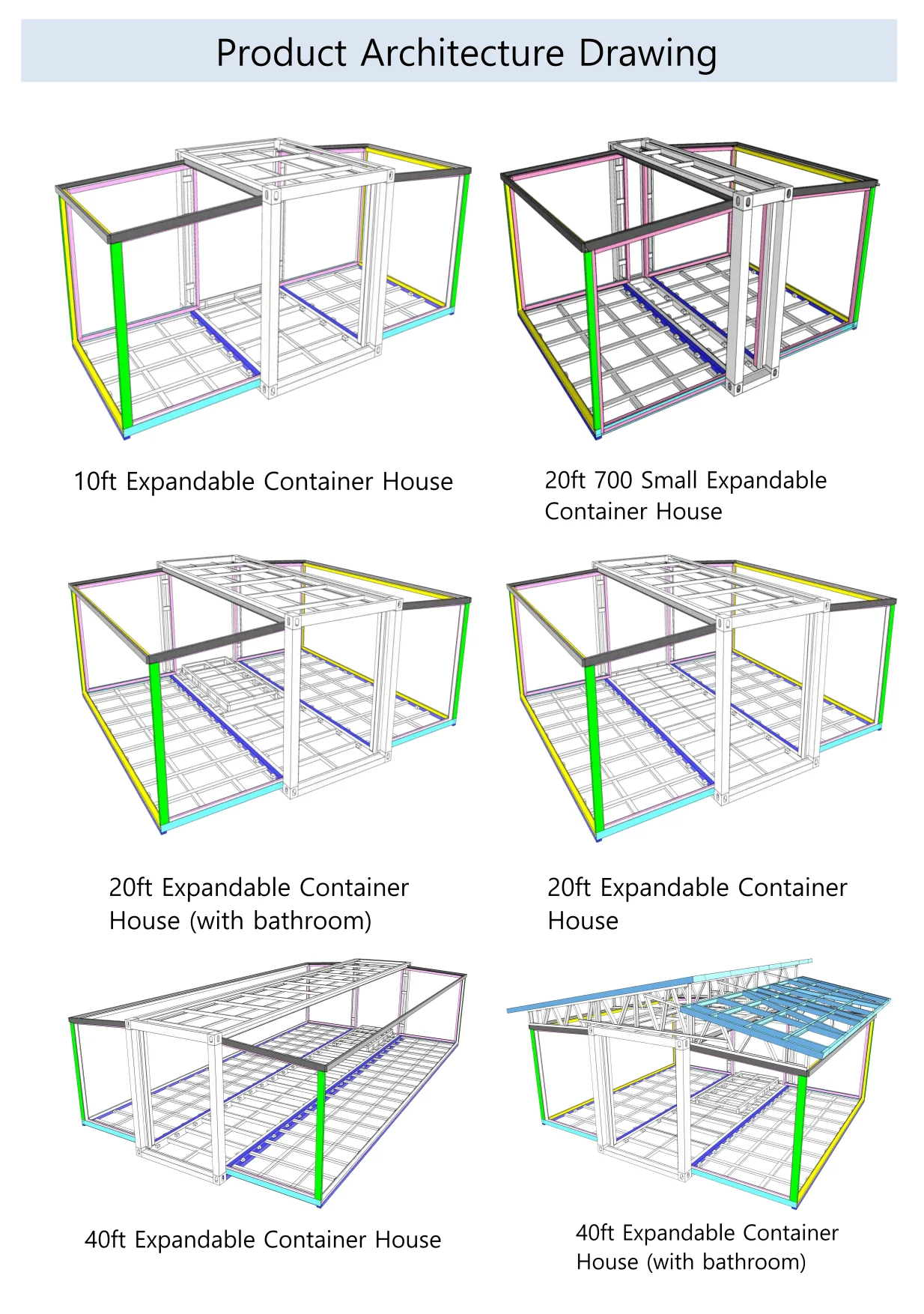

Frame structure
Name
Content
Specification
Main frame (all galvanized)
Top side rail
Port 80*100*2.5mm galvanized square pipe
Top beam
Galvanized bending parts 25mm
Top transverse secondary beam
Mouth 30*50*1.5mm galvanized square pipe
Bottom side beam
Port 80*100*2.5mm galvanized square pipe
Bottom end beam
Galvanized bend 2.5mm thick
Bottom longitudinal secondary beam
Mouth 40*80*1.5mm galvanized square pipe
Bottom transverse secondary beam
Mouth 40*80*1.5mm galvanized square pipe
6mm galvanized hanger
Galvanized hanging head L210*W150*H160mm
Steel column
Galvanized bend 2.5mm thick
Flank frame (all galvanized)
Top frame
P40*80*1.5mmP tube
Mouth 40*80*1.5mm galvanized square pipe
Flank frame (all galvanized)
Bottom frame
Mouth 60*80*2.0mm galvanized square pipe
Folding hinge
130mm galvanized hinge
Overall frame protection paint
Spray paint
Electrostatic spray/Plain plastic powder painting process + anti-corrosion coating
Box top
Main external roof
950 type -50mm thick double sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm
Main body internal ceiling board
950 type -50mm thick double sided 0.3mm, EPS color steel composite board
Two wings external roof panels
950 type -65mm thick double sided 0,3mm EPS color steel composite board + corrugated veneer t0,45mn
Wall panel
Side walls, front and rear walls
950 type -65mm thick double sided 03mm, EPS color steel composite board
Interior partition wall panel
950 type -50mm thick double sided 0.3mm, EPS color steel composite board
Ground
Main frame
Fireproof cement fiber floor 18mm thick
Both wings
Bamboo plywood 18mm thick


Product parameter

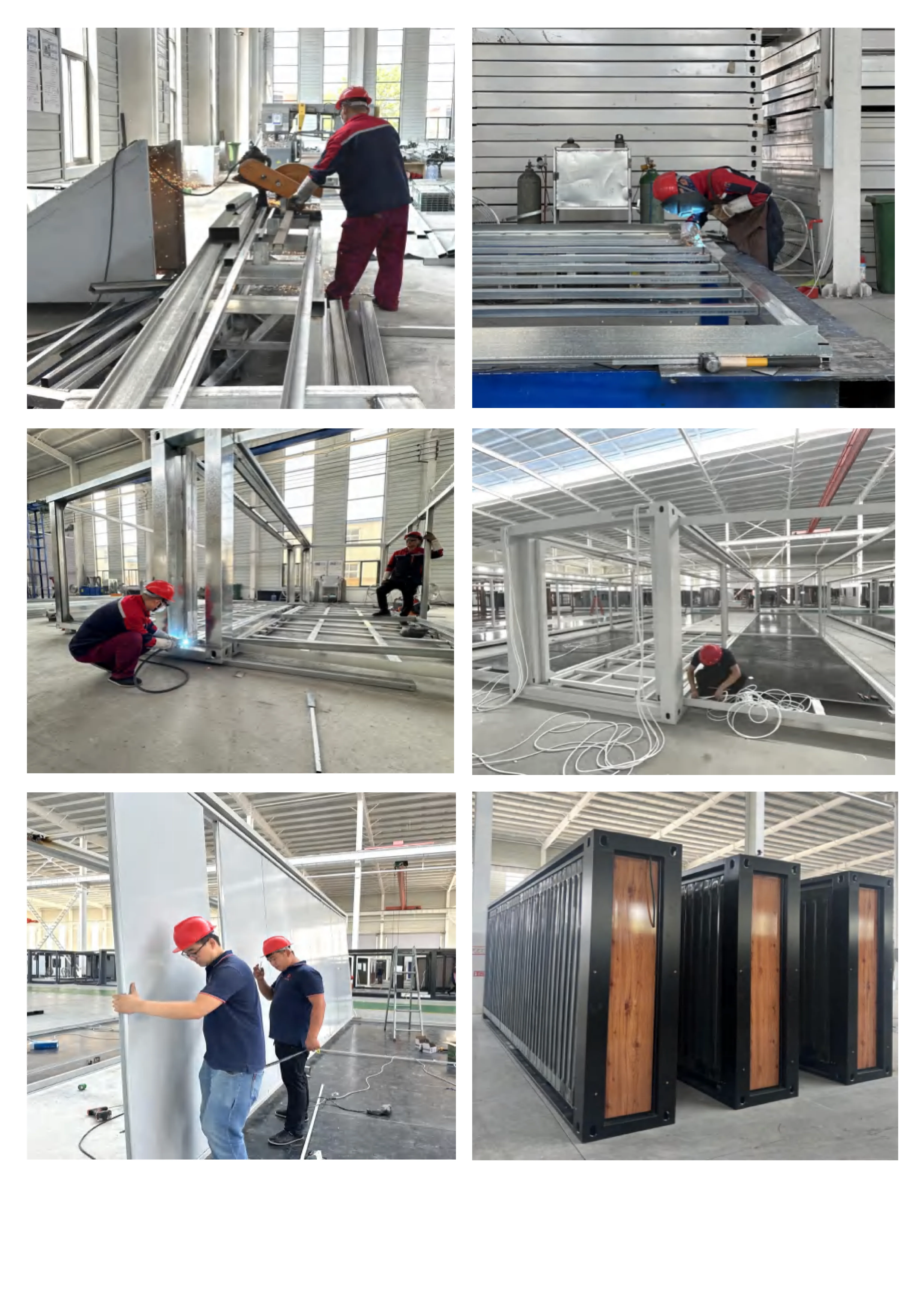

Factory production

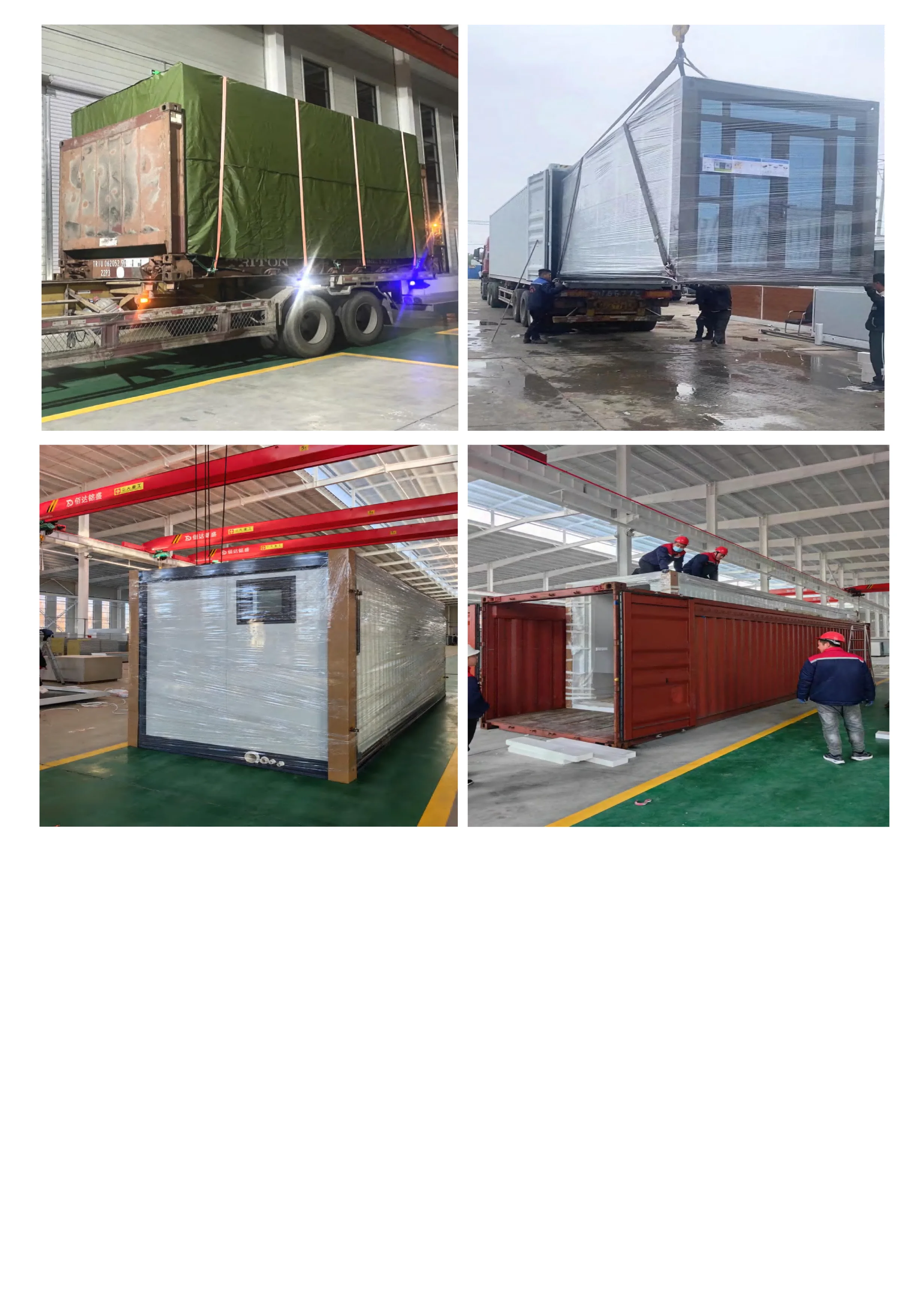

Shipment
