Factory Supply 316 Stainless Steel Cable 1x19 1.5mm Stainless Steel Wire Rope
- Category: >>>
- Supplier: Wuxi Svida Technology Co. Ltd.
Share on (1601249566950):
Product Overview
Description
Product Specification
Part NO. | Construction | Diameter | Min.Breaking Load(kN) | Min.Breaking Load | |
SVD901 | (mm) | Galvanized | Stainless Steel | ||
1x7 | 0.3 | 0.098 | 0.084 | ||
0.4 | 0.176 | 0.167 | |||
0.5 | 0.284 | 0.264 | |||
0.6 | 0.402 | 0.382 | |||
0.8 | 0.705 | 0.666 | |||
1.0 | 1.078 | 1.030 | |||
1.2 | 1.520 | 1.470 | |||
1.4 | 2.060 | 2.000 | |||
1.5 | 2.350 | 2.250 | |||
1.6 | 2.650 | 2.550 | |||
1.8 | 3.330 | 3.230 | |||
2.0 | 4.120 | 4.000 | |||
1x12(3+9) | 1.0 | 1.030 | 0.930 | ||
1.2 | 1.470 | 1.370 | |||
1.4 | 1.960 | 1.860 | |||
1.5 | 2.250 | 2.100 | |||
1.6 | 2.450 | 2.400 | |||
1.8 | 3.040 | 3.040 | |||
2.0 | 3.900 | 3.510 | |||
2.5 | 5.600 | 5.040 | |||
2.8 | 7.350 | 6.615 | |||
3.0 | 8.400 | 7.560 | |||
1x19 | 0.8 | 0.686 | 0.686 | ||
1.0 | 1.060 | 1.060 | |||
1.2 | 1.520 | 1.520 | |||
1.25 | 1.568 | 1.568 | |||
1.5 | 2.390 | 1.860 | |||
1.6 | 2.590 | 2.433 | |||
1.8 | 3.290 | 3.079 | |||
2.0 | 4.060 | 3.802 | |||
2.5 | 6.010 | 5.940 | |||
2.8 | 7.530 | 7.451 | |||
3.0 | 8.630 | 8.553 | |||
3.2 | 10.100 | 8.632 | |||
3.5 | 11.740 | 10.327 | |||
3.8 | 13.720 | 12.173 | |||
4.0 | 15.370 | 13.488 | |||
4.5 | - | 17.070 | |||
4.8 | - | 19.423 | |||
5.0 | - | 21.075 | |||
5.3 | - | 23.680 | |||
1x37 | 1.5 | 2.410 | 2.410 | ||
1.6 | 2.650 | 2.640 | |||
1.8 | 3.380 | 3.380 | |||
2.0 | 3.920 | 3.920 | |||
2.5 | 6.200 | 6.200 | |||
2.8 | 7.600 | 7.600 | |||
3.0 | 8.800 | 7.540 | |||
3.5 | 11.800 | 10.260 | |||
3.8 | 13.200 | 12.100 | |||
4.0 | 14.700 | 13.400 | |||
4.5 | 18.500 | 17.000 | |||
5.0 | 23.000 | 20.940 | |||
7x7 | 0.80 | - | 0.507 | ||
1.00 | 1.000 | 0.791 | |||
1.20 | 1.350 | 1.140 | |||
1.25 | 1.420 | 1.236 | |||
1.50 | 1.990 | 1.780 | |||
1.60 | 2.290 | 2.025 | |||
1.80 | 2.810 | 2.445 | |||
2.00 | 3.380 | 3.019 | |||
2.50 | 5.450 | 4.720 | |||
2.80 | 6.450 | 5.600 | |||
3.00 | 7.280 | 6.430 | |||
3.20 | 8.100 | 7.315 | |||
3.50 | 10.370 | 8.752 | |||
3.60 | 10.680 | 9.260 | |||
4.00 | 12.920 | 11.430 | |||
4.50 | 15.890 | 14.470 | |||
4.80 | 17.790 | 16.460 | |||
5.00 | 19.790 | 17.860 | |||
5.50 | 23.190 | 21.600 | |||
6.00 | 28.110 | 25.720 | |||
7x19 | 1.50 | 1.960 | 1.960 | ||
1.60 | 2.250 | 2.250 | |||
1.80 | 2.590 | 2.590 | |||
2.00 | 3.030 | 3.030 | |||
2.50 | 5.150 | 4.831 | |||
2.80 | 6.560 | 5.473 | |||
3.00 | 7.250 | 6.283 | |||
3.50 | 9.530 | 8.551 | |||
4.00 | 12.130 | 11.170 | |||
4.50 | 16.130 | 14.136 | |||
4.80 | 16.580 | 16.084 | |||
5.00 | 18.740 | 17.453 | |||
6.00 | 27.660 | 25.132 | |||
1+12 | 1.20 | 1.350 | 1.350 | ||
1.50 | 2.400 | 2.400 | |||
1.80 | 2.790 | 2.790 | |||
2.00 | 3.510 | 3.510 | |||
2.20 | 4.150 | 4.150 | |||
2.50 | 5.040 | 5.040 | |||
2.80 | 6.615 | 6.615 | |||
3.00 | 7.560 | 7.560 | |||
3.20 | 8.330 | 8.330 | |||
8x7+1x19 | 1.50 | 1.900 | 1.900 | ||
1.80 | 3.000 | 3.000 | |||

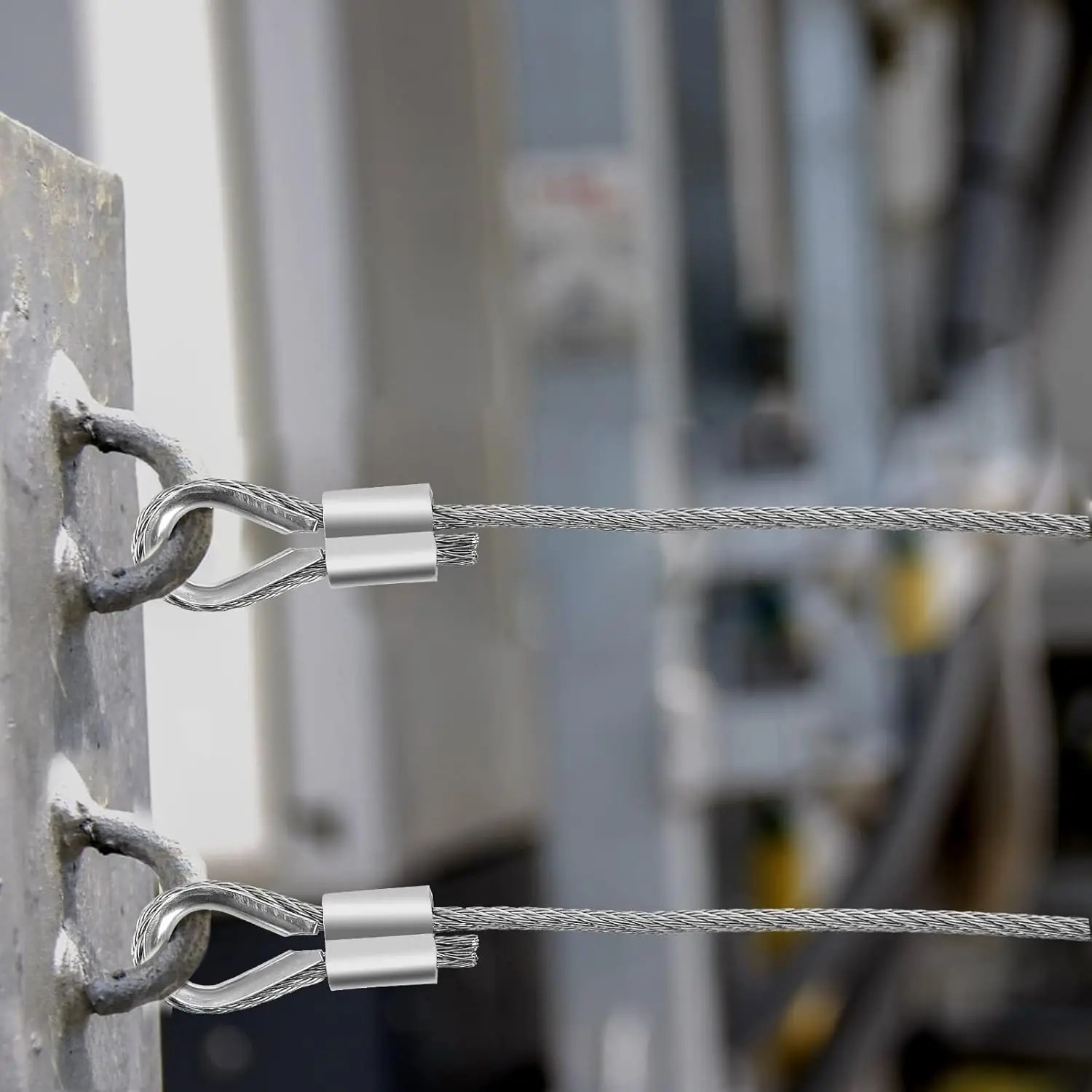

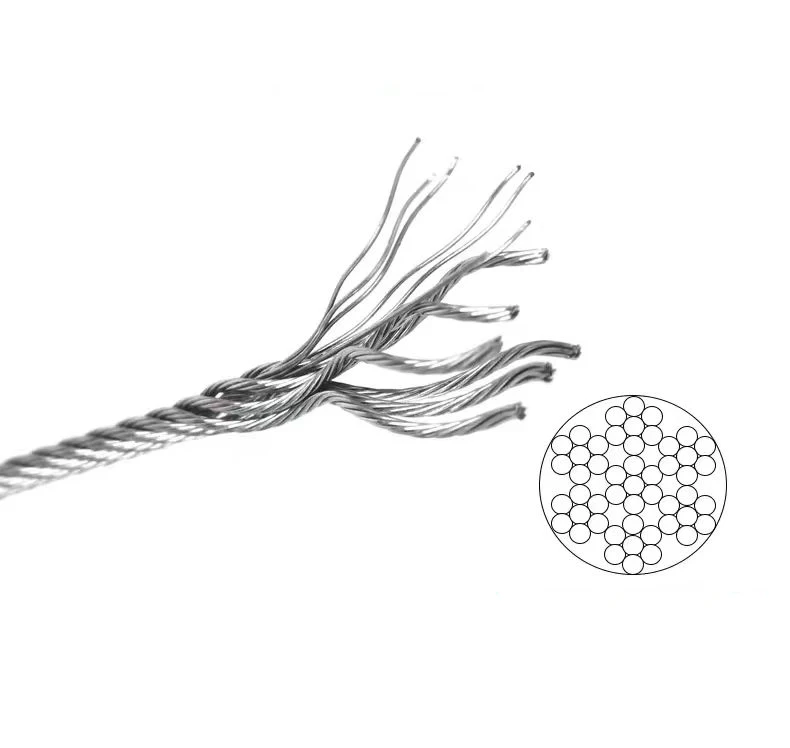

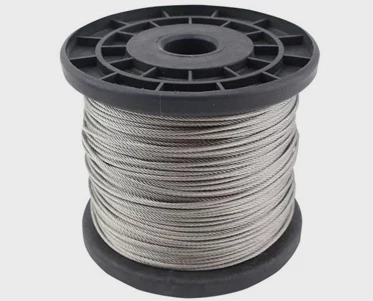

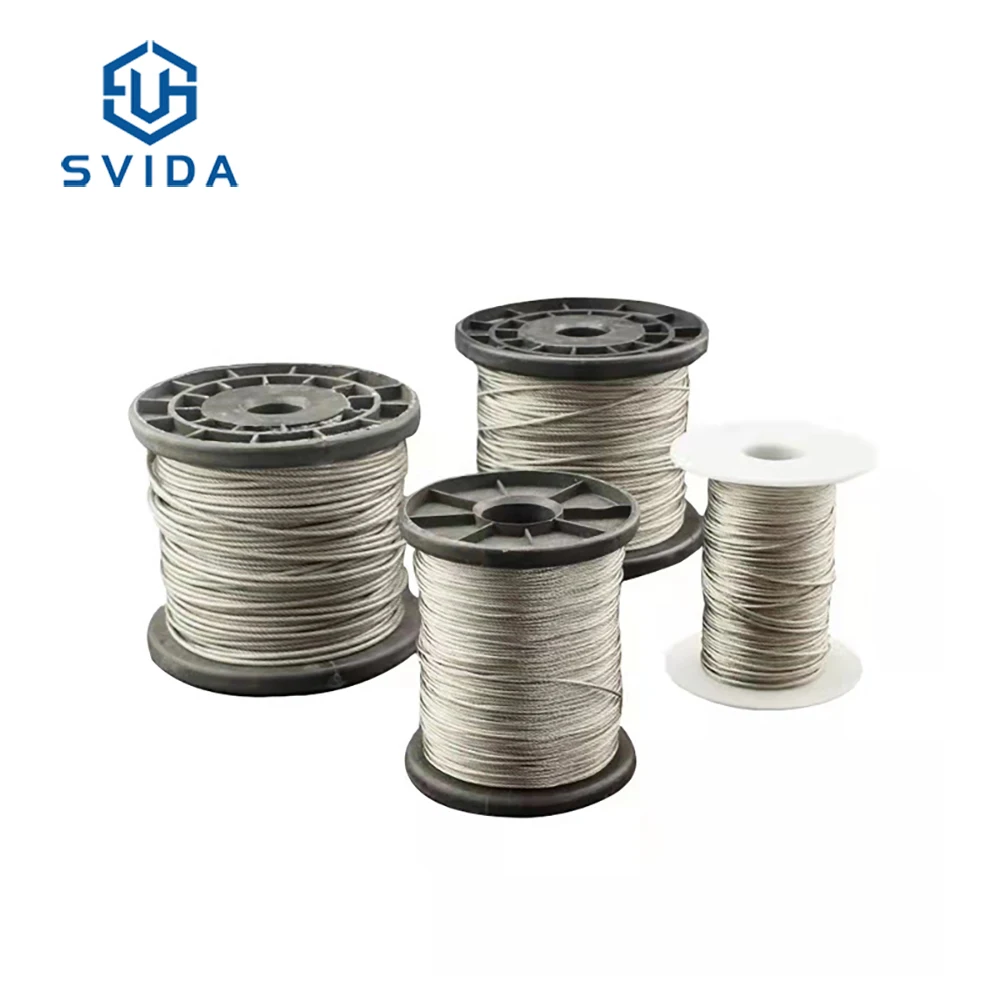

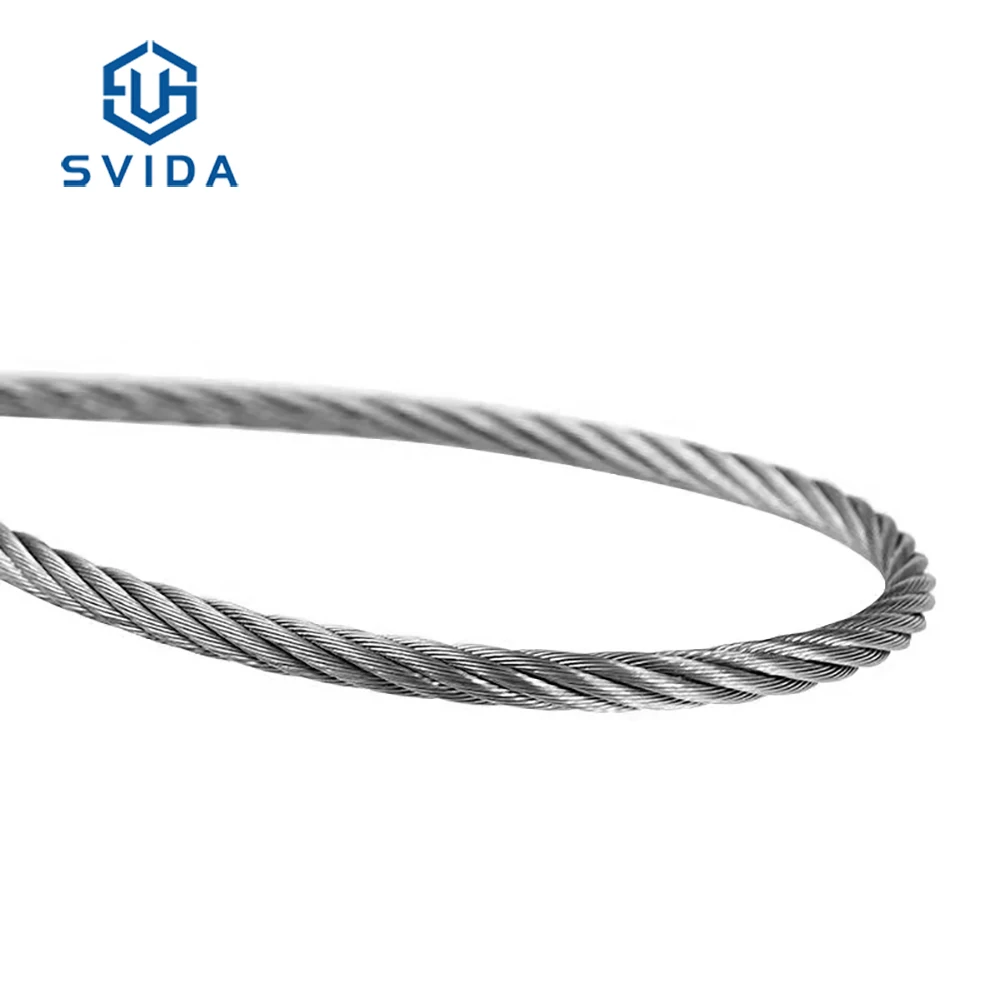

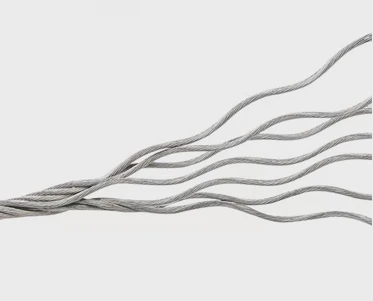

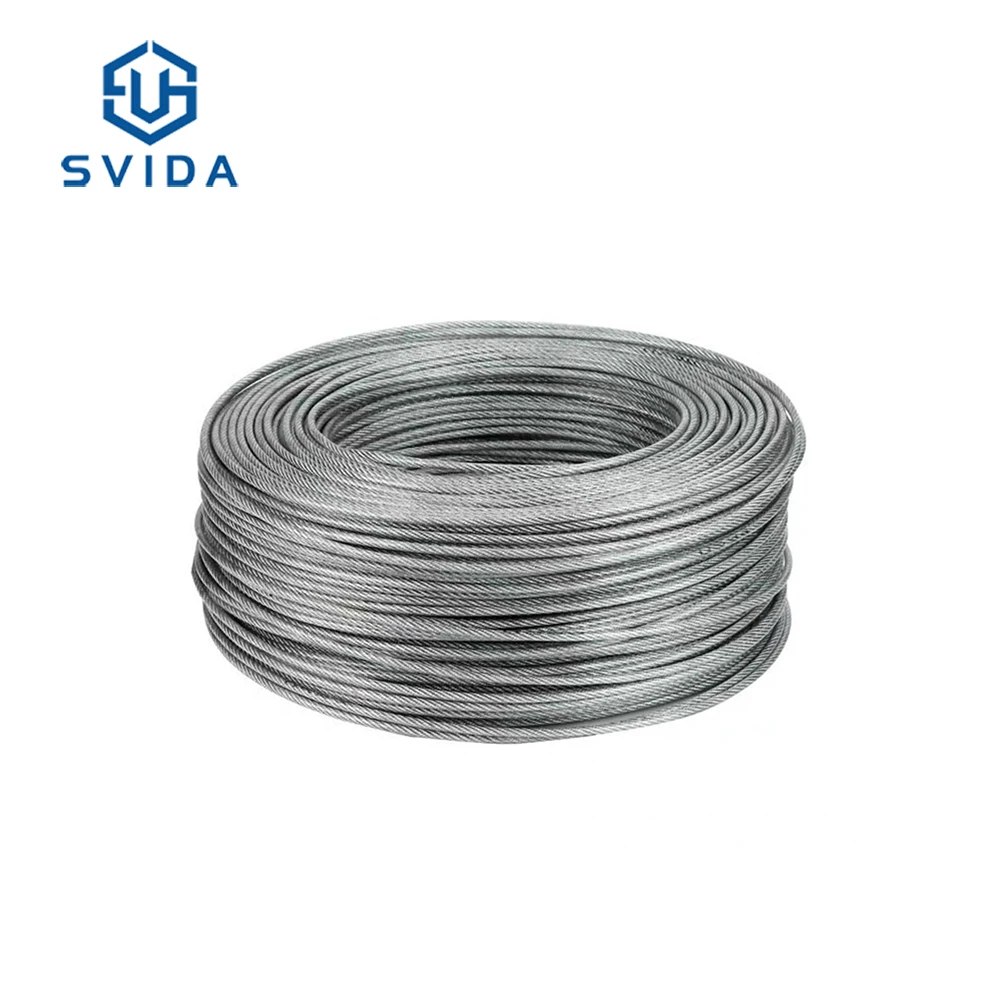

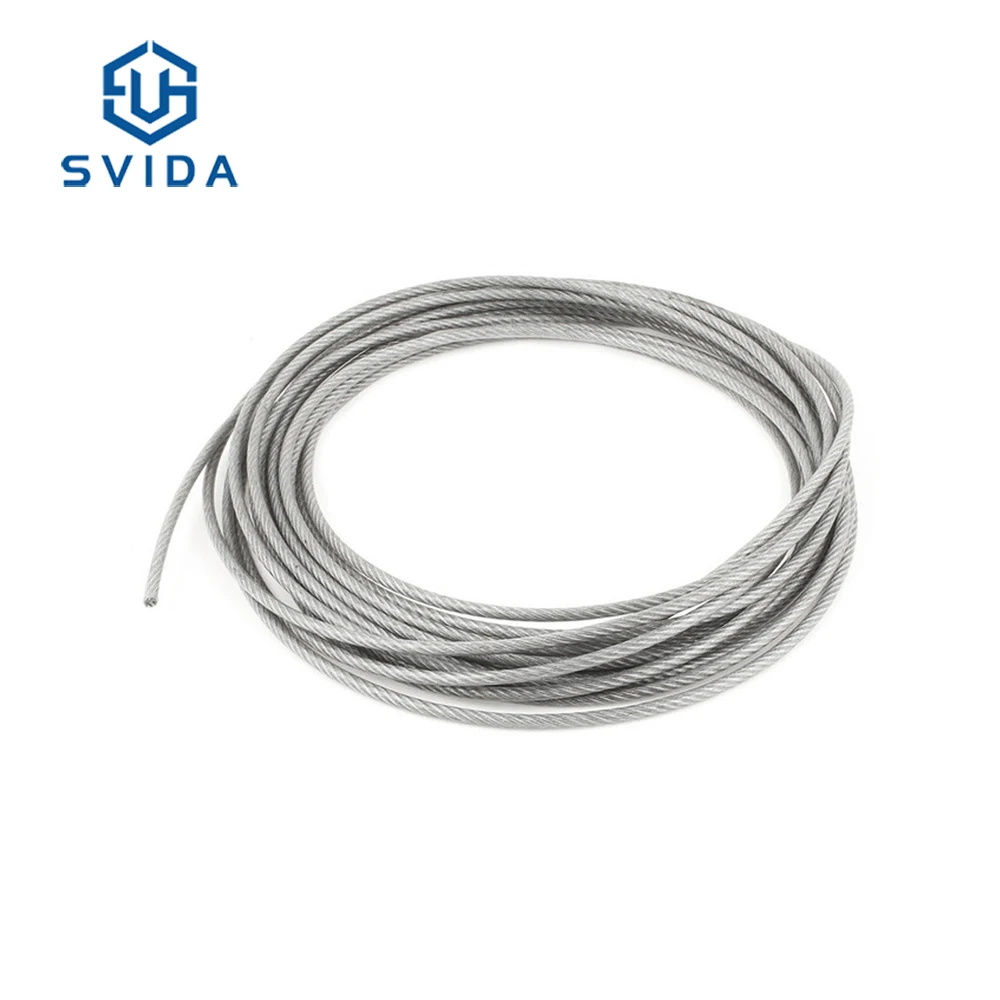

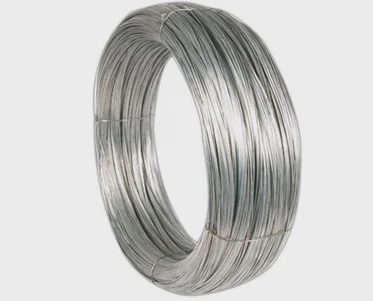

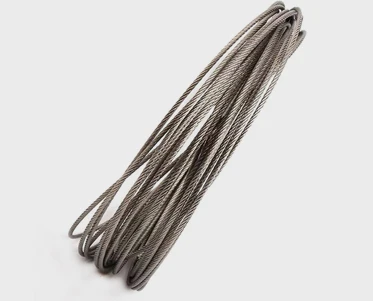

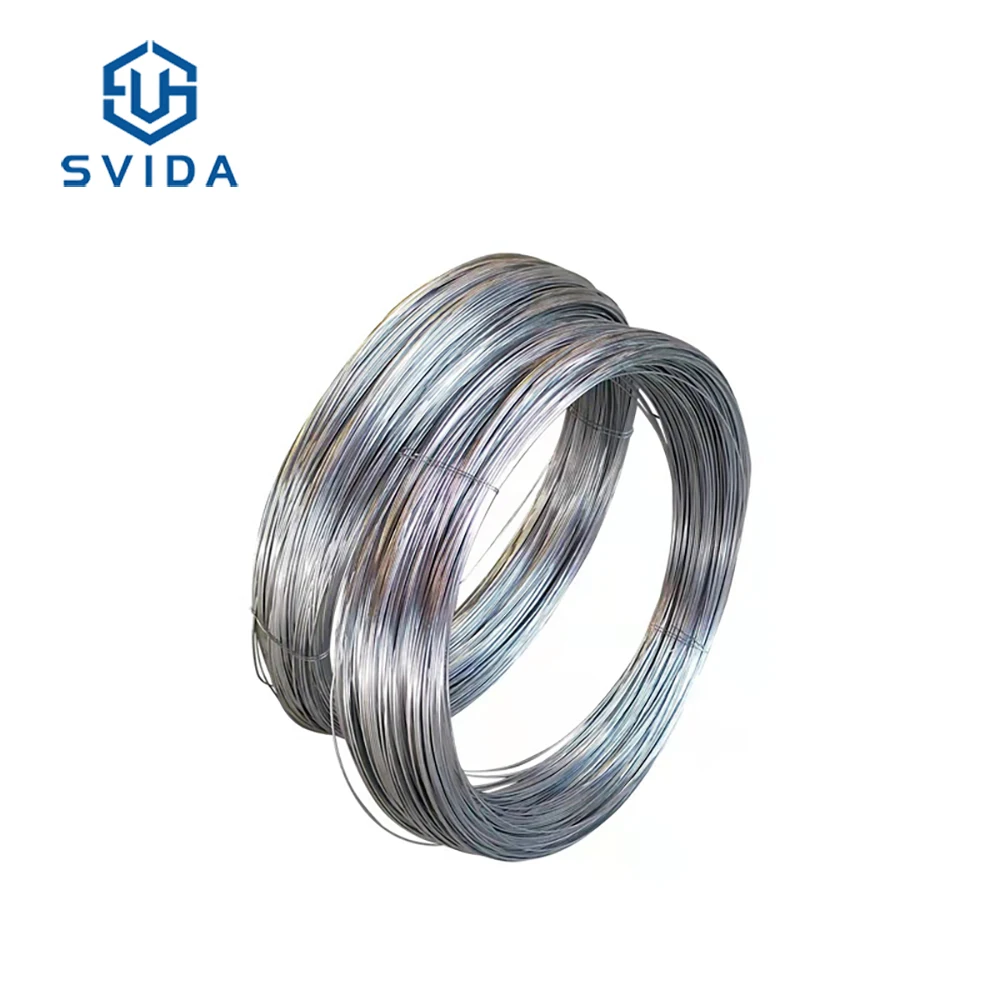

Product Display

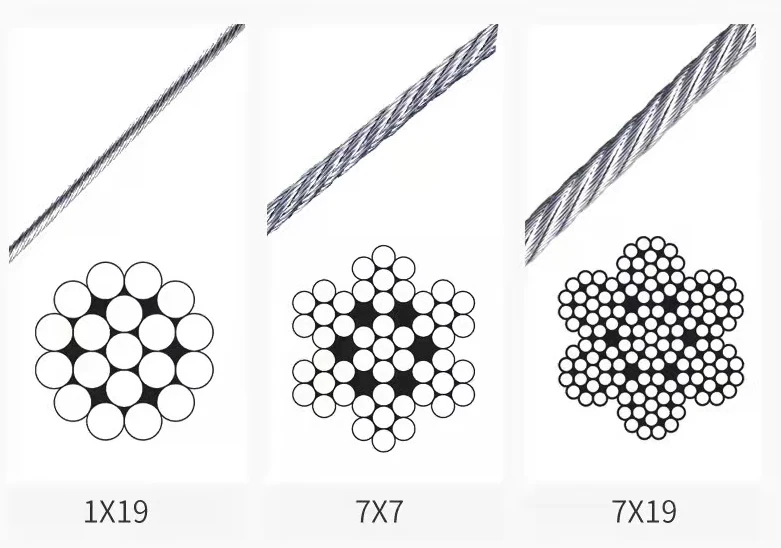

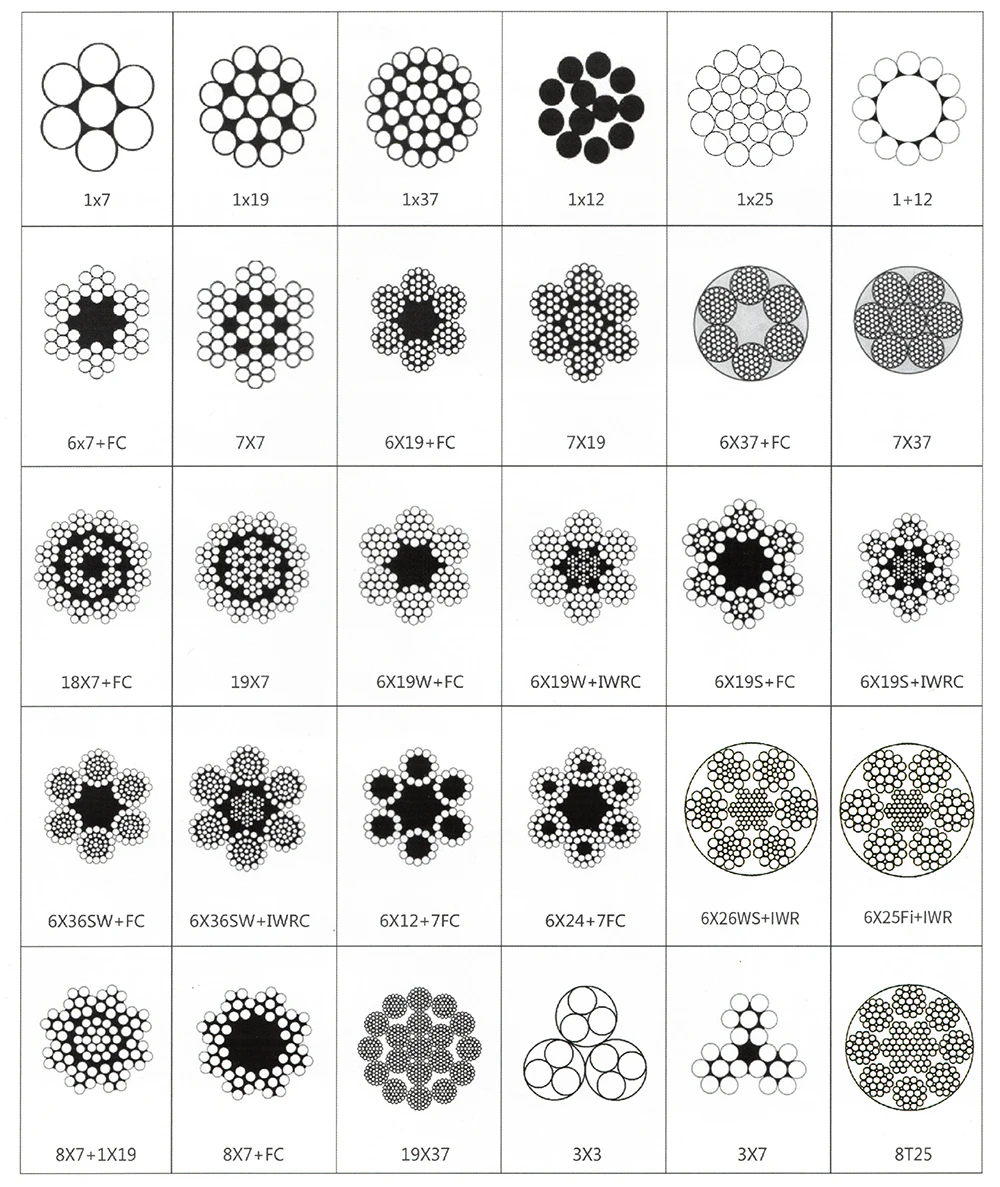

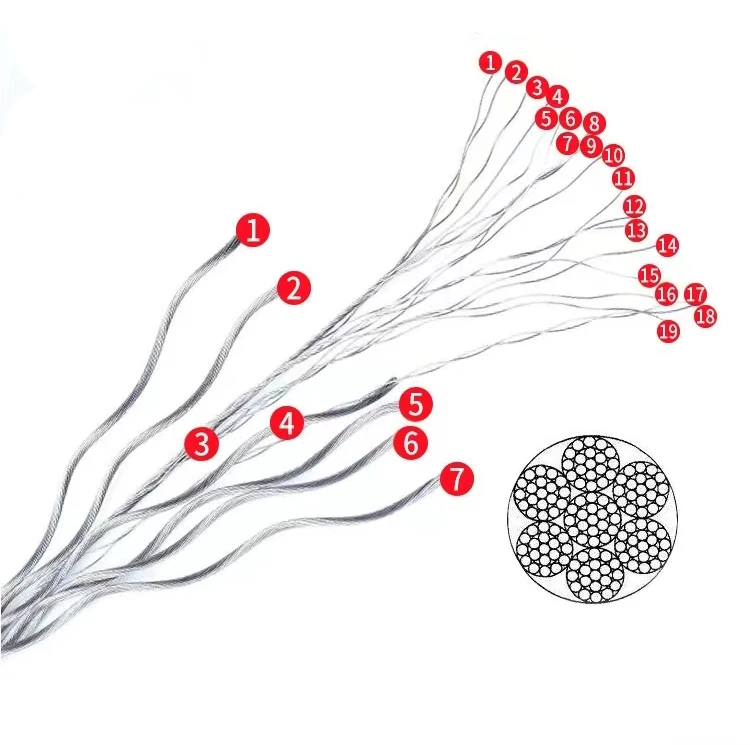

Construction Of Wire Ropes
More Choices
Quick Link | Eye Bolt | Eye Nut | Spring Snap |
D& Bow Shackle | Swivel Shackle | Thimbles European | U Clip |
Packing and Shipping
We can supply many kinds of packing for assuring the safe shipping and accept custom packaging as required.
