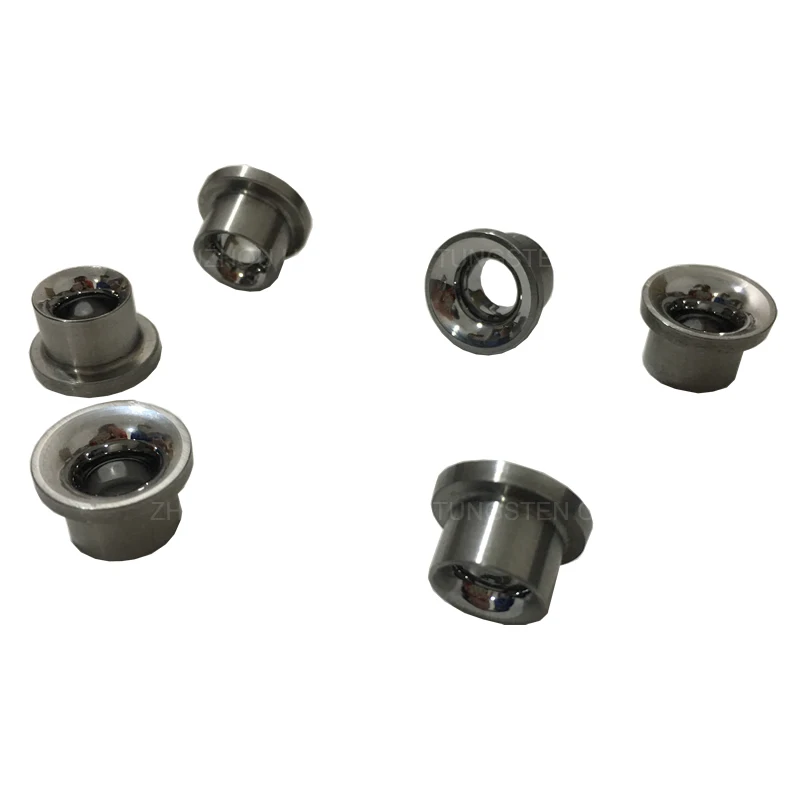

Eyelet with Flange in Tungsten Carbide WC 94% Co 6

Product Overview

Description

Tungsten Carbide wire Guides



The Merits of Solid Tungsten Carbide  :

Our wire guide nozzles in Solid Tungsten Carbide offer the following advantages:

     Thoroughly mirror finished wire entrance, exit and bore surfaces
      Superior rigidity
      Capable of being fabricated to complex geometries
  Concentricity held to within 0.01 mm

Photos above demonstrate these merits.

Technical Data

Hardness value: 1,400 –1,600 HV or 1.7 times that of the hardened carbon steel

      Young's modulus:450 - 650 MPa

       Fracture toughness:   6 - 8 MPa m^1/2

       Surface roughness:0.05 – 0.1 microns or 2 – 4 micro inches Ra.

       Bore diameter:Choice of  Ø 0.1, 0.14,  0.2,  0.3,  0.4,  0.5,  0.6,  0.7,  0.8,  1.0,
                                                                       1.1, 1.2, 1.3, 1.4, 1.5,  2.0 mm.

Outside diameter: Ø 0.5 – 6.0 mm, wall thickness governing.

       Length: 10 – 100 mm, aspect ratio governing.



Recommended grade:

Grade	Grain size(μm)	Density(g/cm³)	Hardness(>=HRA)	TRS(>=MPA)
YG6	1.2	14.90	90.0	2400
YG8	1.6	14.70	89.0	2800
YG11	1.6	14.3	87.0	3100
YG15	1.6	13.85	86.2	3000
YG10X	0.8	14.42	91.0	3000
YG6X	0.6	14.85	92.00	2800
