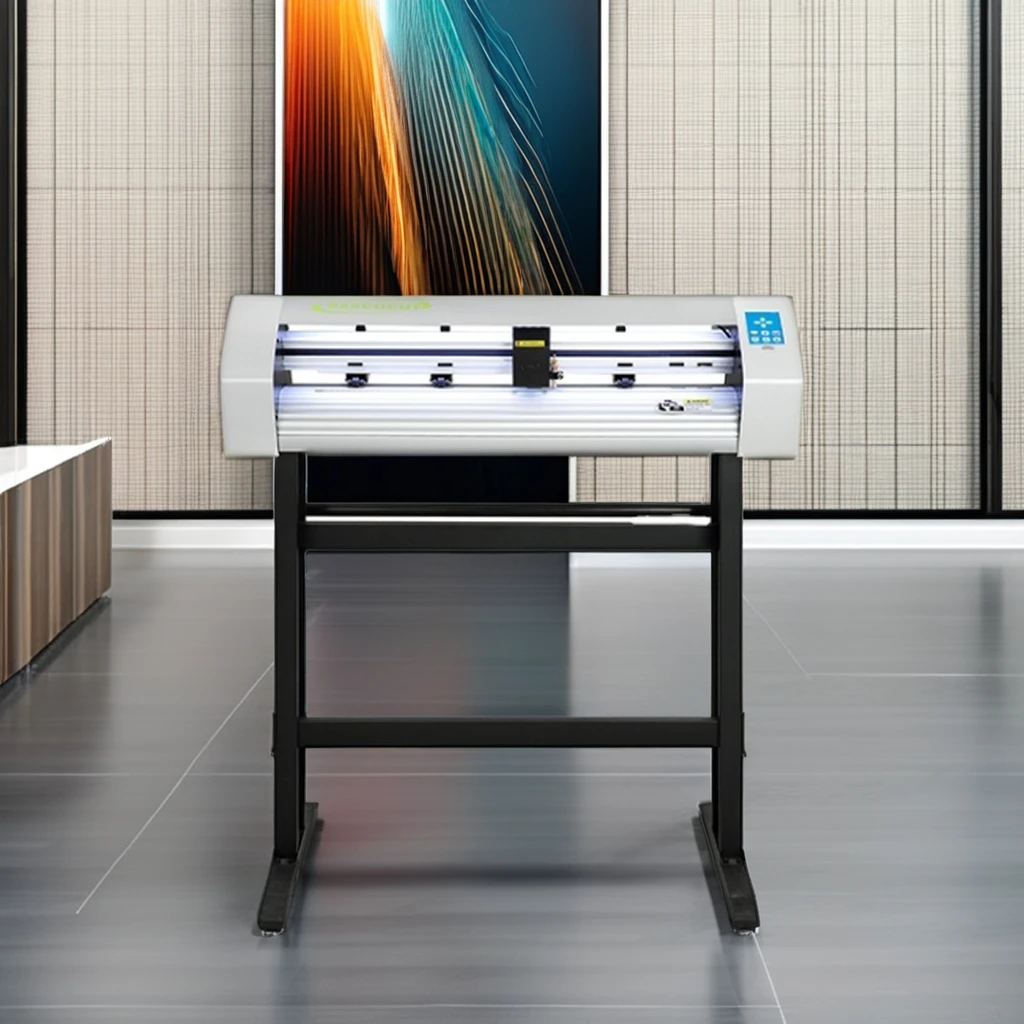

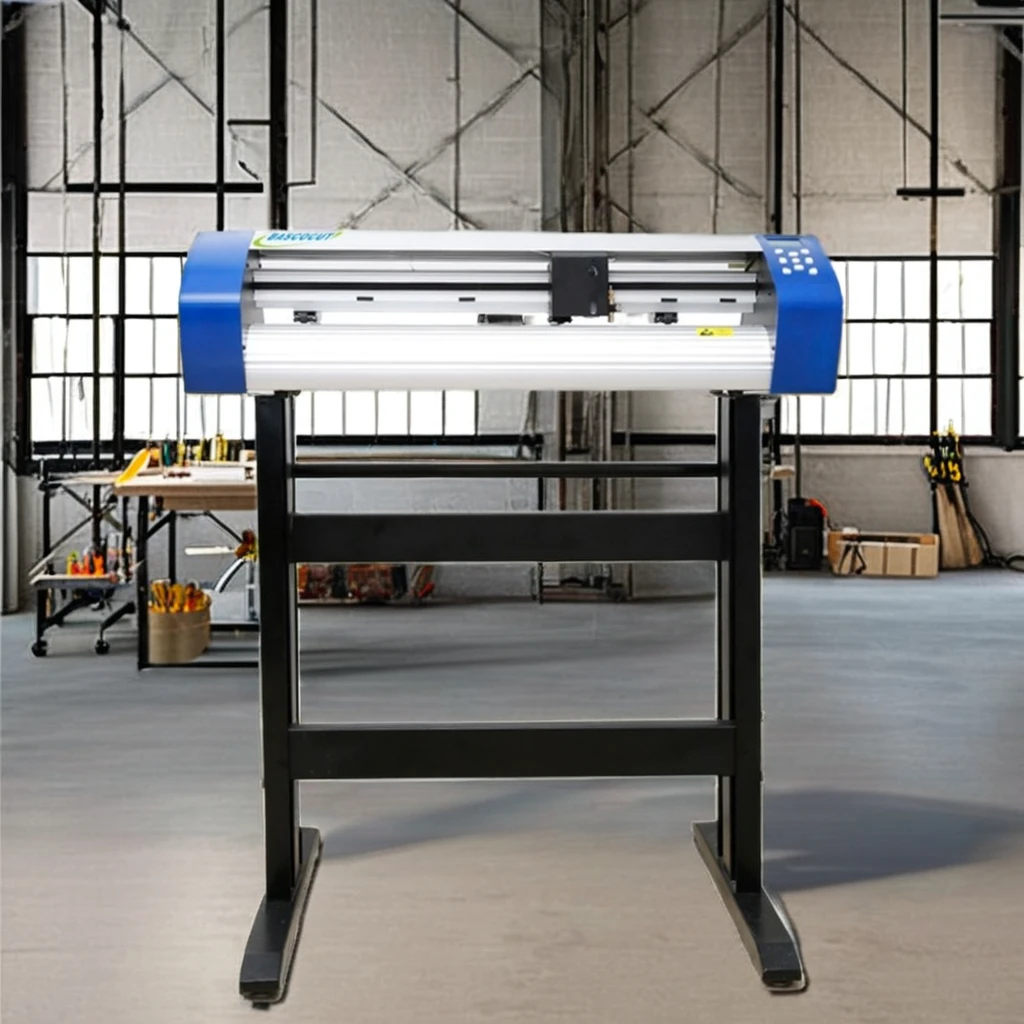

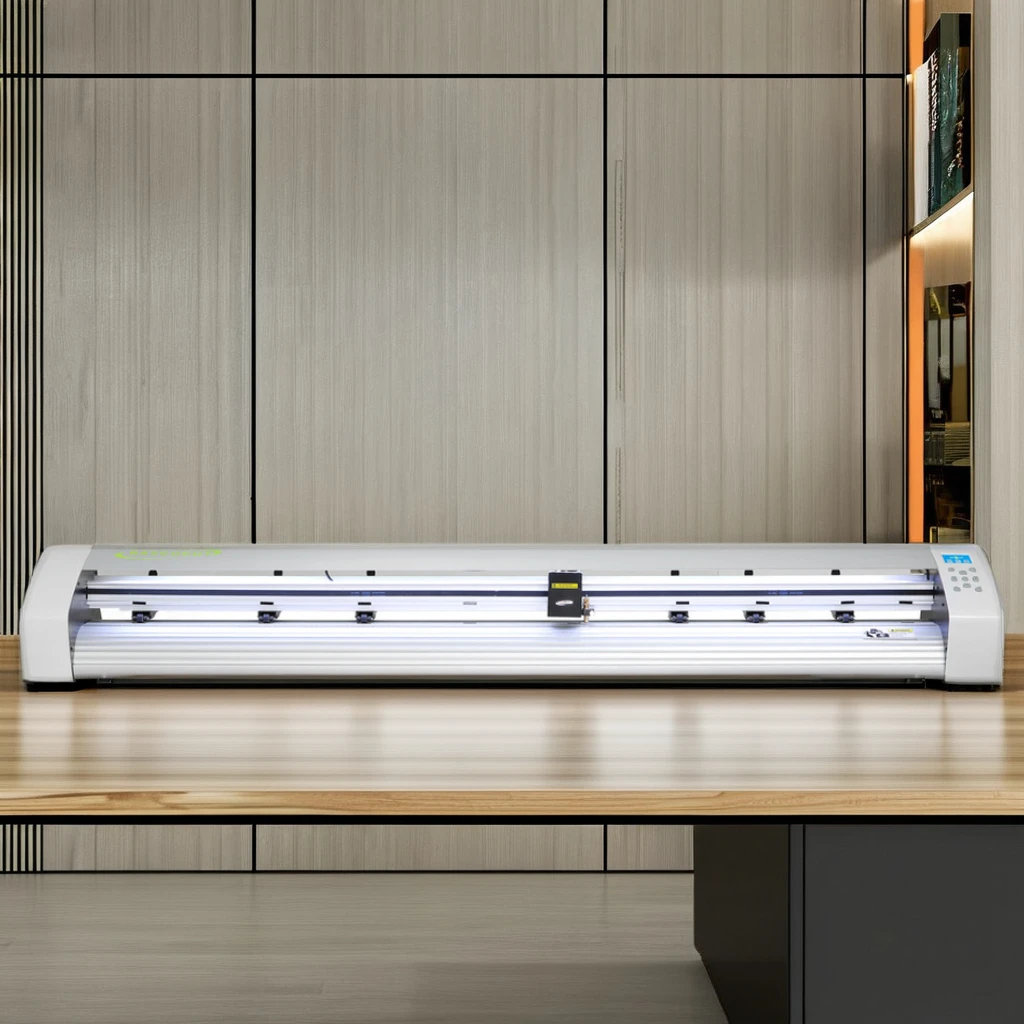

vinyl cutter machine cutting plotter
US $258.00-$308.00
Manufacture Direct Signmaster Manual Contour Cutting with Red Dot Position Stepper Motor Sticker Graph Plotter Cutting Plotter
- Category: >>>
- Supplier: Shenzhen Bascocut Technology Co. Ltd.
Share on (1601249607934):
Product Overview
Description
Specification
Model | C-48L |
Place of Origin | Guangdong, China |
Paper Feed Width | 1410mm |
Cutting Width | 1300mm |
Brand Name | Bascocut |
Voltage | 110V-220V, 50-60HZ |
Cache Capacity | 128MB |
Cutter Pressure | 10-1000g |
Cutting Speed | 800mm/s |
Driver | stepper motor |
Cutting Length | unlimited |
Repeat Cutting | 500 times |
Size | 1715*324*380mm |
media way | floor stand |
Software | Signmaster, Coreldraw, AI, Flexi, Artcut |
Warranty | 1 year |
Usage | Cut Vinyl Sticker/reflective film/DIY T-shirt/Clothing/Window paper |
Interface | COM+USB+U Disk |
Function | Manual contour cutting |
Control panel | 9 industrial silicone buttons+128*64 industrial screen |
Power Supply | ＜80W |
Accuracy | <0.025mm |
Gross weight | 42kg |
Product descriptions from the supplier
Vinyl Sticker Die & Half Cutting Plotter
Manual contour cutting with Stepper motor
C48L→
Graph plotter
-Adopt stepper motor drive mode
- With intelligent AI algorithm, to bring high quality experience for shaped cutting.
- Full metal machine body, solid and practical workmanship. Designed with care and texture, is unique in the beauty of technology.
- Professional software: Signmaster, Coreldraw, AI, Flexi, Artcut.
- Repeat function: Repeat cutting instruction can up to 500 times.
- With intelligent AI algorithm, to bring high quality experience for shaped cutting.
- Full metal machine body, solid and practical workmanship. Designed with care and texture, is unique in the beauty of technology.
- Professional software: Signmaster, Coreldraw, AI, Flexi, Artcut.
- Repeat function: Repeat cutting instruction can up to 500 times.
Details

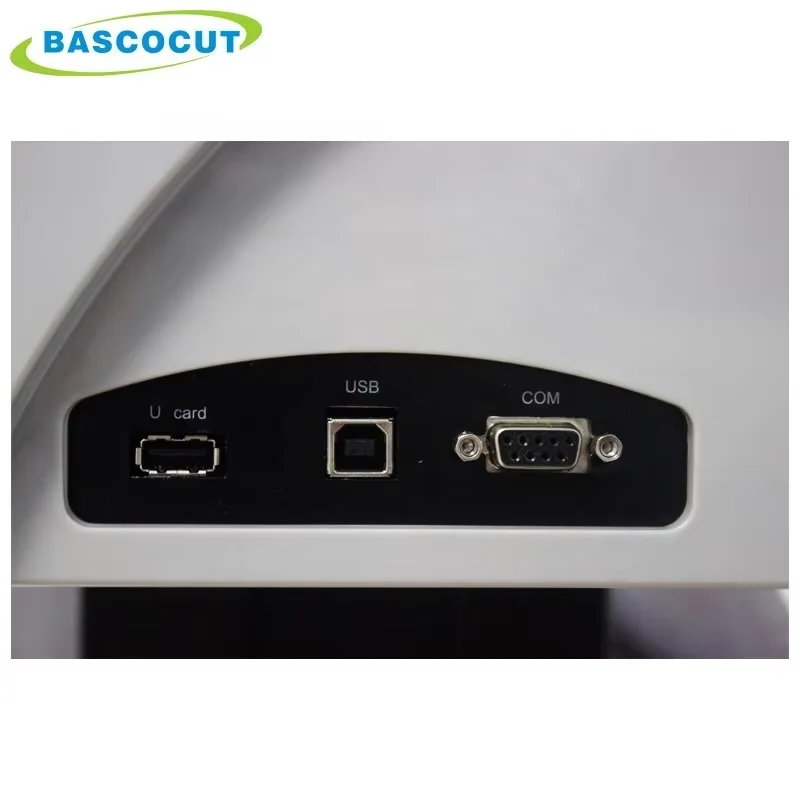

Interface
Carriage

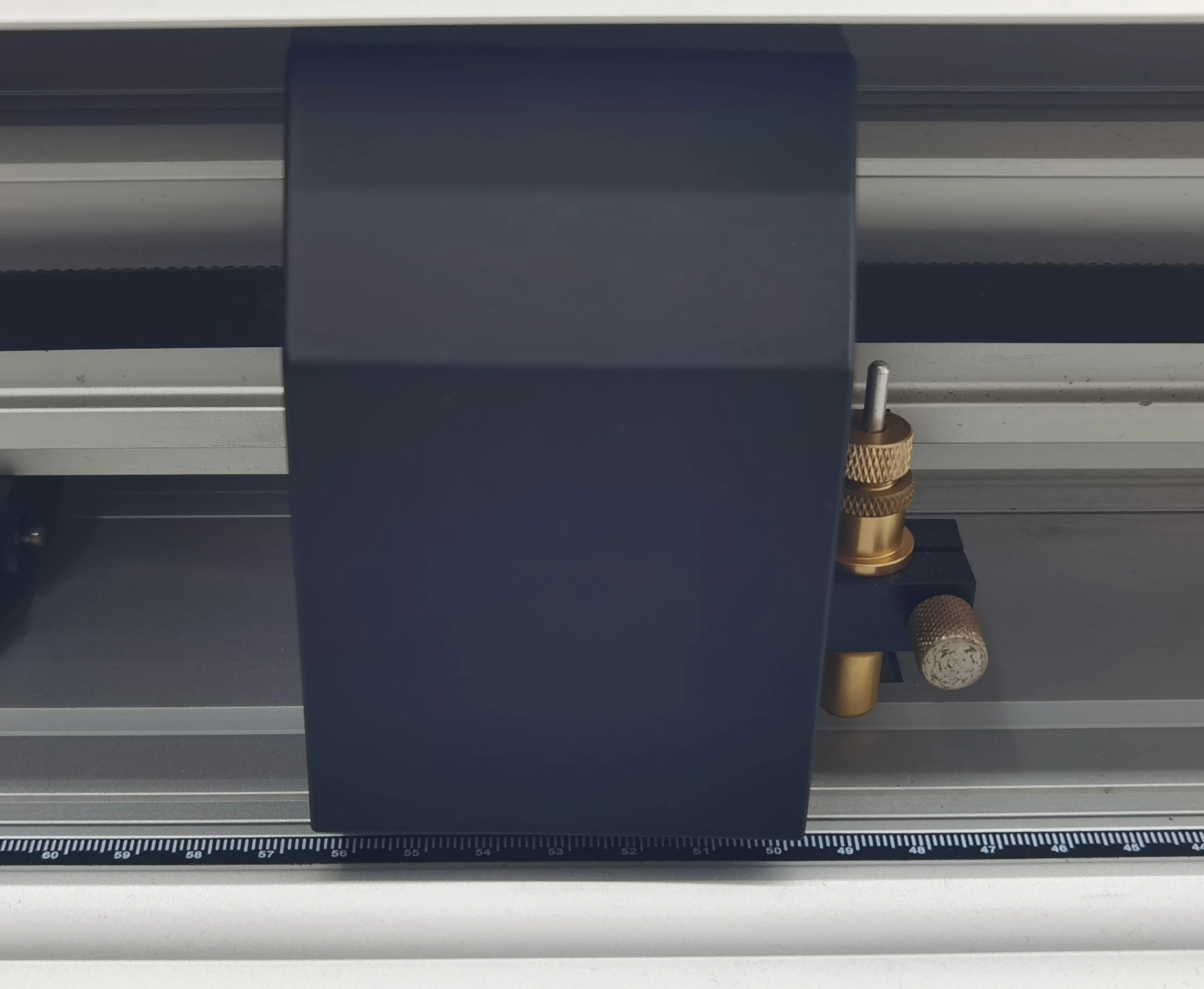

Carriage with red dot position
function.

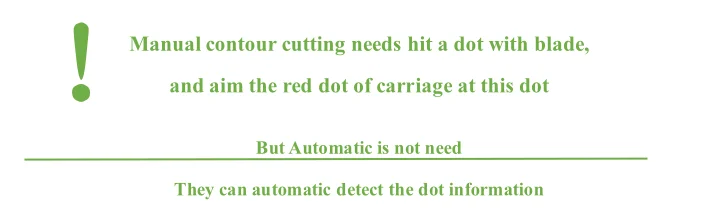

Manual contour cutting with
red dot position cutting head,
operating more accurate.

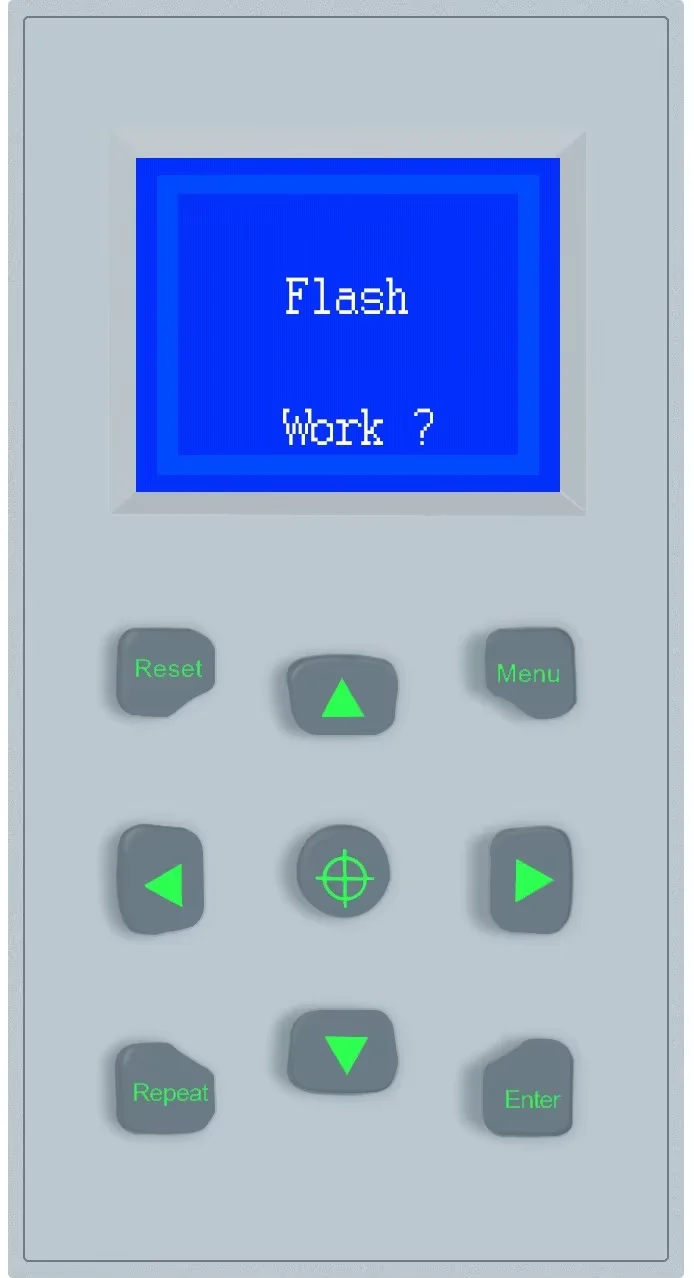

9 industrial silicone buttons+128*64
industrial screen
Sensitive control and easy
operation.

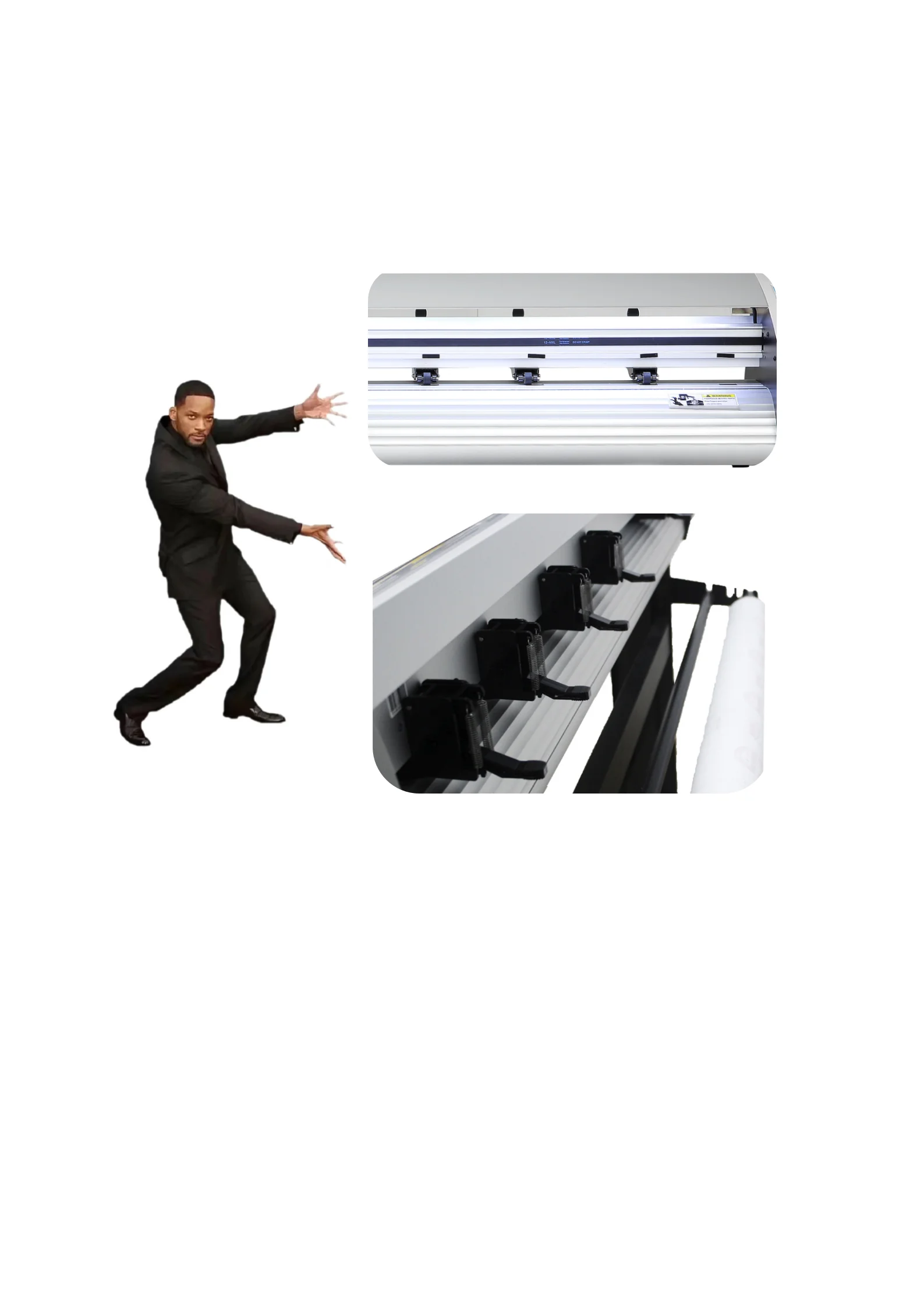

Import pinch rollers
The rollers and paper are
pressed more tightly, high
cutting precision.
Independent paper pressing rod
The operation is more flexible, put down as many pinch rollers as you need using the rod.

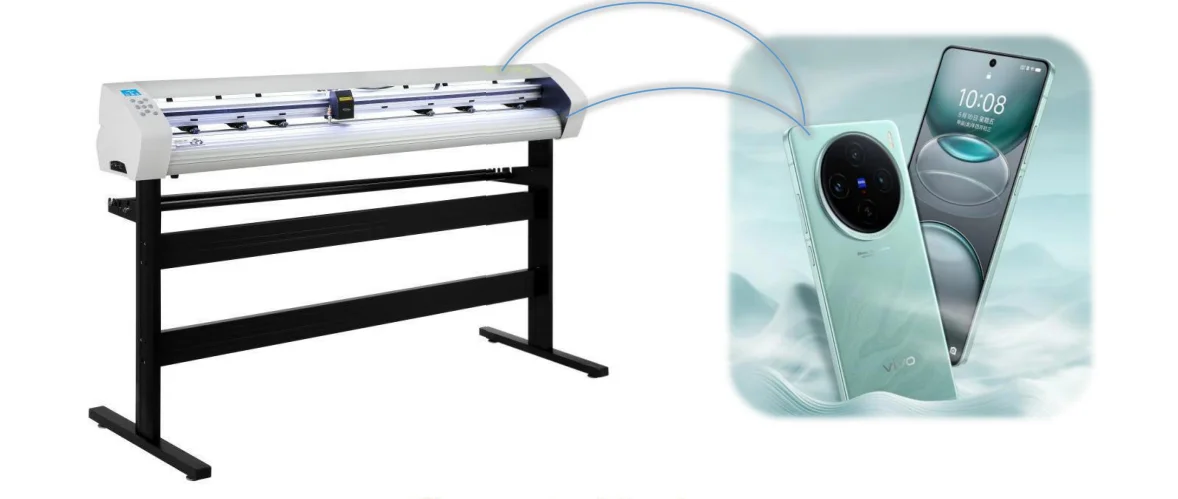

Connect with phone,
the cutting is able to be completed by phone.
Optional function
* HD Full Touch Screen;
* Optical Sensor & CCD Camera;
* Floor stand & Basket;
* Servo Motor;
(Speed up to 1200mm/s)
* Diamond reflective film cutting;
(pressure up to 2000g)
* WIFI/Bluetooth wireless transfer.
(Support for mobile phone,
include Apple system)
CCD Camera
Shape of dot: “·”
Optical Sensor
Shape of dot: “L”

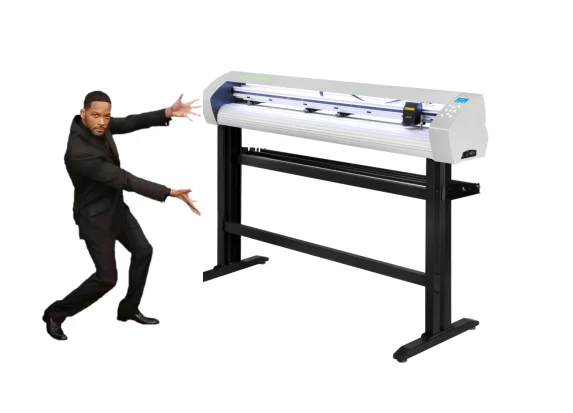

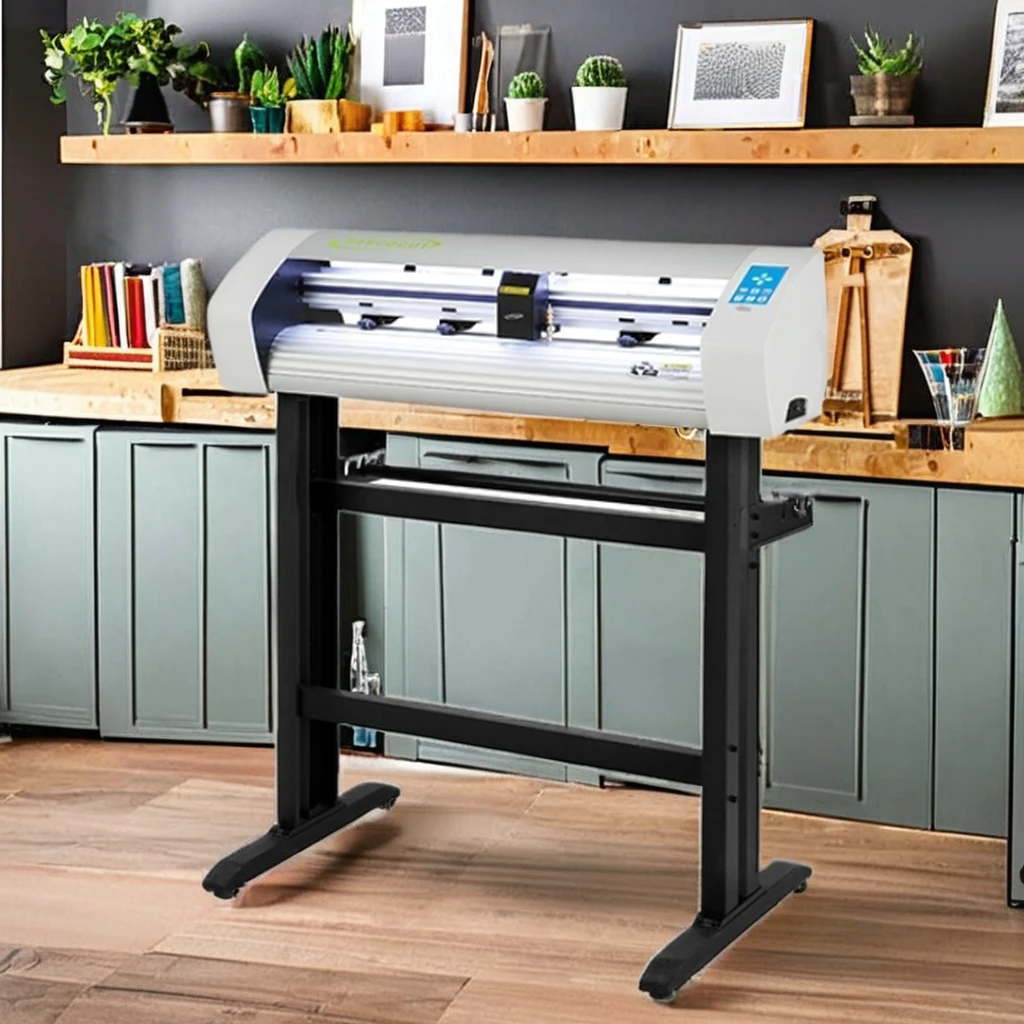

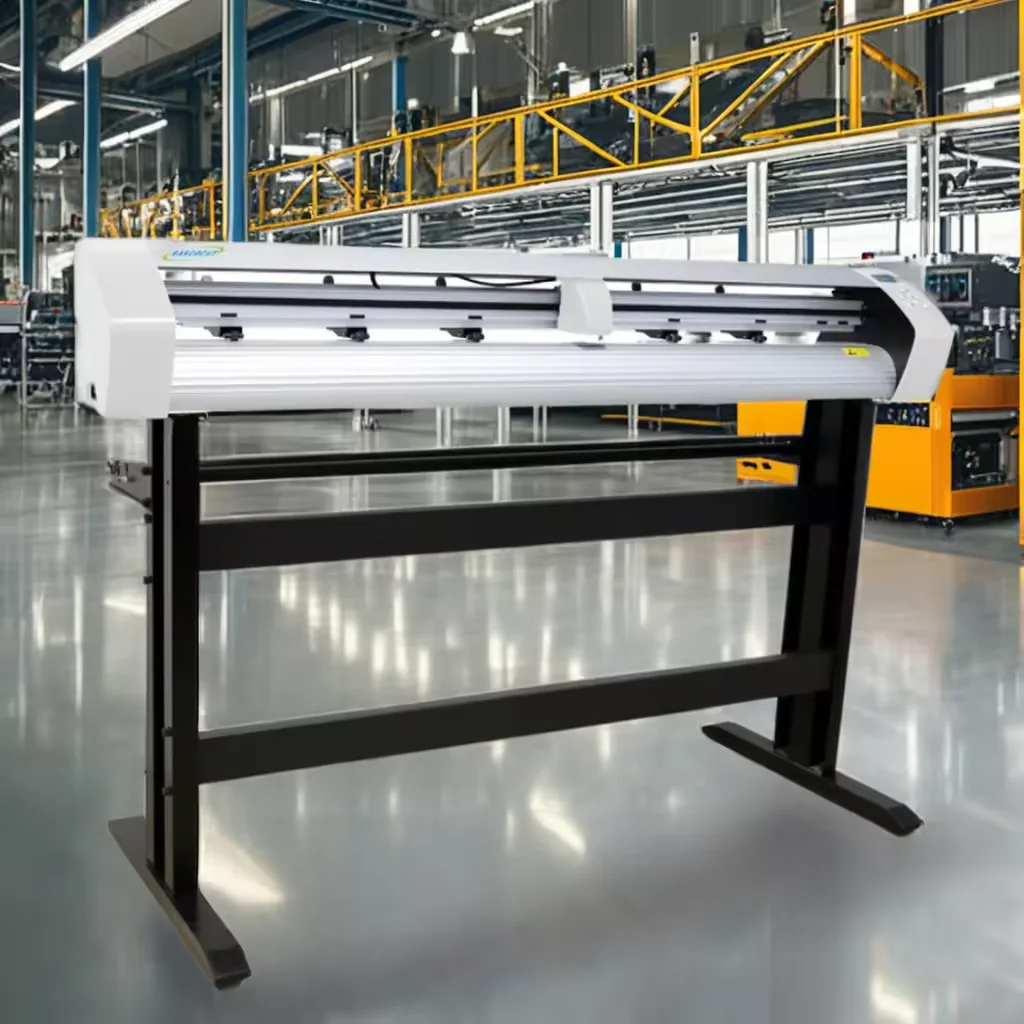

Floor stand
Basket
Servo motor
Floor stand & Basket Servo motor
*Unlimited length, High-precision steel axes *It improves the problems of
* Atuto waste paper collecting function: * Low noise(＜60db) and high speed.
The machine leave the cut part and tear off the
The machine leave the cut part and tear off the
waste paper edge automatically. * The speed can up to 1200mm/s.
*Unlimited length, High-precision steel axes *It improves the problems of
ordinary imported from Germany, suitable for motors and optimizes various aspects.
rolling materials.
We can cut.......
Reflective film cutting
Paper art hollow cut

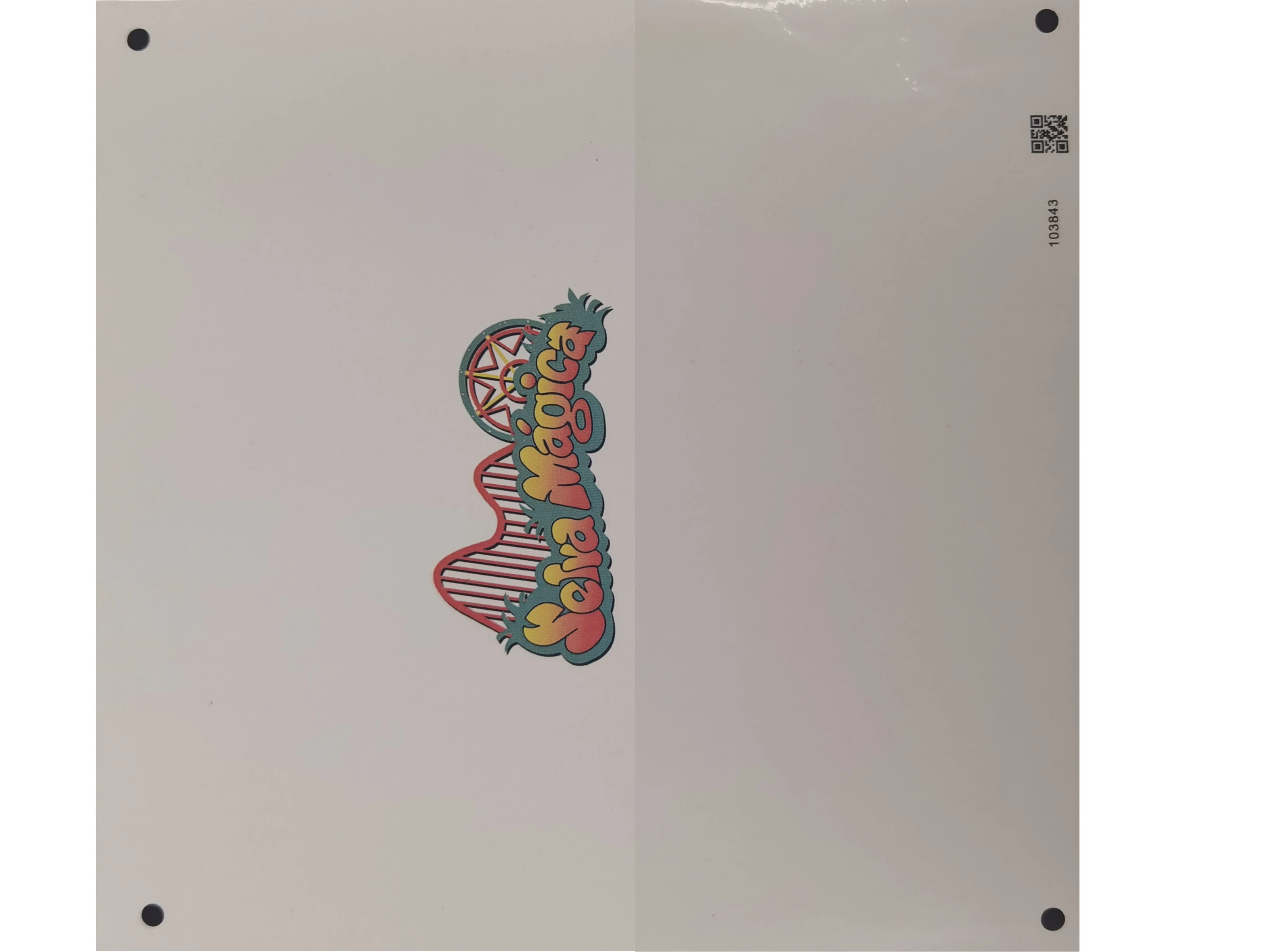

Sticker half cut
Window paper cut
Cutting DIY T-shirt
Clothing cut
Sales and Service Network
Cooperating net
We join in exhibition every year, cooperating with India, Brazil, Colombia, Argentina, Peru, Saudi Arabia, Thailand, etc.
Company Profile
Professional R&D and sales team
Authoritative certification
Packing & Delivery
FAQ
1. What's your delivery time?
Our delivery lead time is within 10 working days after receive full payment
2. What are your payment methods?
T/T , Western Union , Paypal , ABCbank , etc
3. How about warranty?
12 months warranty for our machines
4.How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice,including our bank account. We will prepare your order after receive your payment.
5.How about after-sales service
We have a technical department composed of several technical personnel who specialize in providing customer technical services;
We will provide TeamViewer software, and technicians can remotely solve problems;
Provide detailed operation manuals and videos.
6. How about your package and delivery?
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our delivery lead time is within 10 working days after receive full payment
2. What are your payment methods?
T/T , Western Union , Paypal , ABCbank , etc
3. How about warranty?
12 months warranty for our machines
4.How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice,including our bank account. We will prepare your order after receive your payment.
5.How about after-sales service
We have a technical department composed of several technical personnel who specialize in providing customer technical services;
We will provide TeamViewer software, and technicians can remotely solve problems;
Provide detailed operation manuals and videos.
6. How about your package and delivery?
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
