GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use
GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use

GSO Factory Customizes 3 Output Modes Of 10KW Photovoltaic Hybrid Inverter With Up To 9 Parallel Devices For Home Use

Share on (1601249775810):


Price:$1,380.88 - $1,440.50

Quantity:


Product Overview

Description



Product introduction：
GST series is a new all-in-one solar charge inverter, which integrates solar energy storage & utility charging energy storage andAC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. inverter and Mains, to meet different application requirements.

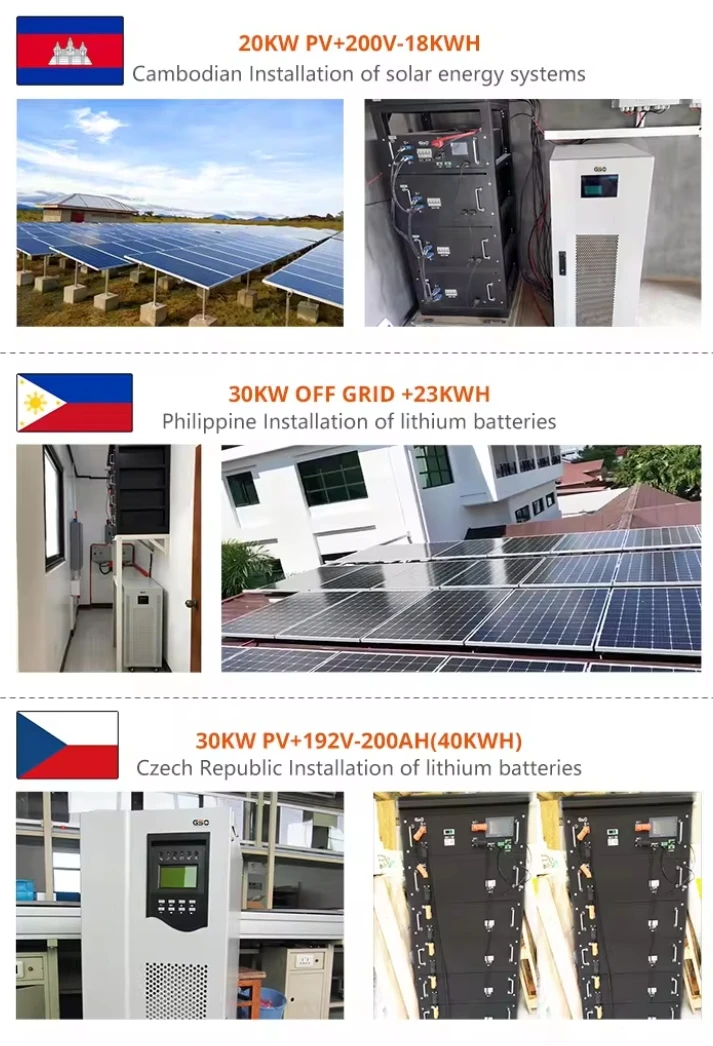

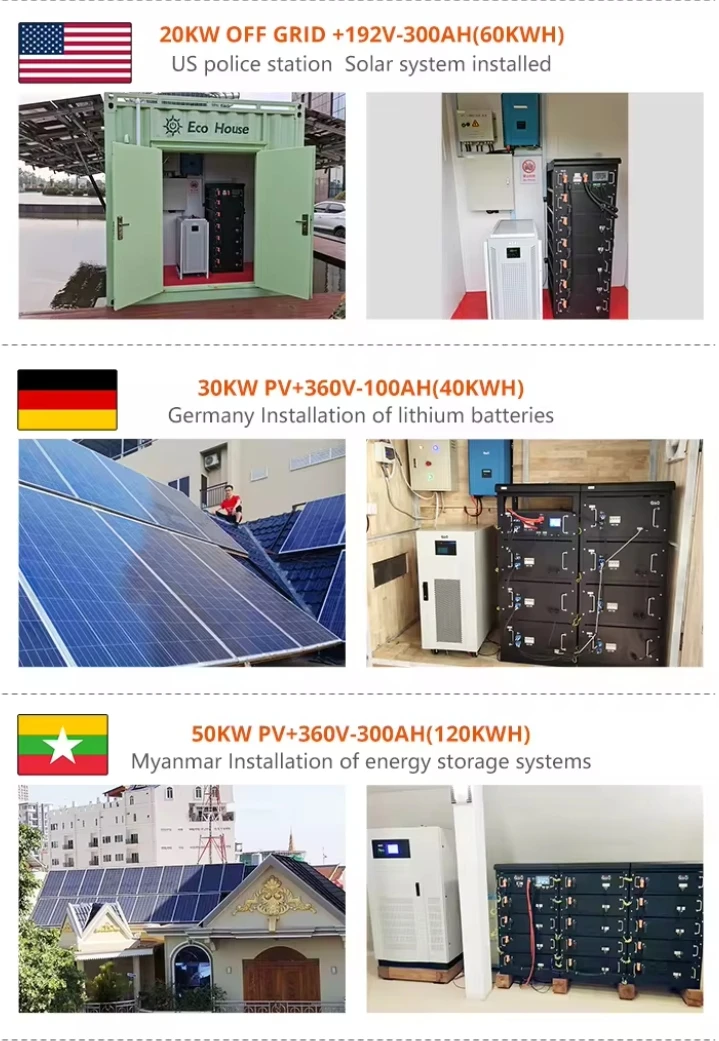

Project Cases






Specification


MODEL
GST24-2500 VII
GST48-3500 VII
GST48-5500 VII
GST48-10K VII
INVERTER OUTPUT
Rated output power（W）
2500W
3500W
5500W
10000W
Rated output power（VA）
2500VA
3500VA
5500VA
10000VA
Maximum Peak Power(W)
5000W
6000W
10000W
15000W
Load Capacity with Motors
2HP
2HP
4HP
6HP
Rated AC Output
230 Vac (200 / 208 / 220 / 240 Vac), 50 / 60Hz
Output Voltage Waveform
Pure Sine Wave
Inverter and Bypass Switching Time
10ms(typical)
Parallel Capacity
9
Maximum Battery Inverter Efficiency
93%
BATTERY
Battery Type
Lithium / Lead-acid / User Defined
Rated Battery Voltage
24Vdc
48Vdc
Battery Voltage Range
20-33Vdc
40-60Vdc
Max.MPPT Charging Current
60A
60A
100A
200A
Max.Mains Charging Current
60A
60A
60A
120A
Max.Hybrid Charging Current
120A
120A

100A
200A
Charging current error
±3Adc
Charging Short Circuit protection
Blown Fuse
PV CHARGING
PV CHARGING
1
1
1
2
Max. PV array power
1700W
3400W
5500W
5500W+5500W
Max. PV input current
50A
50A
22A
22A+22A
Max. Open Circuit Voltage
100Vdc
145Vdc
500Vdc
500Vdc+500Vdc
MPPT Voltage Range
30-85Vdc
60-115Vdc
120-450Vdc

MPPT Tracking Efficiency
99.9%



MAINS INPUT
Input Voltage Range
90-280Vac/170-280Vac
Frequency Range
50/60Hz±0.3Hz
Output Short Circuit Protection
Circuit breaker
Bypass Overload Current
24A
30A
40A
63A


Product packaging

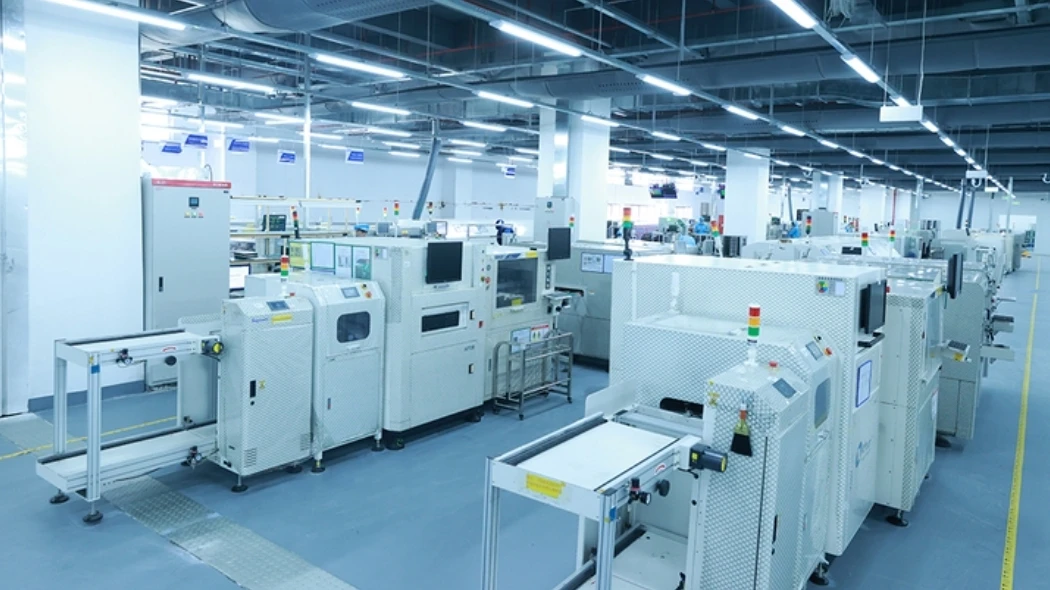

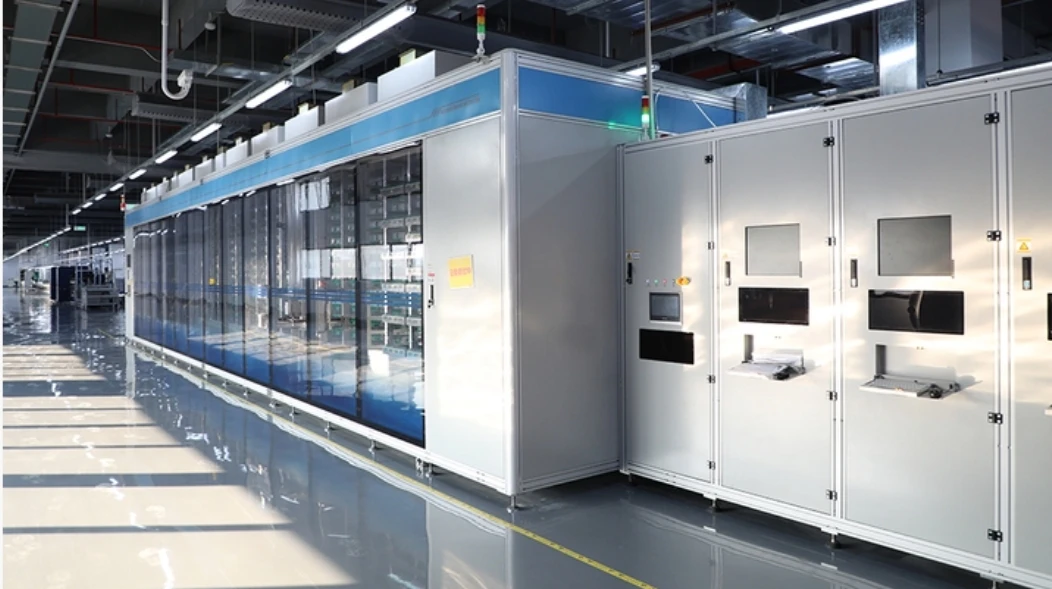

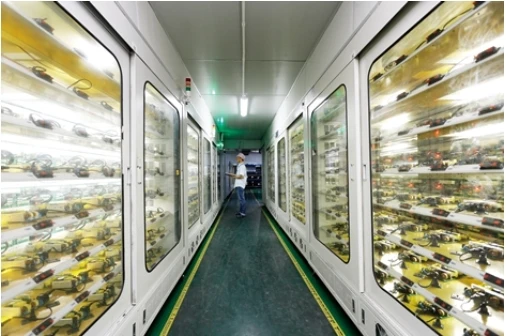

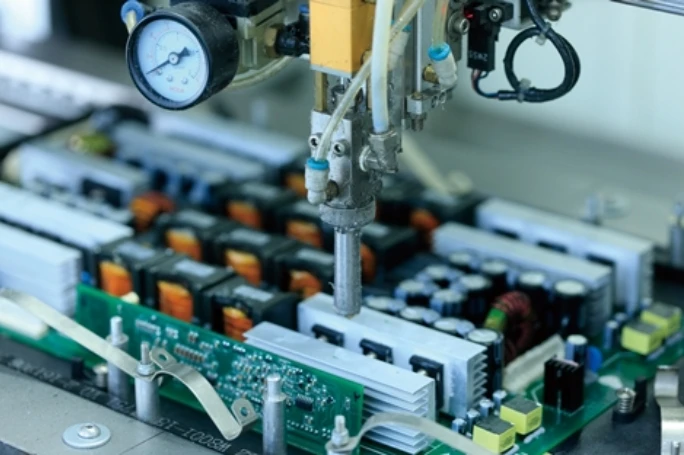

Company Profile










FAQ


1. Why choose us?
1.Higher power generation 2.Competitive price 3.High quality standard 4.Customized service
2. How is your technical support?
We provide lifetime online support. Any problem after delivery, we will help solve.
3. Can you get the the solar inverter customized for us ?
LOGO, machine color, designed unique patterns and packing available for customization.
4. How to become your agent?
Contact us through Alibaba, we will give you the best price and look forward to your greetings.
5. Combien de modes de sortie la machine a-t-elle?
Three output modes:When the grid-connected function is enabled, grid-connected power generation or anti-reverse-current can be set, and it can also be set to off-grid output mode.
6. Protection function.
Perfect hardware and software protection function, can display the fault type for easy removal.
7. Parallel function
It can be flexibly combined to achieve up to 9 parallel machines, and the parallel system can output single-phase and
three-phase AC voltage.
8. The host computer and the APP cloud communication
The host computer and the APP cloud can display the operating data and status of the system in real time and control and modify the parameters.
9. We welcome use Trade Assurance, you'll enjoy
100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount
