UBNT Loco5AC 5 US 5GHz airMAX ac CPE Wi Fi management outdoor wireless bridge Loco5AC 5 US
- Category: >>>
- Supplier: Chongqing Chimu Technology Co. Ltd.Chongqing Ltd.
Share on (1601249783485):
Product Overview
Description
Products Description

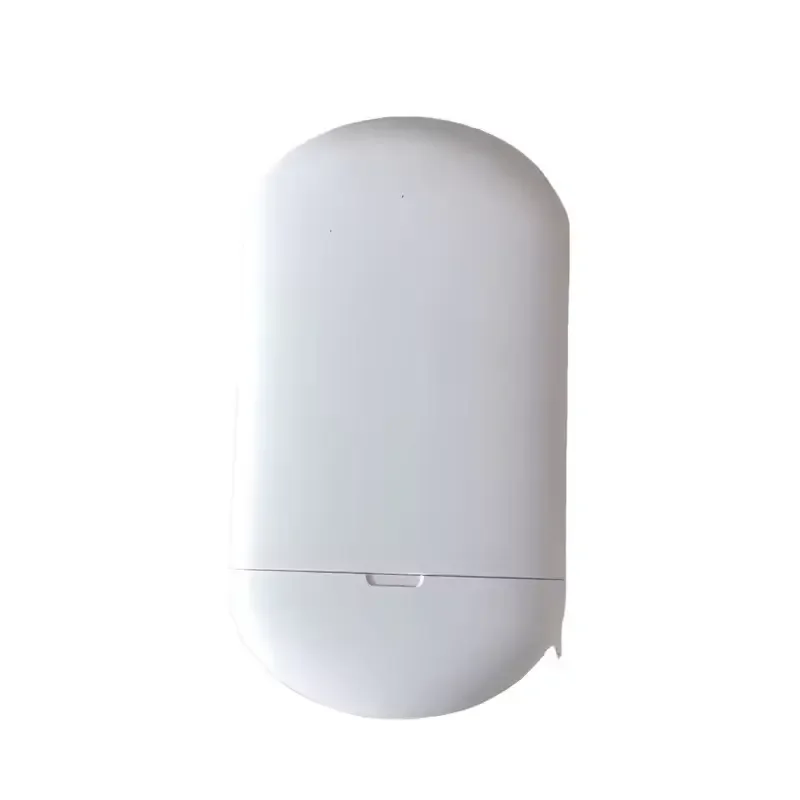

Ubiquiti Networks uses NanoStation® M to set the benchmark for the world's first low-cost, high-efficiency broadband customer premise equipment (CPE). The NanoStation AC locomotive brings the same concept into the future, with a stylish appearance, and integrates airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC locomotive gets the most benefits with the smallest footprint. The low cost, high performance and small size of NanoStation AC and NanoStation AC loco make them very versatile and economical to deploy.
Details Images
Specification
Networking Interface | 10/100/1000 Ethernet Port |
Processor | MIPS 74K |
Memory | DDR2 64 MB |
Cross-pol Isolation | 20 dB Minimum |
Antenna Gain | 13 dBi |
Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
Processor Specs | Atheros MIPS 74Kc, 560 MHz |
Max. VSWR | 1.8:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual-Linear |
Power Method | • 02.3af Alternative A (Pairs 1, 2+; 3, 6 Return) • 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power Supply | 24V, 0.3A Gigabit PoE Supply (Not Included: POE-24-12W-G Recommended) |
Max. Power Consumption | 7W |
Enclosure | Outdoor UV-Stabilized Plastic |
Mounting | Pole-mount (Kit Included) |
Supported Voltage Range | 24V±10% |
ESD/ EMP Protection | ±24kV Contact/ Air |
Operating Temperature | -40 to 70°C (-40 to 158°F) |
Operating Humidity | 5 to 95% Non-Condensing |
RoHS Compliance | Yes |
Certifications | CE, FCC, CCC |
