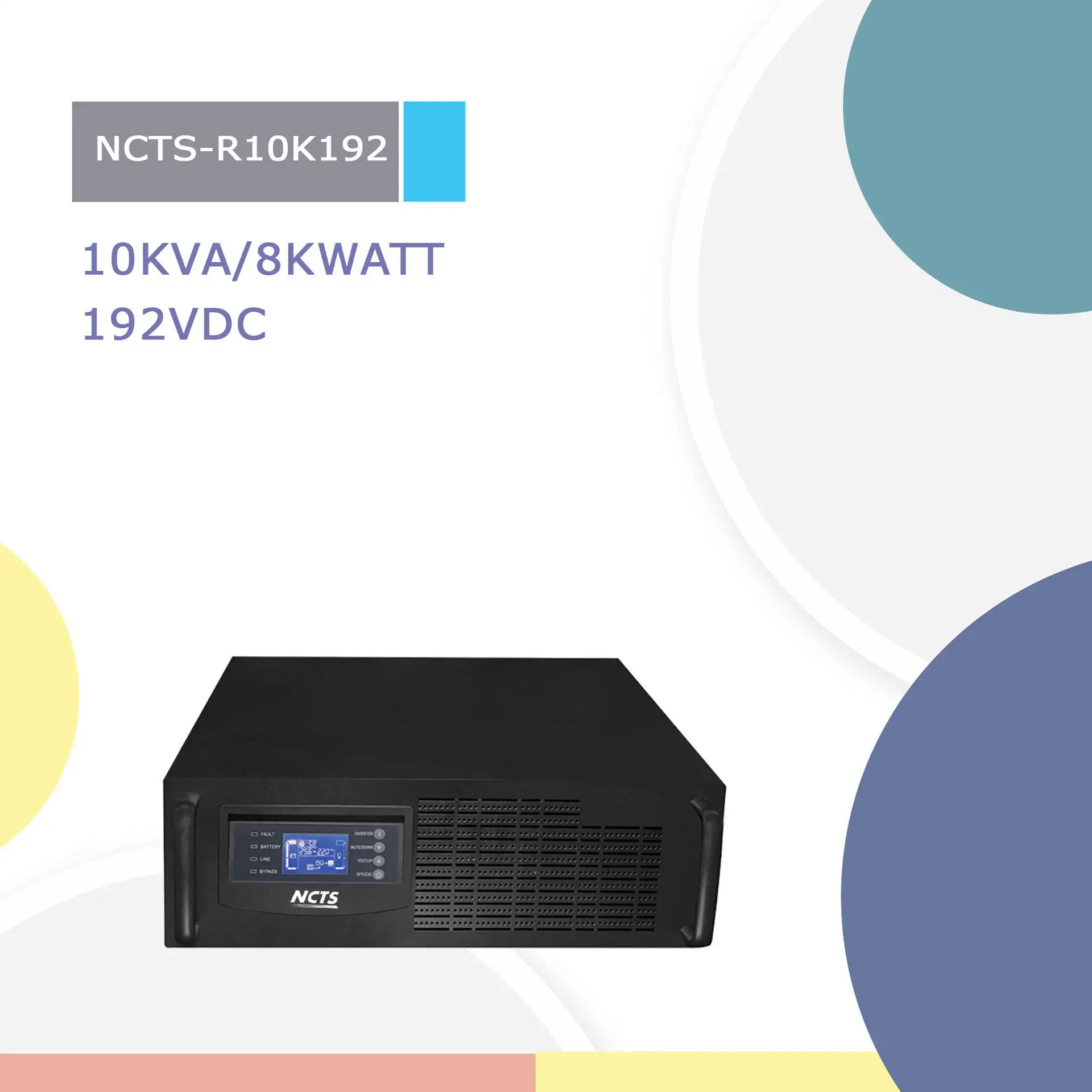

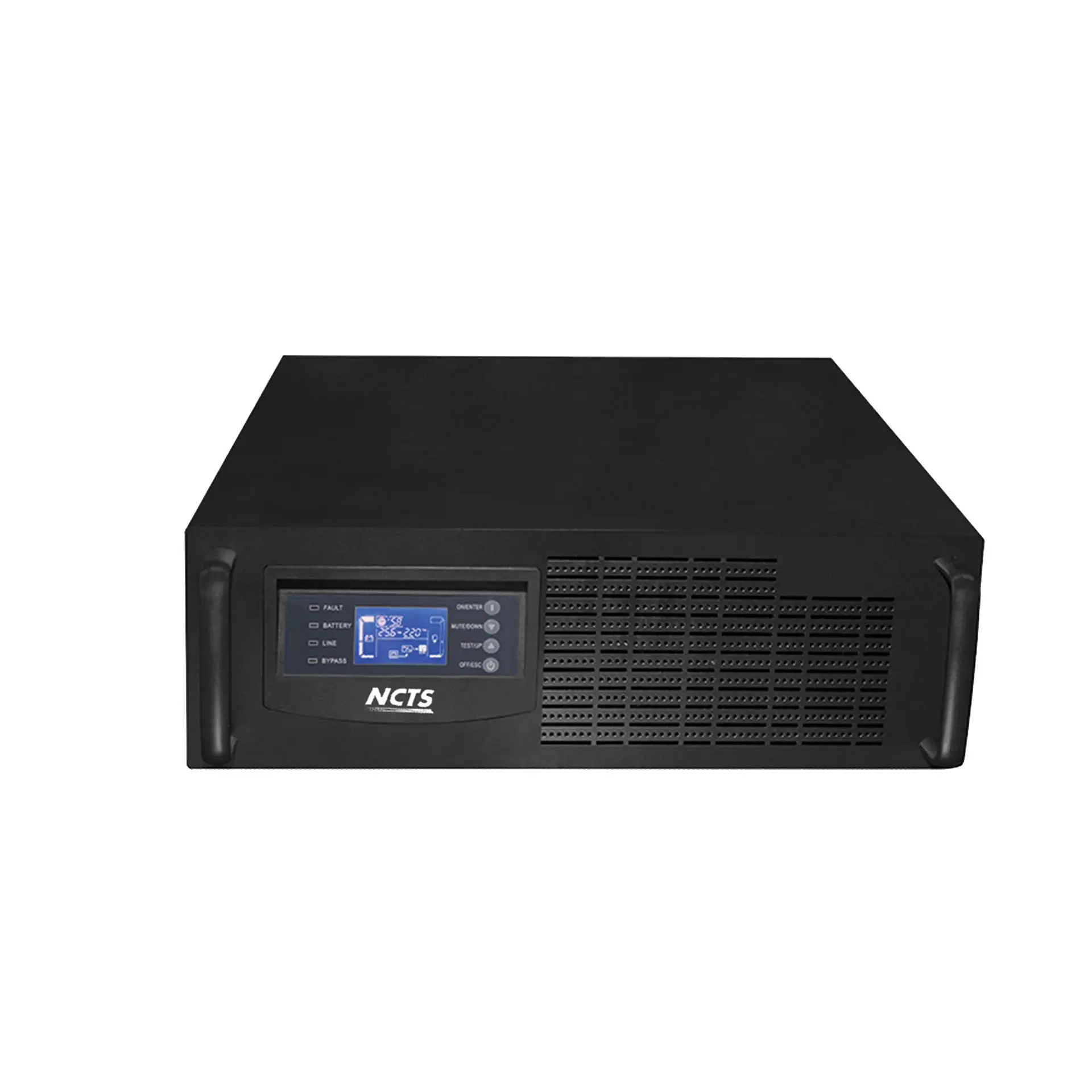

China Custom Made Ups Power Supply Generator Mini Ups 10kva / 8kw Power Bank Ups
- Category: >>>
- Supplier: Shenzhen NCTS Technology Company Limited
Share on (1601249840846):
Product Overview
Description
Product Description
● True double-conversion online UPS
● Micro processor control optimizes reliability
● Output power factor 0.8 ● Wide Input voltage range(110V – 300VAC)
● Input power factor correction
● Converter mode available
● ECO mode for energy saving
● Generator compatible
● Smart SNMP works well with either USB or RS-232 together
● Comprehensive display allows easy monitoring and access of UPS status
● True Isolation technology offers the most complete power protection and highest quality power for all IT applications.
● SNMP Slots for remote monitoring and control
● Load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.
● LED / LCD option
● Extended backup time capacity ● Zero transfer time
● Micro processor control optimizes reliability
● Output power factor 0.8 ● Wide Input voltage range(110V – 300VAC)
● Input power factor correction
● Converter mode available
● ECO mode for energy saving
● Generator compatible
● Smart SNMP works well with either USB or RS-232 together
● Comprehensive display allows easy monitoring and access of UPS status
● True Isolation technology offers the most complete power protection and highest quality power for all IT applications.
● SNMP Slots for remote monitoring and control
● Load sensing, overload protection, dynamic by-pass, temperature monitoring software for preventative diagnostics.
● LED / LCD option
● Extended backup time capacity ● Zero transfer time
Rated capacity | 10KVA /8KW |
Format | 3U |
Input Voltage Range | 120-275 VAC ± 5 |
Input Frequency Range | (45 -55) ± 0.5Hz |
Input Bypass Range | 80VAC x (1 ± 5%) – 285VAC x (1 ±5%) |
BATTERY Voltage | 192VDC(220VDC Optional) |
BATTERY Capacity and Quantity | External battery ,192VDC |
BATTERY charge current | 4A |
Output Voltage | 220VAC ± 1% (invert output) |
Output Frequency | 46 - 54Hz (normal AC output); 50Hz ± 1% (abnormal AC output) |
Output Wave Form | Sine wave THD < 3% (linear load); sine wave THD <8% (nonlinear load) |
Overload | 105 - 125%: convert to byass after 1 minute |
Output Power Factor | 0.8 |
Output Current Peak Factor | 3 : 1 |
Communication & monitoring | RS232 / USB+software+cable , SNMP slot |
N.G. (KG) | 19.9 |
Unit size | 482.6*600*133mm |
Package Size (mm) | 795*595*265 |
Application area | OFFICE, IT ROOM, INDUSTRIAL ENVIRONMENT, Security and Protection System, Communication System and Computer Network System |
Certification | ISO9001, ISO14001, CE, ROHS |
