DMK small Splicing Fusion splicer machine Automatically DMK BS Splicer Machine
- Category: >>>
- Supplier: Demark (Wuhan) Technology Co. Ltd.
Share on (1601249885556):
Product Overview
Description
Product Description
✔ Compatible with optical fibers of various diameters. By replacing the left and right clamps, the fusion splicer can realize reliable splicing of optical fibers with cladding diameters from 125um to 500um.
✔ Special discharge calibration technology. A fiber can be calibrated only once by cutting, without frequent cutting.
✔ Unique "stepped V-groove" and "split indenter" technology. The unique "stepped V-groove" and "split indenter" can perform stable
compression on fibers with a cladding diameter of 125um to 500um. Hold, so as to obtain a more stable welding process.
compression on fibers with a cladding diameter of 125um to 500um. Hold, so as to obtain a more stable welding process.
✔ On-line power alignment function. Connect the fusion splicer and the power meter through the serial port, you can calculate the power loss
in real time during the fusion alignment, so as to achieve a more perfect fiber alignment.
in real time during the fusion alignment, so as to achieve a more perfect fiber alignment.
✔ Fully horizontal fiber clamp platform. The completely horizontal fiber clamp platform can place the fiber more conveniently and
quickly, and ensures the horizontal advancement and alignment of the large-diameter fiber.
✔ The arc hot zone can be controlled. The fusion splicer can automatically adjust the relative position of the optical fiber and
the electrode rod to provide the best arc thermal field area for fusion splicing.
quickly, and ensures the horizontal advancement and alignment of the large-diameter fiber.
✔ The arc hot zone can be controlled. The fusion splicer can automatically adjust the relative position of the optical fiber and
the electrode rod to provide the best arc thermal field area for fusion splicing.
Product Details

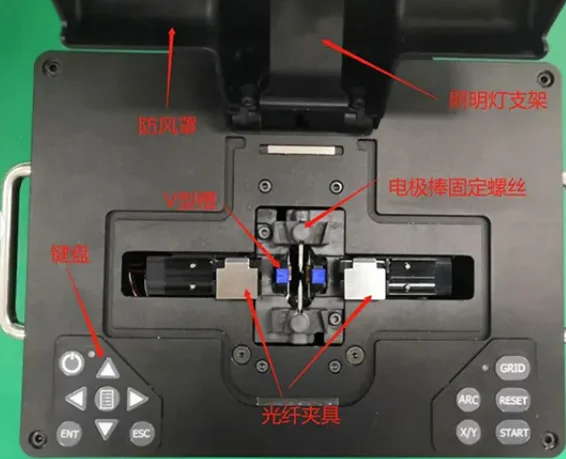

Fiber clamp and V-groove

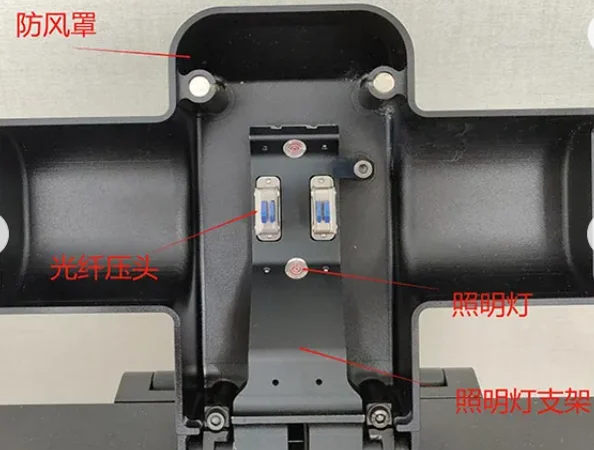

Windshield and fiber indenter
Technical Parameter
iber cladding diameter | Ф125-500um |
Fiber coating diameter | Ф125-500um |
Number of optical fibers | Splicing a single fiber |
Fiber cutting length | Holding bare fiber: 6 ～ 10 mm (standard value 9 mm) |
Typical splice loss SMF | 0.03dB |
Typical splice loss NZDSF/LDF | 0.05dB |
Typical splice loss MMF | 0.02dB |
Typical splicing time SMF/MMF | 15S |
Typical splicing time NZDSF/LDF | 25S |
Electrode life | 2500 discharges |
Electrode spacing | 1.0-3.0mm (adjustable) |
Electrode height offset | -0.1-+0.3mm (adjustable) |
Pull test | 1.96-2.45N |
Electrode life | 3000 times, electrode replacement is simple and convenient |
