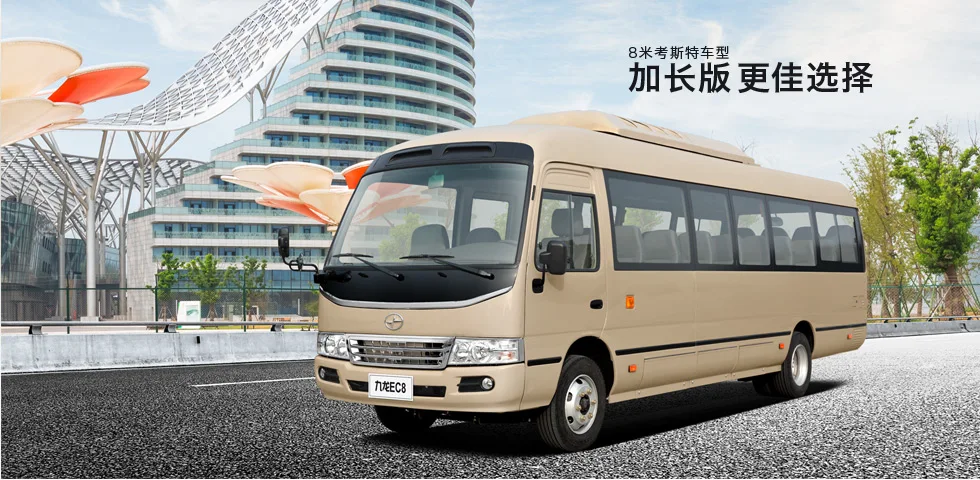

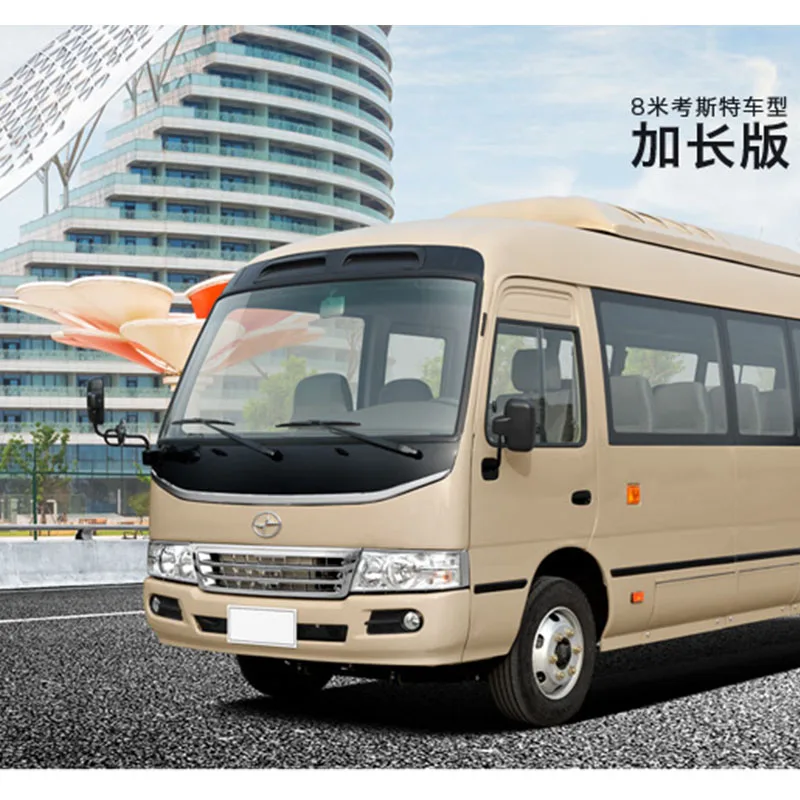

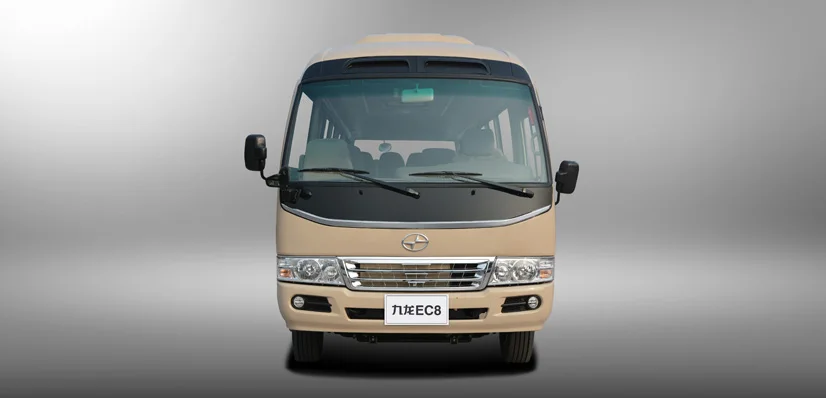

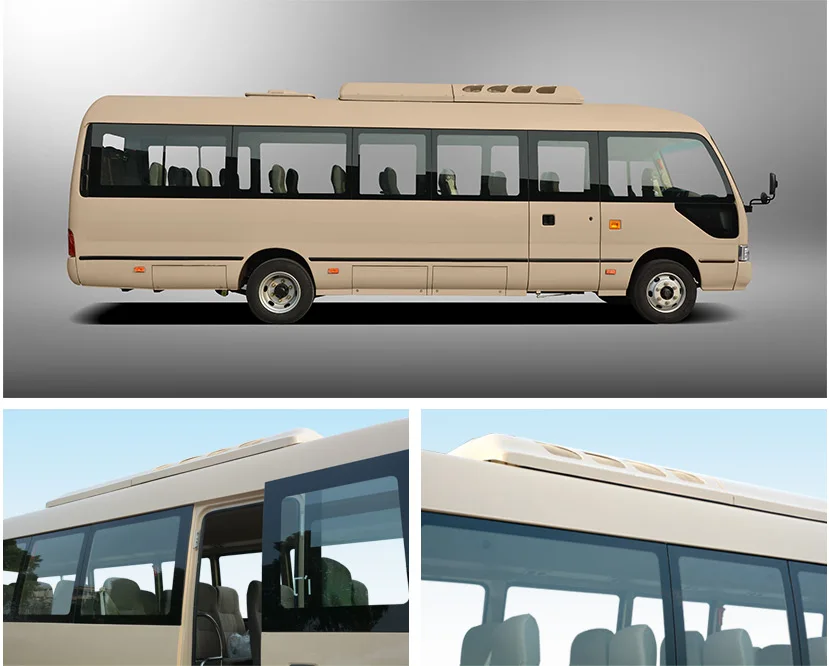

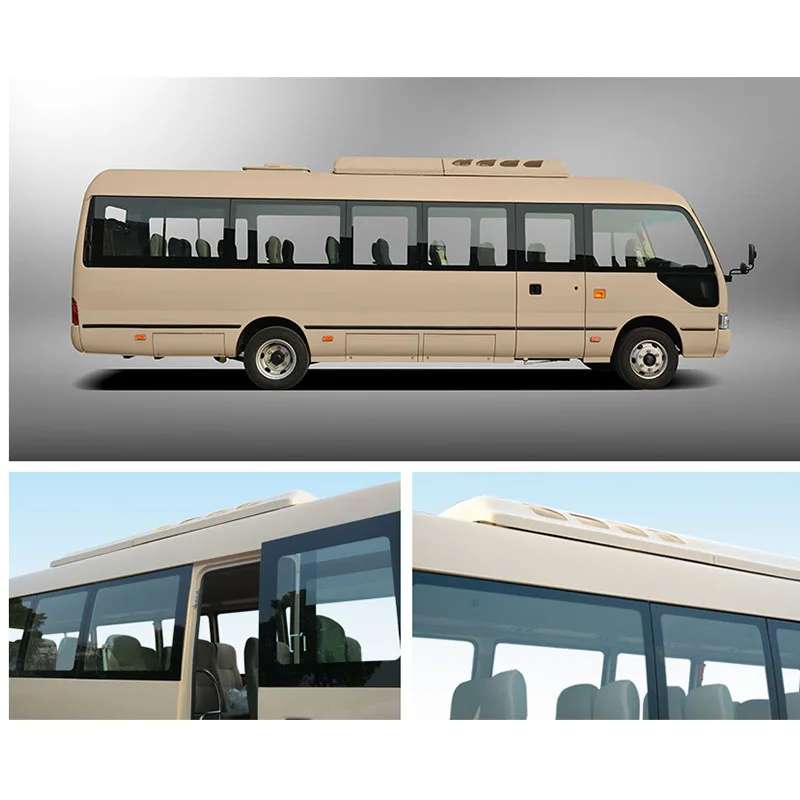

High Performance China Brand Joylong Used Coaster City Mini Bus for Business Travelling with 29 Seats for Sale

High Performance China Brand Joylong Used Coaster City Mini Bus for Business Travelling with 29 Seats for Sale

Category: >>>
Supplier: Chongqing Amity Technology Co. Ltd.

Price:$11,690.00 - $14,990.00

Quantity:

Product Overview

Description

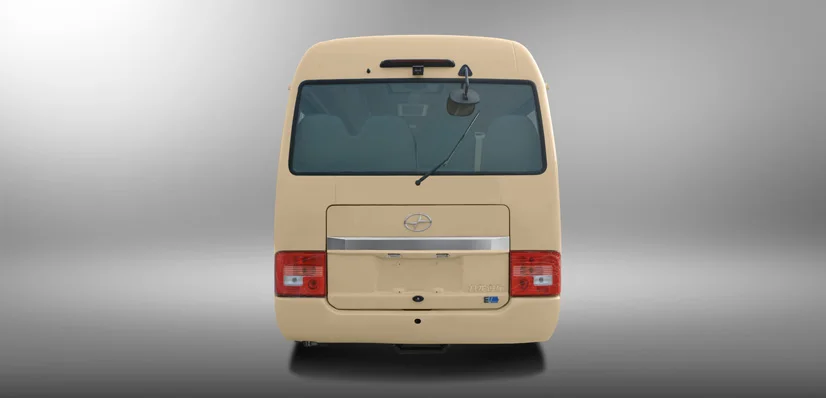

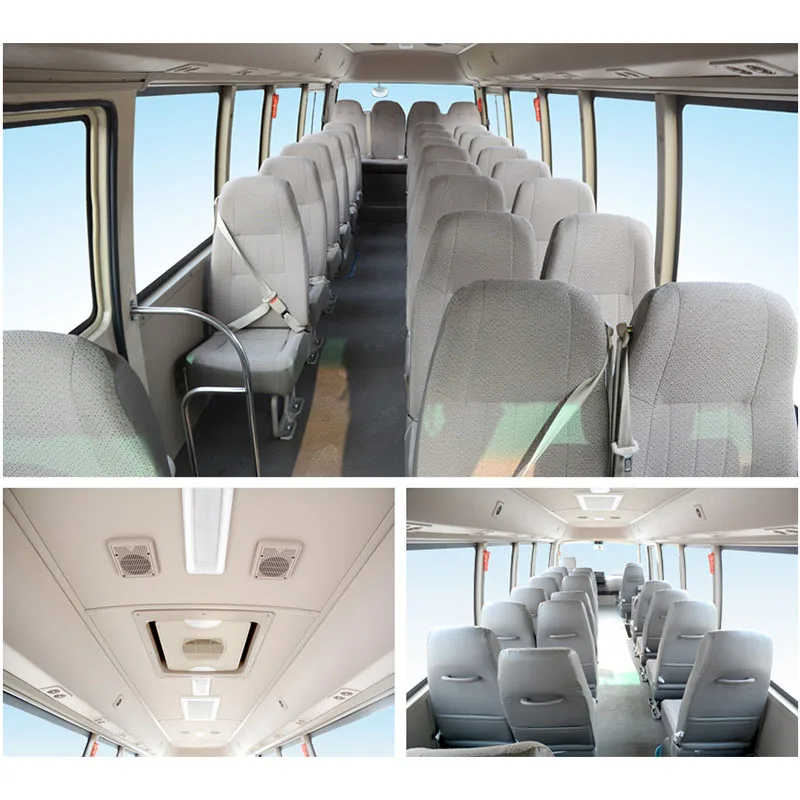

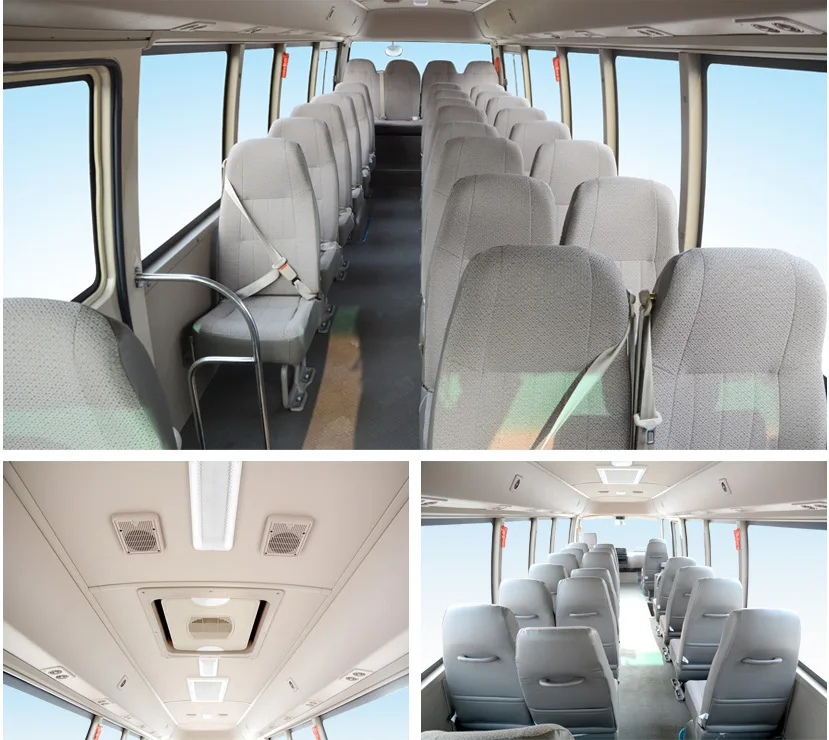

Product Image

Specification

Vehicle parameters
Body size (mm)	8130×2040×2730/2860
Wheelbase (mm)	4540
Track (mm)	1700/1525
Front overhang/rear overhang (mm)	1145/2445
Approach angle/departure angle (°)	15/10
Number of seats	10-29
Curb weight (kg)	5650
Maximum total mass (kg)	8500
Minimum turning radius (m)	9
Maximum speed (km/h)	100
Battery system	Lithium iron phosphate battery
Motor rated voltage (V)	537.6
Battery pack capacity (kWh)	92.16
Charging time (h)	2
Motor rated power/peak power (kW)	60/110
Motor rated torque/peak torque (Nm)	358/1200
Battery management system	Intelligent centralized management system
Constant speed cruising range (km)	255
Chassis standard configuration	Permanent magnet synchronous motor
Motor type	Rear-mounted rear-wheel drive
Drive type	Integral type, load capacity 3.5T
Front axle	Integral type, load capacity 5.0T
Rear axle	6.143
Speed ratio	Less leaf spring suspension, double-acting cylinder shock absorber
Suspension device	Left vertical, recirculating ball power steering
Steering system	Front and rear drum, dual-circuit air brake, self-adjusting arm, ABS
Braking system	Spring energy storage parking brake
Parking brake	215/75R17.5 16PR
