Product Overview
Description

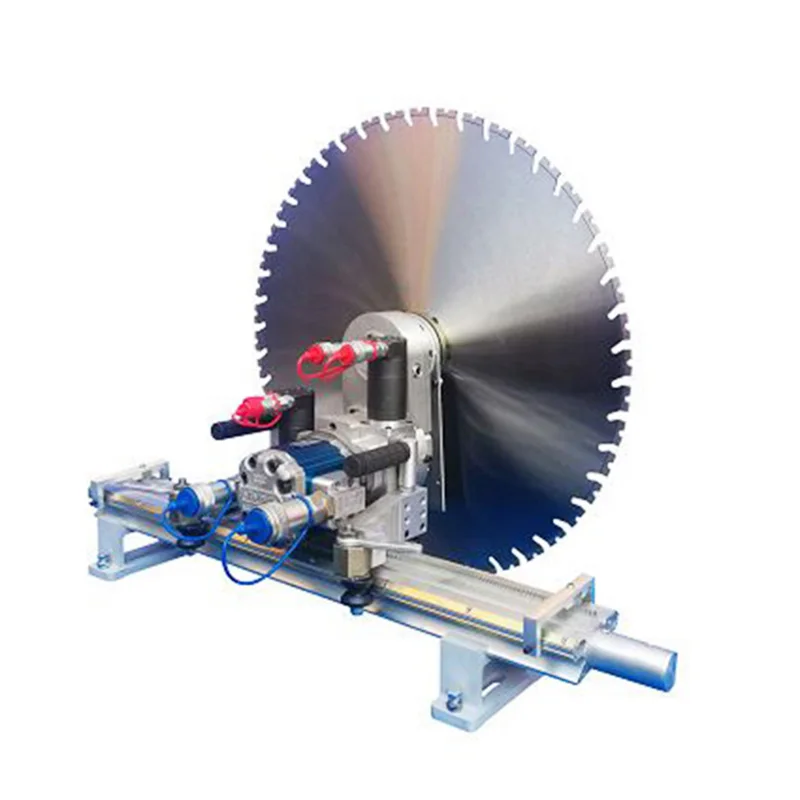

Wall Saw Machine
high efficiency electric wall saw is mainly used for cutting concrete,stone,rock, wall,road,bridge etc.
1.It can cut wall,doors,windows,elevator holes.2.Hand held type;Semi-automatic type;Full-automatic type.
3.Special mechanical clutch protection device,safety.
4.Long service life, save maintenance cost.
Product Description

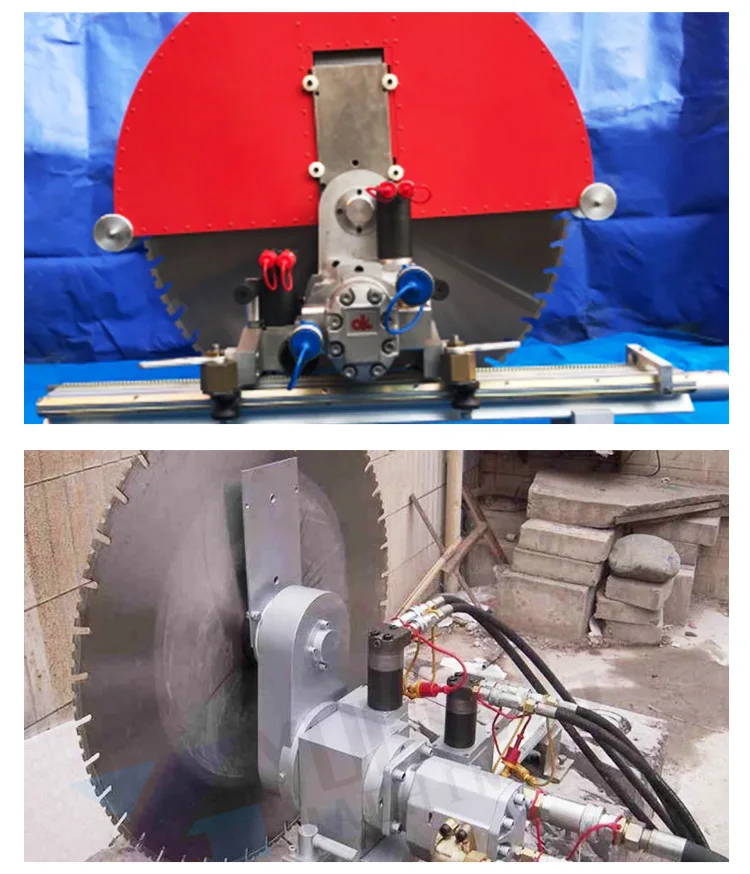

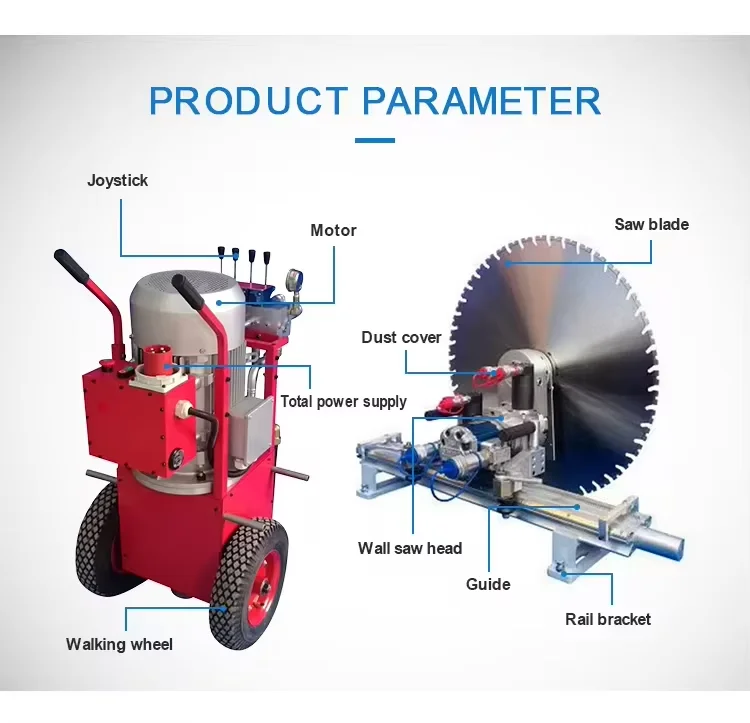

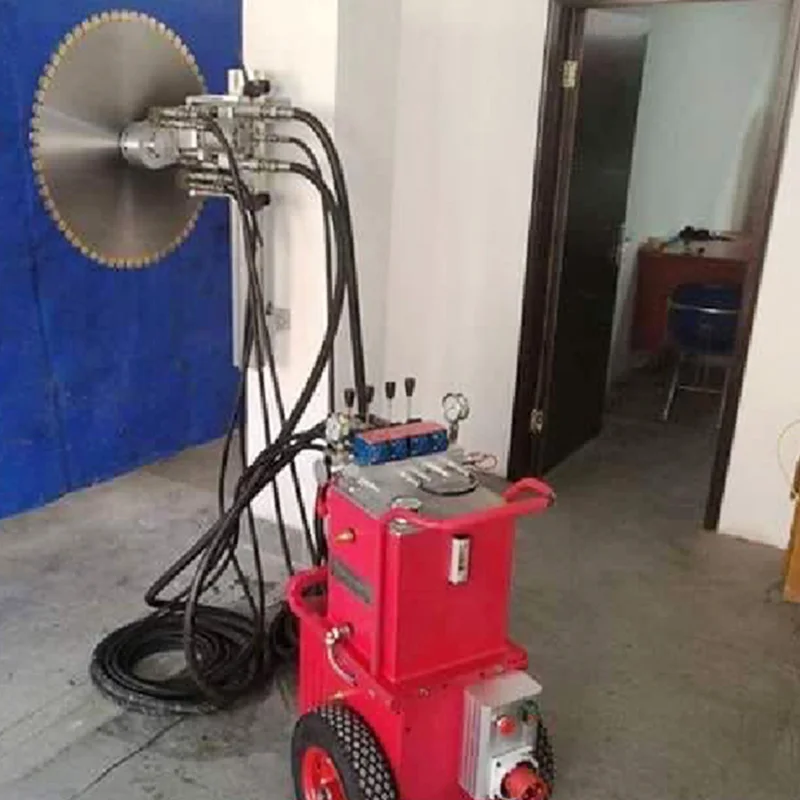

Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.
The wall cutting machine is mainly used for the renovation, reinforcement, and design of buildings or old buildings. It can cut large-area wall cuts such as door holes, windows or elevator holes. The structure is non-destructive and can be formed in one time, in addition to avoiding the damage of the structure of the building by the traditional master knocking construction; the time, material and manpower of drilling the circular hole-discharging method can save a lot of rest time and cost.
Main Features of Hydraulic wall sawing machine
1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage,
to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.
The wall cutting machine is mainly used for the renovation, reinforcement, and design of buildings or old buildings. It can cut large-area wall cuts such as door holes, windows or elevator holes. The structure is non-destructive and can be formed in one time, in addition to avoiding the damage of the structure of the building by the traditional master knocking construction; the time, material and manpower of drilling the circular hole-discharging method can save a lot of rest time and cost.
Main Features of Hydraulic wall sawing machine
1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage,
to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.
Specification
Hydraulic pump specifications | ||||
Model | YG-600 | YG-700 | ||
Max.power | 25KW | 30KW | ||
Motor cooling method | Air cooling | water cooling | ||
Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | ||
Pressure stages | 3 | 3 | ||
Max.operating pressure | 200bar/20Mpa | 210bar/21Mpa | ||
Oil flow rate | 30-80L/min | 40-100L/min | ||
Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | ||
Weight | 220kg | 140kg | ||
Wall saw head specifications | ||||
Model | YG-600 | YG-700 | ||
Saw blade diameter | 800-1400mm | 800-1600mm | ||
Cutting depth | 620mm | 730mm | ||
Max.working pressure | 180bar/18Mpa | 200bar/20Mpa | ||
Max.oil flow rate | 100L/min | 100L/min | ||
Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | ||
Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | ||
Weight | 38kg | 39kg | ||

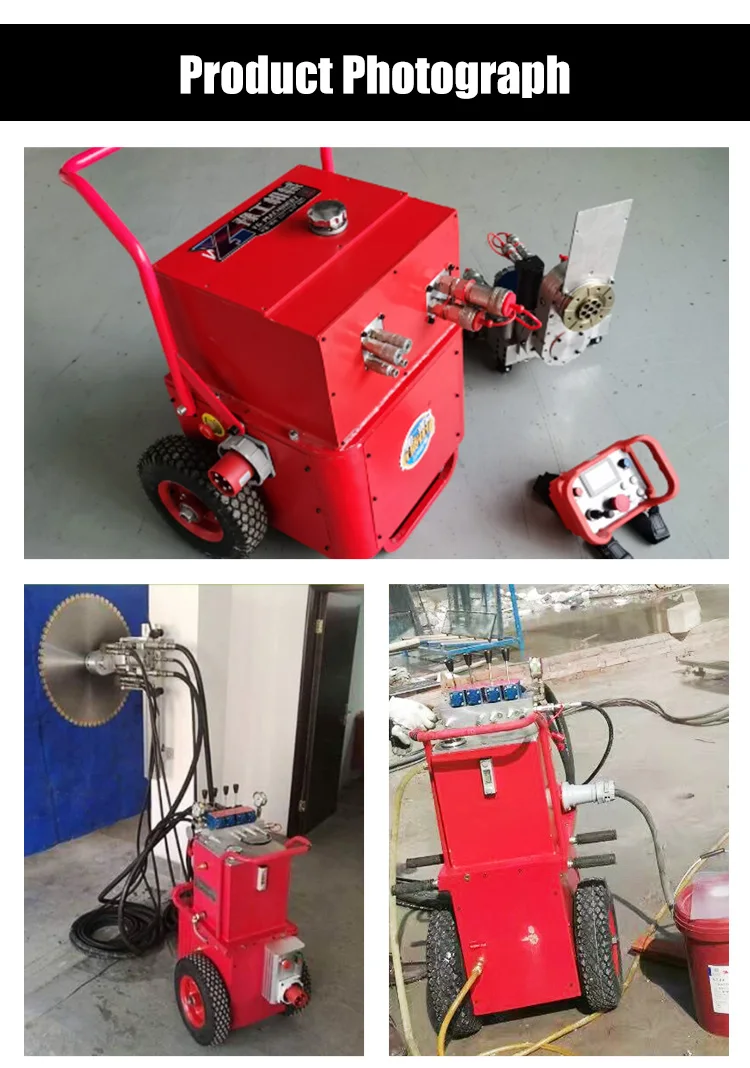

Details Images

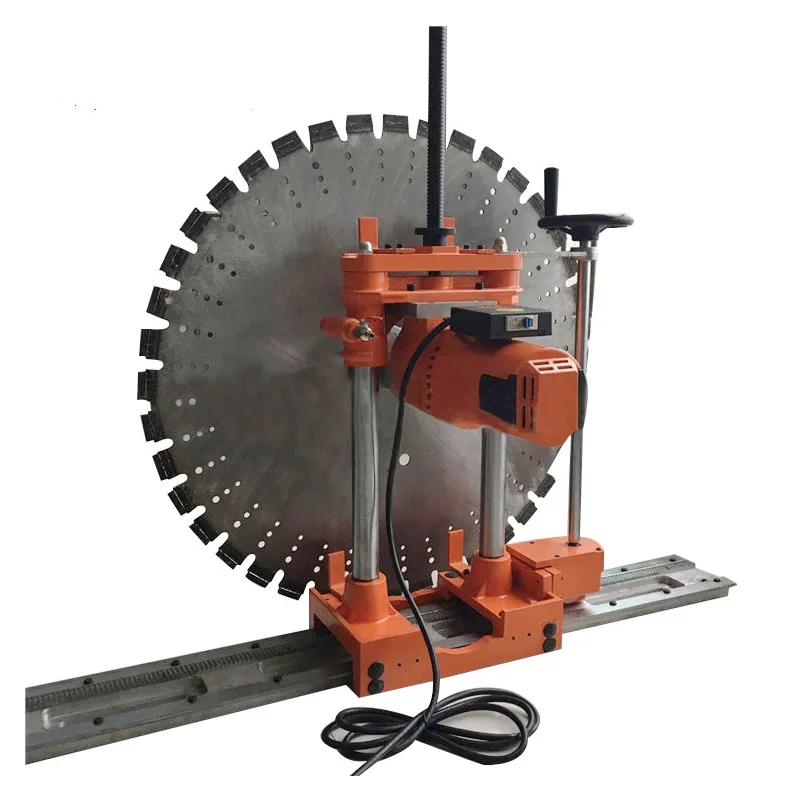

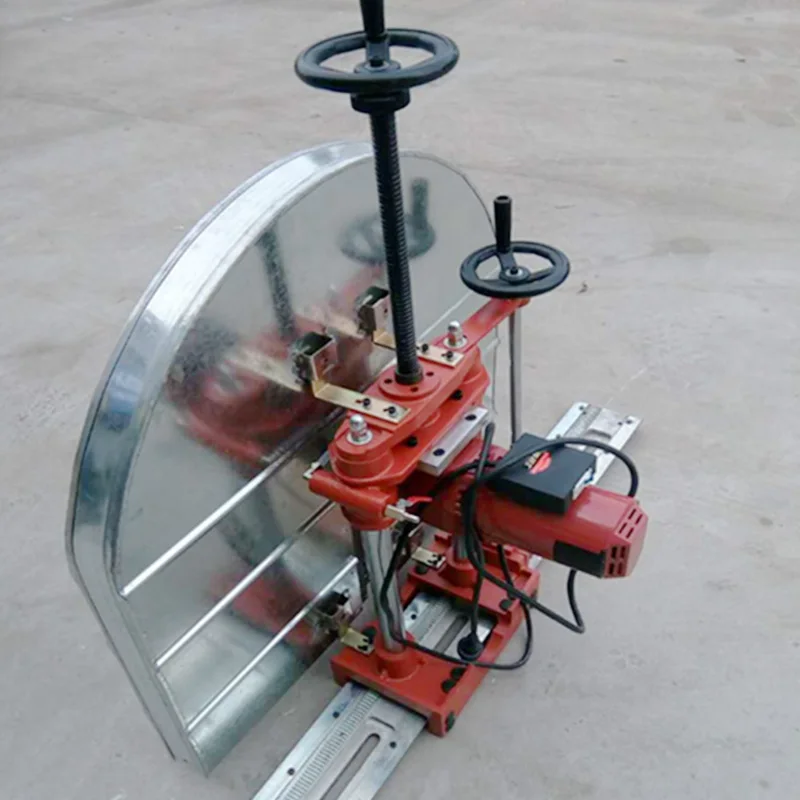

The whole set of machine inculdes:
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the saw blade and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for blade in/out, side handle is for machine movement.)
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the saw blade and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for blade in/out, side handle is for machine movement.)
