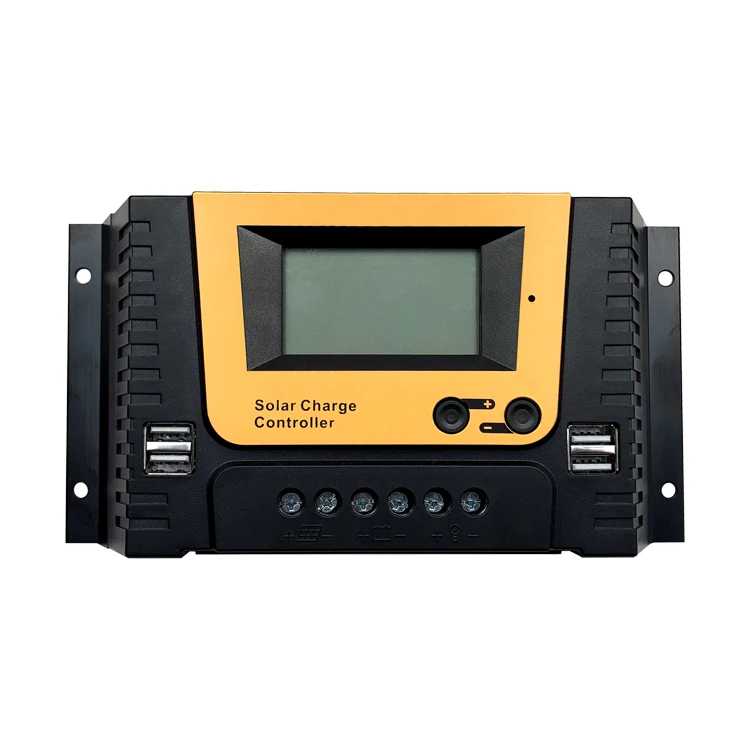

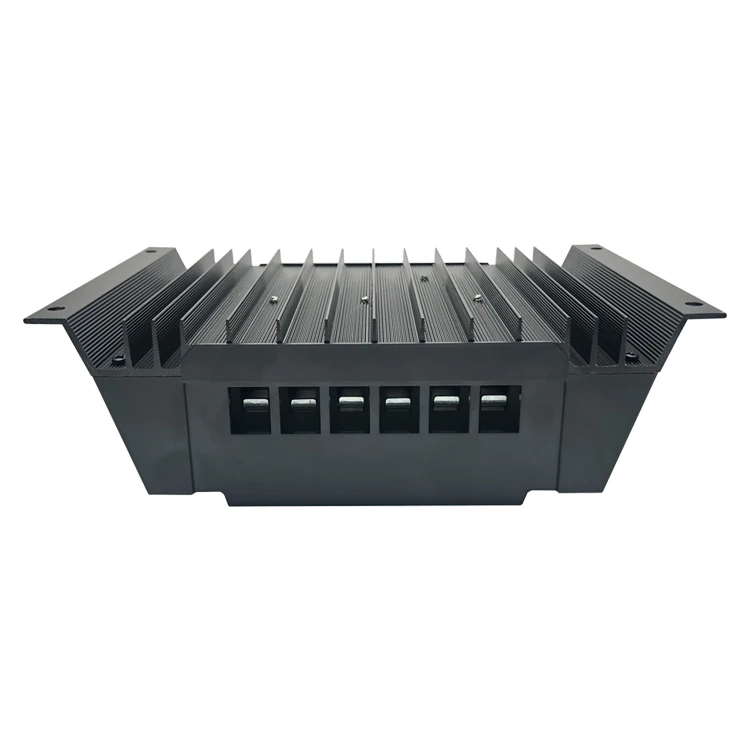

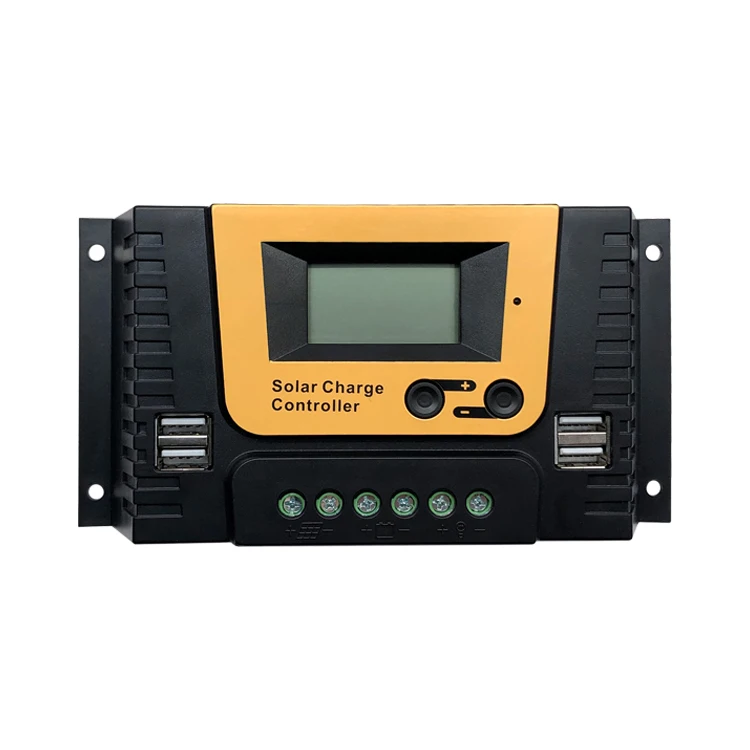

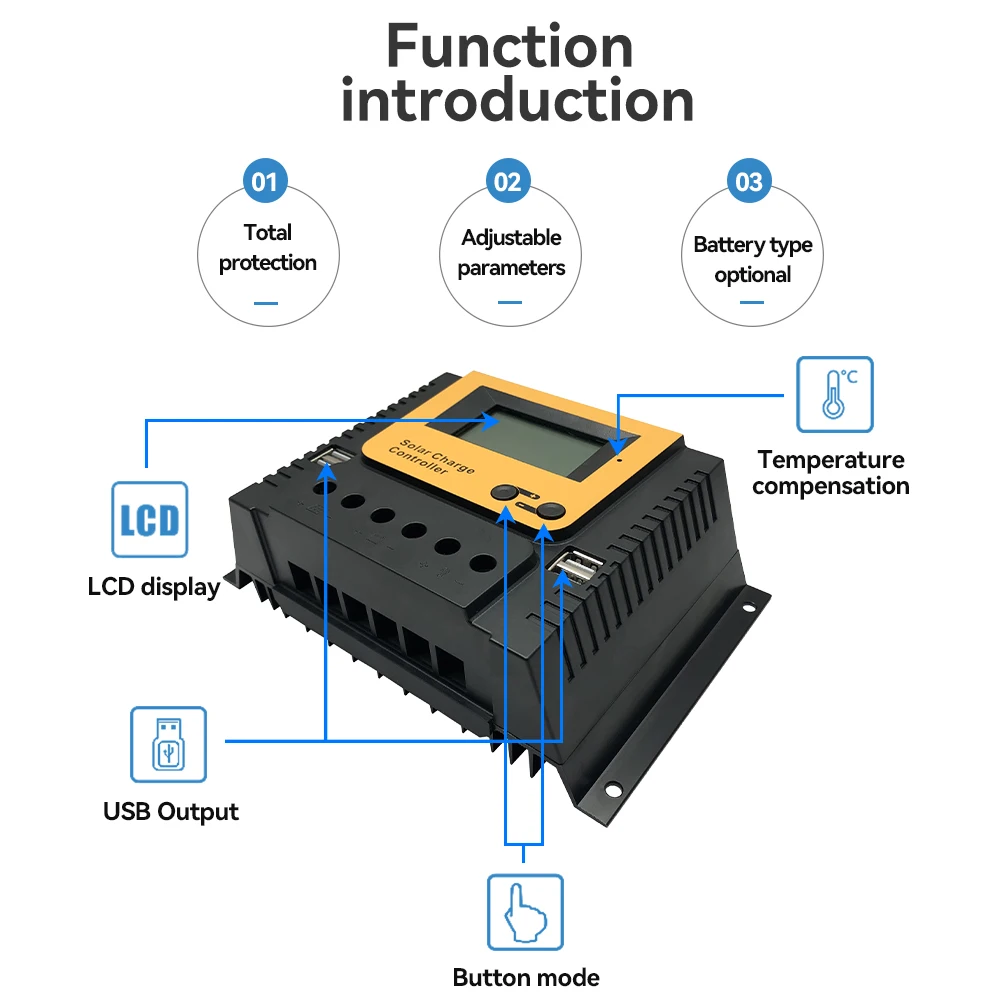

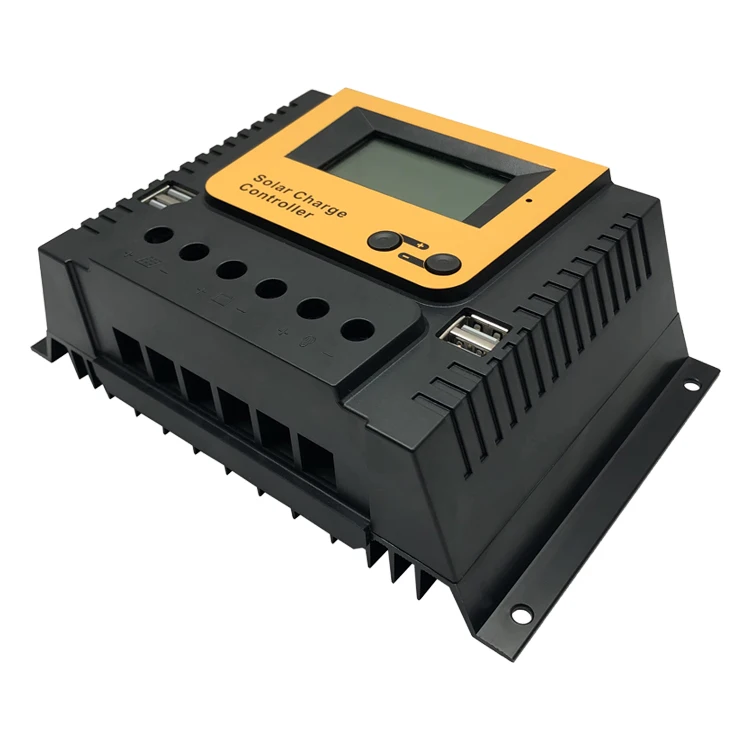

Kungf Solar PWM 50a 60a Charge Controller 12V/24V/36V/48V Auto 4 Stage Charging Work with Lead Acid Gel Lithium Battery LCD WiFi
- Category: >>>
- Supplier: Jiangxi Gongtu New Energy Co. LtdJiangxi Ltd
Share on (1601249978452):
Product Overview
Description
| Rated current | 10A/20A | 30A/40A | 50A/60A | 80A |
| System voltage | 12V/24V/36V/48V Auto | |||
| Max PV open circuit voltage | 100V | |||
| Self-consumption | ≤30mA | |||
| Loop voltage drop | ≤0.3V | |||
| USB output | 5V/2A*2 | |||
| Temperature compensation | -4mV/℃/2V(25℃) | |||
| Operating temperature | -20~50℃ | |||
| Protecting class | IP32 | |||
| Humidity | 95%,no condensation | |||
| Ternimals | 8AWG/10mm² | 6AWG/16mm² | 8AWG/25mm² | |
| Mounting hole size | 158*68mm-φ6mm | 190*69mm-φ5mm | 190*104mm-φ5mm | |
| Dimension | 200mm*106mm*47mm | 200mm*131.6mm*61mm | 200mm*131.6mm*72mm | |
| Weight | 220g | 400g | 730g | 790g |
FAQ
Q1. Do you provide the OEM service?
A: Yes, we could accept the PCB board design, logo and color box OEM, etc.
Q2. How about your delivery time?
A: Generally, it will take around 15 days.
Q3. Can you provide samples ?
A: Yes,we can provide samples.But you have to pay for the shipping cost.
Q4. Do you test all your goods before delivery?
A: Yes, 100% test one by one before delivery
Q5. What kind of payment do you accept ?
A: We accept T/T(Wire transfer),Alibaba payment,
Q6: How do you make ourbusiness long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
