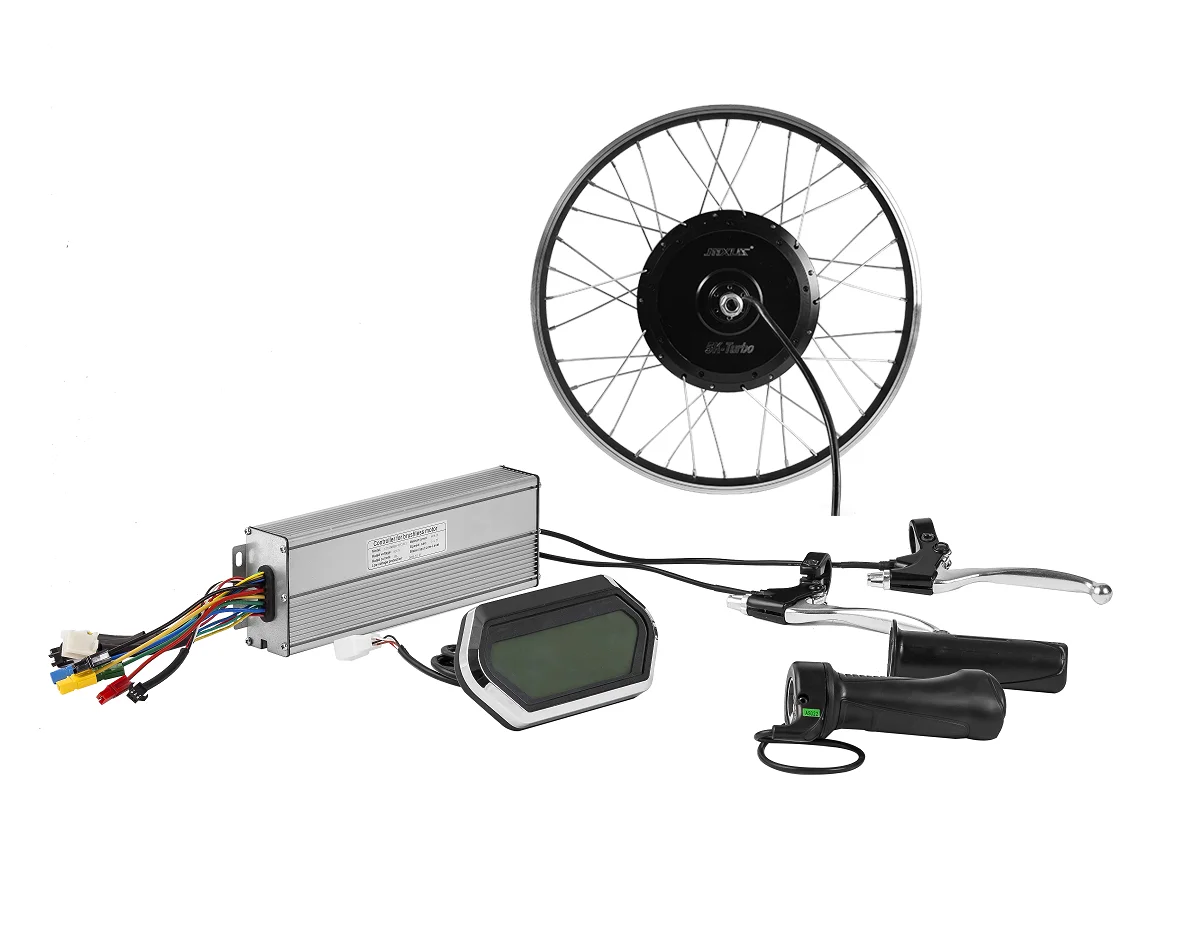

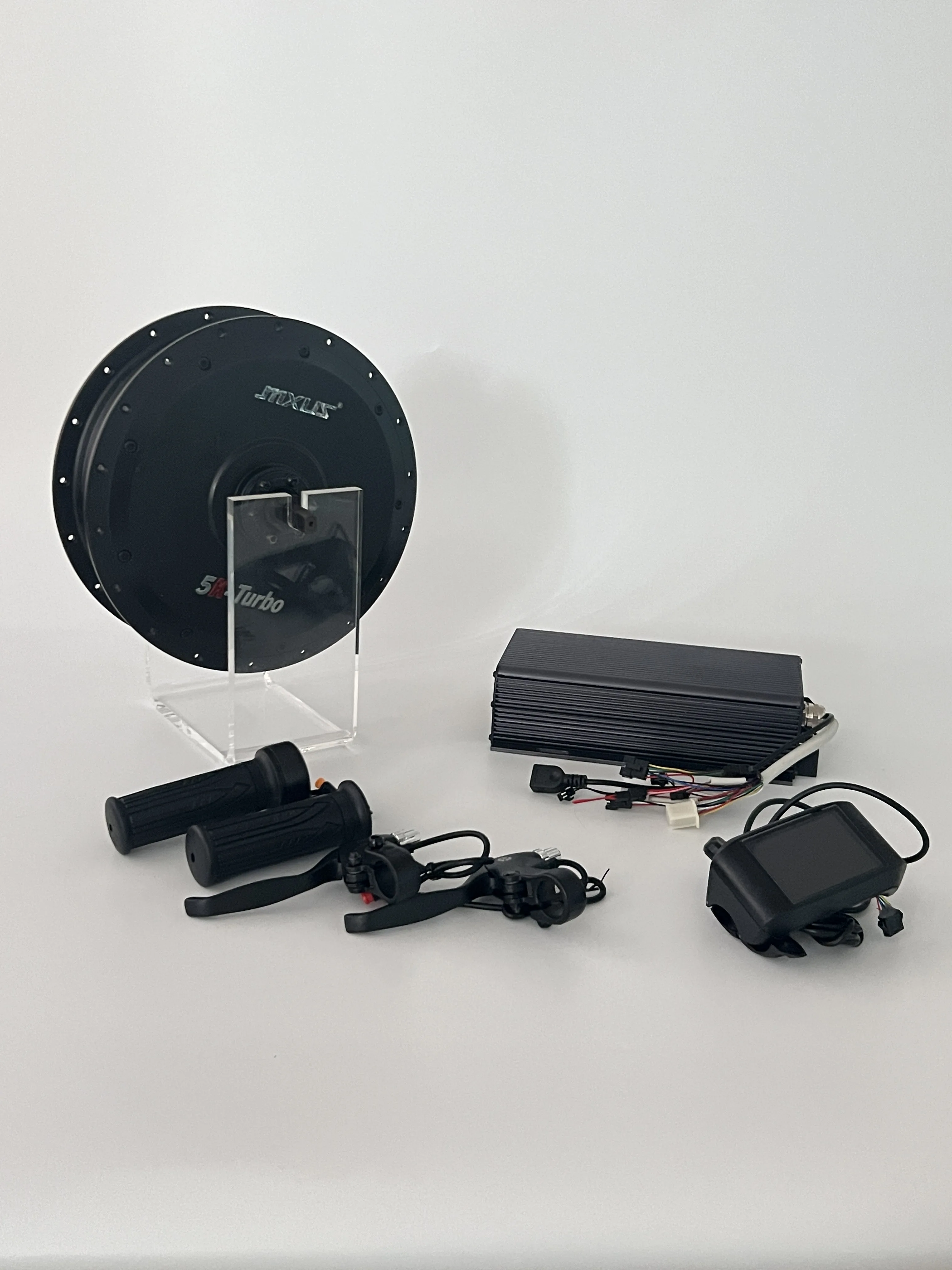

MXUS electric bicycle kit 5000W big power electric bike motor hub motor for bike
- Category: >>>
- Supplier: Changzhou Mxus Imp.&Exp. Co. Ltd.Changzhou Ltd.
Share on (1601249994539):
Product Overview
Description
Product Description

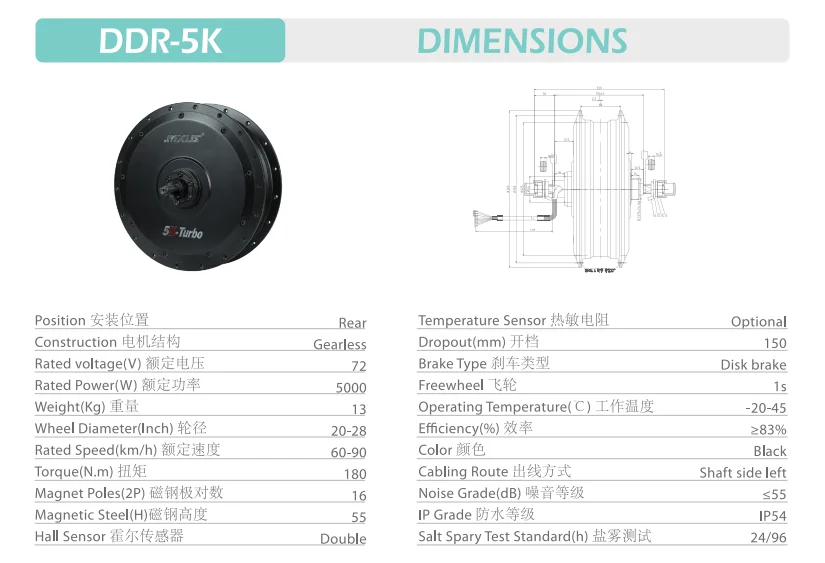

SPECIFICATION FOR FAT BIKE HUB MOTOR | ||||||
Rated Voltage (V) | 72 | Surface | Black | |||
Rated Power (W) | 5000 | Brake Type | Disc brake/V brake | |||
Wheel Size | 20 - 28 | Weight (Kg) | 13 | |||
Rated Speed (km/h) | 60-90 | Open Size (mm) | 150 | |||
Drive and Freewheel | Rear 1S | Hall Sensor | Double | |||

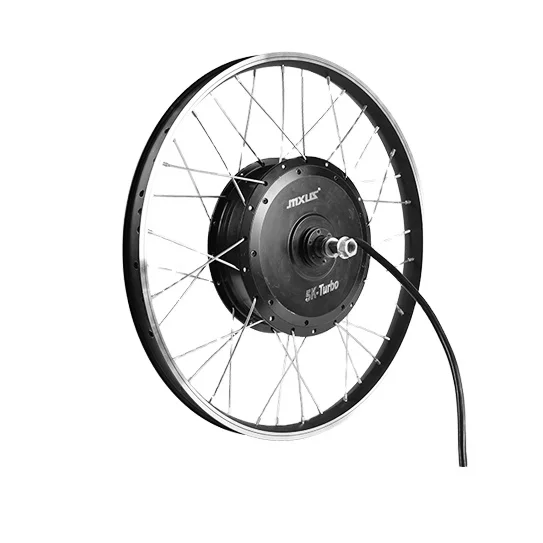

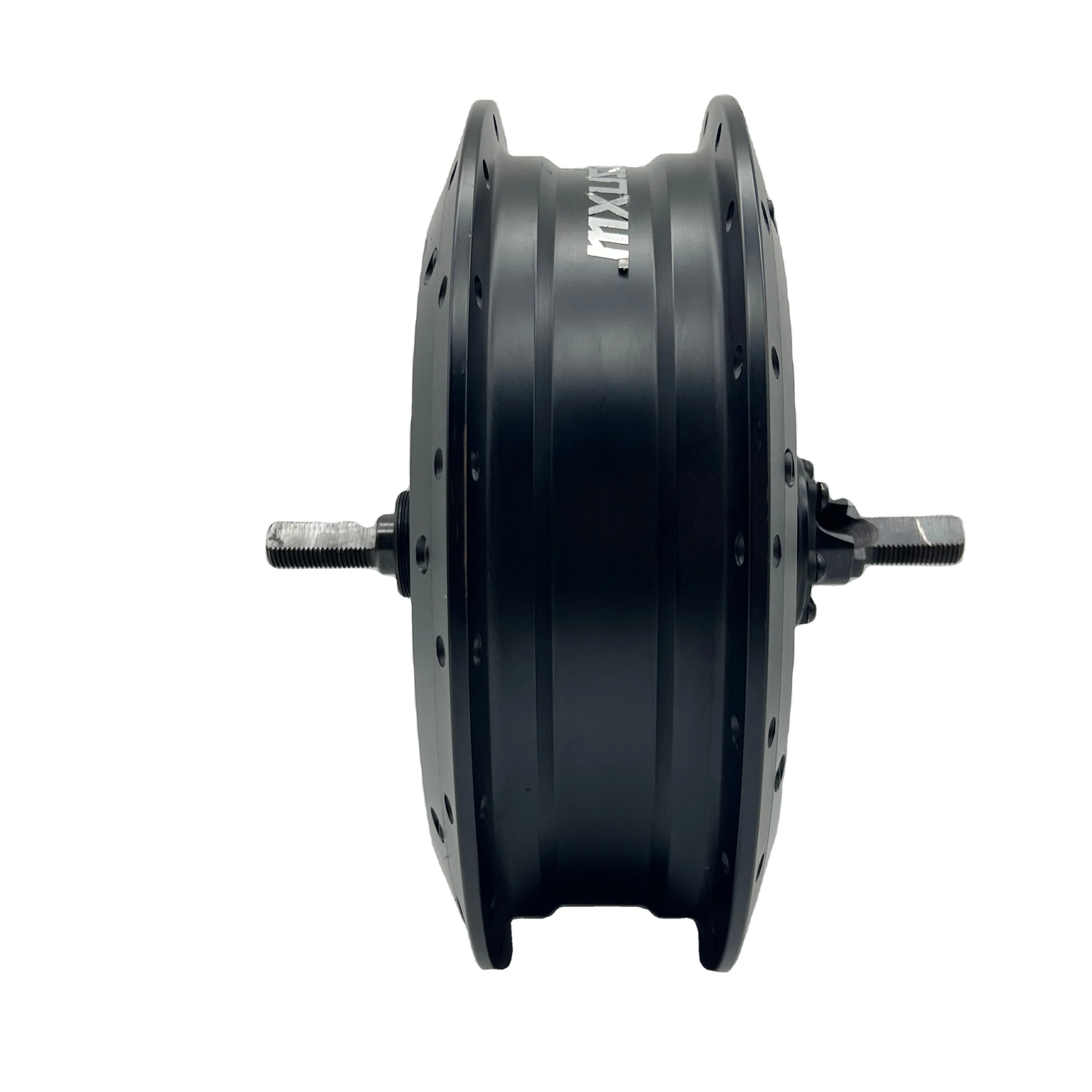

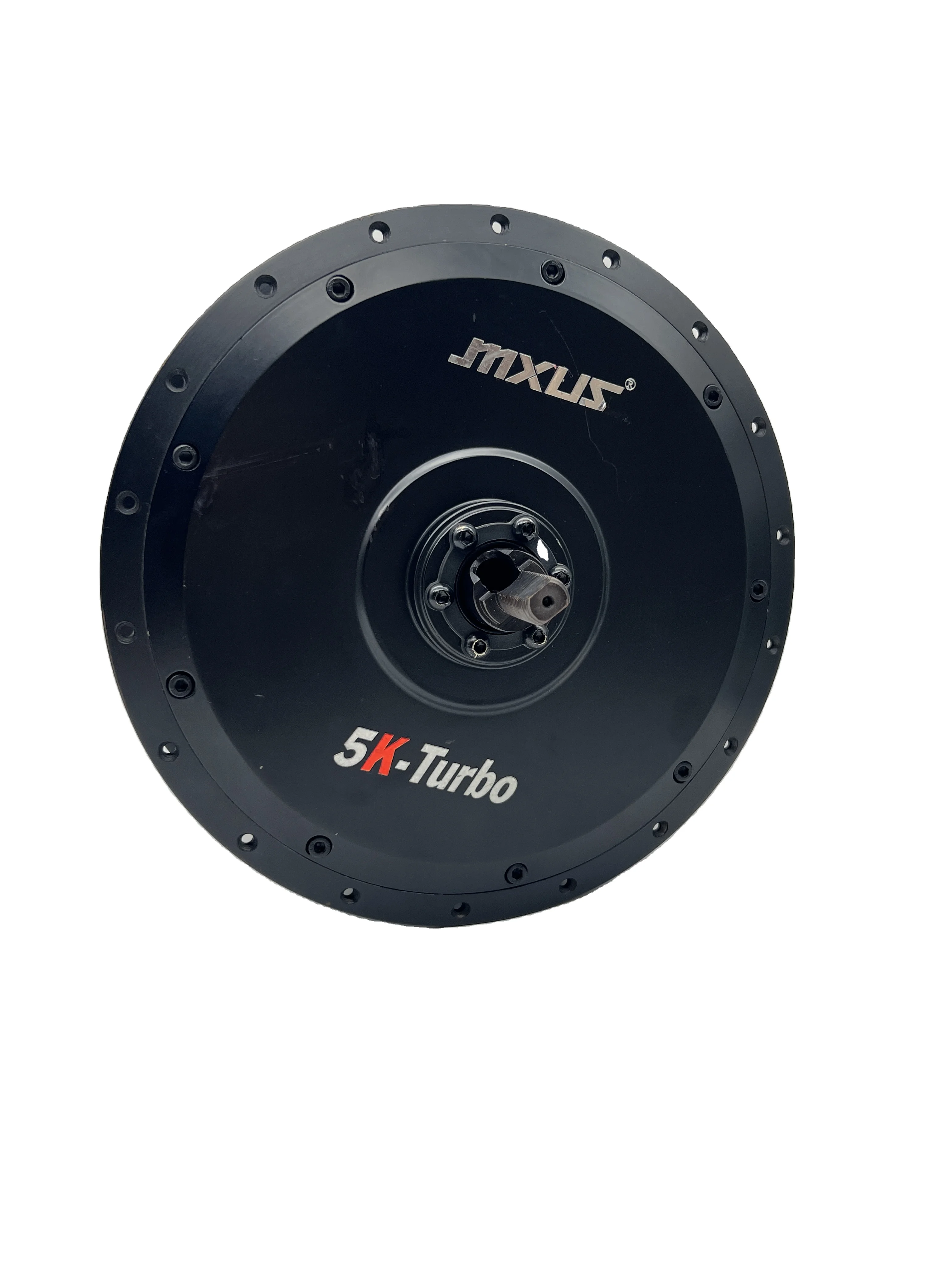

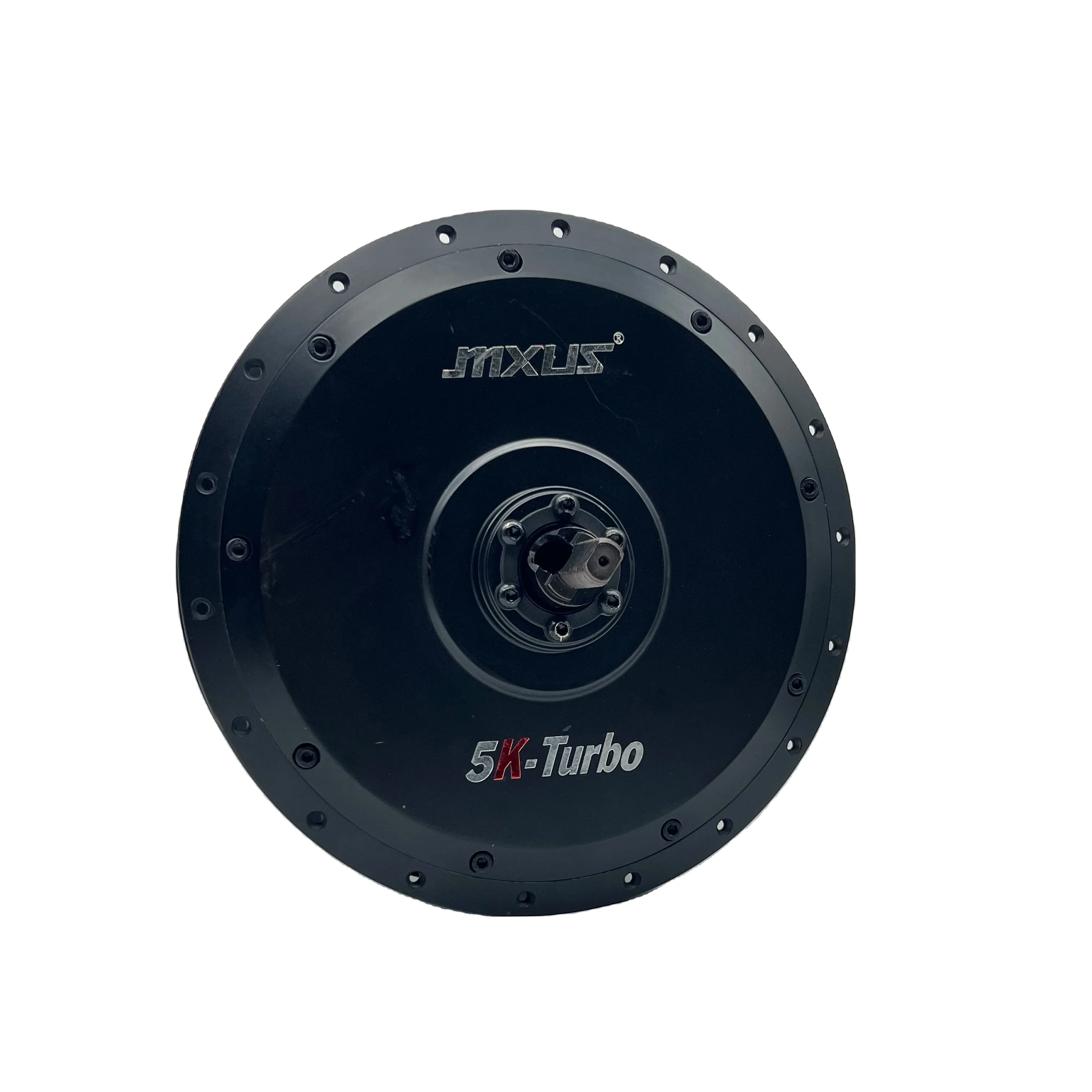

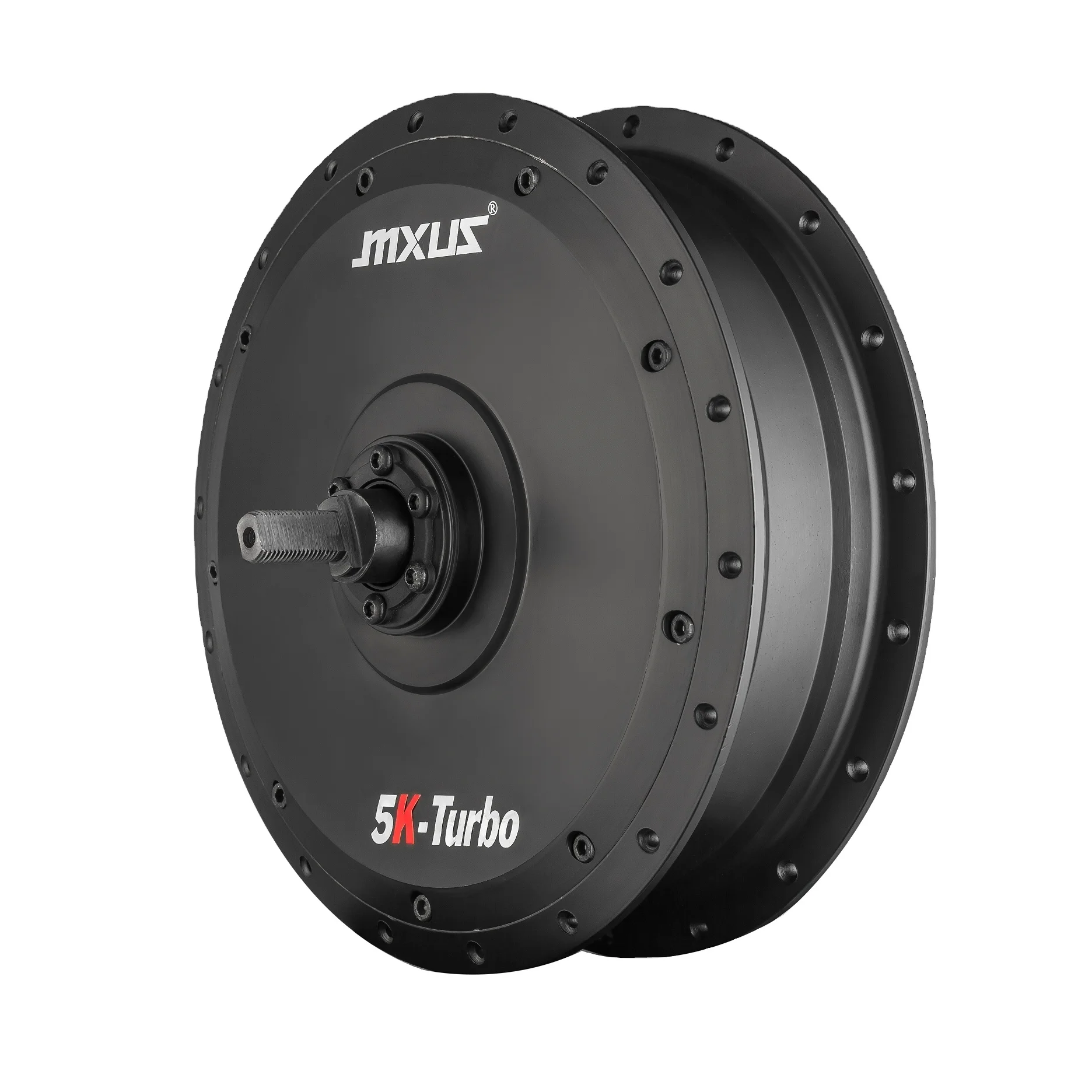

Motor | 72v 5000w Rear hub motor (Model DDR-5K) |
Laced with fat bike 35mm width rim | |
20inch-28inch available | |
V Disk/Disk brake available | |
Rated speed=60-90KM/H | |
Motor cable with waterproof connector | |
Battery | 72V 30Ah lithium ion battery |
All battery including fuse and BMS | |
Charger | AC 100V~240V 2amps smart charger |
Controller | 72V 100A intelligent brushless controller |
Throttle | Twist throttle |
Brakes | E-brakes levers or E-brake sensor for motor power cut off |
PAS | 1:1 intelligent pedal assistant system (8 points/12 points magnet) |
Display | LED /LCD Display for option |
Wiring | Waterproof harness or regular connection |
Detailed Images
LCD Options
750C LCD8S P LCD8S LCD8H
Sabvoton Controller
Accessories
Thumb Throttle & Twist Throttle
E-bus 1 with 4 waterproof connectors cable
It's used to be connected with LCD、Throttle、Ebrake
Pedal Assist Sensor
Battery Options
Packing & Delivery
Packaging | ||
Carton Size | ||
Packaging Details | 16'' : 35*35*23mm (front) 35*35*25mm (rear) 20'' : 45*45*23mm (front) 45*45*25mm (rear) 26'' : 60*60*23mm (front) 60*60*25mm (rear) 28'': 65*65*23mm (front) 65*65*25mm (rear) | |
Our Factory
Changzhou Huayu Xinfeng Motor Co., Ltd. was founded in 1995, located in Changzhou city, near Shanghai port, mainly specialized in
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
