Solar Hybrid Power Inverters 5kva 3000w 3.5kw 5.5kw 24v 48v DC to AC Inverter Built in Dual MPPT Controller for Solar System
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1601250010142):
Product Overview
Description
EPEVER KR Series 3500W 5500W Off Grid Hybrid Solar Inverter With MPPT Dual Ac Output With Parallel Function
Product Description
Technical Specifications
Model | KR3522-1250P20/C | KR3542-0650P20/C | KR5542-1050P20/C | |||
Utility Input | ||||||
Utility Input Voltage | 176VAC ~ 264VAC(Default), 90VAC ~ 285VAC(Configurable) | |||||
Utility Input Frequency | 45Hz ~ 65Hz | |||||
Max. Utility Charging Current | 110A | 60A | 100A | |||
Switch Response Time | Inverter to Utility：10ms Utility to Inverter：20ms | |||||
Inverter Output | ||||||
Inverter Rated Power（@30℃） | 3500W | 5500W | ||||
3-Second Transient Surge Output Power | 7000W | 8500W | ||||
Inverter Output Voltage | 220/230VAC | |||||
Inverter Frequency | 50/60Hz | |||||
Output Voltage Waveform | Pure Sine Wave | |||||
Load Power Factor | 0.2–1 (VA ≤ Rated output power) | |||||
THDv (@linear load) | ≤3% | |||||
Max. Load Efficiency | 92% | |||||
Max. Inverter Efficiency | 94% | |||||
Max. Main Load | 3500W | 5500W | ||||

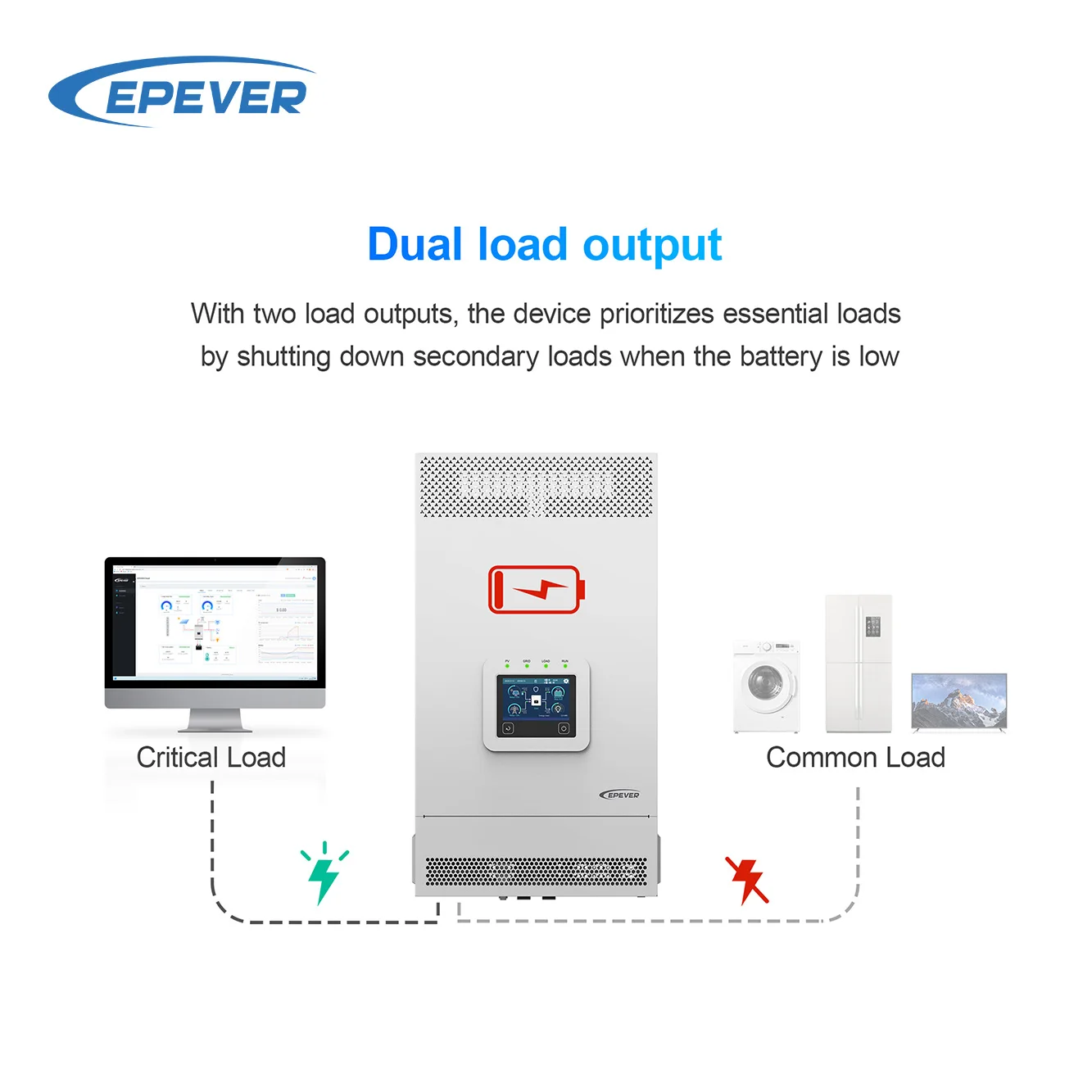

Max. Second Load | 3500W | 5500W | ||||
Main Output Cut-Off Voltage | 24.4V(Default) | 48.8V(Default) | ||||
Second Output Cut-Off Voltage | 22.2V(Default) | 44.4V(Default) | ||||
Dual Output Return Voltage | 25.2V(Default) | 50.4V(Default) | ||||
PV Input | ||||||
PV Max. Open-Circuit Voltage | 500V | |||||
MPPT Voltage Range | 85~450V | |||||
Number of MPPTs | 1 | 2 | ||||
Number of Strings per MPPT | 1 | 1+1 | ||||
Max. Input Current | 16A | 16A+16A | ||||
PV Max Short Circuit Current | 18A | 18A+18A | ||||
PV Max. Input Power | 4200W | 6600W | ||||
PV Max. Charging Current | 120A | 60A | 100A | |||
MPPT Max. Efficiency | ≥99.5% | |||||
Battery | ||||||
Battery Rated Voltage | 24VDC | 48VDC | ||||
Battery Work Voltage Range | 20.4VDC ~ 32.0VDC | 40.8VDC ~ 64.0VDC | ||||
Max. Charging Current | 120A | 60A | 100A | |||
General Data | ||||||
No-load Losses | <1.5A | <0.8A | <1.1 A | |||
Standby Current | <1.1 A | <0.6A | <0.8A | |||
Communication with BMS | RS485 | |||||
Communication with Portal | RS485 (4G/WiFi /Bluetooth) | |||||

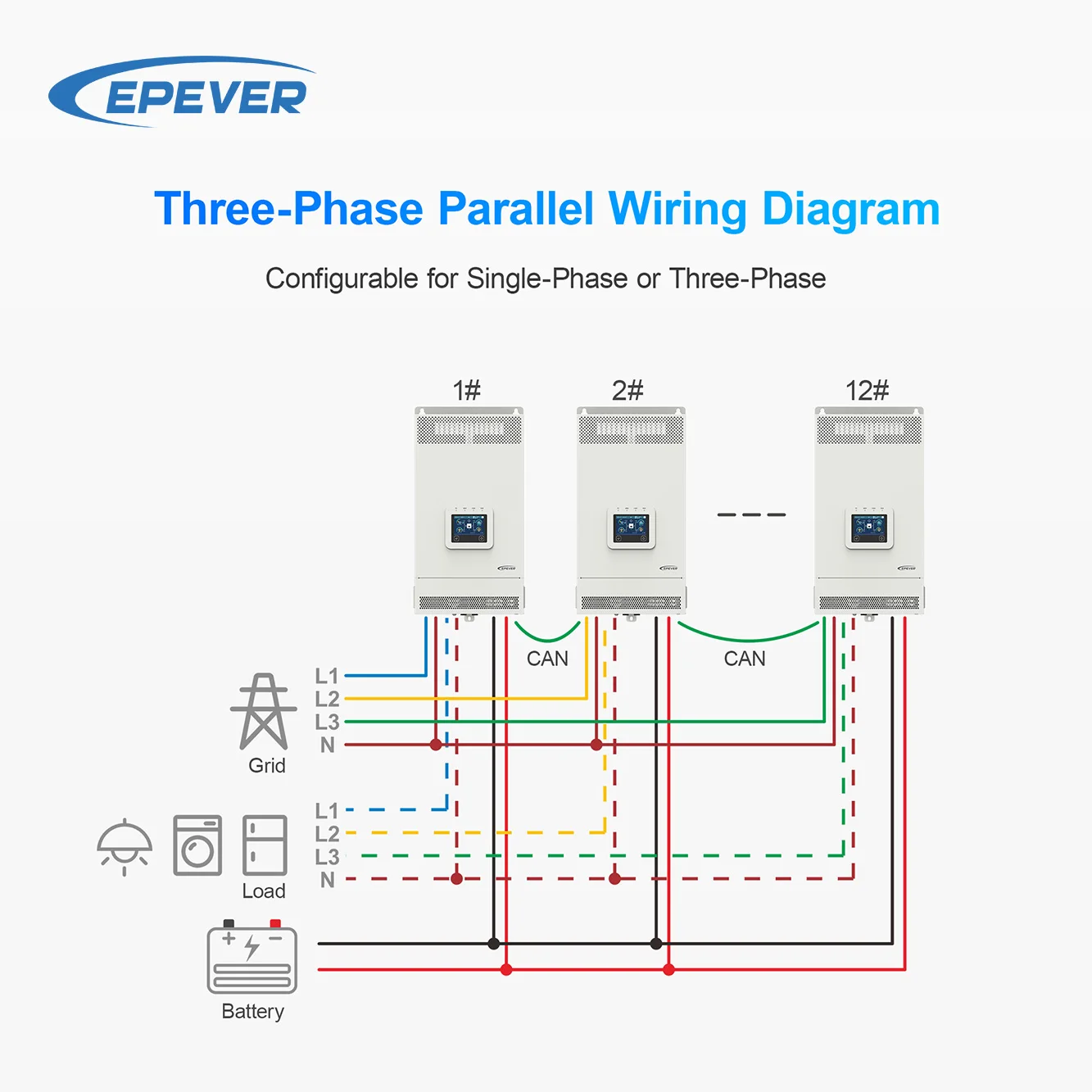

Parallel Function | Yes, Standard 12 units,Up to 16 units | |||||
Work Temperature Range | -20℃~+50℃ (>30℃ Derating) | |||||
Storage Temperature Range | -25℃~+60℃ | |||||
Enclosure | IP20(With anti-dust kit) | |||||
Relative Humidity | < 95%（N.C.） | |||||
Altitude | 4000m (>2000m Derating) | |||||
Certifications and Standards | IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368 | |||||
Dimension(Length×Width×Height) | 590mm × 300mm × 163mm | 534mm × 300mm × 163mm | 590mm × 300mm × 163mm | |||
Mounting Size(Length×Width） | 568mm × 245mm | 512mm × 245mm | 568mm × 245mm | |||
Mounting Hole Size | Φ9mm/Φ10mm | |||||
Net Weight | 13.8Kg | 12.7Kg | 15.5Kg | |||
