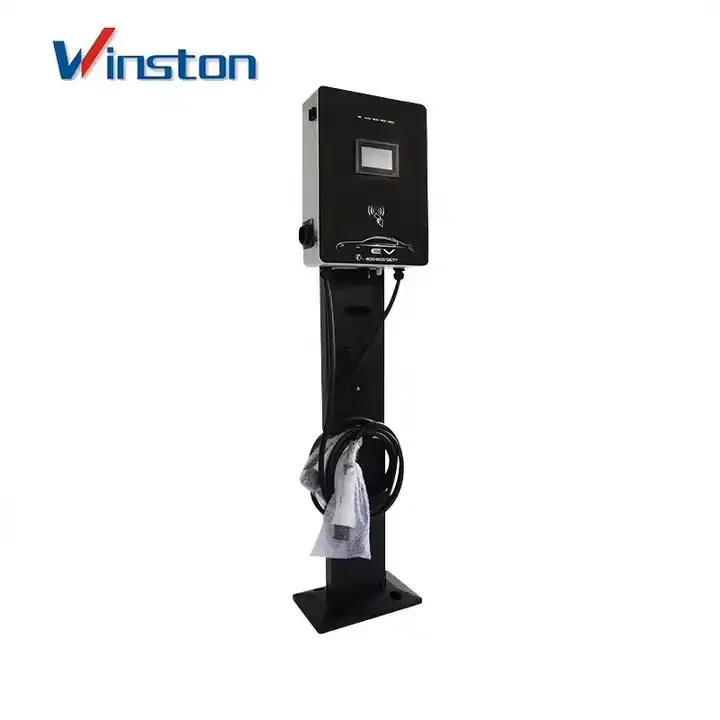

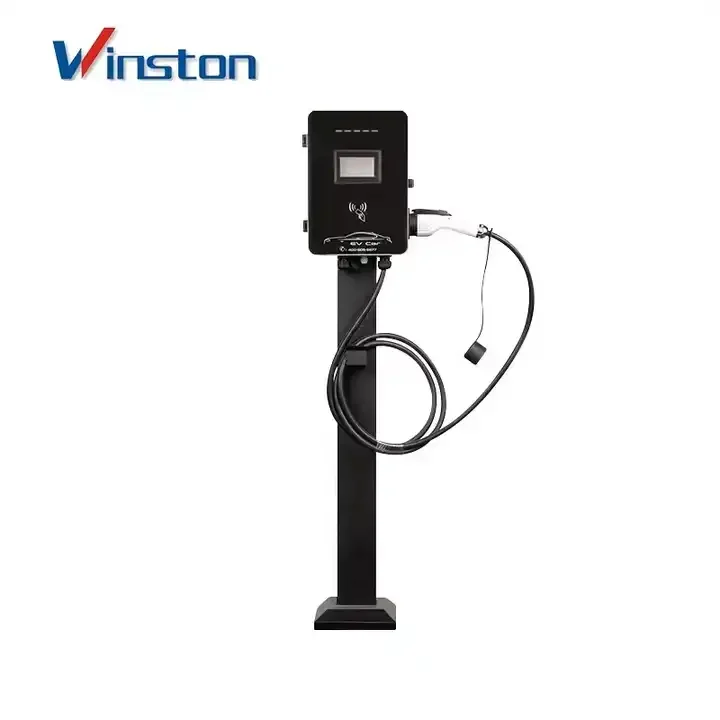

Electric car ev Charger vertical wall mounted AC charging stations 14kw
- Category: >>>
- Supplier: Yueqing Winston Electric Co. Ltd.
Share on (1601250021676):
Product Overview
Description
Product Description
Scope of application
The AC charging station provides AC 50Hz, rated voltage 220V AC power supply for charging electric vehicles with on-boardchargers, and is mainly suitable for the following places:
Large, medium and small electric vehicle charging stations;
Various public places with parking spaces for electric vehicles, such as urban residential communities, shopping plazas, and powerbusiness places;
Transportation hub areas such as high-speed service areas, stations and docks;
Real estate and project construction acceptance needs.
Large, medium and small electric vehicle charging stations;
Various public places with parking spaces for electric vehicles, such as urban residential communities, shopping plazas, and powerbusiness places;
Transportation hub areas such as high-speed service areas, stations and docks;
Real estate and project construction acceptance needs.
Features
• Provide two installation methods: column type and wall type;
• Adopt AC380V AC input;
• The main control board uses a single-chip microcomputer with an embedded operating system, and the charging mode is divided into automatic charging and charging mode
• There are four types of time, choice of charging amount, and choice of charging power. RS-485 networking can be reserved
• Communication interface, and provide optional GPRS, 4G and other networking methods.
• It adopts a 7-inch display screen and can set the charging mode (the display screen is only available in the operating version);
• Single-phase electronic electric energy meter is used for electricity metering, and communicates with the main control board through the RS-485 interface;
• Adopt non-contact smart card reader to read IC card related information and communicate with main control board through RS-485 interface,
• gnigrahc dna ,gnidrocer noitamrofni resu ,noitacitnedi ytitnedi eht smrofrep margorp dnuorgkcab draob lortnoc niam ehT
• Electricity cost calculation, etc.; the incoming switch adopts a switch with leakage protection function, and installs an emergency stop button (swiping card power
• Can only be provided for the swiping version and the operating version);
• The shape adopts sheet metal and part of ABS plastic structure.
• The main control board uses a single-chip microcomputer with an embedded operating system, and the charging mode is divided into automatic charging and charging mode
• There are four types of time, choice of charging amount, and choice of charging power. RS-485 networking can be reserved
• Communication interface, and provide optional GPRS, 4G and other networking methods.
• It adopts a 7-inch display screen and can set the charging mode (the display screen is only available in the operating version);
• Single-phase electronic electric energy meter is used for electricity metering, and communicates with the main control board through the RS-485 interface;
• Adopt non-contact smart card reader to read IC card related information and communicate with main control board through RS-485 interface,
• gnigrahc dna ,gnidrocer noitamrofni resu ,noitacitnedi ytitnedi eht smrofrep margorp dnuorgkcab draob lortnoc niam ehT
• Electricity cost calculation, etc.; the incoming switch adopts a switch with leakage protection function, and installs an emergency stop button (swiping card power
• Can only be provided for the swiping version and the operating version);
• The shape adopts sheet metal and part of ABS plastic structure.
Technical Parameters
Detailed specififications | User Interface | 7 inch highlight display |
Charging equipment | Installation method | Wall-mounted /Column type |
Way of routing | Down in down out | |
Dimensions | 480*350*120(mm)[Operation, easy, swipe] | |
Input voltage | AC380V ± 10% | |
Input frequency | 50±10Hz | |
The output voltage | AC380V ± 10% | |
Maximum output current | 32A | |
Cable length | 5m | |
Measurement accuracy | Level 0.5 | |
Electrical index | ≥11 | |
Electrical index | Current limit protection value | ≥110% |
Voltage regulation accuracy | / | |
Steady flow accuracy | / | |
Ripple coeffificient | / | |
effectiveness | / | |
Power factor | / | |
Harmonic content THD | / | |
feature design | HMI | 7 inch LCD display, LED indicator light strip |
Charging mode | Fully automatic / select charging capacity / select charging amount / select charging time | |
payment method | APP payment / credit card payment / scan code payment | |
Ethernet/2/3/4G(Optional) | ||
Safety design | Executive standard | IEC 62196, SAE J1772 |
security function | Overvoltage protection,undervoltage protection,overload protection,short circuit protection,grounding protection,overtemperature protection,low temperature protection,lightning protection,emergency stop protection,leakage protection | |
Environmental indicators | Operating temperature | -25°C~+50°C |
Working humidity | 5%~95% non-condensing cream | |
Working elevation | <2000m | |
Protection level | IP 54 | |
cooling method | Natural cooling | |
Noise control | ≤40dB | |
MTBF | 30,000 hours |
