Price:$554.00-1,156.00

Quantity:


Product Overview

Description



Overview




Products Description

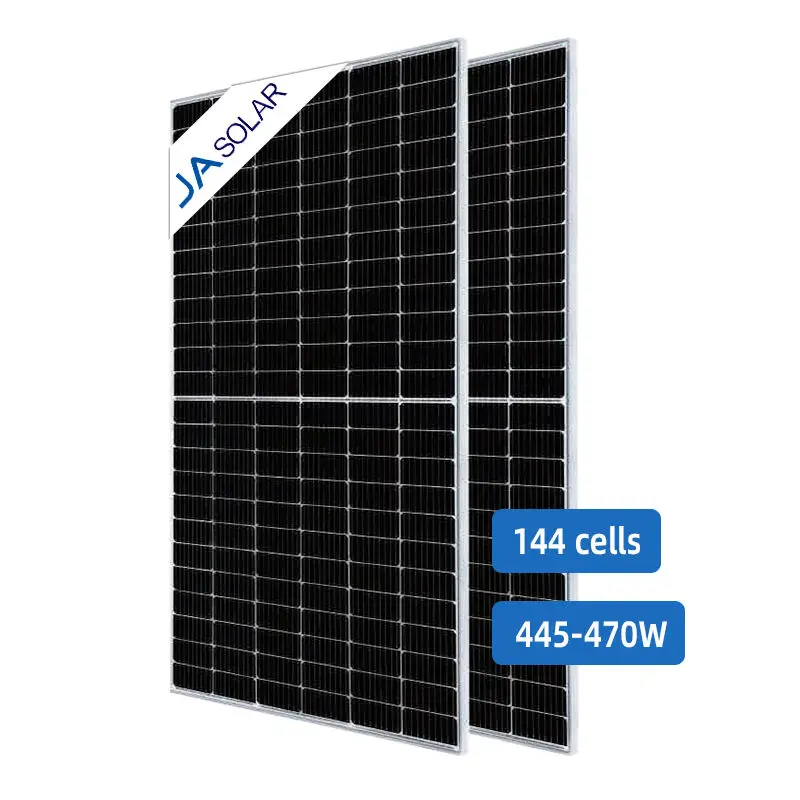

System MODEL
JAM72S20 -445/MR
JAM72S20 -450/MR
JAM72S20 -455/MR
JAM72S20 -460/MR
JAM72S20 -465/MR
JAM72S20 -470/MR
Rated Maximum Power(Pmax)[W]
445
450
455
460
465
470
Open Circuit Voltage(Voc)[V]
49.56
49.70
49.85
50.01
50.15
50.31
Short Circuit Current(Isc)[A]
11.32
11.36
11.41
11.45
11.49
11.53
Module Efficiency [%]
20.0
20.3
20.5
20.7
20.9
21.2
Weight
24.5kg
Dimensions
2112±2mm×1052±2mm×35±1mm
No. of cells
144(6×24)
Packaging Configuration
31pcs/Pallet,682pcs/40ft Container

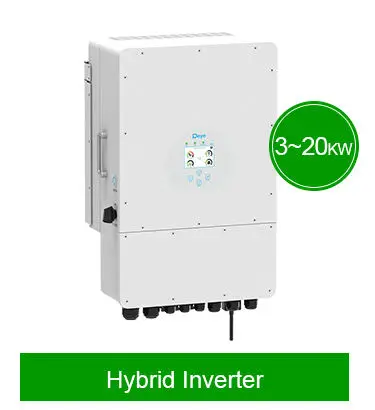

INVERTER SPECIFICATIONS
SUN-5K
-SG04LP3-EU
SUN-6K
-SG04LP3-EU
SUN-8K
-SG04LP3-EU
SUN-10K
-SG04LP3-EU
SUN-12K
-SG04LP3-EU
Max. recommended PV power (for module STC)
6500
7800
10400
13000
15600
Start voltage
160
MPP voltage range
200-650
No. of MPP trackers
2
No. of PV strings per MPP tracker
2
2+1
Full Load DC Voltage Range (V)
350-650
Output Frequency and Voltage
50/60Hz; 3L/N/PE 220/380, 230/400Vac
AC Output Rated Current (A)
7.6/7.2
9.1/8.7
12.1/11.6
15.2/14.5
18.2/17.4
Rated AC Output and UPS Power (W)
5000
6000
8000
10000
12000
Grid Type
Three Phase
Dimensions (W / H / D)
422W x 699.3H x279D
Weight
33.6

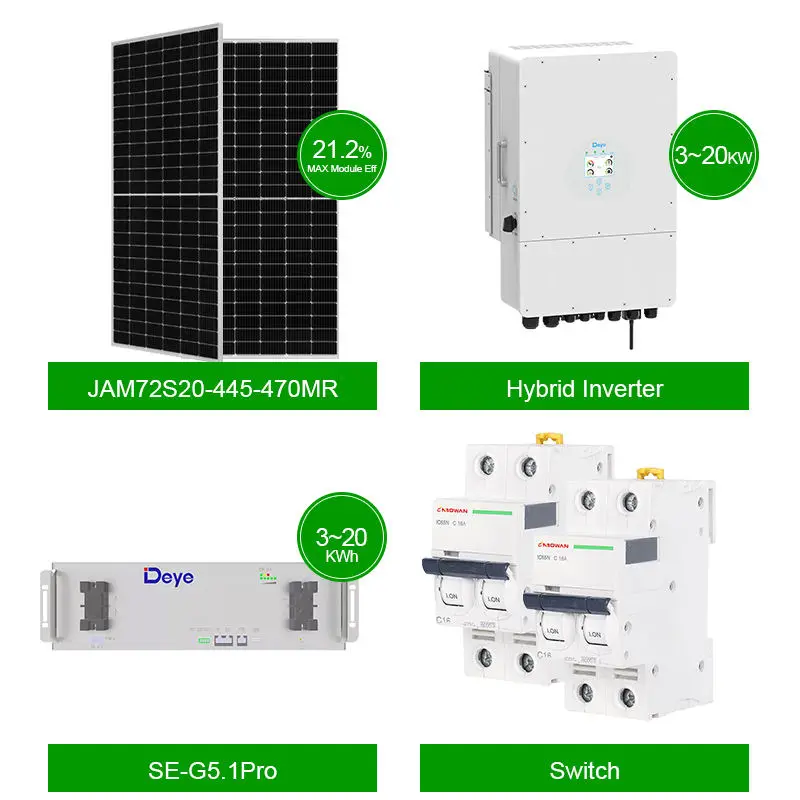

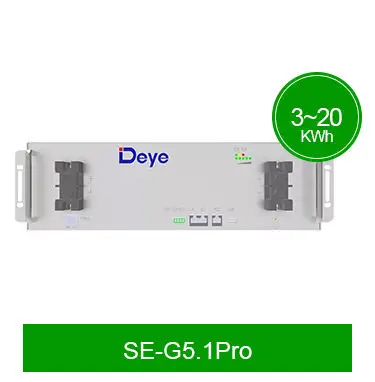

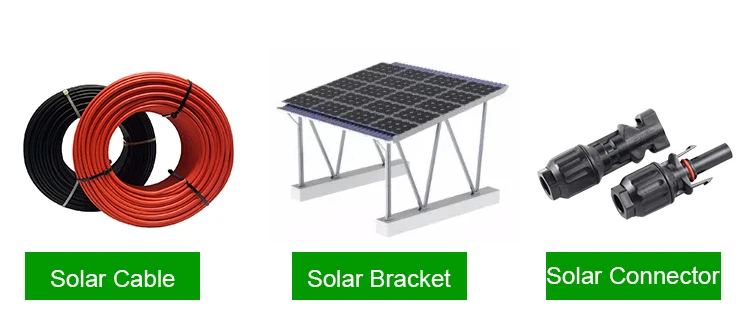

System Components






Why Choose Us






Company Profile




Changzhou Guangheng Photovoltaic Technology Co., LTD., founded in 2017, located in Changzhou City, Jiangsu Province, is committed to distributed photovoltaic power generation system equipment, wafers, photovoltaic modules, photovoltaic equipment, packaging materials sales.

We also committed to technology research and development, technical consulting, technical services, technology transfer in the field of photovoltaic; Import and export business of various kinds of commodities and technologies, as well as installation, testing and maintenance of solar photovoltaic power system .

We specialize in solar products for more than 10 years, selling original Tier 1 brand solar panels, with annual sales of more than 5GW.

We are one of the largest PV suppliers in China and ranked in the top 3 in the industry.Our warehouse area is over 50,000㎡, and we have sufficient stock for quick delivery.






Product packaging




Certifications




FAQ


Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc
Q:Where is your Manufacturer located? How can I visit there?
A:Our factory located in 501, Building 1, No. 600, Tongjiang Middle Road, Changzhou City, Jiangsu Province,China
Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
