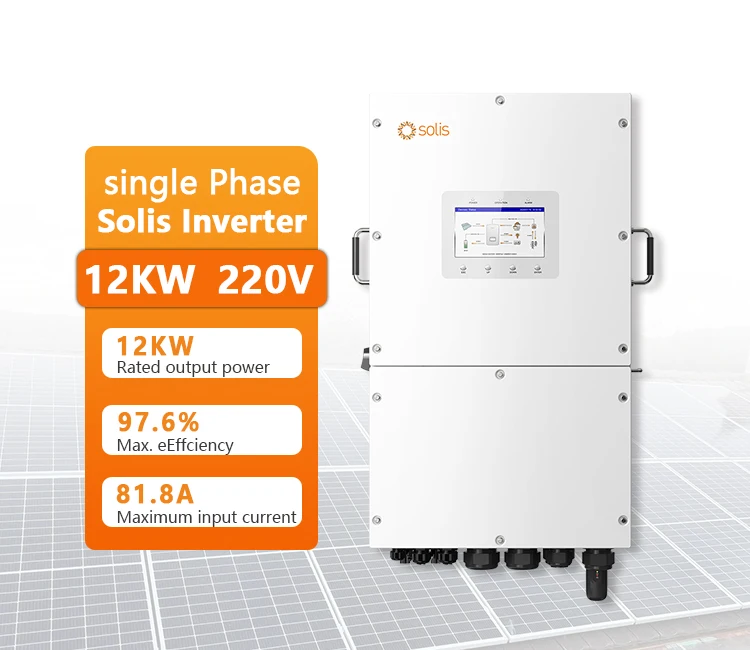

Solis Single Phase Low Voltage Hybride Solar Inverter 12kw S6 eh1p12k03 nv yd l on off Grid Inverters
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.Jiaxing Ltd.
Share on (1601250054066):
Product Overview
Description
S6-EH1P12K03-NV-YD-L | ||||||
Models | 12K | 6K | 8K | |||
Input DC (PV side) | ||||||
Recommended max. PV array size | 24 KW | 12 KW | 16 KW | |||
Max. usable PV input power | 19.2 KW | 9.6 KW | 12.8 KW | |||
Max. input voltage | 550 V | |||||
Rated voltage | 380 V | |||||
Start-up voltage | 100 V | 90 V | ||||
MPPT voltage range | 80-520 V | |||||
Max. input current | 40A/40A/40A | 32 A/32 A | ||||
Max. short circuit current | 50A/50A/50A | 40 A/40 A | ||||
MPPT number/Max. input strings number | 3/6 | 2/4 | ||||
Battery | ||||||
Battery type | Li-ion / Lead-acid | |||||
Battery voltage range | 40-60 V | |||||
Max. charge / discharge power | 12 KW | 6 KW | 8 KW | |||

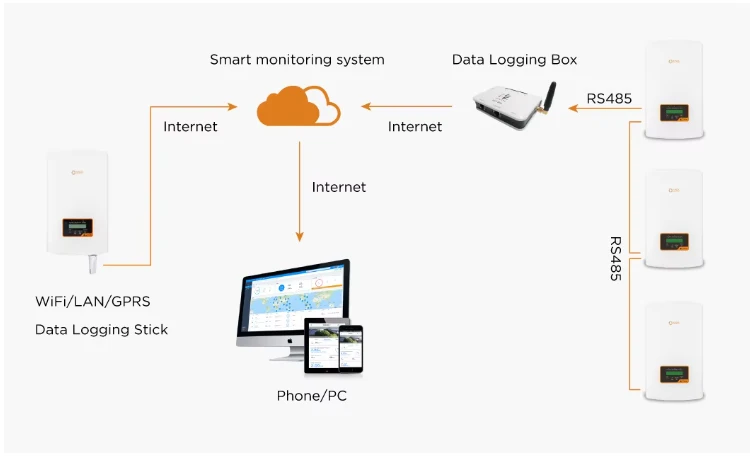

Communication | CAN/RS485 | |||||
Output AC (Grid side) | ||||||
Rated output power | 12 KW | 6 KW | 8 KW | |||
Operation phase | L/N/PE | |||||
Rated grid voltage | 220V/230 V | |||||
Rated grid frequency | 50 Hz / 60 Hz | |||||
Rated grid output current | 54.5A/52.2A | 27.3 A/26.1 A | 36.4 A/34.8 A | |||
Power factor | >0.99 (0.8 leading - 0.8 lagging） | |||||
THDi | ＜3% | |||||
Input AC (Grid side) | ||||||
Input voltage range | 187-253 V | |||||
Max. input current | 81.8A/78.3A | 40 A | 50 A | |||
Frequency range | 45-55 Hz/55-65 Hz | |||||
Output AC (Back-up) | ||||||
Rated output power | 12 KW | 6 KW | 8 KW | |||
Max. apparent output power | 2 times of rated power, 10 s | |||||
Back-up switch time | ＜4ms | |||||
Rated output voitage | L/N/PE, 220V/230 V | |||||
Rated frequency | 50 Hz/60 Hz | |||||
Max. input current | 22.8 A/21.8 A | 27.3 A/26.1A | 36.4 A/34.8A | |||
THov (@linear load) | ＜3% | |||||
Generator Input | ||||||
Max. input power | 12 KW | |||||
Max. input current | 54.5A/52.2A | |||||
Rated input frequency | 50Hz/60Hz | |||||
Efficiency | ||||||
Max. efficiency | 97.6% | |||||
EU efficiency | 97.2% | |||||
BAT charged by PV Max. efficiency | > 94.9% | |||||
General Data | ||||||

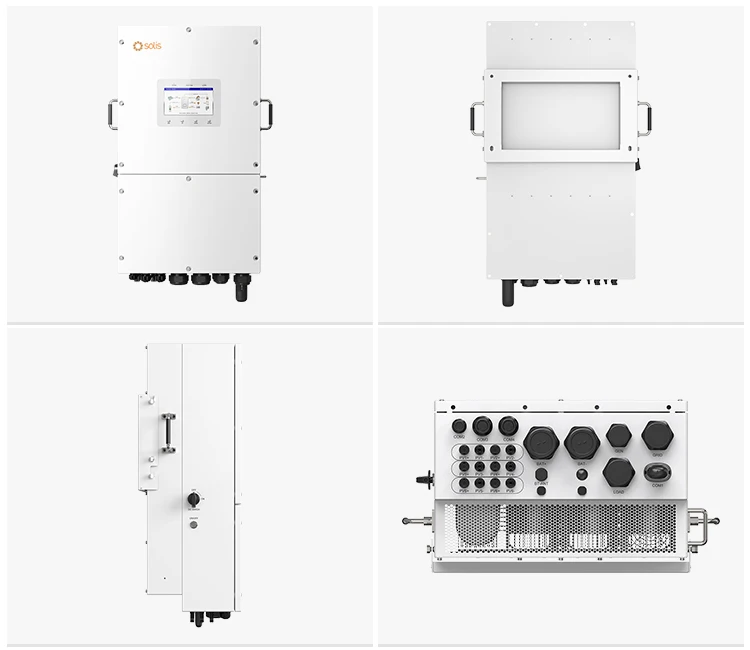

Dimensions (W"H"D) | 464*763*282 mm | |||||
Weight | 48.5kg | 22.2 kg | ||||
Operating ambient temperature range | -25 ~ +60° C | |||||
Ingress protection | IP66 | |||||
Cooling concept | Intelligent air cooling | |||||
Max. operation altitude | 4000 m | |||||
Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530. MEA, PEA, NBR 16150, IEC/EN 62109-1/-2, EN 61000-6-2/-3 | |||||
Safety/EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | |||||
