Customized Light Grey Modern Doors Kit 2 3 4 Wing Automatic Revolving Door Manufacturer
- Category: >>>
- Supplier: Guangzhou CN Electrical Equipment Co. Ltd.
Share on (1601250080025):
Product Overview
Description
Product Description

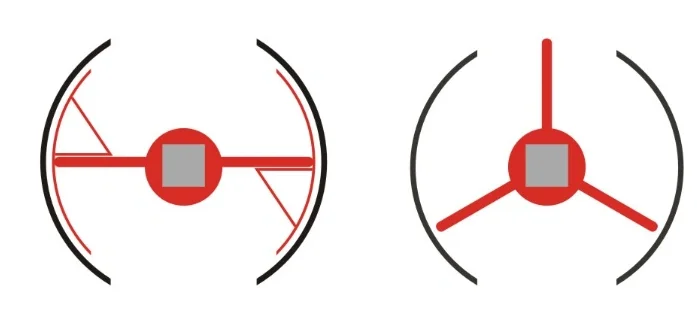

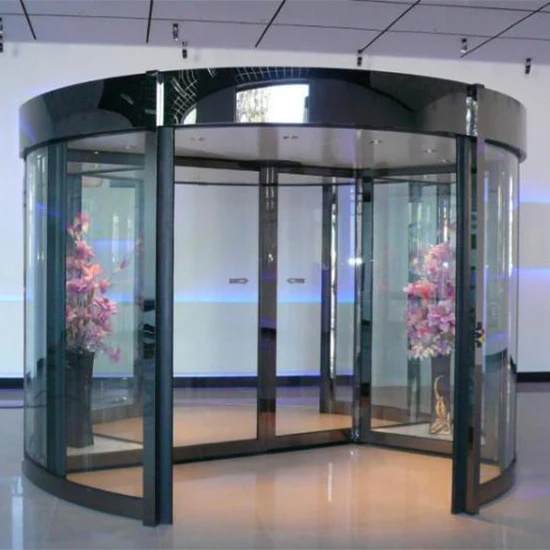

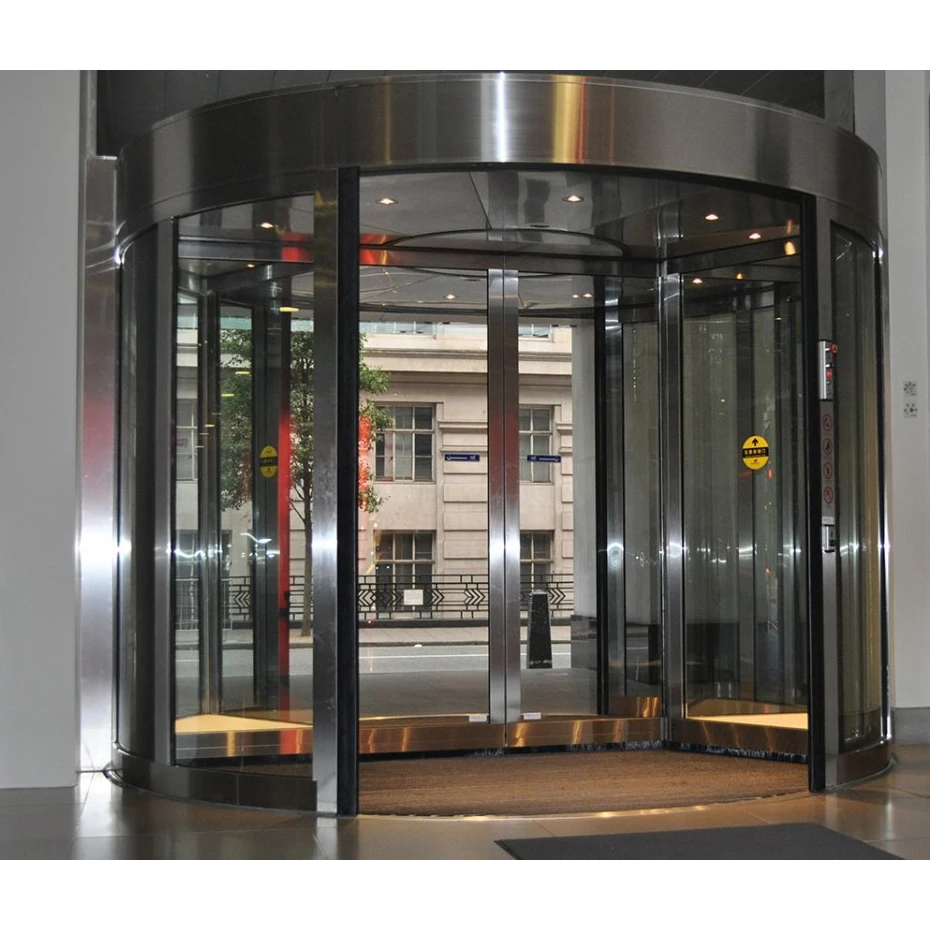

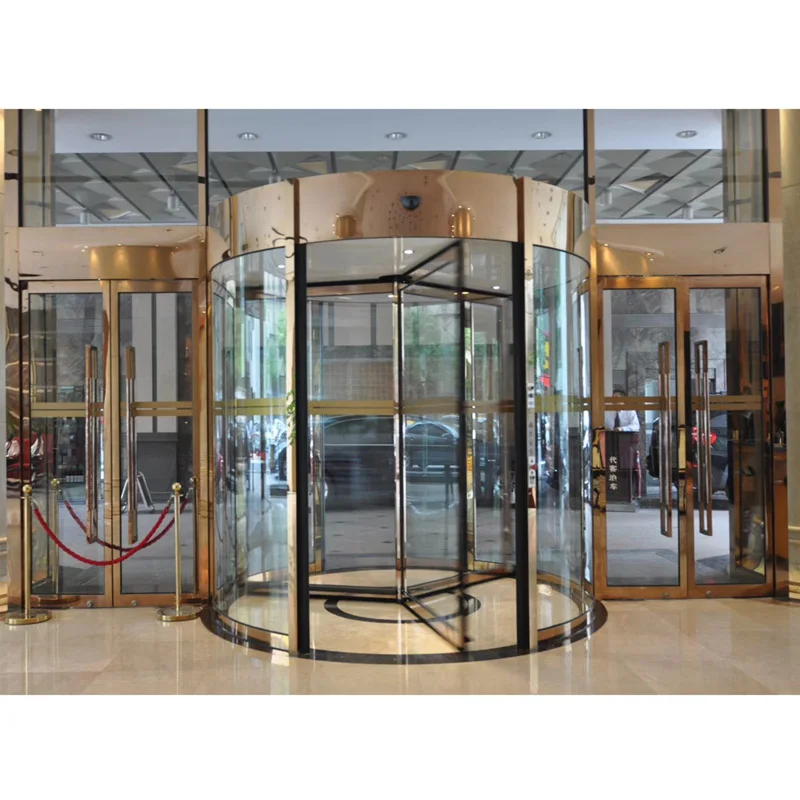

2/3/4 Wing Automatic Revolving Glass Door
Door body characteristic
High intensity holistic AL die-casting Colorful door body outside ornament: Copper, carbon spray, anode oxidation, stainless steel and so on Can choose hot bending, steel and special glass, ceiling light and the whole door keep good coordination Make plywood or metal plate for dust and rain proof Set wind proof airtight brush on the time of the door leaf Concealed ceiling top light Mechanical lock
Operation system
Full digitalization programmed controller, easy man-machine conversation operating interface, the transmission part is imported engine. Normal work: In common, the revolving door's speed is the same as walk speed to meet the person's pass through; Low speed work: When the old man, children or the handicapped person pass through, push the handicap -pped button, the speed will be half, after run one circle, it will return to the normal speed. Positioning function: Stop automatically
Color optionsAny ral color for aluminum body material
Natural eloksal for aluminum body material
Matt finished for stainless body material
Satinated finished for stainless steel body material
Mirror finished for stainless steel body materail
Matt finished for brass/bronze body material
Shiny finished for brass/bronze body material
Security systems for automatic revolving doorsPanic wings
Fire resitant glazings
Bullet resistant glazings
Security photocells
Side pneumatic bars
Foot sensors
Disabled button
Operation SystemAll digital control program system, easy and convenient operator interface. System is Panasonic original system and motor is Lenze
from Germany.
Drive System
The control part we use is the newest imported Micro-computer digital controller, motor is original Germany imported, made sure the revolving door operate silent and steady.
Safty system
Anti-squeeze function
Anti-strike function
Force-sensitive Control
Torque Control Function
Safety Relay
Panic breakout
Emergency stop
Technical Data
Power supply : 220V/50Hz
Rated current : 6A
Motor : 370W*2
Sliding door drive unit : 60W
Revolving door drive unit : 250W X 2=500W
Down lights : 40W
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Rotational Noise: <42db
Torque of door leave: <2nm
Aluminum structure: 6063-T5 High Intensity Dedicated Casting Aluminum,
Aluminum thickness≧3mm
System: Panasonic(Japan)
Glass: 4+0.76+4mm Laminated Glass
Surface treatment: #304 1.2mm Titanium Stainless Steel (Color can choose)
Ceiling: Powder coated 1.2mm Aluminum Plate
Light: Energy-saving lamp (Brand: NVC)
Dustproof Plate: 12mm Density Board,
Control Operation LCD Panel: Panasonic Digital LCD screen,display and control the operation status of the door
ID Card Reader: 1 set for each door(Install outside)
ID Card:100pcs for each door
Push Button: 1 set for each door(Install inside)
Advantages and Features
Aluminum alloy die-casting molding frame, high strength, bright color, good surface finish.
A variety of materials and colors of surface decoration available: hair lines stainless steel, mirror stainless steel, aluminum
fluorocarbon spraying, anodic oxidation, copper decoration etc.
The glass adopts laminated glass, tempered glass or special glass.
The ceiling is composed of radial wedge-shaped panels that coordinate with the material and decoration of the entire door.
Canopy made with plywood or metal plate for dustproof, outside made sealed for shower-proofing.
Energy saving, quiet, stable, long service life.
Digital program control system, easy operation.
Anti-squeeze function, anti-strike functionand and safety detection functions.
Slow speed for disabled. When the aged, children or disabled passing the door, press the disabled button, the door speed will slow
down and rotate for 1 round, after that restore their normal function.
Revolving speed automatic lifting and adjusting function. Change the sensor condition according to the weather and visitors flow rate, to save time and energy.
Company Profile

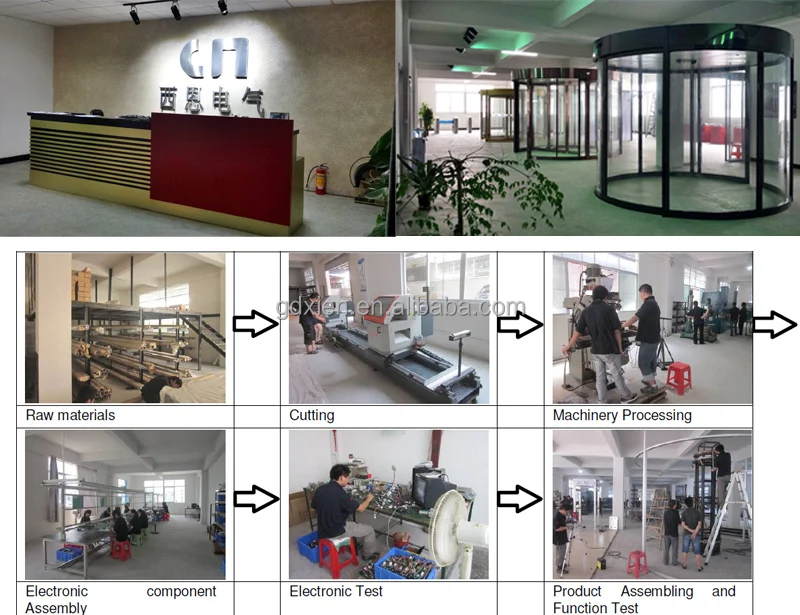

Company introduction
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens,
Phillips, and BEA etc.

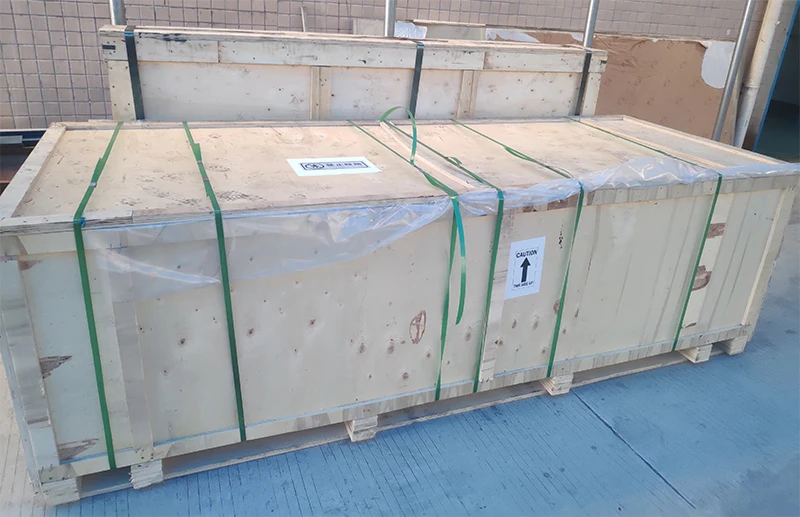

Product packaging
Why Choose Us
Movable Walls manufacturer custom-made wall partitions to meet various needs
We service all types of operable walls, room dividers and acoustical divider partitions.
Because movable partition walls are customized products. Each place has different sizes, we make steel framed operable walls and
moveable partitions of a variety of materials depending on the application for sound transmission, durability, aesthetics, cost
and function.
We listen to your goals, understand your needs, provide one-on-one private custom services, make recommendations according to your
actual situation, provide professional design and contractor to coordinate building codes, structural and electrical requirements.
Service process
1. The client provides architecture drawings and indicates the location and extent of the partitions/doors. We will make design
scheme and quotation according to the customer's site and requirements.
2. The client confirms the design scheme and quotation. We will arrange production after payment received according to agreement.
3. We will clearly mark packages and panels with numbering systems used on Shop Drawings, Packed in accordance with international
export requirements, assist the customer to contact the shipping company to send the package to the customer's designated address.
4. We will provide installation instructions and shop drawings: Show location and extent of operable partitions. Include plans,
elevations, sections, details, attachments to other construction, and accessories. Indicate dimensions, weights,conditions at
openings, and at storage areas, and required installation, storage, and operating clearances. Indicate location and installation
requirements for hardware and track, including floor tolerances required and direction of travel. Indicate blocking to be provided
by others.
5. Upon request at least two experienced installers can be sent to direct the installation, commission and operation. Related visa
application, round-trip transportation expenses, accommodation and food during installation and labor cost for our installation
specialists will be extra calculated. A construction team of 3-5 people and related scaffolding, cranes, elevator, and other
needed tools for site installation should be provided.
6. Adjust operable partitions to operate smoothly, easily, and quietly, free from binding, warp, excessive deflection, distortion,
nonalignment, misplacement, disruption, or malfunction, throughout entire operational range. Lubricate hardware and other moving
parts.
7. Delivered to the clients after confirmed all smooth operation, project perfect end.
