Hot sale MXUS 3000w 3K electric bike e bike conversion bicycle kit
- Category: >>>
- Supplier: Changzhou Mxus Imp.&Exp. Co. Ltd.Changzhou Ltd.
Share on (1601250087528):
Product Overview
Description
Product Description

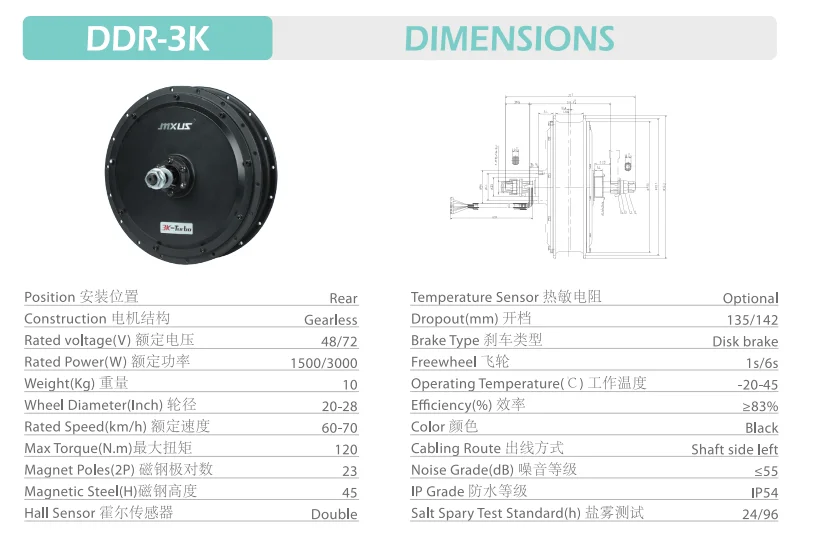

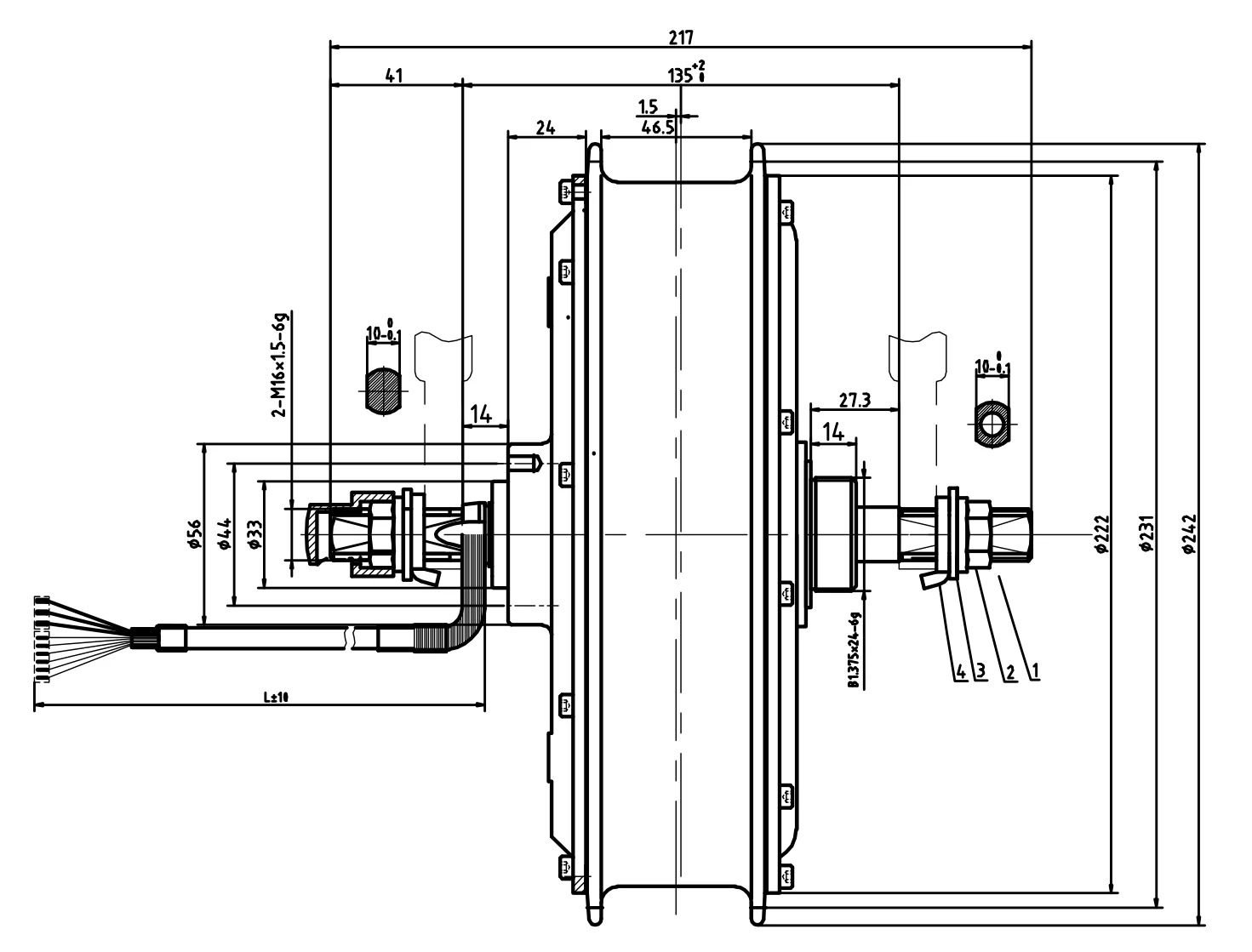

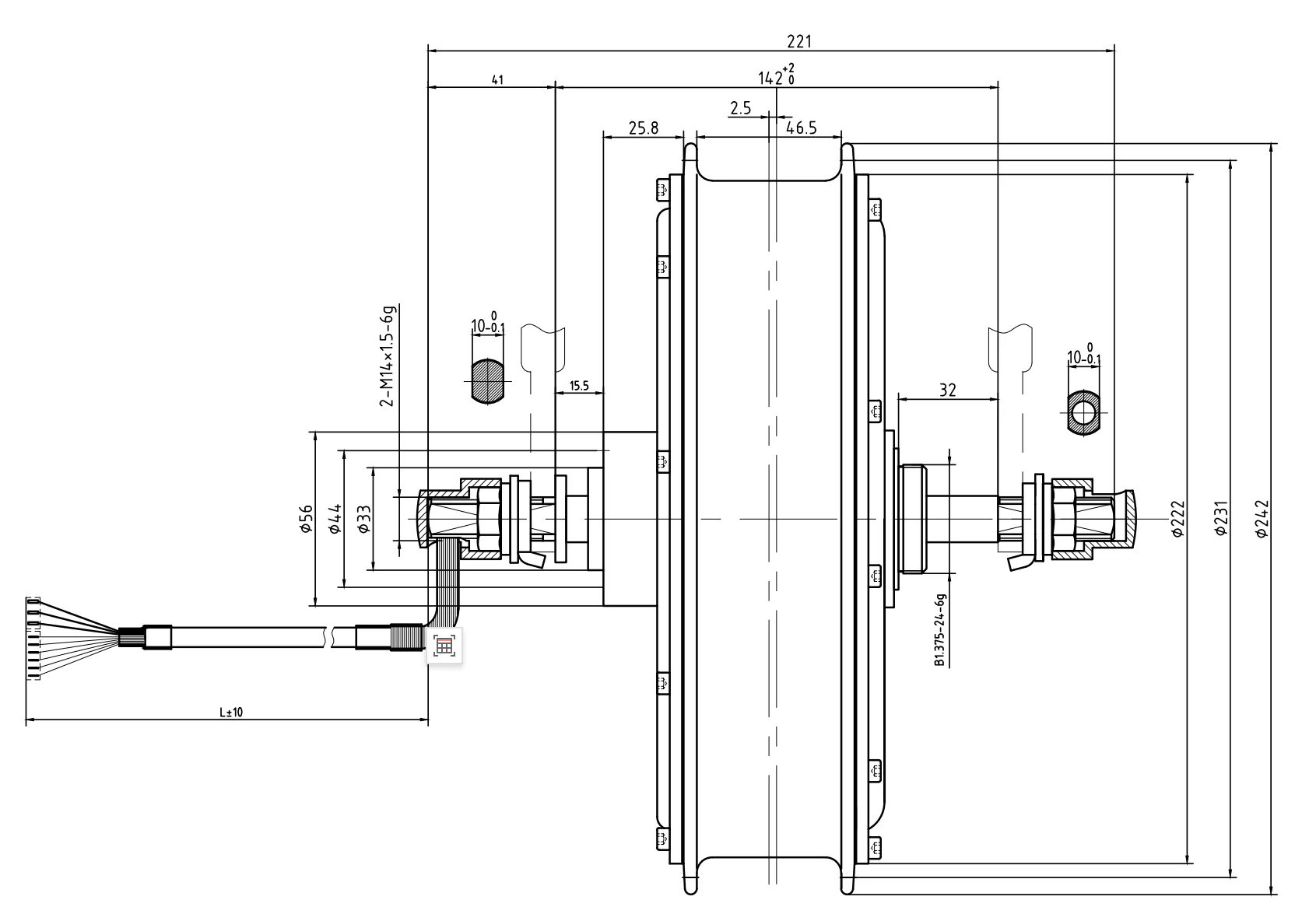

SPECIFICATION FOR FAT BIKE HUB MOTOR | ||||||
Rated Voltage (V) | 48/72 | Surface | Black | |||
Rated Power (W) | 1500/3000 | Brake Type | Disc brake/V brake | |||
Wheel Size | 20 - 28 | Weight (Kg) | 10 | |||
Rated Speed (km/h) | 60-70 | Open Size (mm) | 135/142 | |||
Drive and Freewheel | Rear 1S/6S | Hall Sensor | Double | |||

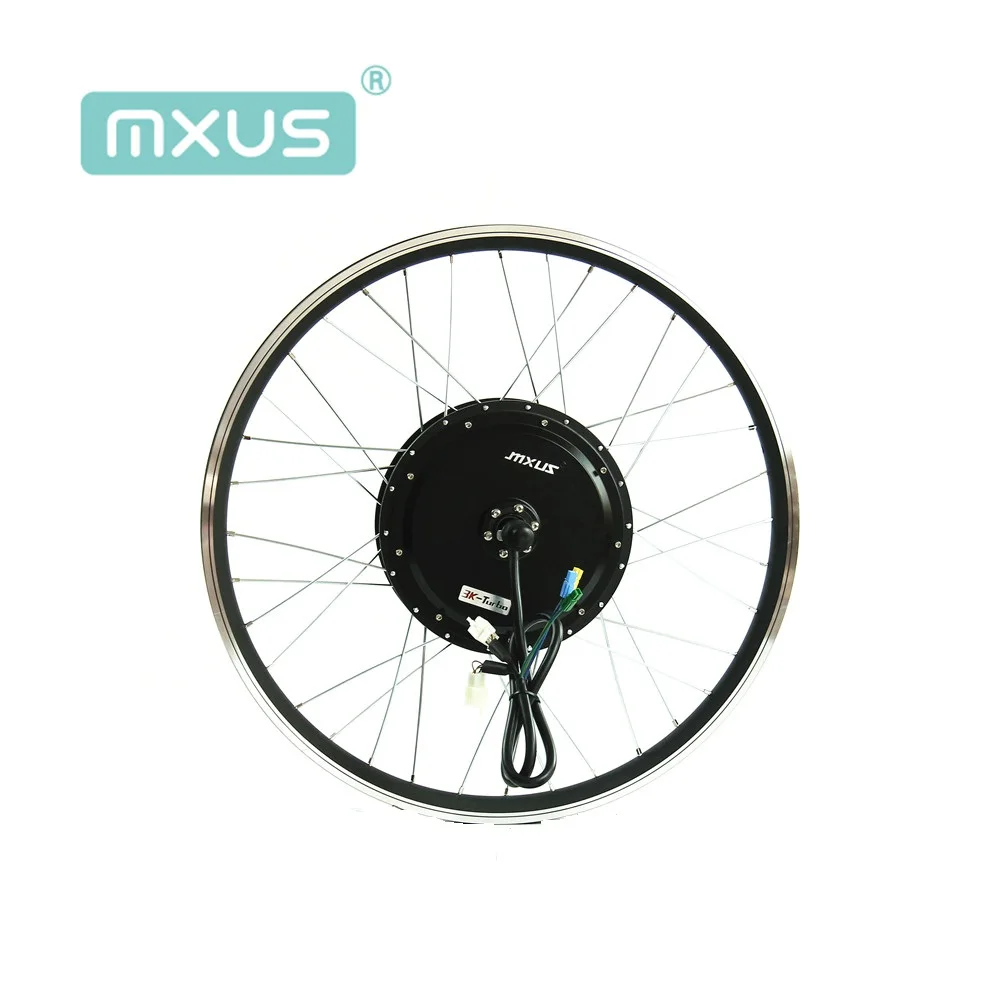

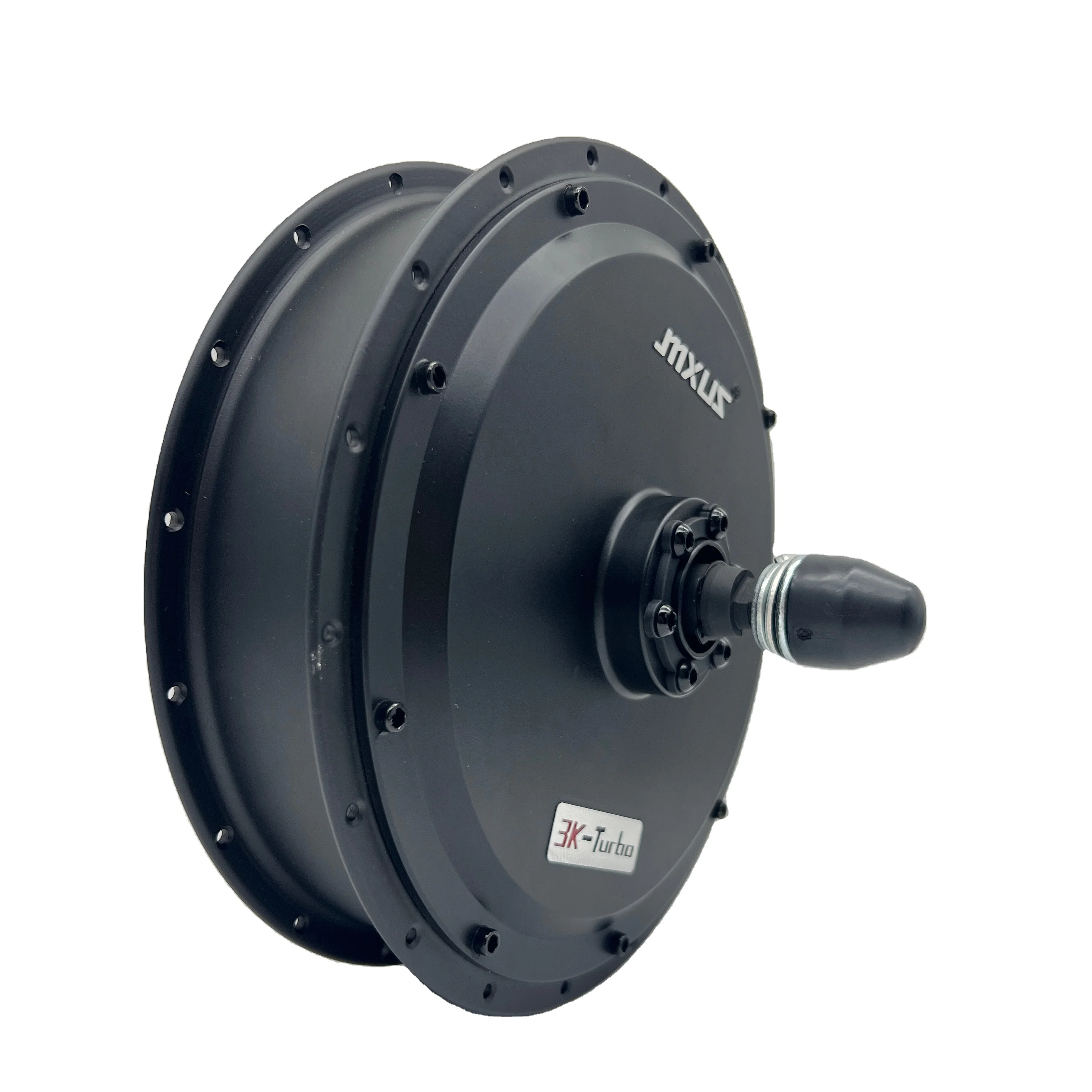

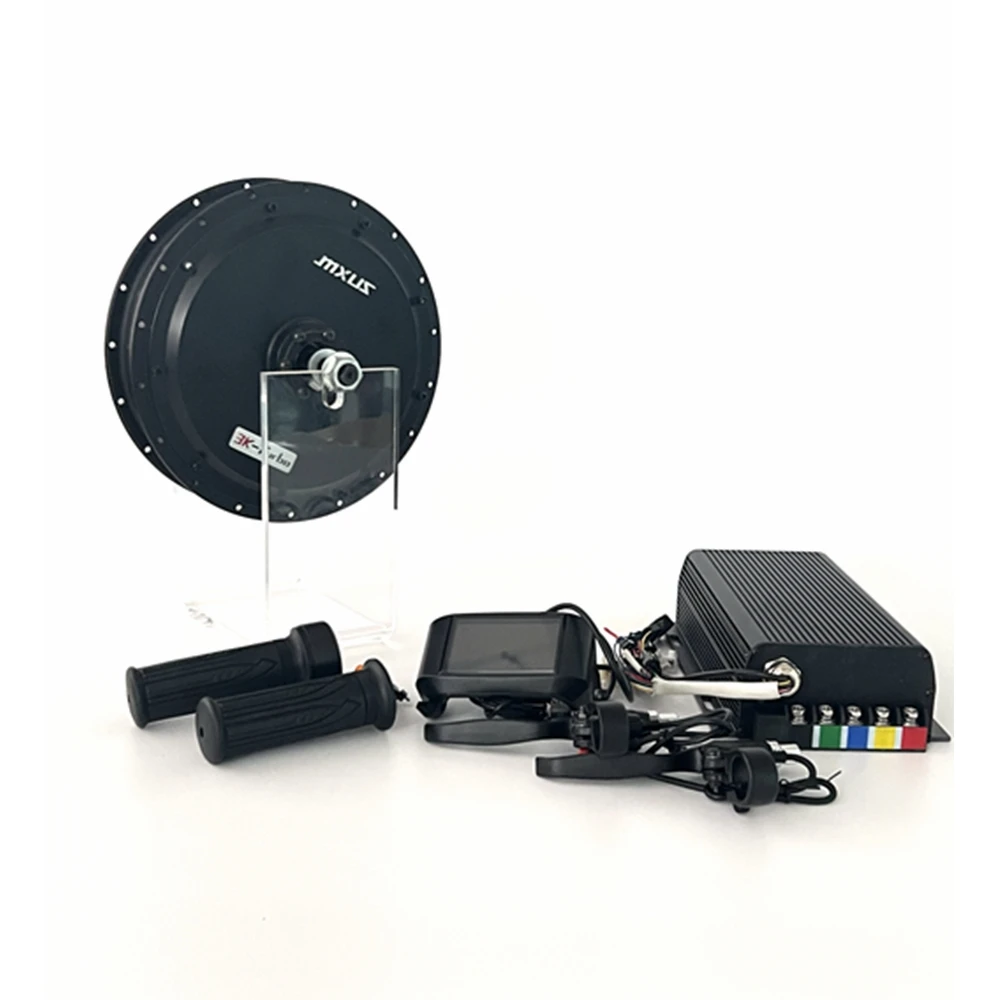

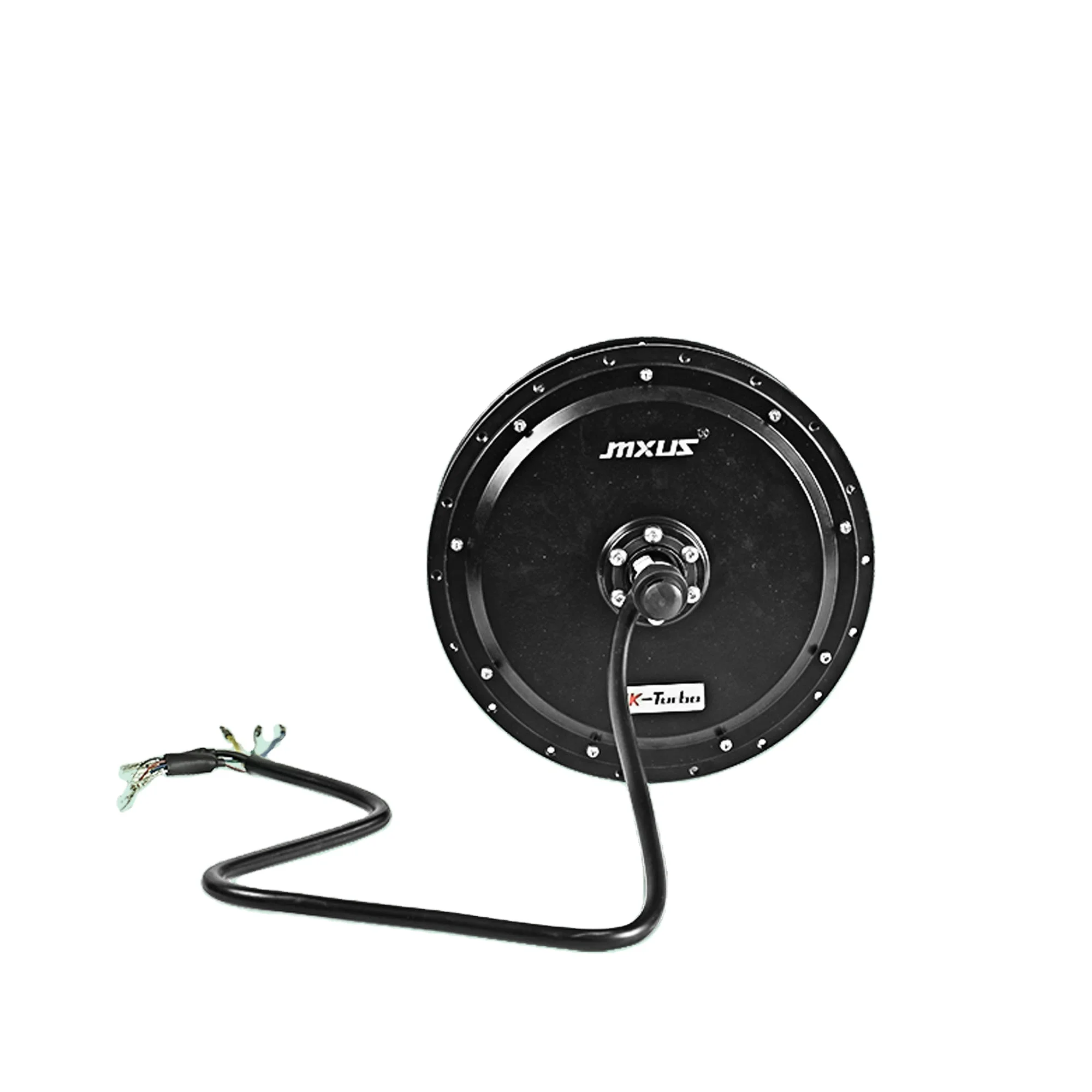

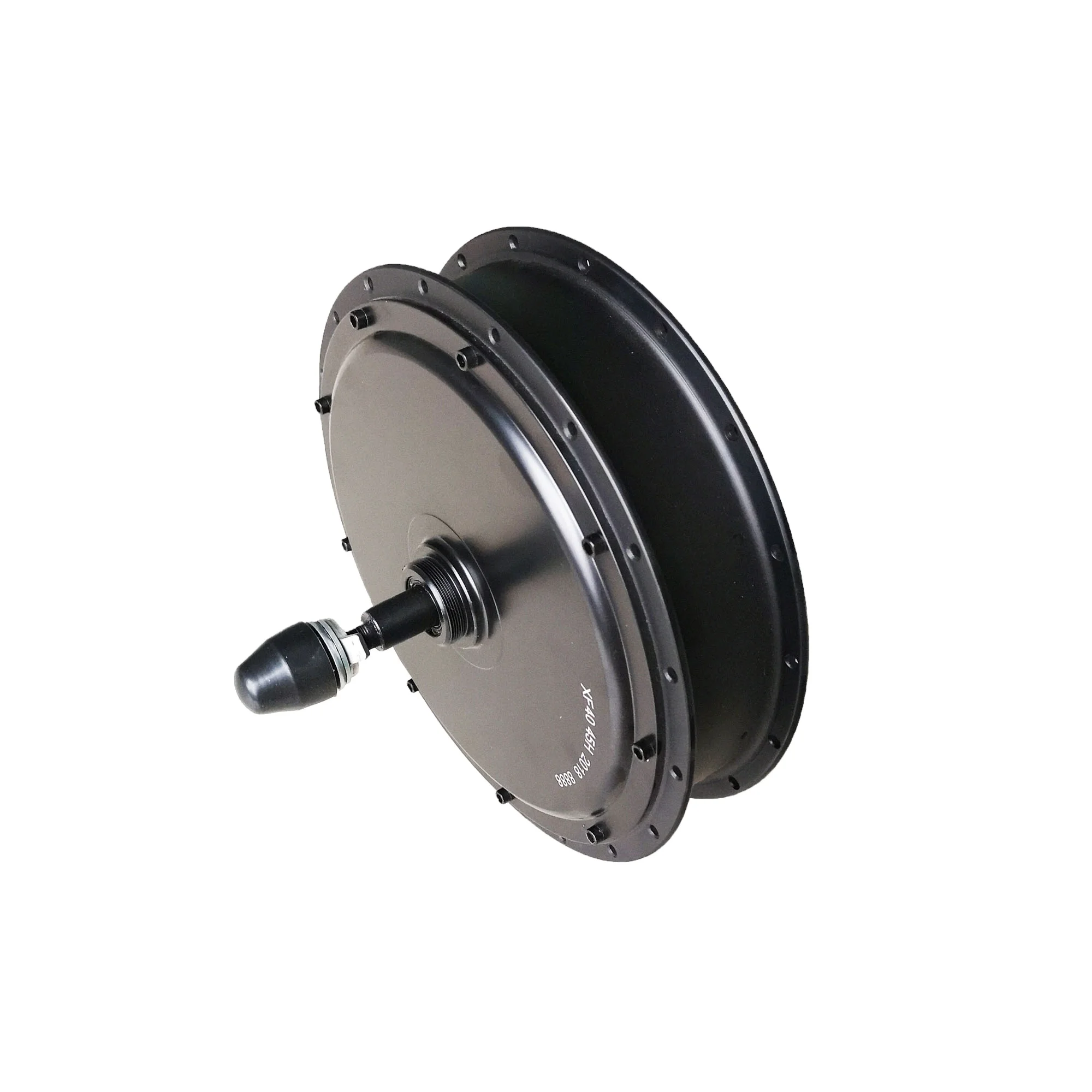

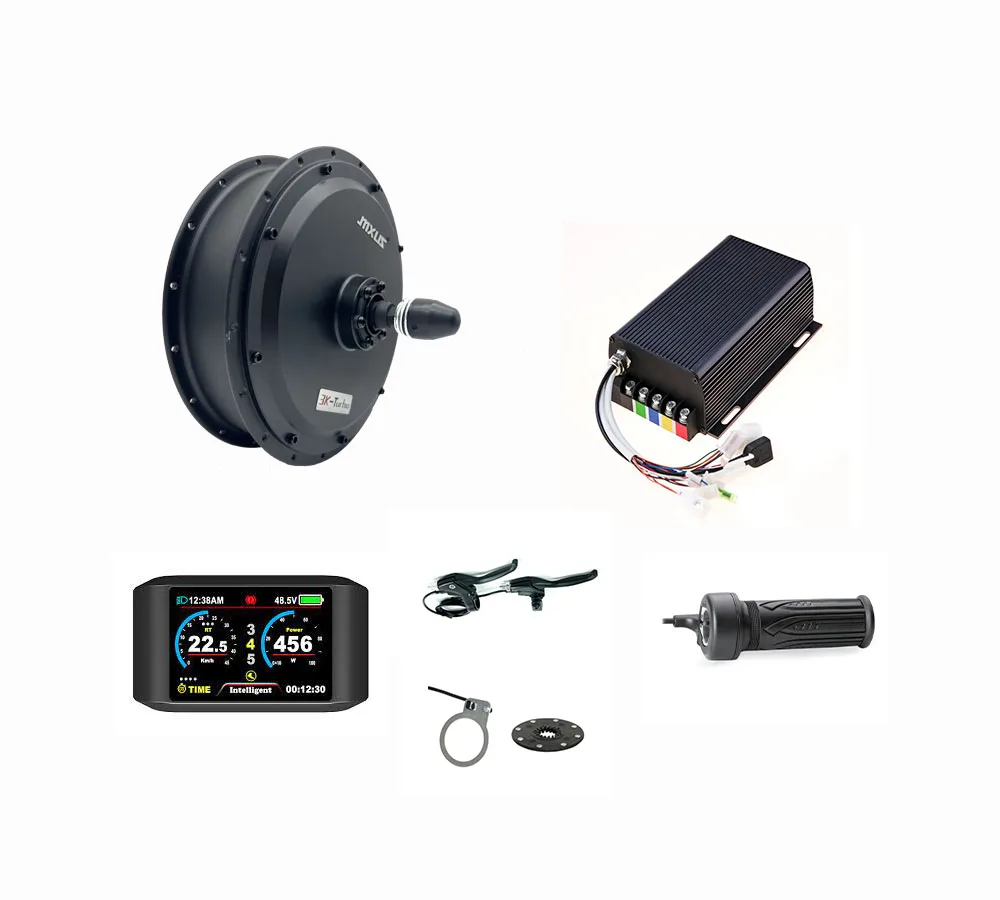

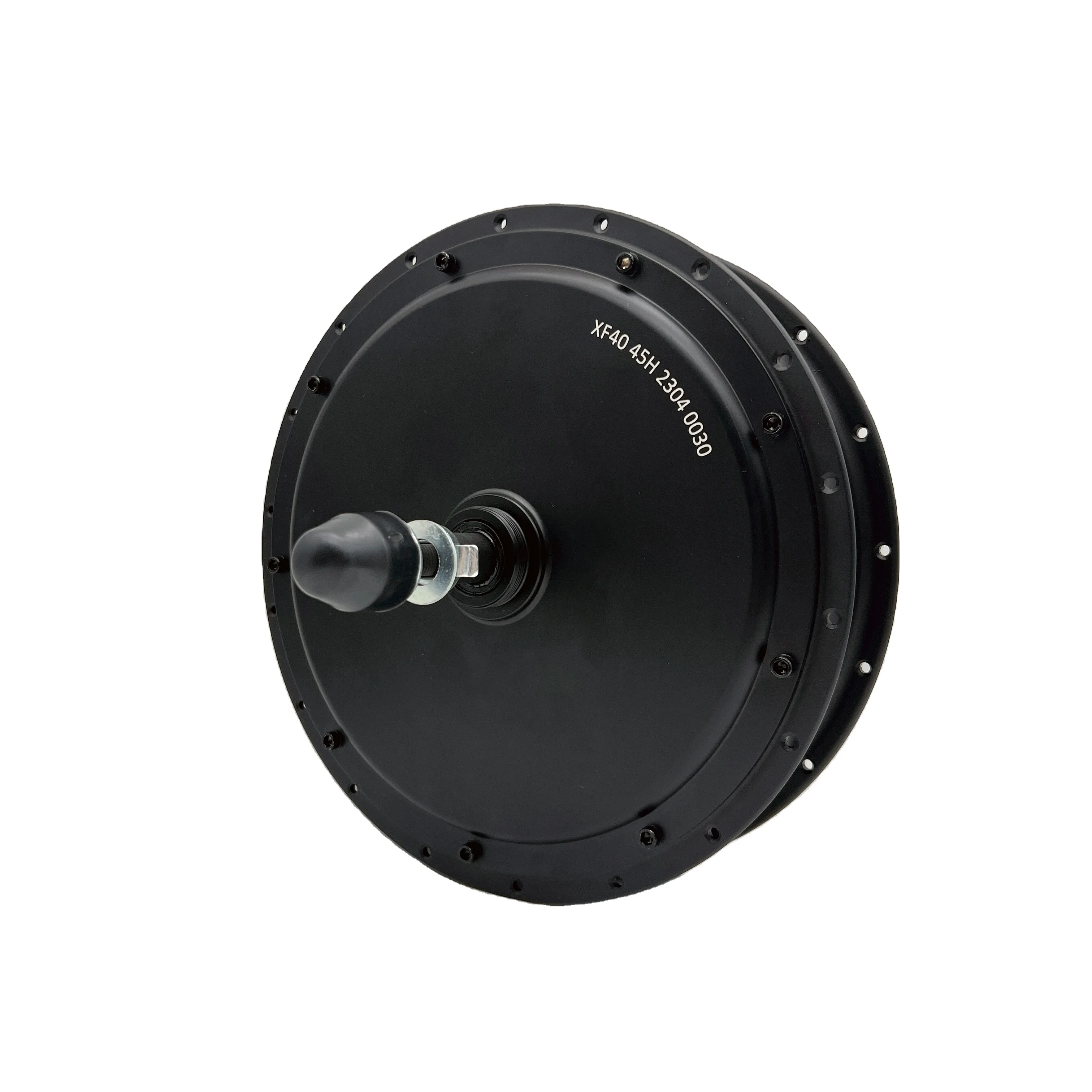

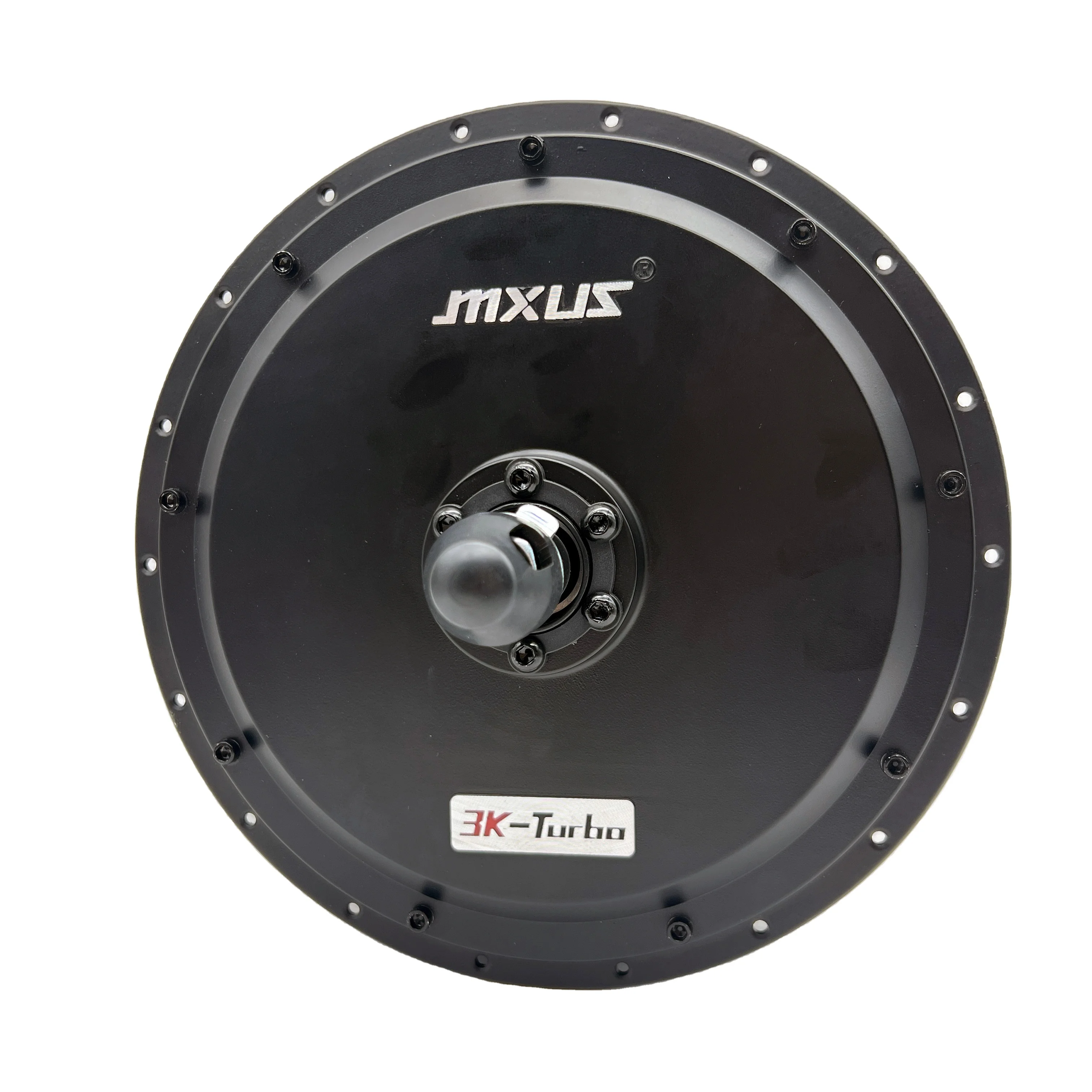

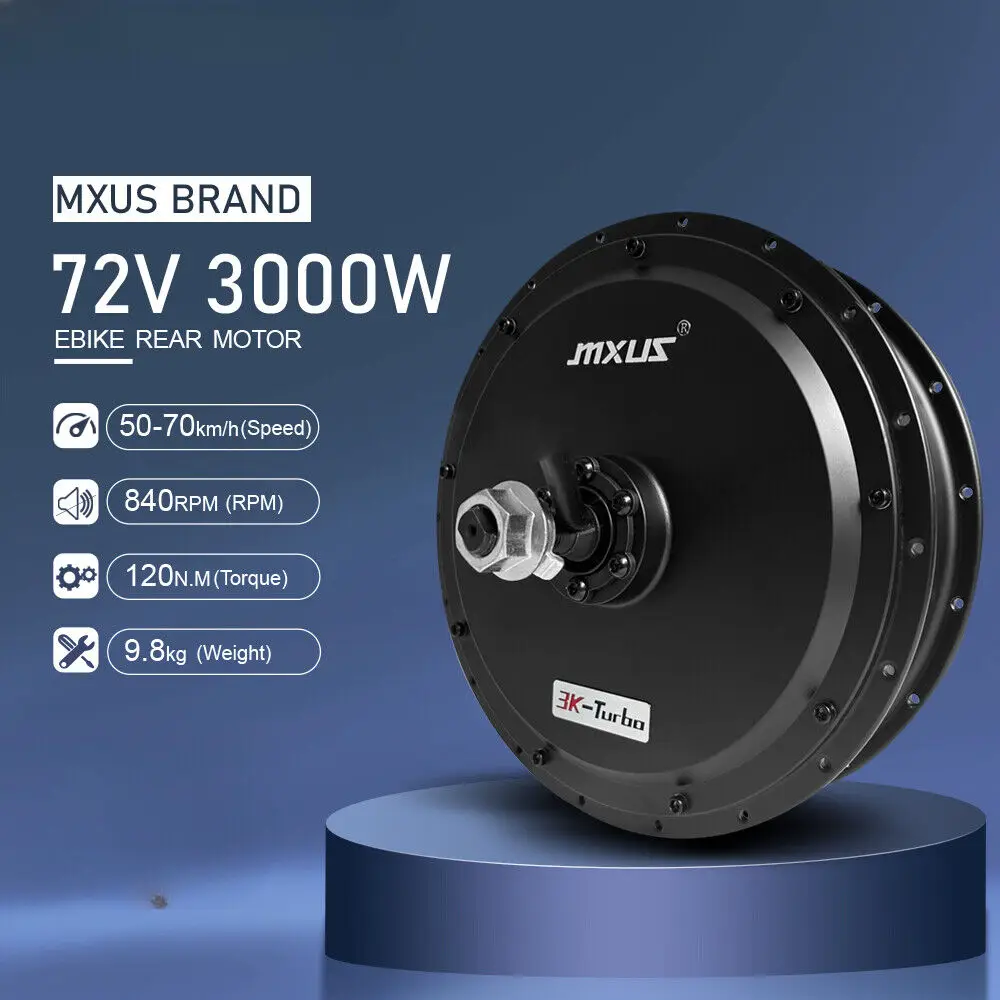

Motor | 72v 3000w Rear fat hub motor (Model DDR-3K) |
Laced with fat bike 35mm width rim | |
20inch-28inch available | |
V Disk/Disk brake available | |
Rated speed=60-70KM/H | |
Motor cable with waterproof connector | |
Battery | 72V 30Ah lithium ion battery |
All battery including fuse and BMS | |
Charger | AC 100V~240V 2amps smart charger |
Controller | 72V 60A intelligent brushless controller |
Throttle | Twist throttle |
Brakes | E-brakes levers or E-brake sensor for motor power cut off |
PAS | 1:1 intelligent pedal assistant system (8 points/12 points magnet) |
Display | LED /LCD Display for option |
Wiring | Waterproof harness or regular connection |
Detailed Images

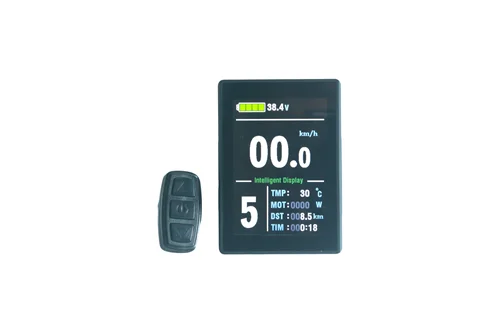

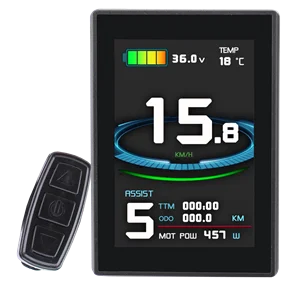

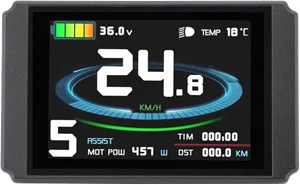

LCD Options
750C LCD8S P LCD8S LCD8H

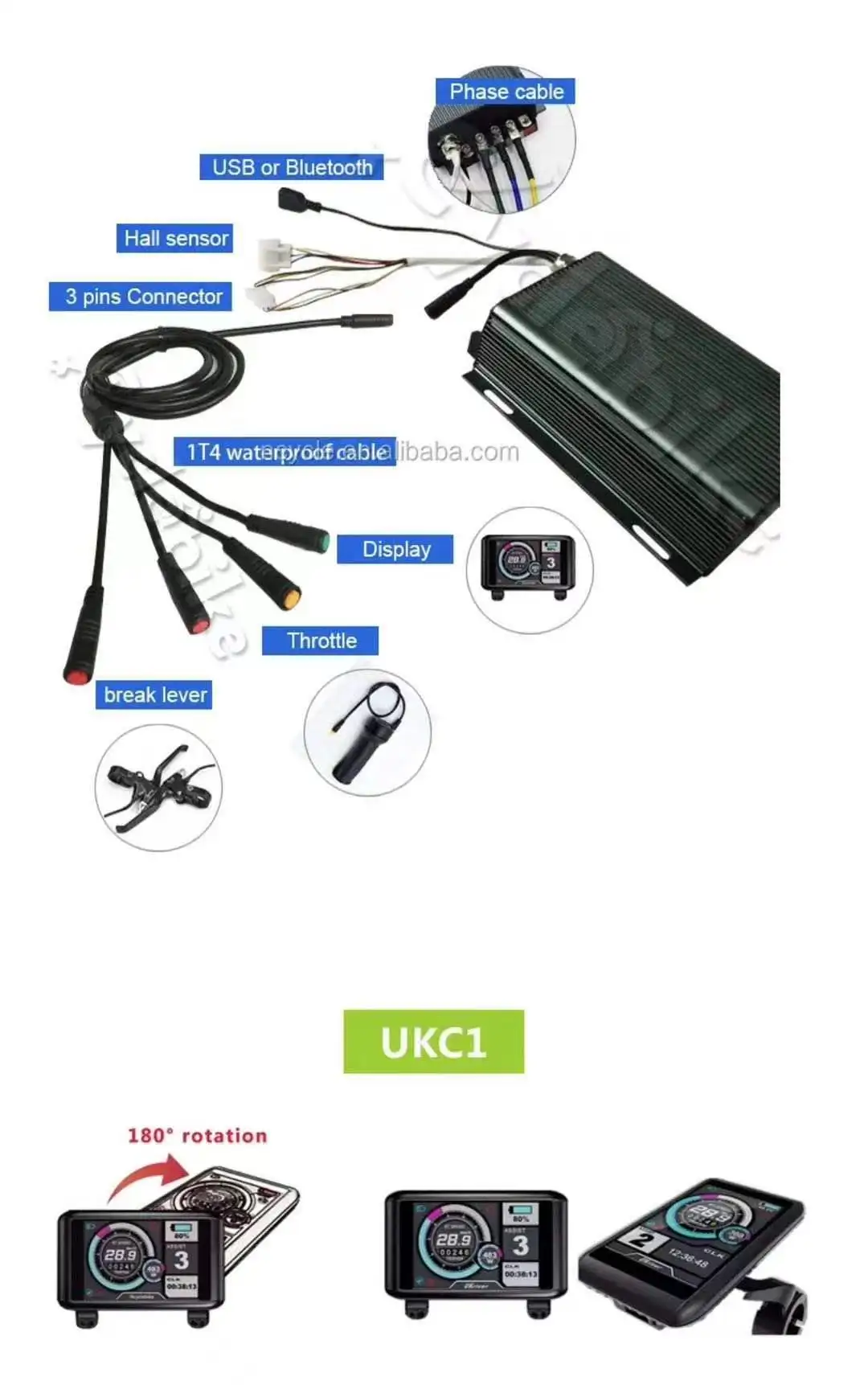

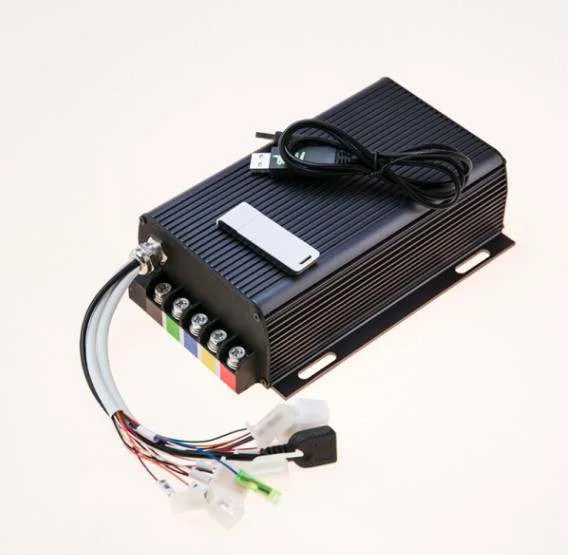

Sabvoton Controller
Accessories

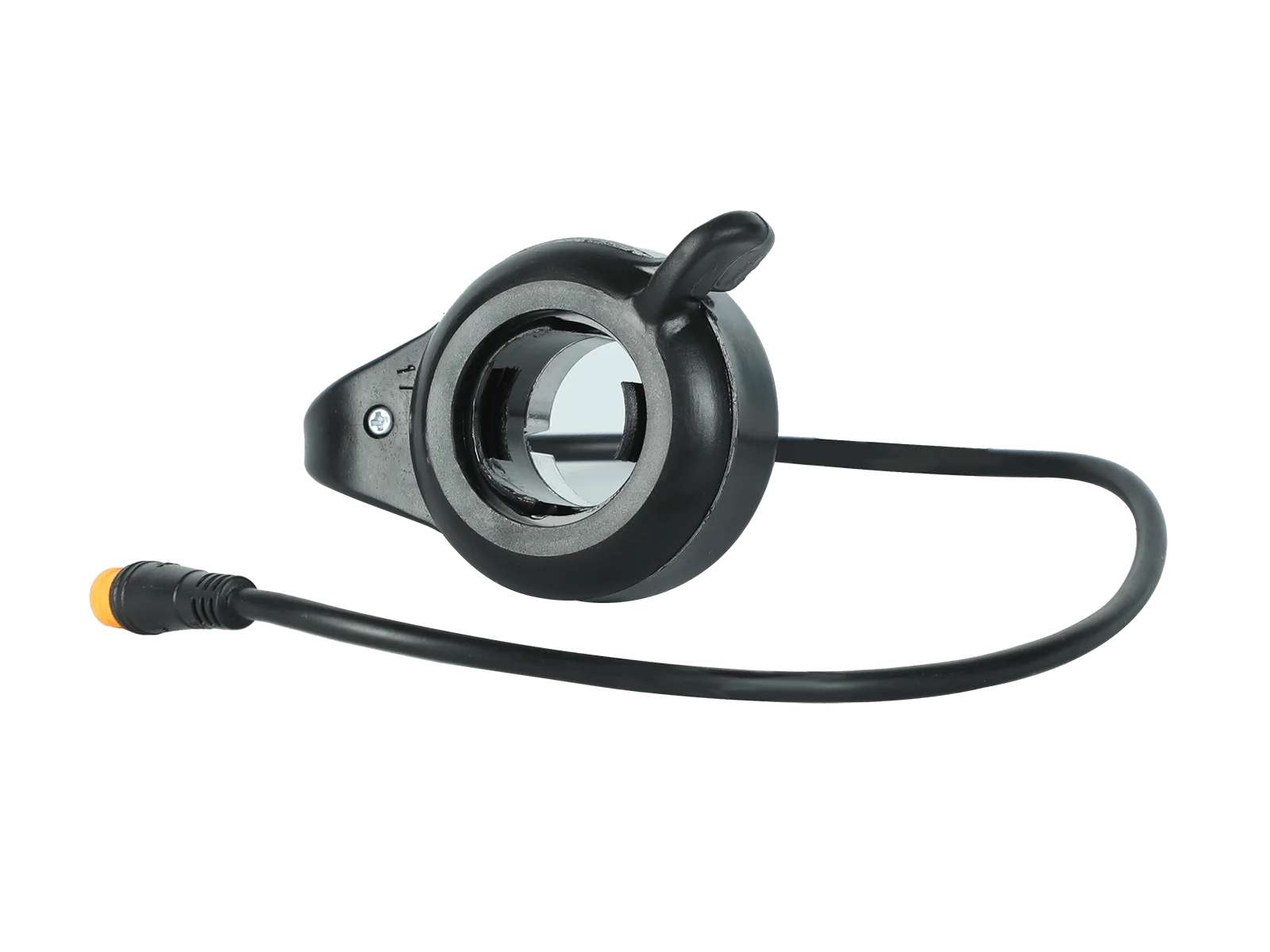

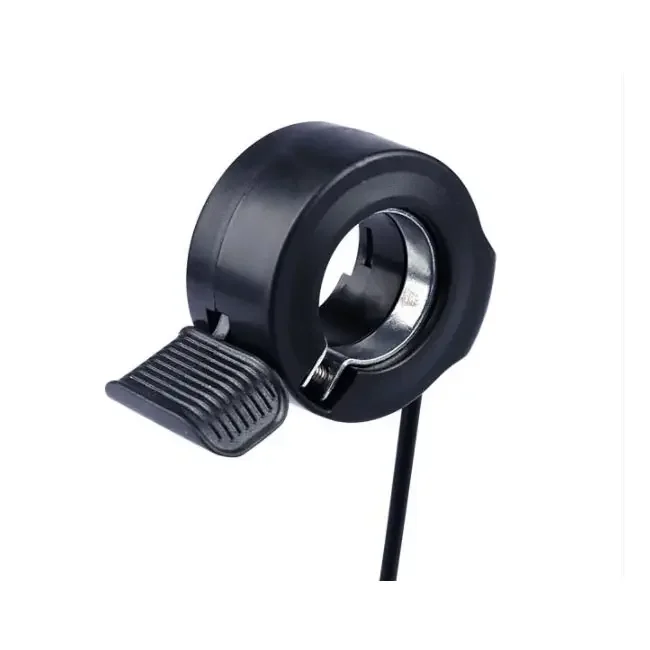

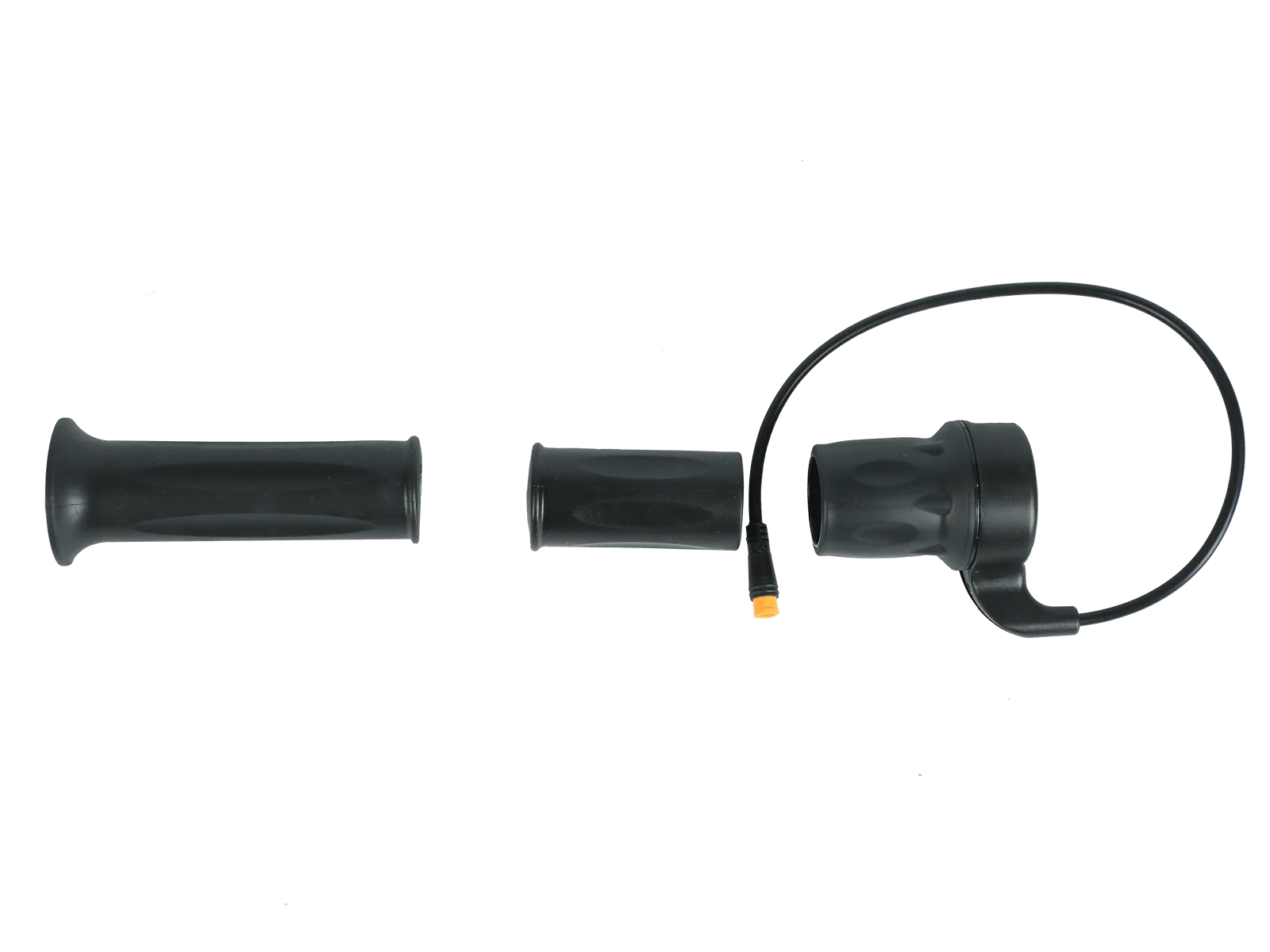

Thumb Throttle & Twist Throttle

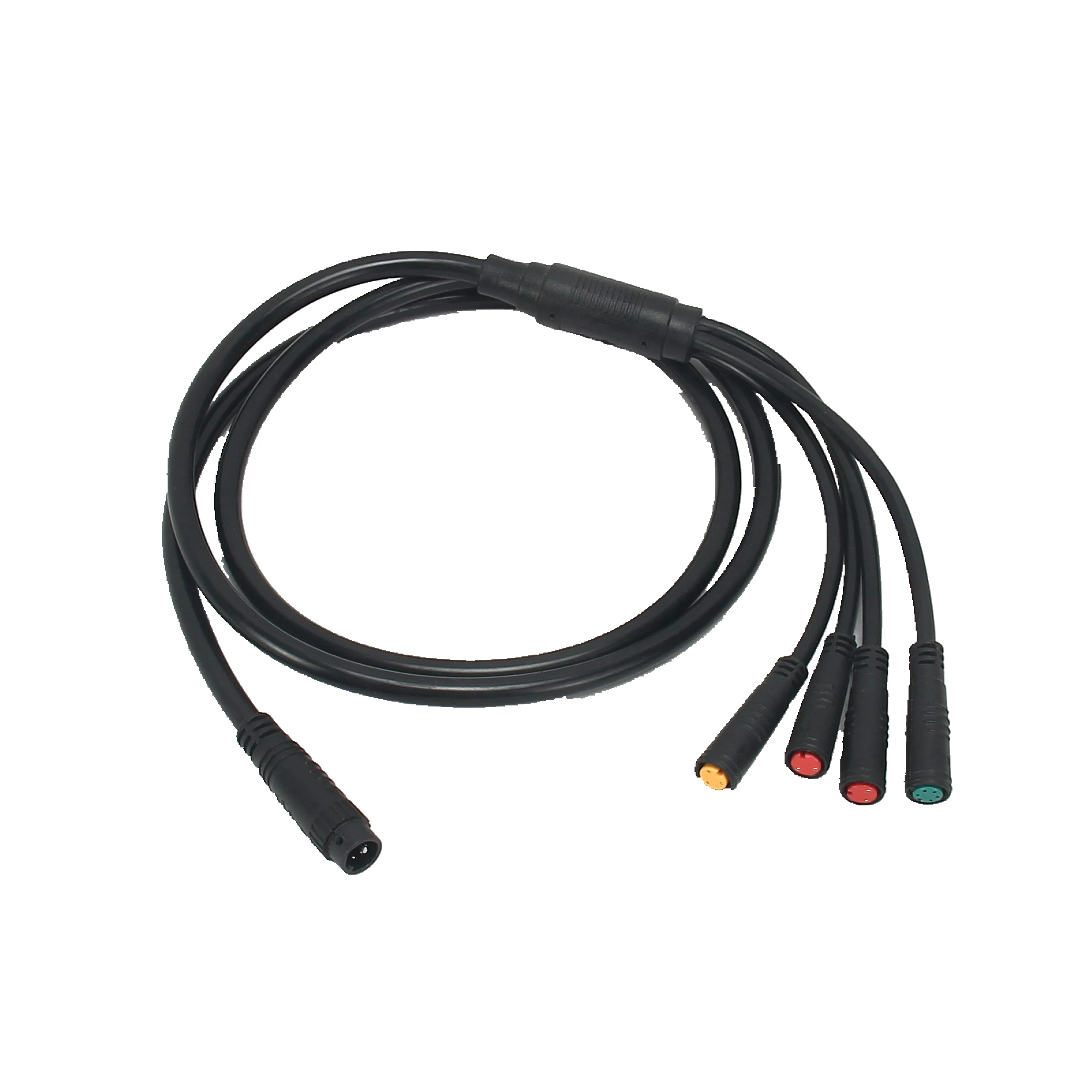

E-bus 1 with 4 waterproof connectors cable
It's used to be connected with LCD、Throttle、Ebrake

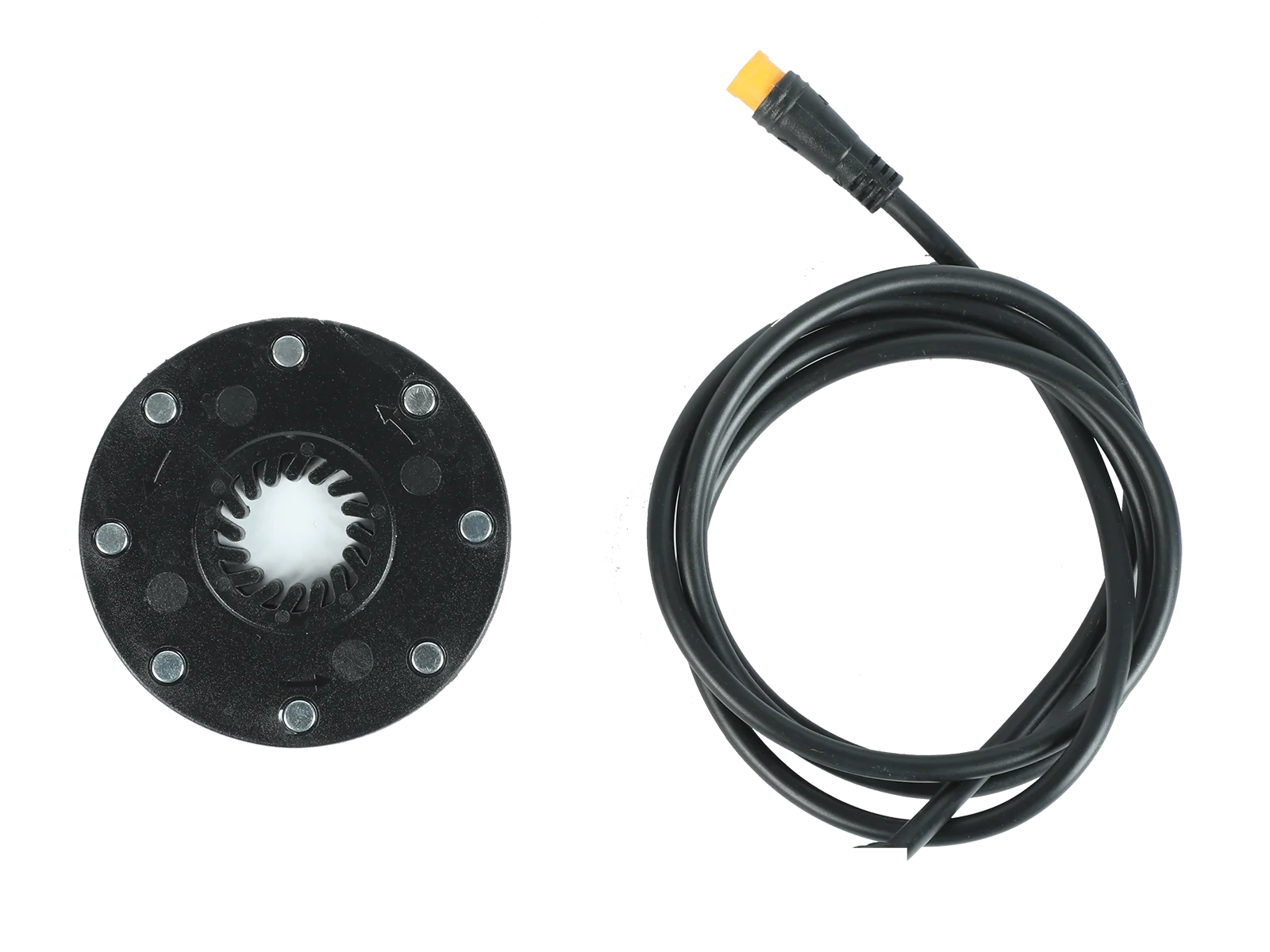

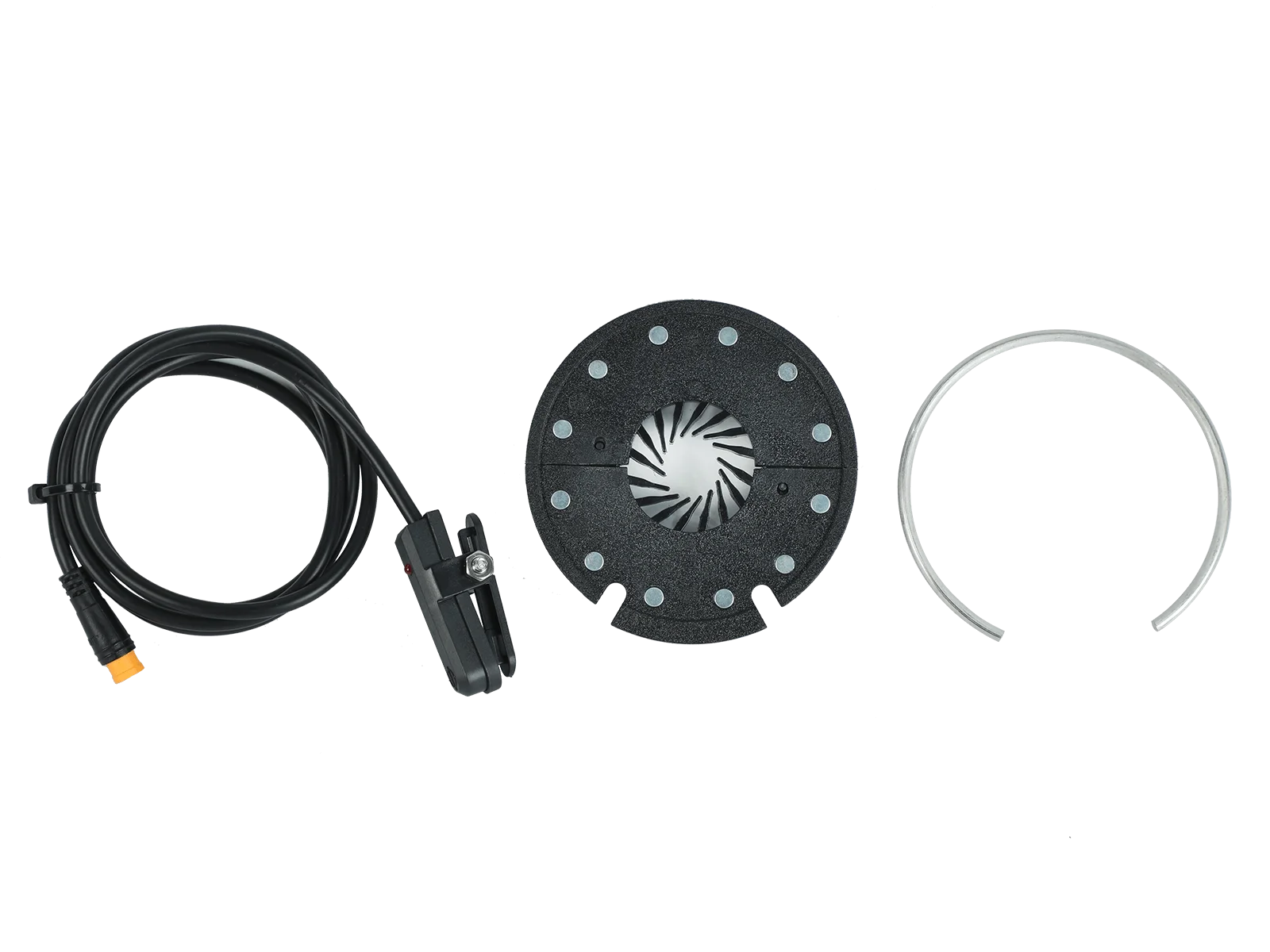

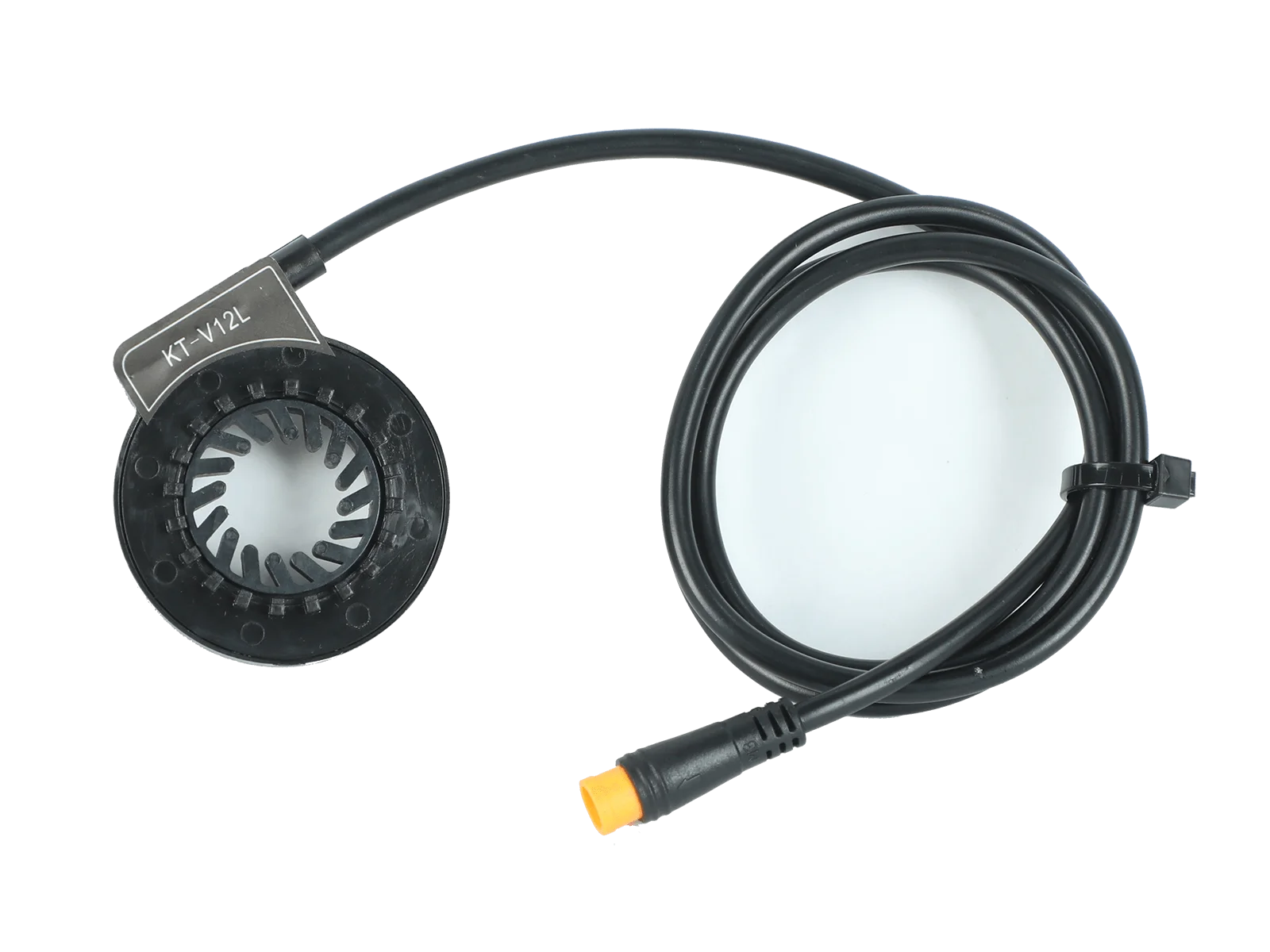

Pedal Assist Sensor

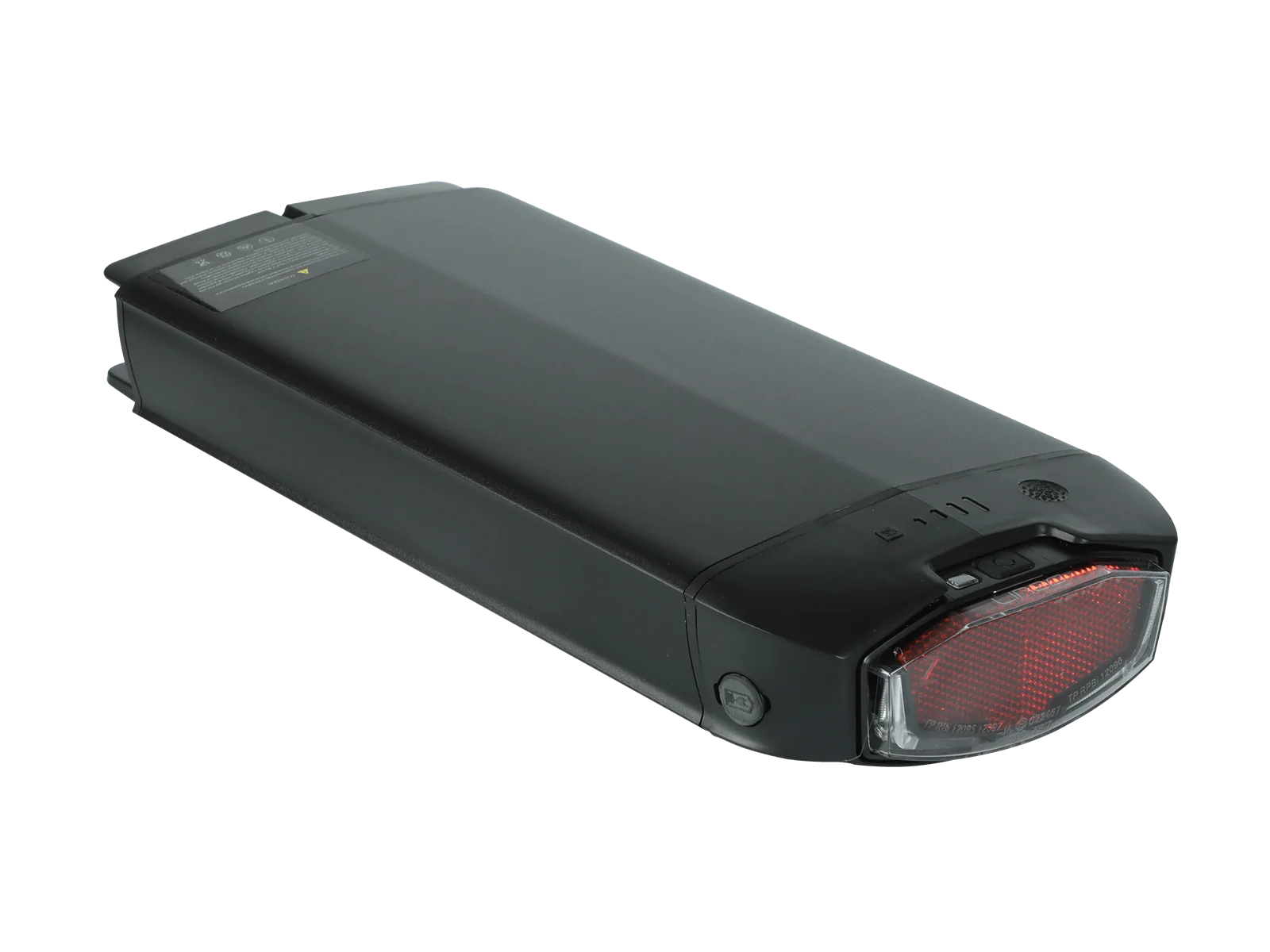

Battery Options

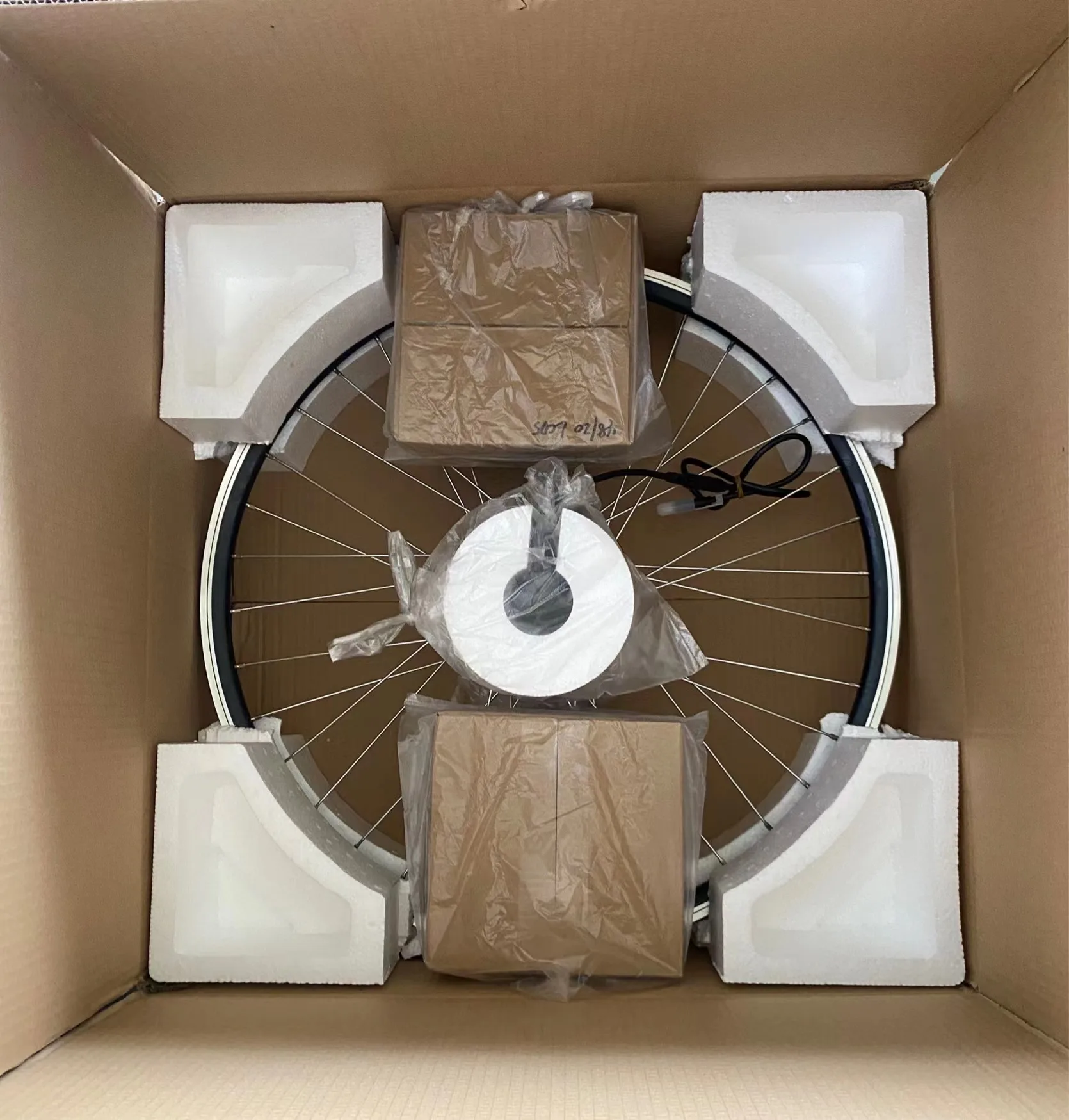

Packing & Delivery
Packaging | ||
Carton Size | ||
Packaging Details | 16'' : 35*35*23mm (front) 35*35*25mm (rear) 20'' : 45*45*23mm (front) 45*45*25mm (rear) 26'' : 60*60*23mm (front) 60*60*25mm (rear) 28'': 65*65*23mm (front) 65*65*25mm (rear) | |

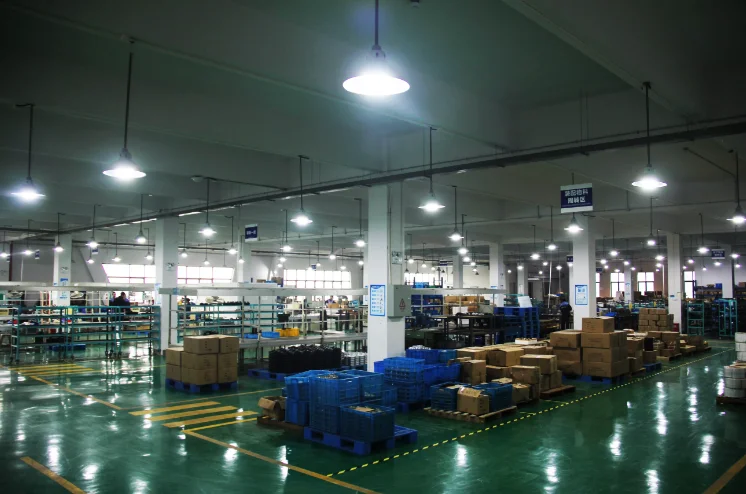

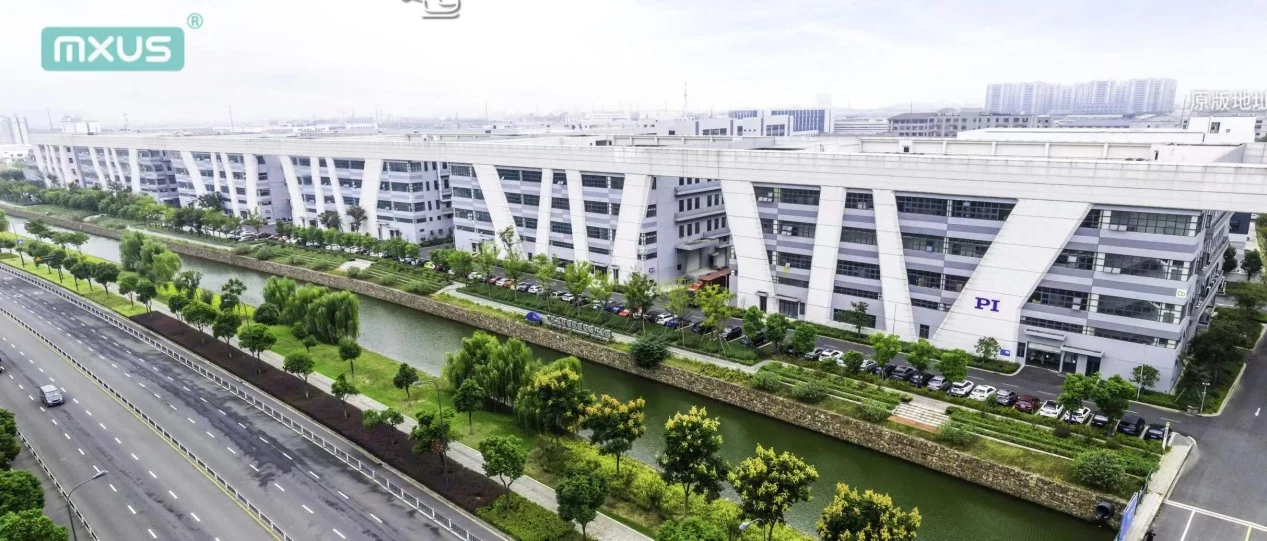

Our Factory
Changzhou Huayu Xinfeng Motor Co., Ltd. was founded in 1995, located in Changzhou city, near Shanghai port, mainly specialized in
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
design and manufacture motors for ebike. MXUS is our brand name.
Quality first is our principle, all products need to be seriously tested before packing. We have obtained all necessary
certificates, such as CE, CCC, EN15194 and ROHS.
We has workshop of 100,000 sq.m, 200 workers and 30 professional engineers. In 2015, we manufactured over one million motors and
exported 100 thousand sets of e-bike conversion kits. To better serve and develop European market, we have establish branch office
in Holland and Spain.
