Hc208 Roller Wheel Roller Heavy Duty Vibratory Rollers
- Category: >>>
- Supplier: Sichuan Hongjun Science And Technology Co. Ltd.
Share on (1601250149481):
Product Overview
Description
| Model | HC208 |
| Operating mass | 8000kg |
| Front axle load | 4000kg |
| Rear axle load | 4000kg |
| Static linear load | 231N/cm |
| Form of frame | Fork-type |
| Water tank capacity | 2x450L |
| Fuel tank capacity | 134L |
| Hydraulic tank capacity | 75L |
| Vibration frequency | / |
| High ampl. | 0.67mm |
| Low ampl. | 0.34mm |
| Vibration frequency | / |
| High ampl. | 40hz |
| Low ampl. | 46hz |
| Centrifugal force | / |
| High ampl. | 160x2 |
| Low ampl. | 90x2 |
| Travel speed | 0-10km/h |
| Turning radius | 6000mm |
| Grade ability | 30% |
| Steering angle | ±30 |
| Drum diameter | 1150 mm |
| Drum width | 1730 mm |
| Trasverse swing angle of the vibrating wheel | ±8° |
| Type of water spray | Pressure |
| Wheelbase | 3217 mm |
| Overall length | 4558 mm |
| Overall width | 1840 mm |
| Overall height | 2674 mm |
| Ground clearance | 258 mm |
| Diesel model | QSB3.9 |
| Diesel power | 73 kw |
| Diesel speed | 2400 r/min |
Product Description

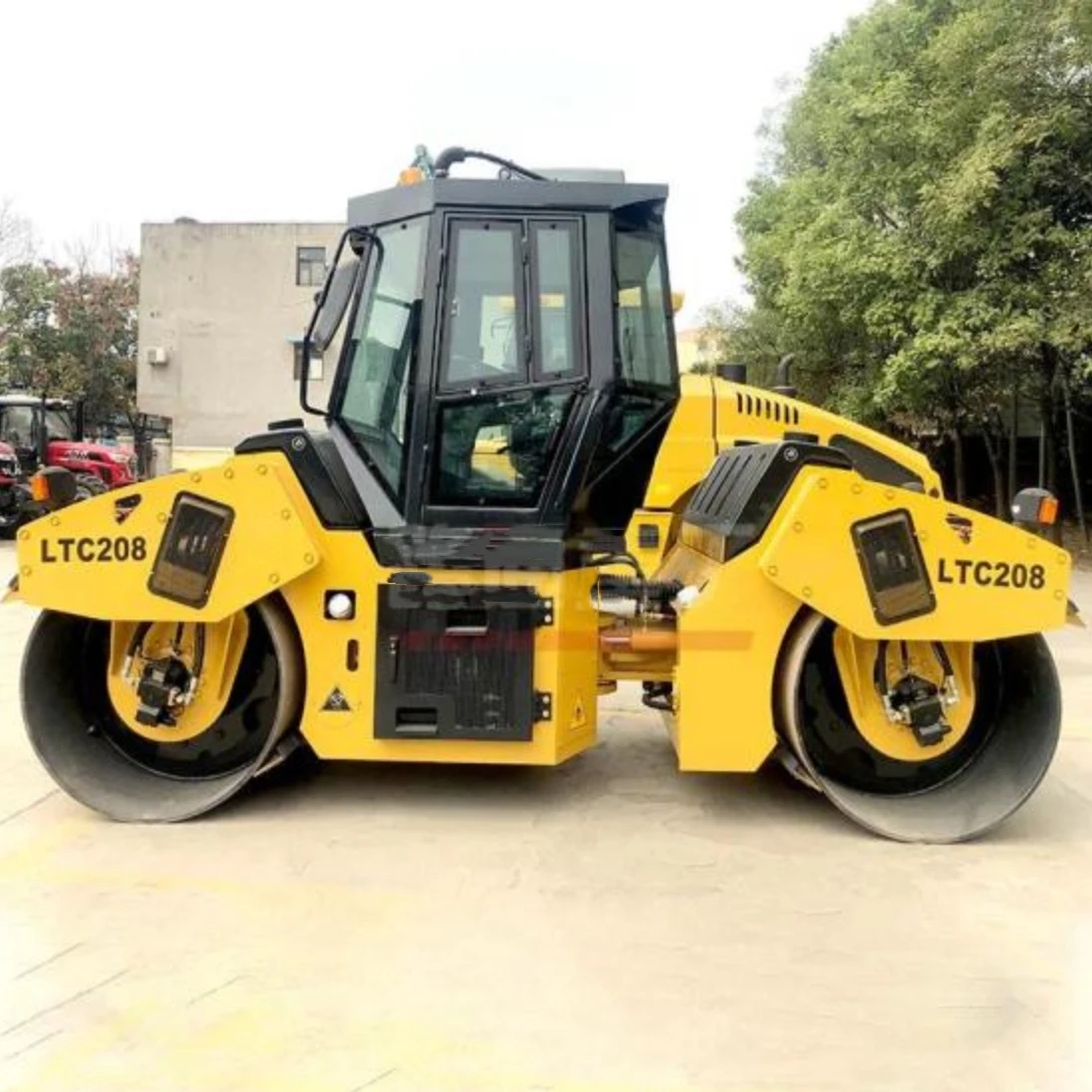

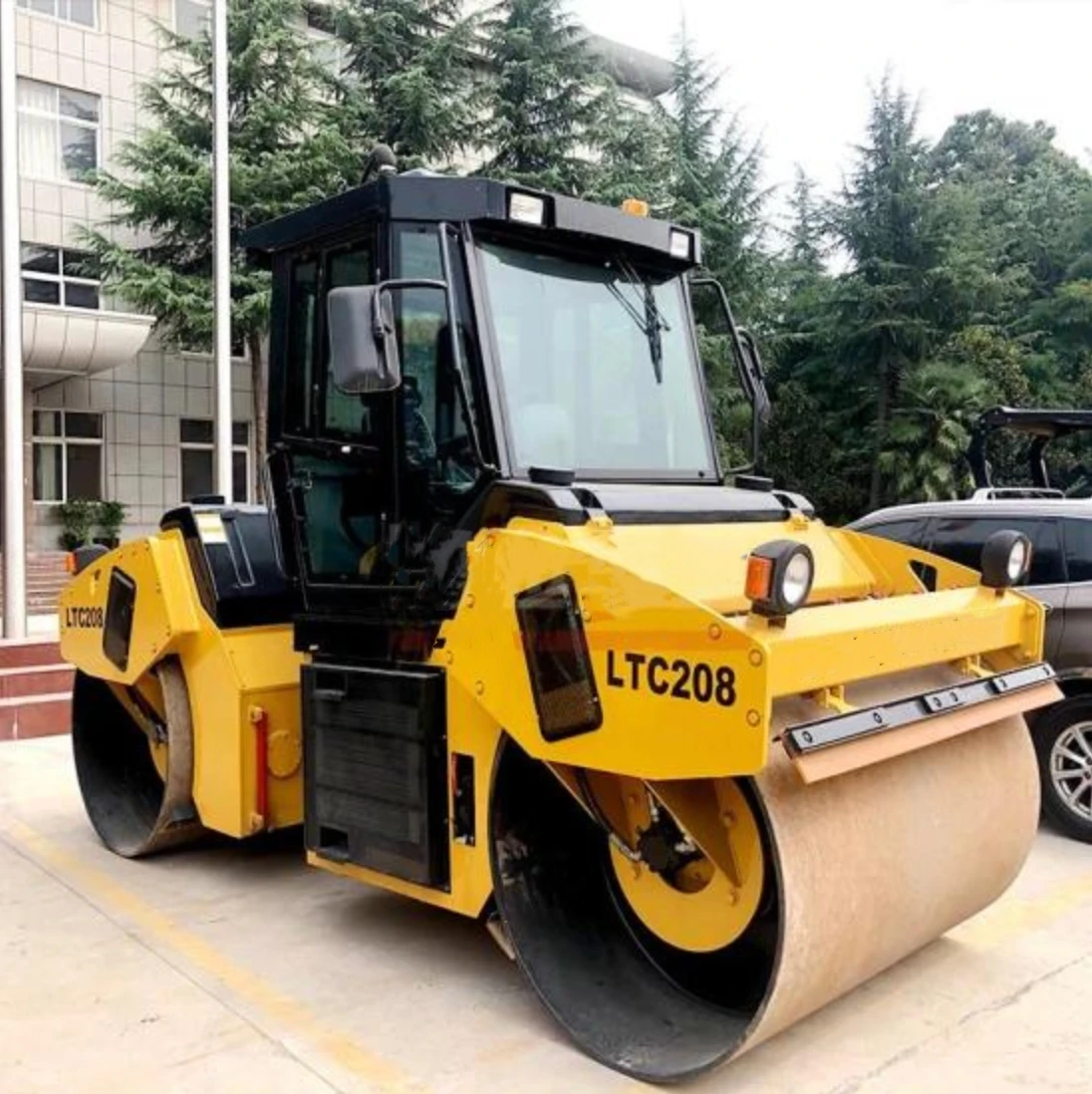

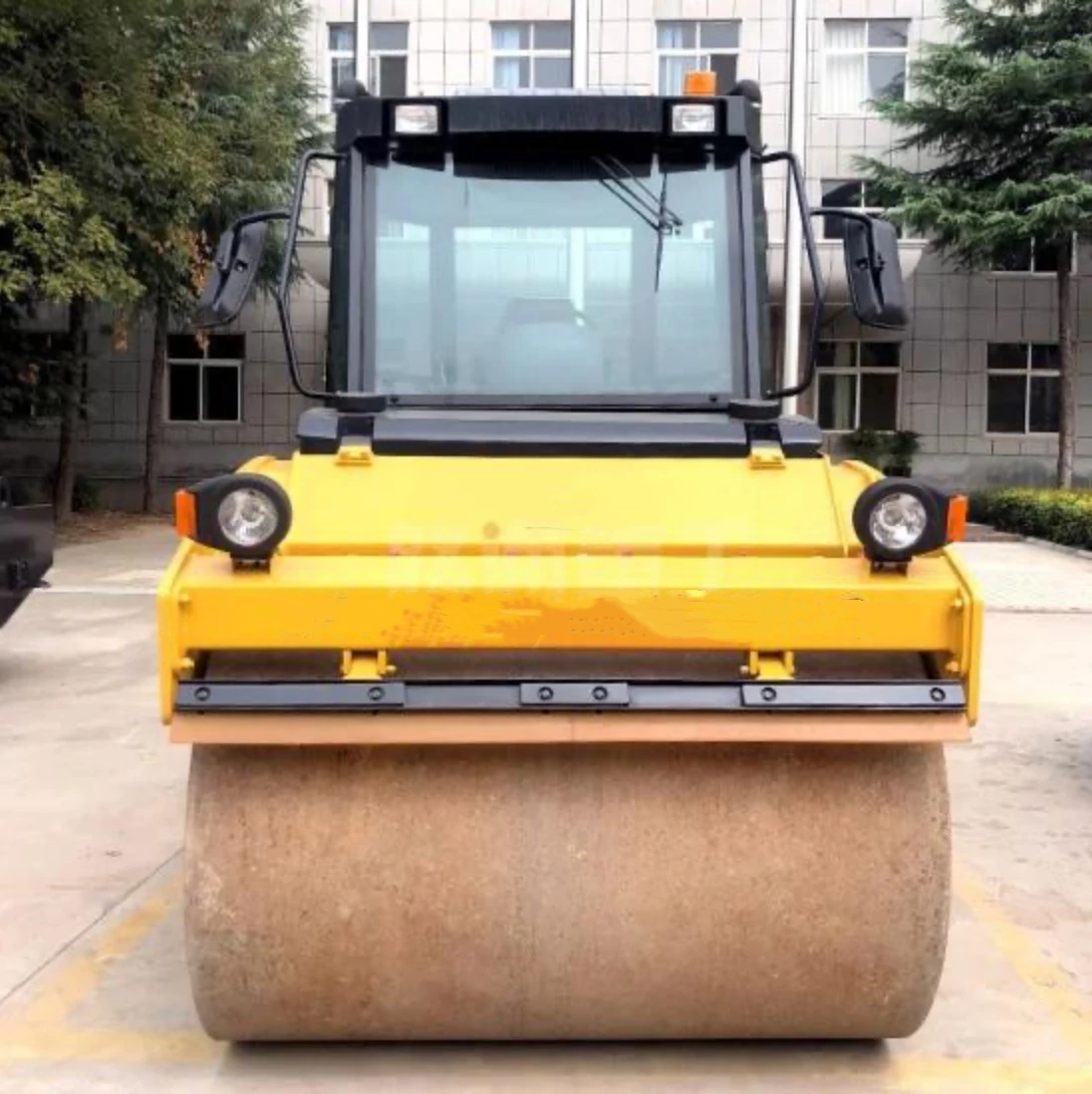

LTC208 is a fully hydraulic vibratory roller produced using advanced foreign technology and imported key components. This machine is a heavy-duty double drum series vibration roller, suitable for compacting asphalt concrete, sand and gravel mixtures, and dry hard cement concrete on roads. It is a universal construction equipment for rolling and leveling highways, municipal roads, parking lots, and industrial sites.
Main Features
ΔMechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.
ΔReliable Yuchai Series diesel engine for convenient operation and maintenance.
ΔTwo sets of brake devices,a hand brake and foot pedal brake,assure the machine's safefy and dependability.
ΔSpacious and comfortable cab mounted on top quality rubber damping elements.
ΔWorld advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance,and low in cost.
Main Features
ΔMechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.
ΔReliable Yuchai Series diesel engine for convenient operation and maintenance.
ΔTwo sets of brake devices,a hand brake and foot pedal brake,assure the machine's safefy and dependability.
ΔSpacious and comfortable cab mounted on top quality rubber damping elements.
ΔWorld advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance,and low in cost.
Company Information

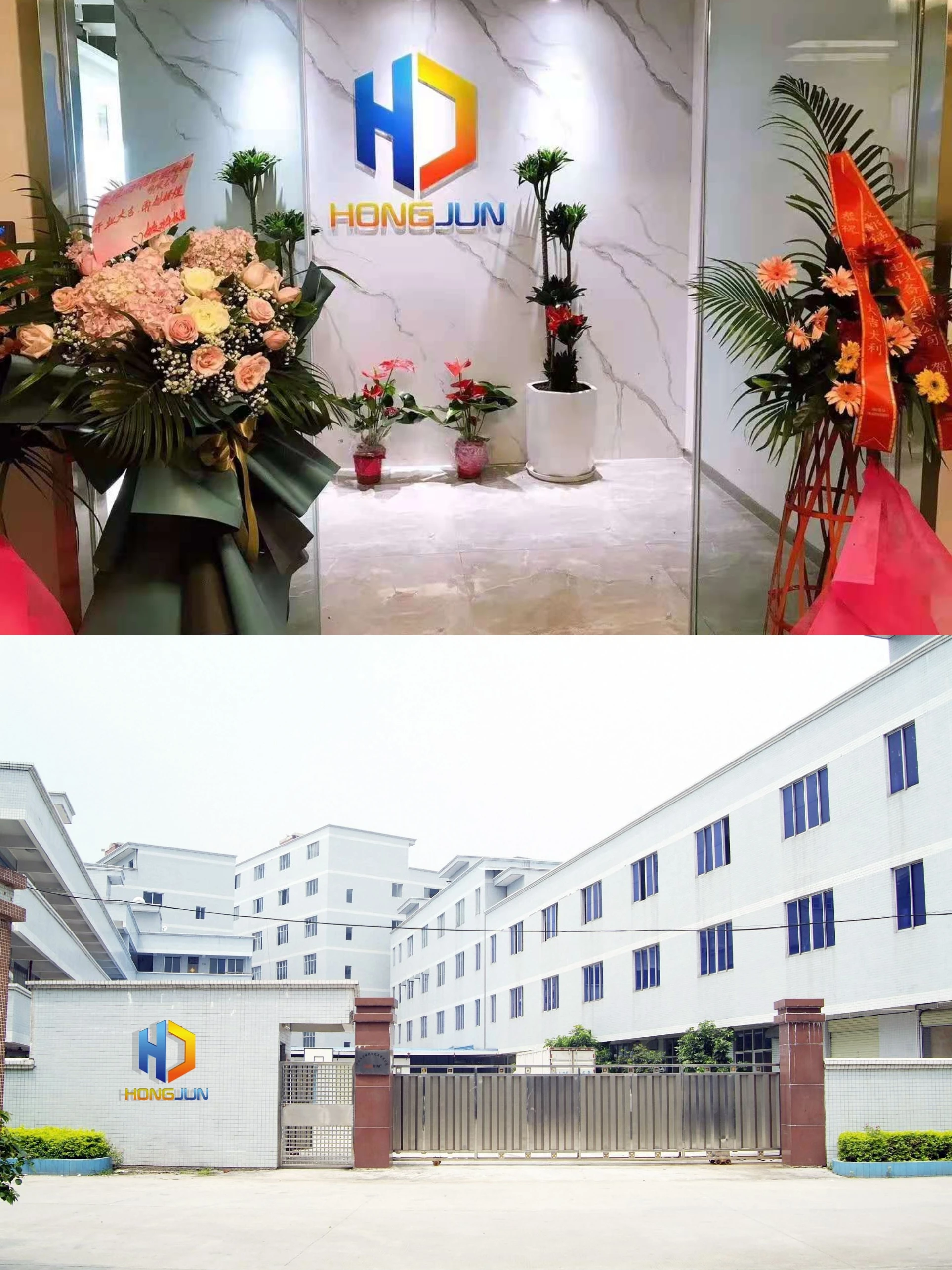

About HongJun
Hongjun Group(HK) Co.,ltd .start its business from 2010.We work mainly for heavy construction machinery and heavy-duty truck! Hongjun established relationship with hundreds of excellent factories to ensure one-stopservice for our customers!
Hongjun works mainly for heave construction machinery and heavy-duty truck!With its rich experience in this field .Hongjun can supply loader, excavator, heavy duty vibratory rollers, bulldozer, ambulance, fire fighting truck, wrecker tow truck etc.
We can provide products from many well-known brands.
We have been working in this field for nearly 20 years and has very high reputation in domestic China market and also in oversea market! Now our products have been successfully exported to Asia, Africa, South America, Middle Eastand many other countries. We sincerely look forward to cooperate with you and be very happy to work with customers from all over the world!
Packaging & Shipping
FAQ
Who we are?
The most professional truck and heavy construction machinery supplier in China;
The most heavy construction machinery and spare parts solution provider in China;
The most worry-free and most satisfactory and reputable supplier for you in China.
We can never let you down if you choose us.
Our Services:
1.All of our products are with professional service.
2. We can offer free consultation of service information .
3.The dominance we kept all along is to provide the customers with genuine spare parts.
4. Professional sales and after sale service team, timely and efficiently to solve your problem.
5.We are willing to privide the High Quality,ReasonablePrice and Perfect Service.
FAQ
( 1)What about your packing?
We will use the original packaging of the goods,but of course ,we can also customize it.
(2)What about your terms of payment?
L/C, T/T, D/P, Western Union, Paypal Money Gram, Others
(3)What is your terms of delivery?
FOB,CFR,CIF
(4)How about your delivery time?
It depends on the items and quantities of your order.
