Product Overview

Description

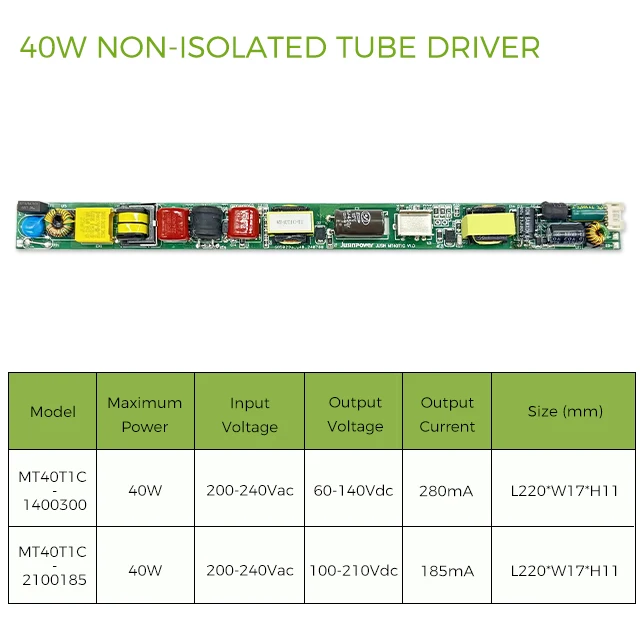

Wide Output Voltage 100-210/60-140Vdc Tube Driver

This wide output voltage tube driver is suitable for 100-210V and 60-140V DC voltage ranges. It has efficient power conversion capabilities. The driver is exquisitely designed and integrates multiple protection functions. It can effectively ensure the stability of the output voltage when the input and voltage change in a wide range, enhance the durability of the equipment, and reduce the risk of damage caused by unstable power supply. Its wide voltage input characteristics make it perform well in different application scenarios and is your ideal choice for high-reliability power management

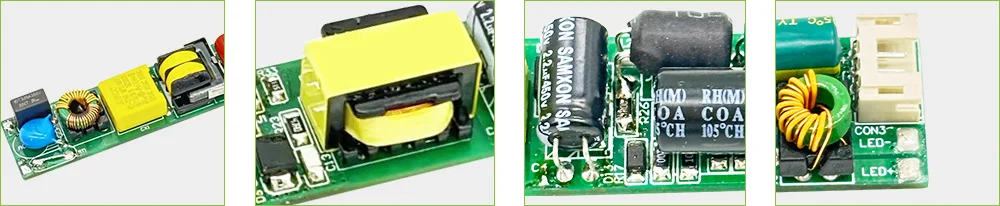

Product Details:

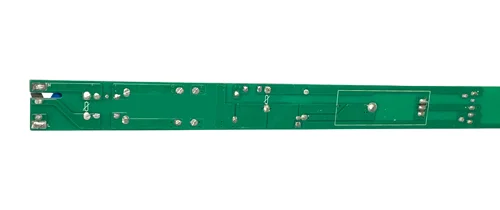

Pcb-FR4 Material

1. FR4 has the advantages of good processability, stable electrical properties, high mechanical strength, and high temperature resistance, but it is difficult to use in high-speed, high-frequency, and high-power applications.

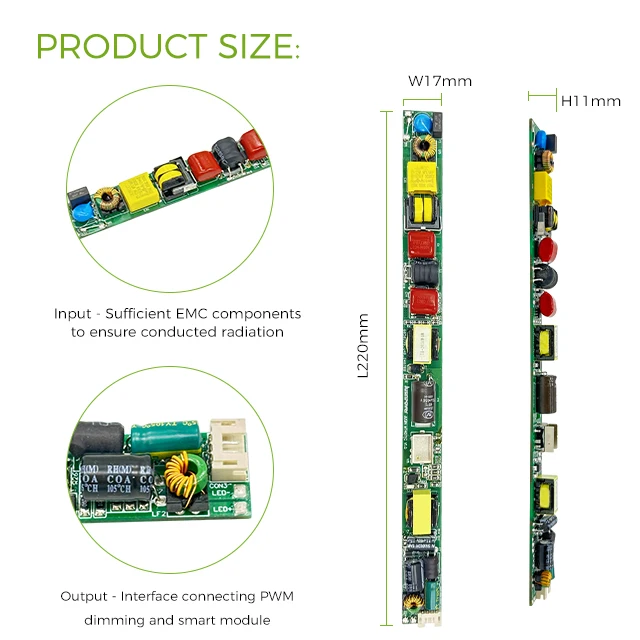

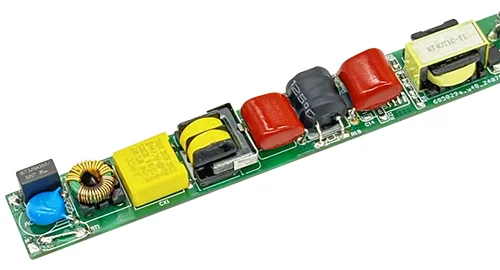

EMC

1. Reduced Electromagnetic Interference (EMI): EMC components help minimize electromagnetic interference generated by the LED driver. This is crucial for preventing disruptions to nearby electronic devices and ensuring compliance with regulatory standards.

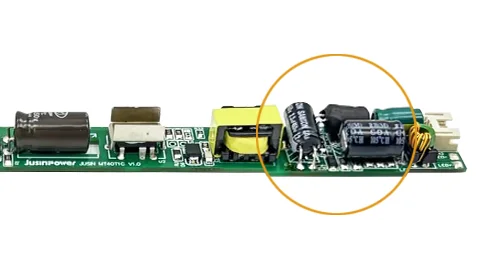

Electrolytic capacitor

1. Energy Storage and Filtering: Capacitors store and release electrical energy, helping to smooth out the input voltage and providing a stable power supply to the LEDs.

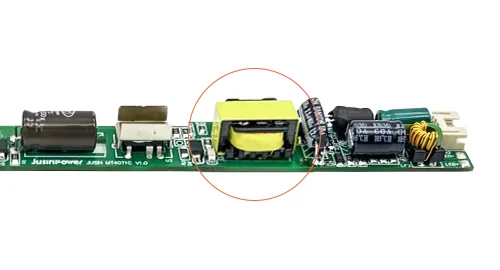

Transformers

1. Transformers can convert high input voltage to a lower output voltage suitable for LEDs, or vice versa, ensuring that the LED receives the correct voltage for optimal performance.

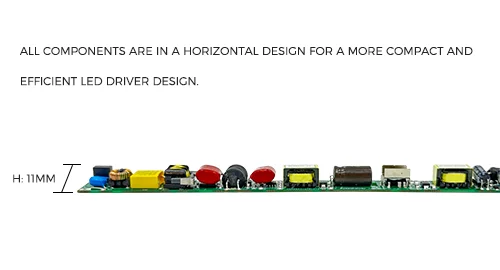

Reclining design



Horizontally arranged components can enhance heat dissipation due to a larger surface area exposed to airflow. This helps in maintaining lower operating temperatures and prolonging the lifespan of the LED driver.

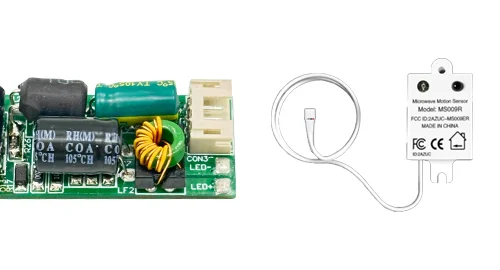

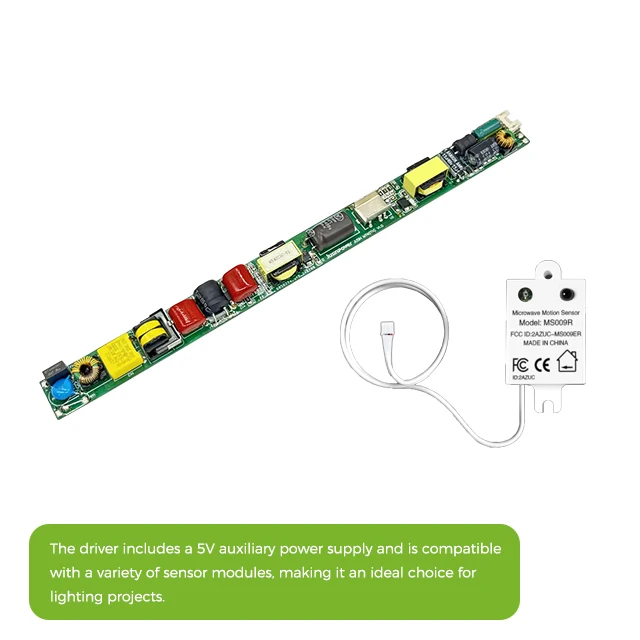

Can be connected to a sensor module



1. Smart sensors can detect ambient light levels and adjust the brightness of the LEDs accordingly, reducing energy consumption when full brightness is not needed.

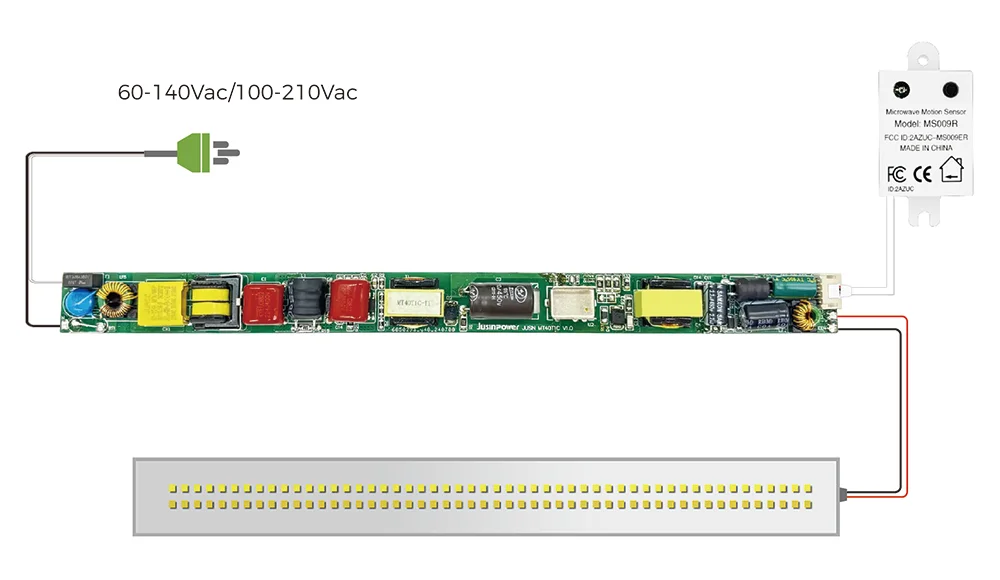

Wiring instructions:



The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.

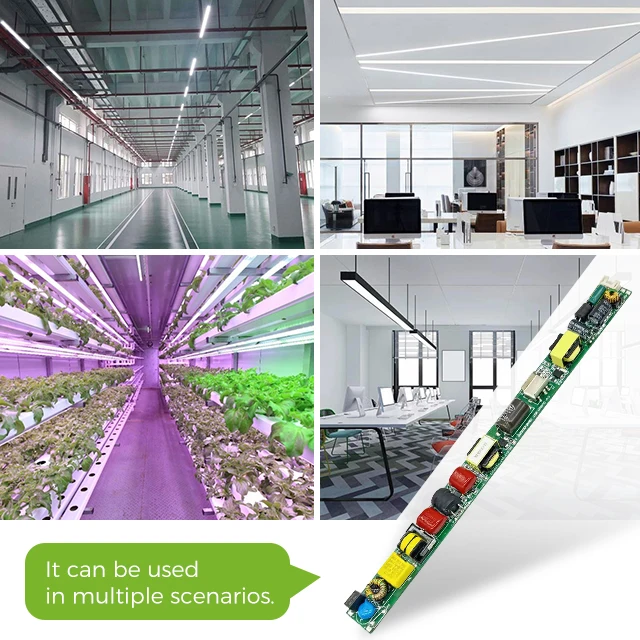

Application Scenario:

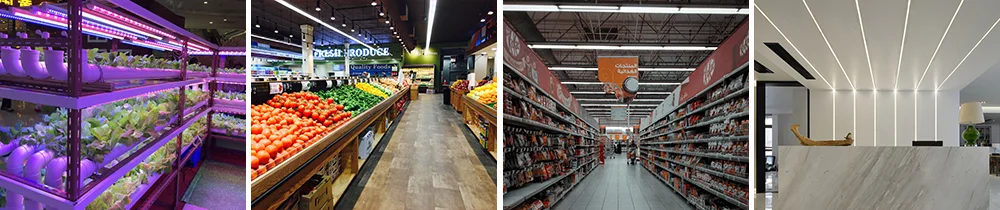

Retail Stores: Adjustable LED drivers enable dynamic lighting for displays, enhancing product presentation and customer experience.
