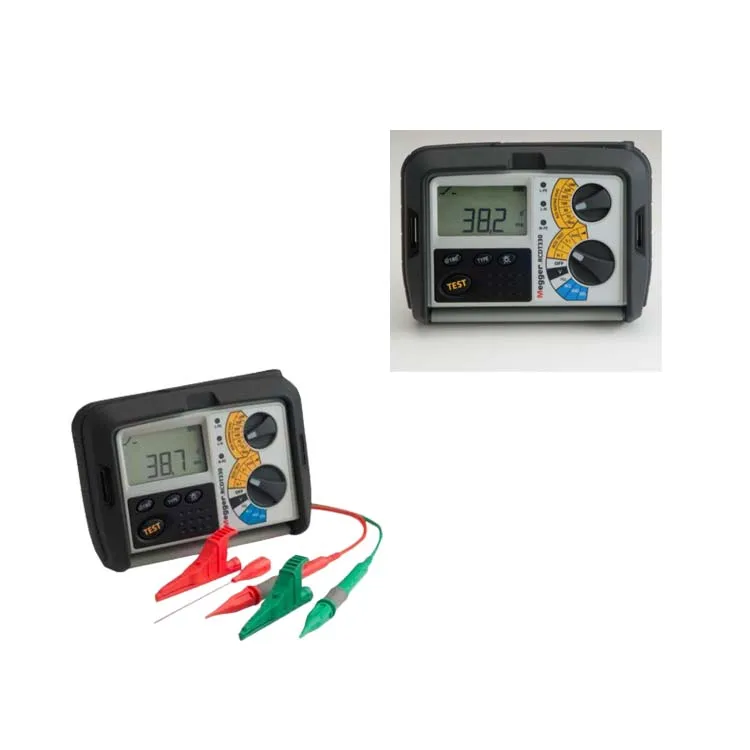

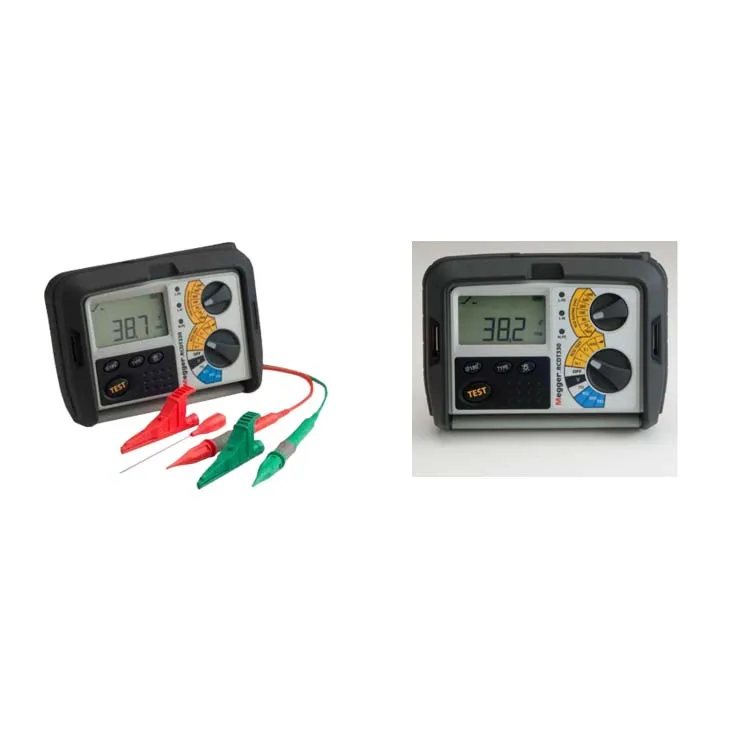

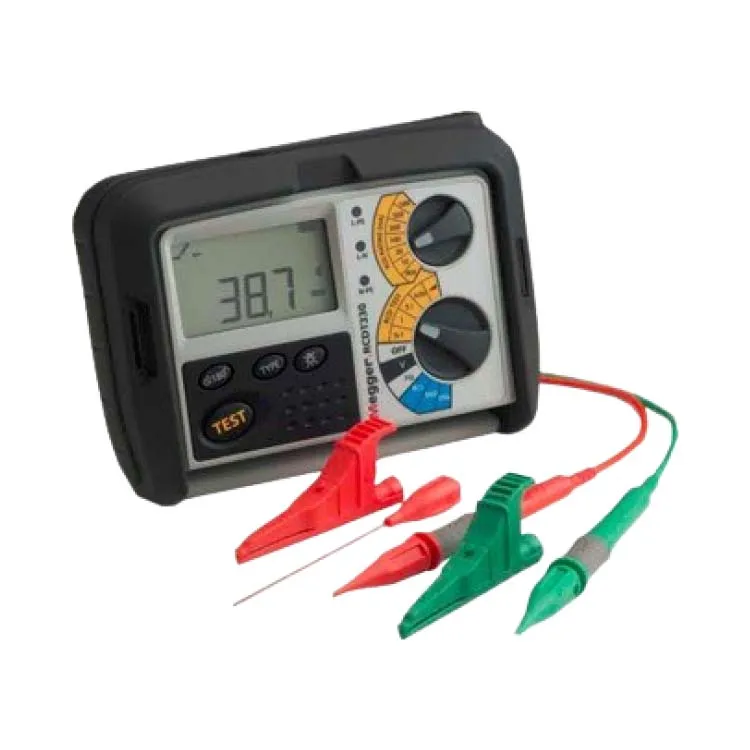

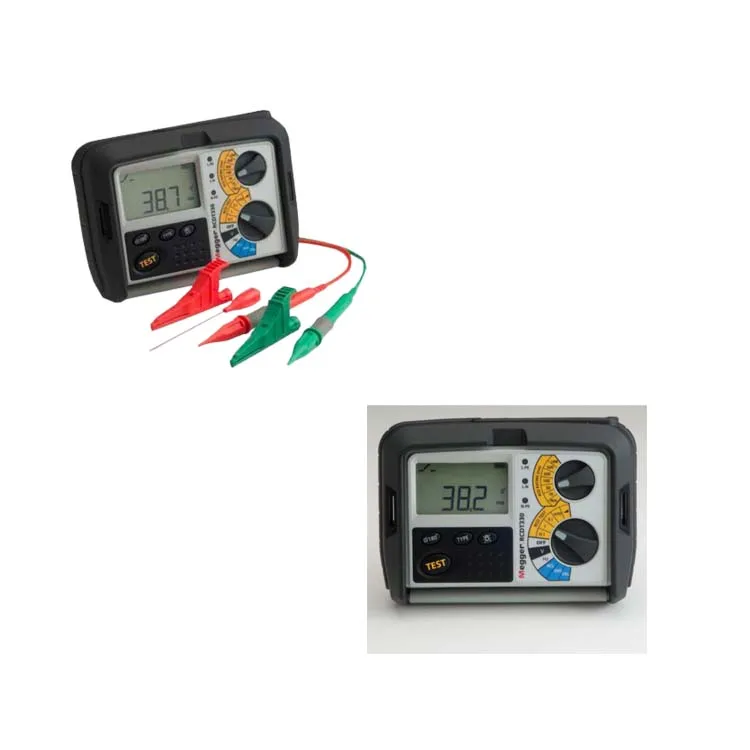

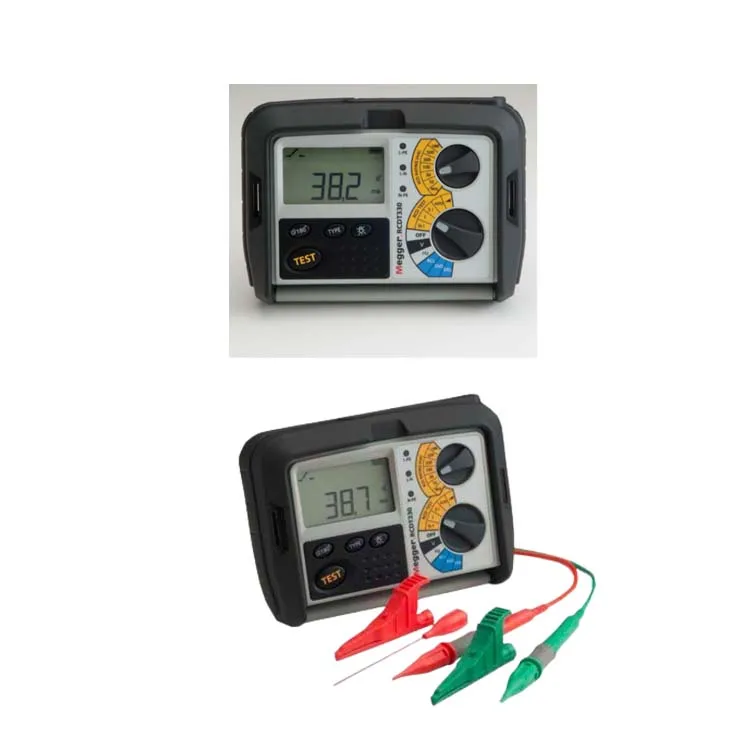

Megger RCDT310 Residual Current Device Tester 100 280 V single phase BS1363 mains plug test lead
- Category: >>>
- Supplier: Nanjing Daoce Electronics Co. Ltd.
Share on (1601250179133):
Product Overview
Description
Product Description
RCDT300 Series Residual Current Device Testers
About the product
* Tests standard, DC, selective and programmable RCDs
* Ramp testing (RCDT320/330)
* Auto (Remote) testing (RCDT320/330)
* Three-phase safe
* Enables testing on 110 V center tapped supplies
* USB interface for downloading test result (RCDT330)
* Tough rubber armored case with built-in cover
* Weatherproof to IP54
The RCDT300 series of residual current device testers are innovative instruments that combine rugged construction with intuitive
operation. Even if they are inadvertently connected to a live three-phase supply, Megger’s RCDT300 range remain undamaged and
present no safety hazard to you.
Available in three models, the RCDT300 series are compact and easy to use. Their rubber overmoulding gives them additional
protection, plus they come with a built-in display cover. All models in the range are water and dust resistant with an IP54
rating.
There are three models in the range:
RCDT310: suitable for use on supplies between 100 V and 280 V, and offers 0.5I, I and 5I tests, with provision for tests starting
at 0 ° or 180 ° of the supply waveform, as well as for DC tests. It also has facilities for testing standard and selective RCDs
and covers current ranges from 30 mA to 500 mA. When connected to a live supply, it defaults to voltmeter mode.
RCDT320: covers a wider supply voltage range of 50 V to 280 V, allowing use with center-tapped 110 V supplies. It incorporates
ramp testing, for RCD tripping current measurement, and the unique Megger auto sequence test feature, which saves time by allowing
the tester to conduct all RCD tests and store the results while the operator stands by the RCD, resetting it as appropriate.
RCDT330: has an extended operating current range to cover 10 mA to 1000 mA devices, and the ability to measure AC supply voltage
and frequency is added. The large LCD screen displays test results and is backlit in this model, making it easier to use in
locations with low ambient light levels.
The RCDT330 additionally offers the facility to save test results to internal memory. Over 1000 result can be saved on site and
downloaded to a computer when convenient. Data is stored in non-volatile memory, being retained when the instrument is switched
off or batteries are exhausted.
Specification
Brand | Megger |
Name | Residual current device testers |
Model | RCDT300 series |
Tests standard, Type A, selective, and programmable RCDs. | 3 Phase safe Enables testing on 110 V centre tapped supplies (RCDT320/330). |
Ramp testing (RCDT320/330). | Tough rubber armoured case with built-in cover |
Auto (Remote) testing (RCDT320/330). | Weatherproof to IP54 |
USB interface for downloading test result (RCDT330). | Designed to take the bashing that testers receive on site, the Megger RCDT testers are rubber armoured |
