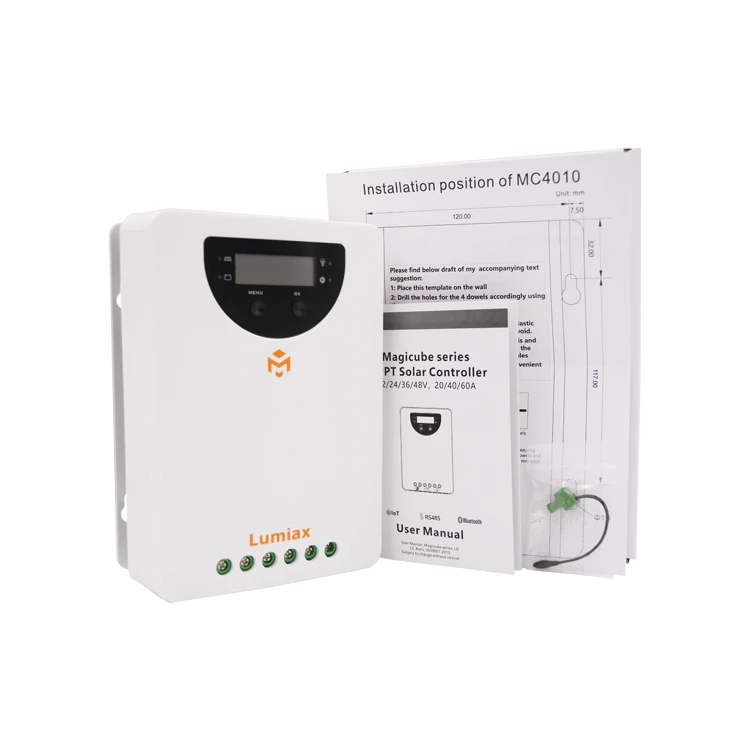

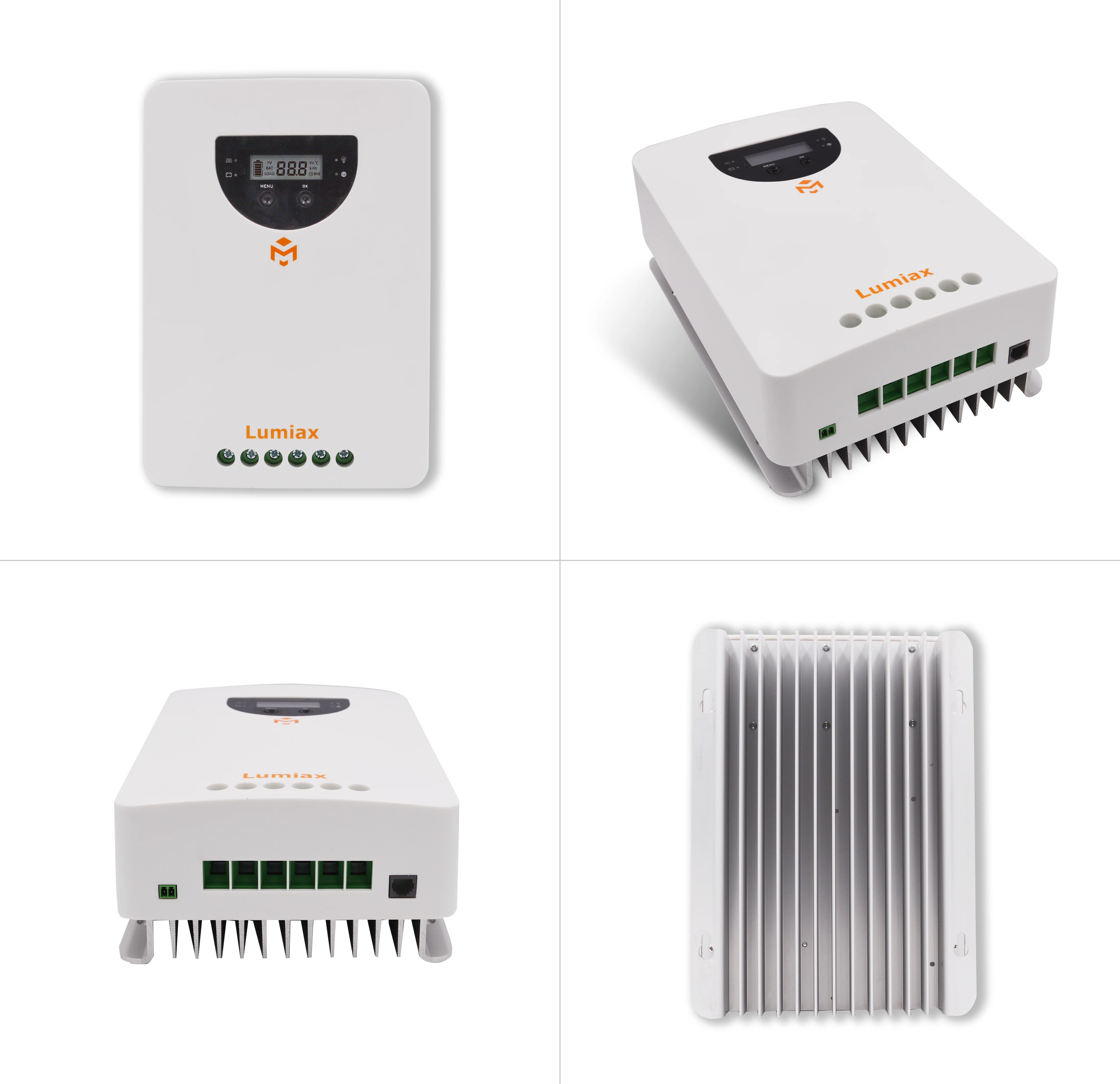

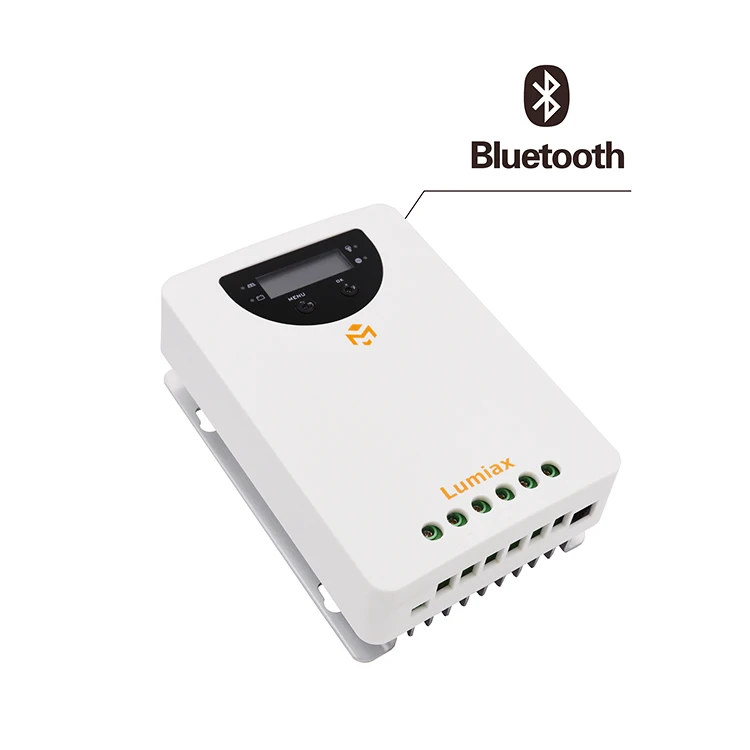

20A 30A 40A 60A 12V 24V 36V 48V Lifepo4 battery home solar energy system tracker charge controller MPPT
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (1601250512641):
Product Overview
Description
Product Features
Products Description
MC2010/-BT
MC4010/-BT
MC6015/-BT
Item | MC2010 | MC3010 | MC4010 | MC6010 | |||||
Max Charging Current | 20A | 30A | 40A | 60A | |||||
System Voltage | 12/24V automatic recognition | ||||||||
Battery Type | Gel, AGM, Liquid, Lithium（default: Gel) | ||||||||
Max volt on Bat. terminal | 35V | ||||||||

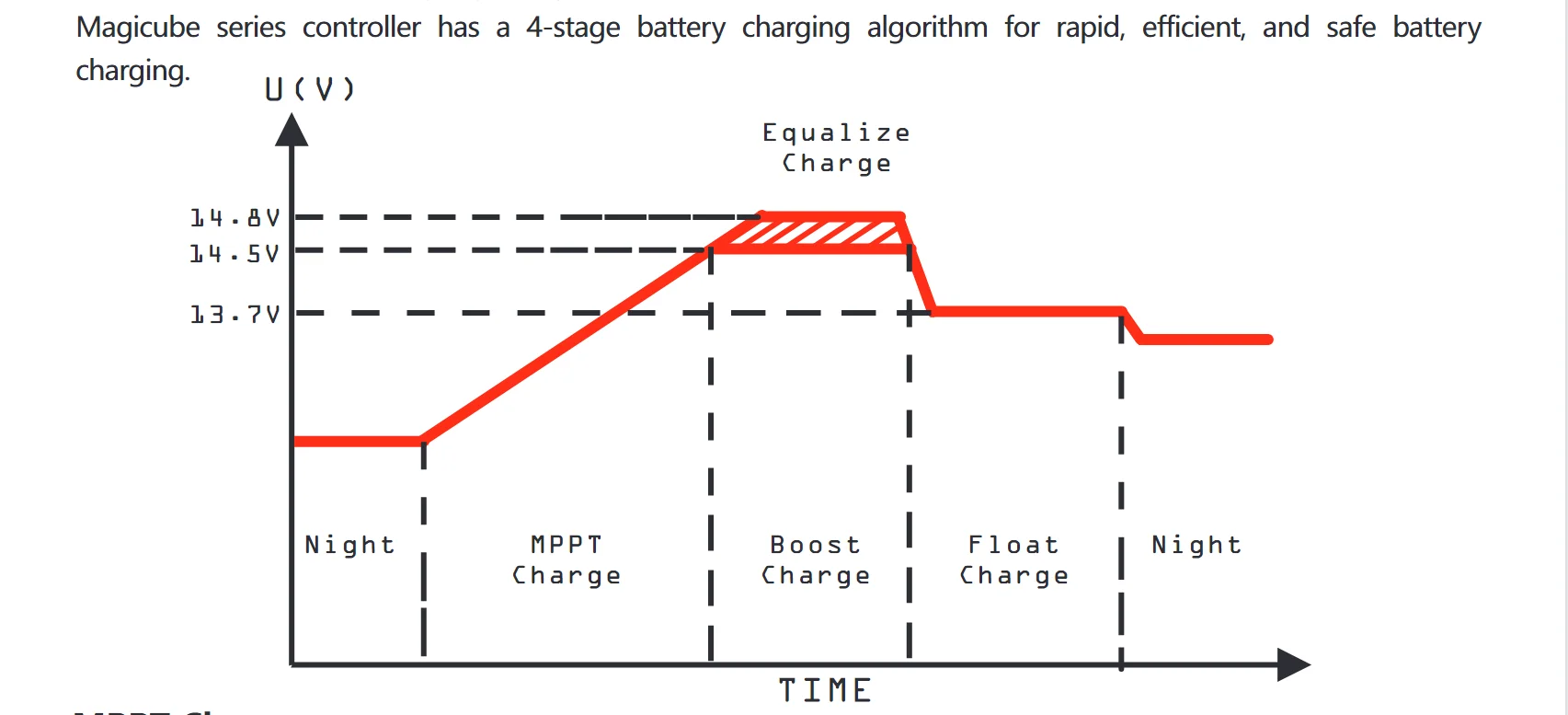

Gel, AGM, Liquid | MPPT Charging Voltage | <14.5/29V@25℃(default: 14.5/29V) | |||||||
Boost Voltage | 14~14.8/28~29.6V @25℃(default: 14.8/29.6V)(Liquid, AGM) | ||||||||
Equalization Voltage | 14.0~15.0V/28.0~30.0V @25℃（default：14.8/29.6V）（Liquid, AGM) | ||||||||
Float Voltage | 13~14.5/26~39V @25℃（default：13.7/27.4V） | ||||||||
Low Volt. Disconnect | 10.8~11.8V/21.6~23.6V(default: 11.2/22.4V) | ||||||||
Reconnect Voltage | 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V) | ||||||||
Overcharge Protect | 15.8/31.3V | ||||||||
Temp. Compensation | -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) | ||||||||
Lithium | Charging target voltage | 10.0~32.0V(Lithium, default: 14.4V) | |||||||
Charging recovery voltage | 9.2~31.8V(Lithium, default: 14.0V) | ||||||||
Low voltage disconnect | 9.0~30.0V(Lithium, default: 10.6V) | ||||||||
Low voltage reconnect | 9.6~31.0V(Lithium, default: 12.0V) | ||||||||
Max volt on PV terminal *1 | 100V(-20℃),90V(25℃） | ||||||||
Max input power | 260/520W | 390W/780W | 520/1040W | 750/1500W | |||||
Day/Night threshold | 3.0~10.0/6.0~20.0V(Default: 8/16V) | ||||||||
MPPT tracking range *2 | （Battery Voltage +2.0V）~Voc*0.9 | ||||||||
Output Current | 20A | 30A | |||||||
Load mode | Always on, Street lamp, User-defind Mode(default: Always on) | ||||||||
Max tracking efficiency | >99.9% | ||||||||
Max charge conversion | 98.0% | ||||||||
Dimensions(MM) | 136.6*136.6*67.1 | 196.5*136.6*67.1 | 262.5*186.5*97.5 | ||||||
Weight | 830g | 1.3Kg | 2.5Kg | ||||||
Self consumption | ≤12mA | ≤14mA | ≤12mA | ||||||

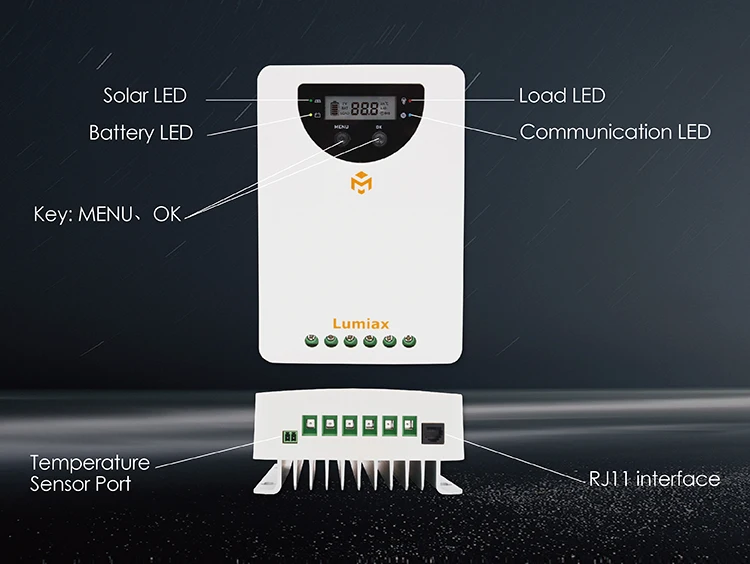

Communication | RS485(RJ11 interface) | ||||||||
Optional | IoT, BLE(Internal/External) | ||||||||
Grounding | Common Negative | ||||||||
Power terminals | 6AWG(16mm2) | ||||||||
Ambient temperature | -20~+55℃ | ||||||||
Storage temperature | -25~+80℃ | ||||||||
Ambient humidity | 0~100%RH | ||||||||
Protection degree | IP32 | ||||||||
Max Altitude | 4000m | ||||||||

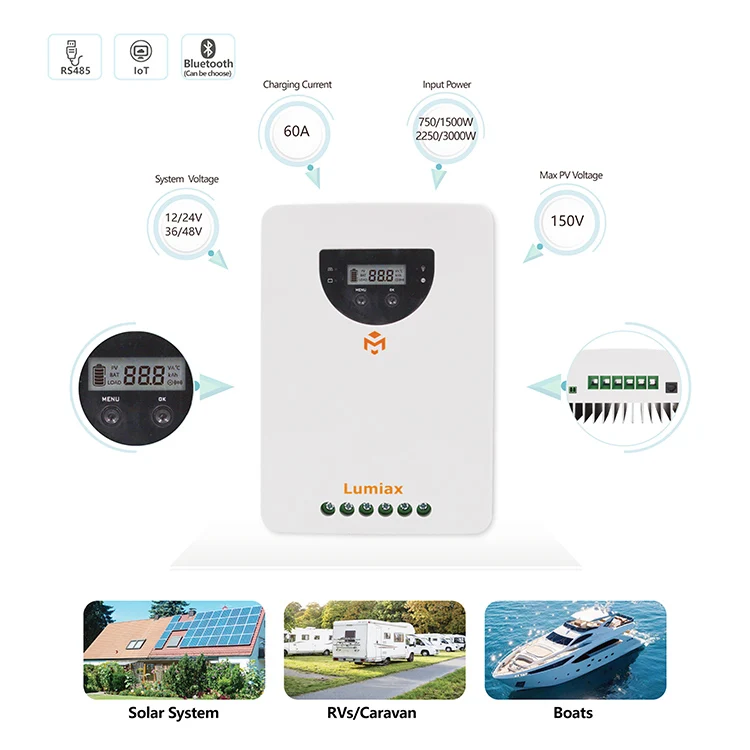

Item | MC6015 |
Max Charging Current | 60A |
System Voltage | 12/24/36/48V automatic recognition |
Battery Type | Gel, AGM, Liquid, Lithium（default: Gel) |
Max volt on Bat. terminal | 65V |
Gel, AGM, Liquid | <14.5/29/43.5/58V@25℃ |
14~14.8/28~29.6/42~44.4/56~59.2V@25℃(default:14.5/29/43.5/58V) | |
14~15/28~30/42~45/56~60V@25℃(default:14.8/29.6/44.4/59.2V) | |
13~14.5/26~29/39~43.5/52~58V@25℃(default:13.7/27.4/41.1/54.8V) | |
10.8~11.8/21.6~23.6/32.4~35.4/43.2~47.2V(default:11.2/22.4/33.6/44.8V) | |
11.4~12.8/22.8~25.6/34.2~38.4/45.6~51.2V(default:12/24/36/48V) | |
15.8/31.3/46.8/62.3V | |
-4.17mV/K per cell (Boost, Equalization)，-3.33mV/K per cell (Float) | |
Lithium | 10.0~64.0V(Lithium, default: 29.4V) |
9.2~63.8V(Lithium, default: 28.7V) | |
9.0~60.0V(Lithium, default: 21.0V) | |
9.6~62.0V(Lithium, default: 22.4V) | |
Max volt on PV terminal *1 | 150V(-20℃）, 138V(25℃） |
Max input power | 750/1500/2250/3000W |
Day/Night threshold | 3.0~10.0/6.0~20.0/9.0~30.0/12.0~40.0V(Default: 8/16/24/32V) |
MPPT tracking range *2 | （Battery Voltage + 2.0V）~Voc*0.9 |
Output Current | 30A |
Load mode | Always on, Street lamp, User-defind Mode(default: Always on) |
Max tracking efficiency | >99.9% |
Max charge conversion | 98.00% |

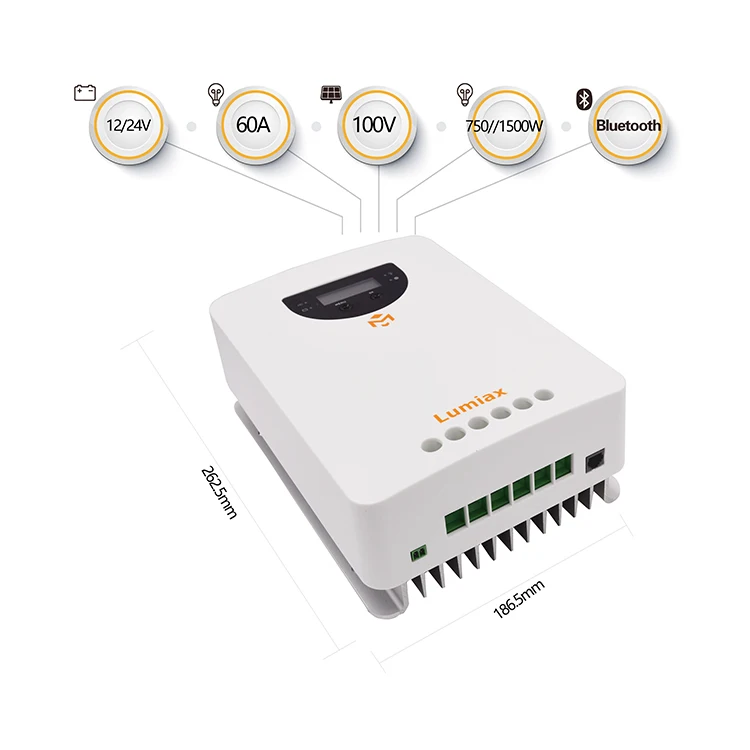

Dimensions | 262.5*186.5*97.5mm |
Weight | 3Kg |
Self consumption | ≤20mA (12V); ≤19mA (24V)；≤19mA (48V)mA |
Communication | RS485(RJ11 interface) |
Optional | IoT,BLE(Internal/External) |
Grounding | Common Negative |
Power terminals | 6AWG(16mm2) |
Ambient temperature | -20~+55℃ |
Storage temperature | -25~+80℃ |
Ambient humidity | 0~100%RH |
Protection degree | IP32 |
Max Altitude | 4000m |
