PA2 Speaker Audio Processor
- Category: >>>
- Supplier: Shenzhen Scs Trade Co. Ltd.Shenzhen Ltd.
Share on (1601250575452):
Product Overview
Description

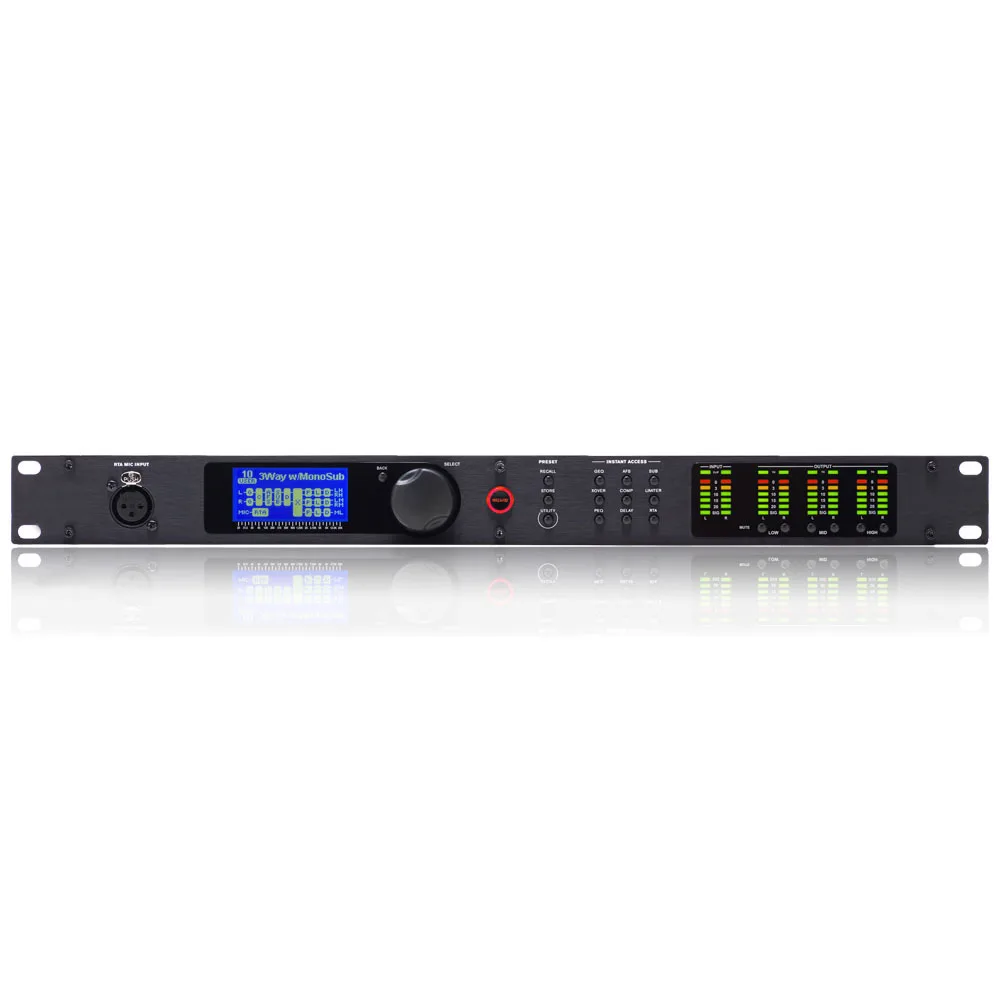

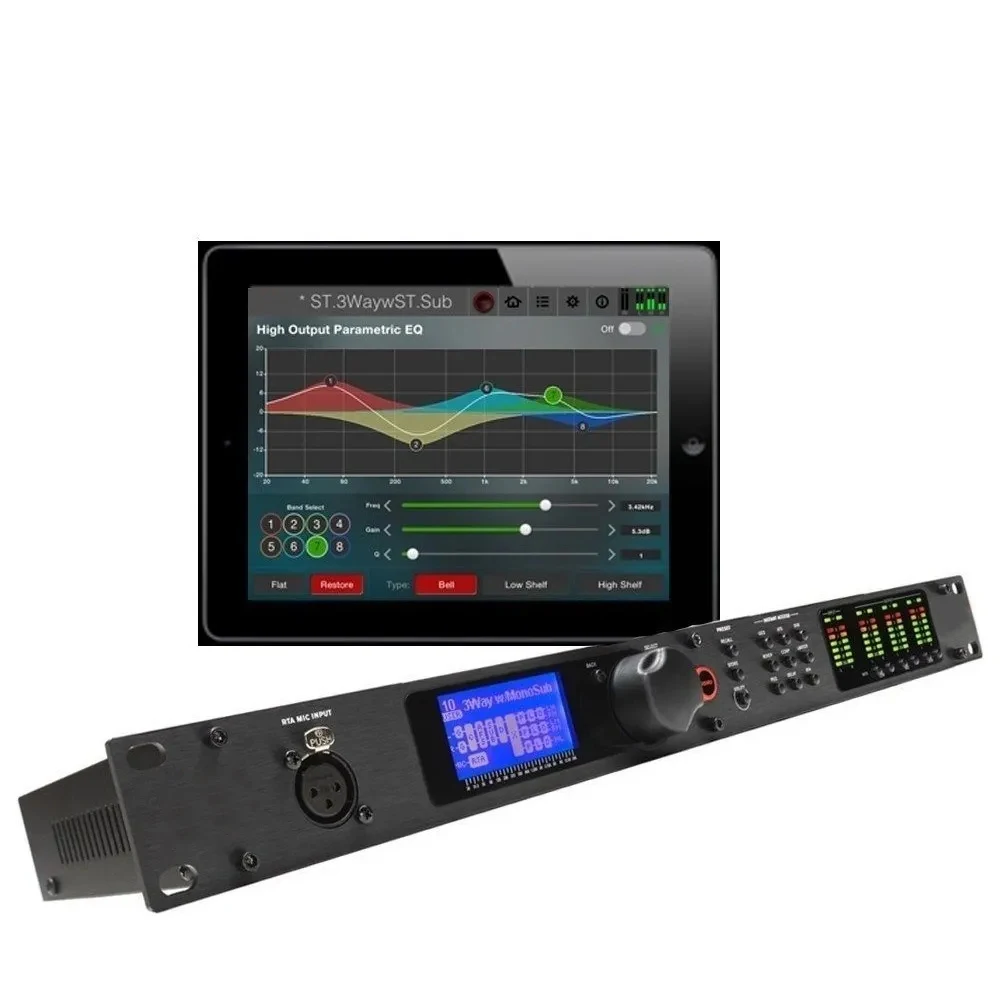

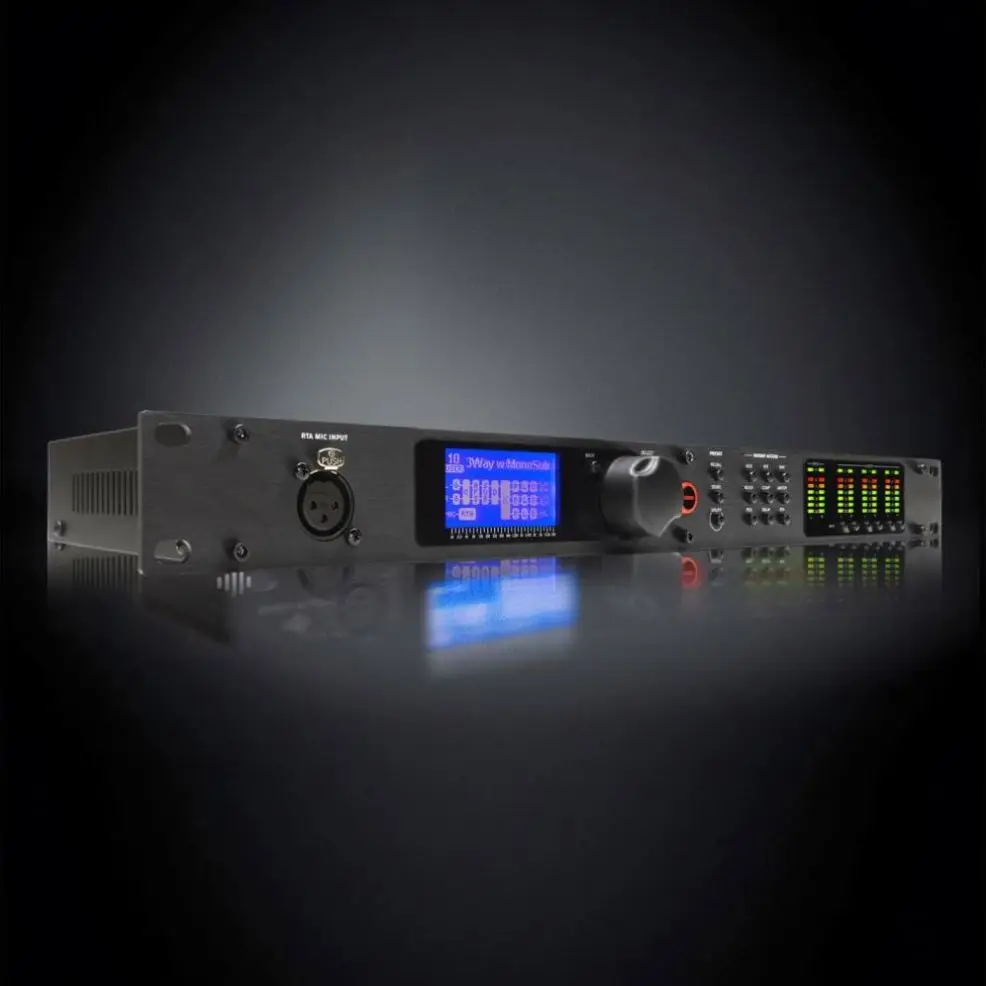

GAX-PA2 Digital processor 2in6out DriveRack PA professional Sound System Equipment Effector for hot selling

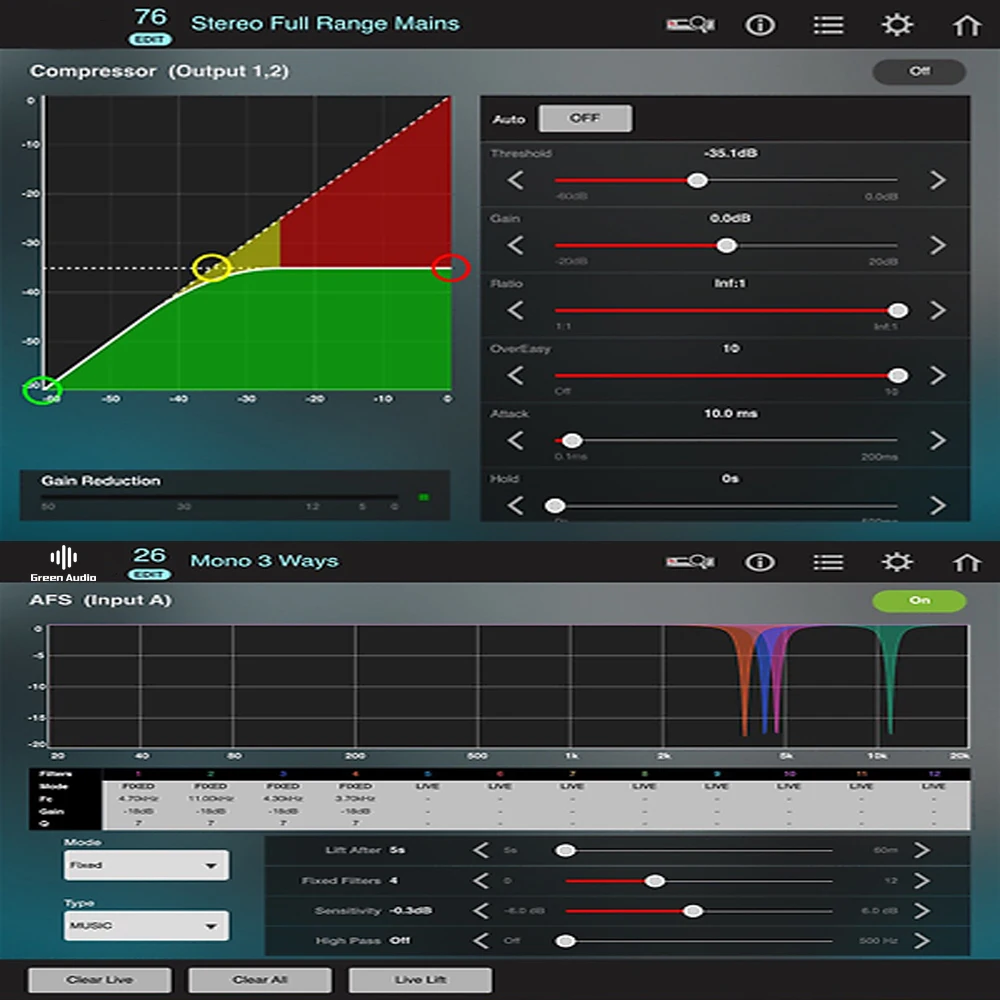

Features: INPUT PROCESSING dbx Compression AFS™ (Advanced Feedback Suppression) 31-Band Graphic EQ 12-Band Parametric EQ (with narrow notch capabilities) Subharmonic Synthesis Backline Delay Noise Gate OUTPUT PROCESSING Crossover (supports full range up to mono 6-way systems) 12-Band AutoEQs (8 AutoEQ bands, 4 User bands) dbx Compression Automatic Gain Control Subharmonic Synthesis Noise Gate Tower Delays (up to 1000ms per output) 8-Band Parametric EQs (used for speaker tunings) dbx Limiting Driver Alignment Delays
Product Description
Product Description

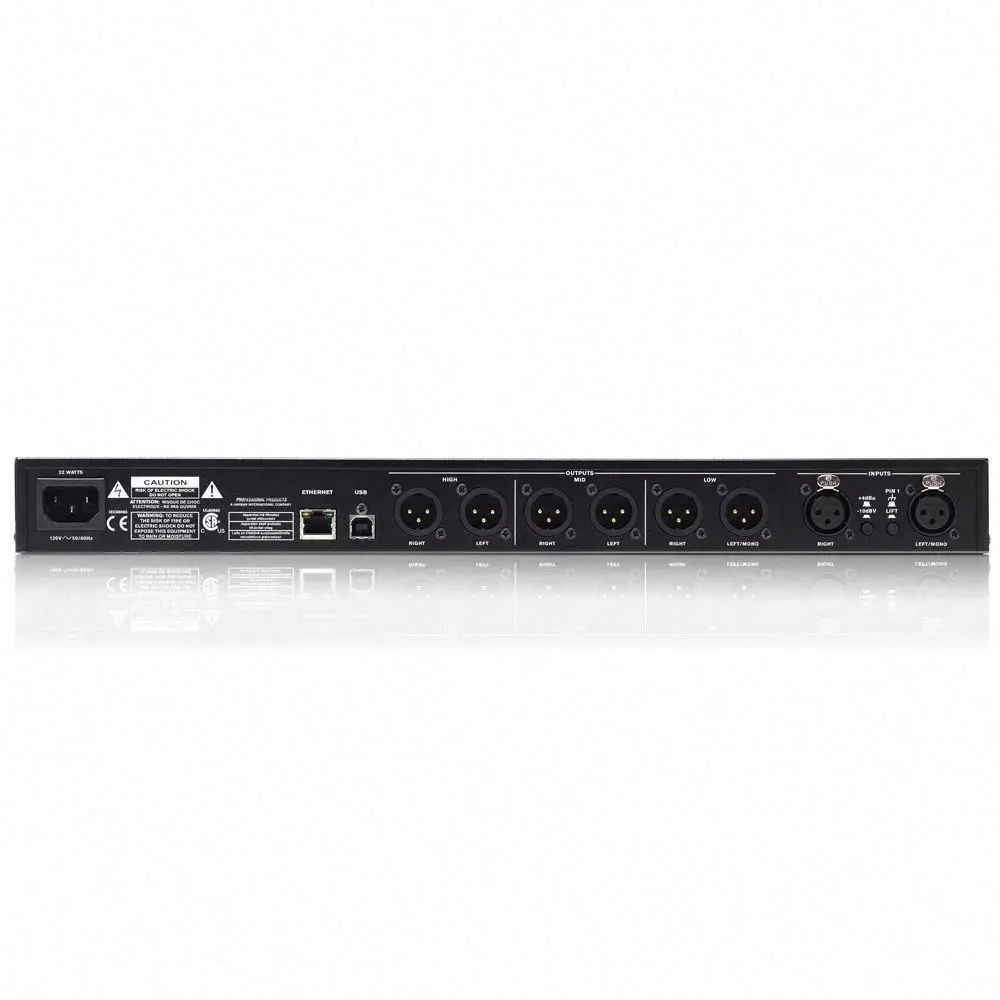

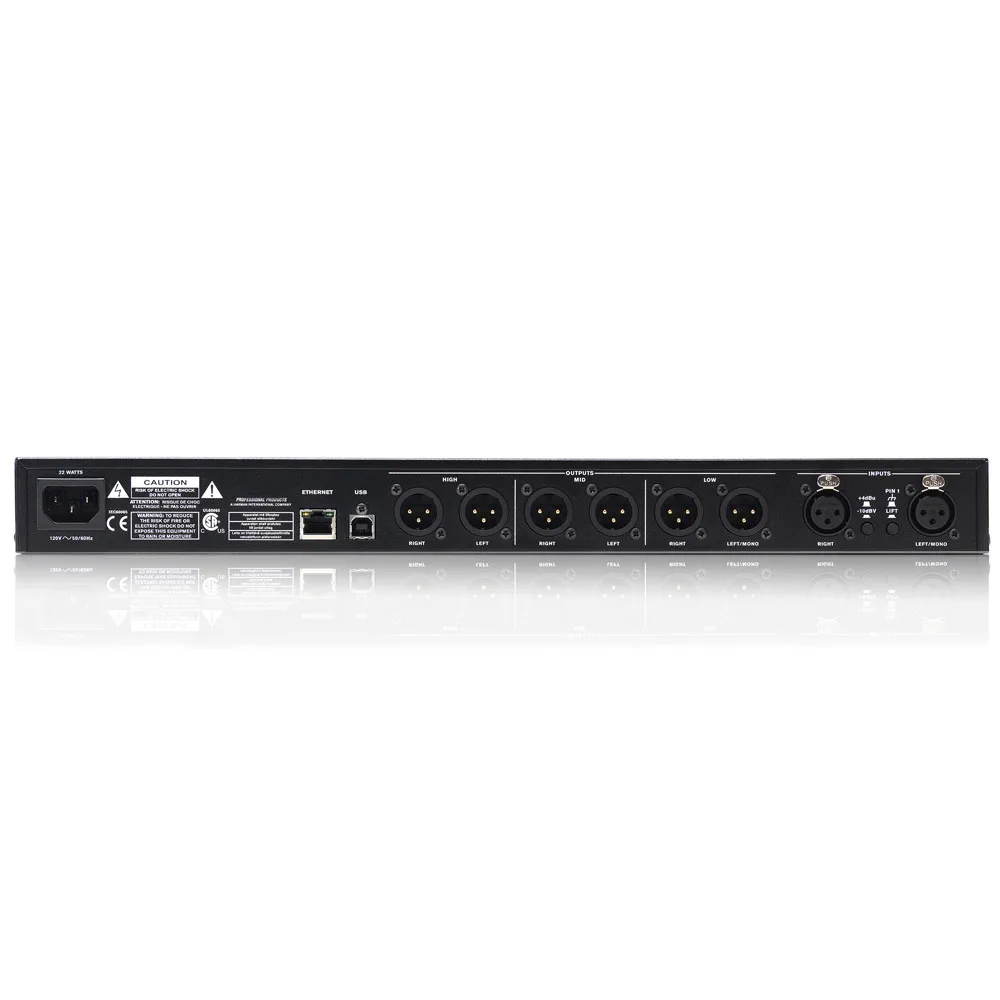

Specifications: Input(2) line inputs. (1) RTA Mic inputInput Connectors(2) Female XLR line inputs. (1) Female XLR RTA Mic inputInput Type
Electronically balanced/RF filteredInput Impedance>50 kohmA/D Converterdbx Type IV™ Conversion SystemCMRR> 45dBMic Preamp Phantom
Power+15VDC (RTA)Mic Preamp Equivalent Input Noise (EIN)< -117dB, 22Hz-22kHz, 150 ohm (RTA)Output(6) Line OutputsOutput Connectors
Male XLROutput TypeElectronically balanced, RF filteredOutput Impedance120 ΩMax Output+20dBuA/D Dynamic Range112 dB A-weighted,
110 dB unweightedType IV Dynamic Range123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material,
unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BWInput Delay Length100msAlignment Delay10ms per
channel (60ms total)Sample Rate48kHzDynamic Range>110 dB A-weighted, >107dB unweightedTHD+Noise0.003% typical at +4dBu, 1kHz, 0dB
input gainFrequency Response20Hz – 20kHz, +/- 0.5dBInterchannel Crosstalk< -110 dB, -120dB typical (input-to-output: < -100 dB)
Operating Voltage100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 HzPower Consumption22 WUnit Weight5.25 lbs. (2.4 kg)Shipping Weight
6.75 lbs. (3.1 kg)Dimensions1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)D/A Dynamic Range112 dB
A-weighted, 110dB unweighted
Electronically balanced/RF filteredInput Impedance>50 kohmA/D Converterdbx Type IV™ Conversion SystemCMRR> 45dBMic Preamp Phantom
Power+15VDC (RTA)Mic Preamp Equivalent Input Noise (EIN)< -117dB, 22Hz-22kHz, 150 ohm (RTA)Output(6) Line OutputsOutput Connectors
Male XLROutput TypeElectronically balanced, RF filteredOutput Impedance120 ΩMax Output+20dBuA/D Dynamic Range112 dB A-weighted,
110 dB unweightedType IV Dynamic Range123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material,
unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BWInput Delay Length100msAlignment Delay10ms per
channel (60ms total)Sample Rate48kHzDynamic Range>110 dB A-weighted, >107dB unweightedTHD+Noise0.003% typical at +4dBu, 1kHz, 0dB
input gainFrequency Response20Hz – 20kHz, +/- 0.5dBInterchannel Crosstalk< -110 dB, -120dB typical (input-to-output: < -100 dB)
Operating Voltage100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 HzPower Consumption22 WUnit Weight5.25 lbs. (2.4 kg)Shipping Weight
6.75 lbs. (3.1 kg)Dimensions1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)D/A Dynamic Range112 dB
A-weighted, 110dB unweighted
