OEM Insert Finishing Hob Involute Gear Hob Rod/ Hole/Inlaid Alloy/Welded Type
- Category: >>>
- Supplier: Henan Wogeng Machinery Equipment Co. Ltd.
Share on (1601250576393):
Product Overview
Description
OEM Insert Finishing Hob Involute Gear Hob Rod/ Hole/Inlaid Alloy/Welded Type
specifications

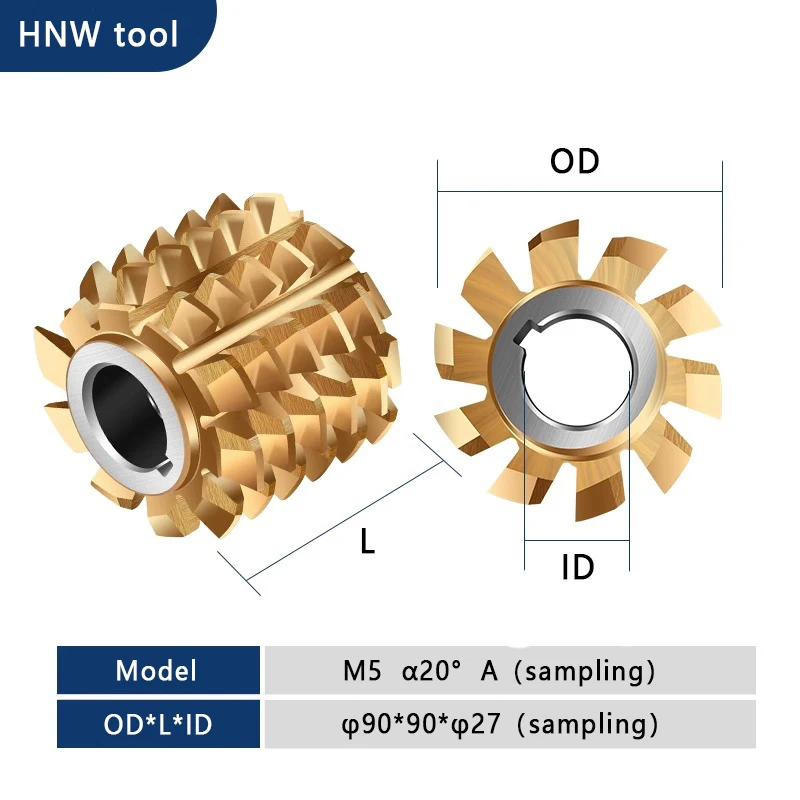

| Specifications | Outer diameter" Length* Inner hole |
| M 0.5 a20°A | Φ50*40*22 |
| M 0.6 a20°A | Φ50*40*22 |
| M 0.65 a20°A | Φ50*40*22 |
| M 0.7 a20°A | Φ50*40*22 |
| M 0.8 a20°A | Φ50*40*22 |
| M 0.9a20°A | Φ50*40*22 |
| M1 a20°A | Φ50*40*22 |
| M1.25 a20°A | Φ50*40*22 |
| M1.5 a20°A | Φ55*45*22 |
| M1.75 a20°A | Φ55*45*22 |
| M2 a20°A | Φ55*45*22 |
| M2.25 a20°A | Φ60*50*22 |
| M2.5 a20°A | Φ65*55*22 |
| M2.75 a20°A | Φ65*55*22 |
| M3 a20°A | Φ70*60*27 |
| M3.25 a20°A | Φ75*65*27 |
| M3.5 a20°A | Φ75*70*27 |
| M3.75 a20°A | Φ80*70*27 |
| M4 a20°A | Φ80*75*27 |
| M4.25 a20°A | Φ85*80*27 |
| M4.5 a20°A | Φ85*85*27 |
| M5 a20°A | Φ90*90*27 |
| M5.5 a20°A | Φ100*95*32 |
| M6 a20°A | Φ105*100*32 |
| M6.5 a20°A | Φ110*100*32 |
| M7 a20°A | Φ115*105*32 |
| M8 a20°A | Φ125*115*32 |
| M9 a20°A | Φ130*130*32 |
| M9 a20°A | Φ140*130*40 |
| M10 a20°A | Φ130*135*32 |
| M10 a20°A | Φ150*135*40 |
| M11 a20°A | Φ150*150*40 |
| M12 a20°A | Φ150*160*32 |
| M12 a20°A | Φ160*160*40 |
| M13 a20°A | Φ170*190*40 |
| M14 a20°A | Φ170*190*40 |
| M15 a20°A | Φ170*190*40 |
| M16 a20°A | Φ180*210*40 |
| M18 a20°A | Φ200*235*40 |
| M20 a20°A | Φ210*240*40 |
| M22 a20°A | Φ220*250*40 |
