Wireless Controller for CO2 Temp Humidity in grow rooms Day Night carbon controller WIFI CO2 monitor controller for fan valve
- Category: >>>
- Supplier: Beijing Shian Technology Instrument Co. Ltd.
Share on (1601250677751):
Product Overview
Description
Product Description
Climate controller for CO2-Temp- RH
Large display
Plants rooms Co2 monitor controller
Day & Night 24 hours monitoring
Waterproof remote CO2 controller

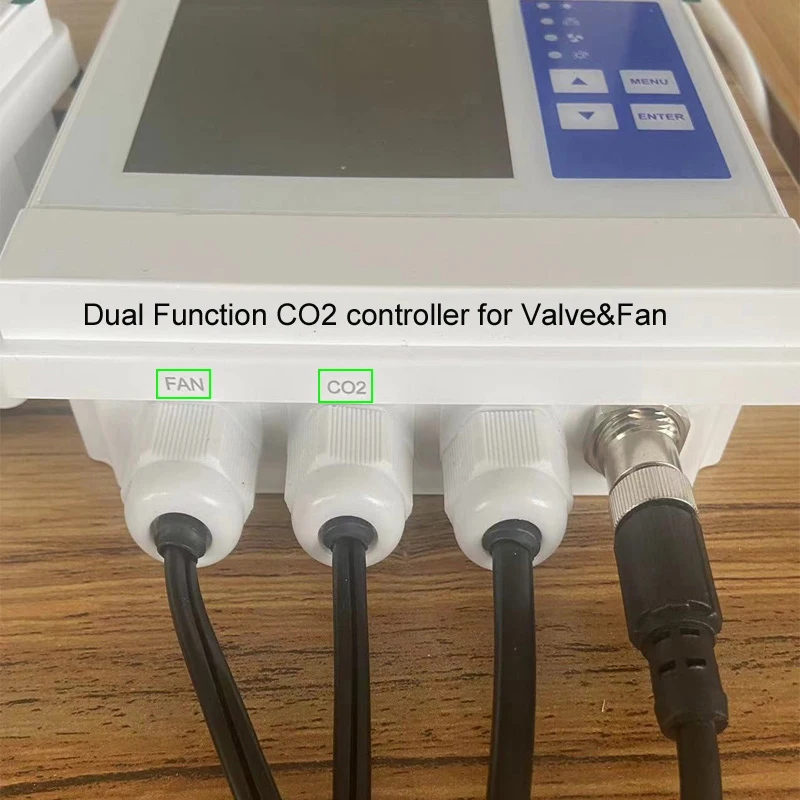

Fan & Valve dual control

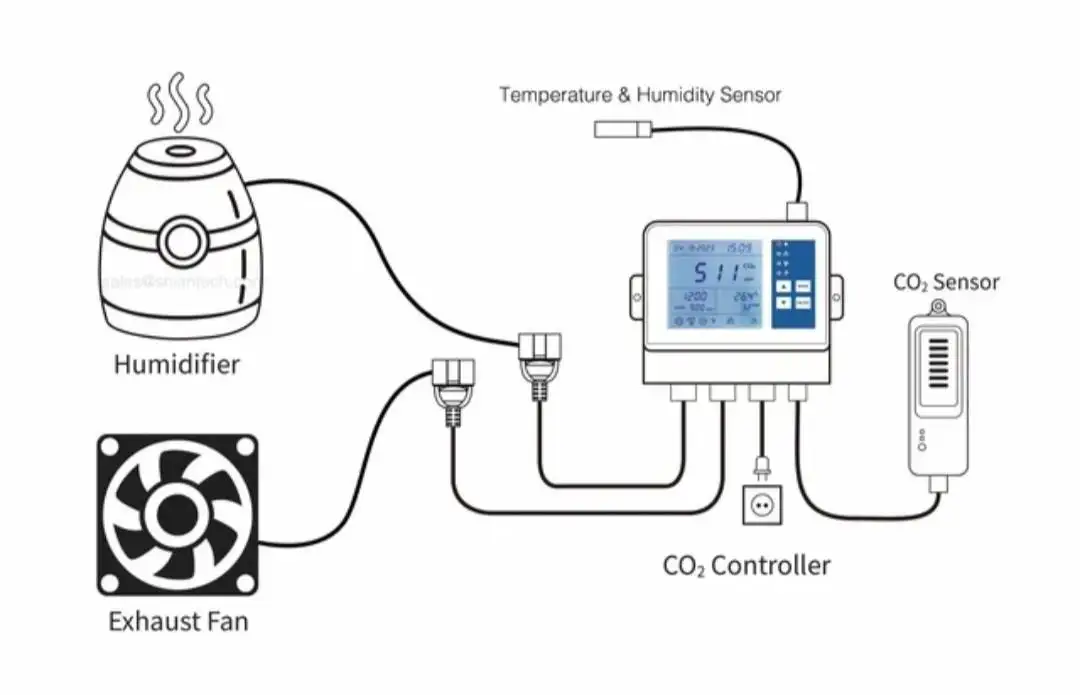

Greenhouse climate controller to control the fan and gas valve controller with waterproof Remote CO2 sensor,
WIFI Communication CO2, Temperature, Humidity Transmitter for Mushroom contorl and Greenhouse
WIFI Communication CO2, Temperature, Humidity Transmitter for Mushroom contorl and Greenhouse

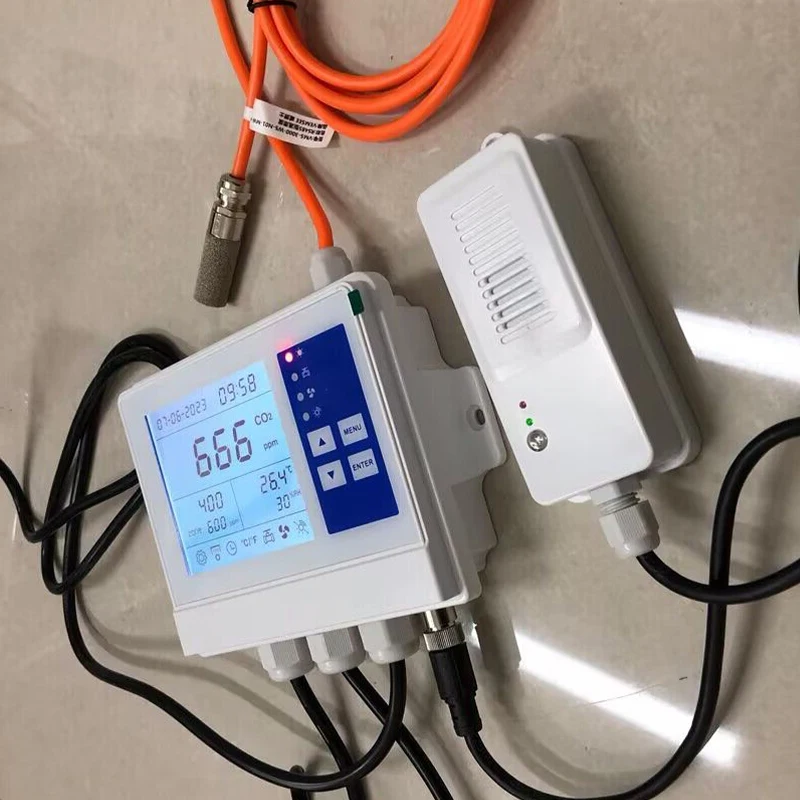

This SA1600P wall-mount CO2 Controller comes with an external CO2 sensing probe & a temperature humidity sensor probe that will help in measuring CO2 and temperature humidity levels in closed spaces. You can use it for air quality real-time monitoring in indoor air CO2 temperature humidity and greenhouse farm measurements. It can also use and operate in other work spaces like offices, hospitals, schools, stations, residential, commercial buildings, or home usage. You can also use it in controlling another connected instrument such as a CO2 generator or ventilation fan easily by two modes (the plant OR human mode) to override the controlling in low or high CO2 concentration.
TheCO2 controller PACKING The CO2 generator valve is optional
The main controller is packed in one small box with power supply wires.
The split co2 sensor box is packed in another small box with wires and Aviation plugs.

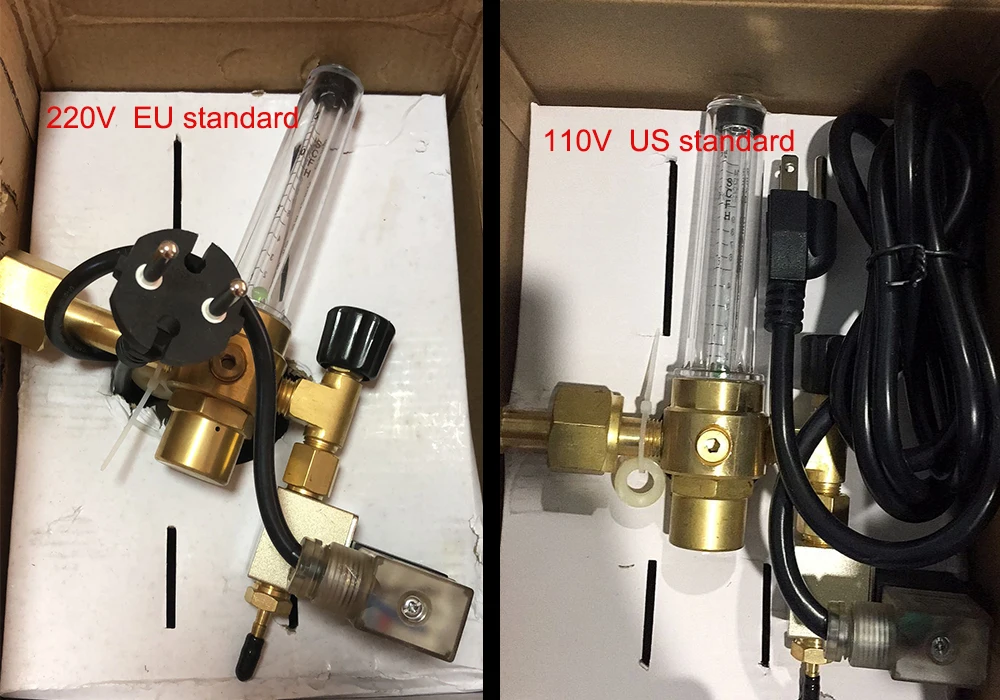

This co2 generator valve can be connected with our co2 controller to use togehter. This accessories are optional, not standard packaging .
Customers can contact with me freely for details
Detailed Images

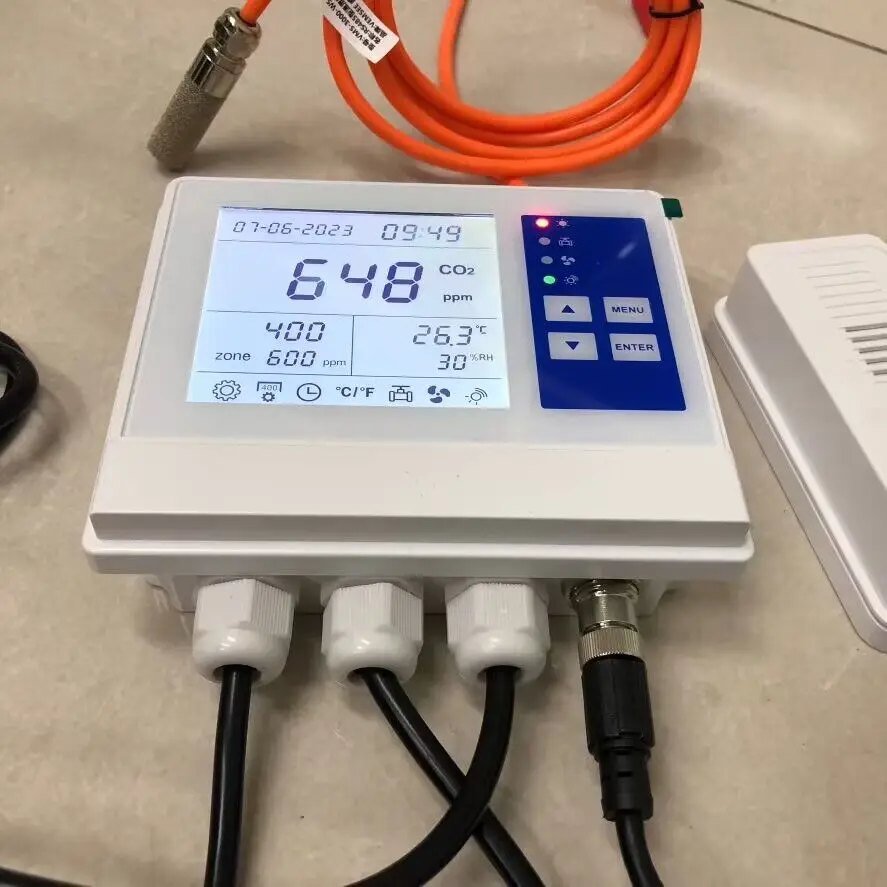

A digital co2 controller for greenhouse ----- Highly accurate digital the carbon dioxide levels in a grown rooms and automatically turn on/off the co2 generator or the fan ventialtion to keep the closed room's air quality at the desires level.

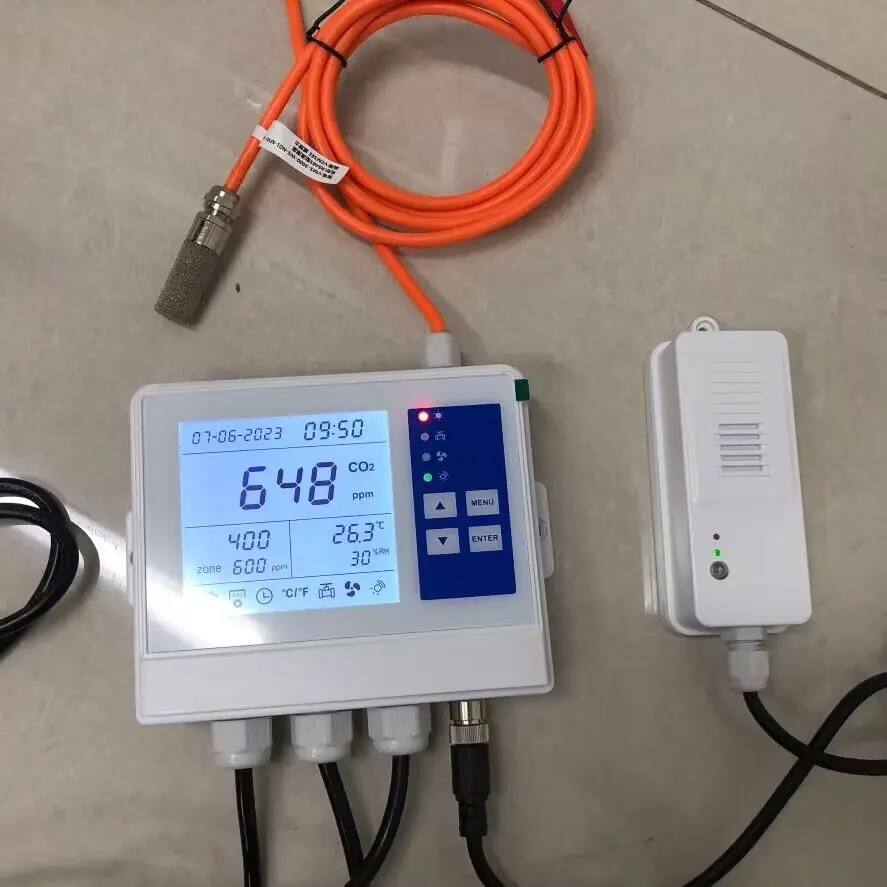

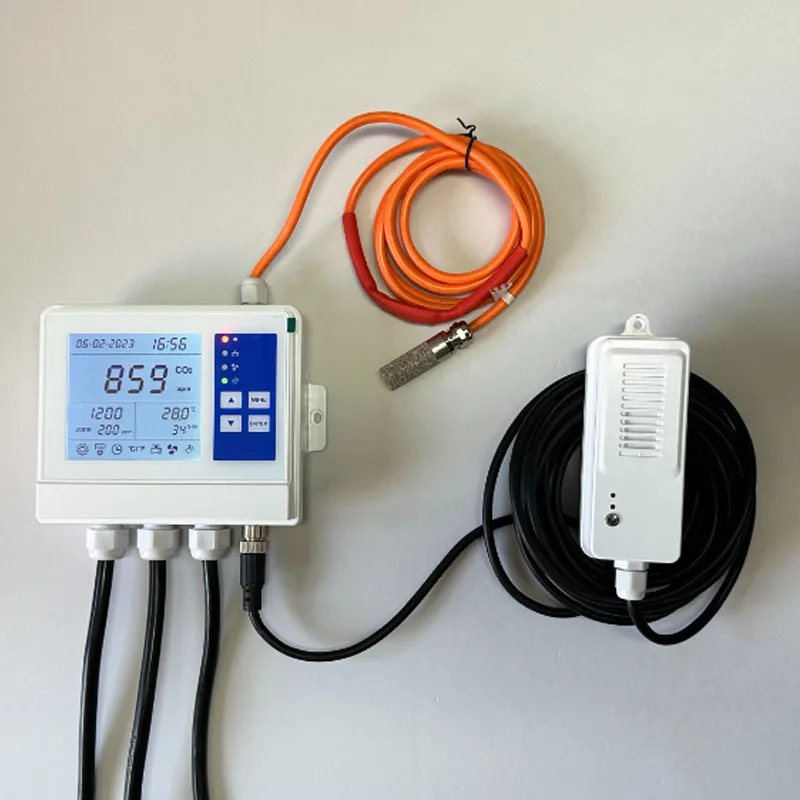

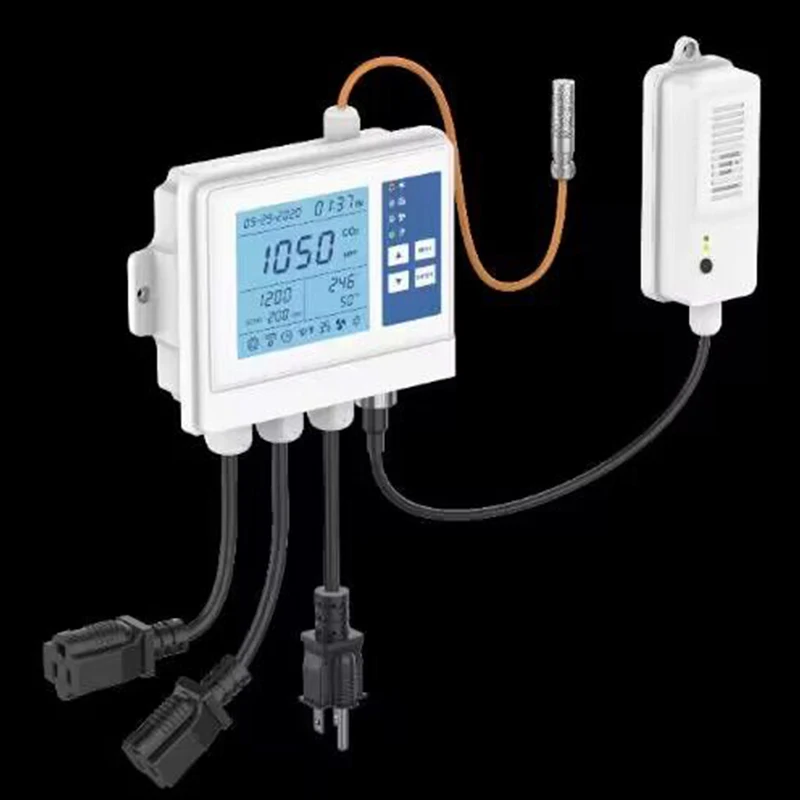

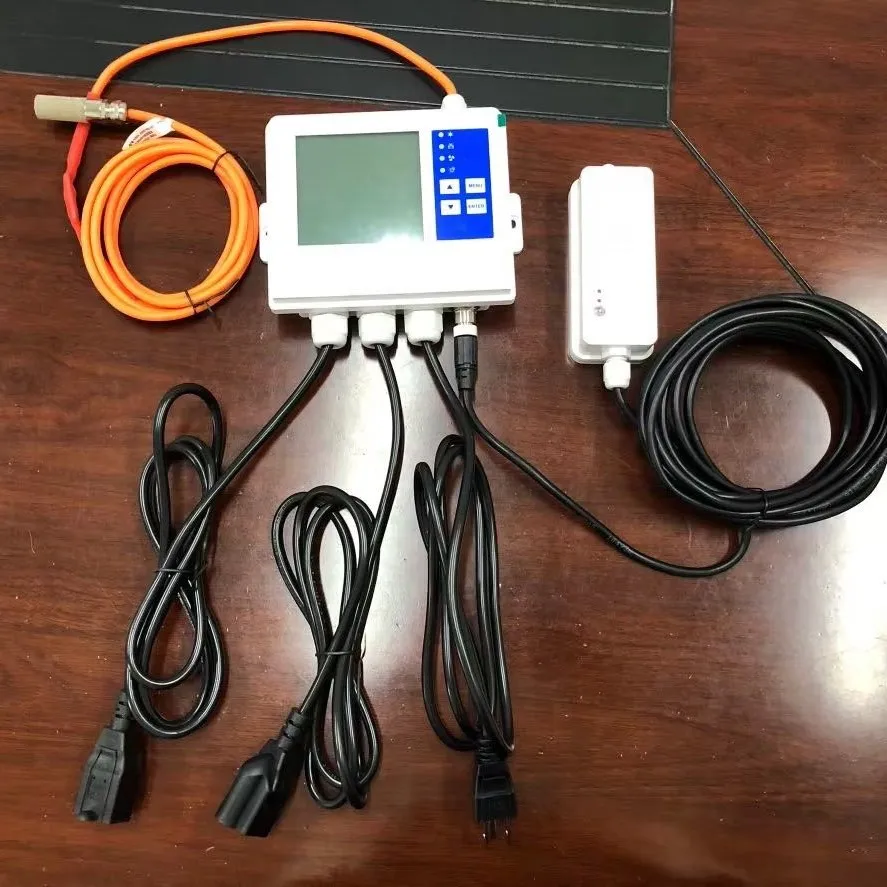

The CO2 controller
use the aviation plug to connect the sensors box and power wires.
Very easy and convenient to replace.
Stable usage.

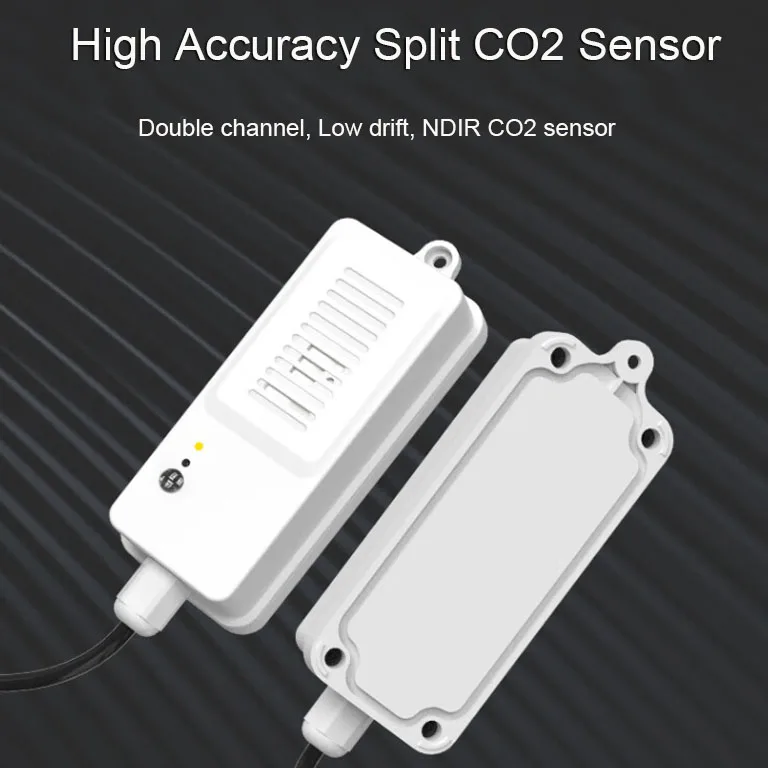

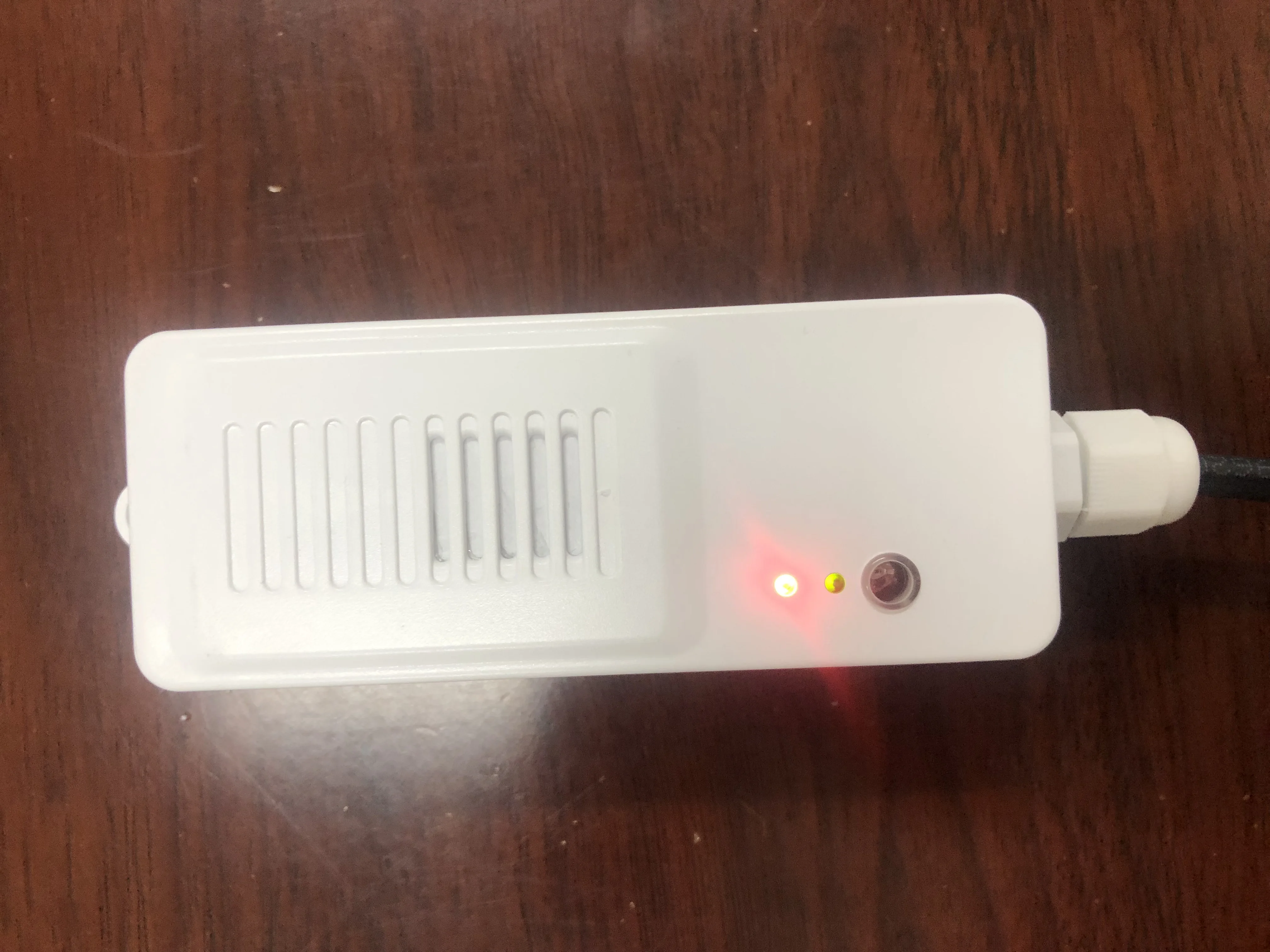

Light sensor + NDIR co2 sensor
this co2 controller is with light sensor
Can save energy and power during the night-time for users
This function can shut off if no need

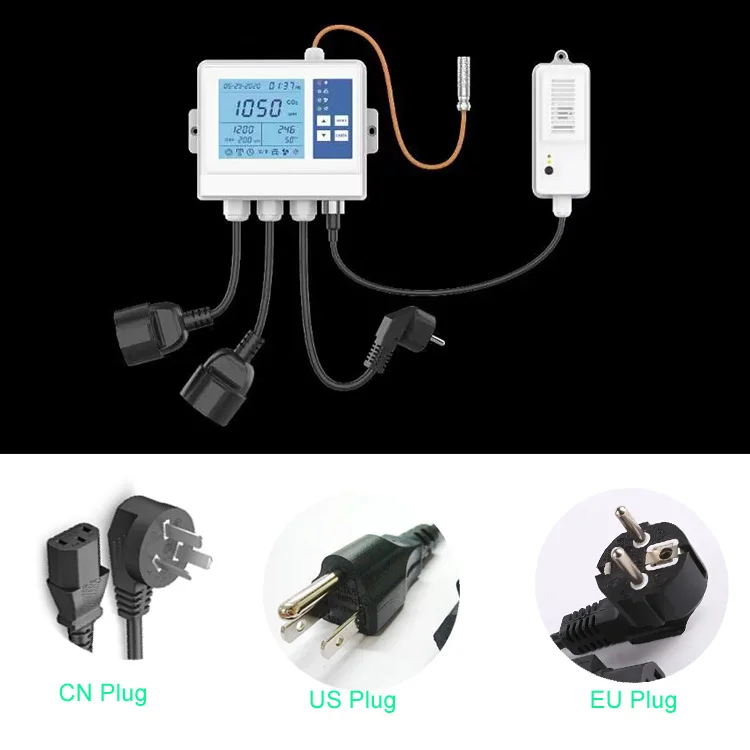

. Power adaptors
We supply the different standards of the power adaptors for our wires connection.
0-240V power supply for it.
Split wall Mount Co2 Controller For Mushroom, Programmable NDIR co2 sensor Carbon dioxide controller CO2 meter
Feature
* Accurate 2-Channel low drift NDIR CO2 measurement
* With a 5.5M External CO2 sensor to be used in closed space

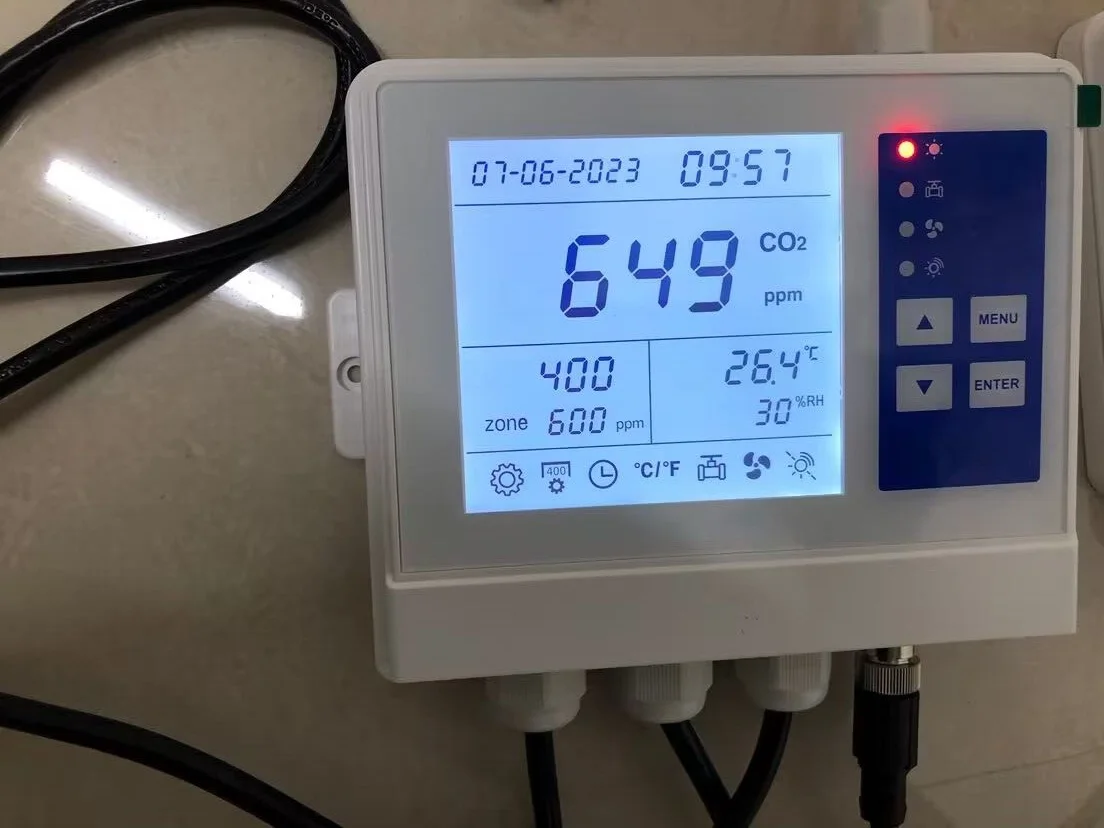

* Display real-time CO2 value,date and time
* Auto calibration function
* Programmable CO2 zone value & CO2 center value to control output power on/off
* An audible alarm that warns CO2 concentration
* Manual calibration to achieve high accuracy
* Built-in Day/Night auto-detection on CO2 probe to override CO2 control
* Backlight to assist the operation in a dark place
* Powered by AC100~240 VAC directly
* The sensing probe cable is 4.5 meters long to extend your measure spot 4.5 meters away from the display
* With a 5.5M External CO2 sensor to be used in closed space
* Display real-time CO2 value,date and time
* Auto calibration function
* Programmable CO2 zone value & CO2 center value to control output power on/off
* An audible alarm that warns CO2 concentration
* Manual calibration to achieve high accuracy
* Built-in Day/Night auto-detection on CO2 probe to override CO2 control
* Backlight to assist the operation in a dark place
* Powered by AC100~240 VAC directly
* The sensing probe cable is 4.5 meters long to extend your measure spot 4.5 meters away from the display
Specification
* Measuring range: 0~5000 ppm
* Resolution:
* Resolution:
1ppm (0-1000);
5ppm (1000-2000);
10ppm (>2000)
* Accuracy:
CO2 below 3000ppm ±50ppm or ±5% of reading, whichever is greaterCO2 above 3000ppm ±7% of reading
* Warm-up time: 30 seconds
* Response time CO2:
* <2min for 63% of step changes or<4.6min for 90% step change
* Accuracy:
CO2 below 3000ppm ±50ppm or ±5% of reading, whichever is greaterCO2 above 3000ppm ±7% of reading
* Warm-up time: 30 seconds
* Response time CO2:
* <2min for 63% of step changes or<4.6min for 90% step change

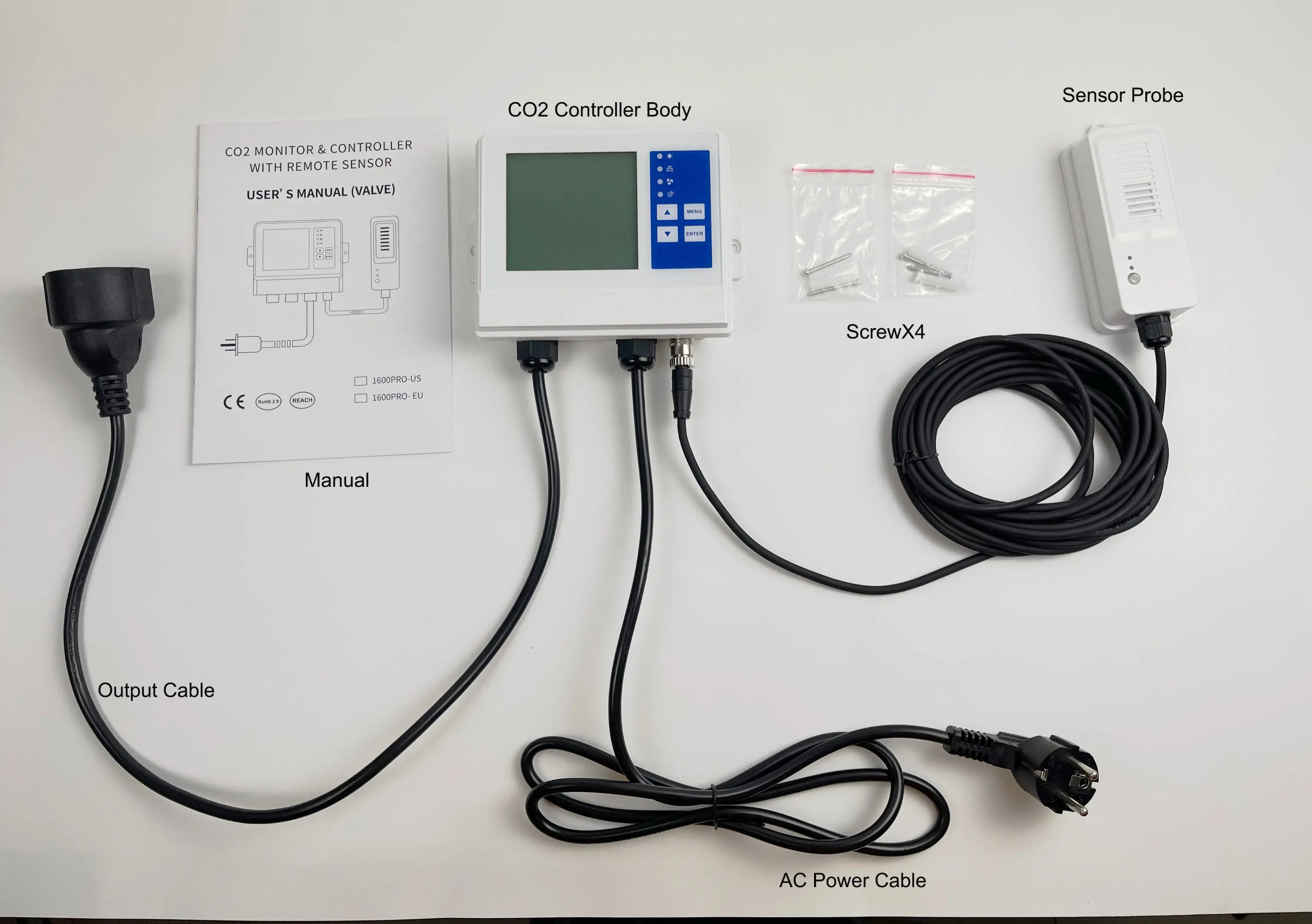

Packing List ( Standard )
1. Main controller
2. Remote sensor probe
3, Manual
4. screws
Optional accessory
1. CO2 generator valve
2. discussed..
Application
1. Carbon dioxide monitoring in factories, workshops, greenhouses, clean rooms and other industries and agriculture.
2. Family, villa, office building, conference room, classroom and other places need ventilation control and environmental quality monitoring.
3. Ventilation control and environmental quality monitoring of hotels, exhibition halls, hospitals, shopping malls, bars, restaurants, airports, railway stations, entertainment halls, cinemas and other public places.
4. Production and use of carbon dioxide gas units
4. Production and use of carbon dioxide gas units

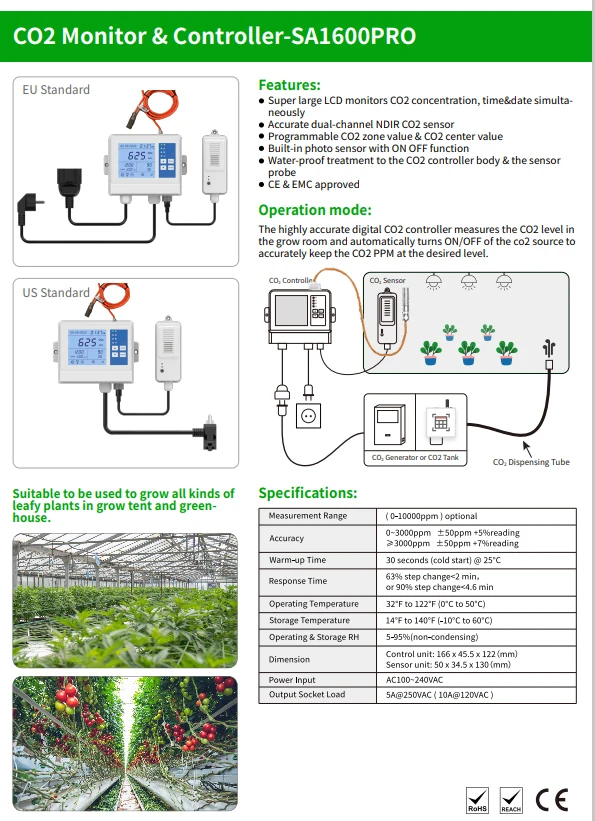

Product Presentation
CO2, Temperature, Humidity Transmitter for Mushroom contorl and Greenhouse
Model | 1600PRO |
Measured range | (0-10000ppm ) optional |
Accuracy | 0-3000ppm ±50ppm+5%reading ≥ 3000ppm ±50ppm+7%reading |
Warm up time | 30s (cod start) @ 25℃ |
Respond time | 63% step changes < 2 min Or 90% step changes <4.6min. |
Operating temperature | 32℉--122℉ （ 0℃- 50℃） |
Storage temperature | 14℉--140℉ （- 10℃- 60℃） |
Operating & storage humidity | 5-95% （non condensing） |
Instrument size | 166 X 45.5 X122 mm |
Sensor detection rod | 50 X 34.5 X 130mm |
Weight | 3kg |
Power | AC100-240VAC |
Output socket load | 5A@ 250VAC (10A@120VAC ) |

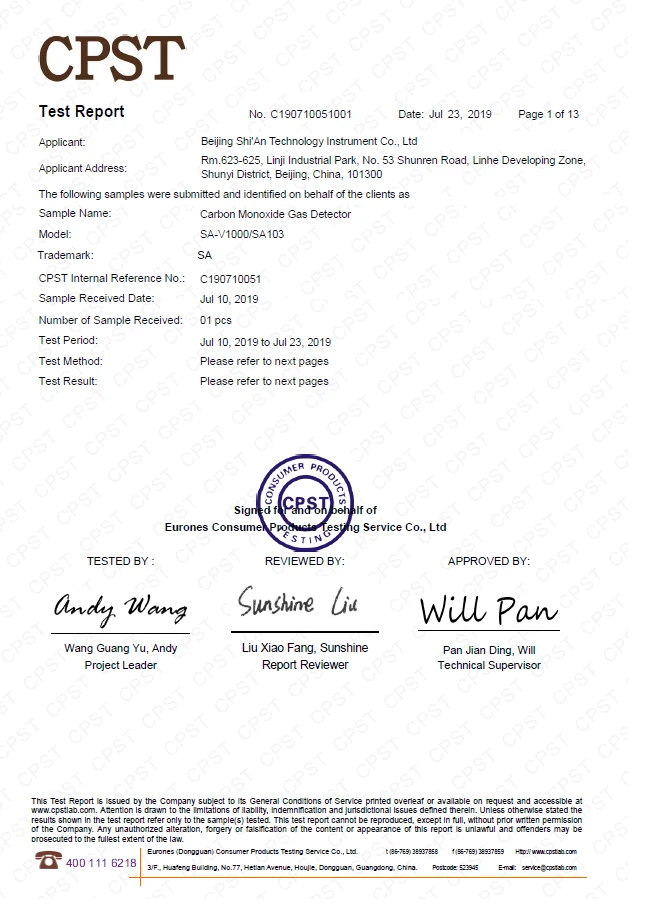

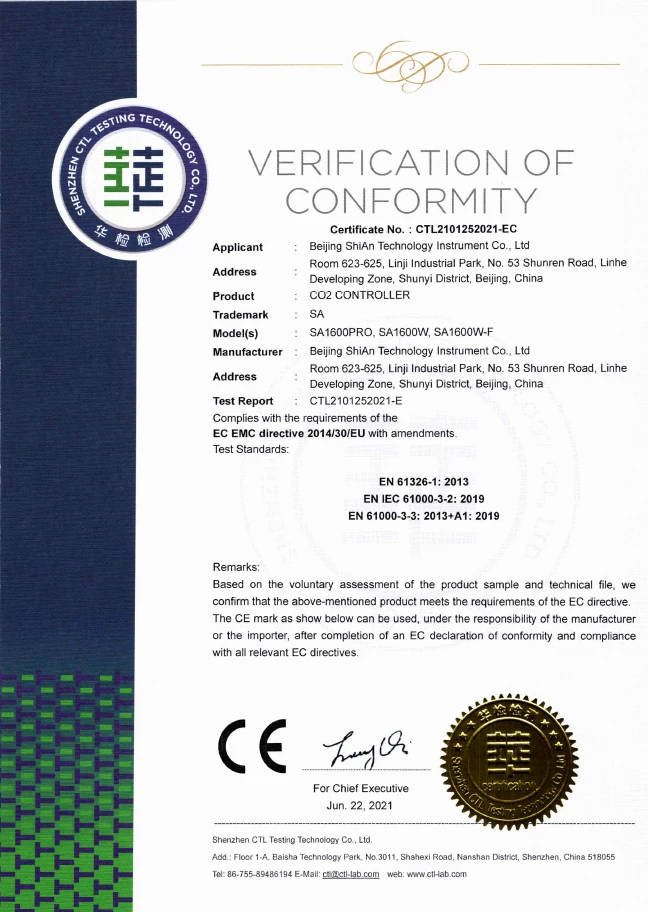

Certificate
Our wall mounted NDIR carbon dioxide Sensor, CO2 monitors and controllers are applied the CE REACH UL certifications if necessary, we are ok to apply other certifications according to your requirement only if the quantity is ok.
