  • COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump

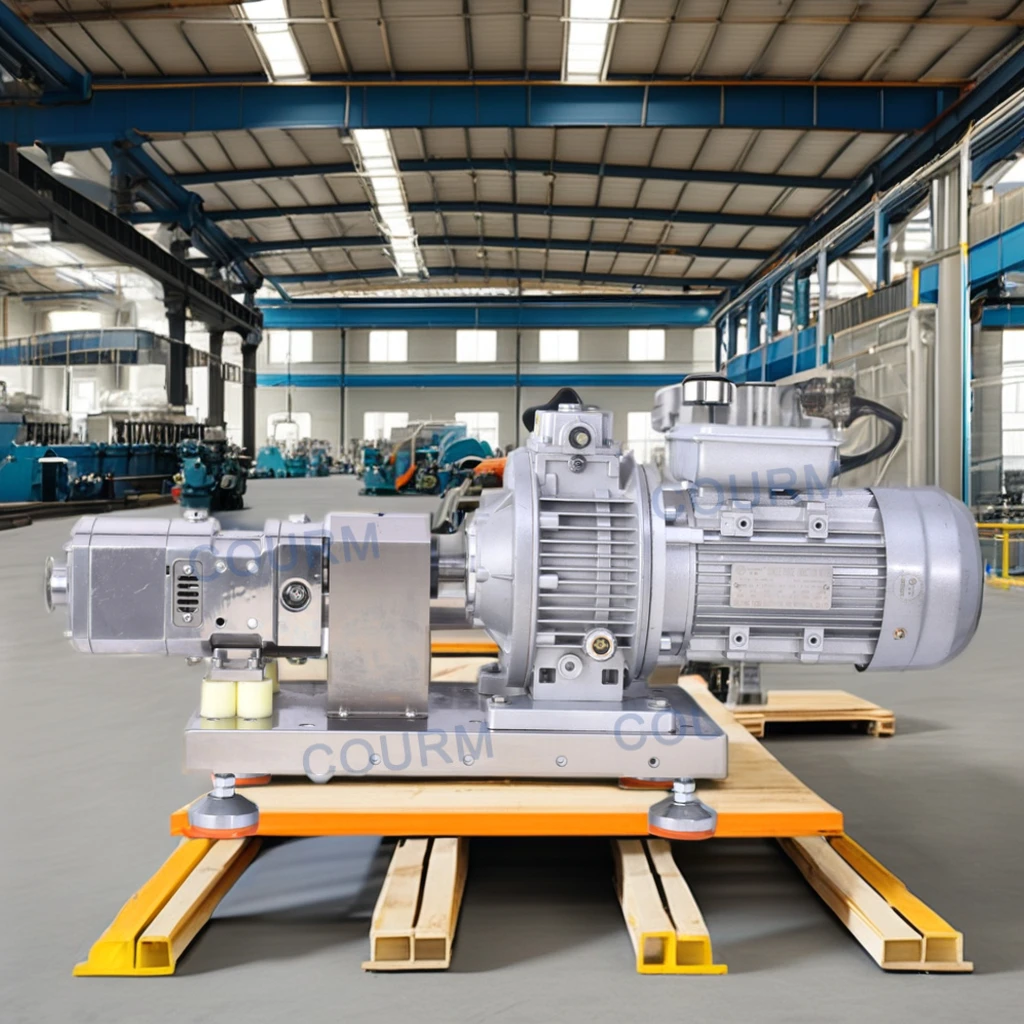

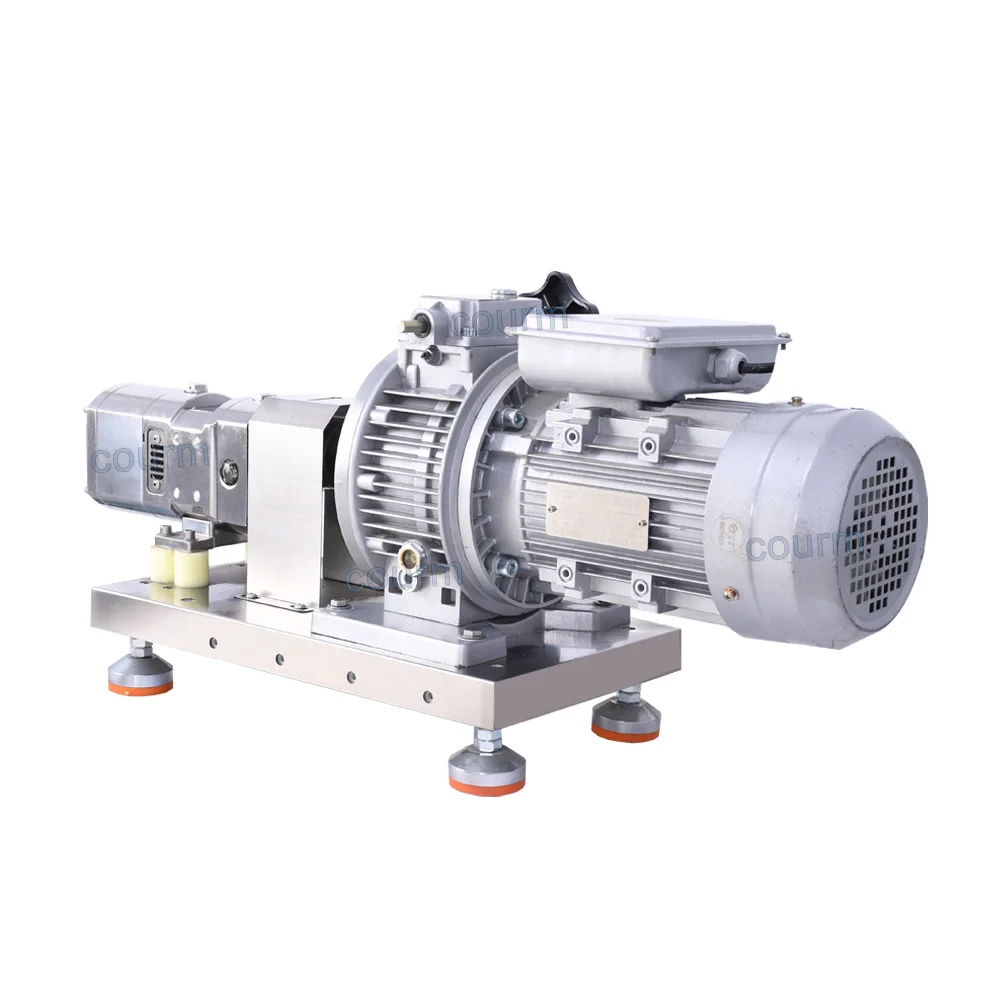

COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump
COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump

COURM high quality whole sale horizontal stainless steel single screw rotor honey transfer pump

Share on (1601250720670):


Price:$966.00-999.00

Quantity:


Product Overview

Description



Product Description


COURM high viscosity rotor pump is a delivery pump for high viscosity media. It is suitable for the transportation industry of various fluids, especially for fluid transportation that handles large changes in viscosity and a wide range. It can be used for transportation in petroleum, chemical industry, paint, grease, medicine, dye and food industries.




Hot water insulation jacket type
Suitable for conveying chocolate, syrup and other high-viscosity liquids

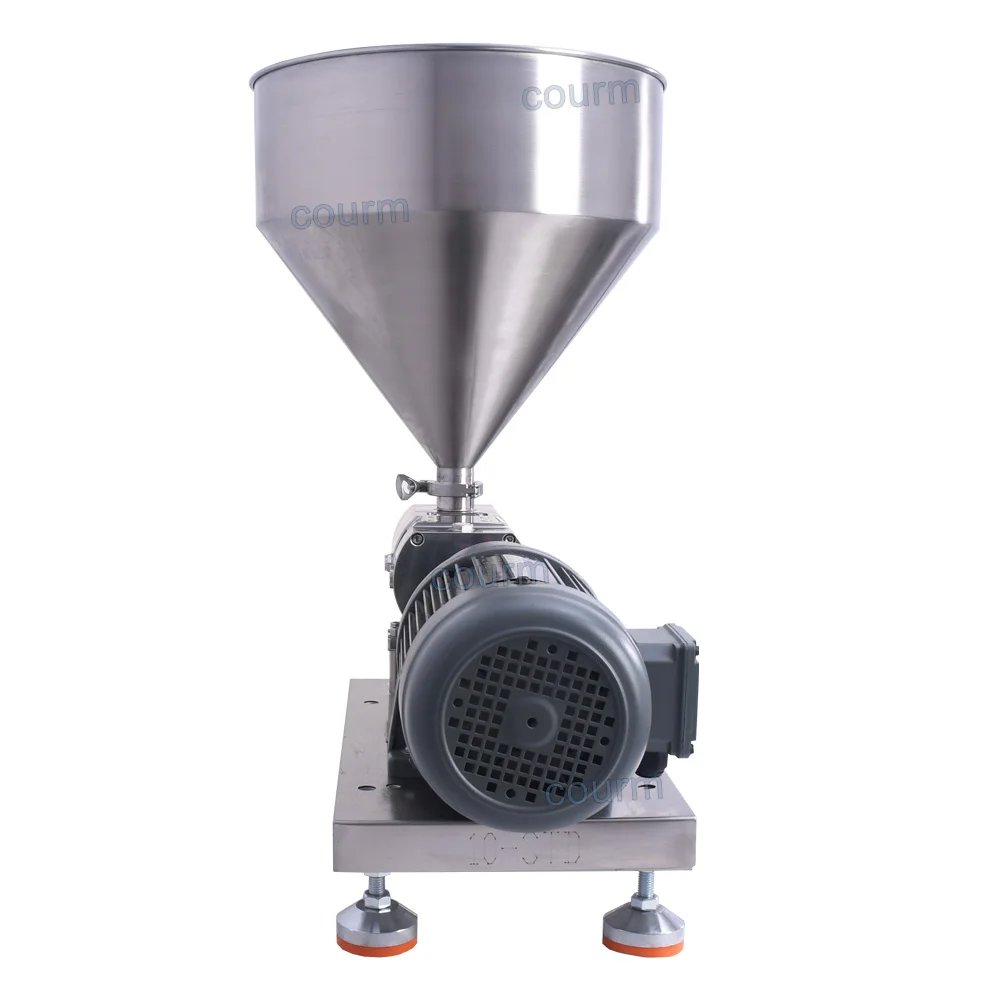

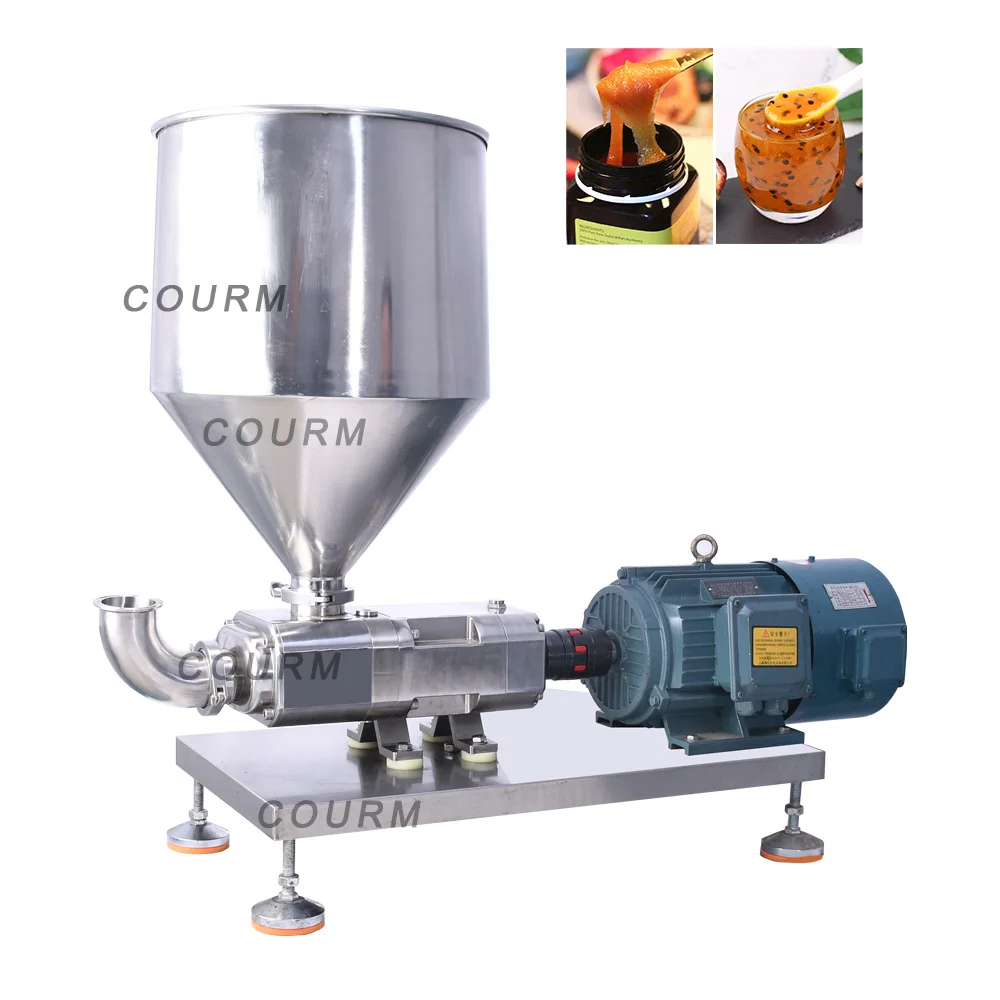

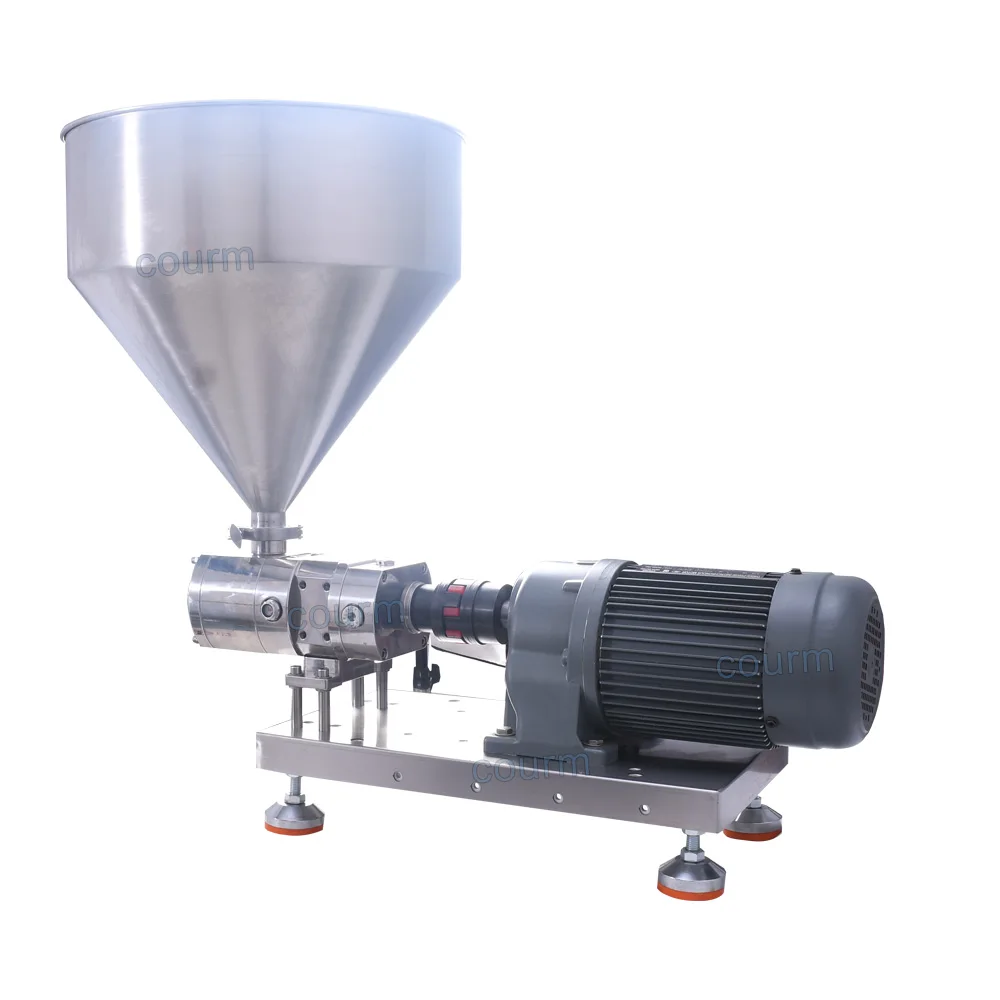

Material filling type
Equipped with a control device, it can accurately transport slurry of different weights
With trolleys type
Universal wheels installed, more convenient to move


Application Area

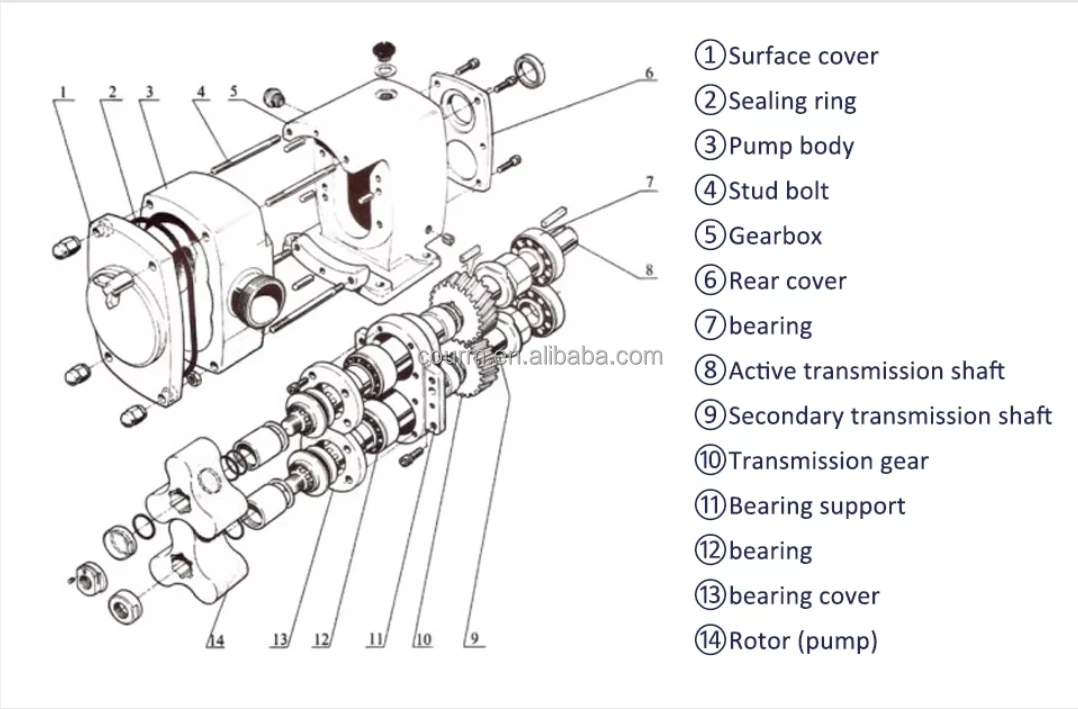

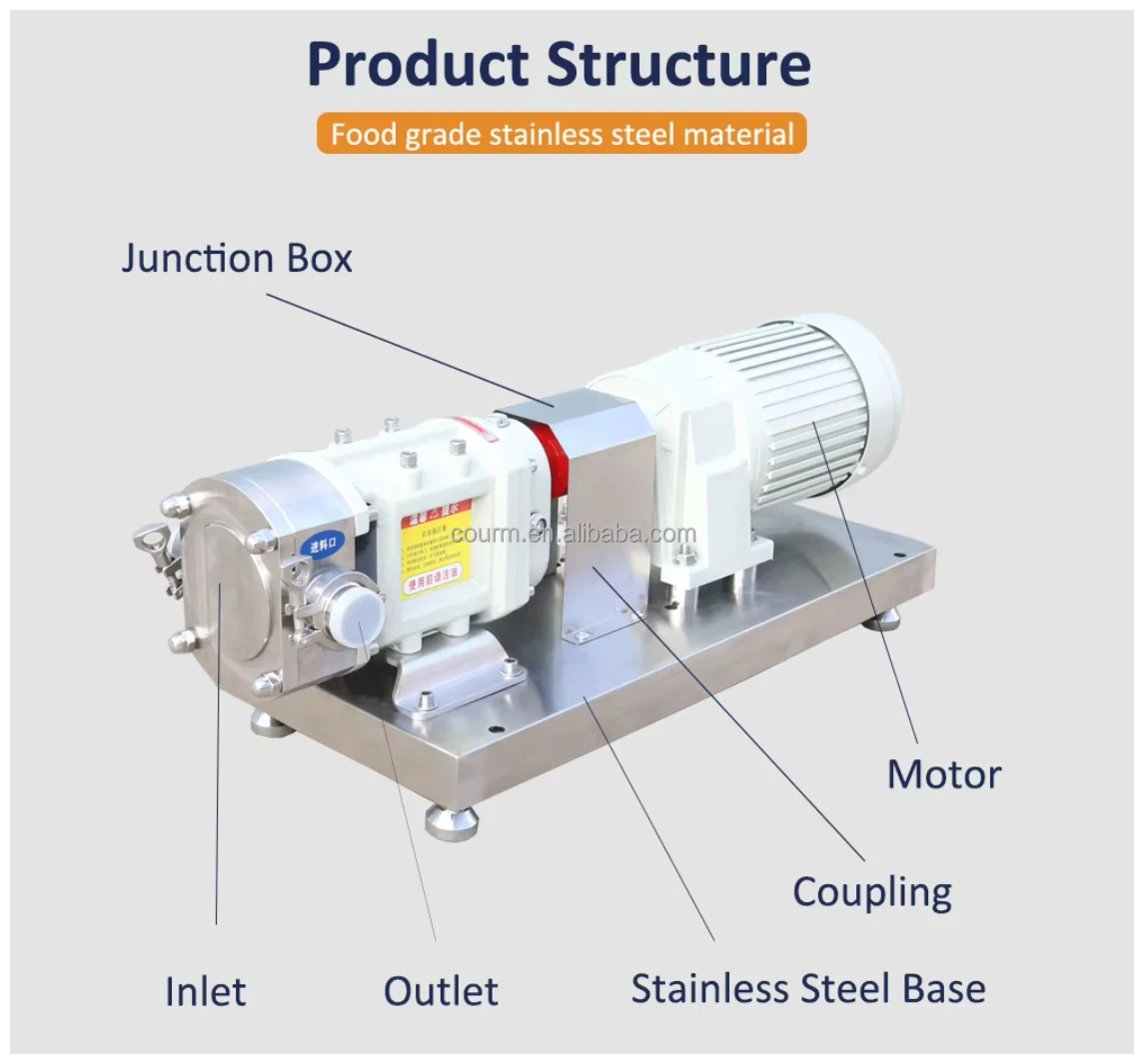

Product 3D Diagram




Product Paramenters


Model
Discharge Capacity
Flow
Speed Range
Max Pressure
Viscosity
Motor Power
Caliber
L/100r
(m3/h)
(rpm)
(MPa)
(Cp)
(kW)
(Clamp/Flange)
RP-1-5
5
0~1
4~700
1
1~500000
0.25~1.5
1"/DN20
RP-2-10
10
0.2~2
40~700
1.2
1~500000
0.55~2.2
1.25"/DN25
RP-3-17
17
0.4~3
40~500
1.5
1~1000000
0.75~3
1.5"/DN32
RP-5-26
26
0.6~5
40~500
1.5
1~1000000
1.5~5.5
2"/DN40
RP-8-46
46
1~8
40~450
1.5
1~1000000
2.2~11
2.5"/DN50
RP-12-70
70
1.6~12
40~450
1.5
1~1000000
3~15
2.5"/DN50 or DN65
RP-20-120
120
2.8~20
40~400
1.5
1~1000000
4~18.5
3"/DN65 or DN80
RP-35-210
210
5~35
40~400
1.5
1~1000000
7.5~30
4"/DN100
RP-55-420
420
10~55
40~350
1.5
1~1000000
11~45
DN125
RP-80-670
670
16~80
40~350
1.5
1~1000000
15~75
DN125 or DN150
RP-120-1100
1100
26~120
40~300
1.5
1~1000000
22~90
DN150

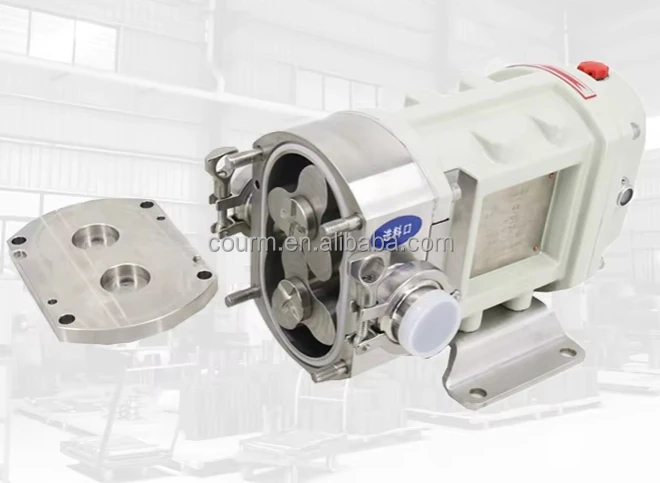

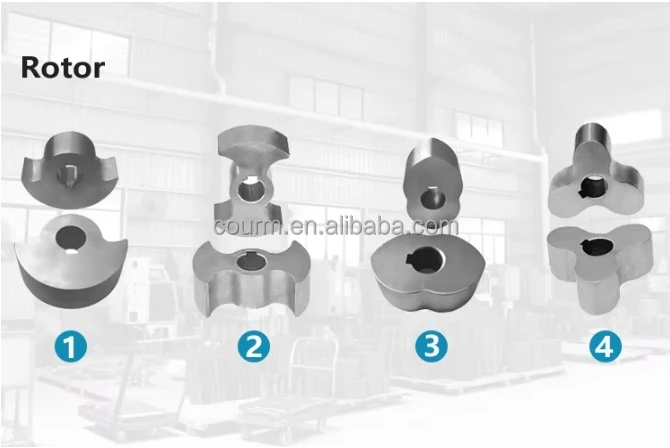

1.Small running clearance between rotor and pump chamber, Non-contact is not easy to wear



2.Using an imported machiningcenter for one-time clamping. Ensurethe assembly and operation accuracy ofthe rotor, with a surface smoothness
of<0.6um, a clearance of≤ 0.1mm duringoperation, and small internal leakage

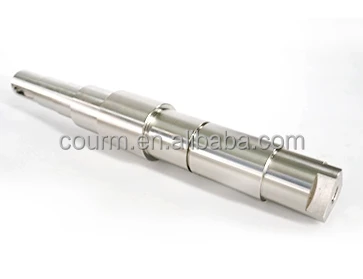

3.The spindles are made of 304 stainless steel by CNC machining center, with small operation clearance, high concentric degree, and extended service life


Performance Feature


1.Medium capable of conveying high viscosity solid particles
This pump can transport media with a viscosity of 1 million cp and containing solid particles,and is also suitable for easy transportation For the medium with foam, the original qualityof the medium conveyed by the pump remains unchanged, without any physical and chemicalreaction.


2.Anticorrosive, non-toxic, sealed, safe and hygienic
The pump body is made of 304/316L stainless steel round steel CNC machining, and thesealing adopts external dynamic and static ring mechanical seals, which are washablewear-resistant, and leak free. The sealing rings are all made of food grade silicone rubber rings.


3.Precision casting CNc machining
The pump has undergone CNC precision machining and unique design, ensuring a certaingap between the rotor and various components in the pump chamber, without contact.not easy to wear, low noise, good reliability, and long service life.

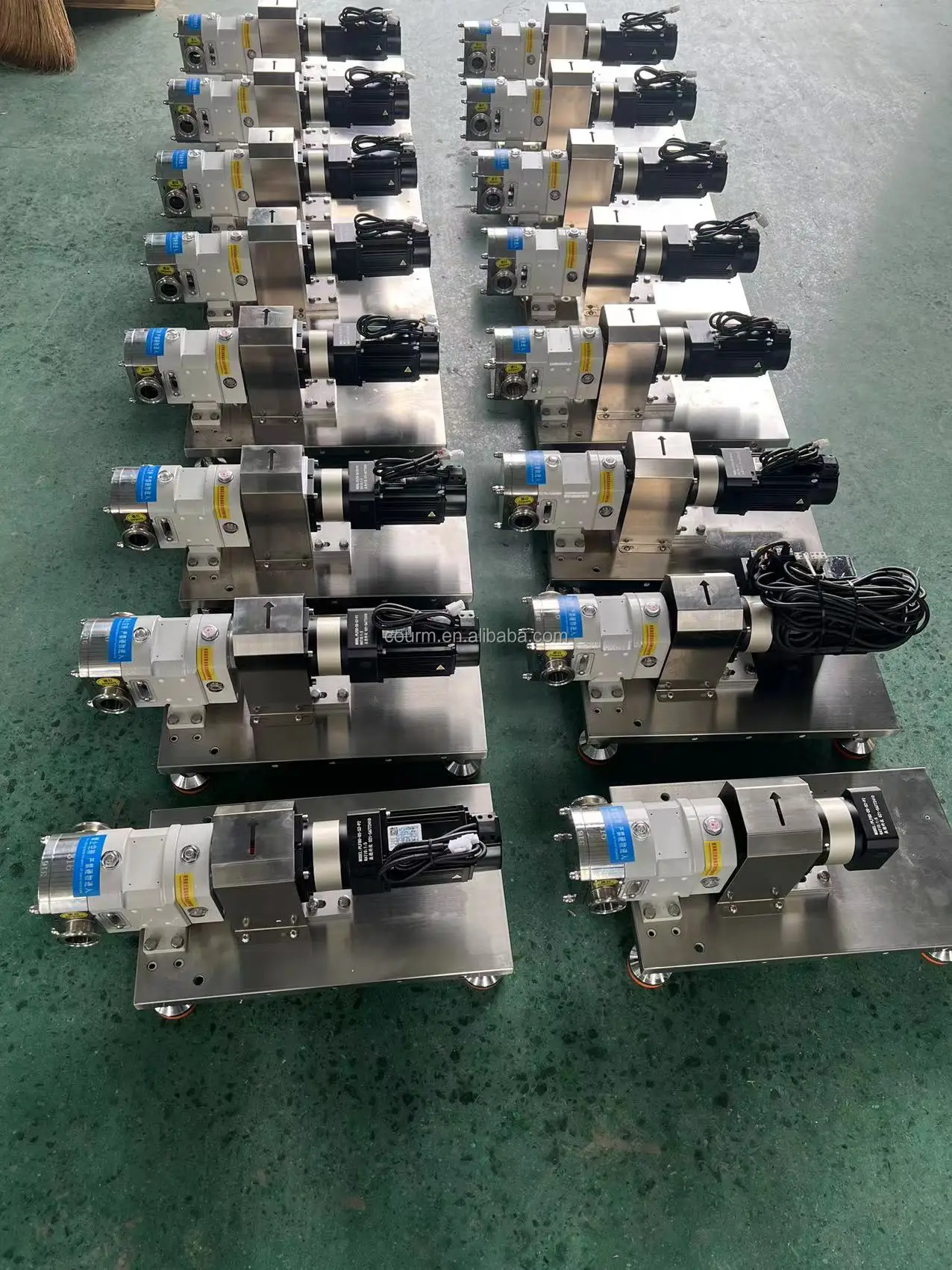

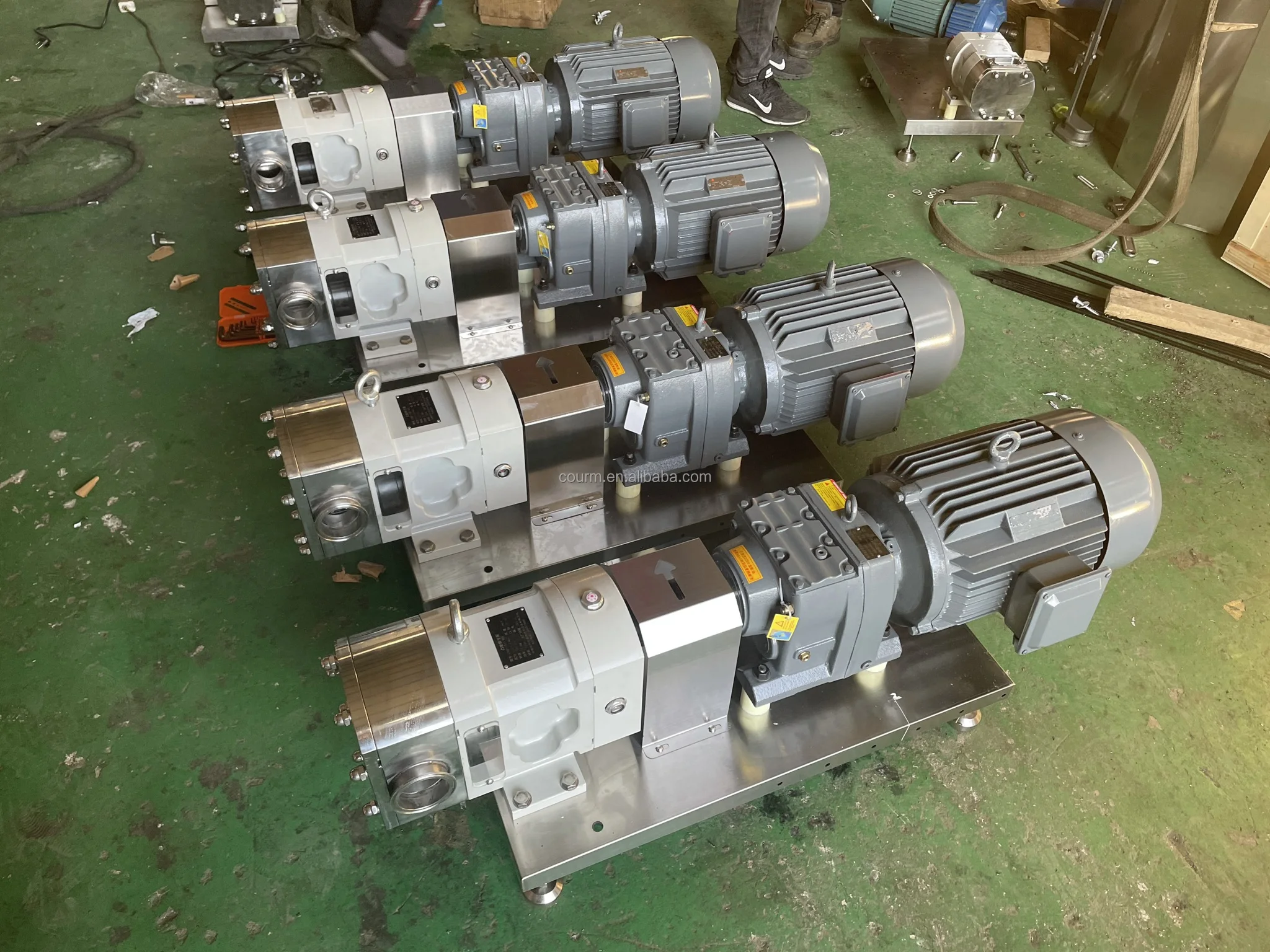

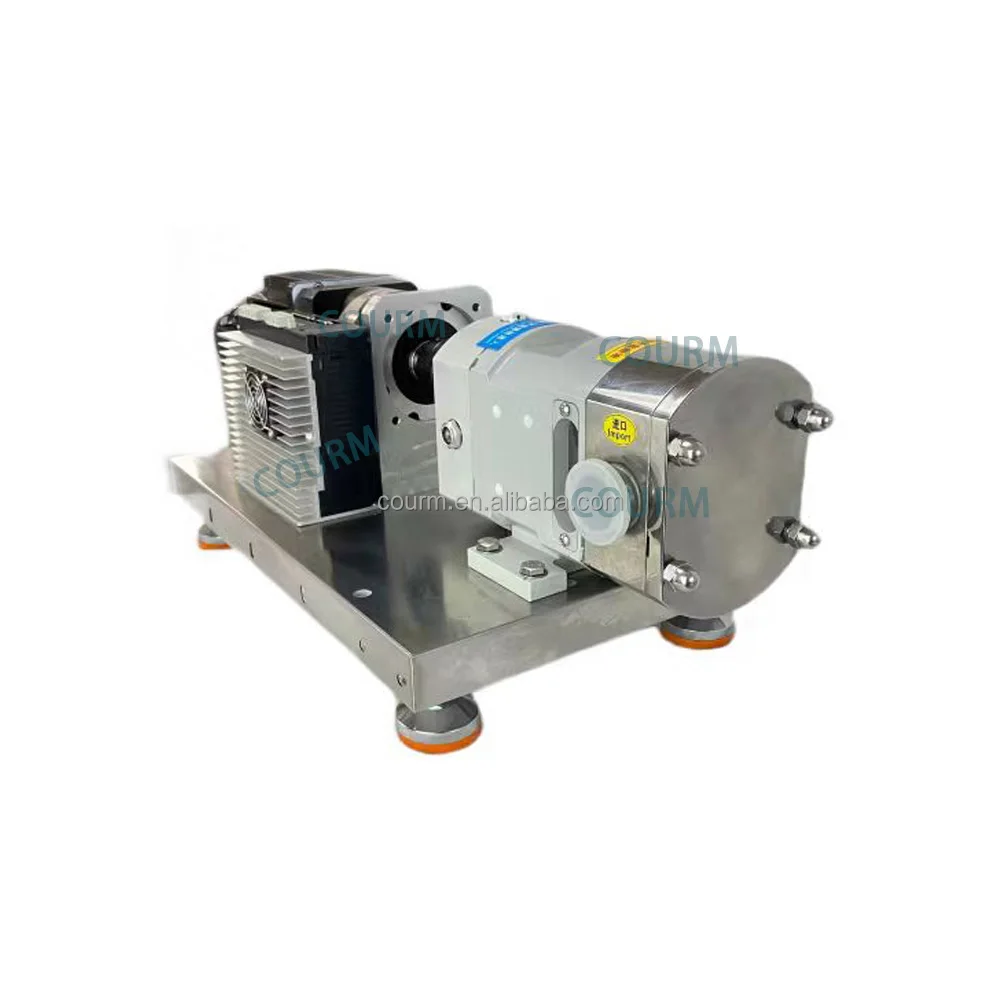

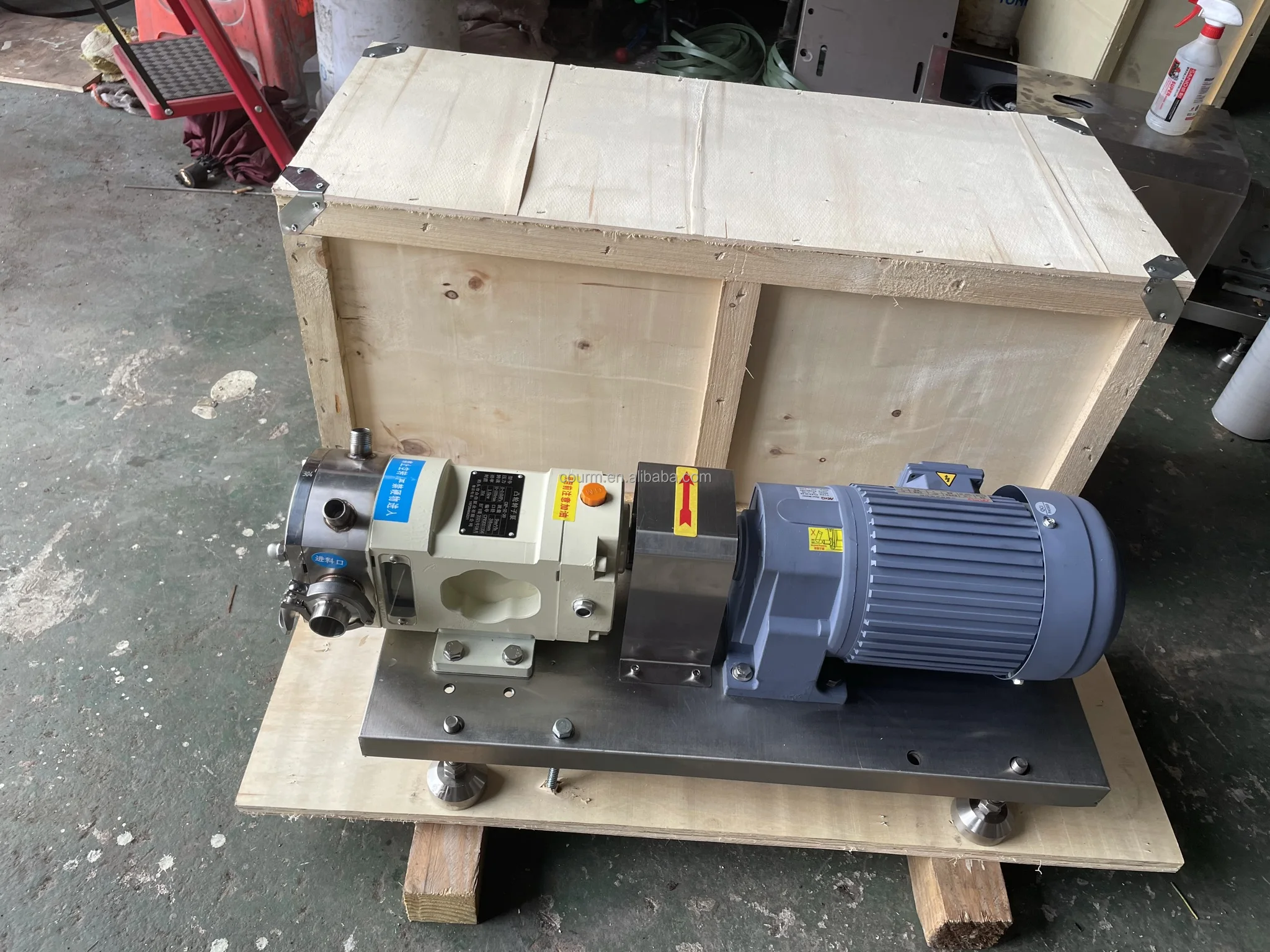

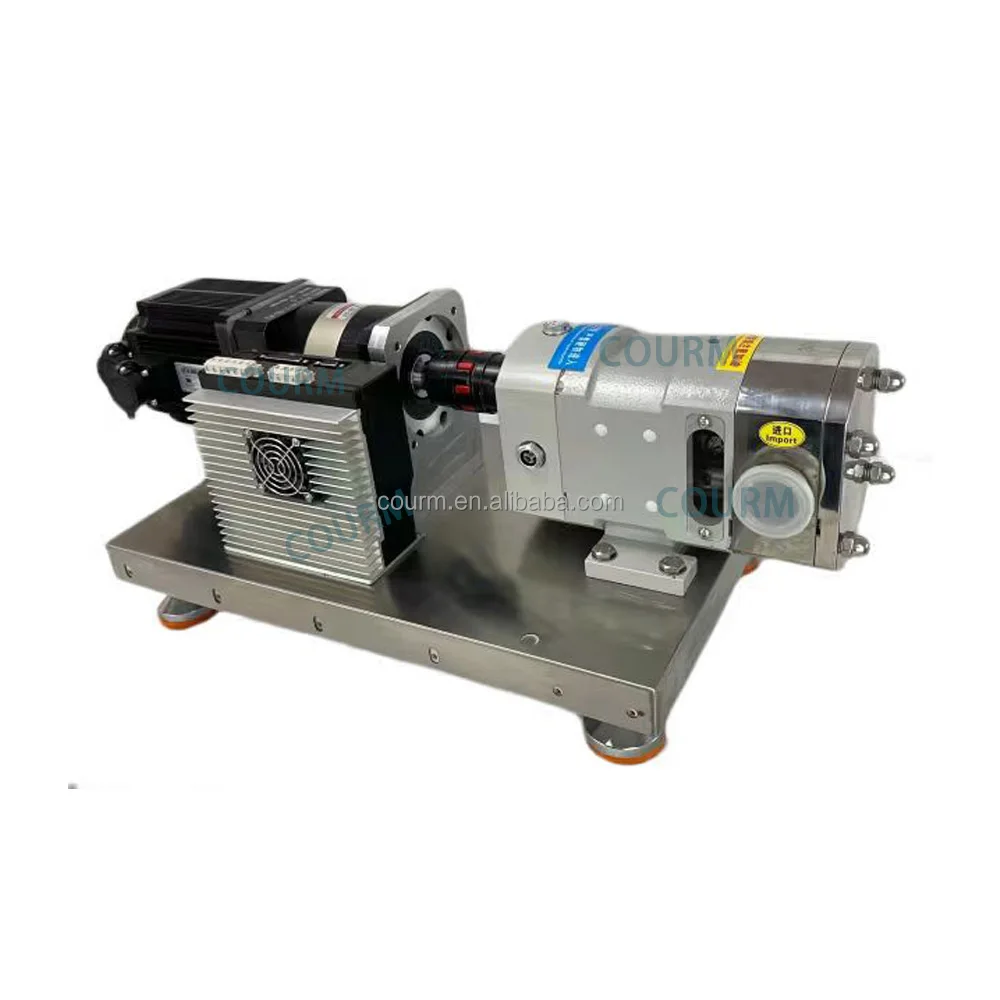

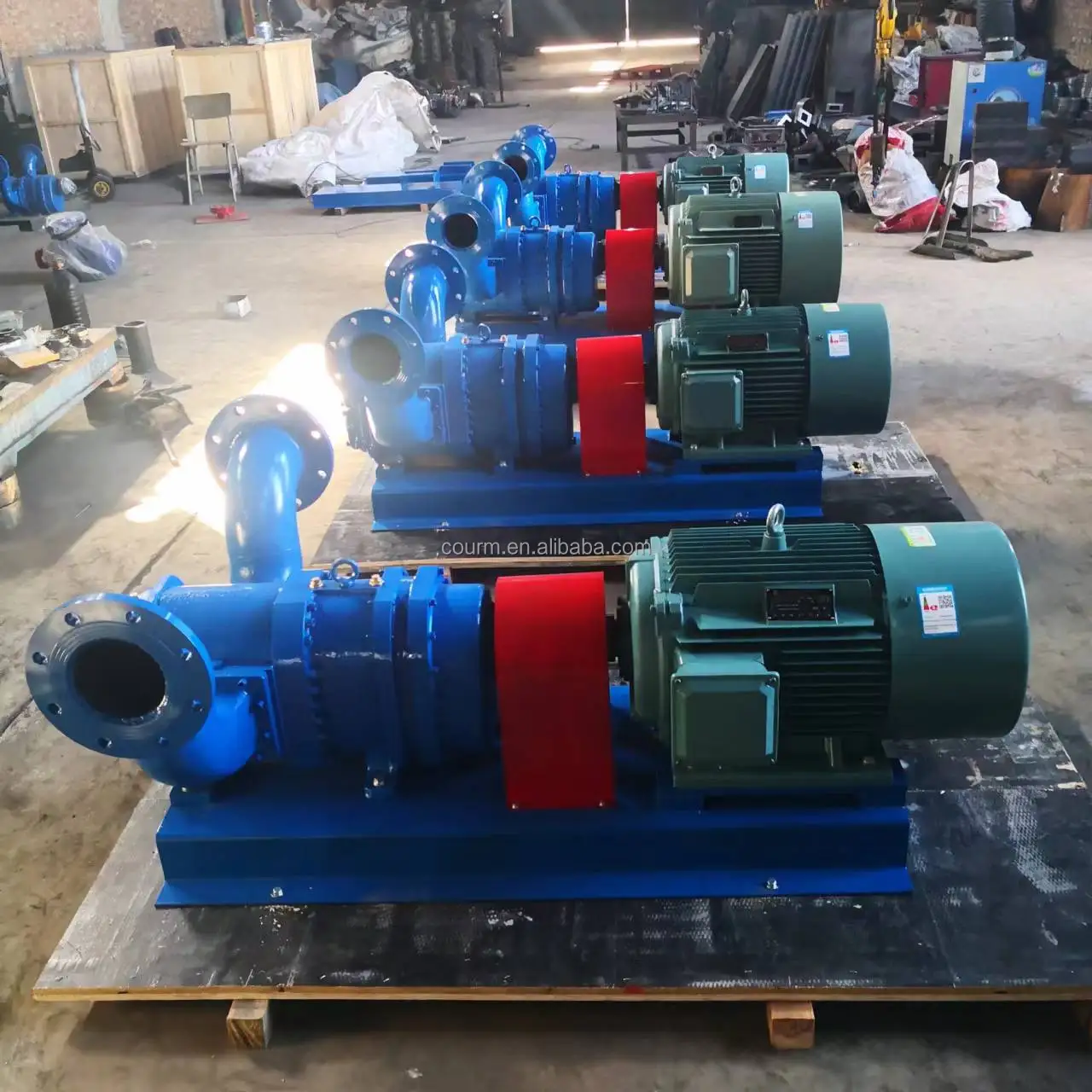

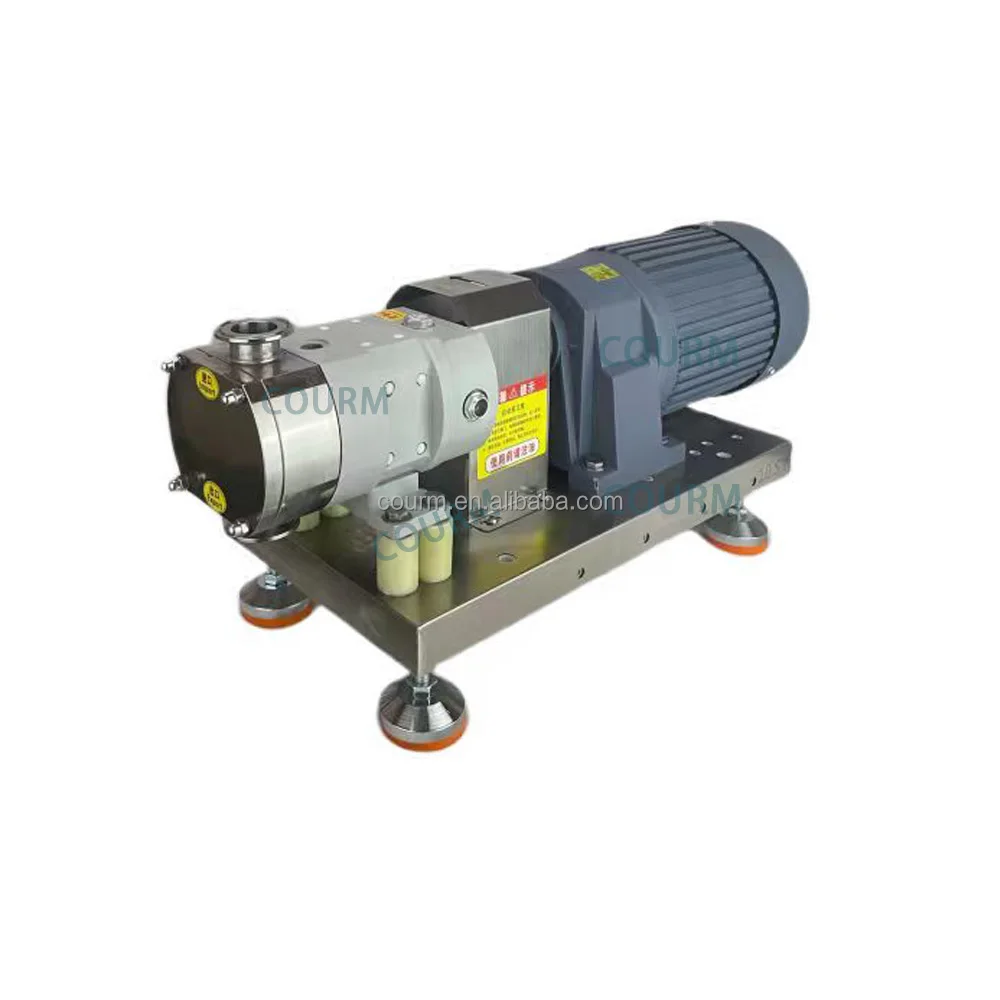

Product Real Shot










Please send us your request, we can help you customize a suitable machine!




Company Profile






Zhengzhou Courm Technology Co., Ltd. is a leading company specialize in producing transfer pump, filling machines, capping machines, labeling machines, sealing machines, coading machines etc packing machines. With a rich history spanning 18 years. We are proud of our strong team over 800 dedicated employees who work tirelessly to meet and exceed our customers' expectations.
We offer a wide range of packing machines that cater to various industries such as food and beverage, cosmetics, and other industries.We utilize advanced technology and adhere to strict quality control measures to ensure that every product leaving our plant meets the highest industry standards.
We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, Brazil etc. Many customers comment as a partner with "good support,quick reaction,can meet special requirements,etc",we invite you to join COURM on this journey of innovation and excellence. Accompany us continue to redefine the standards in the packing machine industry.

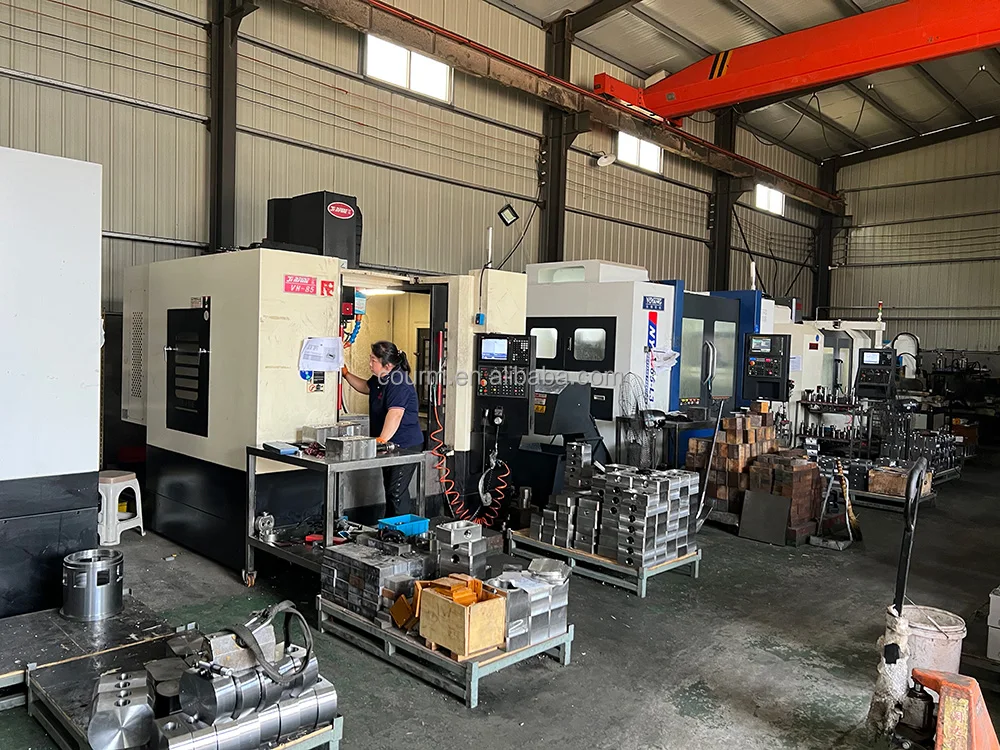

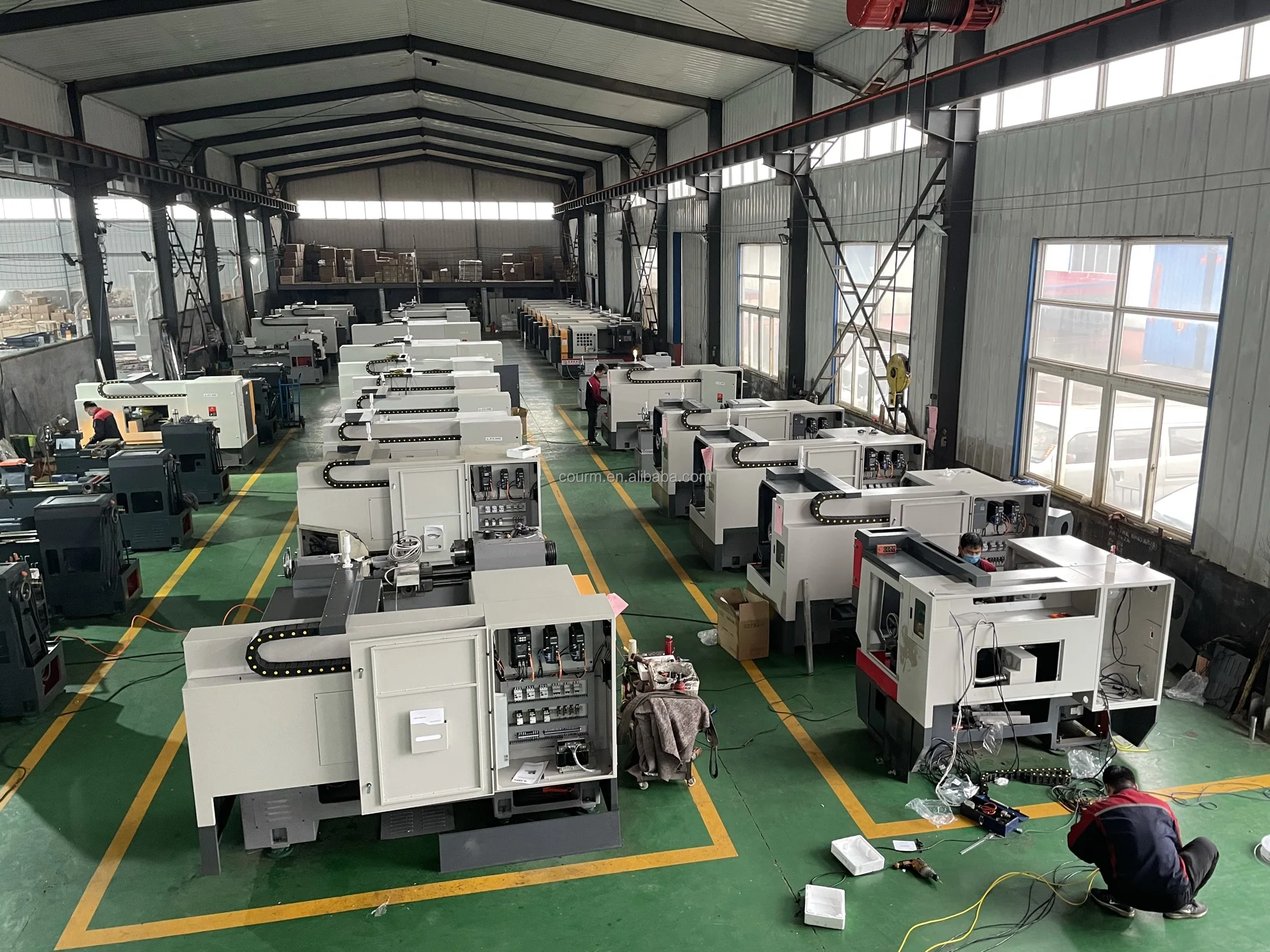

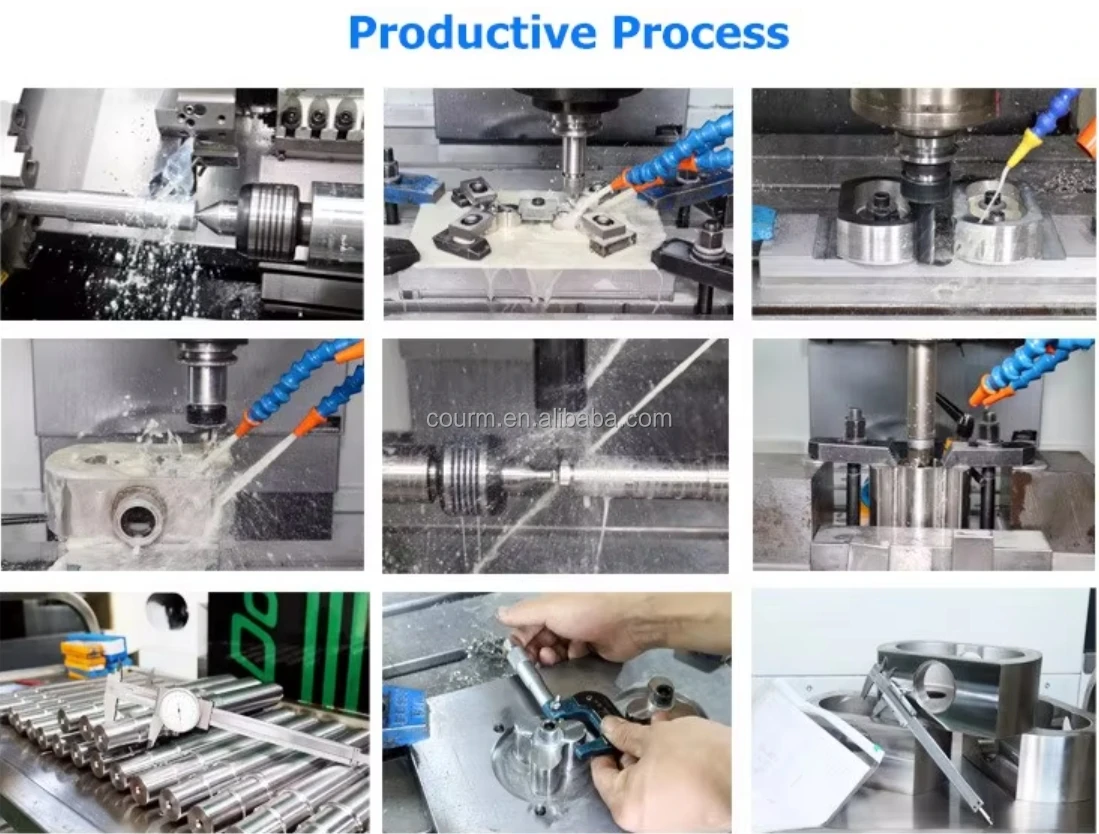

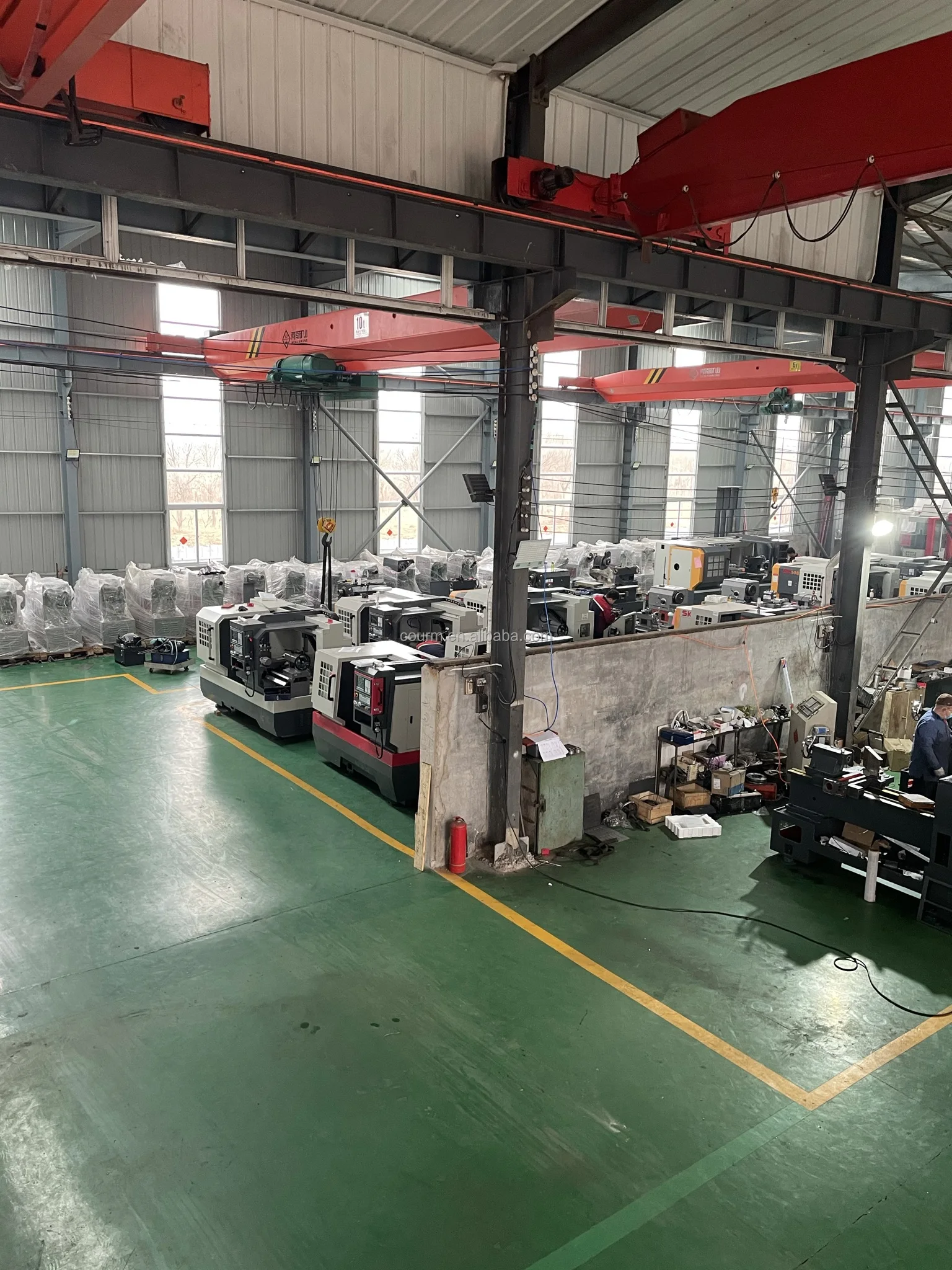

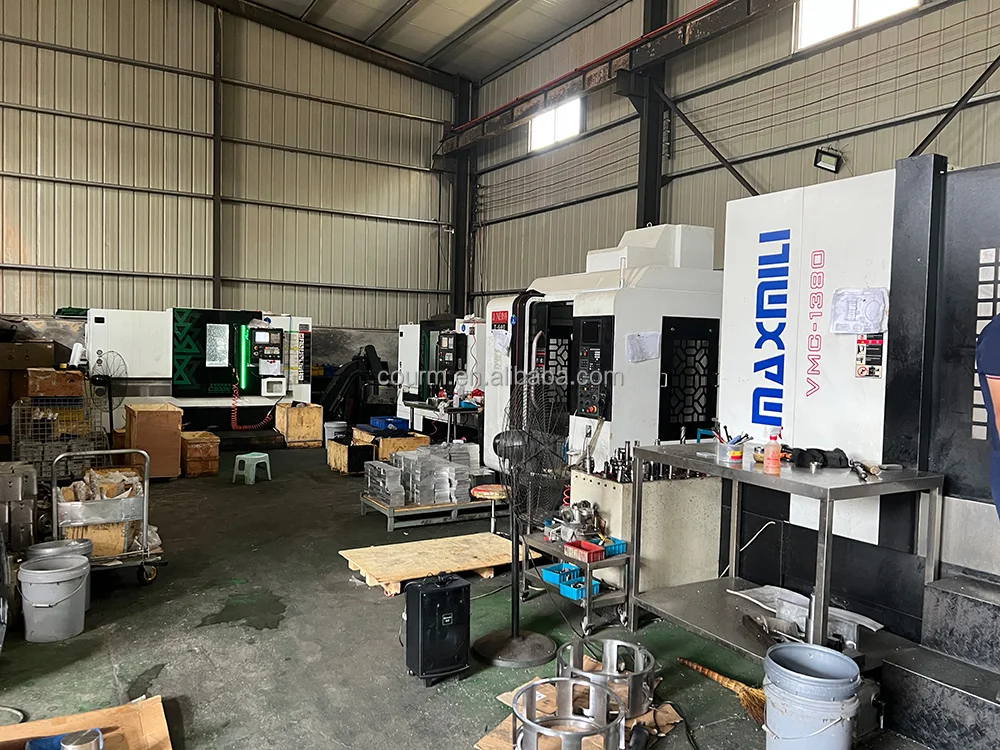

OUR WORKSHOP








Exhibition






Packing & Delivery




FAQ


1. who are we?
We are based in Henan, China,sell to Eastern Europe(14.00%),Africa(14.00%),Western Europe(12.00%),North America(9.00%),Domestic Market(9.00%),South America(8.00%),Southern Europe(8.00%),Northern Europe(7.00%),South Asia(7.00%),Oceania(4.00%),Southeast Asia(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Filling Machine,Labeling Machine,Capping Machine,Packing Machine,Packing Line

4. why should you buy from us not from other suppliers?
1.Payment protection.
2.On-time shipment.
3.Product quality protection.
4.Support OEM and ODM service.
5.Professional management, development, production team.
6.Technologically advanced, well-equipped,
7.customer first, service is supreme.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
