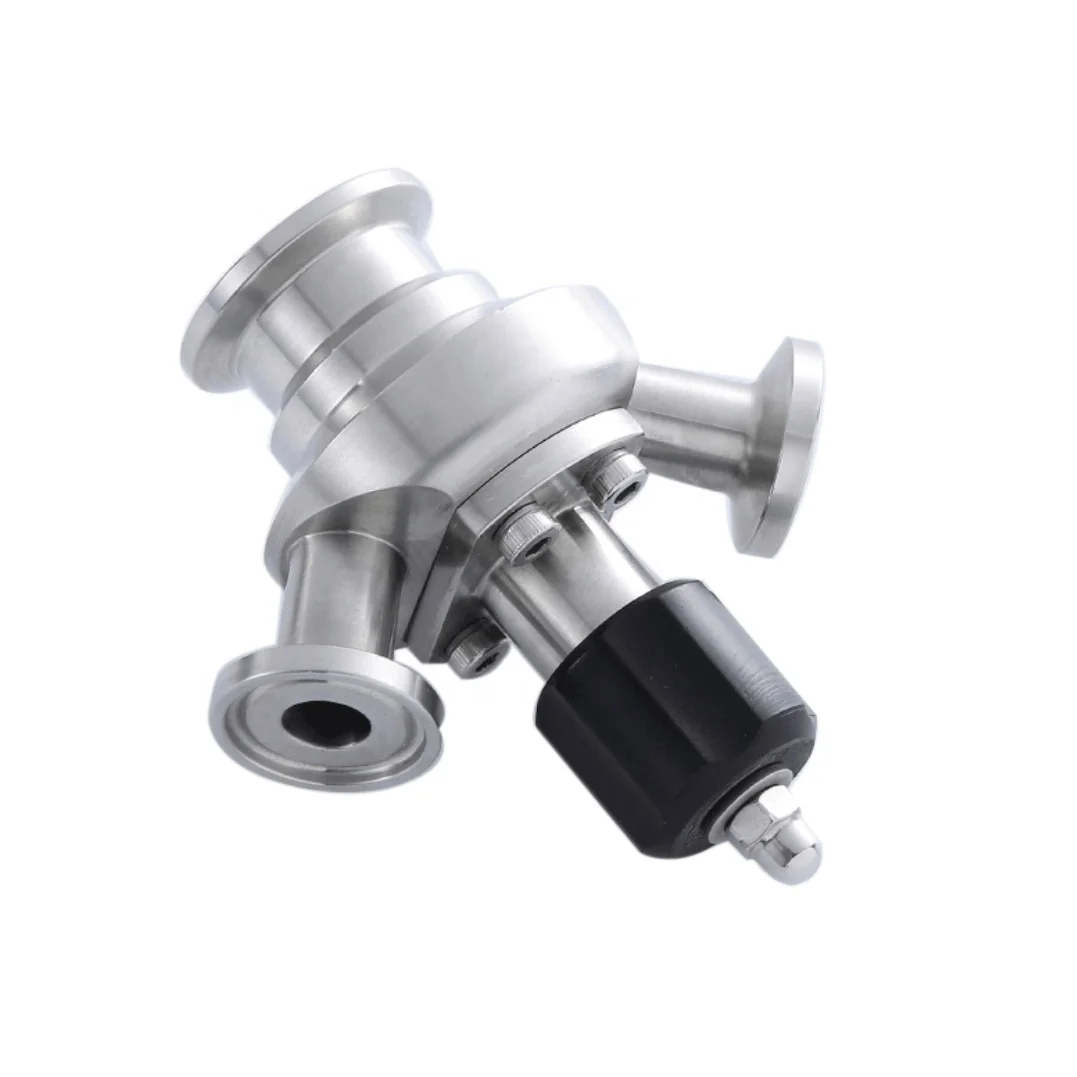

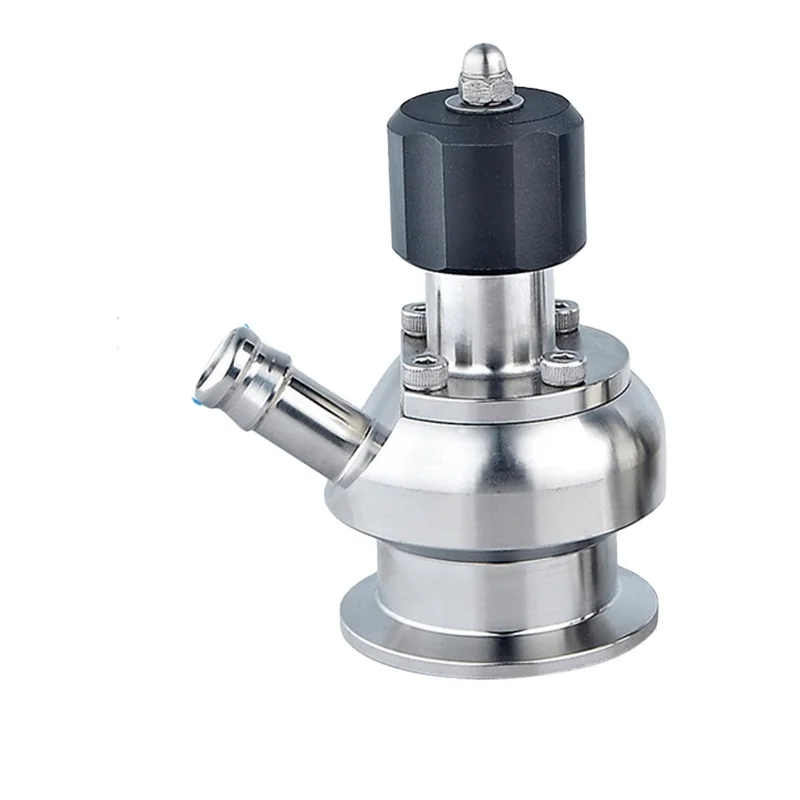

stainless steel sterile aseptic sample valve
- Category: >>>
- Supplier: Linch Machinery Co. Ltd.
Share on (1601250752629):
Product Overview
Description

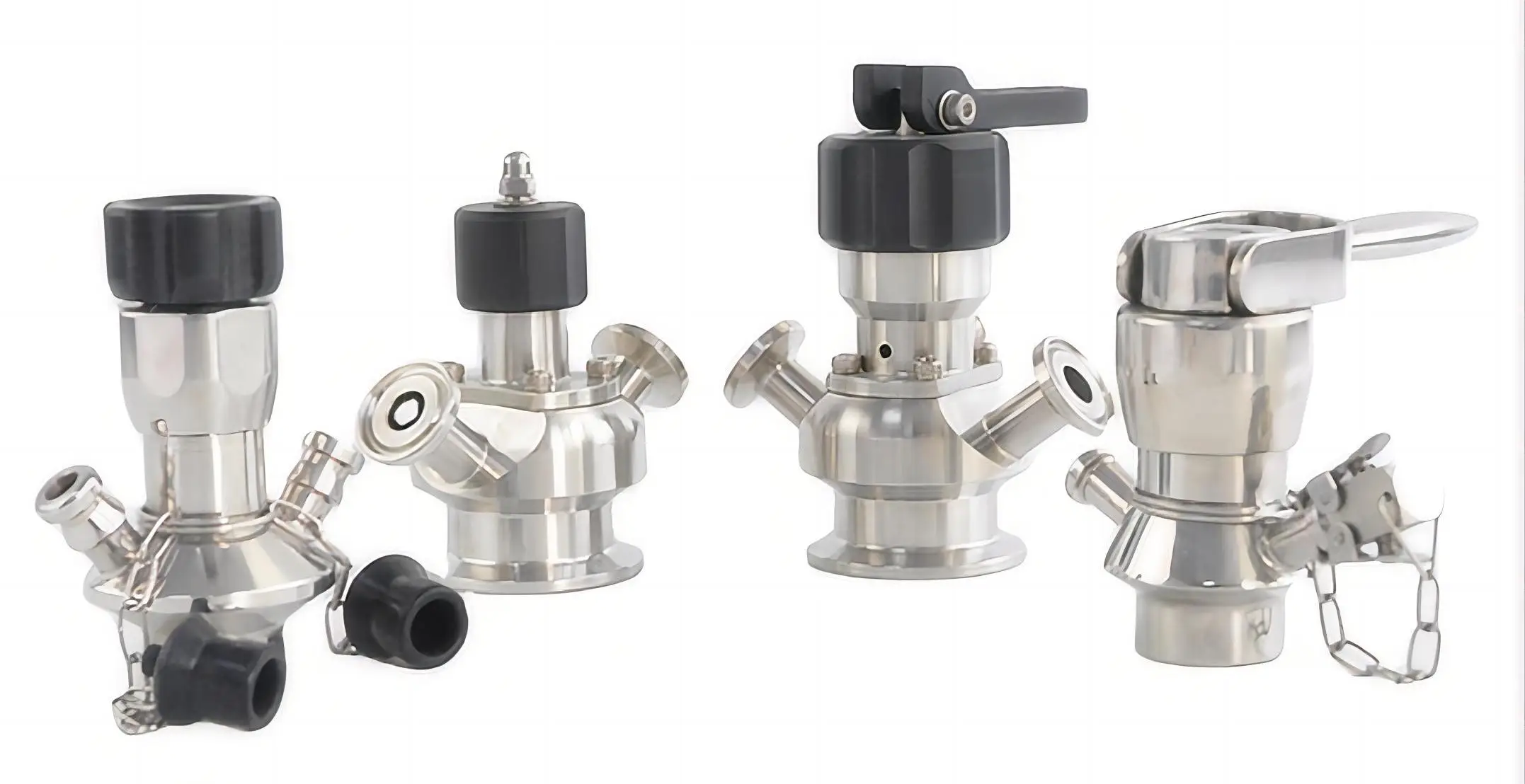

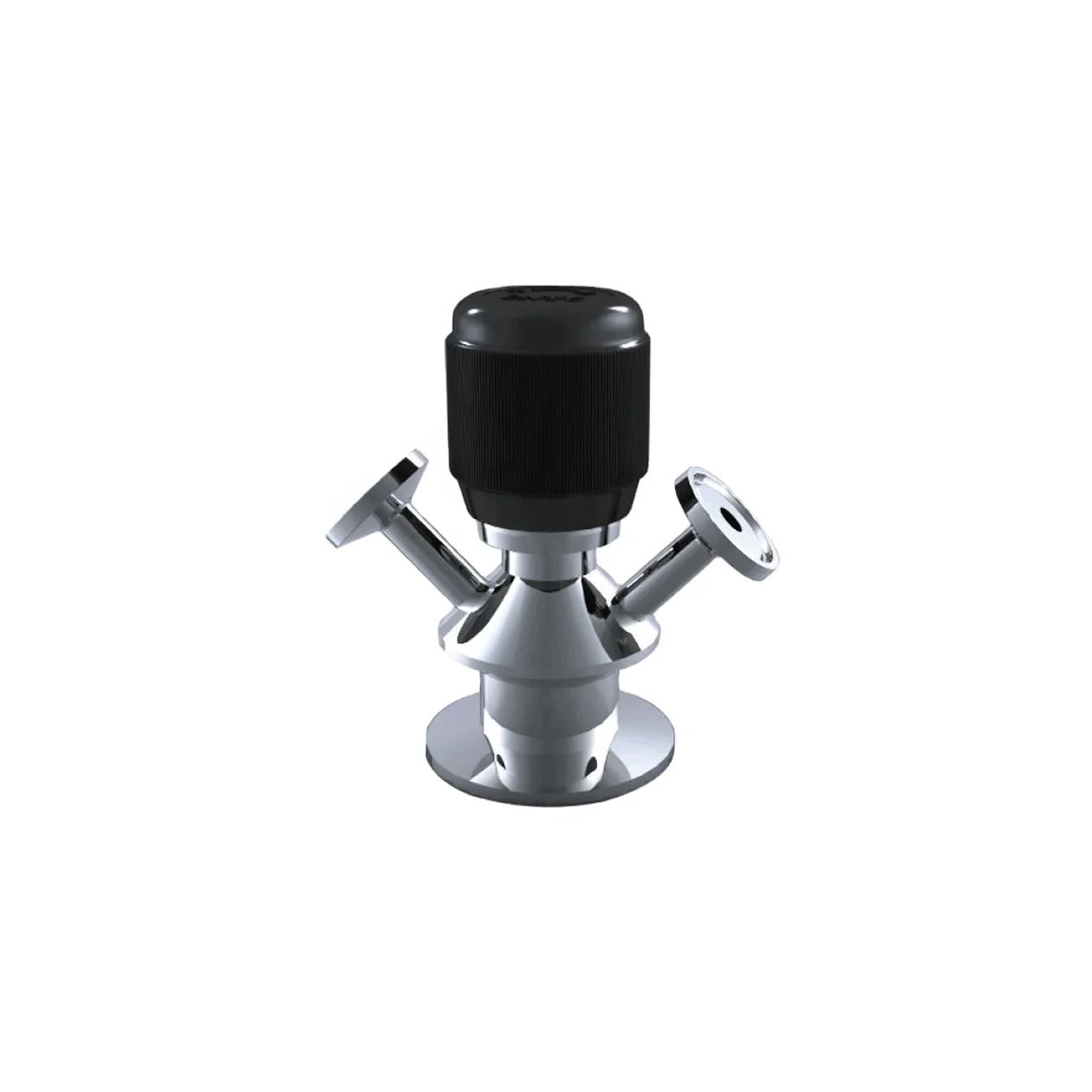

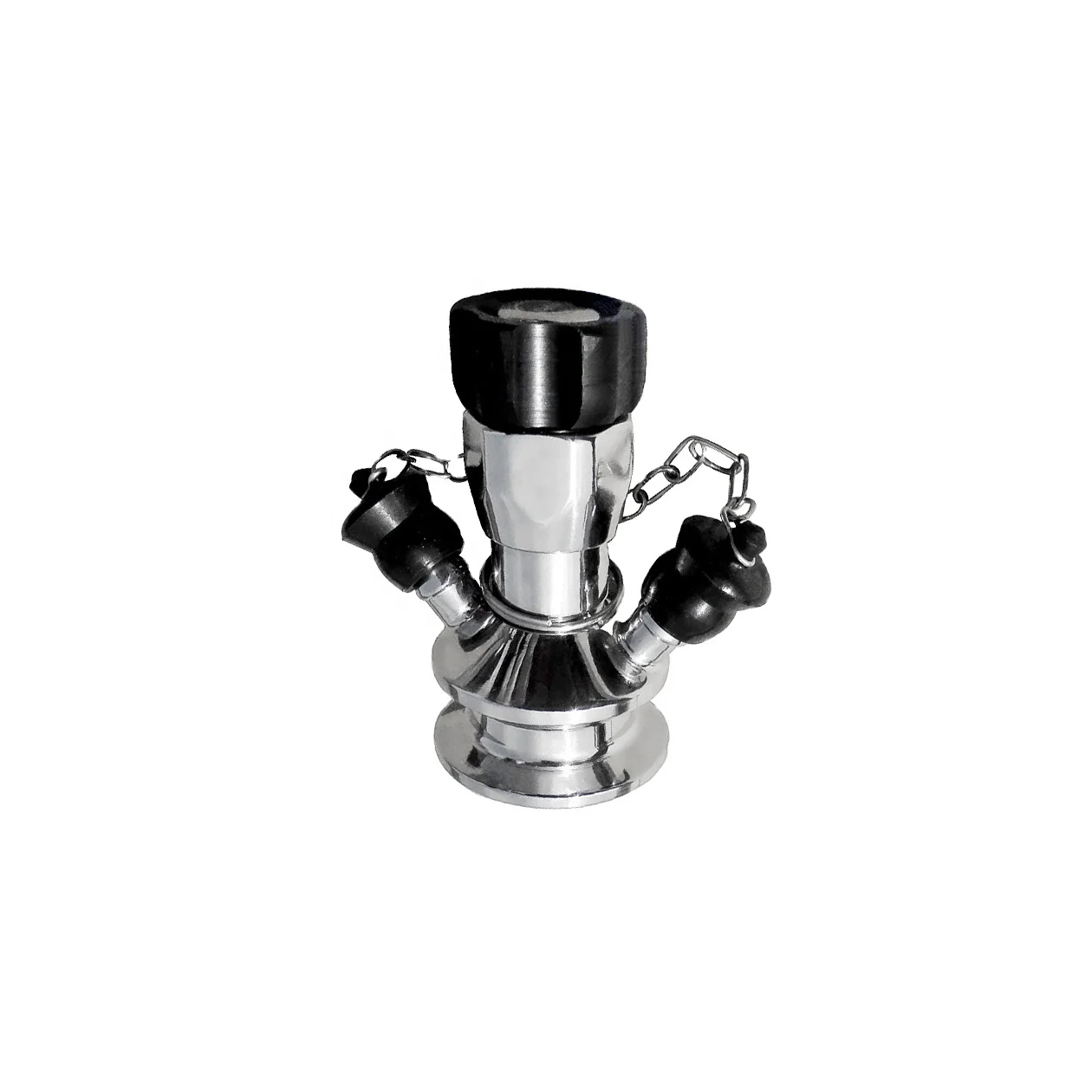

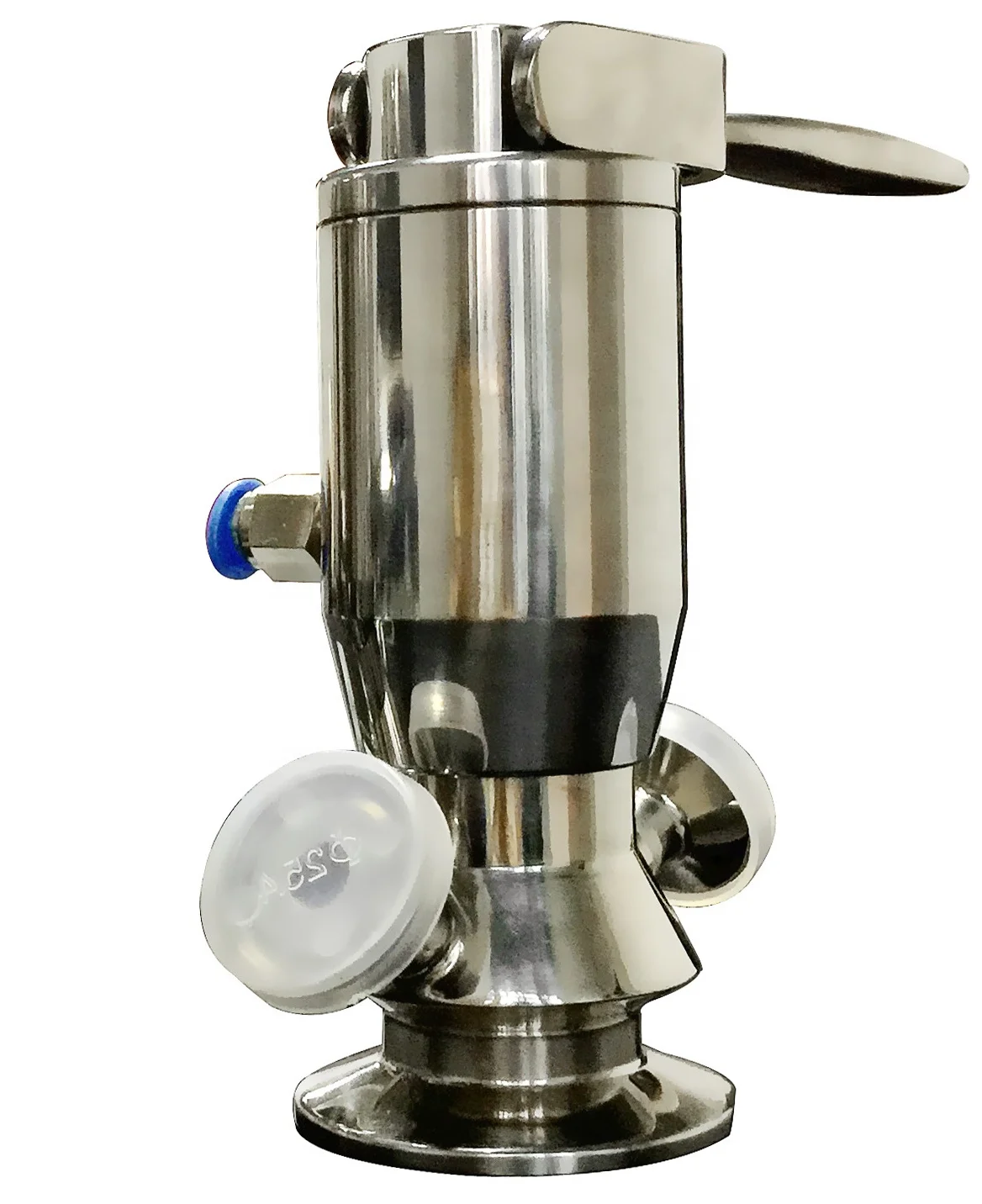

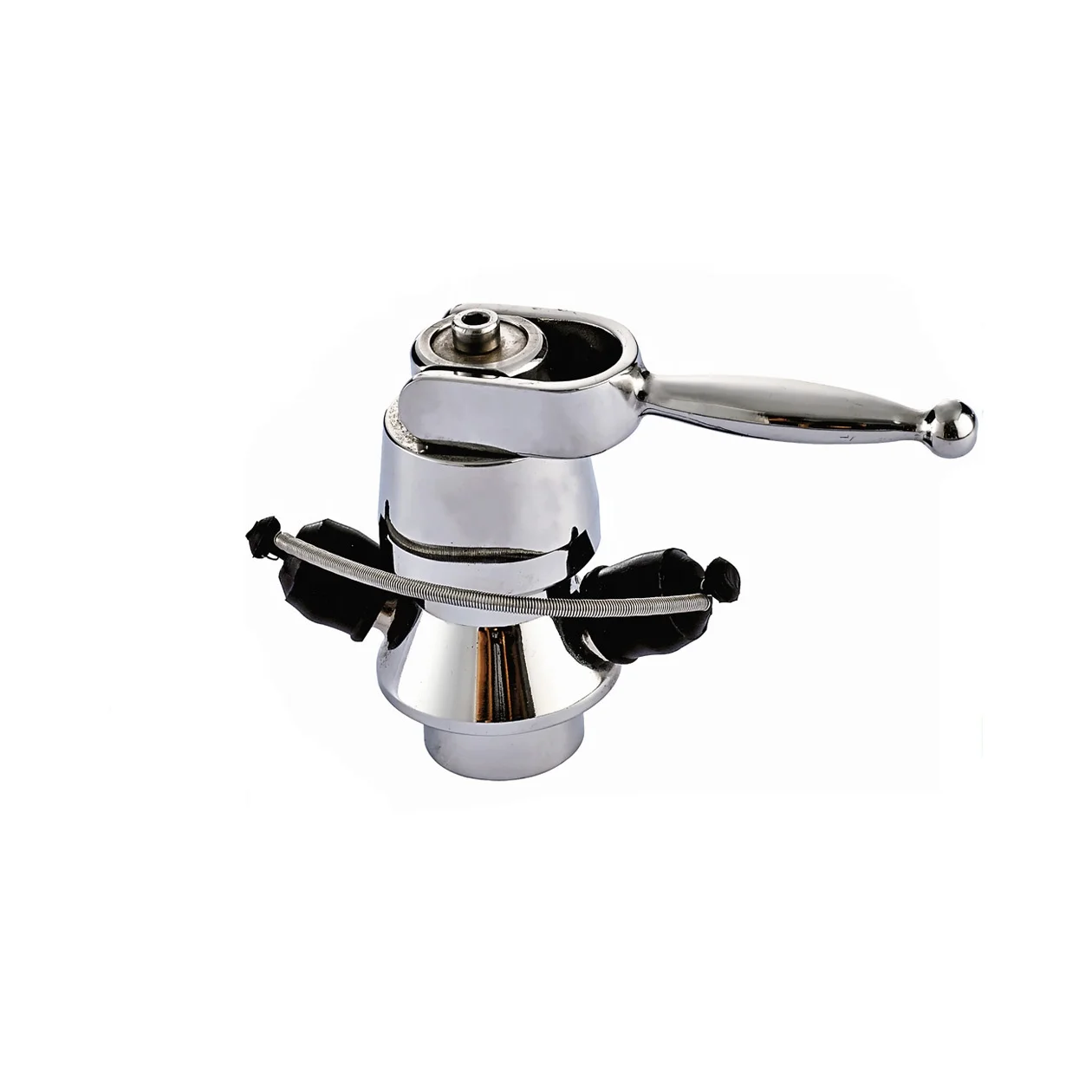

Sanitary Sampling Valve
* Sterilization Temp: 150 Degrees For 20 Minutes, Dry Steam
* Material: 316L Stainless Steel

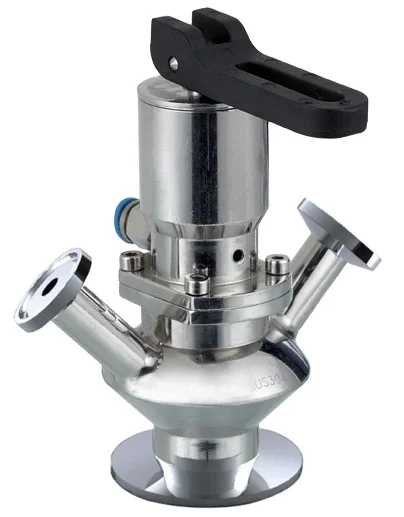

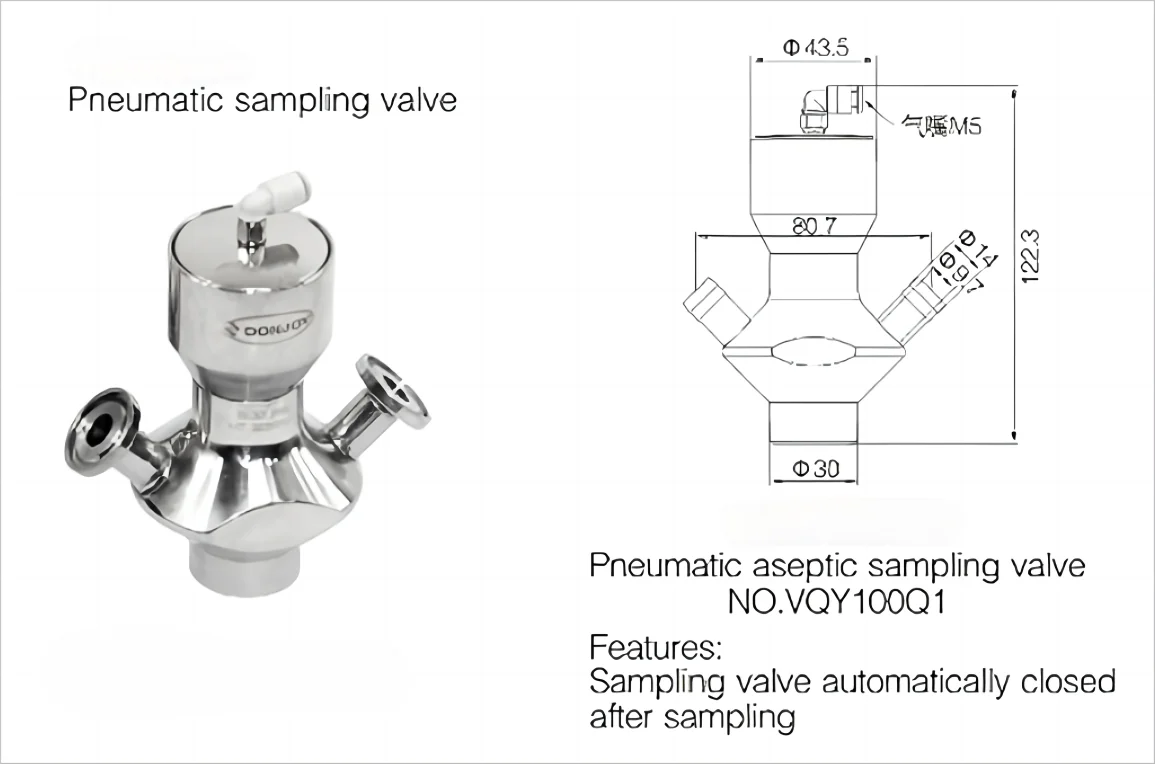

* Operation Mode: Manual Or Pneumatic
* Applications: For Sample Extraction Under Aseptic Conditions In Food, Beverage Or Pharmaceutical Industries
Driven mode | Manual or Pneumatic |
Size | 1/4″ ~ 1″ |
Valve opening pressure | 6 bar max. |
Valve closing pressure | max. 12 bar (sealing head); 15 bar (stainless steel valve body) |
Working temperature | -20 ~ 120 degrees centigrade (EPDM) |
Sterilization Temperature | 150 degrees centigrade, dry steam |
Competitive Advantages of Sample Valves
Aseptic sample valves are employed for sample extraction under aseptics conditions.
The s sanitary sample valves designed for sterilization before and after each sampling.
They are quite popular with industries with extremely high hygienic requirements,such as food, dairy, beverage, fine chemical, pharmaceuticals, and so on.
1. Rich manufacturing experience in the field of pipeline valves
2. Compliant with international high precision standards
3. Smart design and simple structure
4. Longer working life
2. Compliant with international high precision standards
3. Smart design and simple structure
4. Longer working life

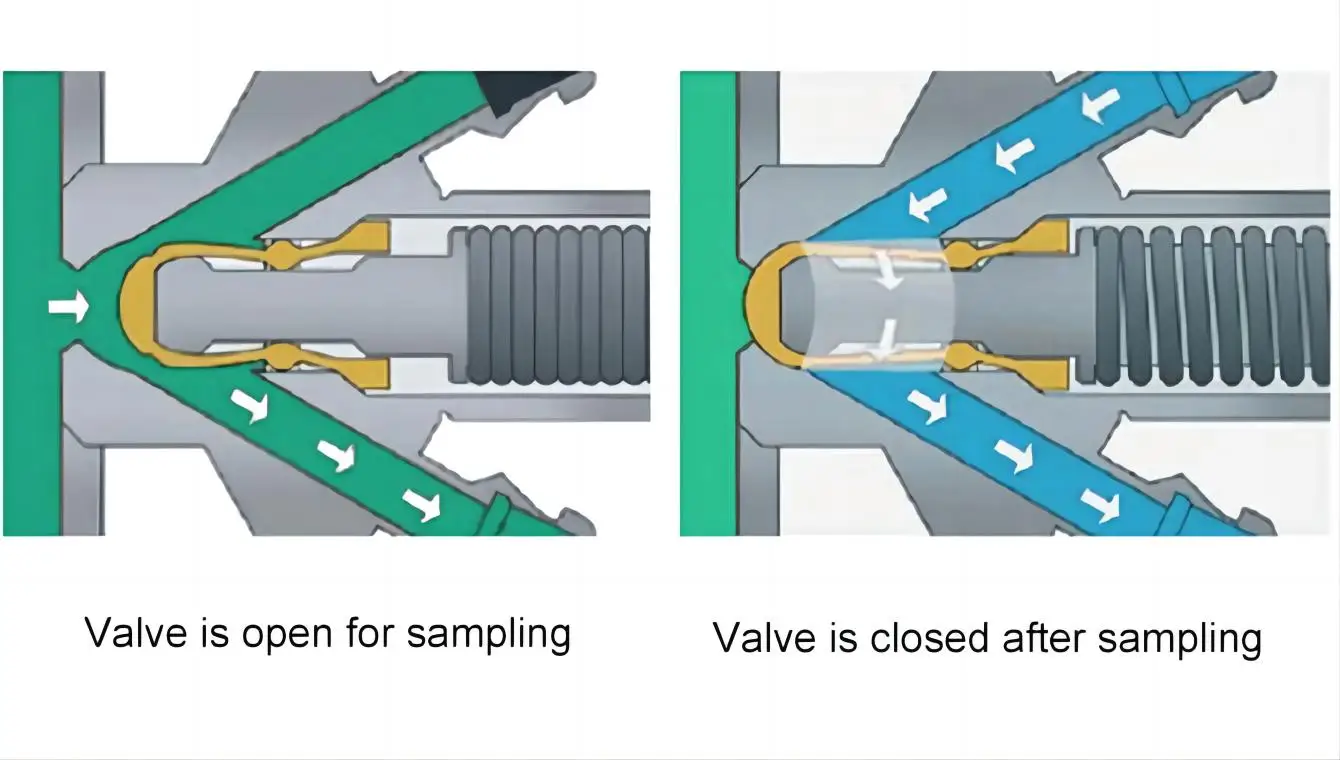

Working Principle
Working Principle of Sample Valves
1. The steam or sterilization medium is fed into one of the sampling port (the lower port)
2. Another sampling port discharges the sterilization medium
3. Rotate the handle or operate the joystick to open the valve
4. The central shaft opens for sampling
5. After sampling, close the valve
6. Inlet clean water to clean the sample chamber
7. Inject sterilization medium for sterilization
2. Another sampling port discharges the sterilization medium
3. Rotate the handle or operate the joystick to open the valve
4. The central shaft opens for sampling
5. After sampling, close the valve
6. Inlet clean water to clean the sample chamber
7. Inject sterilization medium for sterilization
Production Process
Why Choose Us
We are one of the best suppliers of sanitary stainless steel products in China, specializing in the production of various high-precision sanitary stainless steel products.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
Products cover: sanitary valves, stainless steel pipes, pipe fittings, flanges, fasteners, reducing pipes, etc., and various sanitary stainless steel products can also be customized according to customer requirements.
In order to ensure that product quality meets all relevant standards, we have developed 8 special processing technologies and have more than 10 technical patents.
Currently, all our products comply with ISO, SMS, IDF, 3A and DIN standards, as well as GMP and food industry requirements.
Among all Chinese suppliers, we have the most extensive range of models and the safest certification
We provide customized services to customers all over the world
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
* We have technical team with more than 15 years’ experience in R & D and design of sanitary stainless steel products
* A complete system of control process to meet customer’s specific needs and applications
* Our management mechanism is one-on-one project for each client
* More stringent process technology team, more skillful technology processing workers
* A full set of non-standard products processing equipment
Certifications
FAQ
Q:What is MQO?
A:No MOQ required for products in stock.Others can be discussed.
A:No MOQ required for products in stock.Others can be discussed.
Q:What is your lead time?
A:7-10 days for standard products.For custom made products lead time to be negotiated.
A:7-10 days for standard products.For custom made products lead time to be negotiated.
Q:How do you ensure to meet our requirement?
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:Yes, we fabricate samples for your approval, and arrange trial order production before mass production.
A:We can fabricate non-standard stainless steel valves and fittings as per your drawings. We can also provide technical support in design according to your special requirement.
