Product Overview
Description
Dear customers,
In order to provide you with a fast and accurate quote, please tell us the following information:
1. The type and quantity you need.
2. Machine capacity and configuration.
3. Your target price.
4. The appearance of the machine can be customized.
There is more information that you are more concerned about. We are an independent research and development dealer integrating industry and trade. We can produce according to your needs. As long as you can confirm the model information you need,we can ship it to you immediately. We require 30% of the amount as deposit to place an order. Click the link for more details.
1. The type and quantity you need.
2. Machine capacity and configuration.
3. Your target price.
4. The appearance of the machine can be customized.
There is more information that you are more concerned about. We are an independent research and development dealer integrating industry and trade. We can produce according to your needs. As long as you can confirm the model information you need,we can ship it to you immediately. We require 30% of the amount as deposit to place an order. Click the link for more details.
Products Description

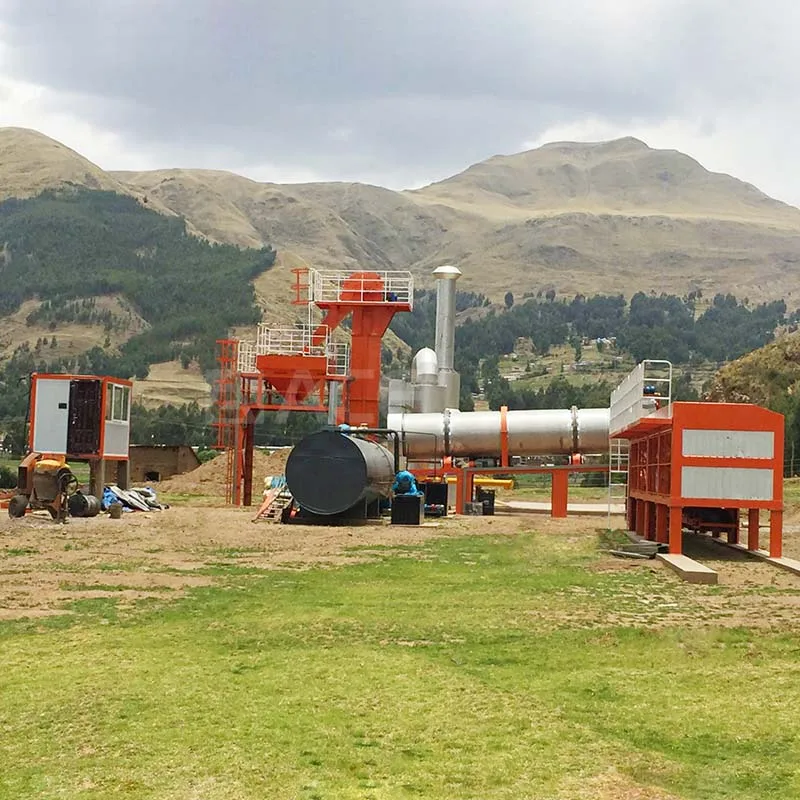

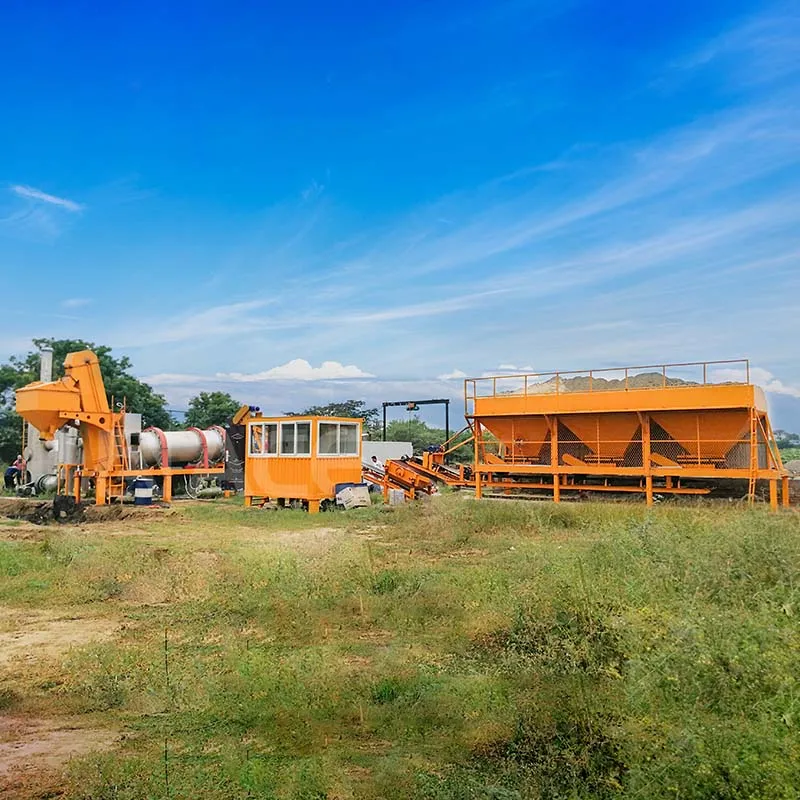

MDHB Asphalt Drum Mixing Plant
MDHB series asphalt plant is mobile,continuous mixing, suitable for samll and medium-sized road construction project required frequent relocation. It has advantages as the following:
1. Compact structure, less land footprint, could be located in a narrow or confined area;
2. The plant is consisting of four main modulars; each with a mobile chassis, highly mobile, convenient for transportation and relocation;
3. Cold aggregate feeder with load cells and variable frequencey motor; aggregate feed is precised controlled;
4. Drying drum has functions of heating, drying and mixing, high energy efficiency ratio; optimized inner structure and external thermal insulation shell, fast heating speed and less heat loss;
5. Low initial investment and highly cost effective.
1. Compact structure, less land footprint, could be located in a narrow or confined area;
2. The plant is consisting of four main modulars; each with a mobile chassis, highly mobile, convenient for transportation and relocation;
3. Cold aggregate feeder with load cells and variable frequencey motor; aggregate feed is precised controlled;
4. Drying drum has functions of heating, drying and mixing, high energy efficiency ratio; optimized inner structure and external thermal insulation shell, fast heating speed and less heat loss;
5. Low initial investment and highly cost effective.
Main Features

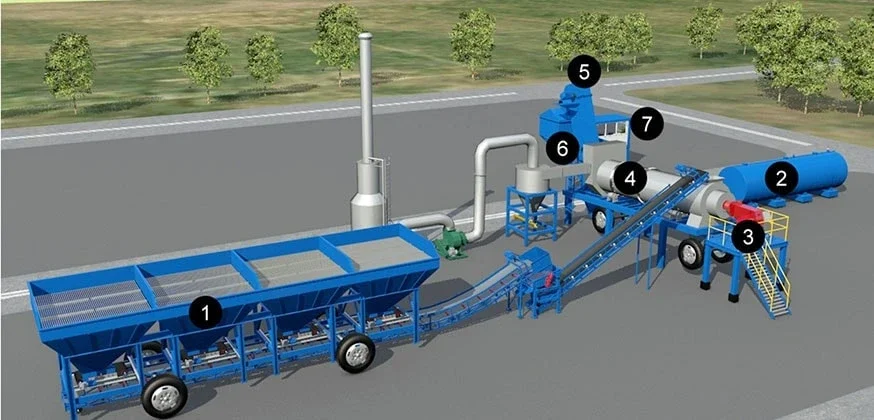

1. Cold aggregate feeder 2. Bitumen tank 3. Burner 4.Drying & mixing drum 5. Hot asphalt silo 6. Water dust filter 7.Control cabin
Technical Parameter
model | capacity | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||||
Aggregate | Bitumen | coal | oil | |||||
MDHB-40 | 40t/h | ±1.5% | ±1.1% | 75 | 10-13 | 5.5-7 | ||
MDHB-60 | 60t/h | ±1.5% | ±1.1% | 128 | 10-13 | 5.5-7 | ||
MDHB-80 | 80t/h | ±1.5% | ±1.1% | 165 | 10-13 | 5.5-7 | ||
MDHB-100 | 100t/h | ±1.5% | ±1.1% | 200 | 10-13 | 5.5-7 | ||
Detailed Information

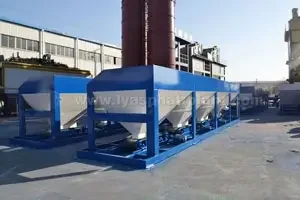

1.Aggregate batching system
Aggregate batching system main includes: batch hopper, feeding belt, collecting belt, vibrating screen and belt conveyor. There
are 4 batch hoppers carrying aggregates with different specifications to meet the gradation requirements of asphalt mixture. At the lower part of each batch hopper equipped with adjustable belt feeder, which can realize stepless speed regulation. The collecting belt under the hoppers will collect the aggregates and transfer them to the vibrating screen.
are 4 batch hoppers carrying aggregates with different specifications to meet the gradation requirements of asphalt mixture. At the lower part of each batch hopper equipped with adjustable belt feeder, which can realize stepless speed regulation. The collecting belt under the hoppers will collect the aggregates and transfer them to the vibrating screen.

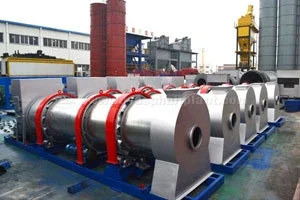

2.Drying & mixing system
Drying & mixing system consists of drying cylinders, combustion devices, and oil ignition system components, etc. Drying drum contains 4 carrier rollers, 2 rolling rings, 2 blocking wheels, a cylinder and shovel plates. The cylinder was supported by carrier rollers with its rolling rings and driven by the reduction gears stably and evenly.

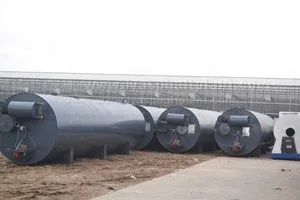

3.Bitumen supply system
The bitumen supply system is composed of bitumen tank, bitumen gear pump, pipes and bitumen spray tube. The gear pump is driven by the adjustable-speed motor and transfer the bitumen from bitumen tank to the drying drum for mixing process.
4.Dust Collecting System
The dust collecting system has two collecting levels, cyclone dust filter and water dust collector. The purified air flies up and
gets discharged from the chimney, while the dust mud sinks in the sedimentation basin thanks to the gravity.
gets discharged from the chimney, while the dust mud sinks in the sedimentation basin thanks to the gravity.

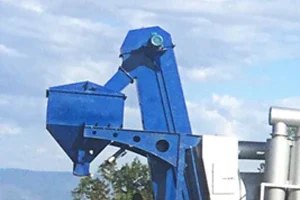

5.Finished product elevator
Finished product elevator has driving device, chains, chain wheels and a hopper. Its main function is to raise the finished
product up to the storage silo.
product up to the storage silo.
6.Finished product silo
Finished product silo is used to temporarily store the asphalt mixture before truck loading. It mainly includes stand columns,
storehouse, ladders, etc.
storehouse, ladders, etc.

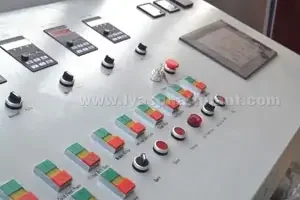

7.Electrical control system
The Electrical control system which adopts centralized control technology, is composed by distribution cabinets, control room and
other small auxiliaries. All the electrical components attached to the distribution cabinets are brand products, qualified and
durable.
other small auxiliaries. All the electrical components attached to the distribution cabinets are brand products, qualified and
durable.

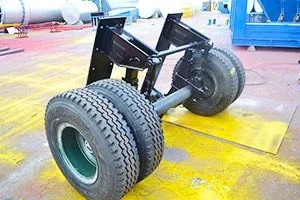

8.Mobile chassis
Mobile chassis and substructure can be added on the main components of DHB asphalt plant, making it a MDHB asphalt plant which is
portable and ease of relocation
portable and ease of relocation

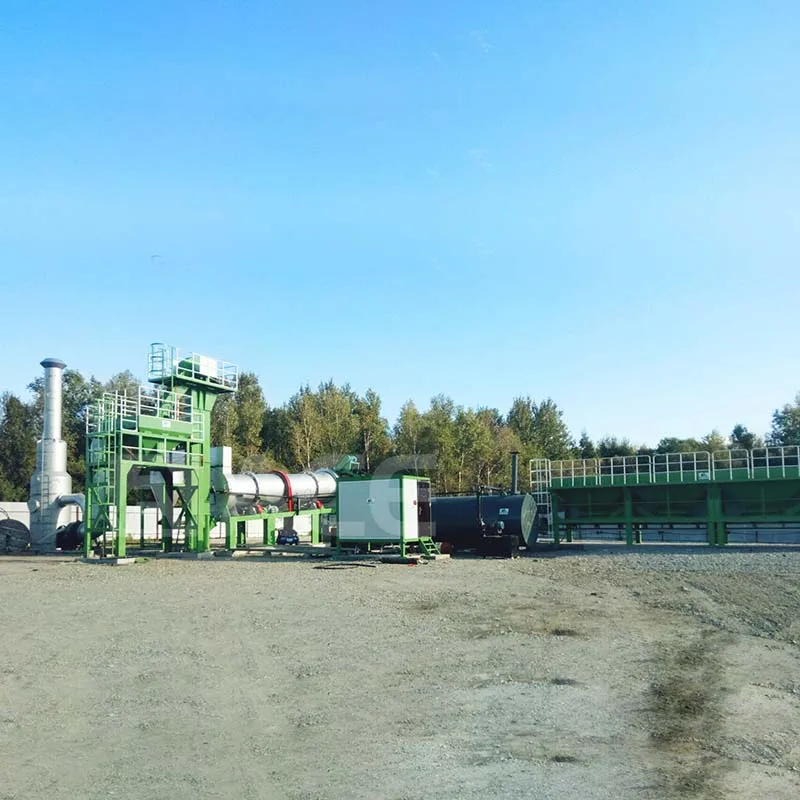

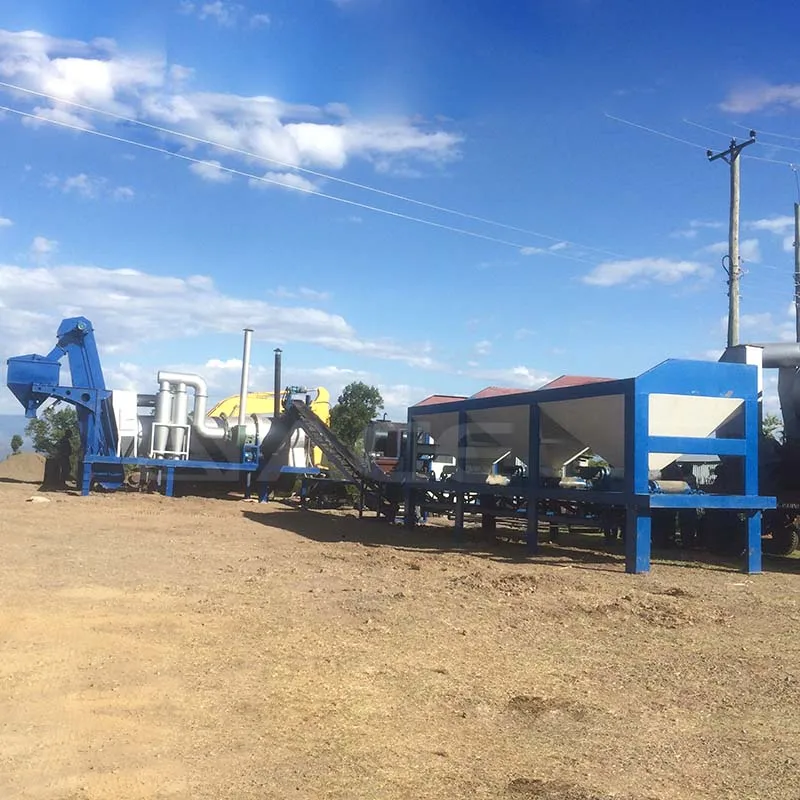

Delivery Photos
Hot Selling Products

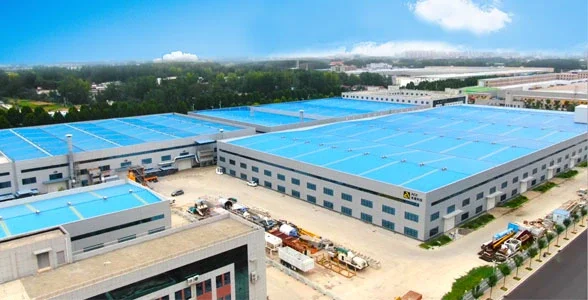

Factory Profile
ACE: as a professional building material production solutions provider, belongs to ACE Group (Asian Construction Equipment Group Co., Ltd.), has been committed to R&D, manufacture, and sales of asphalt mixing plants, concrete batching plants and other road construction machinery since 2004. More than 19 years' efforts make LYROAD Machinery a famous asphalt plant manufacturer worldwide.
Main Product: Batch mix, drum mix, mobile, portable, mini, hot recycling plants, concrete mixing plants and other road
construction machinery.
construction machinery.
Sales Achievement: Over 400 sets of mixing plants have been exported to 80 countries, such as Indonesia, Pakistan, Thailand,Myanmar, Malaysia, Philippines, Singapore, Bangladesh, Sri Lanka, Australia, Russia, Kazakhstan, Uzbekistan, Saudi Arabia,Nigeria, Kenya, Ethiopia, Tanzania, Cambodia, Kyrgyzstan, Chile, Zambia, Ukraine, Uganda, Sudan, Nicaragua, Mozambique, Morocco,Mongolia, Costa Rica, D.R. Congo, Angola, Egypt......
Ultra-mobile Asphalt Plant Assembly Workshop
Workshop for Concrete Plant, WMM Plant Production
Workshop for Road Maintenance Machinery Production
Construction Case
LB1500,Batch Mix,Malaysia,120t/h.Trial running in late 2017. The two-stage dust filtration system, humidity mixer equipped at the bottom of filler silo, ability to produce polymer modified bitumen and emulsified bitumen, are the light spots of this equipment
ELB1000,Batch Mix, Australia, 80t/h.Minimal dust emission (less than 20mg/Nm³ ) achieved by using an enclosed mixing tower, diesel burner,two-stage dust filter. A wear-resistant and noise-reduction device is adopted to make working noise less than 70db(A)
YLB700,Mobile, Ethiopia, 60t/h. Most road projects in Ethiopia are of a long routine and project sites need frequent relocation, the mobilization
performance of YLB700 completely caters to the geological condition.The final mix satisfies variable needs
performance of YLB700 completely caters to the geological condition.The final mix satisfies variable needs
DHB80,Drum Mix, Peru, 80t/h.
Erected in November 2017, the plant featured with continuous production has brought a profitable return to its owner, far beyond the investment cost. lt's a really fantastic chance to gain great benefits via the plants this moment.
Erected in November 2017, the plant featured with continuous production has brought a profitable return to its owner, far beyond the investment cost. lt's a really fantastic chance to gain great benefits via the plants this moment.
LB3000,Stationary,Uzbekistan,240t/h.
Large productivity and high-quality final mix make it ideal equipment for highway construction and large-scale pavement projects.Extra heat insulation cover on bitumen tanks and pipes is added to reduce heat loss
LB1500,Stationary, Algeria,120t/h.The plant was completely finished and shipped to Algeria in November 2012.One year later, in February 2014, the Algerian client placed another order for our HZS concrete mixing plant.Both the plants are working quite well now
Certificate
80+ Countries Presence
400+ Mixing Plants Exported
22 Utility Patents
10 Design Patents
CE , ISO , EAC Certified
CCMA Director
Q: How to heat the asphalt?
A1: It's heated by heat conducting oil furnace and direct heating asphalt tank.
Q: How about the difference between a direct heat asphalt tank and a thermal oil asphalt tank?
A2: Direct heat asphalt tank belongs to the ordinary tank, with no heat conduction oil system, and the price is relatively
cheap,which is also called “tank in a tank”. Asphalt is heated by the small tank inside the tank, without any heat conduction oil system. Heat-conducting oil furnace type asphalt tank used an oil heat-conducting oil system, and coiled tubing for high heating speed, and all the oil can be pumped clean.
A2: Direct heat asphalt tank belongs to the ordinary tank, with no heat conduction oil system, and the price is relatively
cheap,which is also called “tank in a tank”. Asphalt is heated by the small tank inside the tank, without any heat conduction oil system. Heat-conducting oil furnace type asphalt tank used an oil heat-conducting oil system, and coiled tubing for high heating speed, and all the oil can be pumped clean.
Q: How to choose the right machine for project?
A3: According to the capacity require per day, need to work how many days, how long destination site, etc.Engineers online will provide service to help you choose the right model also.
A3: According to the capacity require per day, need to work how many days, how long destination site, etc.Engineers online will provide service to help you choose the right model also.
Q: What is the delivery time?
A4: 20-40 days after receiving advance payment.
A4: 20-40 days after receiving advance payment.
Q: What are the payment terms?
A5: T/T, L/C, Credit card (for spare parts) are all accept.
A5: T/T, L/C, Credit card (for spare parts) are all accept.
Q: What kind of trade terms available from your side?
A. We can deal by EXW, FCA, FOB, CFR, DAP. CIF, DDP. etc.
Q: How to guarantee the trade safety if I made the payment?
A. We can deal on Alibaba by trade assurance order, so that both parties can be guaranteed.
Q: What's your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing,promotion, product development/improvements, service training, advertising, etc.
Q: If I have other questions, whom should I ask?
A. You can contact us here online, our sales will respond within 10 mins.
A. We can deal by EXW, FCA, FOB, CFR, DAP. CIF, DDP. etc.
Q: How to guarantee the trade safety if I made the payment?
A. We can deal on Alibaba by trade assurance order, so that both parties can be guaranteed.
Q: What's your supportive policy for distributors in overseas market?
A. We support in many aspects including marketing,promotion, product development/improvements, service training, advertising, etc.
Q: If I have other questions, whom should I ask?
A. You can contact us here online, our sales will respond within 10 mins.
