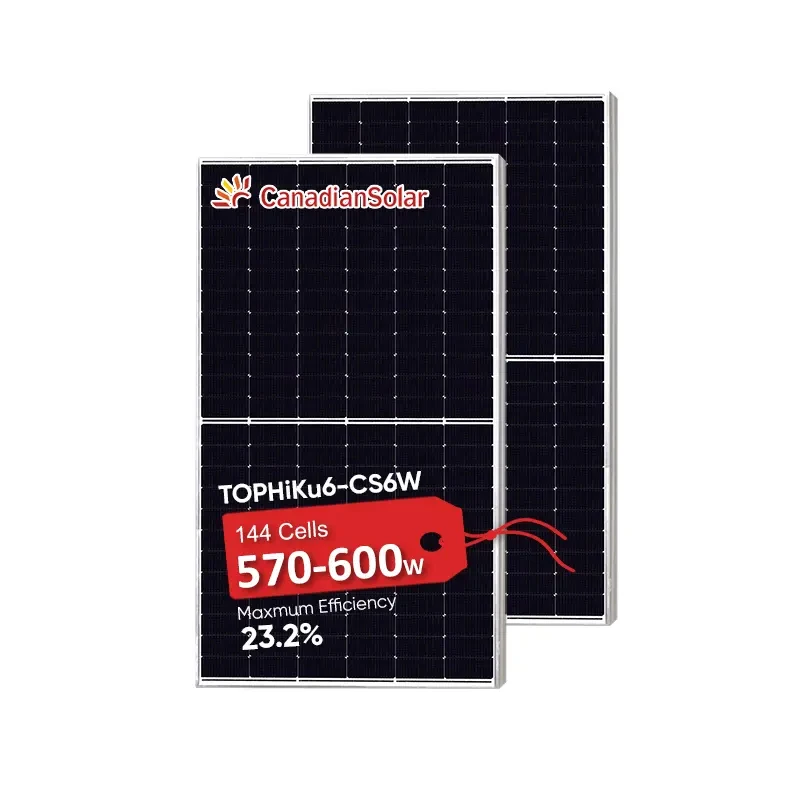

Canadian PV 585W TOPHiKu6 CS6W 144cells N type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system
Canadian PV 585W TOPHiKu6 CS6W 144cells N-type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system

Canadian PV 585W TOPHiKu6 CS6W 144cells N type TOPCon Solar Panels 565W 570W 575W 580W PV Panels for power system

Share on (1601250864156):


Price:$50.00 - $66.00

Quantity:


Product Overview

Description



Products Description

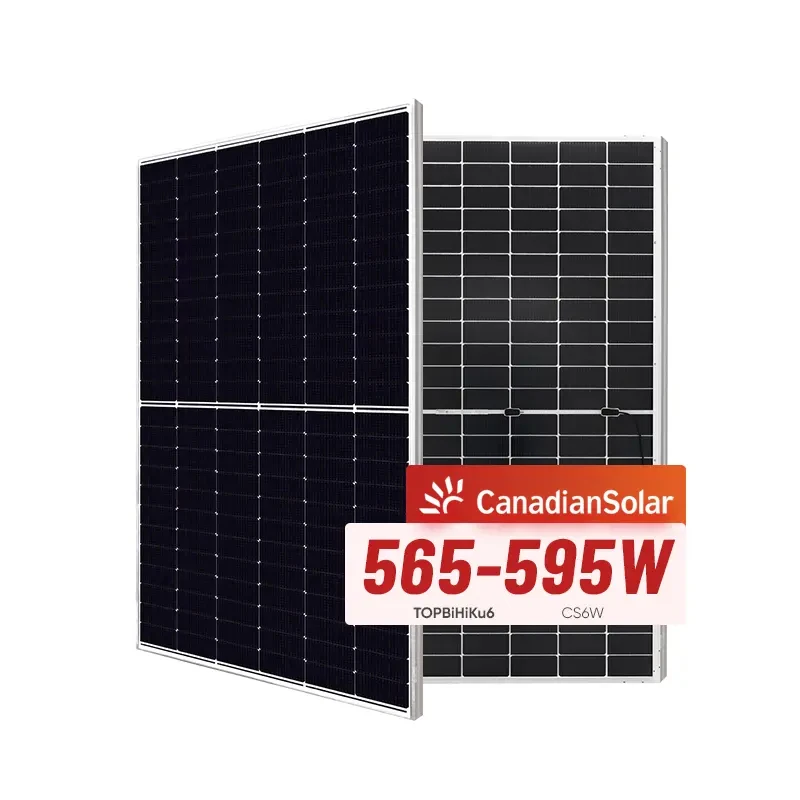

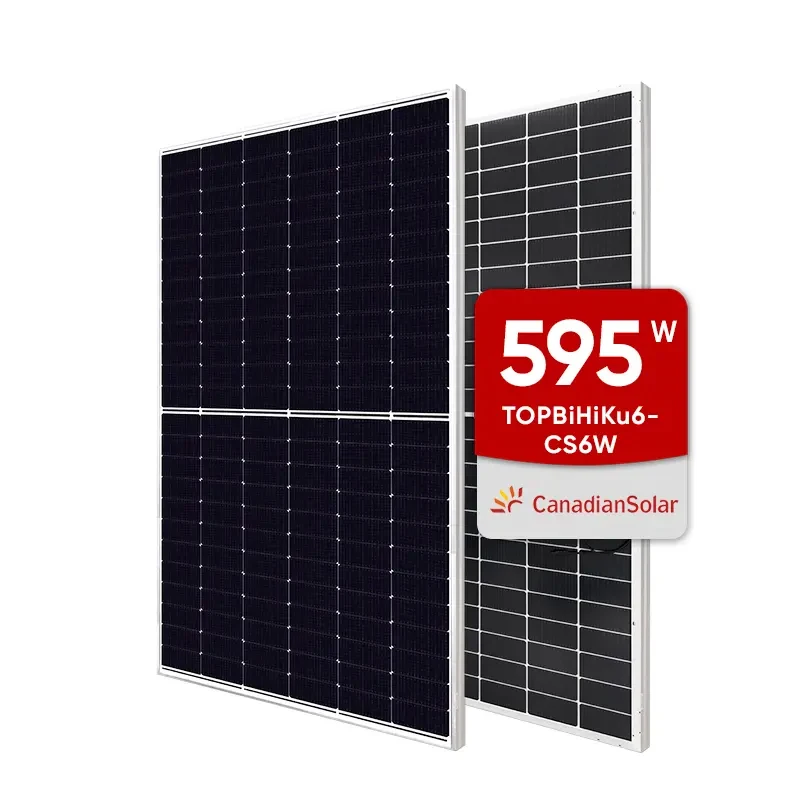

Canadian N-Type TOPCon

TOPBiHiKu6 CS6W 565-595W-TB-AG

High Efficiency to 23%

565W-595W





1.  Module power up to 580 W
Module efficiency up to 22.5 %

2. Excellent anti-LeTID & anti-PID performance.
Low power degradation, high energy yield

3. Lower temperature coefficient (Pmax): -0.29%/°C, increases energy yield in hot climate

4. Lower LCOE & system cost





Product Paramenters


ELECTRICAL DATA | STC*
CS6W
560T
565T
570T
575T
580T
Nominal Max. Power (Pmax)
560 W
565 W
570 W
575 W
580 W
Opt. Operating Voltage (Vmp)
42.3 V
42.5 V
42.7 V
42.9 V
43.1 V
Opt. Operating Current (Imp)
13.24 A
13.30 A
13.35 A
13.41 A
13.46 A
Open Circuit Voltage (Voc)
51.4 V
51.6 V

51.8 V
52.0 V
52.2 V
Short Circuit Current (Isc)
13.69 A
13.75 A
13.81 A
13.88 A
13.93 A
Module Efficiency
21.7%
21.9%
22.1%
22.3%
22.5%
Operating Temperature
-40°C ~ +85°C




Max. System Voltage
1500V (IEC/UL) or 1000V (IEC/UL)




Module Fire Performance
TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730
1000V) or CLASS C (IEC 61730)




Max. Series Fuse Rating
25 A




Application Classification
Class A




Power Tolerance
0 ~ + 10 W




* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe
rature of 25°C.





ELECTRICAL DATA | NMOT*





Nominal Max. Power (Pmax)
424 W
427 W
431 W
435 W
439 W
Opt. Operating Voltage (Vmp)
40.0 V
40.2 V
40.4 V
40.6 V
40.7 V
Opt. Operating Current (Imp)
10.59 A
10.64 A
10.68 A
10.72 A
10.77 A
Open Circuit Voltage (Voc)
48.7 V
48.9 V
49.0 V
49.2 V
49.4 V
Short Circuit Current (Isc)
11.04 A
11.09 A
11.14 A
11.19 A
11.23 A
* Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5,
ambient temperature 20°C, wind speed 1 m/s.

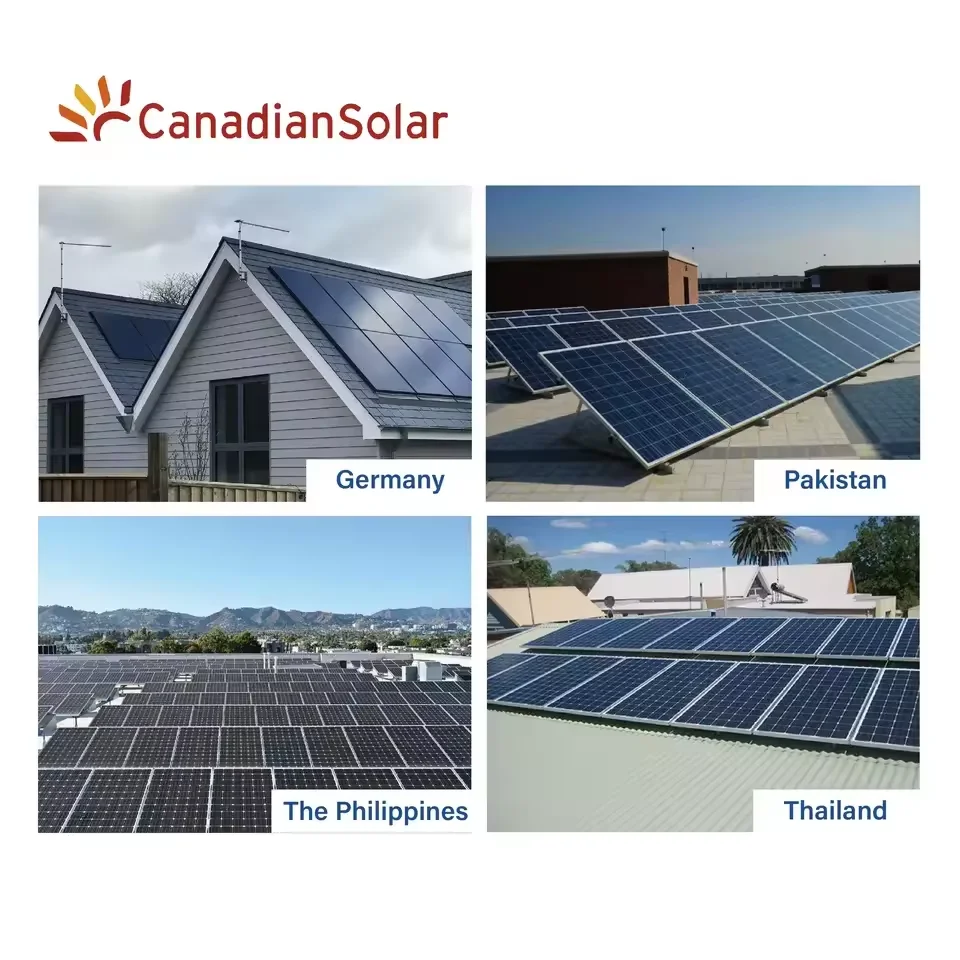

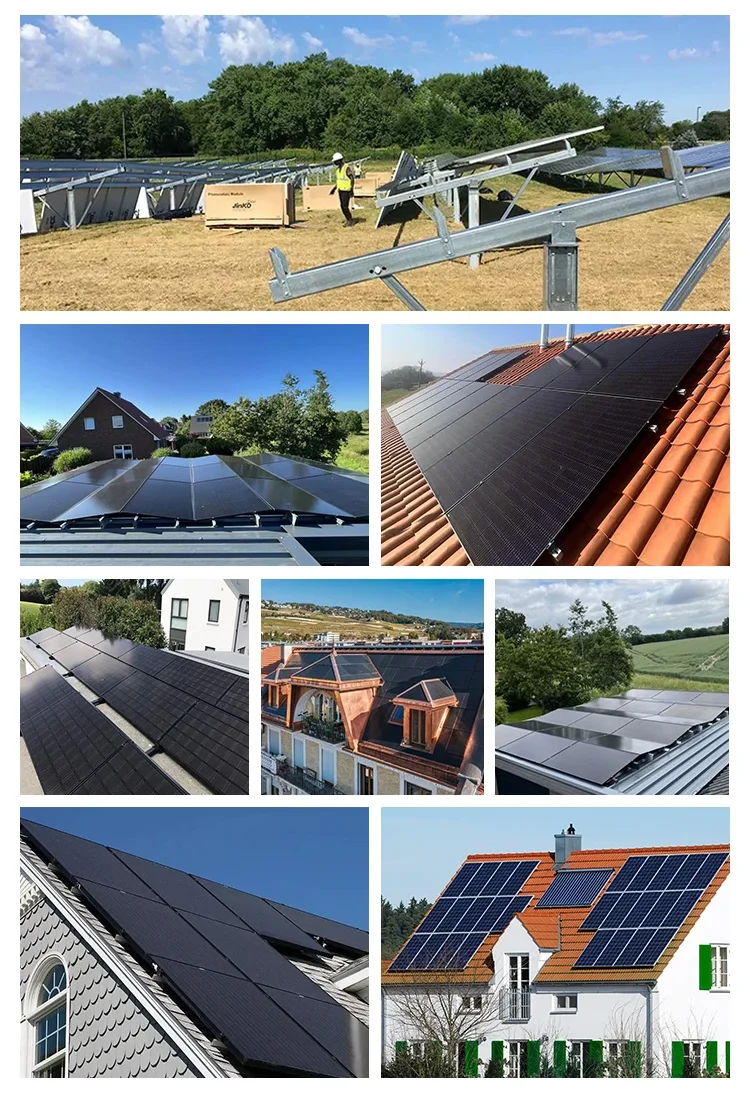

Project Case

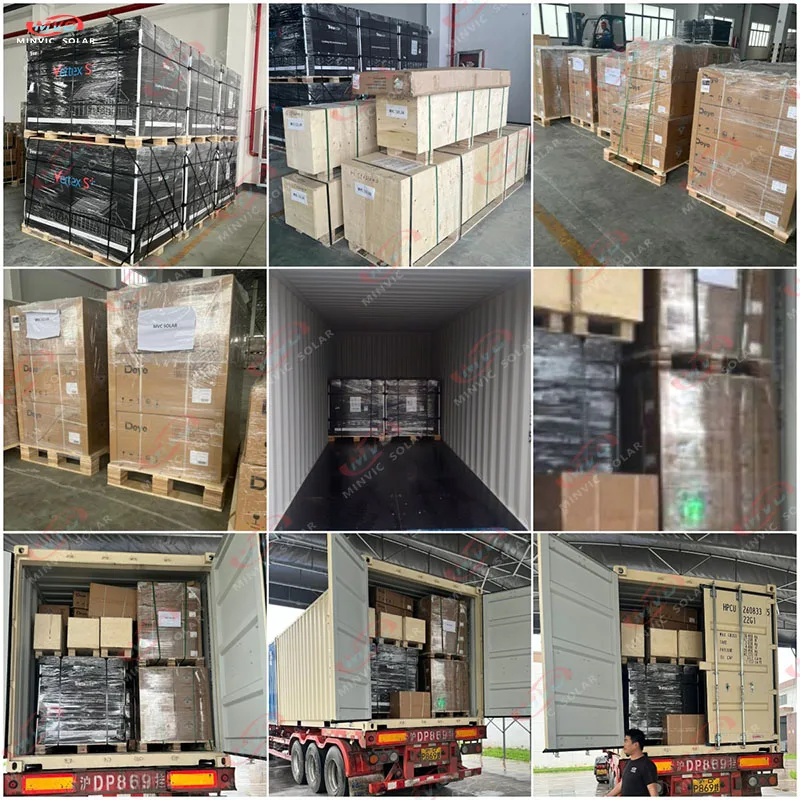

Product packaging
