Product Overview
Description

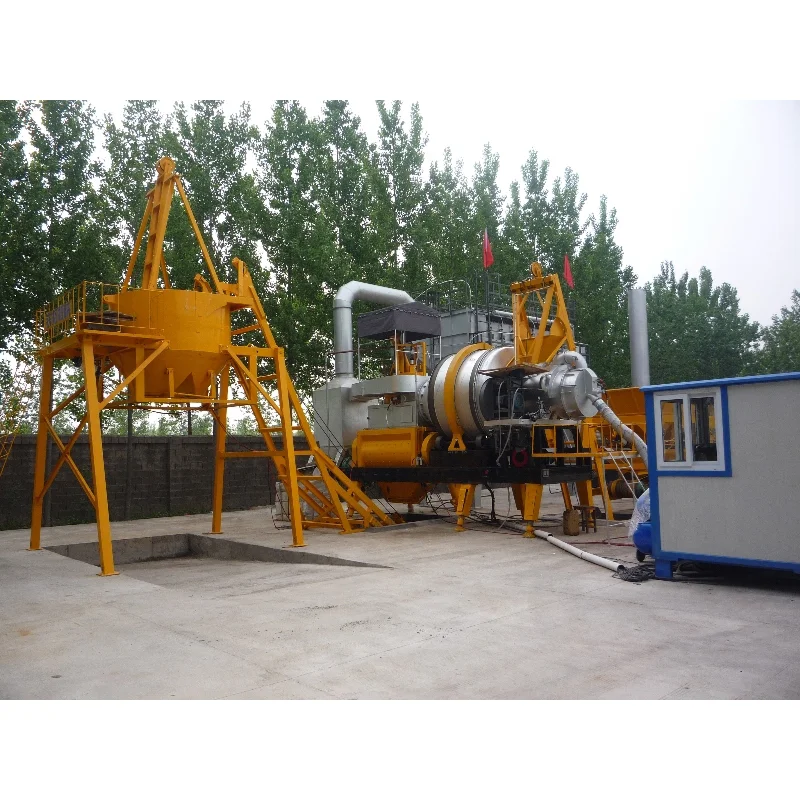

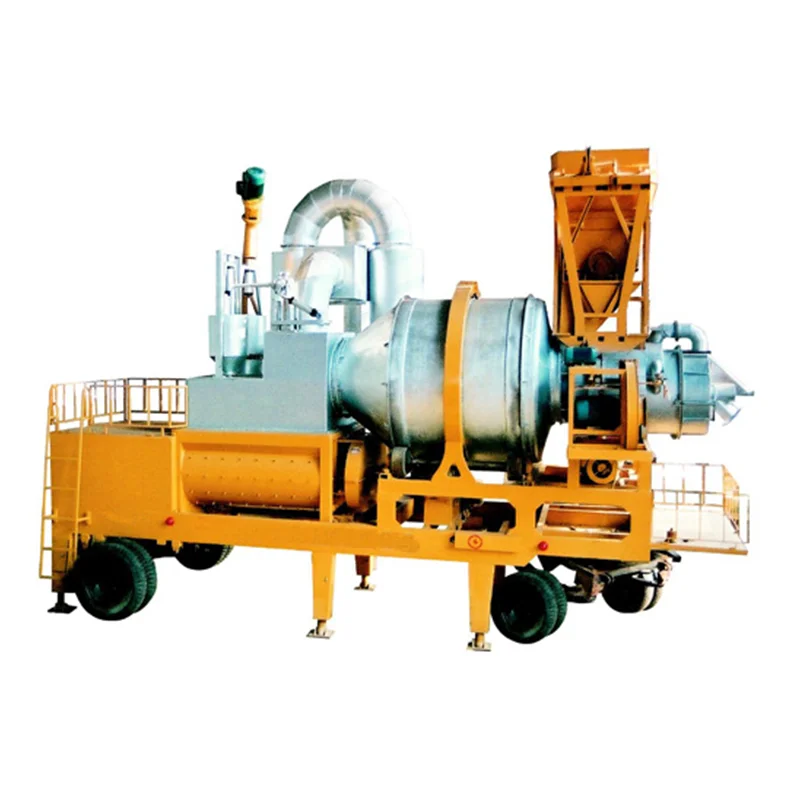

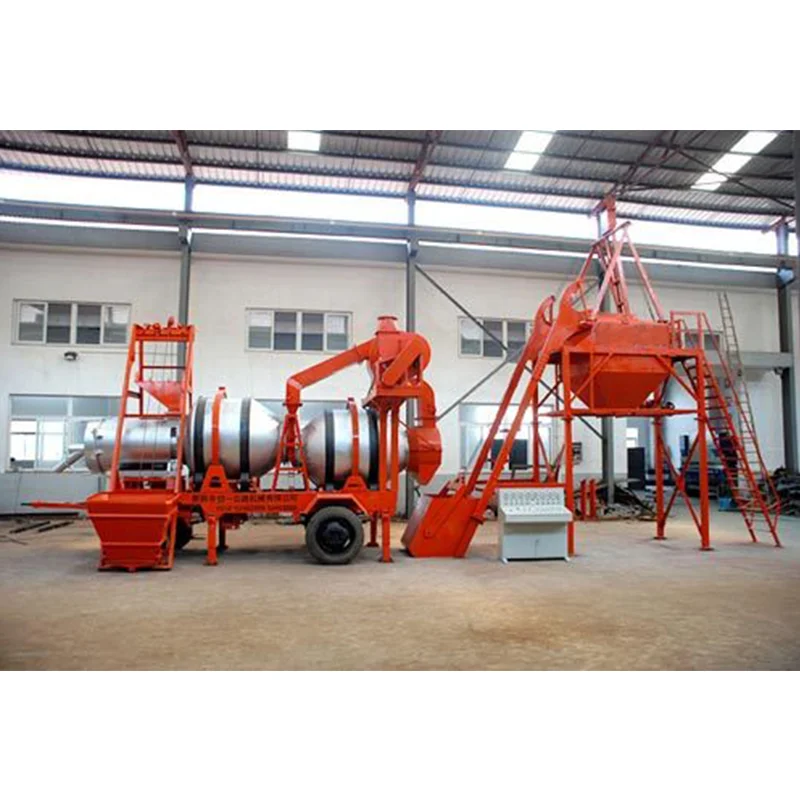

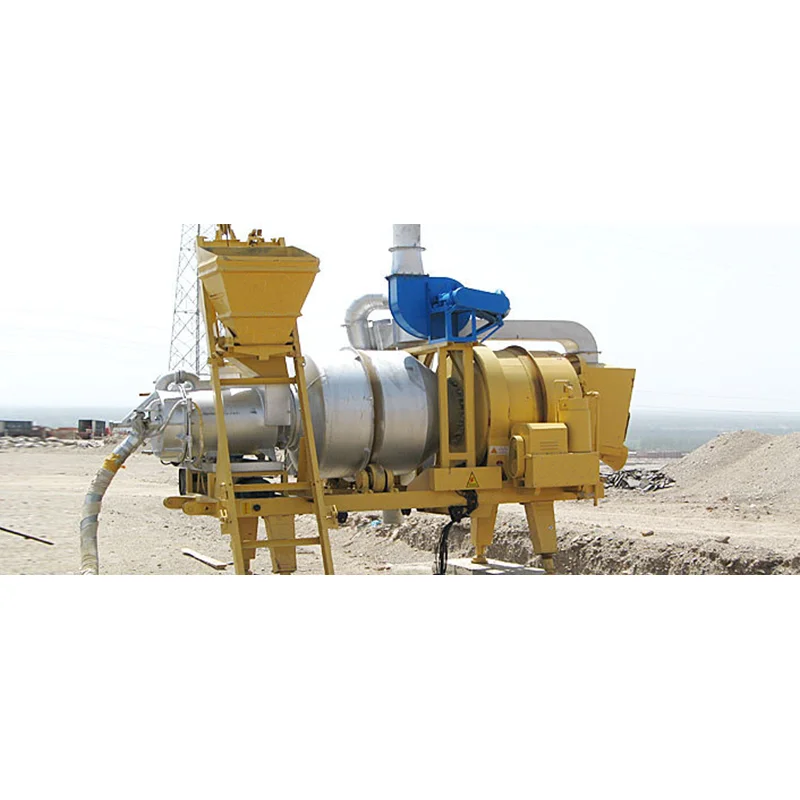

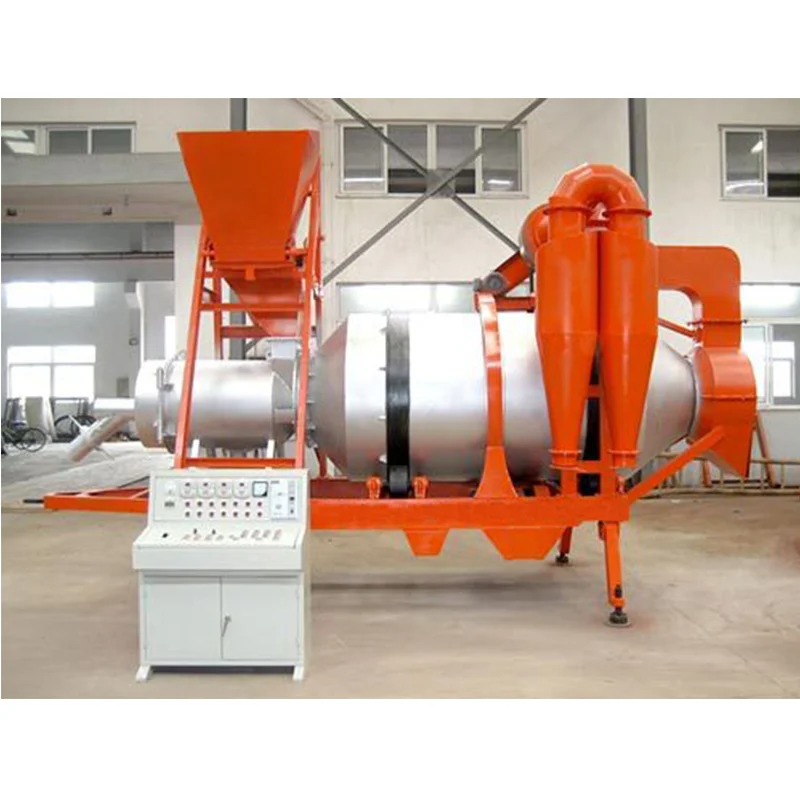

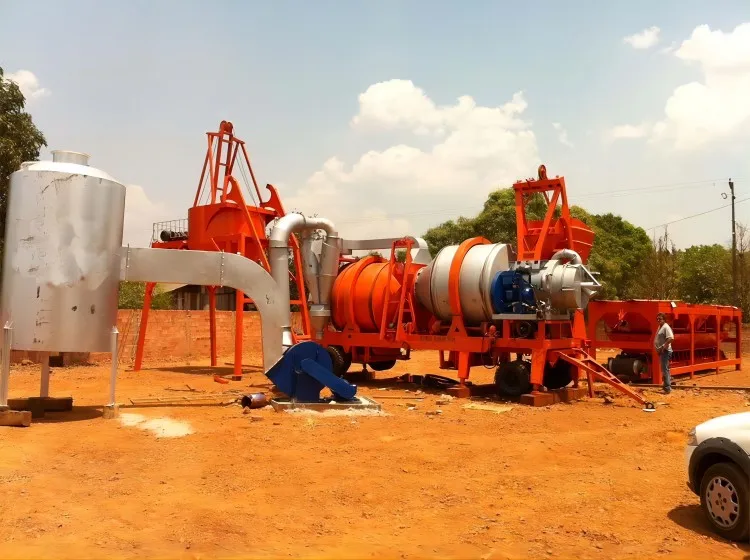

Movable Hot Mixing Forced Asphalt Batching Plant Mobile Asphalnt Station
Product Description
mobile asphalt station is a kind of equipment that mixes stone, asphalt and mineral powder according to a certain proportion to produce asphalt mixture. Compared with the stationary asphalt mixing plant, the unique walking system makes the transition more convenient.
The components and workflow of a mobile asphalt station are basically the same as those of a stationary asphalt mixing plant.
Product Composition
Working Principle
First, use the loader to load the cold aggregates of different specifications into the collecting hopper respectively. After the primary weighing, the qualified materials are transported by the belt conveyor to the drum dryer for heating and drying.
During the drying process, the dust and moisture contained in the cold aggregate are sucked into the bag dust collector.
The hot aggregate heated by the drum dryer passes through the hoist to the vibrating screening system above the mixing building. They are screened into different specifications by the vibrating screen, and then respectively enter the storage hopper below. Afterwards, according to different ratios, they are put into the weighing device in turn and re-weighed.
The mineral powder is transported to the temporary storage hopper through the powder elevator, and then to the weighing device for weighing. At the same time, the bitumen is sent to the bitumen metering device through the pipeline for weighing.
Later, put the weighed aggregate, mineral powder and asphalt into the twin-shaft mixer in turn for mixing. When the specified time is reached, open the discharge door of the mixer. And put the evenly stirred mixture into the finished product warehouse. Finally, the mixture is put into the dump truck and transported to the construction site.
During the drying process, the dust and moisture contained in the cold aggregate are sucked into the bag dust collector.
The hot aggregate heated by the drum dryer passes through the hoist to the vibrating screening system above the mixing building. They are screened into different specifications by the vibrating screen, and then respectively enter the storage hopper below. Afterwards, according to different ratios, they are put into the weighing device in turn and re-weighed.
The mineral powder is transported to the temporary storage hopper through the powder elevator, and then to the weighing device for weighing. At the same time, the bitumen is sent to the bitumen metering device through the pipeline for weighing.
Later, put the weighed aggregate, mineral powder and asphalt into the twin-shaft mixer in turn for mixing. When the specified time is reached, open the discharge door of the mixer. And put the evenly stirred mixture into the finished product warehouse. Finally, the mixture is put into the dump truck and transported to the construction site.
Specification
| Model | LQY-10 | LQY-15 | LQY-20 | LQY-30 | LQY-40 | |
| Capacity(t/h) | 10 | 15 | 20 | 30 | 40 | |
| Total Power(kw) | Diesel | 41.5 | 54 | 63.5 | 104.5 | 125 |
| Coal | 57.5 | 75 | 86.5 | 127.5 | 169 | |
| Aggregate Batching Machine | 3m3 * 3 | 3m3 * 3 | 3m3 * 3 | 3m3 * 3 | 3m3 * 3 | |
| Finished Product Bin(ton) | 3 | 5 | 5 | 9 | 9 | |
| Feed Hopper Capacity(kg) | 500 | 750 | 1000 | 1500 | 1800 | |
| Dryer Rotation Speed(r/min) | 18 | 18 | 16 | 16 | 16 | |
| Finished Product Temperature(ºC) | 120-180, adjustable | |||||
| Fuel Consumption | Diesel | 5-7.5kg/t | ||||
| Coal | 13-15kg/t | |||||
| Working Cycle | 3 minutes, 20 batches per hour | |||||
Features
1. The mobile asphalt station is compact and integrates a complete set of equipment for asphalt concrete production on several trailer units.
2. The human-machine operation interface is simple and clear, the operation is stable and reliable, and the mobile asphalt station is suitable for various harsh environments.
3. The design of the whole mobile asphalt station equipment complies with environmental protection requirements and has excellent mobile performance.
4. The mobile asphalt station uses a twin-shaft forced mixer, which has strong continuous working ability, uniform and fast mixing, and is particularly convenient for road reconstruction and maintenance.
Application
Because the mobile asphalt station adopts a forced mixer, the cold aggregate and asphalt can be fully mixed, so the quality of the finished product is relatively good. The finished product of mobile asphalt station is usually used to build expressways and airport roads with strict quality requirements. The mobile asphalt station has the characteristics of high degree of automation, high finished product specifications, and convenient transportation.
Recommended Products
Packaging & Shipping
mobile asphalt station is designed with modular structure, which is suitable for container transportation.
